3UP Energy
1 / 5
| Item | Model | Description | 20kw | 30KW | 50KW |
|---|---|---|---|---|---|
| 1 | Solar Panel | Half Cell mono | 40PCS | 60pcs | 90PCS |
| 2 | Combiner Box | Customized | 2Set | 1 pc | 2 PCS |
| 3 | Lithium Battery | Lithium battery racks, BMS | 2PCS 260Ah/96V | 32PCS 12V/200AH | 1set 53.76kwh |

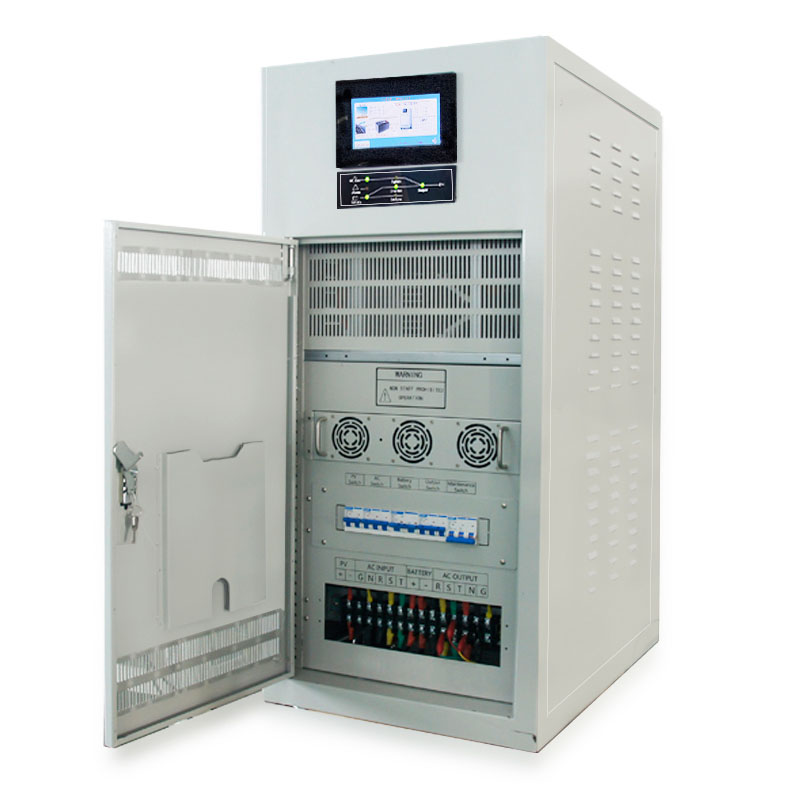

| 4 | Hybrid Inverter | 380/400/415V 50HZ | 20kw Grid inverter | 30kw Three Phase | 50KW grid hybrid |
| 5 | Mounting | Roof/Ground | 2Pcs | 1 set | 1 set |
| 6 | Cable | 4mm² PV cable | 100M | 200M | 300M |
| Load Name | Watt | Qty | Total Watt |
|---|---|---|---|
| Lights | 11w | 30 | 330w |
| Fan | 80w | 4 | 320w |
| Computer | 150w | 2 | 300w |
| Printer | 250w | 2 | 500w |
| Refrigerator | 180w | 2 | 360w |
| Washing Machine | 300w | 2 | 600w |
| Electric Stove | 1000w | 2 | 2000w |
| Microwave | 1500w | 2 | 3000w |
| Air Conditioner (3HP) | 2250w | 1 | 2250w |
How much power can a 30kW solar system produce?
A 30kW solar system's production depends on sunlight, location, and weather. On average, it can produce 120 to 150 kWh per day. Cloudy days or poor weather will reduce the output.
How many solar panels do I need for a 30kW system?
If assuming 500W panels, you would need approximately 60 panels. If using 600W panels, you would need around 50 panels. Configuration depends on available space and mounting constraints.
Is a 30kW solar system enough?
For residential properties with high consumption, it covers a significant portion. For businesses, sufficiency depends on heavy equipment usage and operational patterns. It is essential to assess specific power consumption before installation.
| Warranty | 25 Years Life Time |
| Place of Origin | China |
| Application | Home, Commercial, Industrial |
| Solar Panel Type | Monocrystalline Silicon |
| Output Voltage | 220V |
| Certificate | CE ROHS |
