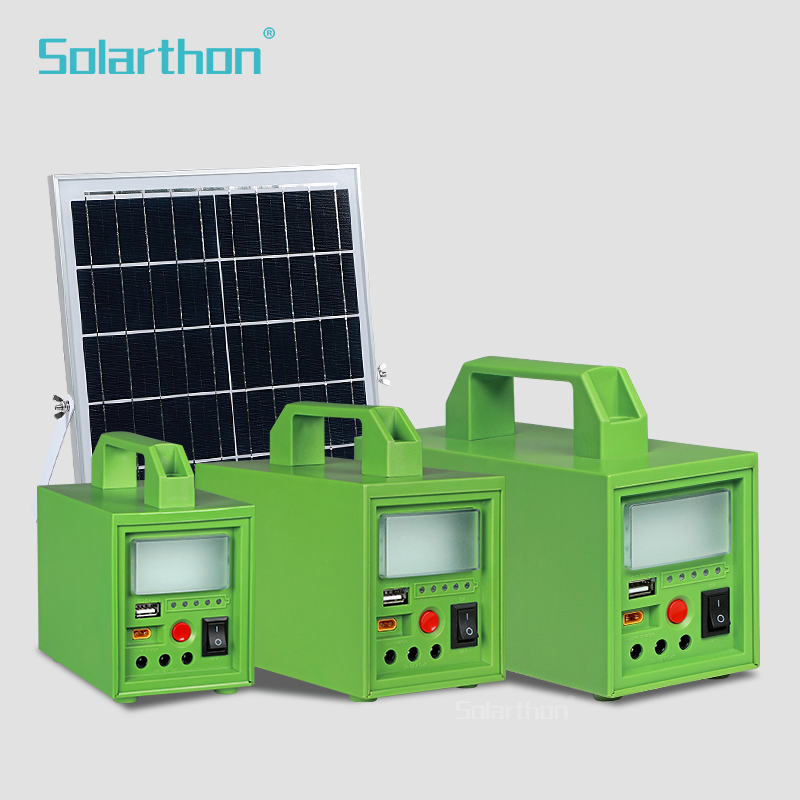

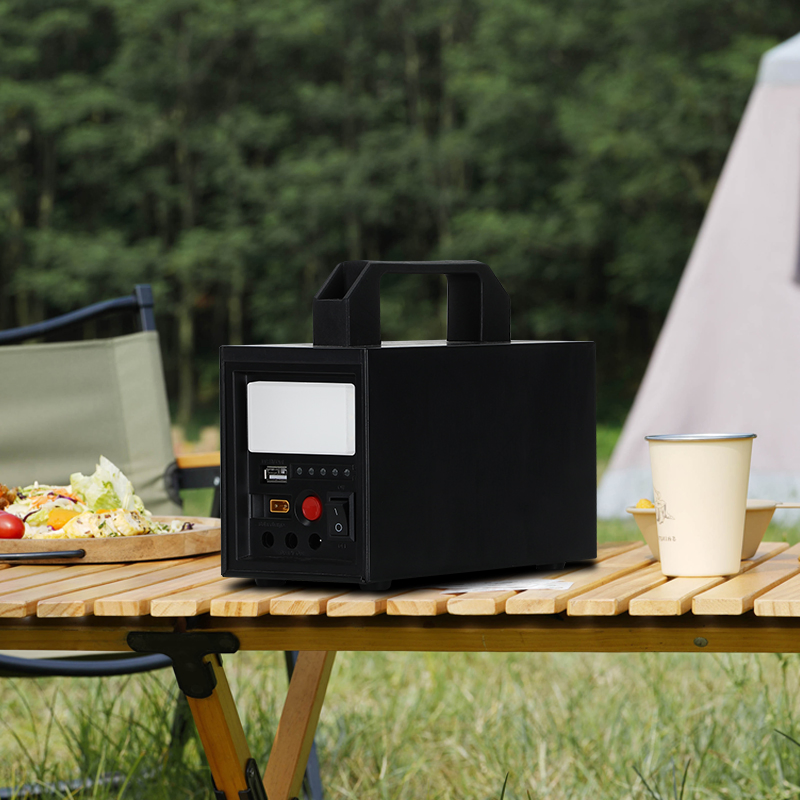

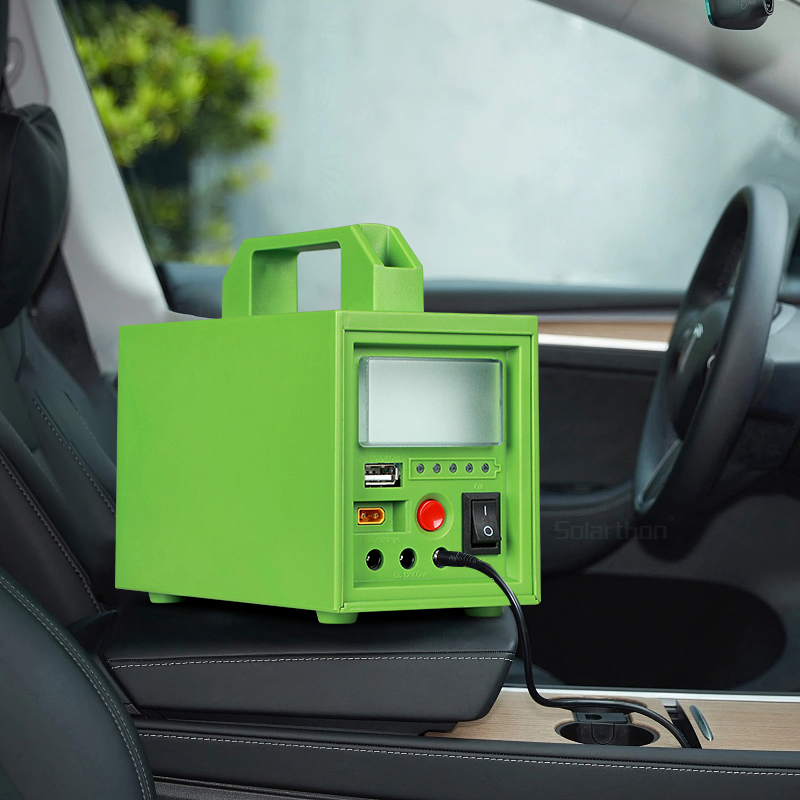

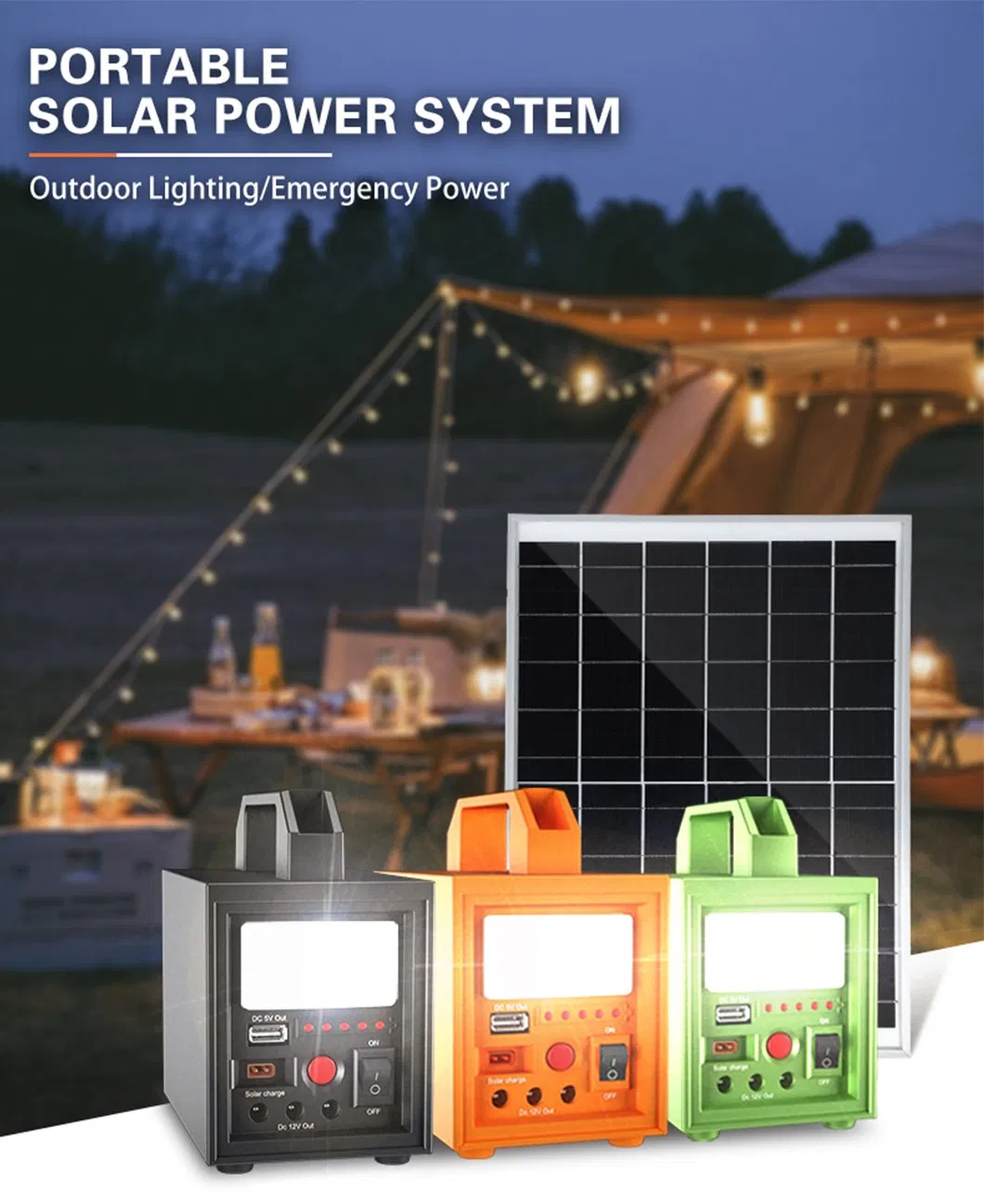

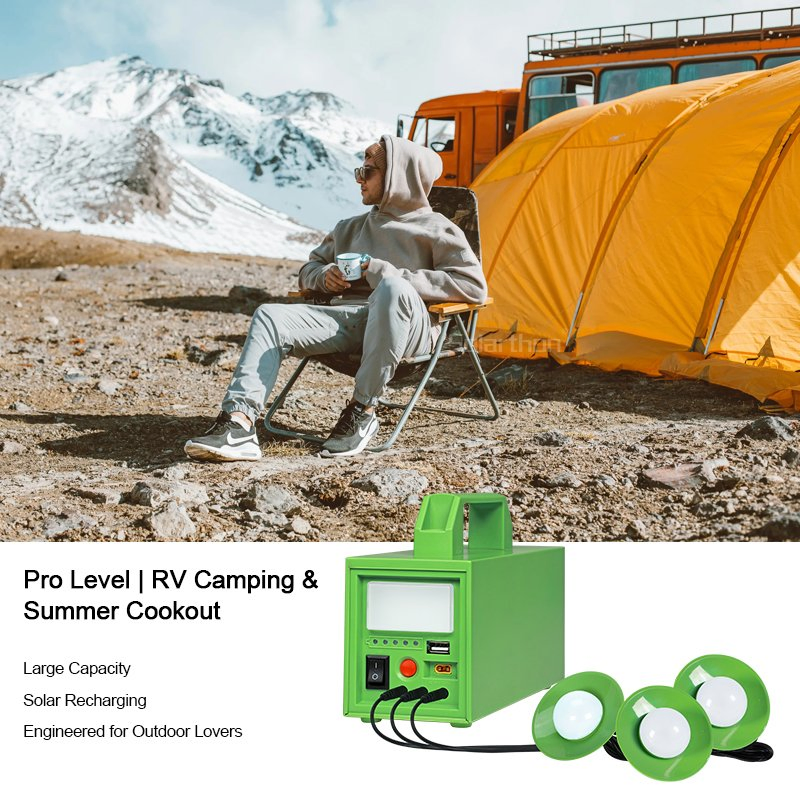

LED solar home lighting system is an off-grid solar generator designed to provide stable and reliable power to homes and communities or areas without access to grid power.

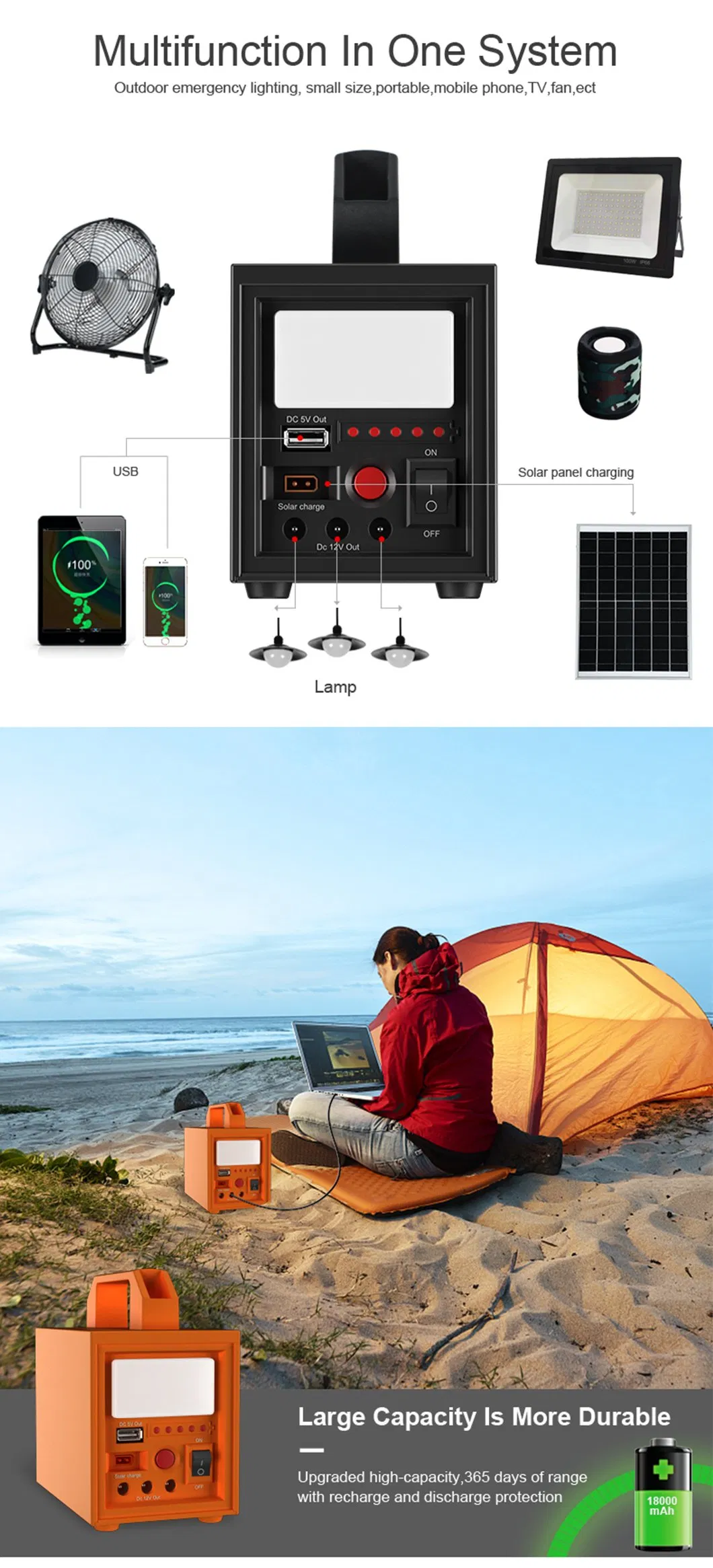

The small solar system is characterized by convenient movement, easy installation, and reliable performance, which is very suitable for situations requiring emergency power. It is the ideal, reliable energy source for many applications such as lighting, radios, fans, TVs, computers, and refrigerators. The USB port is compatible with all 5V-USB charging devices. It can also be used as a backup power source in emergency situations.

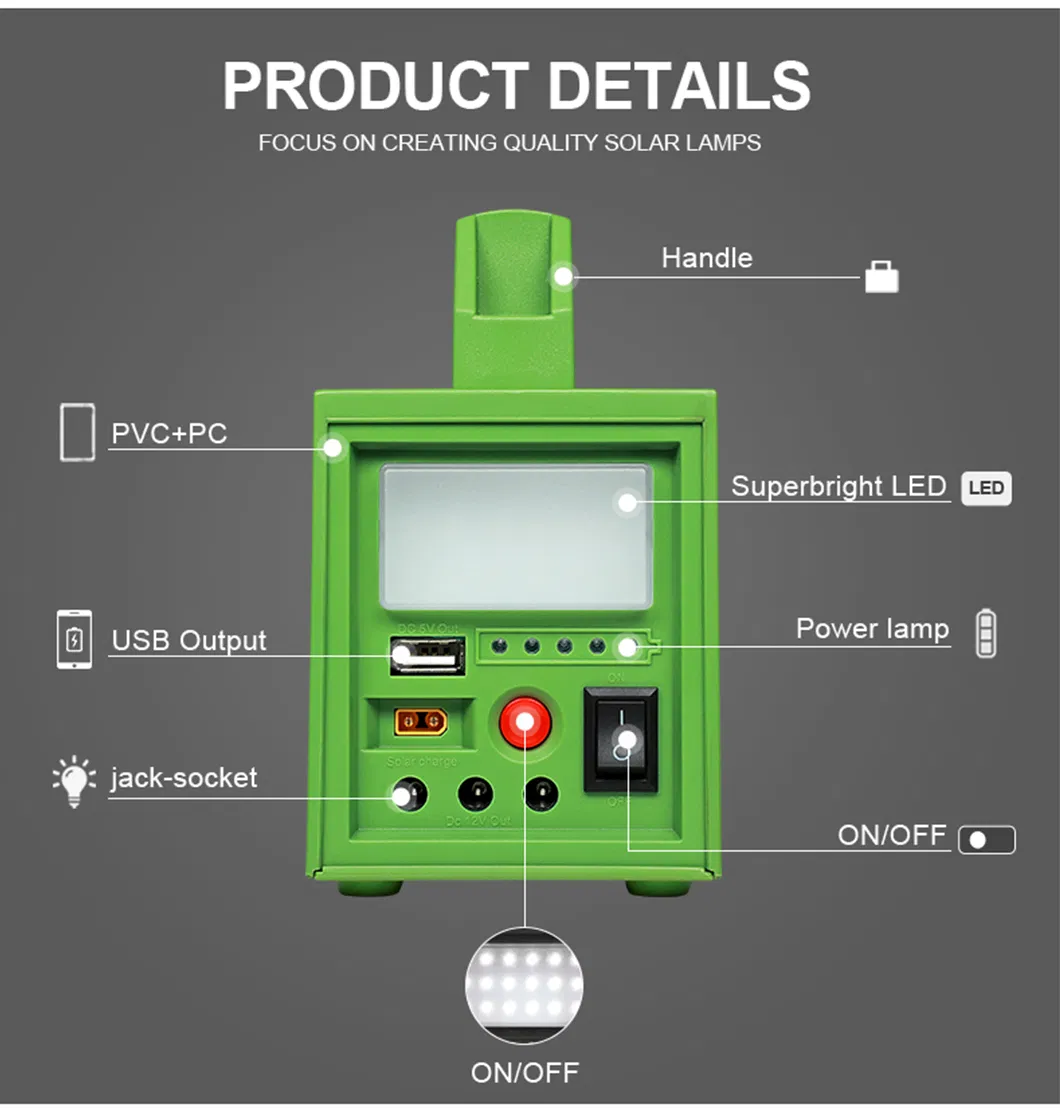

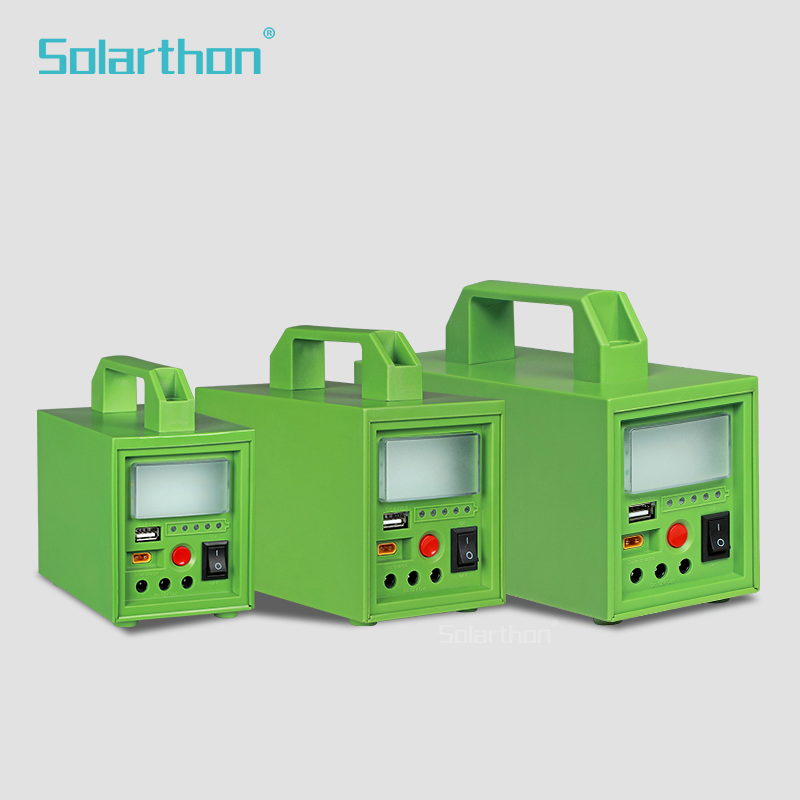

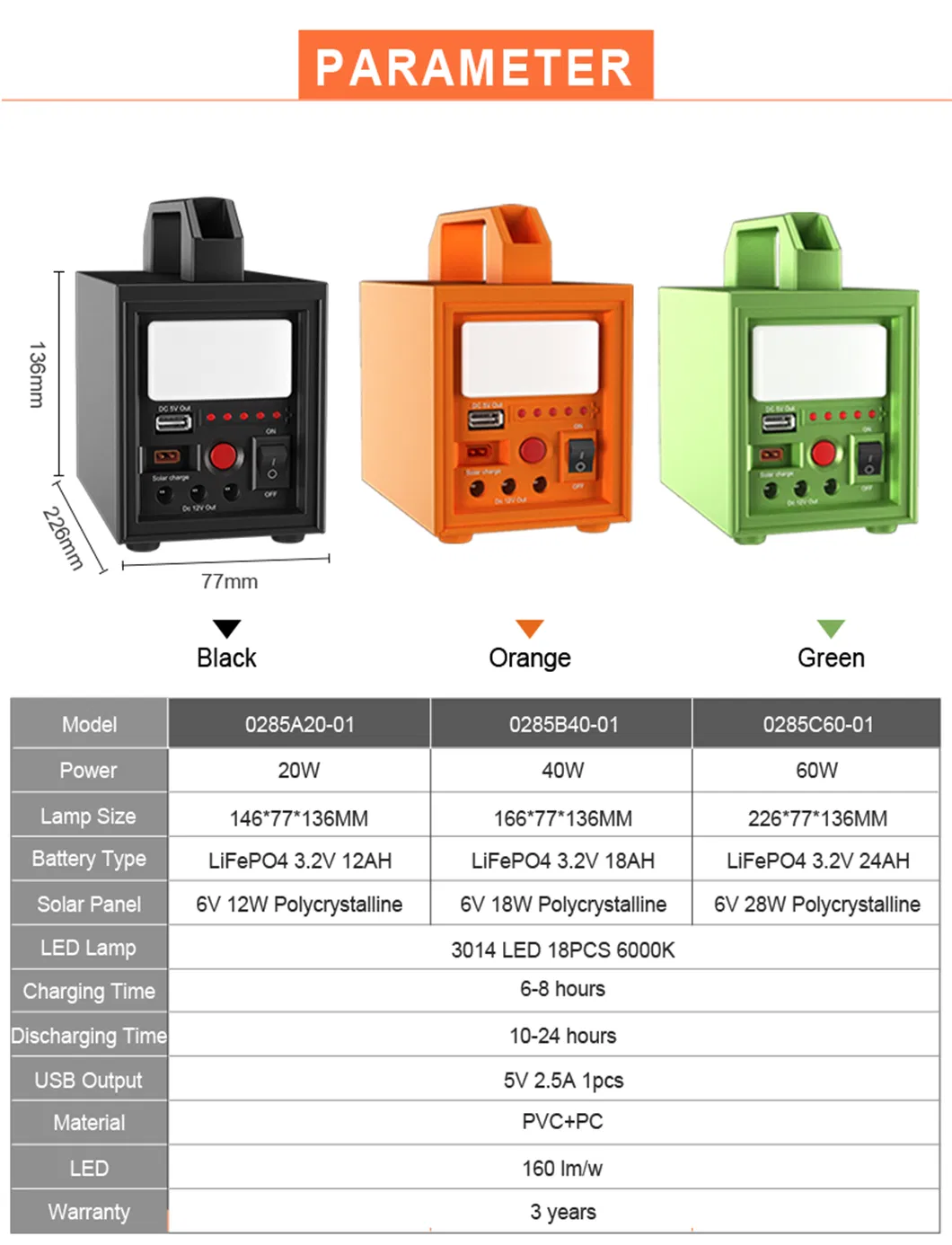

| Item No. | 0285A20-01 | 0285B40-01 | 0285C60-01 |
| Power | 20W | 40W | 60W |
| LED Lamp | 3014 LED 18PCS 6000K | 3014 LED 18PCS 6000K | 3014 LED 18PCS 6000K |
| LED Lamp | 5730 LED 36PCS 6000K | 5730 LED 36PCS 6000K | 5730 LED 36PCS 6000K |
| Lamp Size | 146*77*136mm (System Host) | 166*77*136 (System Host) | 226*77*136 (System Host) |
| Solar Panel | 6V 12W, Polycrystalline | 6V 18W, Polycrystalline | 6V 28W, Polycrystalline |
| Battery Type | LiFePO4 3.2V 12AH | LiFePO4 3.2V 18AH | LiFePO4 3.2V 24AH |
| USB Output | 5V 2.5A 1pcs | ||
| Charging time | 6-8 hours | ||
| Discharging time | 10-24 hours | ||
| Lumen | 160lm/w | ||
| Material | PVC+PC | ||
Yes, All are true pure sine wave.
Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.
Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, environmental-friendly and appliances protected. Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air condition, refrigerator and etc. Certain motor control circuits don't like the modified wave.
Our inverter can be used in household, Office, agricultural appliances and other inductive load such as refrigerator, air conditioner, water pump, etc.
Actually, no. This is the only component of a solar energy system that is not absolutely required. However, if you don't use one, you will not have 220 or 230 volts AC and will have use battery power alone. This might be acceptable in a small RV or cabin, but most people want to use normal AC appliances.
If any product is faulty, you can send the picture or video to us, we will study it and supply the spare parts of PCB board free for after sale service.
