| Type | Open Size | Folded Size | Total Area (㎡) | Loading Qty (40'OT) |
|---|---|---|---|---|
| Type A | 6320*5900*2650mm | 2200*5900*2650mm | 36.54 | 2 Units |
| Technical Characteristics | |||
|---|---|---|---|
| Life Span | More than 30 years | Water Proof | 99.9999% |
| Earthquake Resistance | Grade 10 | Sound Resistance | ≥30dB |
| Heat Insulation | 0.506317W/(m²·K) | Wind Resistance | ≥120KM/Hour |
| Roof Live Load | ≥1.0KN/㎡ | Floor Live Load | ≥2.5KN/㎡ |
| Fireproof Grade | Grade A | ||

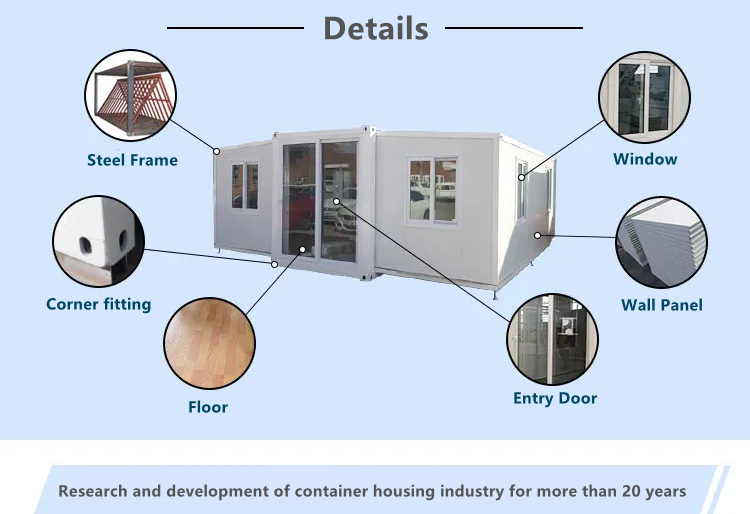

| Part | Component | Specification |
|---|---|---|
| Middle Container | Top and bottom upright beams | 210*150*2.5mm and 80*100*2.5mm P shaped beams Q235B |
| Top and bottom cross beams | 2.5mm shaped beams (Q235B) | |
| Top purlins | 40*60*2.5mm Q235B | |
| Bottom purlins | 40*80*2.5mm Q235B | |
| Side beams | 80*100mm Q235B | |
| Side Containers | Top and bottom vertical beams | 40*60*2.5mm P shape Q235B |
| Top and bottom cross beams | 40*60*2.5mm P shape Q235B | |
| Bottom purlins | 40*80*2.0mm Q235B tubes | |
| Side wall frames | 40*60*2.5mm Q235B tubes |
| Middle Container Top | T75mm glass wool sandwich panel (side EPS panels) |
| Separating Panels | T50mm EPS sandwich |
| Flooring | Fireproof glass magnesium floor 15mm + 1.5mm PVC floor leather |
| Folding Hinge | 13mm, galvanized; T4mm, Q235B |

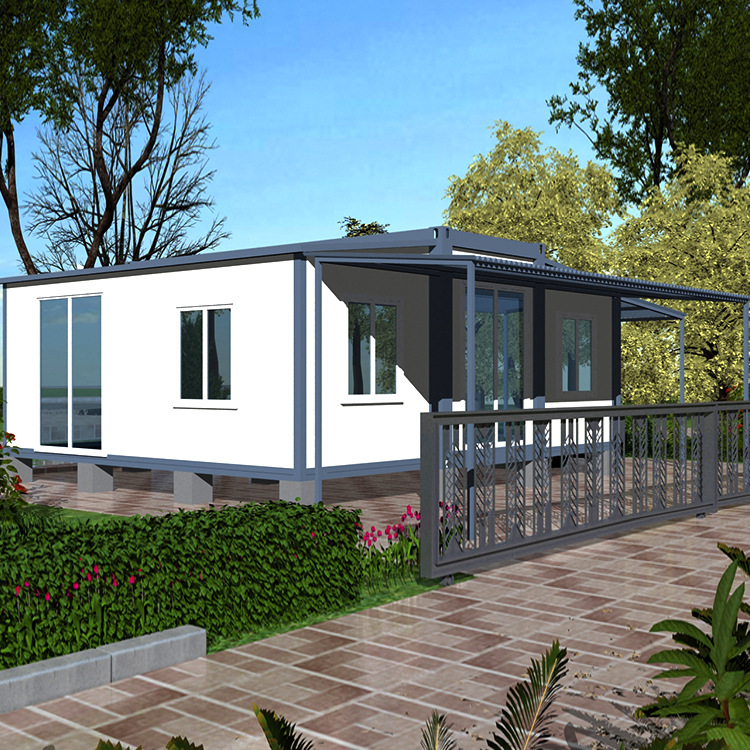

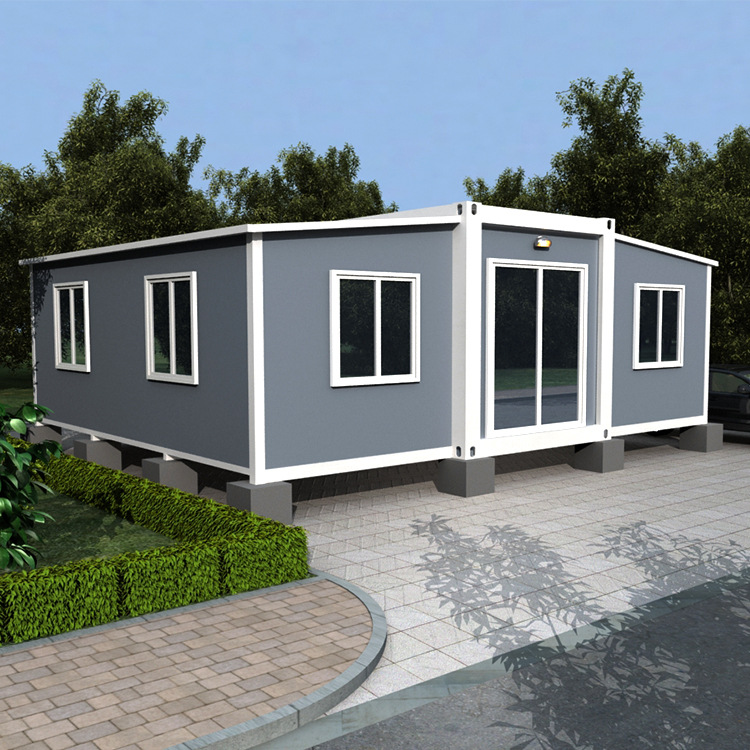

Prefabricated box house is a modular building product based on steel frame and light wall panel structure system. This product adopts the proprietary third-generation packing box technology, which is composed of top frame, bottom frame, corner post and interchangeable wall panels. It can be packaged, easy to install, and convenient for land or sea transportation. It can be used as an office, accommodation, restaurant, sanitary ware and combined large space use, which can meet the needs of construction site barracks, field work barracks, municipal resettlement houses and various commercial houses.

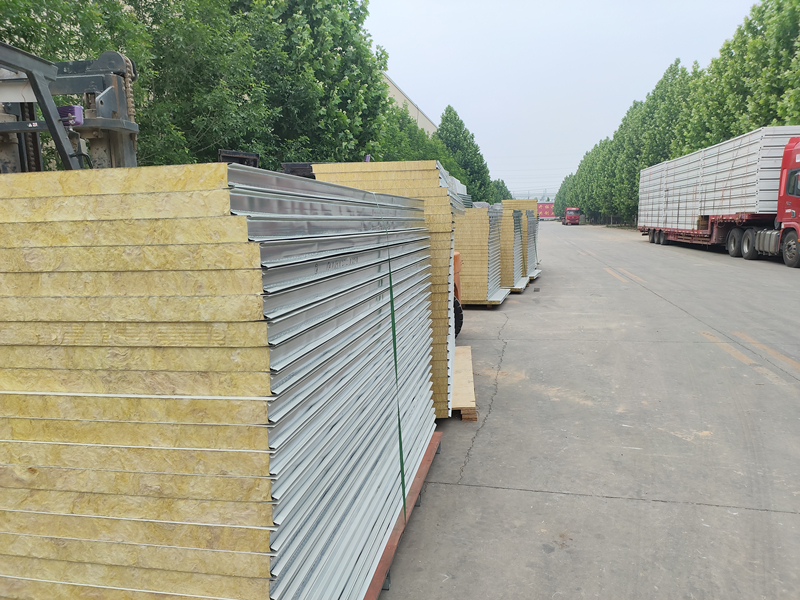

New fire-proof rock wool sandwich panel is made of high-quality color coated steel plates. It provides excellent fire protection, thermal insulation, and environmental protection, making it an ideal choice for industrial building systems.

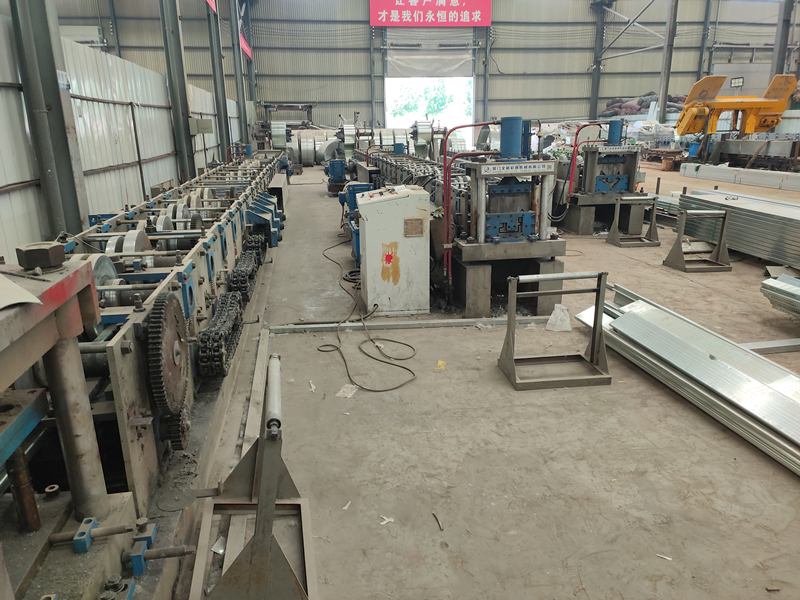

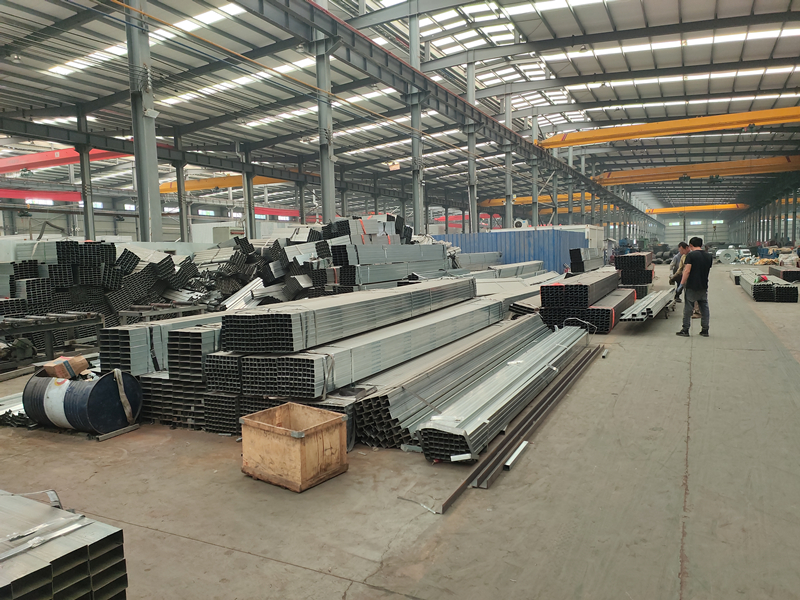

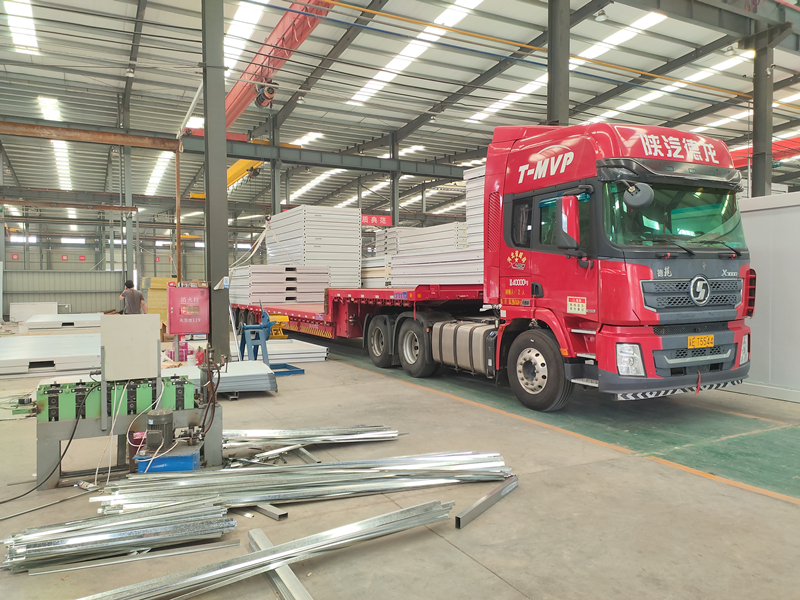

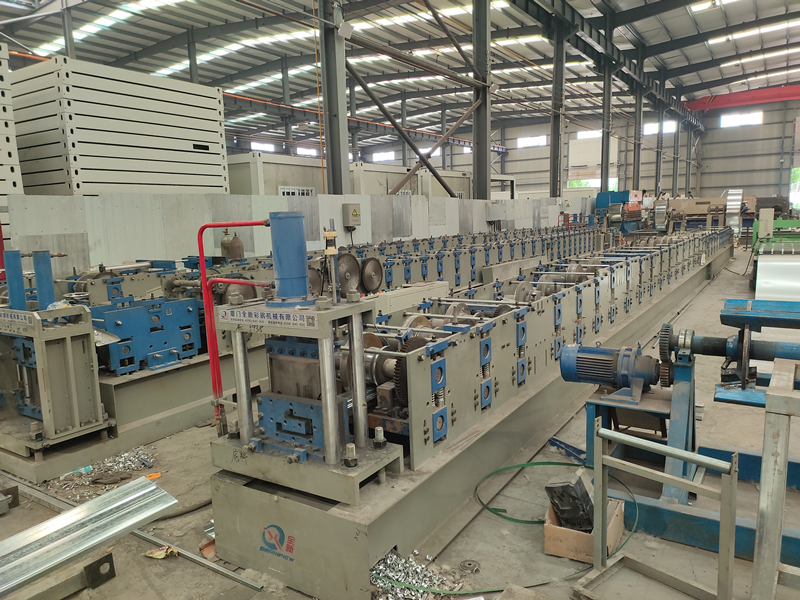

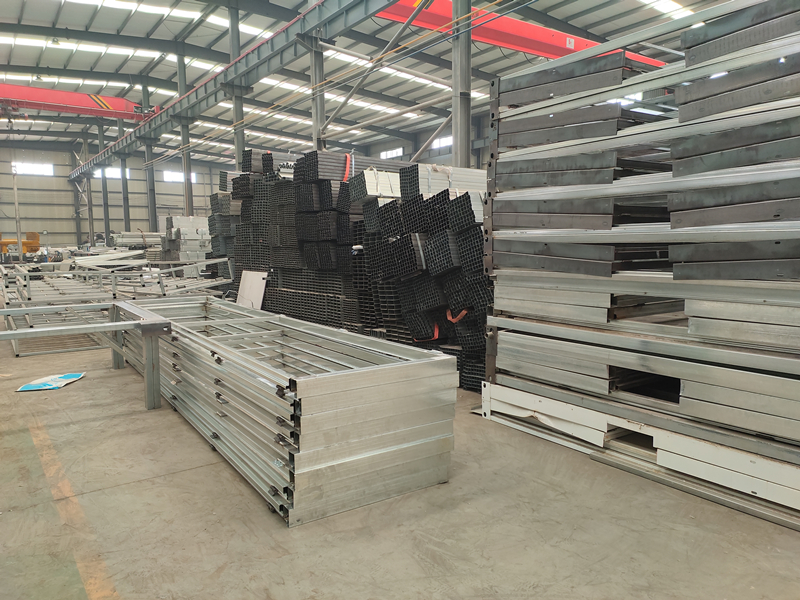

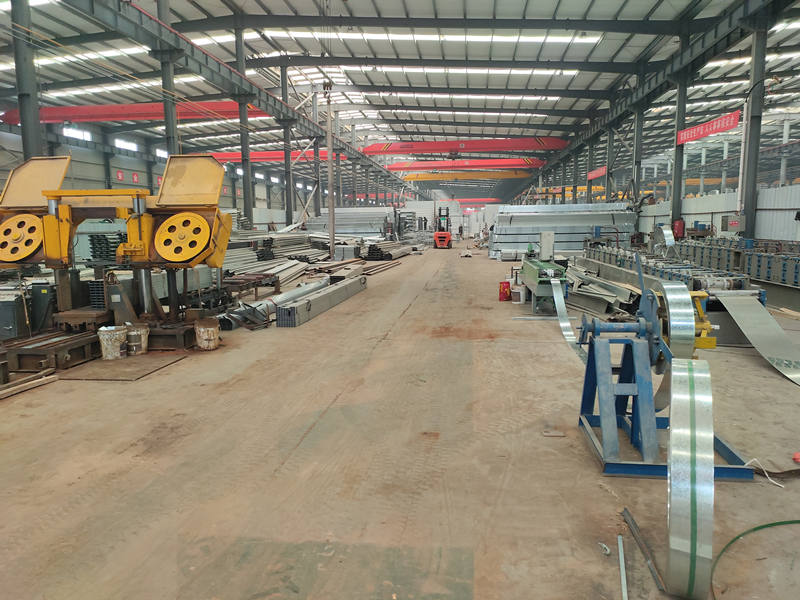

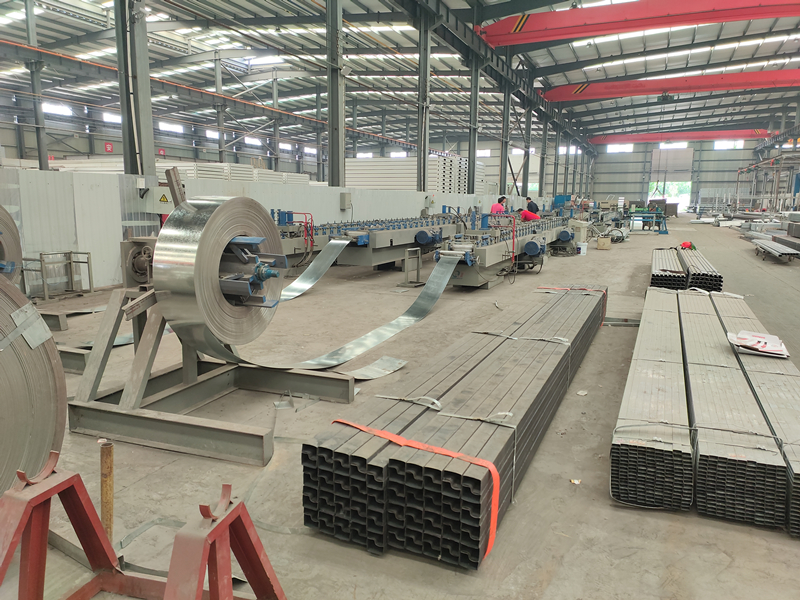

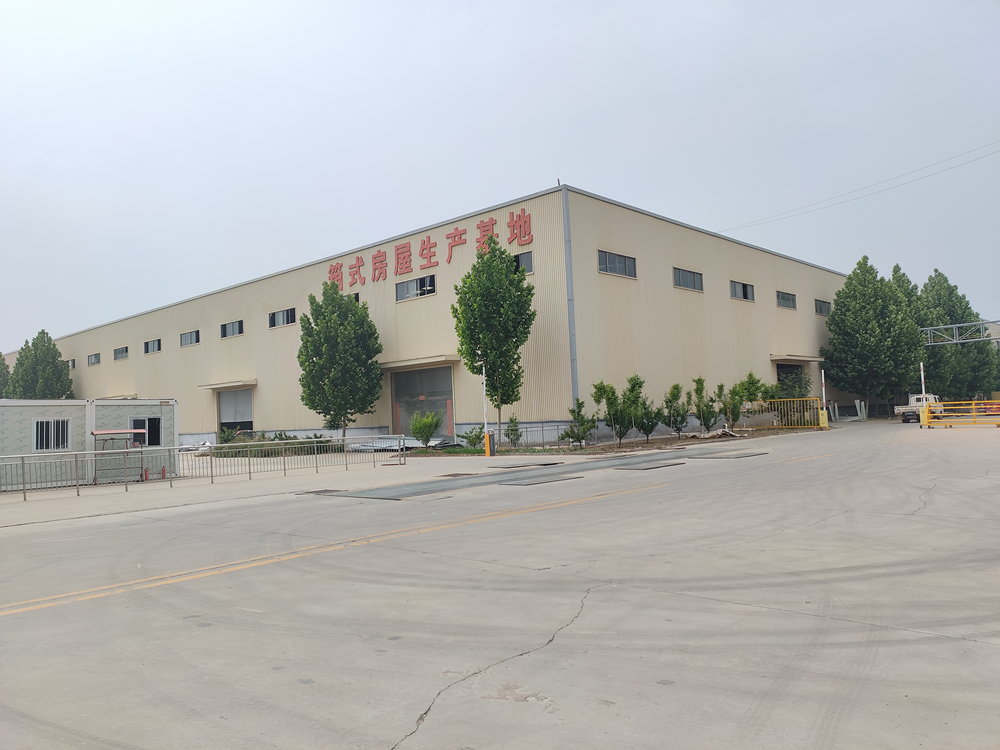

Our company specializes in building prefabricated integrated buildings that are green, environmentally friendly, and portable. With a production workshop over 8,000 square meters and a large stock of prefabricated houses, we ensure convenient and fast ordering at any time.

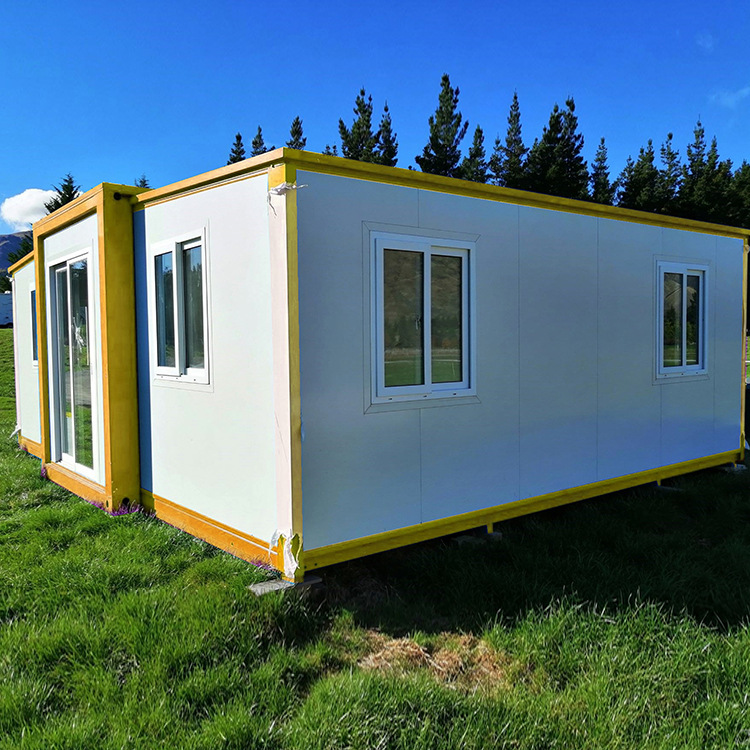

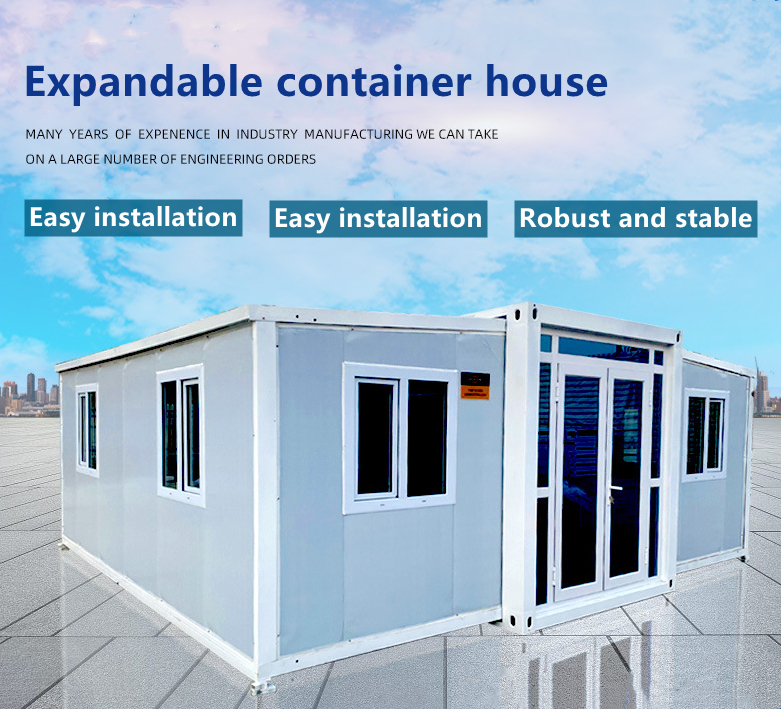

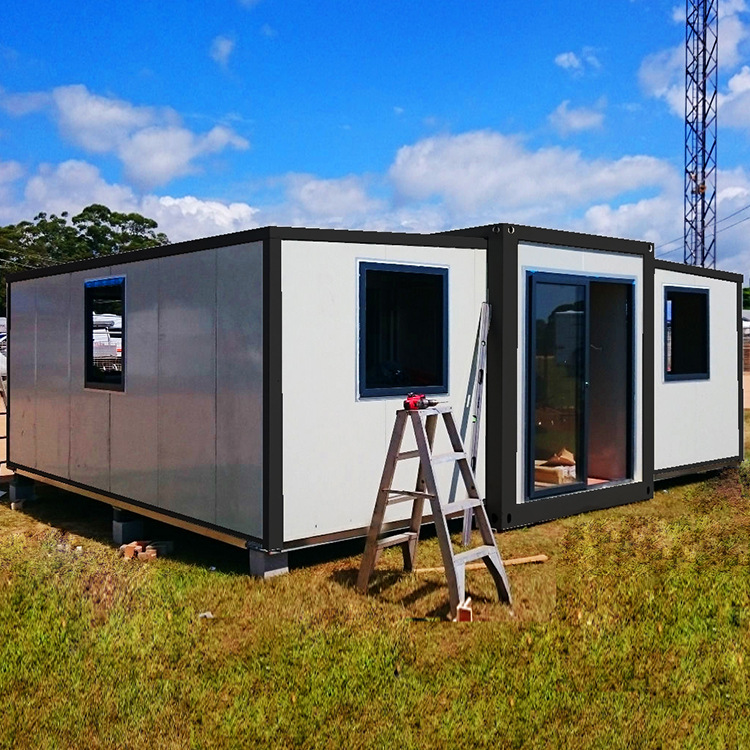

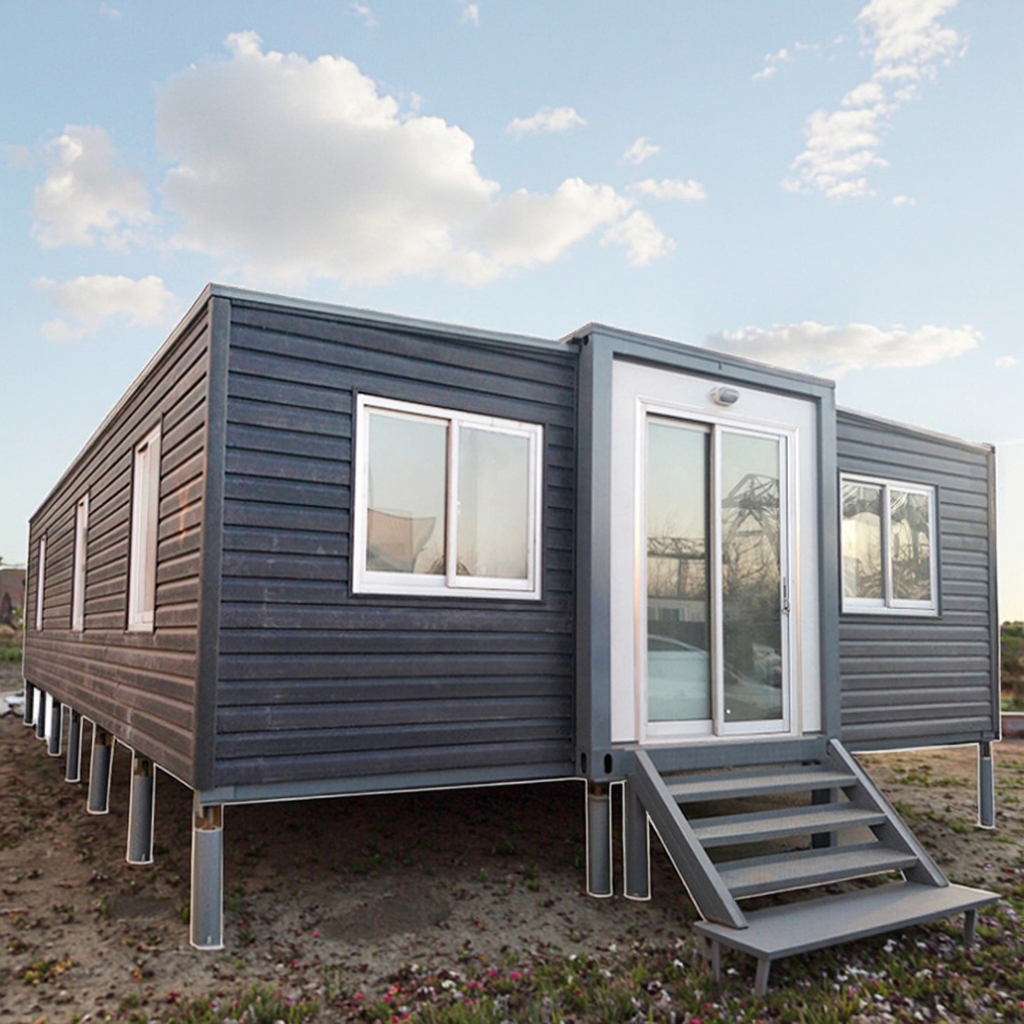

Main products include foldable container houses, detachable container houses, flat packaging container houses, and expandable container houses. Through professional welding, polishing, and painting techniques, our houses are durable, fire-resistant, and aesthetically pleasing. These units are widely used for office buildings, temporary accommodation, tourist landscapes, and disaster resettlement worldwide.
