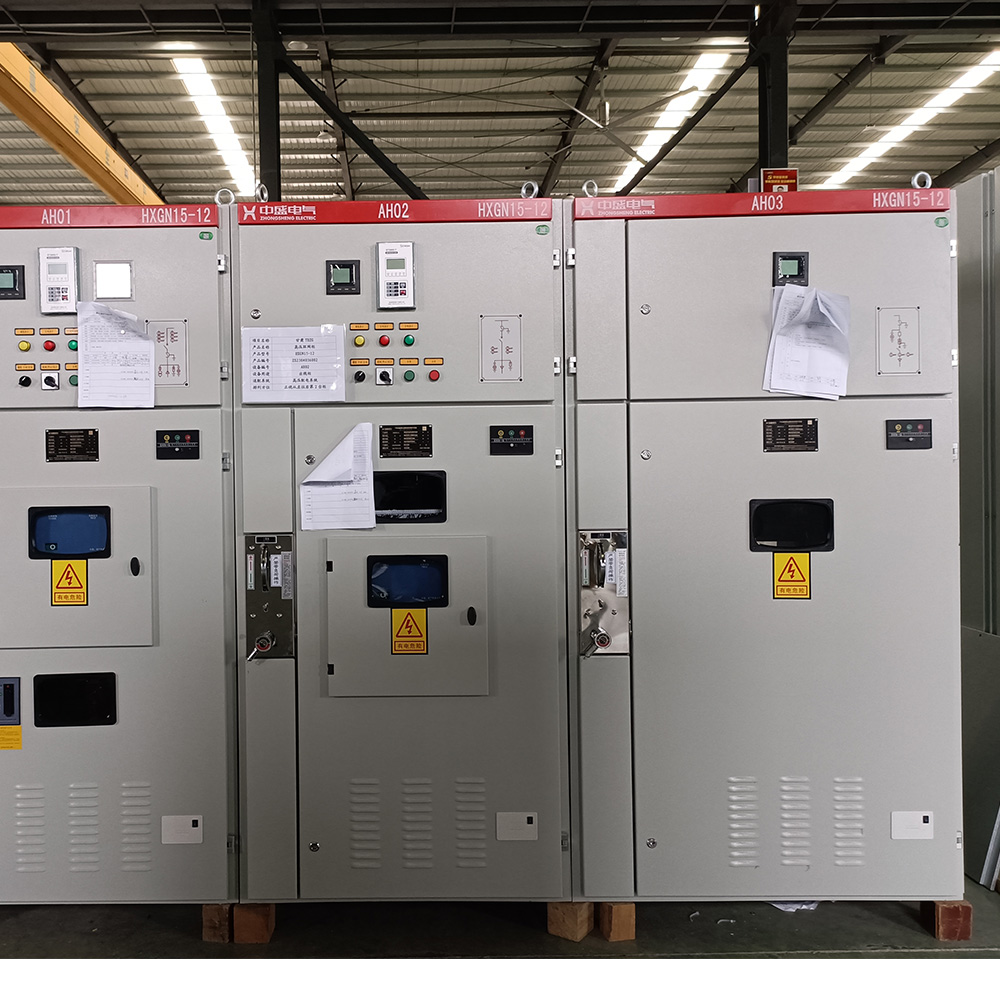

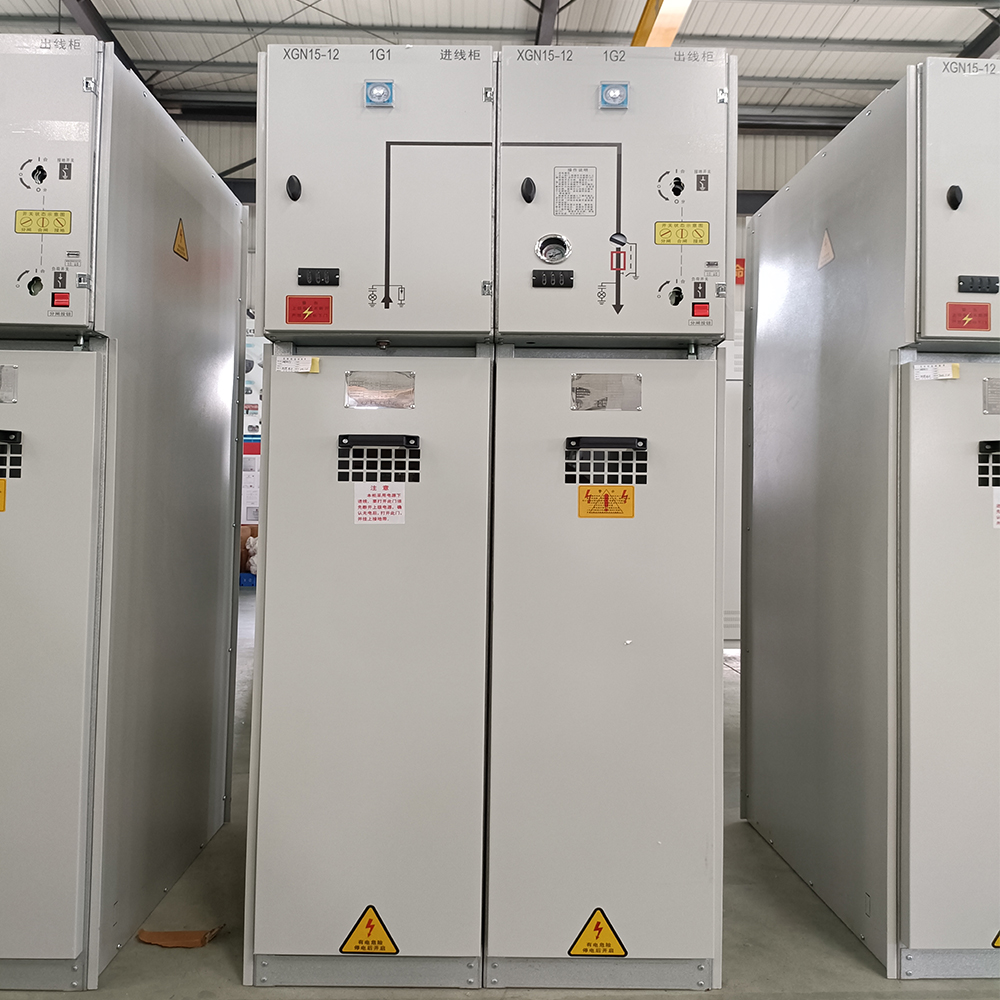

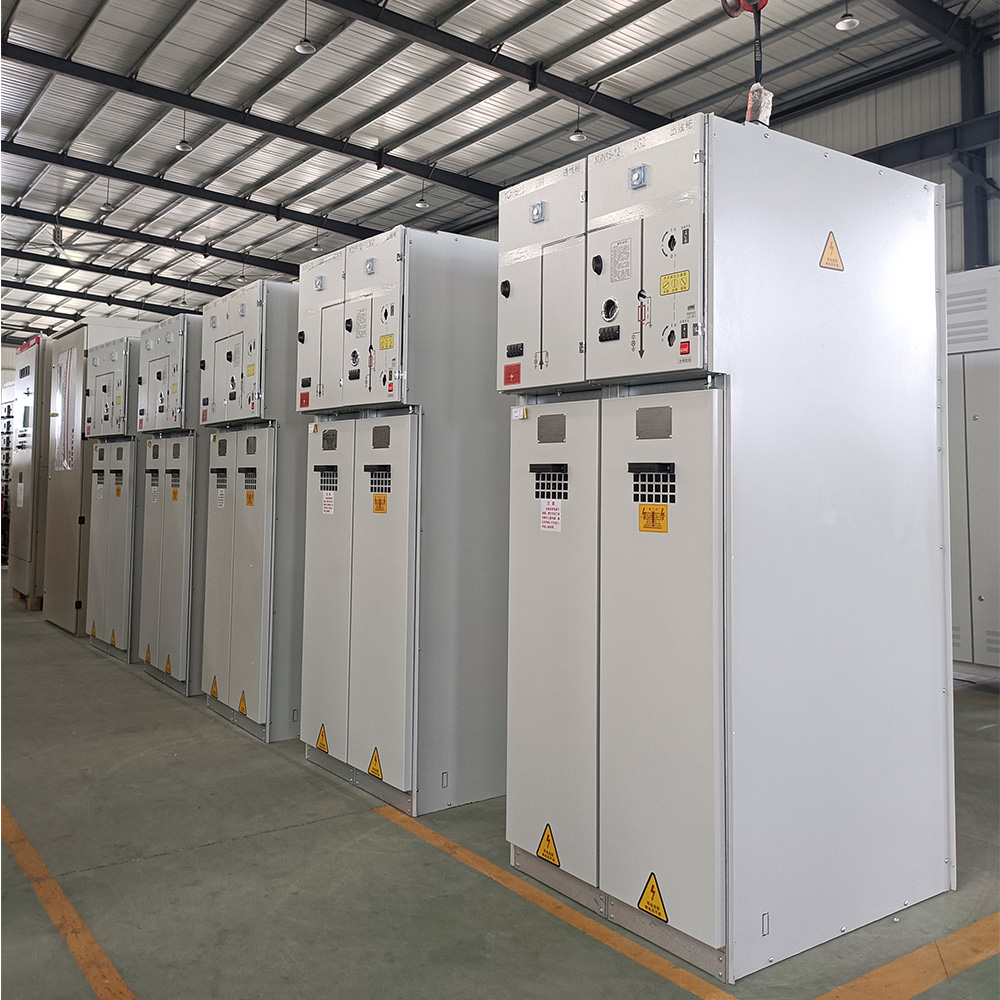

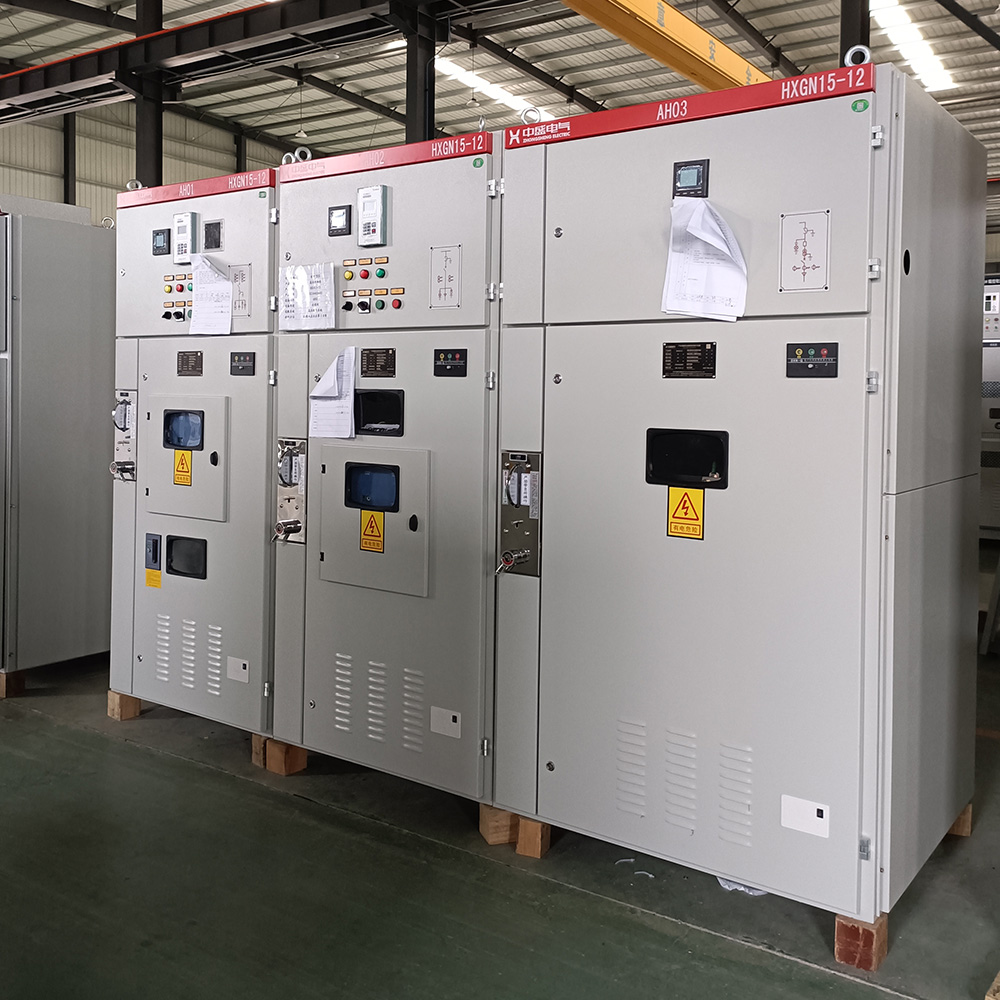

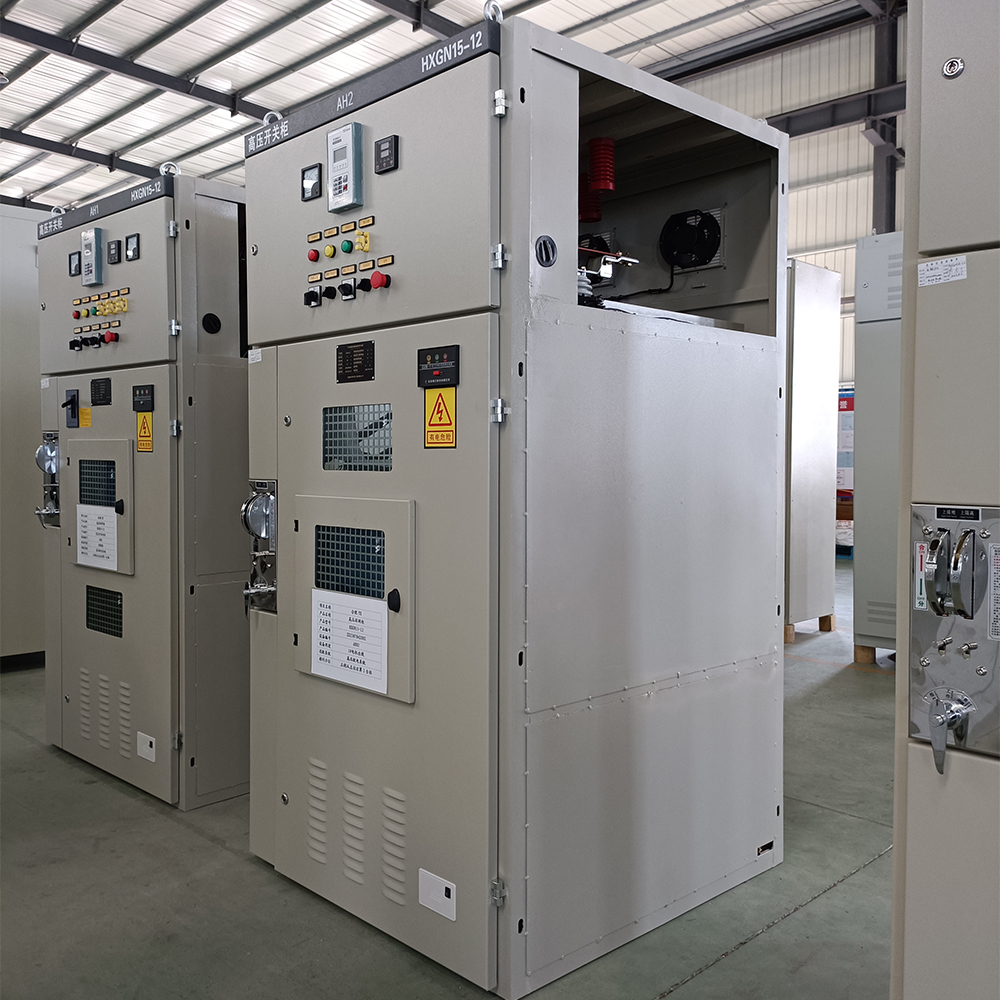

It is suitable for the power systems of AC three-phase 50/60HZ and rated voltage 3-10kV. It is widely used in the urban power grid construction and transformation projects, industrial and mining enterprises, high-rise buildings, public utilities, etc. As a ring-network power supply unit and a terminal equipment, it plays the role of electric energy distribution and control as well as electrical equipment protection. It can also be installed in the prefabricated substation.

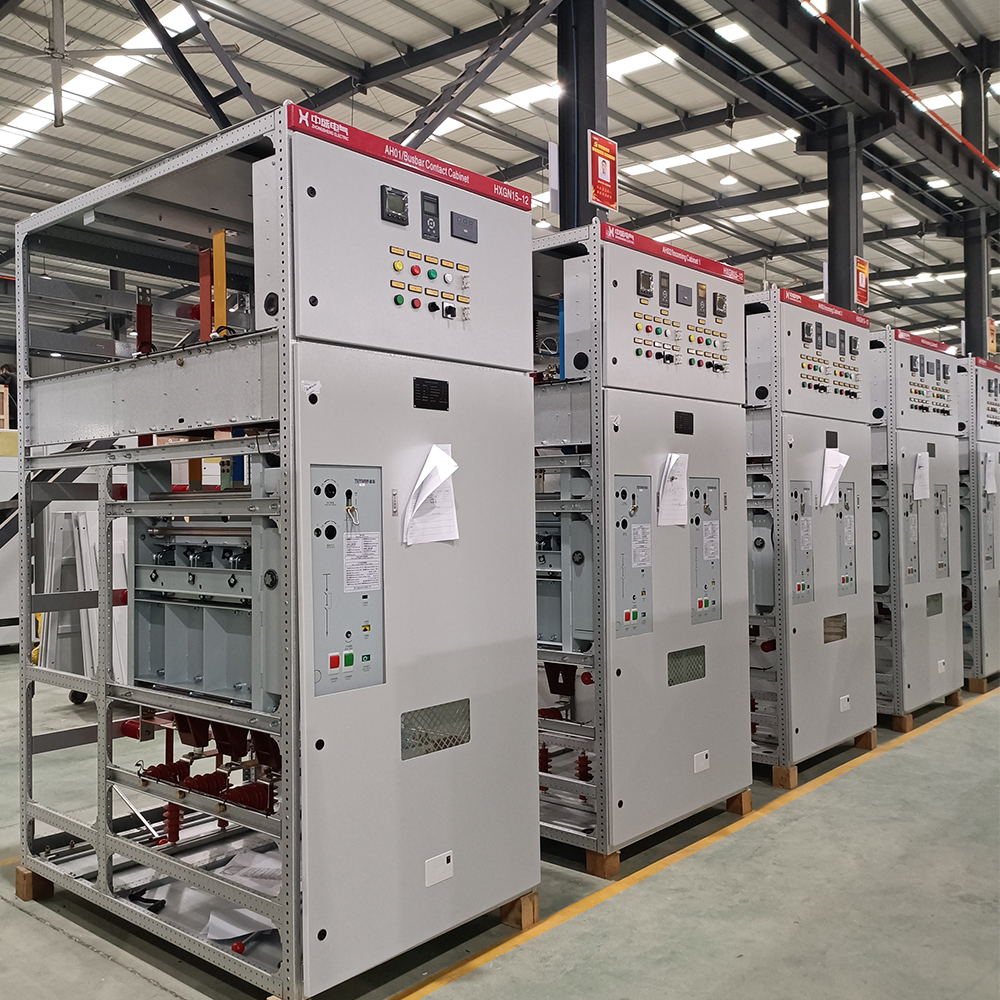

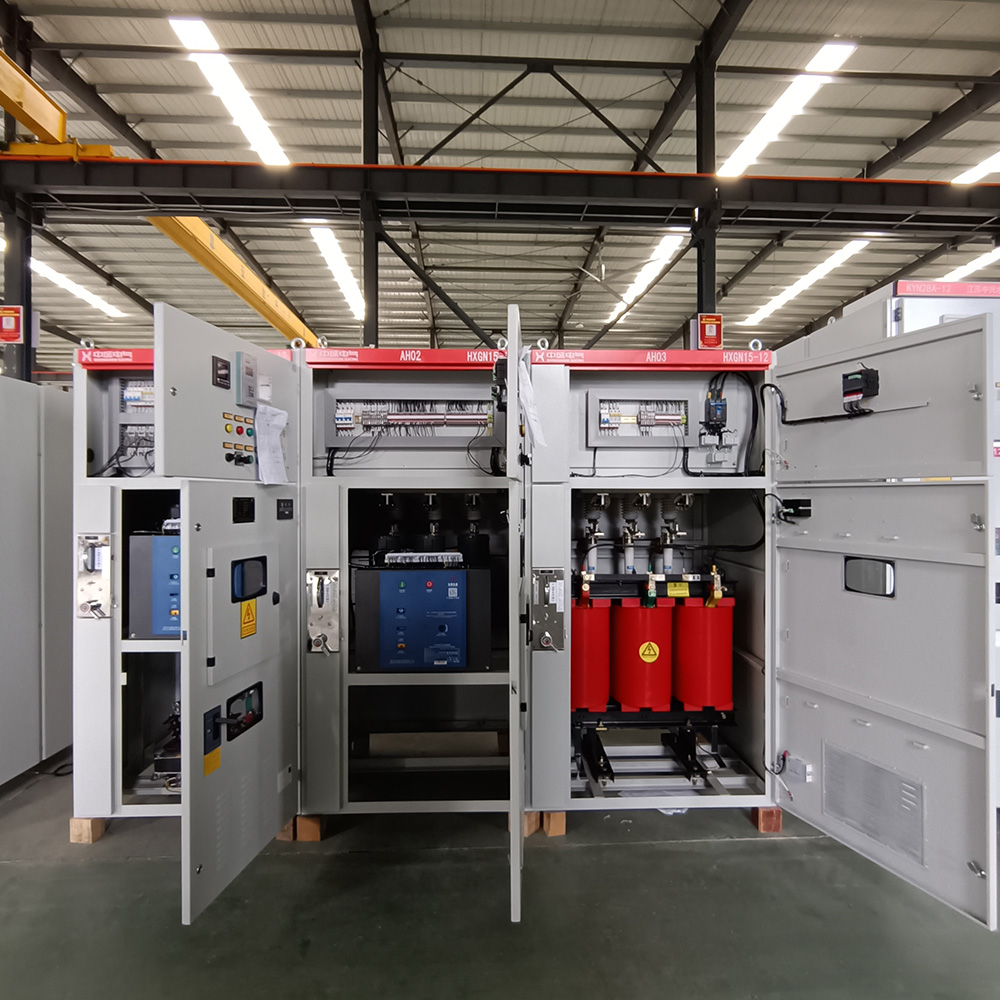

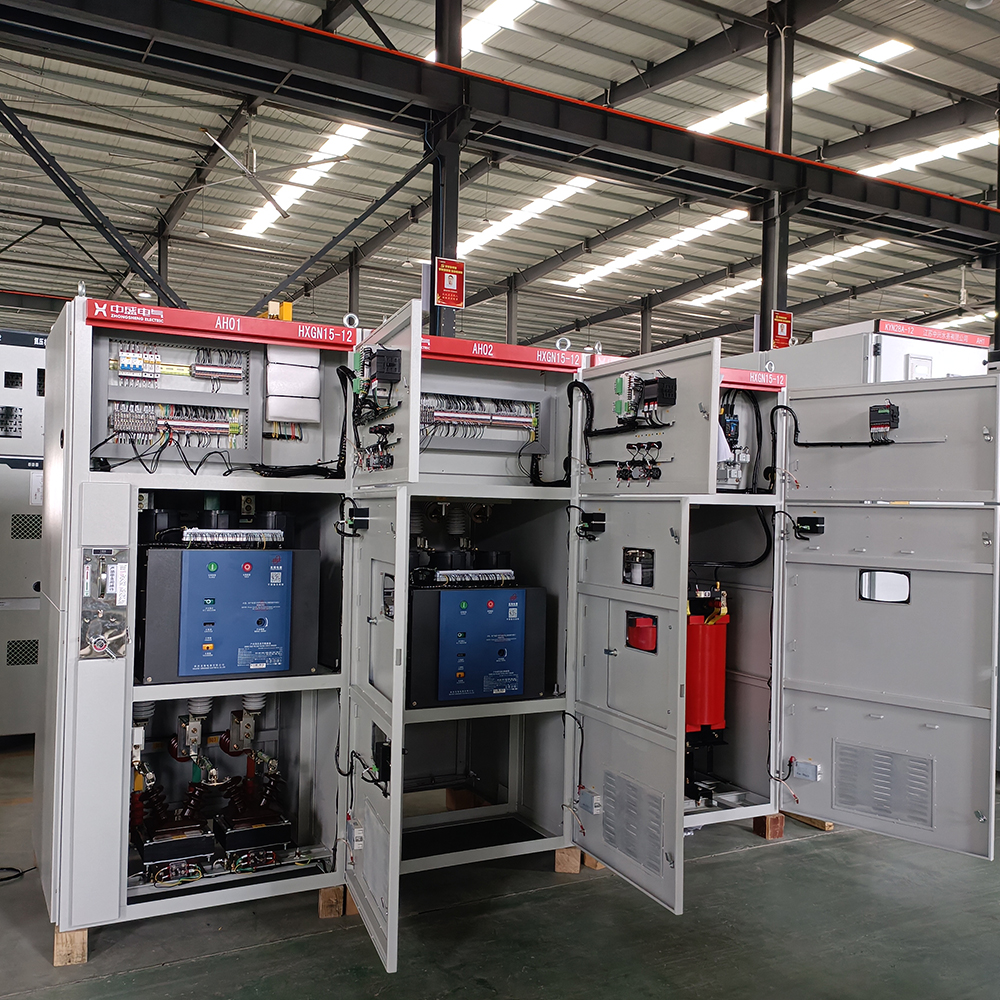

The inside of the ring main unit is fitted with the vacuum circuit breaker or the load switch, which is equipped with an electric operating mechanism that can be operated manually or electrically. The disconnecting switch and the grounding switch are equipped with a manual operating mechanism. The ring main unit is strong in completeness and small in volume, without combustion and explosion risks, and has reliable functions of "five prevention".

Due to the dual busbar scheme of this project and the limited space inside the cabinet, a switch combination device has been adopted. The device adopts a modular design: with a frame structure, and integrating the isolation switch, a sealed vacuum circuit breaker, grounding switch, interlocking mechanism, and operating mechanism into a high-performance miniaturized high-voltage electrical product. A single unit can be installed in a 500MM wide cabinet.

High voltage ring network cabinet is a set of electrical equipment that is installed in a steel plate metal cabinet or made into a segmented ring network power supply unit. Its core part uses load switches and fuses, which has the advantages of simple structure, small size, low price, improved power supply parameters and performance.

• Scope of application: Mainly applicable to user projects such as 10kV.
• Protection units: Line, main transformer backup, motor, capacitor, reactor, backup automatic switching, PT, non electrical quantity.
• Product appearance: Within 100MM, the body is particularly suitable for cabinets such as ring network cabinets.
• Product material: Alloy shell, meets the electromagnetic interference test requirements.
• Operating circuit: Without anti jump, can be used in conjunction with various built-in anti jump switches.
• Communication: Optional with or without RS485 communication interface.

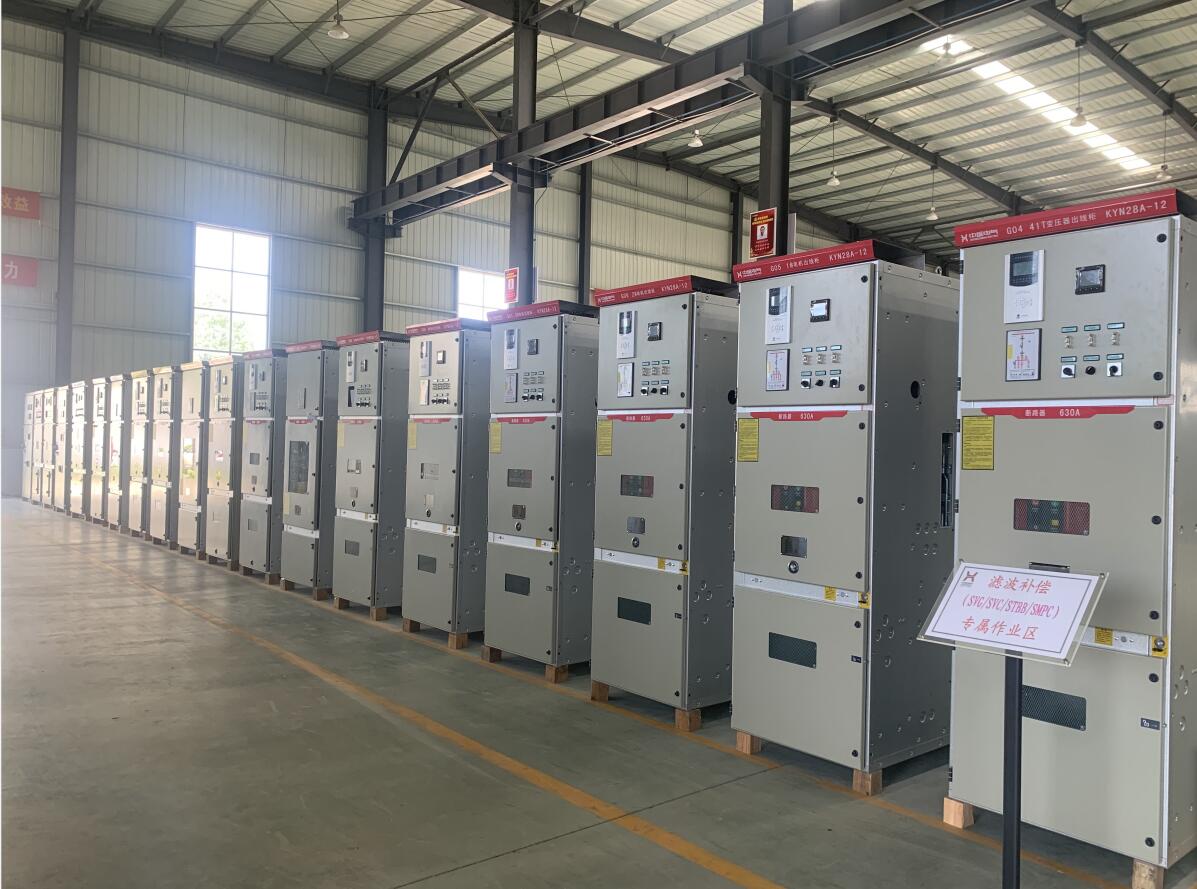

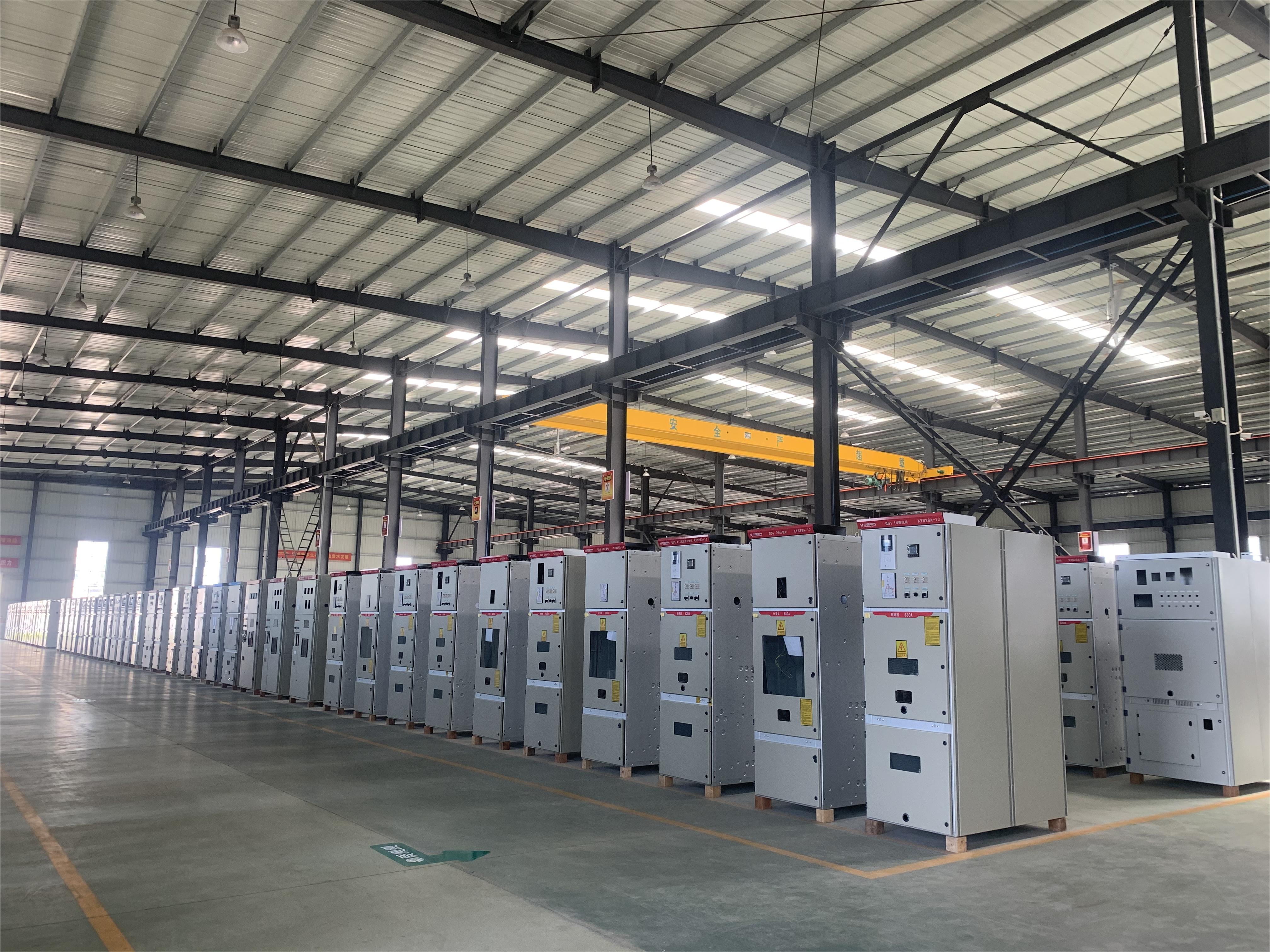

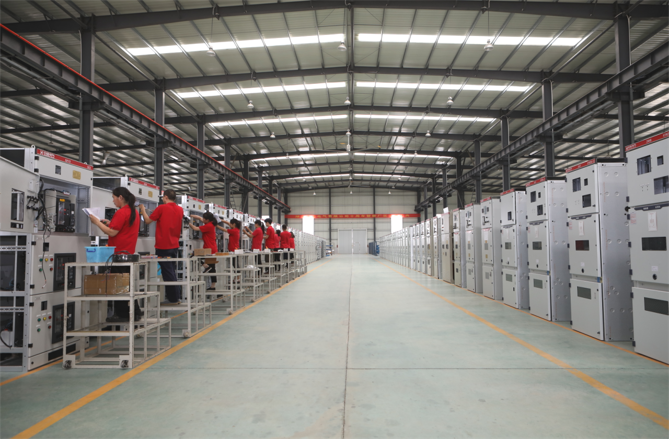

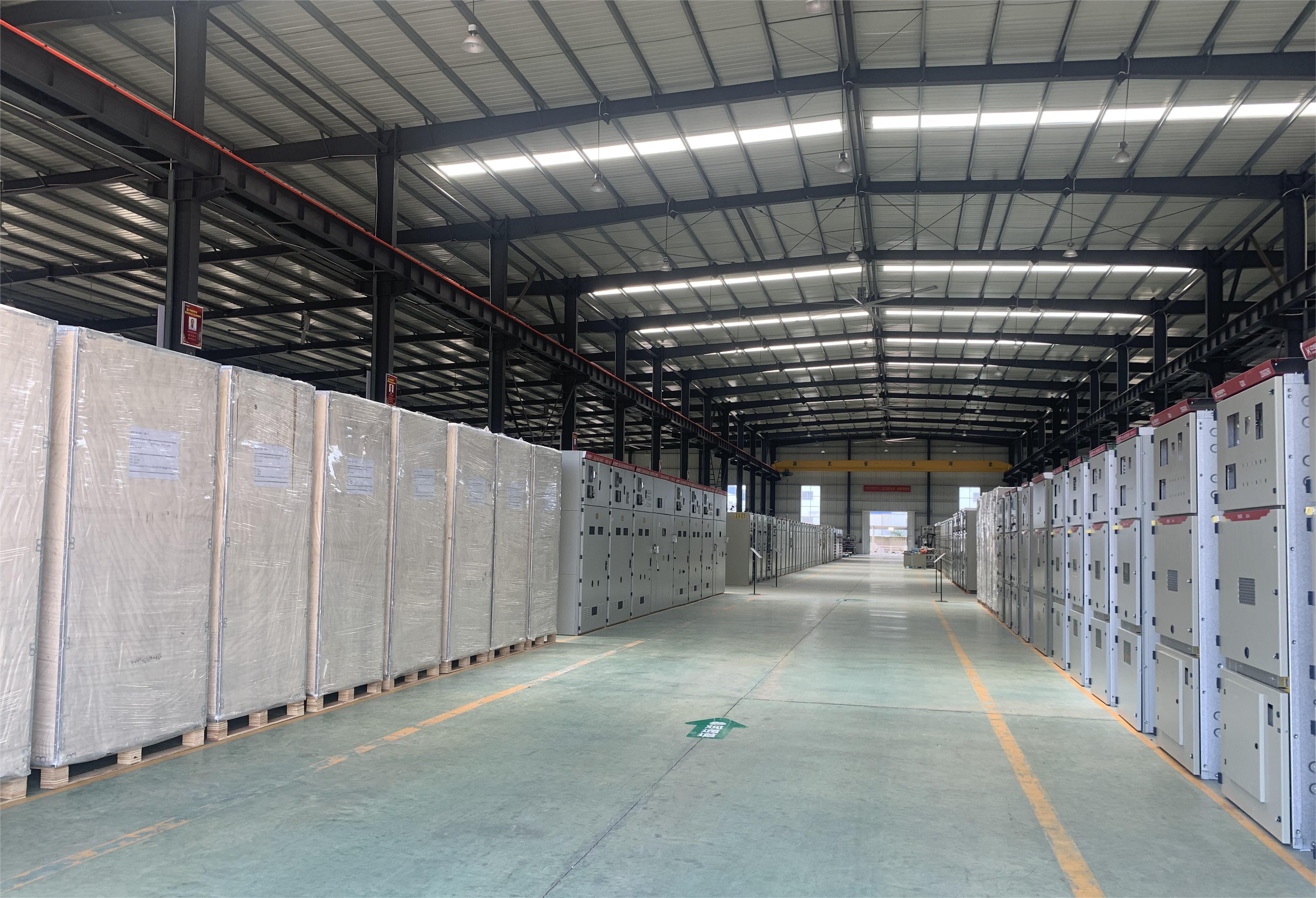

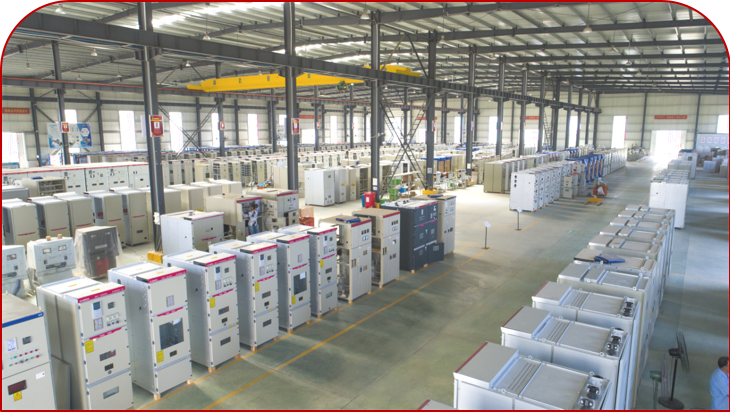

The company is a high-tech enterprise which integrated Products R&D, Producing and trading in one. The company now has more than 4000 square meters workshop and over 400 workers. Since its establishment, the company always adheres to interests of customers as focus, and solid scientific and technological development management as backup force.

The company has been certified to ISO9001 Quality Management System, ISO14000 Environment Management System, OHSAS18000 Occupational Health and Safety System and CCC. The company has obtained more than 20 tech patents, and rewarded by governmental departments many times.
