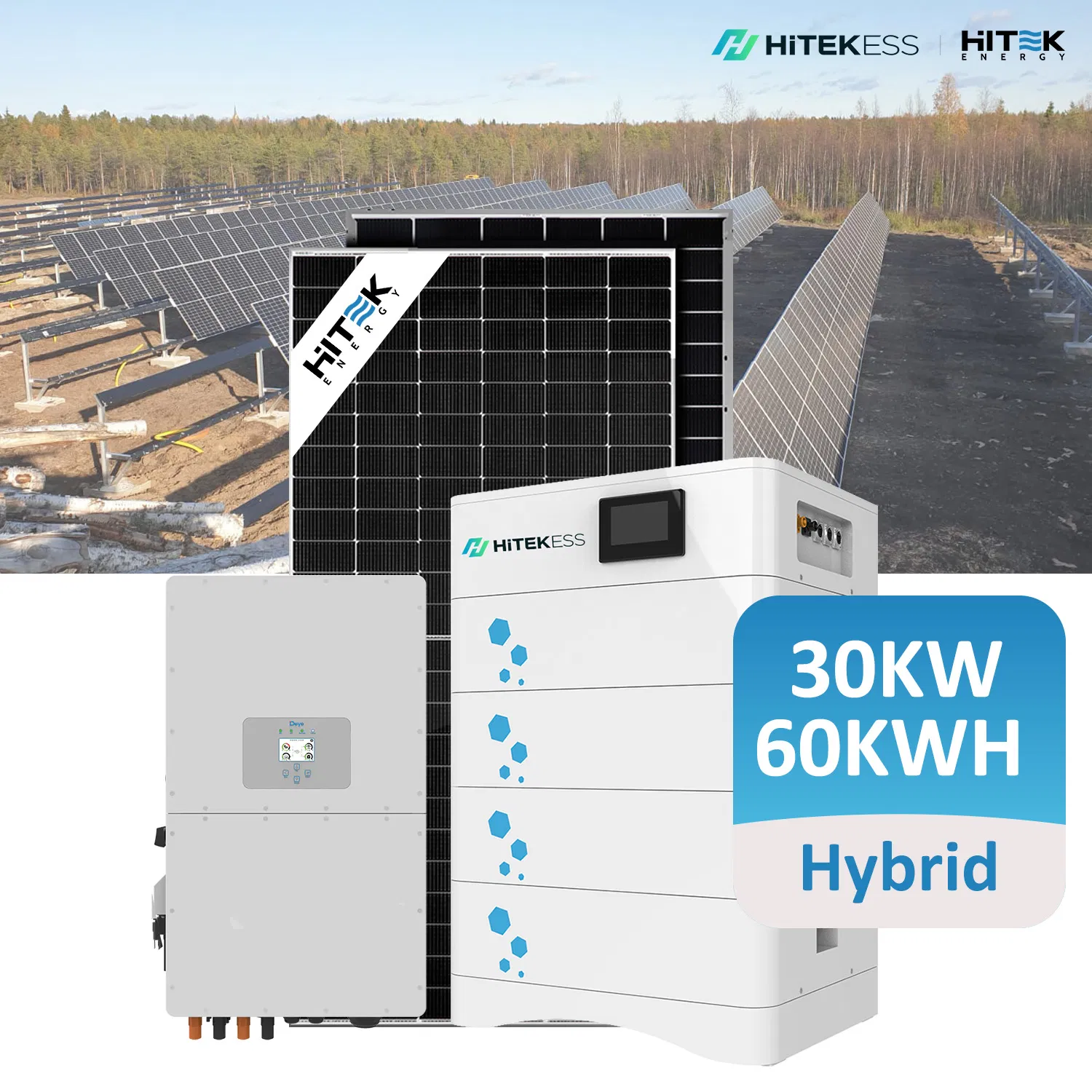

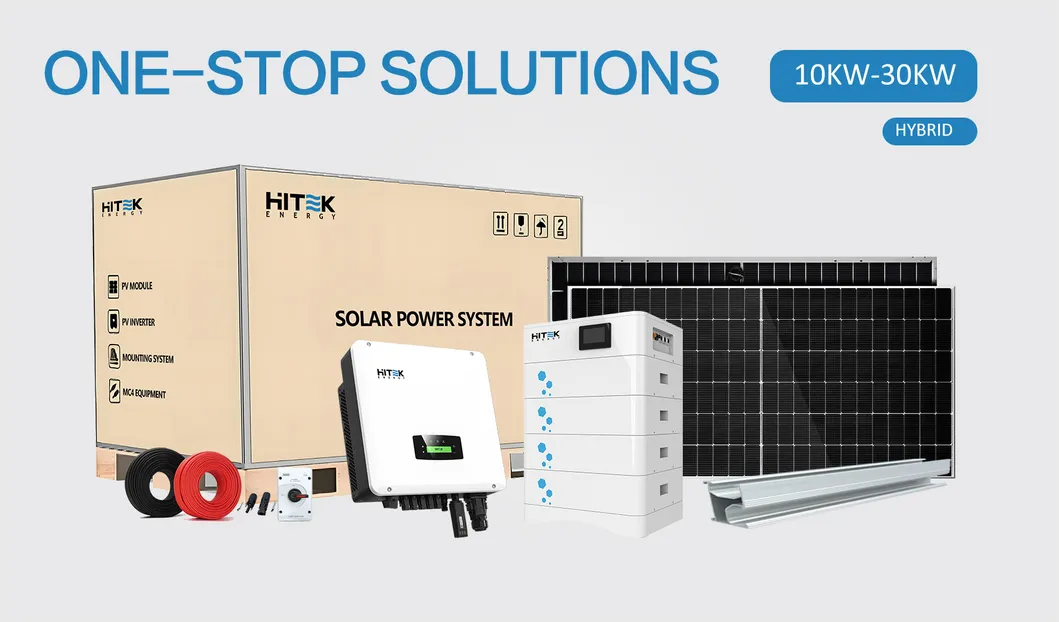

Complete Hitek 10kw to 30kw Solar Energy Storage Solutions

1 / 5

Complete Hitek 10kw to 30kw Solar Energy Storage Solutions

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Send Inquiry

Product Description

Overview
Product Description
Packaging & Shipping
Our Advantages

Basic Info.

Model NO.

HT30KW-HY

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, Normal, 10KW-30KW

Product Name

10kw 20kw 30kw off Grid Hybrid Solar System

Solar System Type

off Grid Hybrid Solar Power System

System Application

Residential Home Solar System

Solar Panel Type

Monocrystalline Solar Panel

Battery Type

Lead Acid, Lithium Ion, LiFePO4 Battery

Output Voltage

380V/400/415VAC 50Hz 3phase

Technical Support

Complete Professional Technical Guidance

Online Monitoring

WiFi/LAN/GPRS

Home Solar Energy System

Hybrid Home Solar Power System 10kw 12kw 15kw 20kw

Transport Package

Wooden Box Package by Sea

Origin

China

HS Code

8501722000

Production Capacity

10000 Piece/Pieces Per Day

Product Description

What is Residential Energy Storage Solution?

The residential solar energy storage solution includes battery system, battery storage inverter, PV components. Energy storage systems can support your energy revolution.

Whether for the apartment, house, outdoor camp or emergency with our energy storage systems you will always find an ideal solution.

Warranty

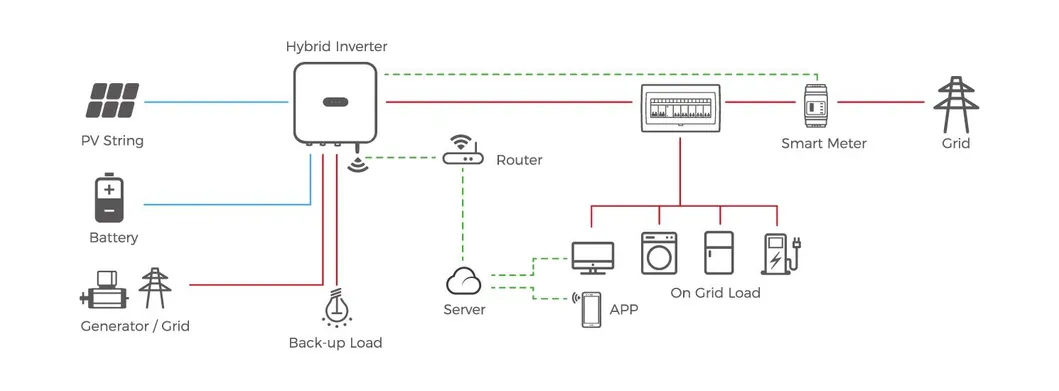

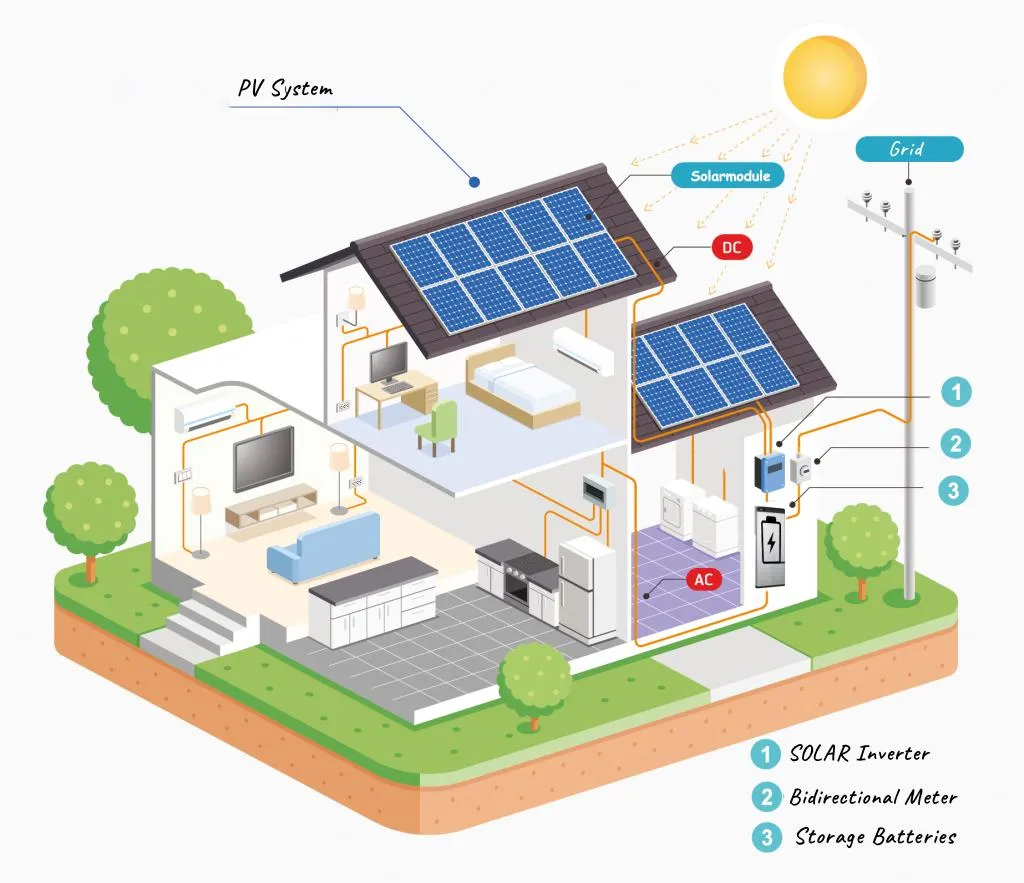

How It Works

The Hybrid Solar Power System is the best investment for your wallet and environment. We make solar simple and energy smart.

Configuration Details

Model	HT10KW-HY	HT12KW-HY	HT15KW-HY
Mono Half Cell Solar Panel 560W	18PCS	24PCS	27PCS
DC Isolation Switch	3PCS	3PCS	4PCS
Hybrid Inverter	10KVA 1PC	12KVA 1PC	15KVA 1PC
LiFePO4 Battery	12.8KWH	15.36KWH	17.92KWH
DC Cable 1*4MM2	300 Meters	400 Meters	500 Meters
MC4 Connector	9 Pairs	12 Pairs	15 Pairs
Mounting System	Customized Designed Roof/ Ground Mounting Kits
Solar Installation Tool	1 Set	1 Set	1 Set

Model	HT20KW-HY	HT25KW-HY	HT30KW-HY
Mono Half Cell Solar Panel 560W	34PCS	45PCS	51PCS
DC Isolation Switch	6PCS	8PCS	9PCS
Hybrid Inverter	20KVA 1PC	25KVA 1PC	30KVA 1PC
LiFePO4 Battery	25.6KWH	30.72KWH	35.84KWH
DC Cable 1*4MM2	600 Meters	700 Meters	800 Meters
MC4 Connector	16 Pairs	18 Pairs	21 Pairs
Mounting System	Customized Designed Roof/ Ground Mounting Kits
Solar Installation Tool	1 Set	1 Set	1 Set

Save on your domestic and commercial utility bills. We use ONLY Reliable Approved Equipment.

System Components

Mono Solar Panel

Model: HT560M-72
Peak Power Watt: 560Wp
Open Circuit Voltage (Voc/V): 49.84V
Short Circuit Current (Isc./A): 14.14A
Voltage at Maximum Power (Vmp./V): 41.08V
Current at Maximum Power (Imp./A): 13.64A
Dimensions: 2279*1134*35mm
Weight: 28.0±3% kg

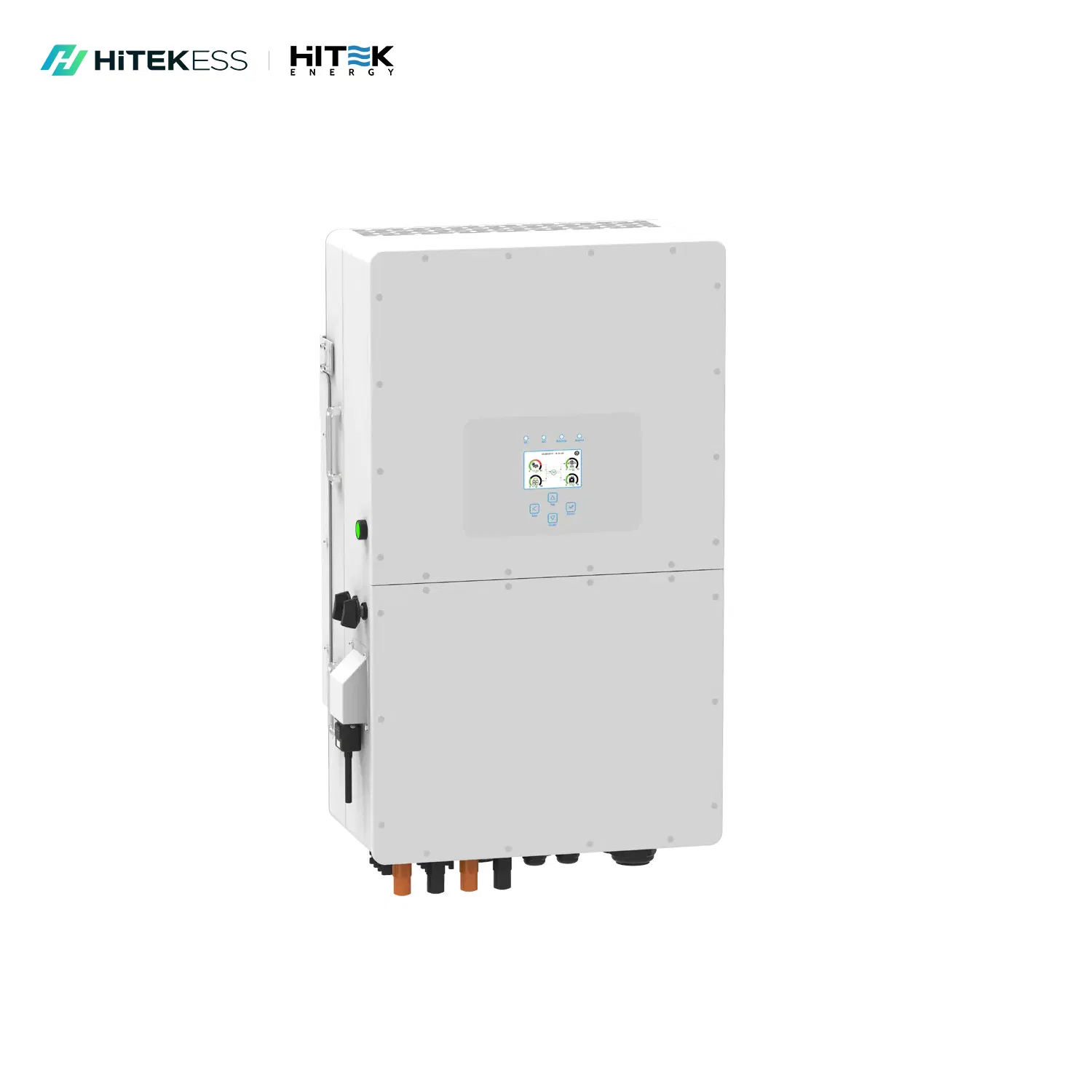

All-in-one Hybrid Solar Inverter

All-in-one hybrid solar inverter, which increases energy independence for homeowners and commercial users.
Smart Monitoring & Remote Firmware Upgrade
Built-in Anti-feed-in Function
AFCI (Optional) & Rapid Shutdown Ready
Support for Time-of-use Optimization

Online Monitoring System

Open Station Supports one-click installation and registration.
Support one-click dispatch and navigation.
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.

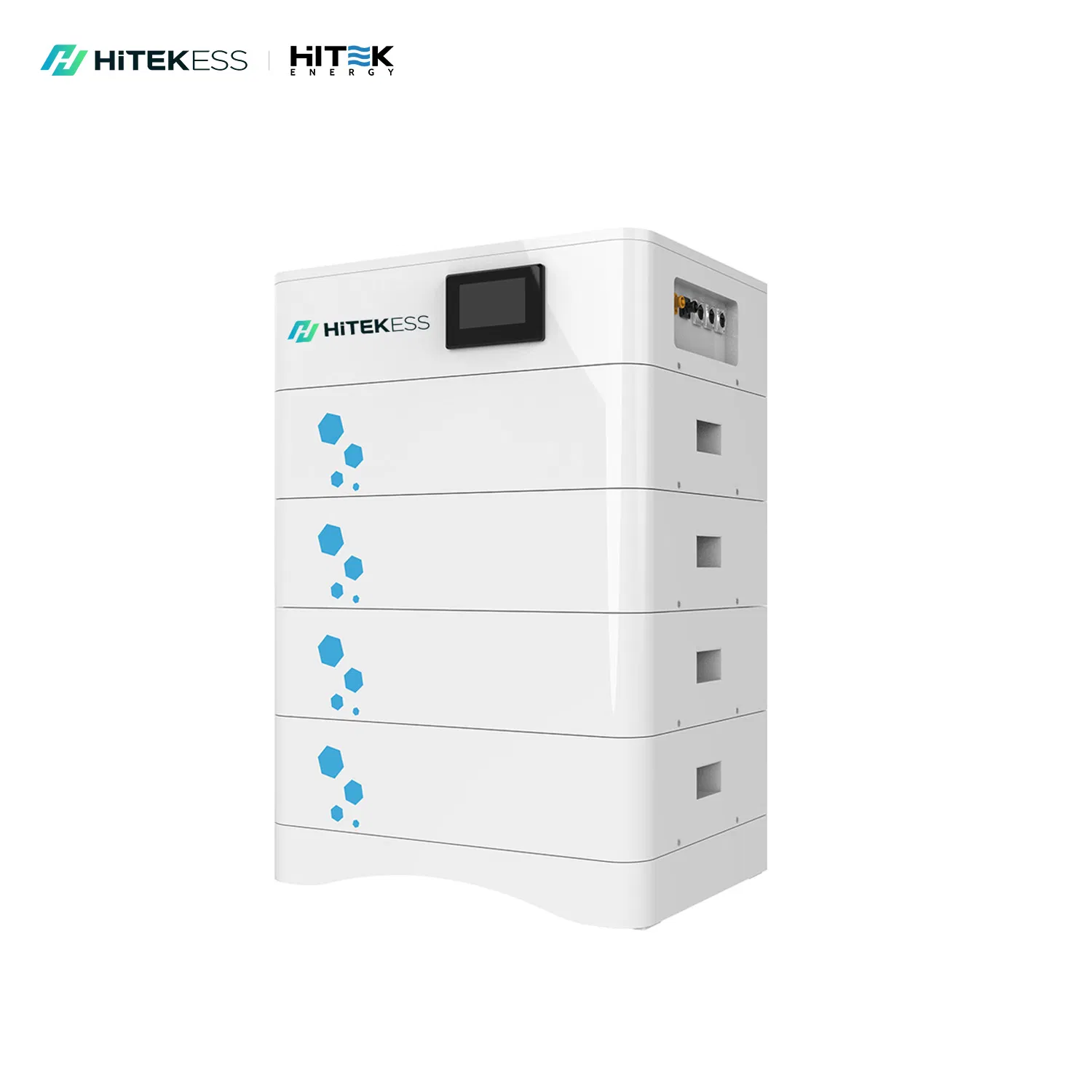

Solar Battery Bank

Stackable Lithium Battery
Deep Cycle long lifespan
High discharge performance
Easy installation and Maintenance-free
AGM/GEL/Lithium Ion Battery Type
2V/12V/48V/High Voltage Battery
More than 6000 times, up to 90% DOD
Wide suitability of ambient temperature range

DC & AC Disconnect Switch

Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

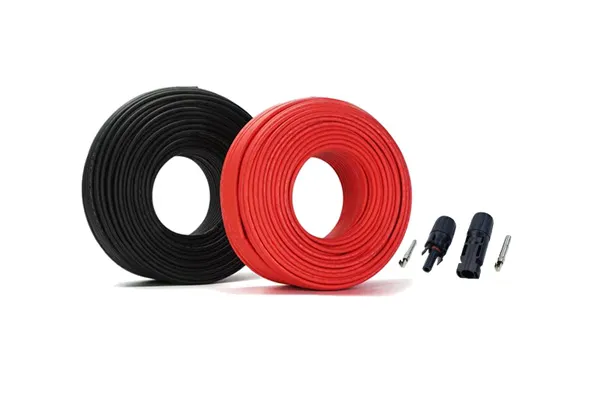

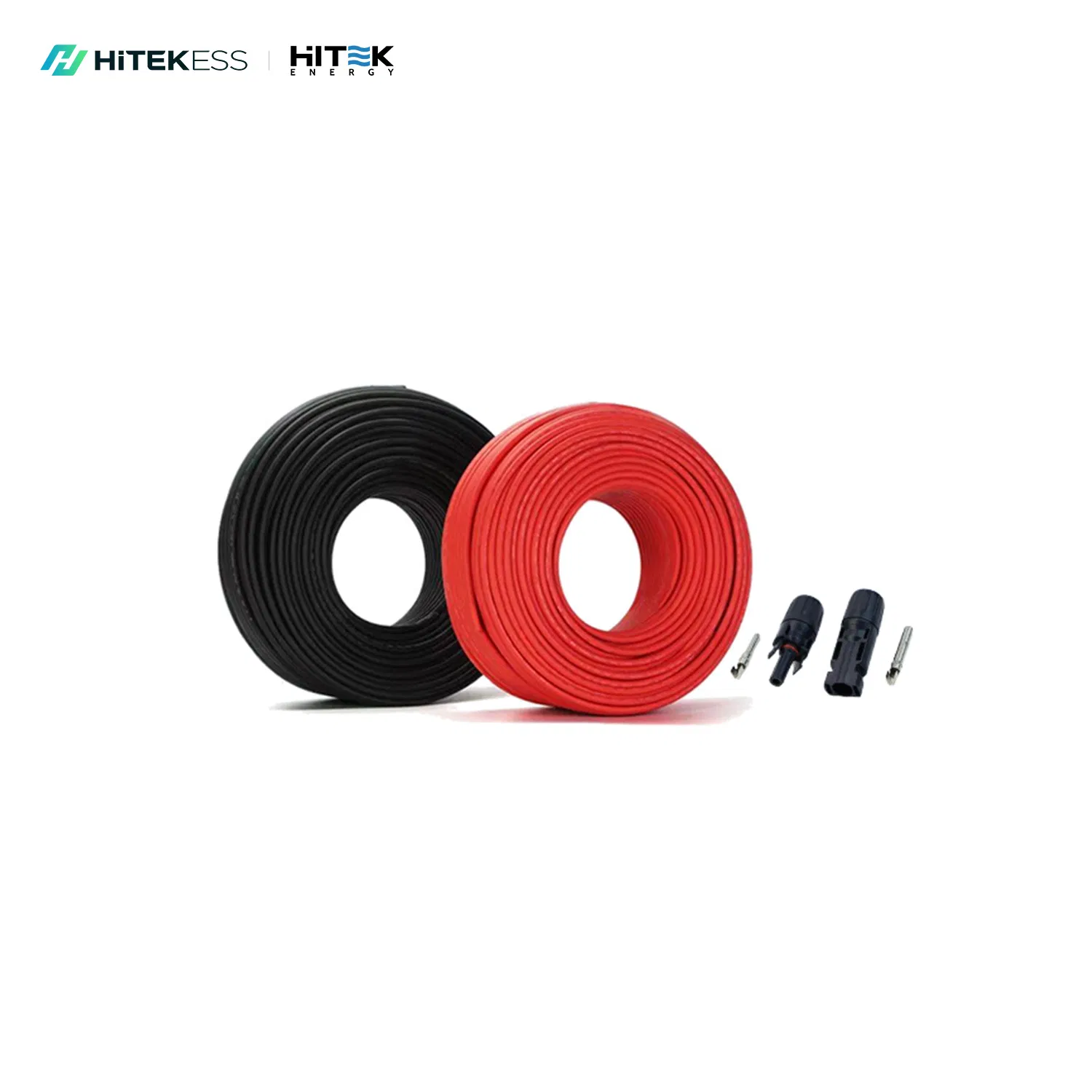

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC / 1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years

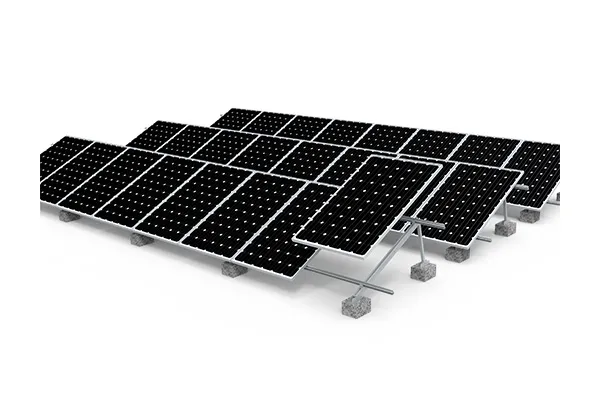

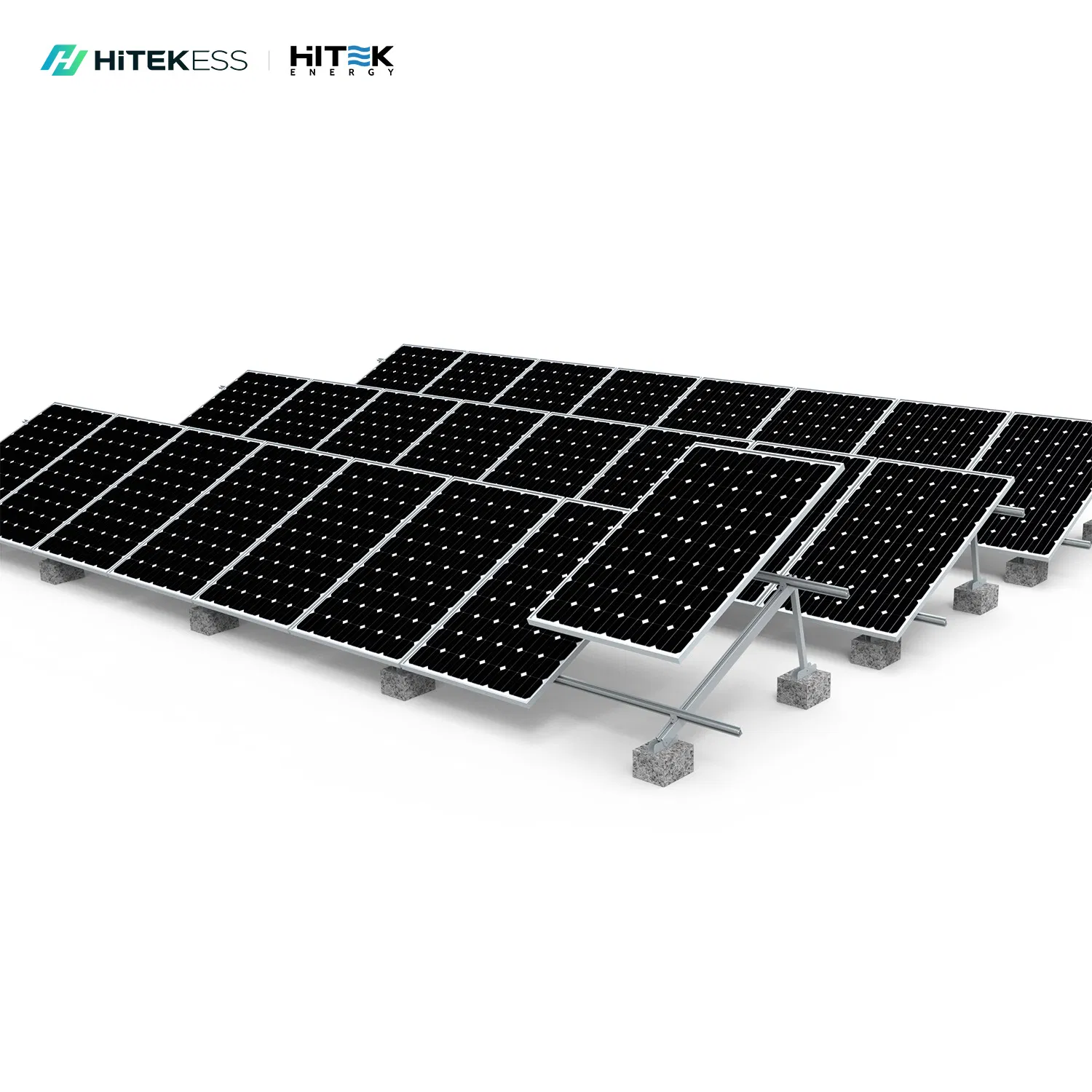

PV Mounting System

Mounting Rail & Rail Splice Kit: Al6005 & SUS304 Bolt
Mid & End Clamps: 30, 35, 40mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clips & Tie Optional
Ground Clips & Lugs Optional

Packaging & Shipping

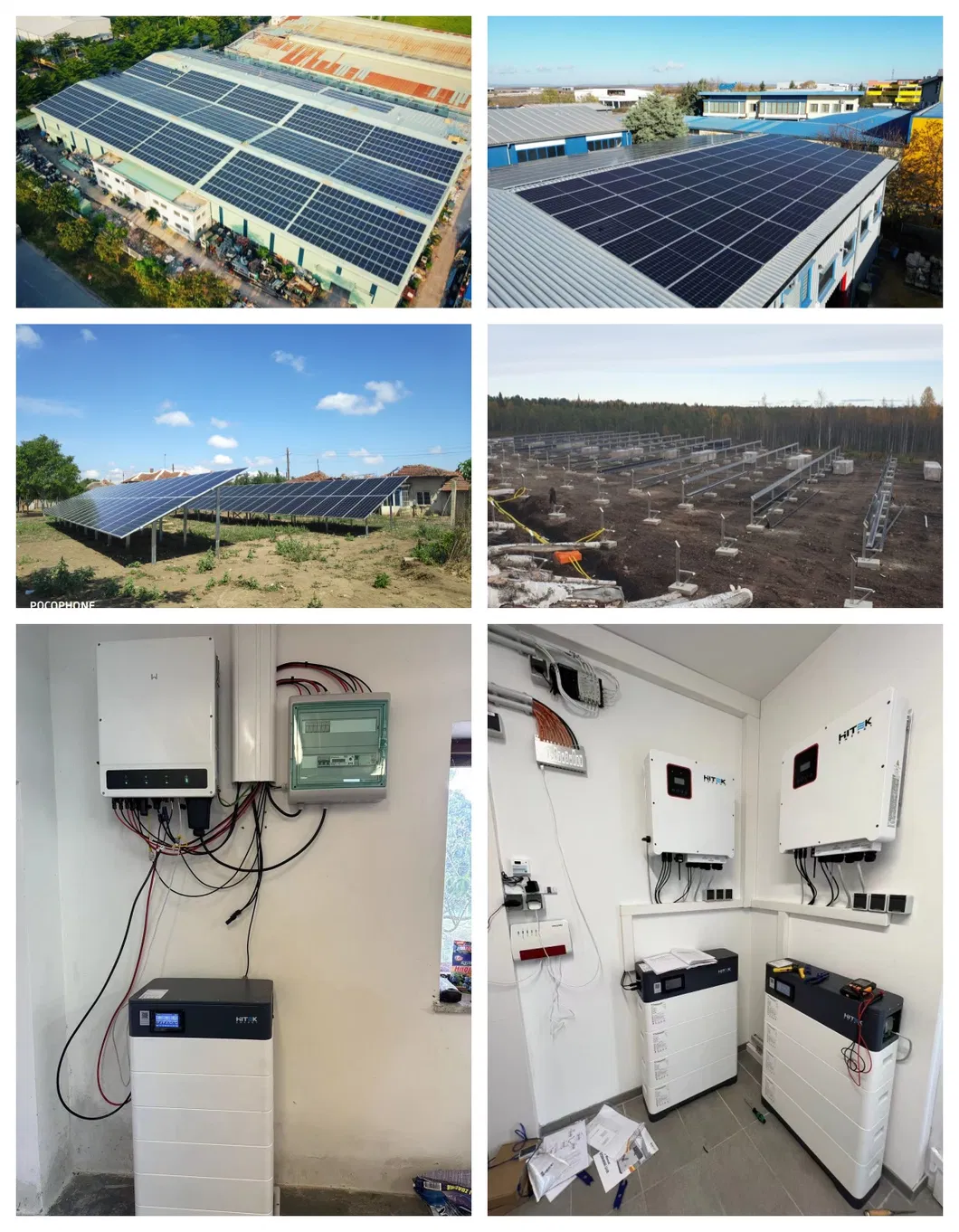

Project Case

Our Advantages

Frequently Asked Questions

What is an off-grid hybrid solar power system?

An off-grid hybrid solar power system combines solar panels, a hybrid inverter, and a battery bank to support both grid-tied power generation and battery energy storage. It ensures you have continuous power during grid outages by switching to battery storage.

How long is the lifespan of the solar battery bank?

The stackable LiFePO4 battery bank is designed for a deep-cycle lifespan of over 6,000 cycles at up to 90% Depth of Discharge (DOD), which provides reliable energy storage for many years under standard conditions.

Can I monitor the solar system remotely?

Yes, the system includes an online monitoring system supporting WiFi, LAN, or GPRS. You can track real-time energy generation, consumption, battery capacity, and system status via a web page or mobile app.

Are mounting systems provided for different roof types?

Yes, the system comes with customized mounting kits suitable for both pitched tiled roofs, asphalt shingle roofs, and flat ground installations, complete with aluminum rails and stainless steel bolts.

What output voltages do these hybrid systems support?

These systems are engineered for high-performance residential and commercial applications, supporting standard output options like 380V, 400V, and 415VAC at 50Hz 3-phase.
