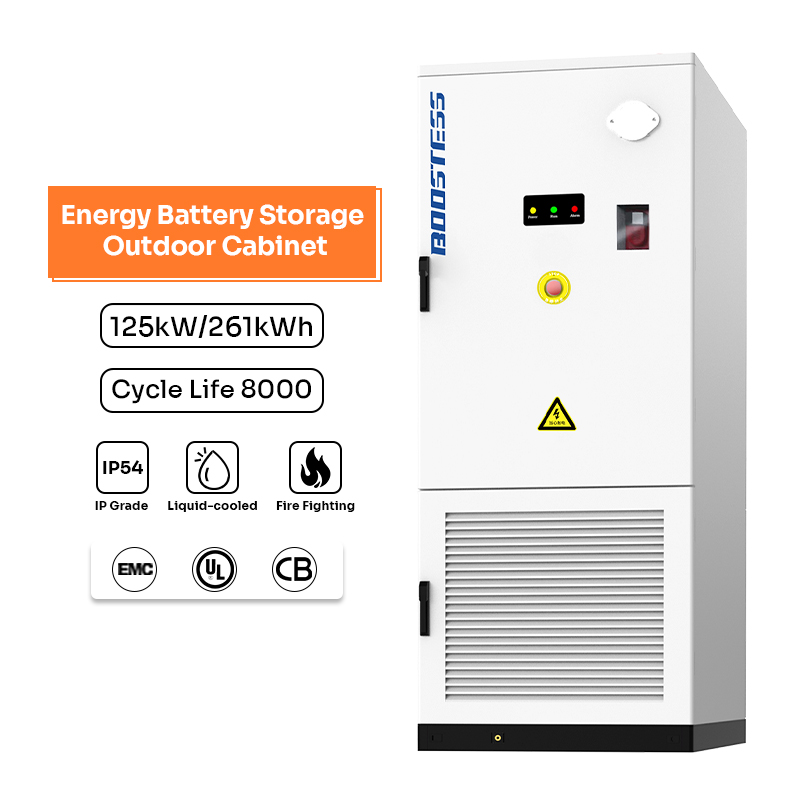

Hot Sale Outdoor Storage Solar System Cabinet 125kw/261kwh All-in-one Batteries Solar Power Distribution Equipment

1 / 5

Hot Sale Outdoor Storage Solar System Cabinet 125kw/261kwh All-in-one Batteries Solar Power Distribution Equipment

Send Inquiry

Product Description

Our Core Advantages

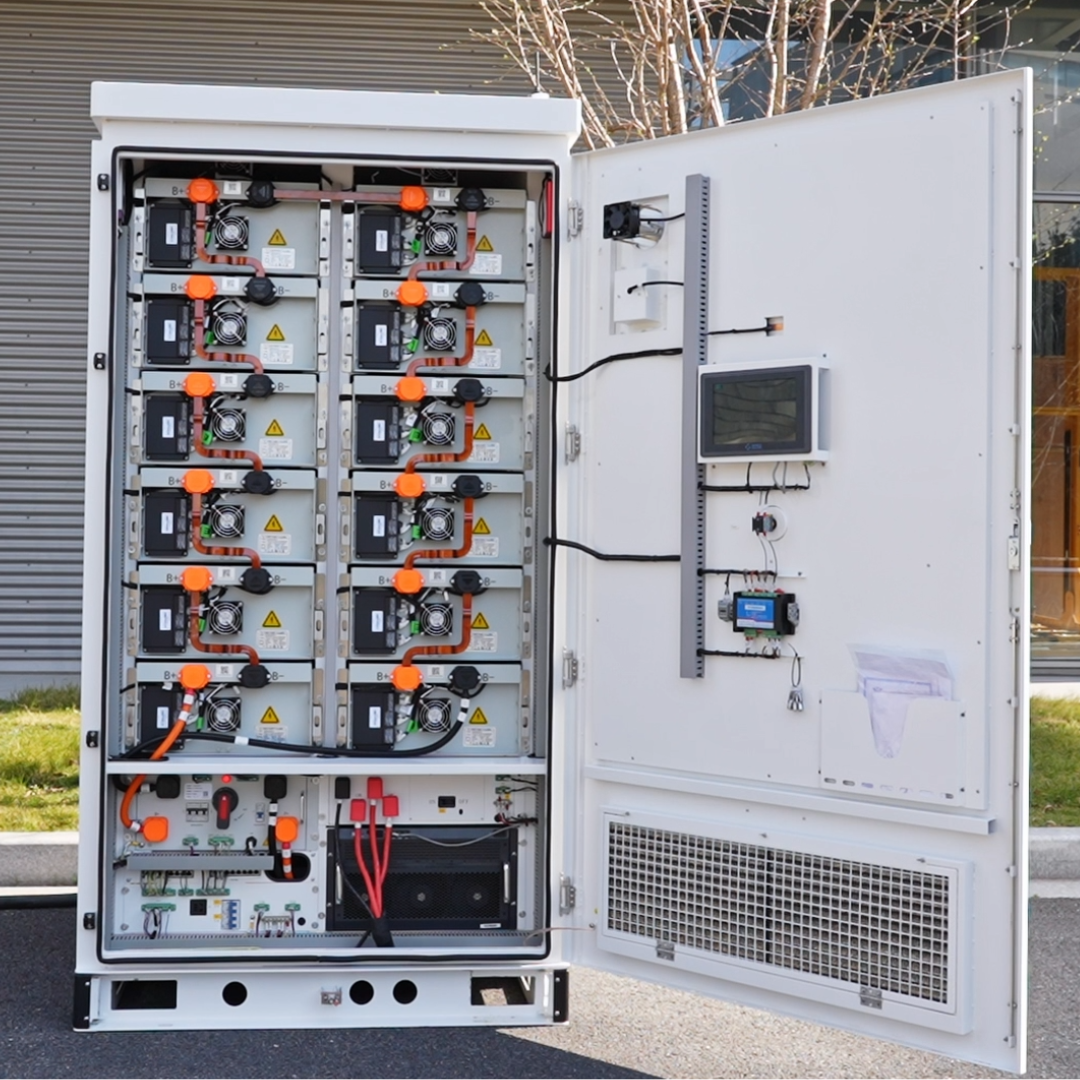

1. All-in-One Design Pre-installed containerized systems (battery + PV input) reduce installation/commissioning time and costs. Plug-and-play deployment for rapid setup.

2. High Efficiency & Reliability AI-optimized air-cooling maintains full power at 45°C (IP54 rated). Round-trip efficiency (RTE) is 3% higher than competitors. LFP batteries ensure safety.

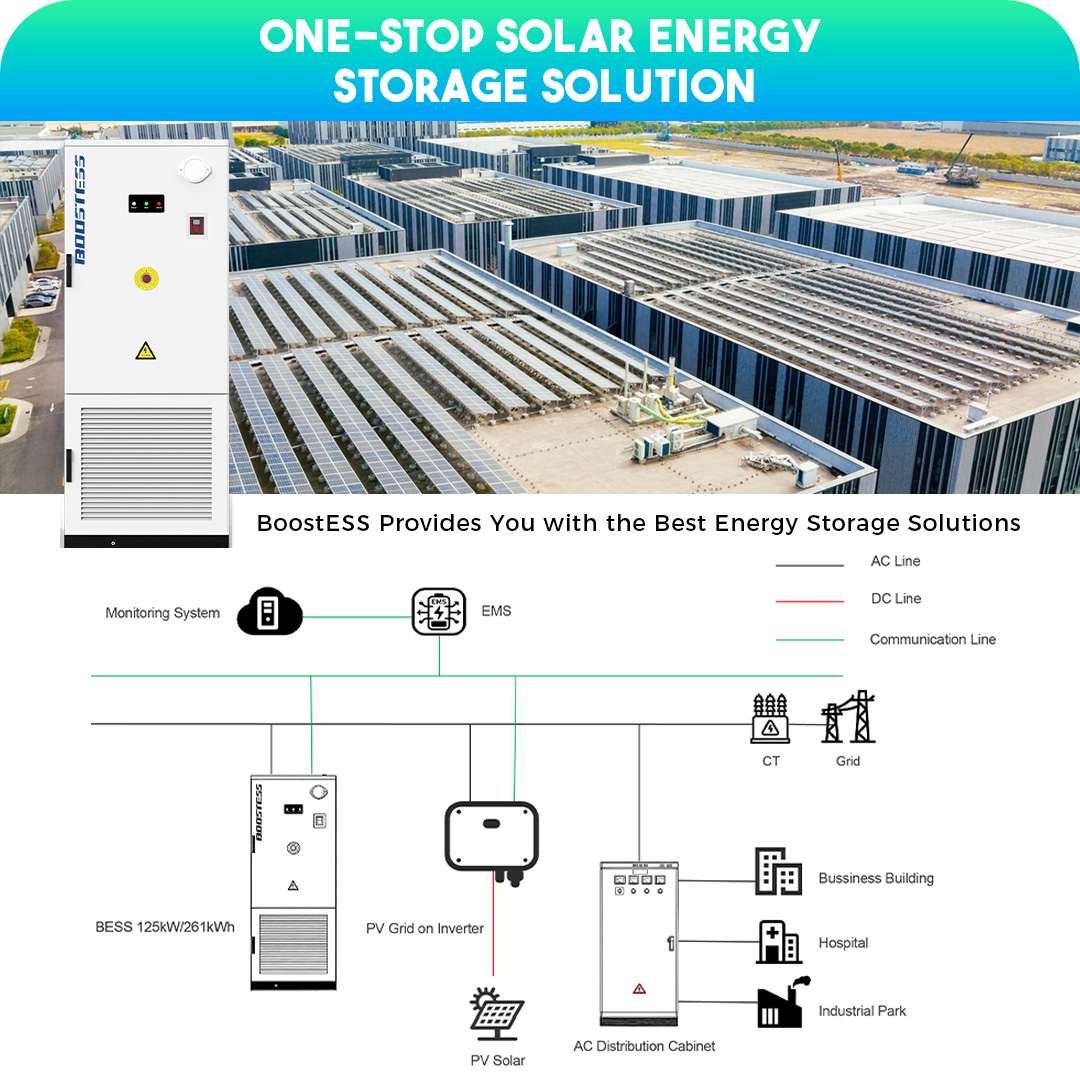

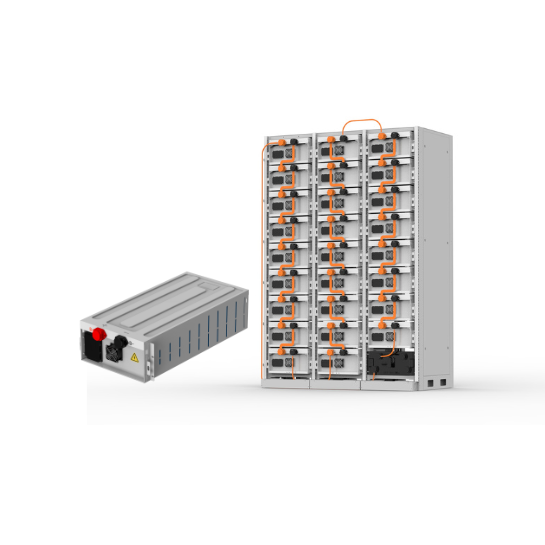

3. Scalability & Flexibility Modular cabinets allow flexible capacity customization (100kWh–5MWh). Supports on/off-grid operation and parallel deployment.

4. Cost Savings Reduces energy costs by 30%–70% through peak shaving, solar integration, and grid independence.

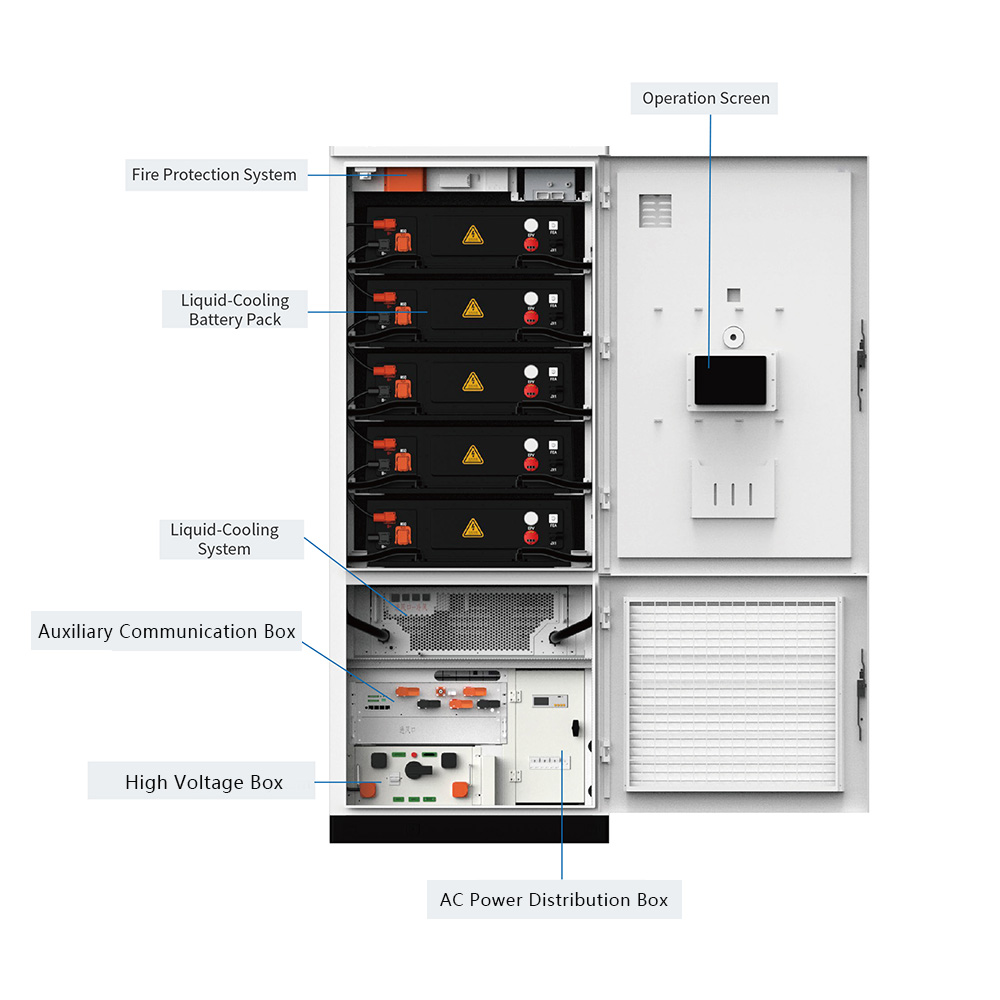

5. Safety Protection Multi-layer protection: automatic fire extinguishers, PACK-level immersion fire tech, and active thermal management.

6. Smart Management Cloud-based remote monitoring, AI energy optimization, and 24/7 fault detection for maximum ROI.

Product Specifications (125kW/261kWh)

BESS SIDE - DC & AC PARAMETERS
DC Parameters
Battery Type	LFP	Operating Voltage	728V~936V
Rated Capacity	314Ah	Cooling Mode	Liquid cooling
Rated Energy	261kWh	Cycle Life	8000 Cycles
Fire Protection	Aerosol Extinguishing*6, water, CO/Smoke/Temp detectors
AC Parameters
Rated Output	125kW	Grid Voltage	380V/400V (±15%)
THD	≤ 3% (at full load)	Conversion Time	< 100ms
System General Parameters
Dimensions	100013002320mm	Weight	~2.5 tons
IP Rating	Battery: IP67, Elec: IP54	Communication	Modbus TCP/RTU, Ethernet

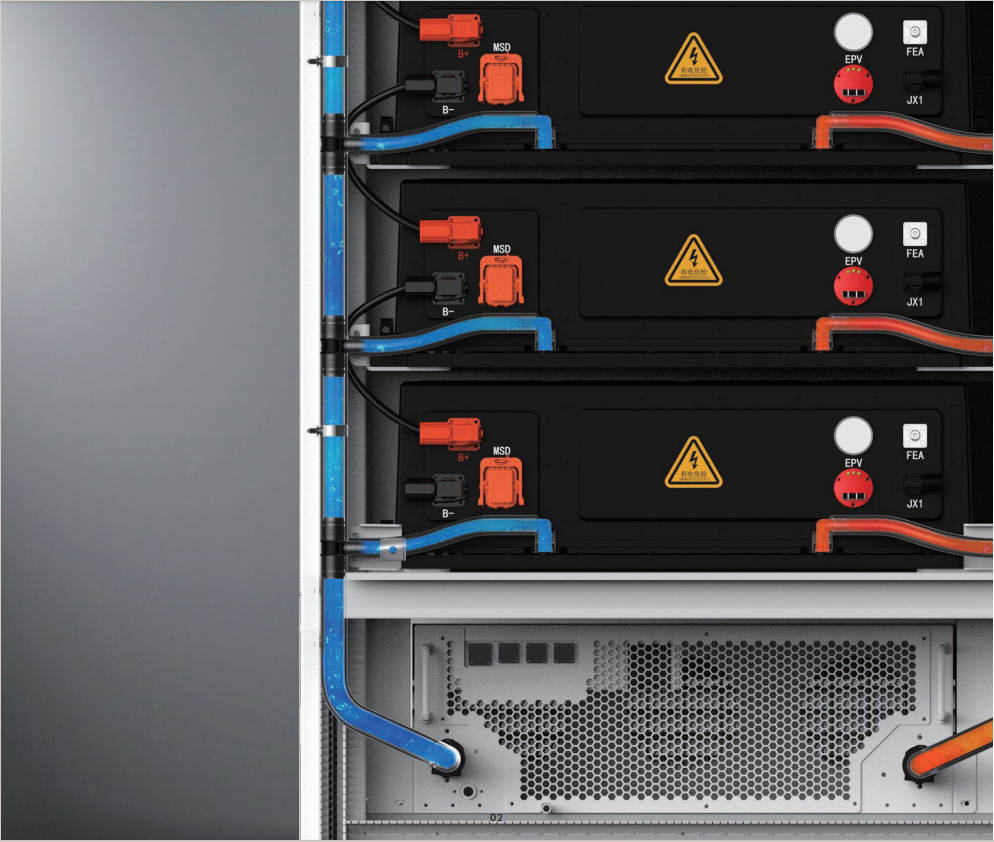

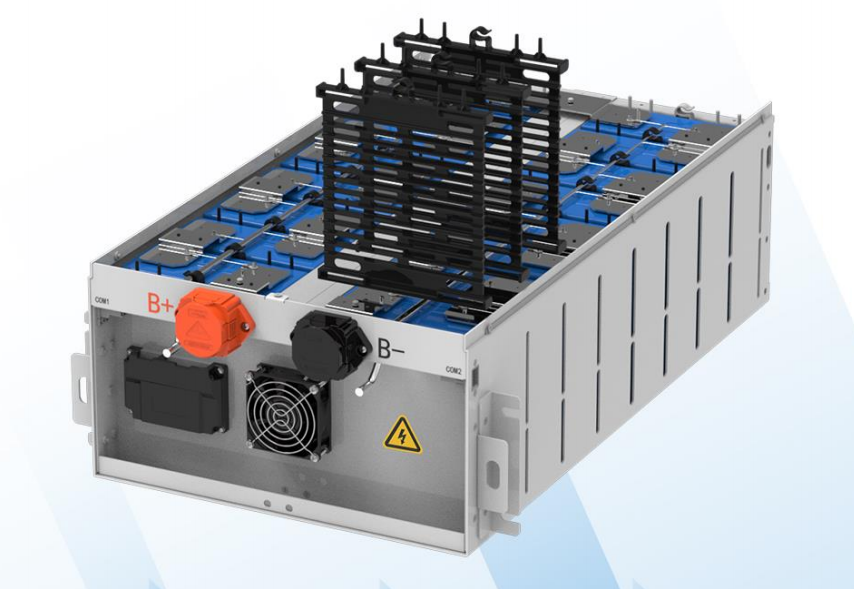

Optimized Module Design

✓ Turbine air duct design for better heat dissipation.

✓ Single cell air duct: temperature control < 5℃.

✓ Enhanced insulation performance for long-term safety.

✓ CTP no-module design: reduces cost by 30%, increases efficiency by 100%.

✓ External quick-plug design for simple BMS maintenance.

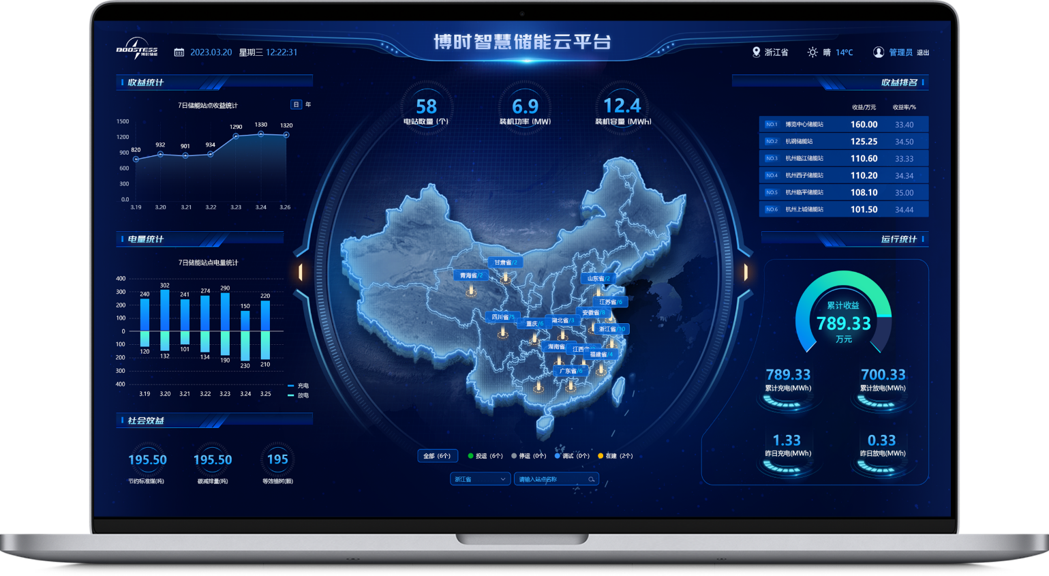

Cloud Energy Storage Platform

Real-time Monitoring 7X24 hours monitoring of battery pack consistency and safety. AI algorithms predict risks and provide real-time warnings.

Economic Optimization Check revenue, peak/valley power, and load status. Remote control strategies for peak load shifting and demand control.

Visual UI Interface Clear information at a glance with graphical control and virtual scene dynamic displays.

Frequently Asked Questions

1. Do you have a Minimum Order Quantity (MOQ) and what is the delivery time?

Normally we do not have an MOQ request for most products. Delivery time depends on the model: items in stock ship within 3 working days; non-stock items typically take 30-35 working days.

2. What certifications do your energy storage products have?

Our battery products are certified to meet global standards, including UN38.3, CE, EMC, UL, and REACH, ensuring compliance with international regulations and quality requirements.

3. Do you offer OEM and ODM services?

Yes, we provide both OEM and ODM services to meet specific requirements. Please note that a minimum order quantity (MOQ) is required for these customized services.

4. Can the batteries be shipped by sea or air?

Yes, we work with experienced freight forwarders specializing in battery shipments to ensure safe and efficient transportation via both sea and air.

5. What is the warranty period for your storage systems?

We offer an industry-leading warranty of up to 10 years for our products, ensuring long-term reliability for your investment.

6. How is the after-sales service provided?

Comprehensive after-sales support is provided through our overseas branches, which are equipped to handle repairs and replacements promptly.
