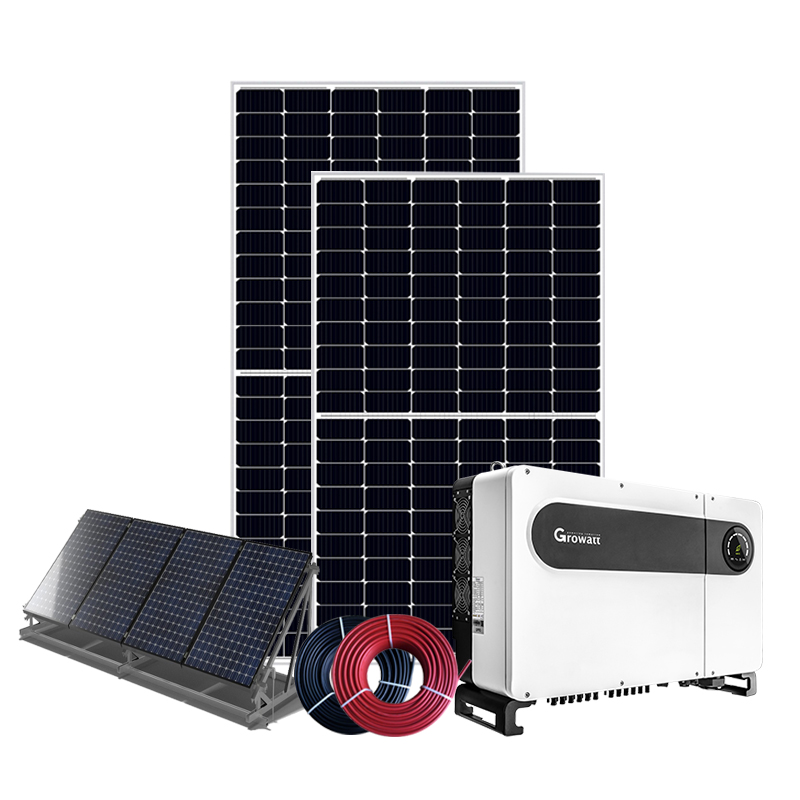

PV Farm Solution 1000Kva Solar Panel Power System 1MW Power Plant on Grid System Solar Energy System Kit

1 / 5

PV Farm Solution 1000Kva Solar Panel Power System 1MW Power Plant on Grid System Solar Energy System Kit

Send Inquiry

Product Description

Product Name	1000KW On Grid system
Component	Solar panels, On grid inverters, photovoltaic lines, DC combiner boxes, Solar Mounting, PV Connector
Power	1MW
Voltage	EU: 220-240/380-400V; US: 110/120/208/240/277/480V
WorkTime(h)	24 Hours
Warranty	25 year
Application	Home use, factory, power station

Note: Product dimensions and physical appearance in this data sheet are nominal. We reserve the right to make the product changes from time to time, without prior notification.

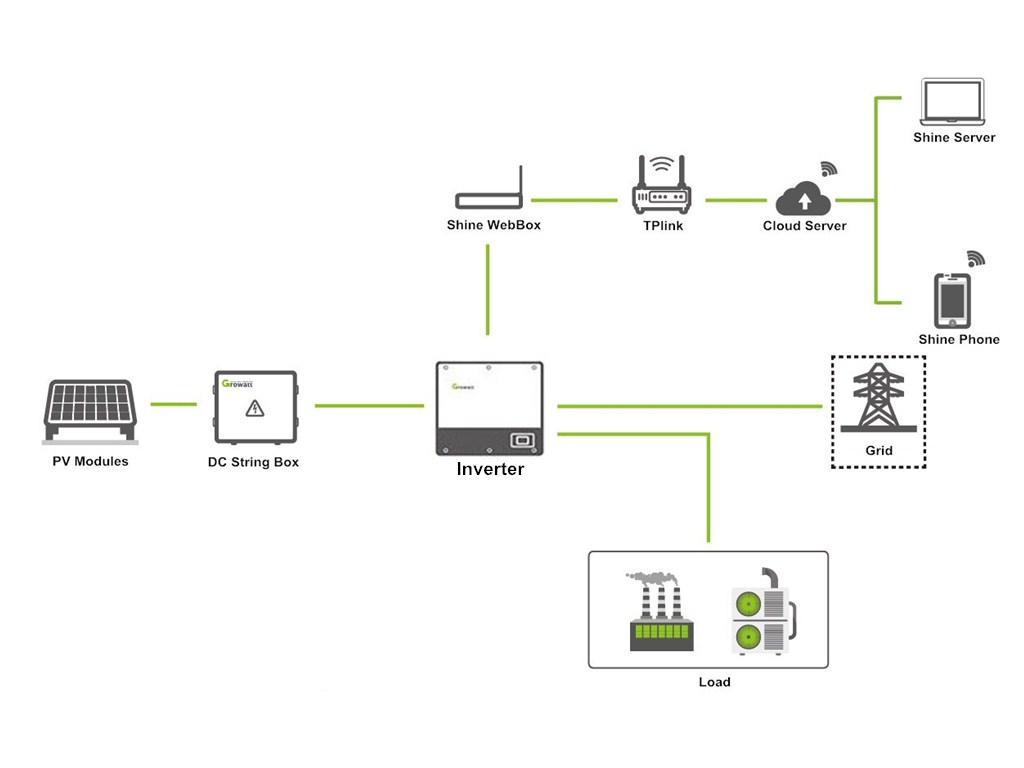

System Components Detail

Components	Description	Quantity	Unit
Solar Panels	370w Mono solar panel	2704	pcs
Inverter	Growatt40000TL3-NS	20	pcs
Wifi Module	Monitoring device	20	pcs
Solar Mounting	Ground Mounting	Customized	set
DC Combiner Box	10input 10output	20	pcs

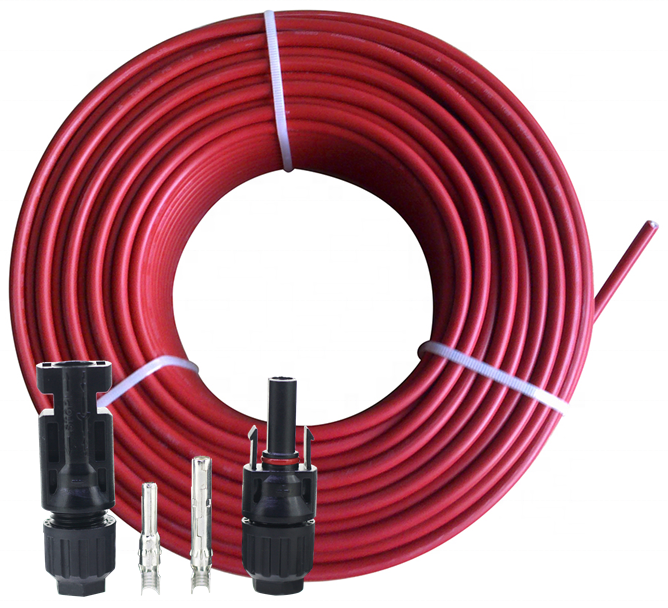

PV Cables	4mm² PV cables	16500	meters
PV Connector	MC4 connector	320	pairs

Core Technology

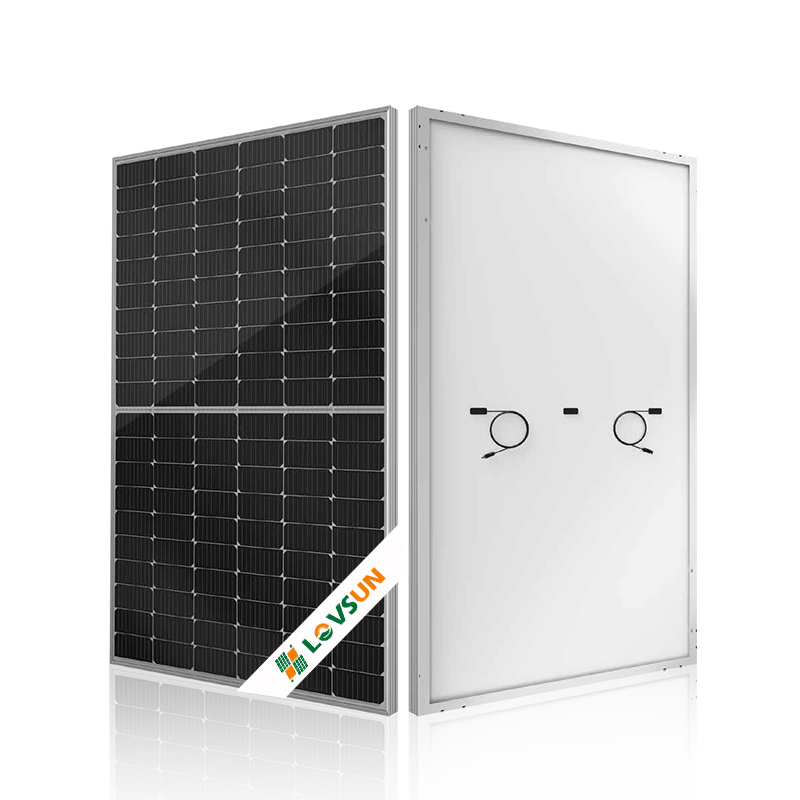

Solar Panel Features

1. Highest Conversion efficiency of 19%

2. 0-5W Positive Power Output Guarantee

3. Anti-reflective and anti-soiling surface (reduces power loss)

4. 25 Years Power Output Guarantee

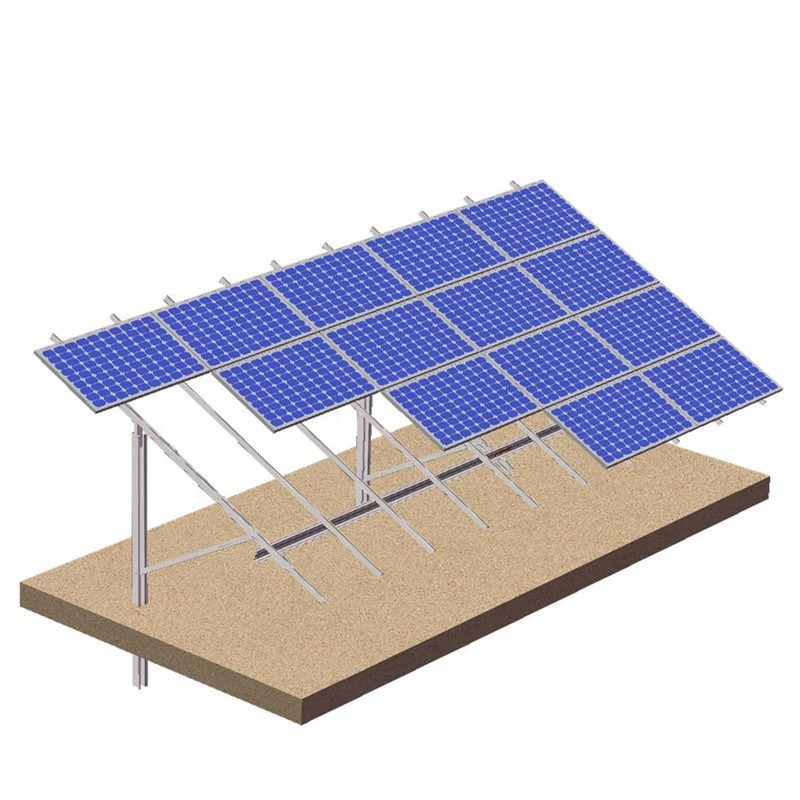

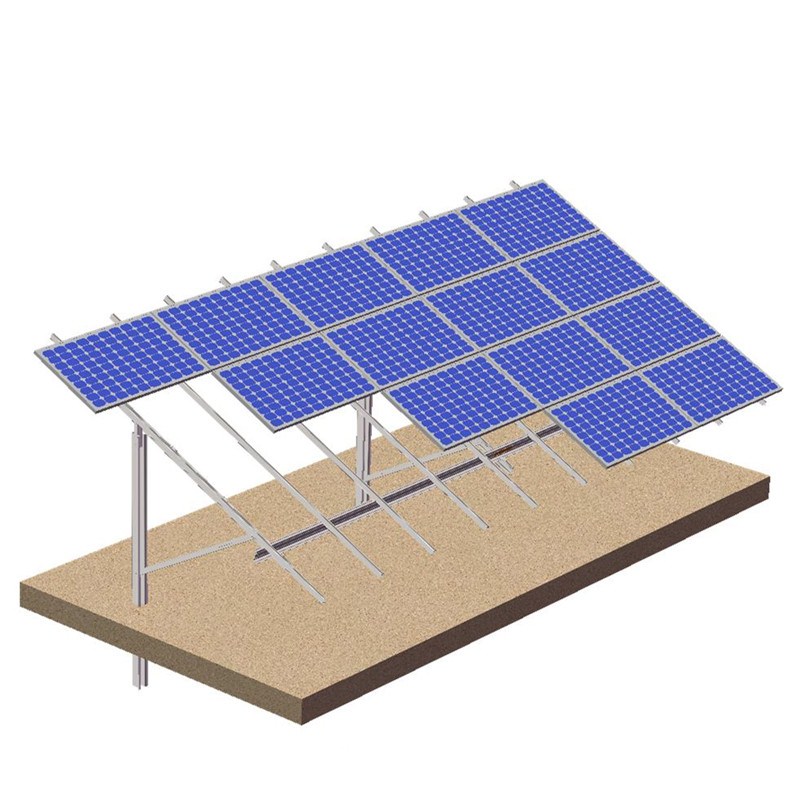

Solar Panel Bracket

Ground Mounting System

✓ Tilt angle: 0-60°
✓ Material: Anodized aluminium
✓ Feature: Easy installation, superior structure strength, stability, and anti-corrosion

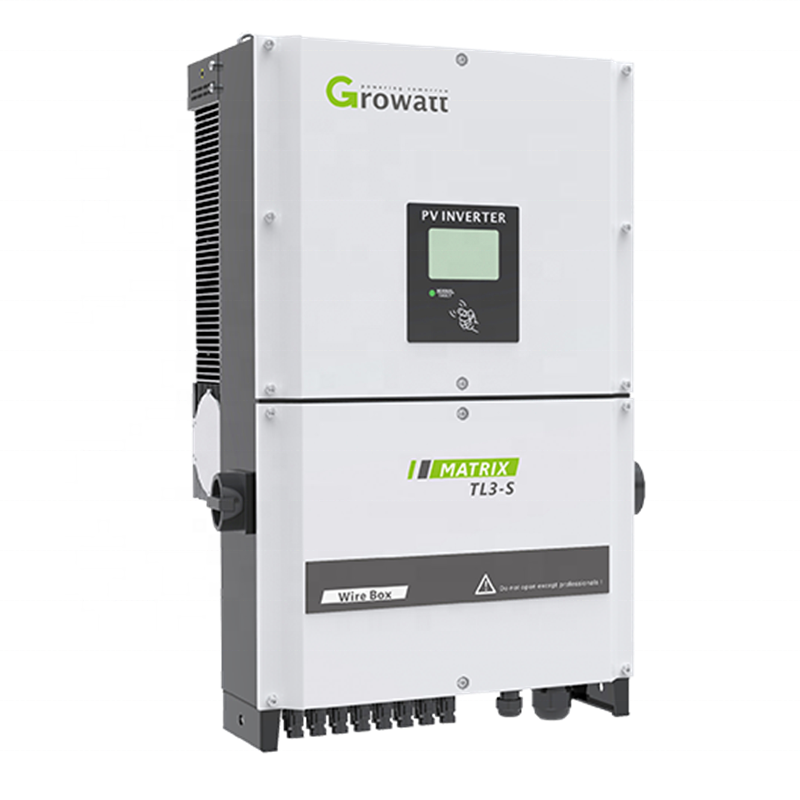

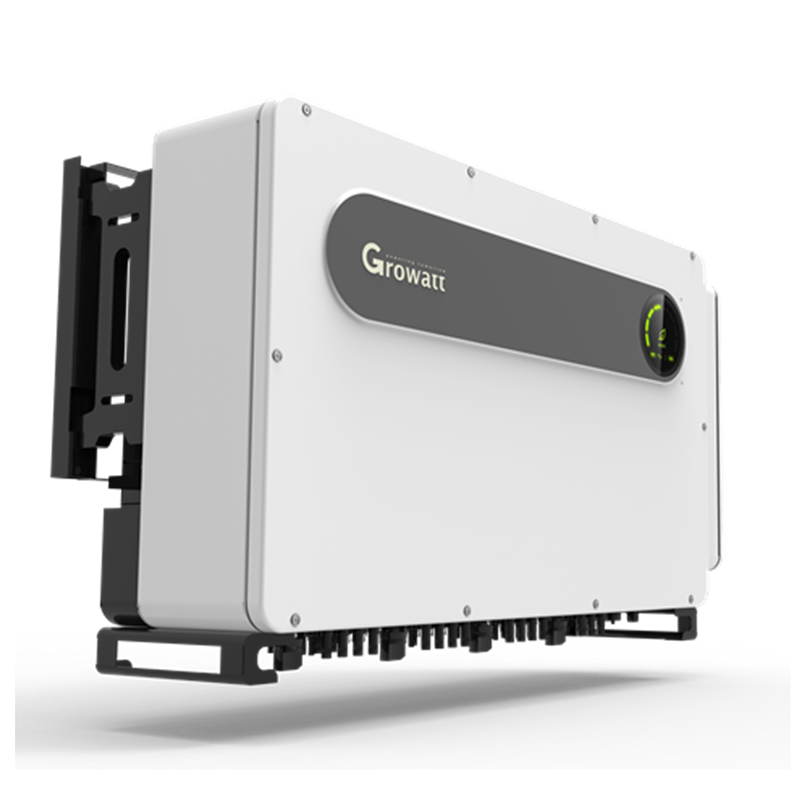

Smart Inverter

Growatt 50KW 3 Phases Inverter

✓ Output: 230V/400V 3P
✓ Max efficiency: 99%
✓ Rated AC output power: 40KW
✓ Protection rating: IP65

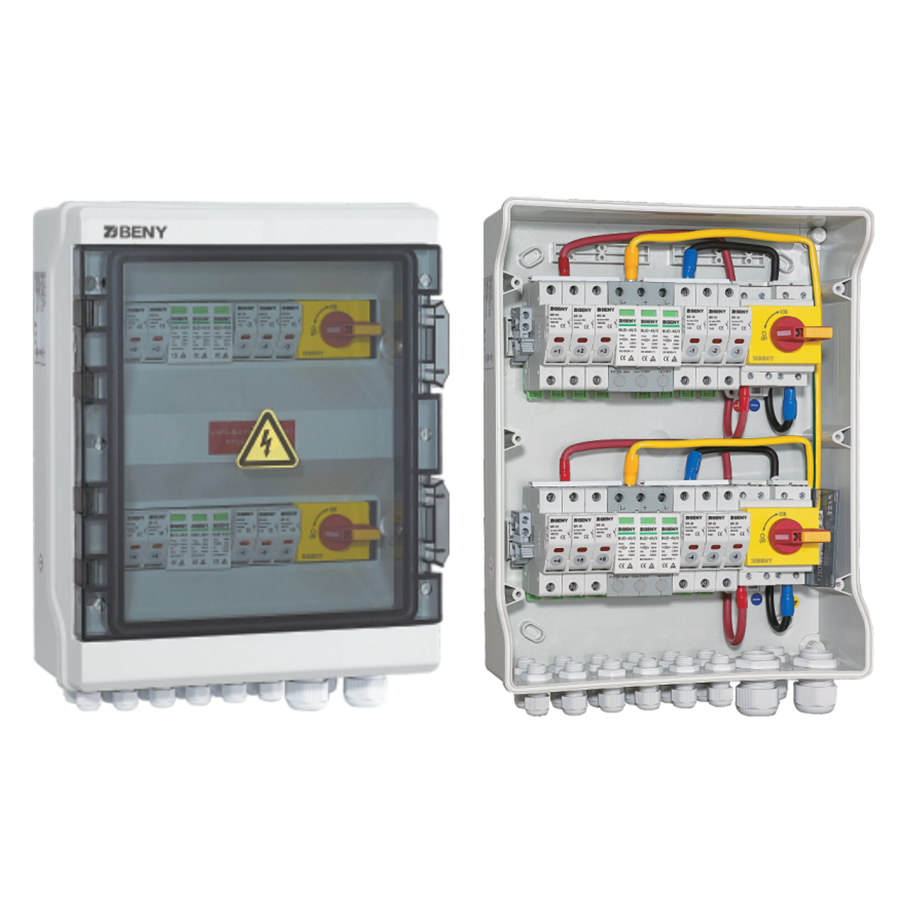

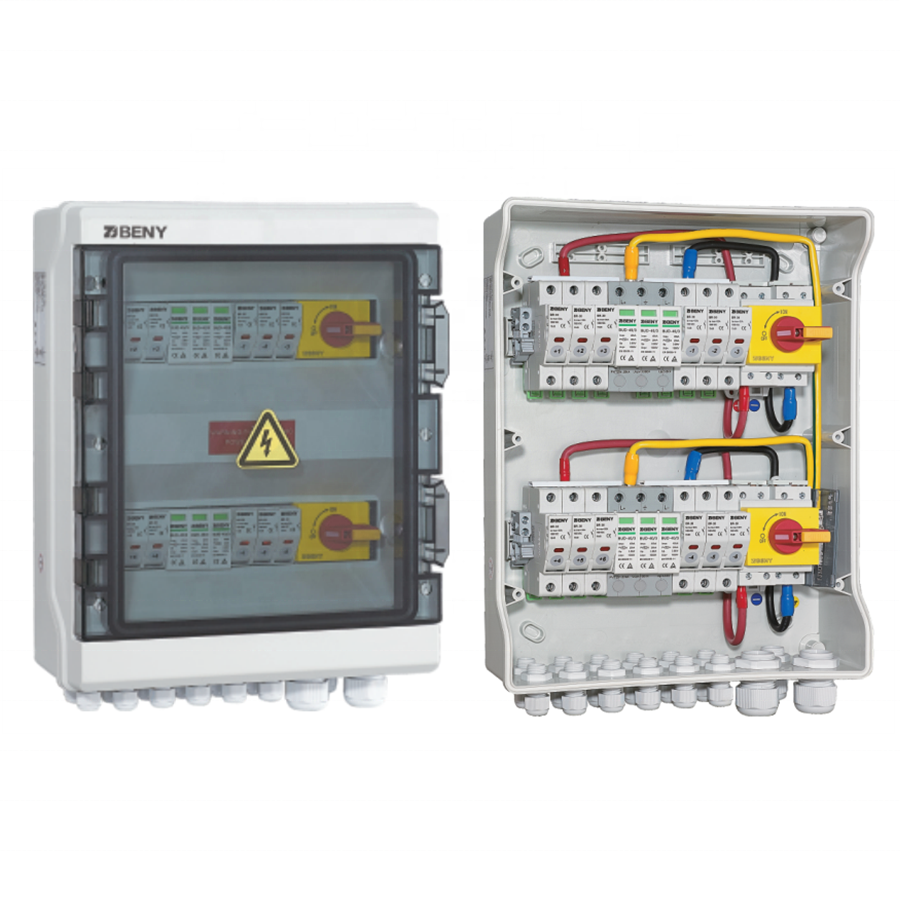

PV DC Combiner Box

✓ Protection Degree: IP65
✓ Maximum Voltage: 1000V
✓ Maximum Current Output: 32A
✓ Operating Temp: -20°C ~ +60°C
✓ Installation: Wall Mounting

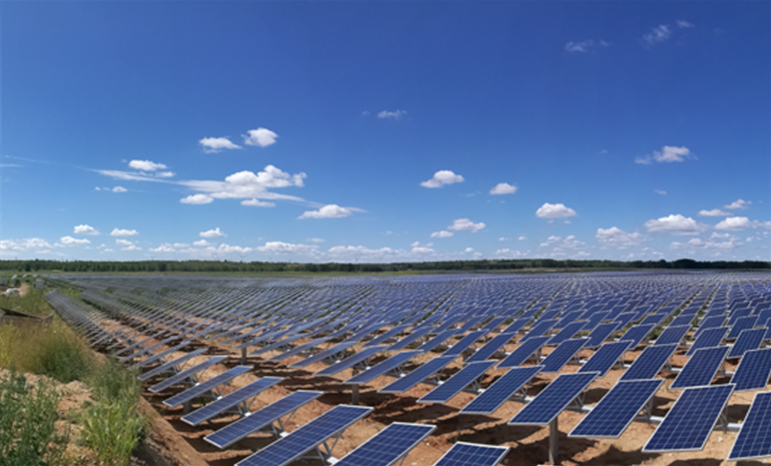

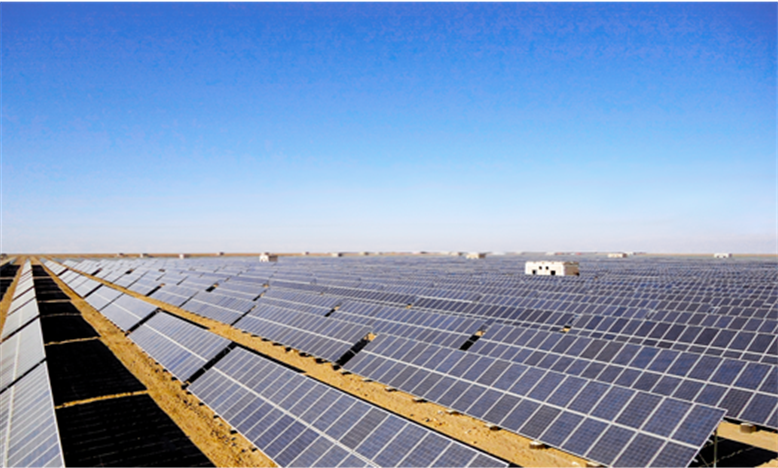

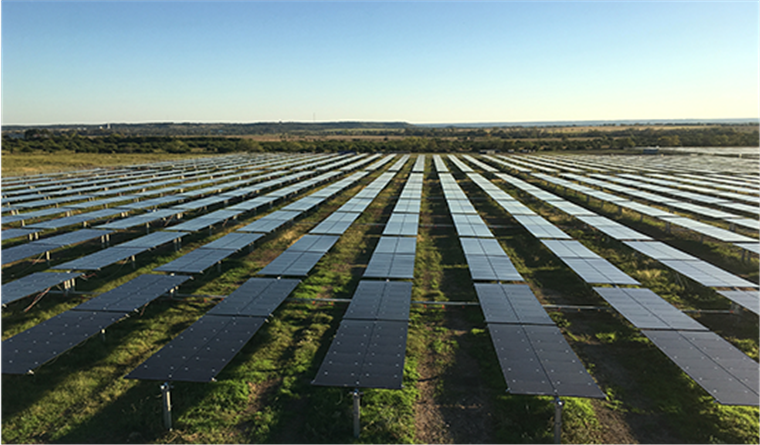

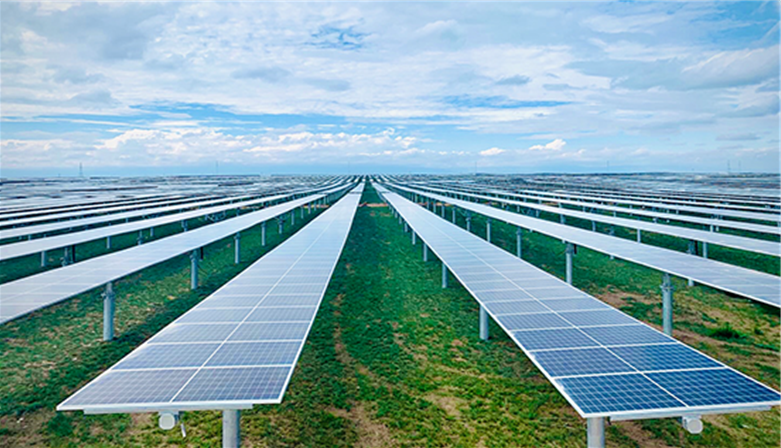

Global Projects

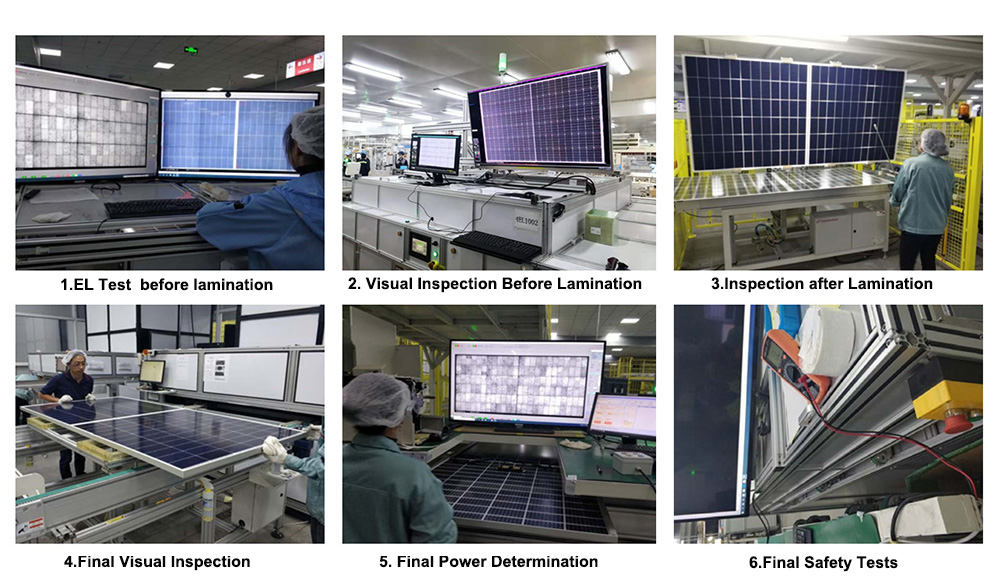

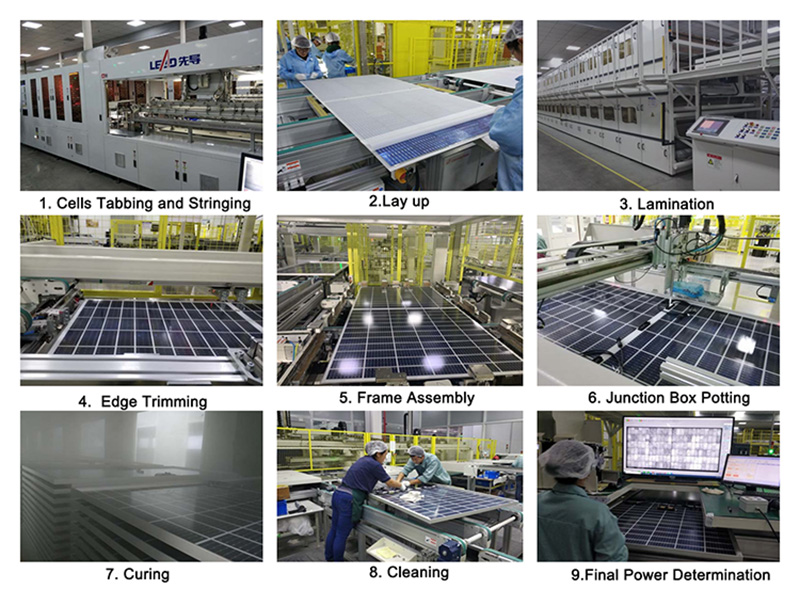

Manufacturing & Quality Control

Professional intelligent mechanized production process ensures high efficiency.

Professional testing team, 100% guarantee product quality.

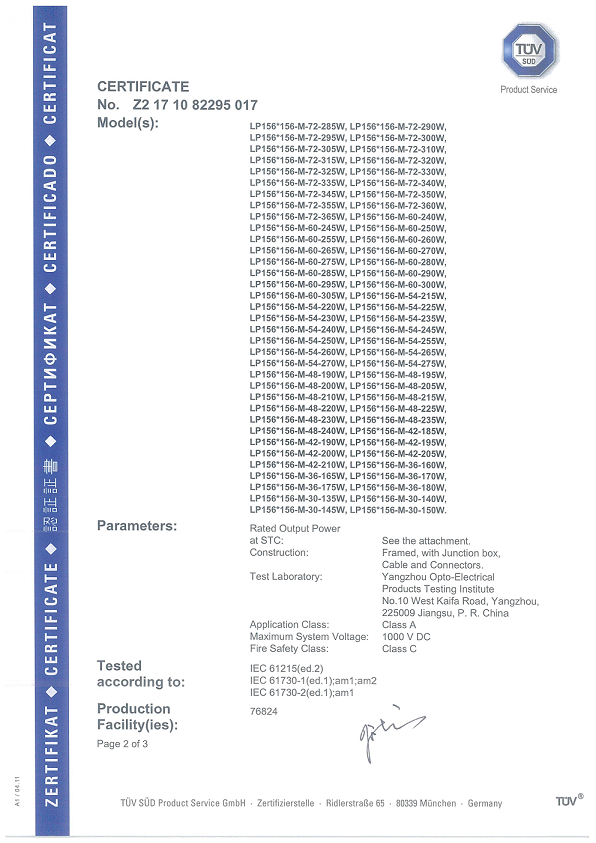

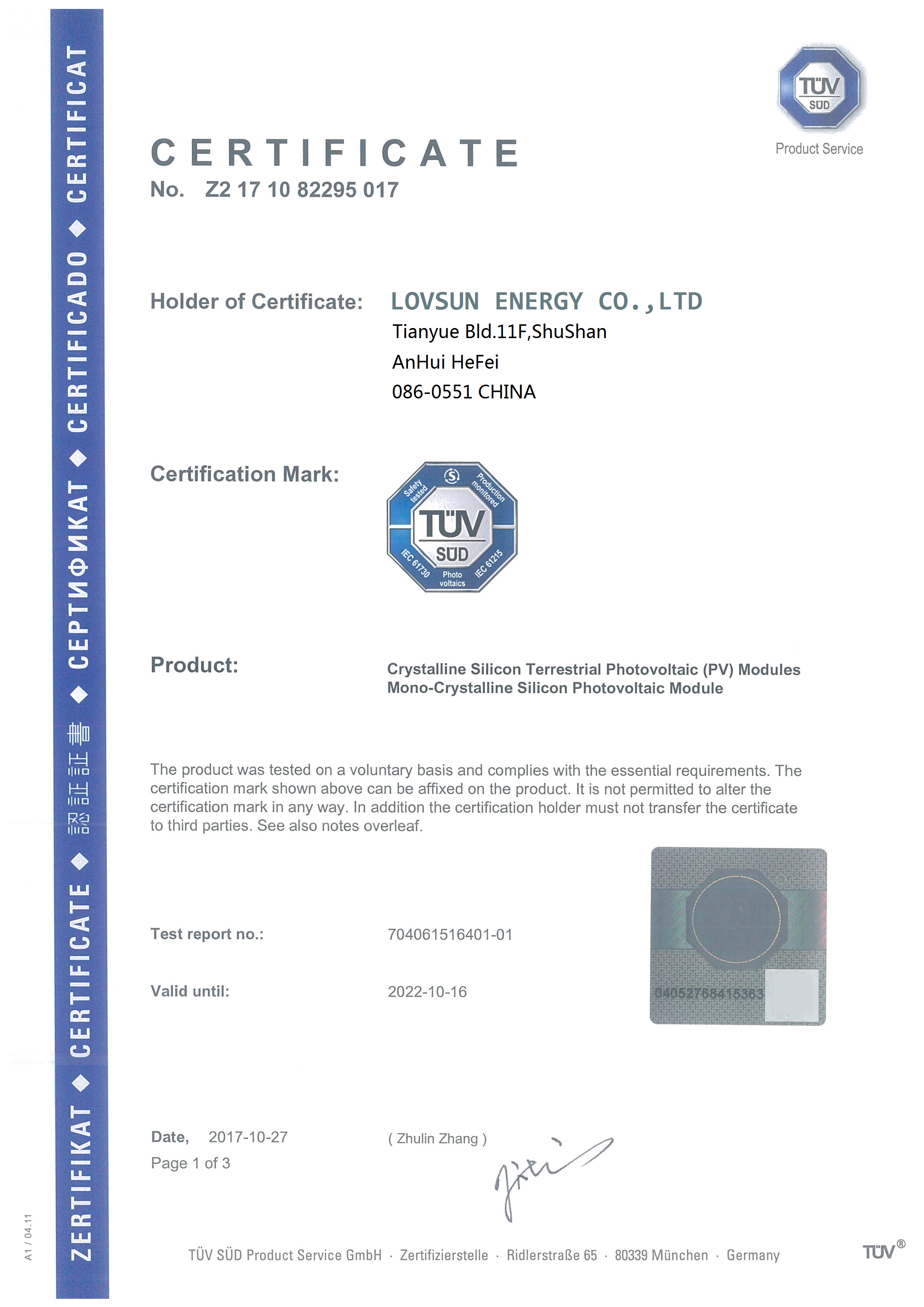

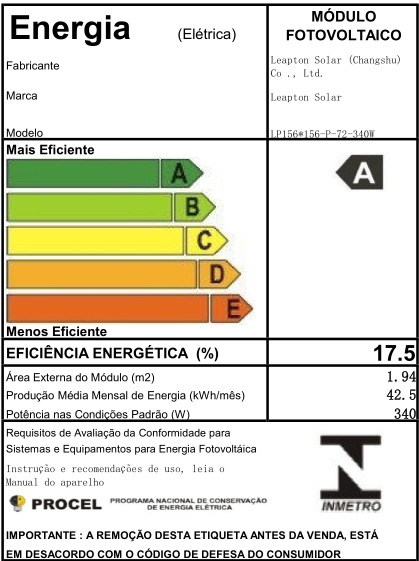

Certifications

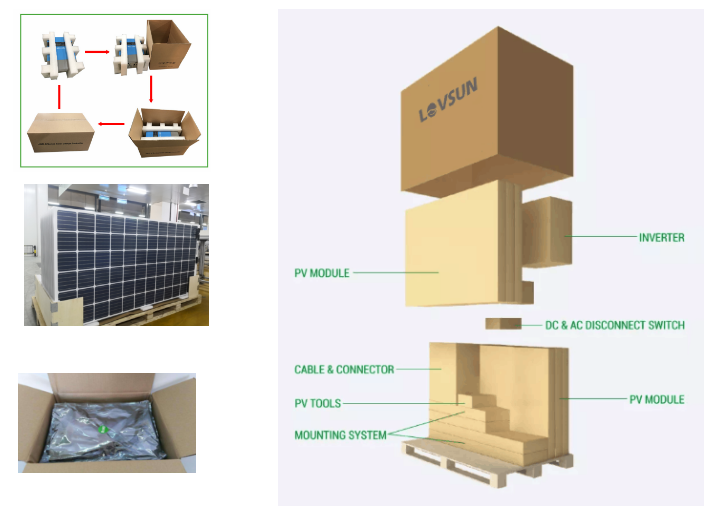

Packing & Shipping

Payment Terms	T/T (EXW/FOB)	30% deposit in advance, balance before shipment.
	T/T (CFR/CIF)	30% deposit in advance, balance against copy of B/L.
	L/C at sight	Acceptable for shipments above 50,000 USD.
	West Union/Paypal	For amounts less than 5000 USD.
Delivery Time	7~25 days after receiving the payment or deposit.

Order Protection Benefits:

Products quality protection
On time shipment
Payment safety protection
Third party inspection optional

Frequently Asked Questions

What is the capacity of this on-grid solar system?

This is a 1000KW (1MW) industrial-scale on-grid solar power system designed for large factories and power stations.

What is the warranty period for the components?

The system comes with a comprehensive 25-year power output guarantee for the solar panels.

Does this system support different international voltages?

Yes, the system is compatible with EU standards (220-240V/380-400V) and US standards (110V/120V/208V/240V/277V/480V).

What is the efficiency of the solar panels and inverters?

The solar panels feature a conversion efficiency of up to 19%, while the high-performance inverters reach a maximum efficiency of 99%.

Is the mounting system suitable for any ground condition?

Yes, the ground mounting system is made of anodized aluminum with adjustable tilt angles (0-60°) to ensure stability and anti-corrosion performance.

How long is the typical delivery time?

Typical delivery ranges from 7 to 25 days after the receipt of the initial deposit or payment.
