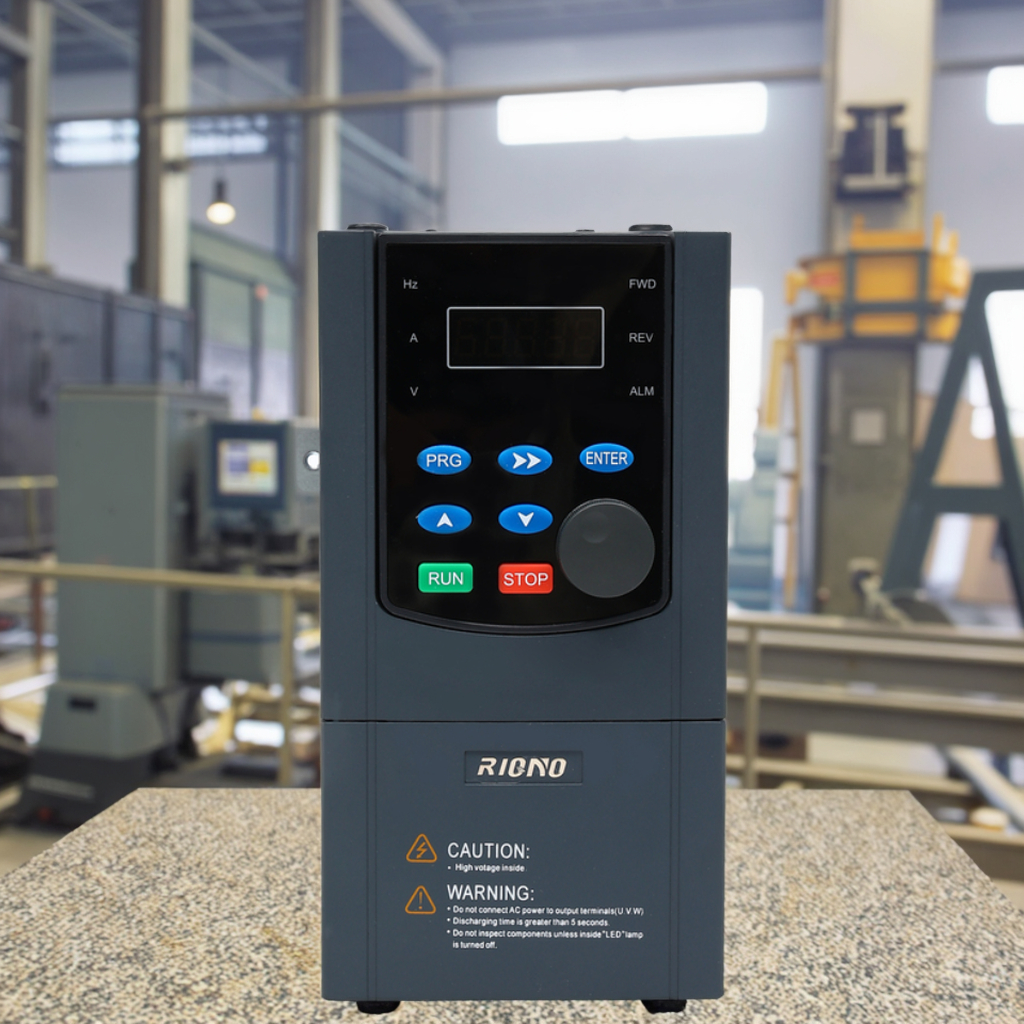

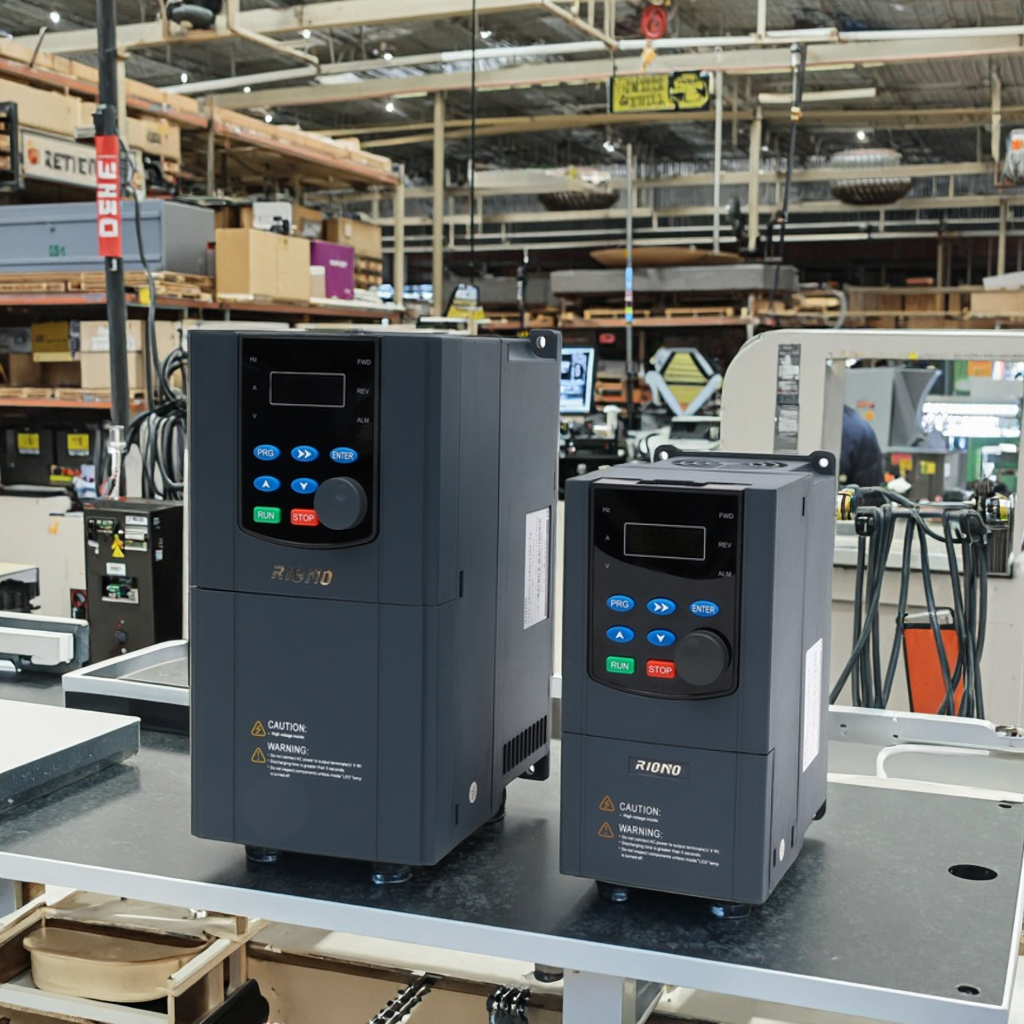

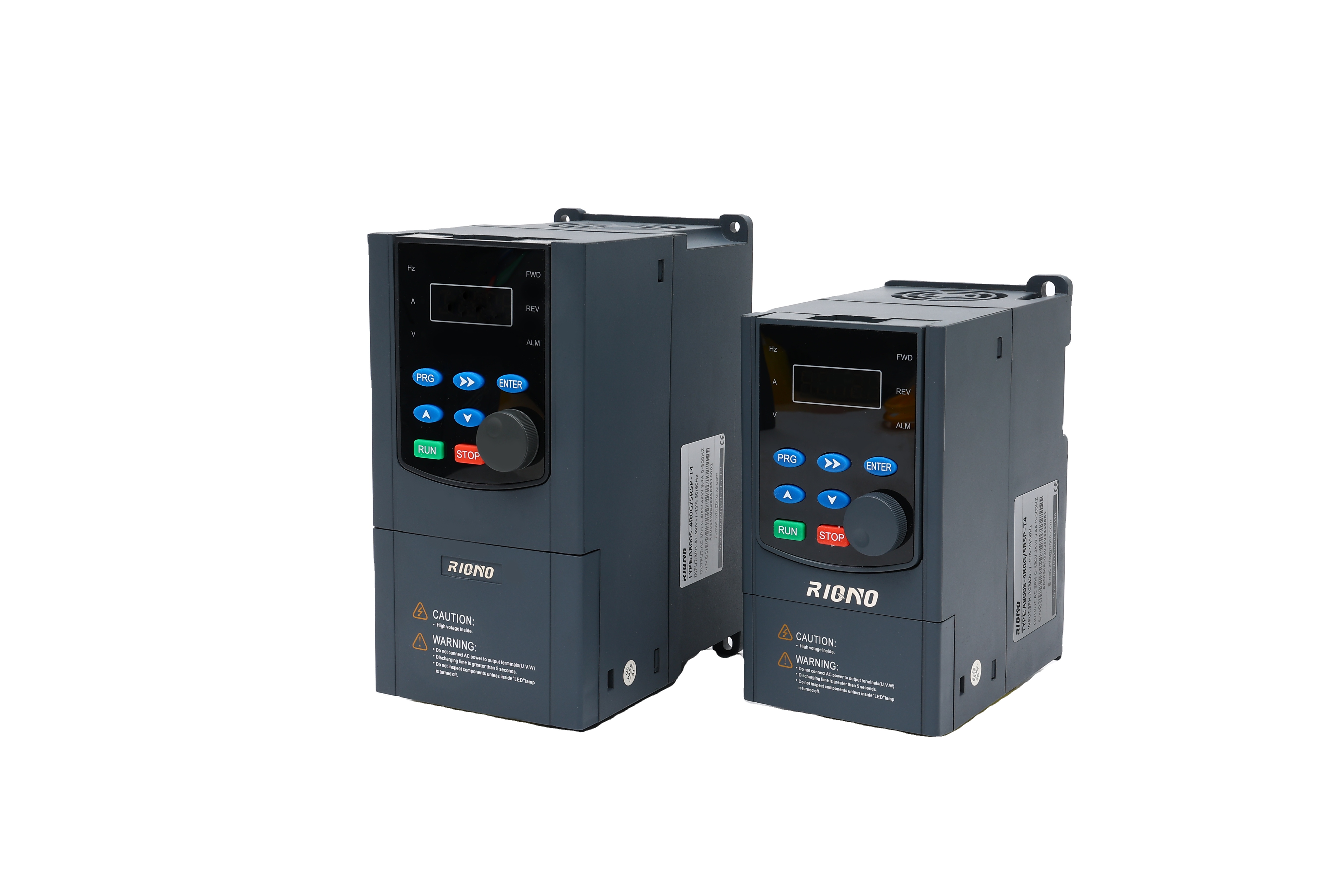

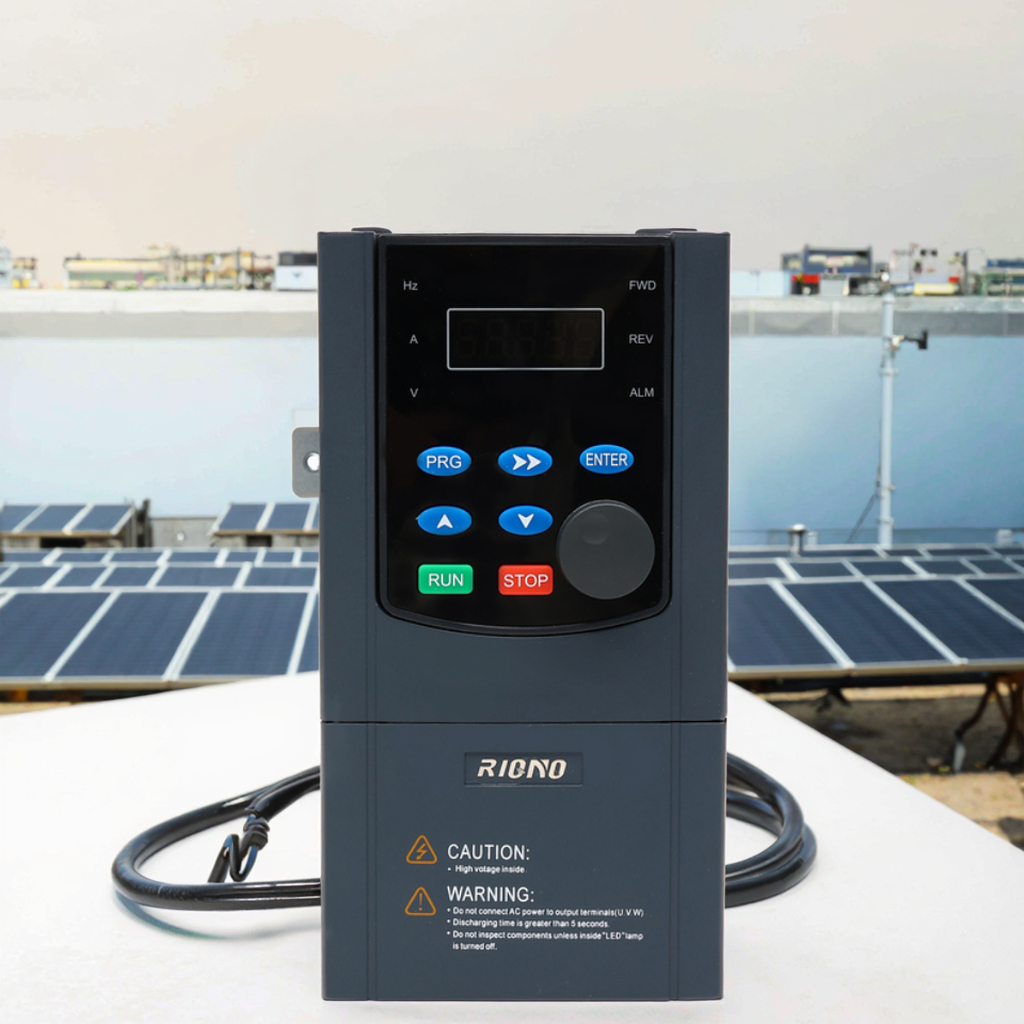

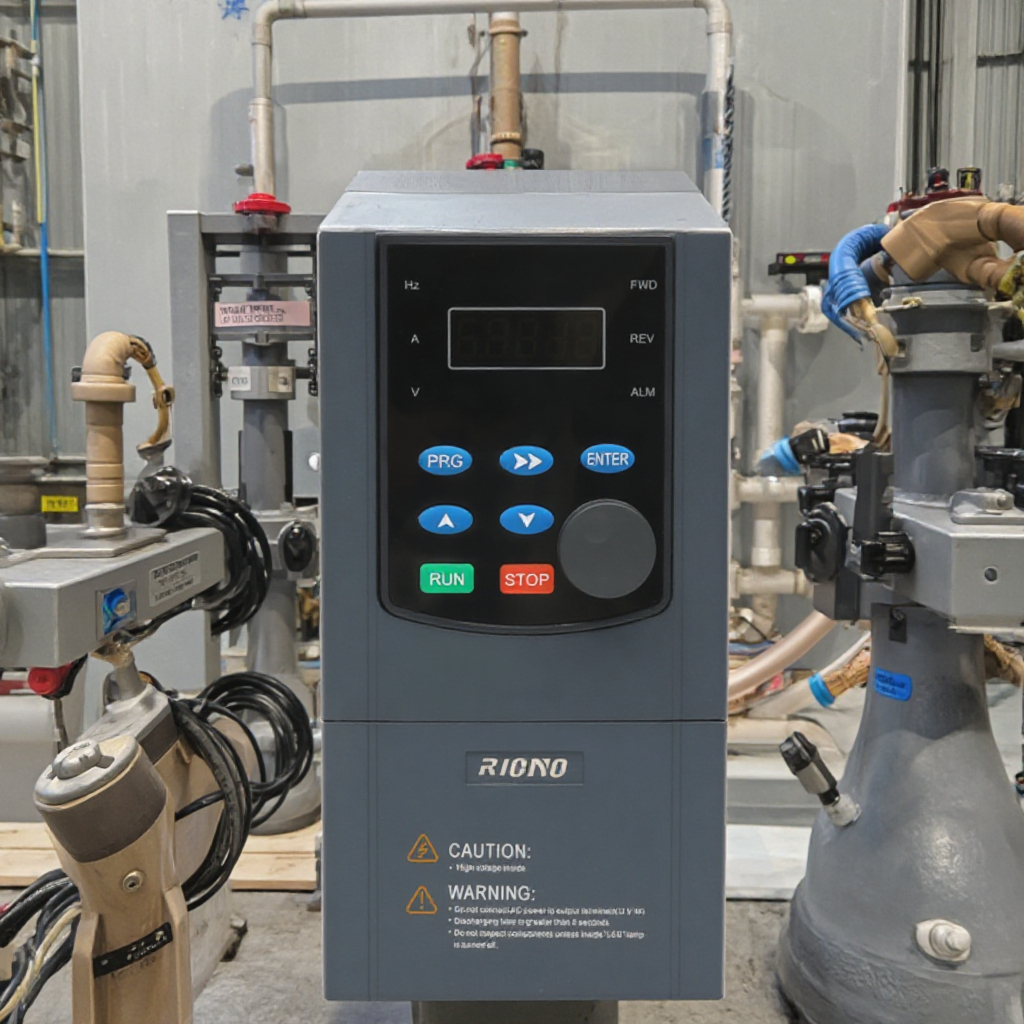

Product name: A800 Series High Performance Vector Frequency Inverter
Nominal voltage: 220V & 380V | Output frequency: 0-3000HZ
Temperature range: -10°C-50°C | Protection level: IP20
Cooling method: Fan cooling | Application: Elevator, Solar water pump, Conveyor Belt, Crusher, etc.
| No. | Model No. | Motor Power (KW) | Rated Current (A) | Outline Dimensions (mm) | Weight (KG) |
|---|---|---|---|---|---|
| 1 | A800-0R7G/1R5P-T4 | 0.75 | 2.1/3.8 | 85*129*170 | 1.3 |
| 2 | A800-1R5G/2R2P-T4 | 1.5 | 3.8/5.1 | 85*129*170 | 1.3 |
| 3 | A800-4R0G/5R5P-T4 | 4 | 9/13 | 97*144*194 | 1.75 |
| 4 | A800-7R5G/11RP-T4 | 7.5 | 17/25 | 124*171*245 | 3 |
| 5 | A800-15RG/18RP-T4 | 15 | 32/37 | 200*178*335 | 5.55 |
| 6 | A800-30RG/37RP-T4 | 30 | 60/75 | 255*195*390 | 13 |
We are a professional manufacturer of frequency inverters and servo drives. Our facility features advanced automation technology, equipped with professional PCB assembling machines, automatic spraying equipment, and intelligent testing benches.
All products undergo strict quality control procedures, from international automation production process control to final laboratory testing, ensuring high reliability for our customers.
