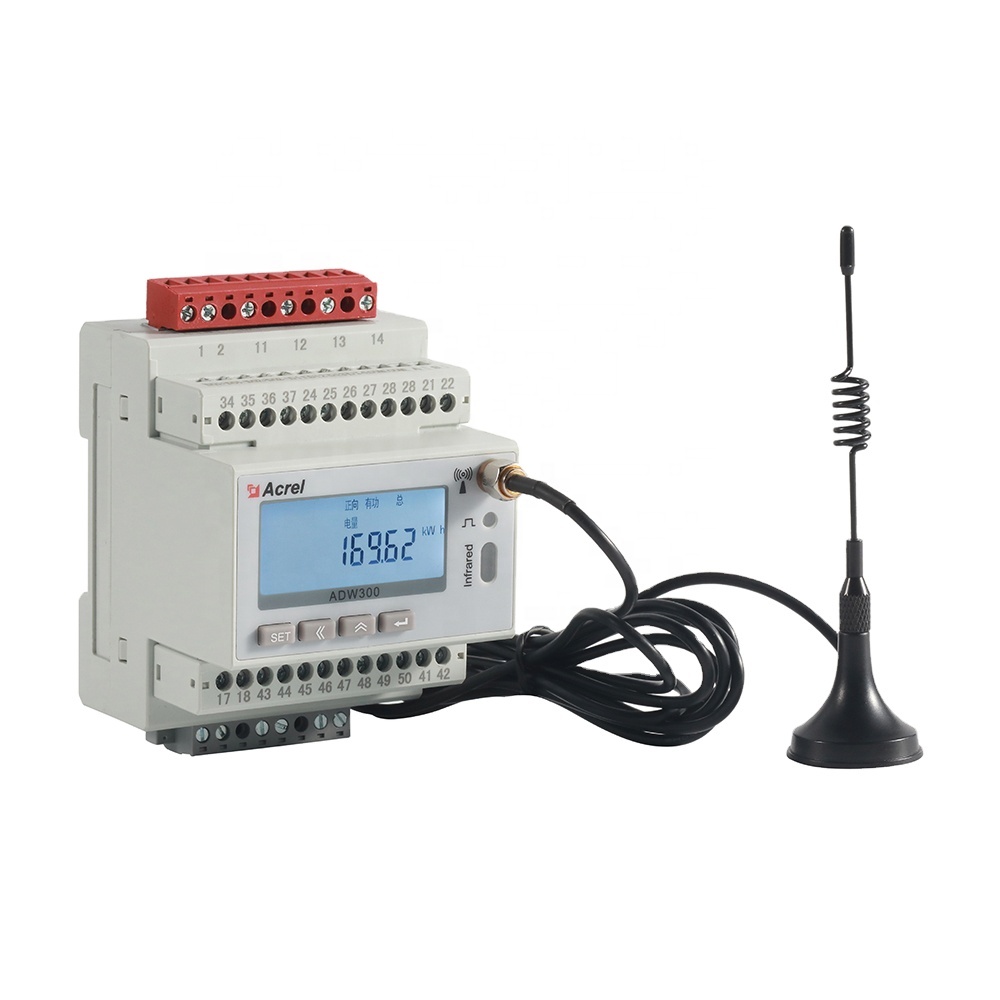

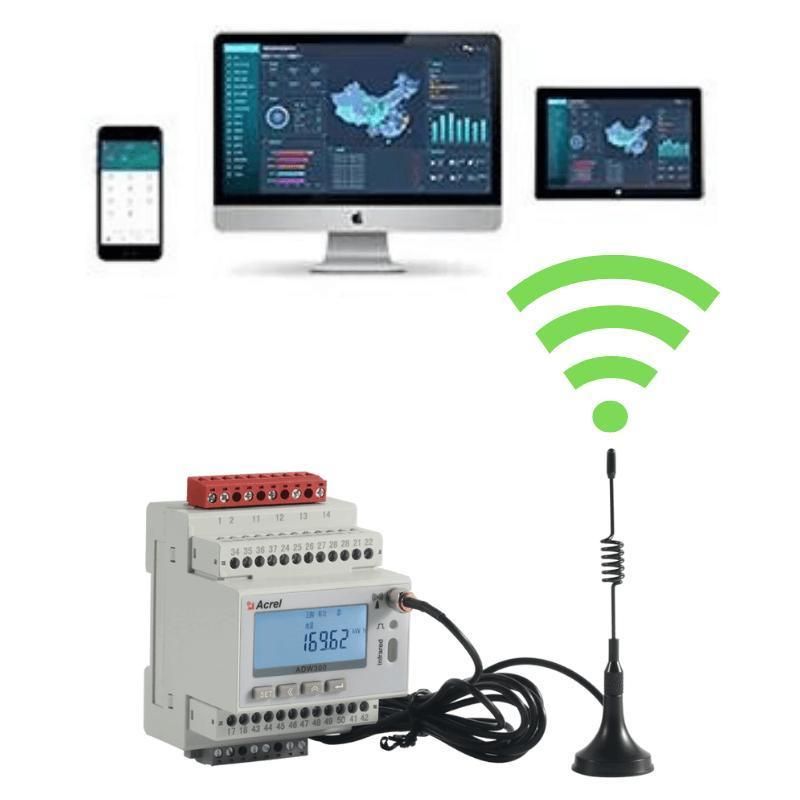

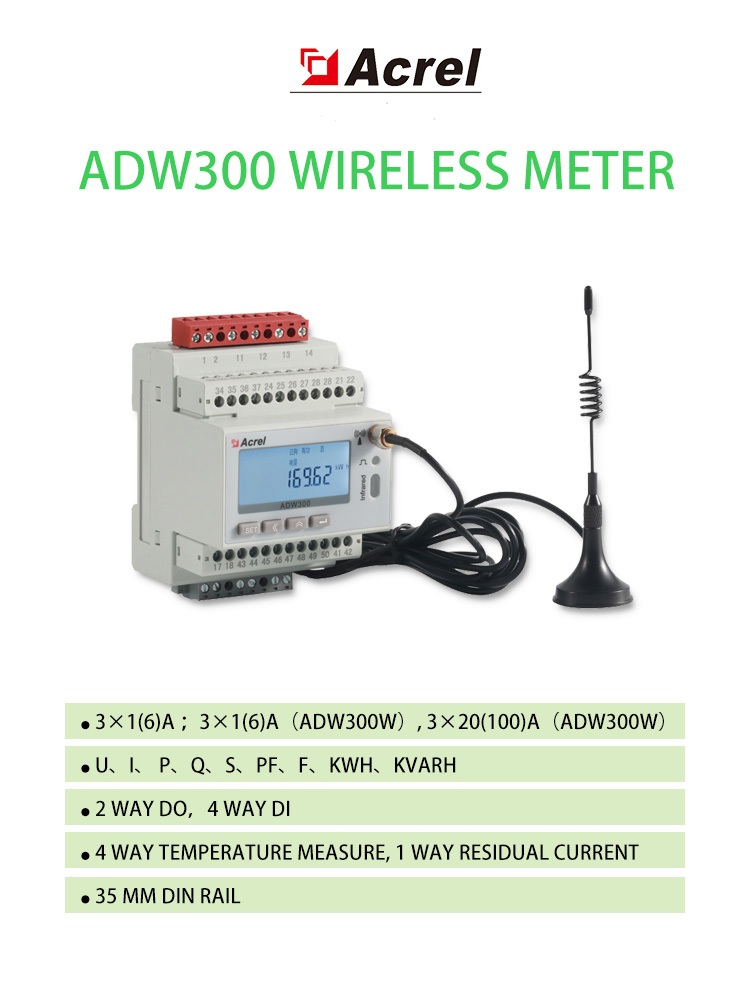

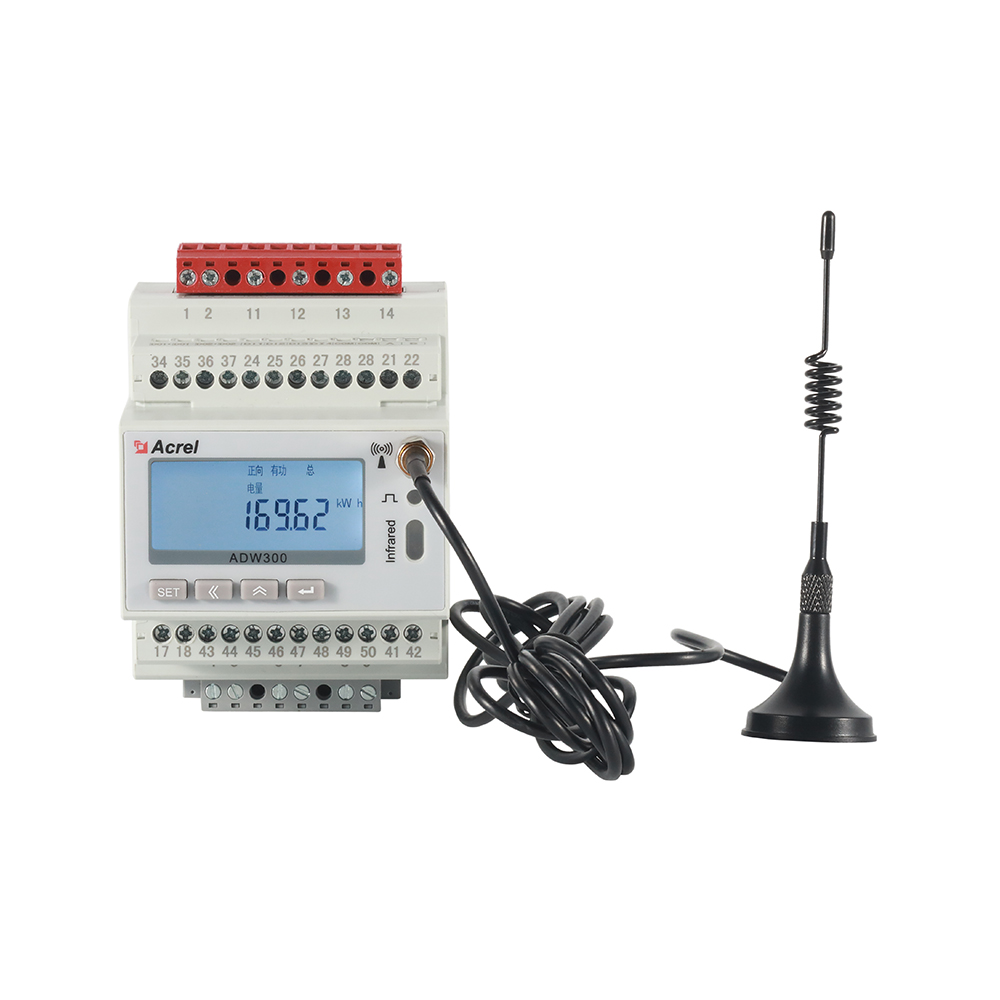

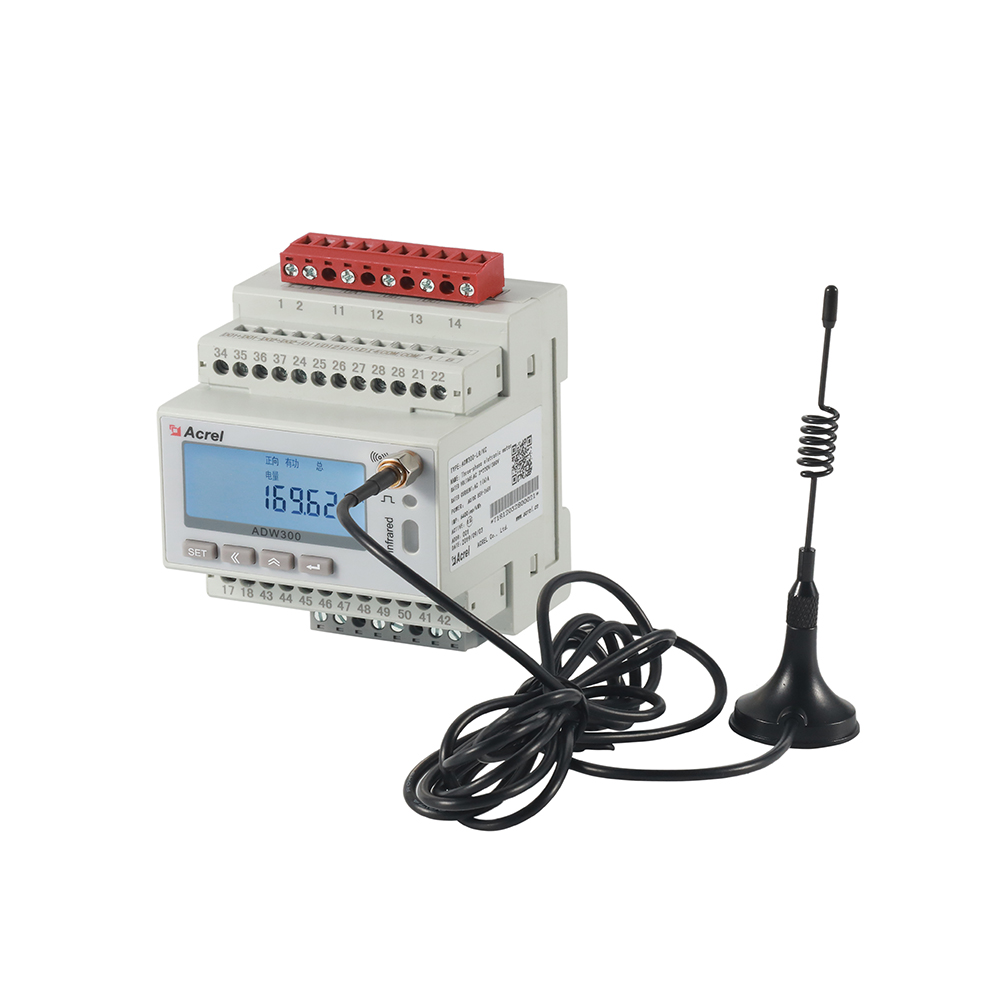

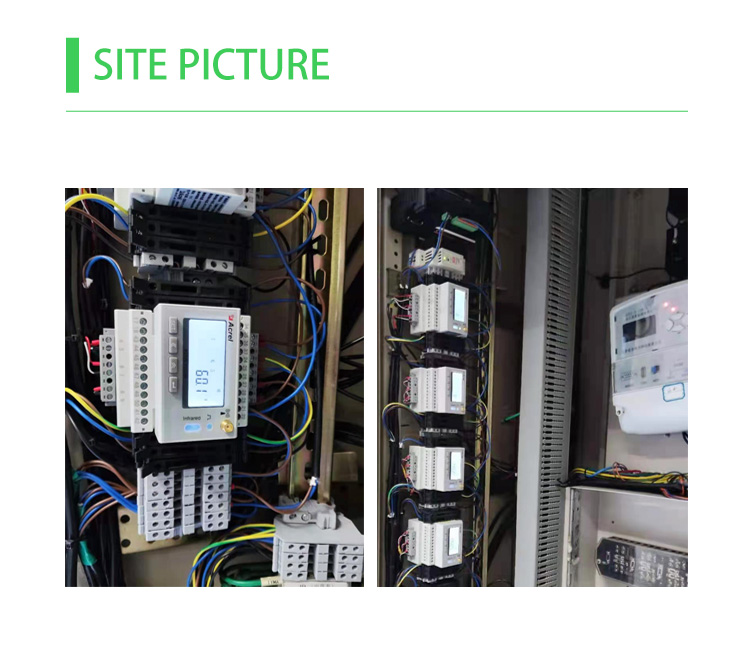

ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads.
Accuracy: Active power: Class 0.5S; Reactive power: Class 2
Pulse Output Constant: 6400imp/kWh
Consumption: <10VA (Single phase)

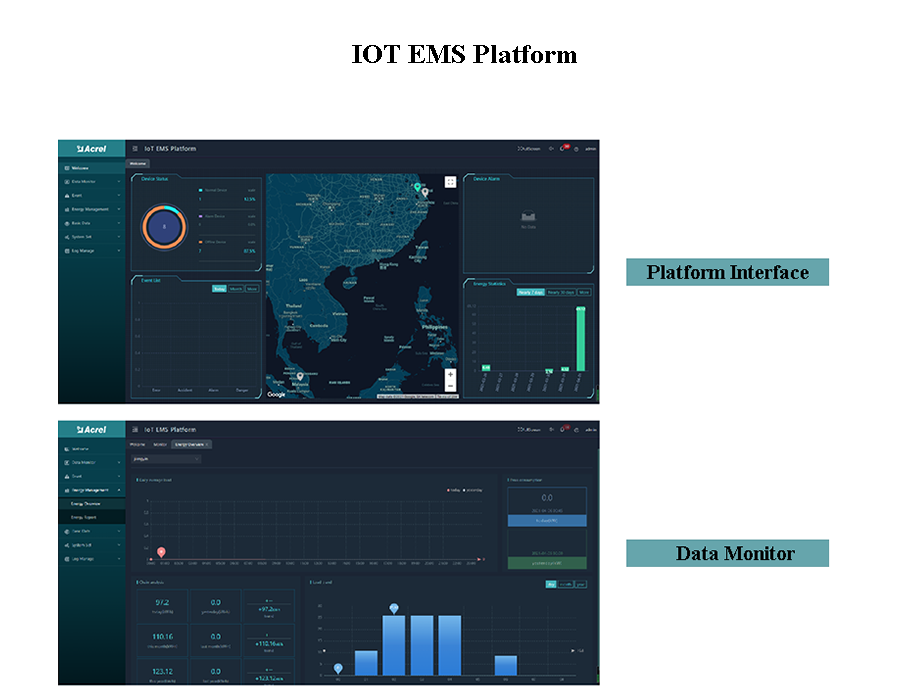

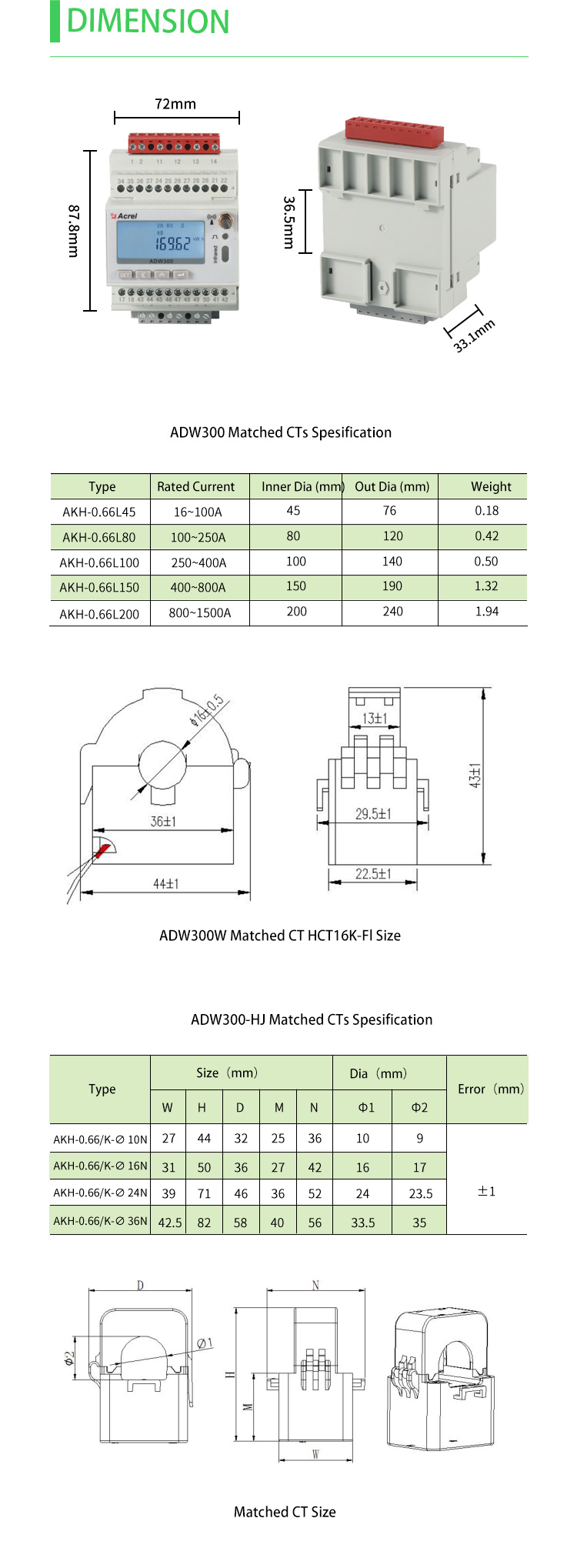

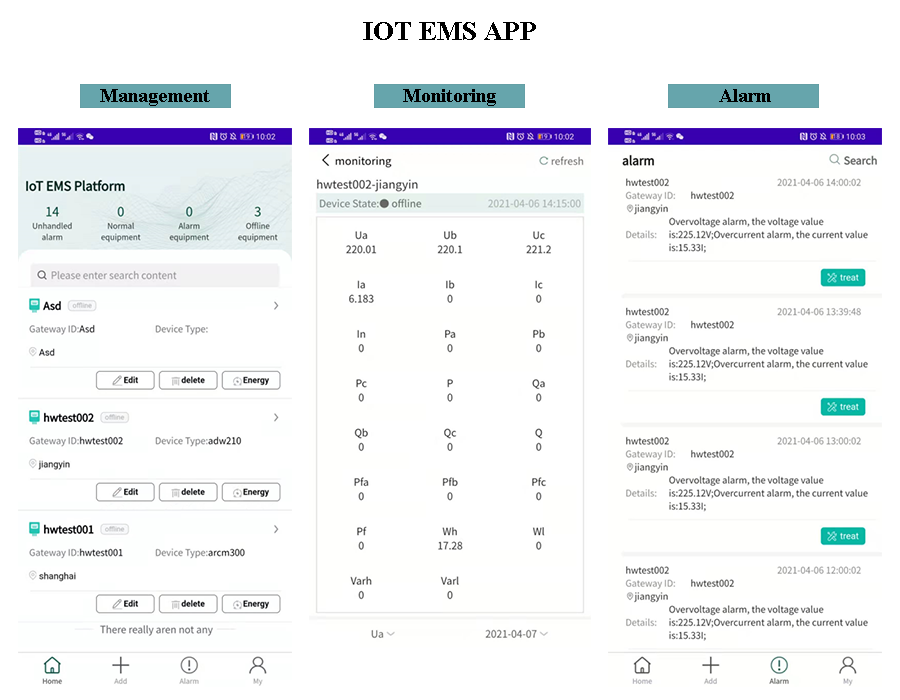

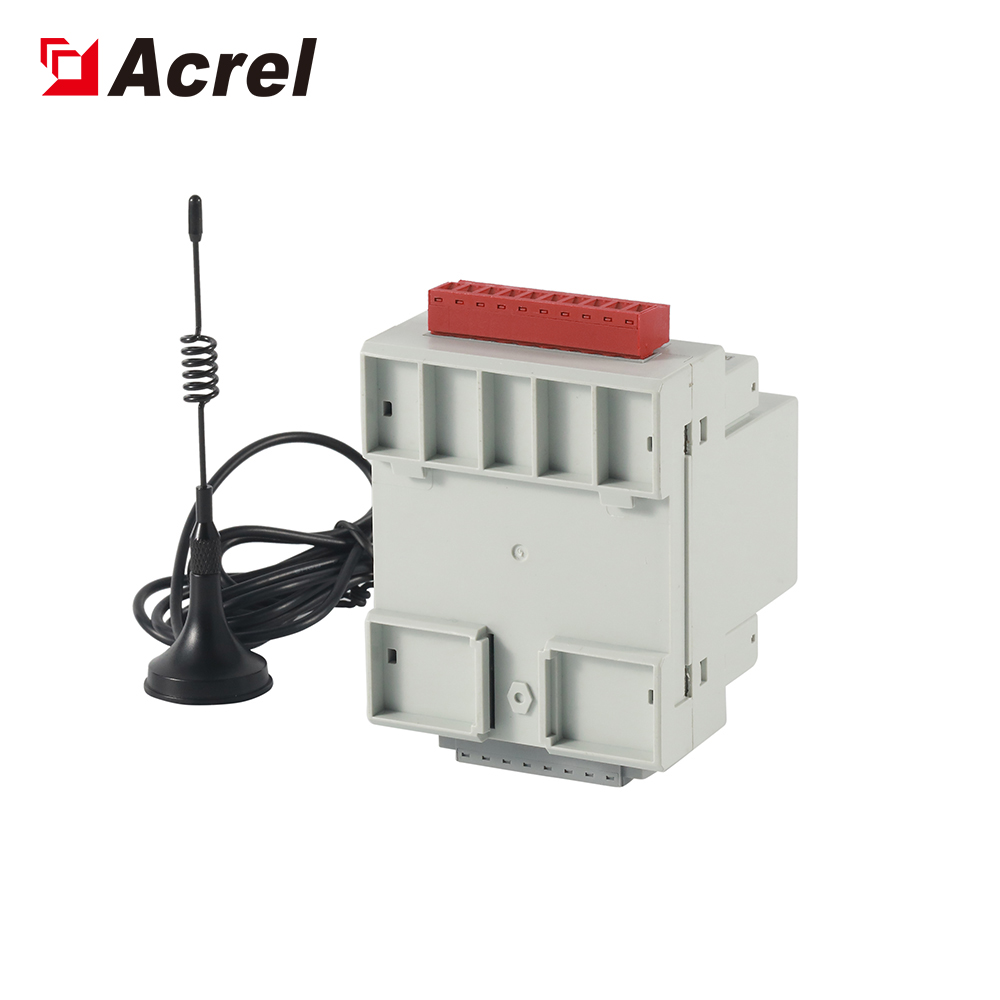

Dimension (L*W*H): 82 * 87.8 * 71.5 mm

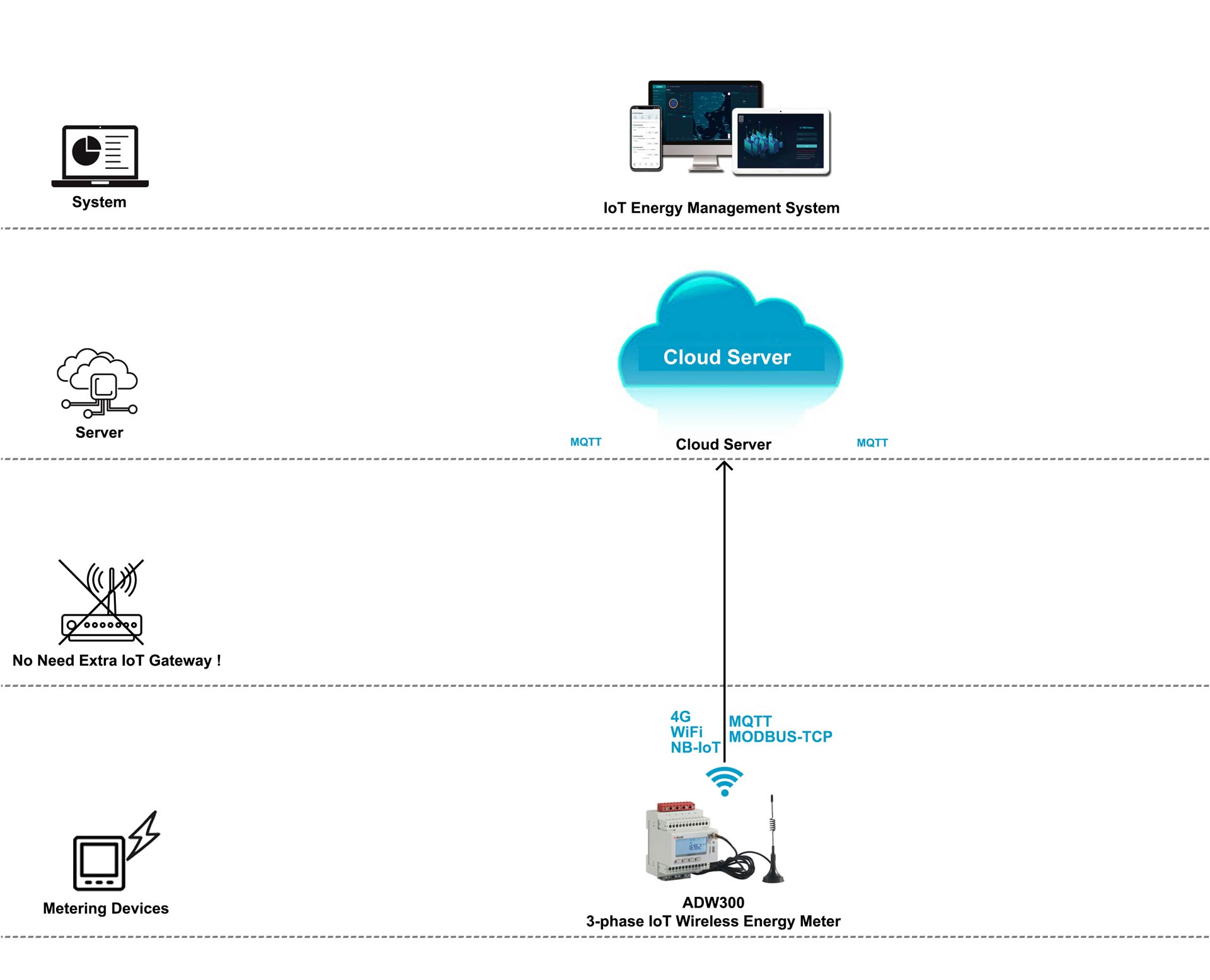

Wireless Communication: 470MHz (Max 1km in open space); 2G; NB-IoT
Frequency: 50Hz

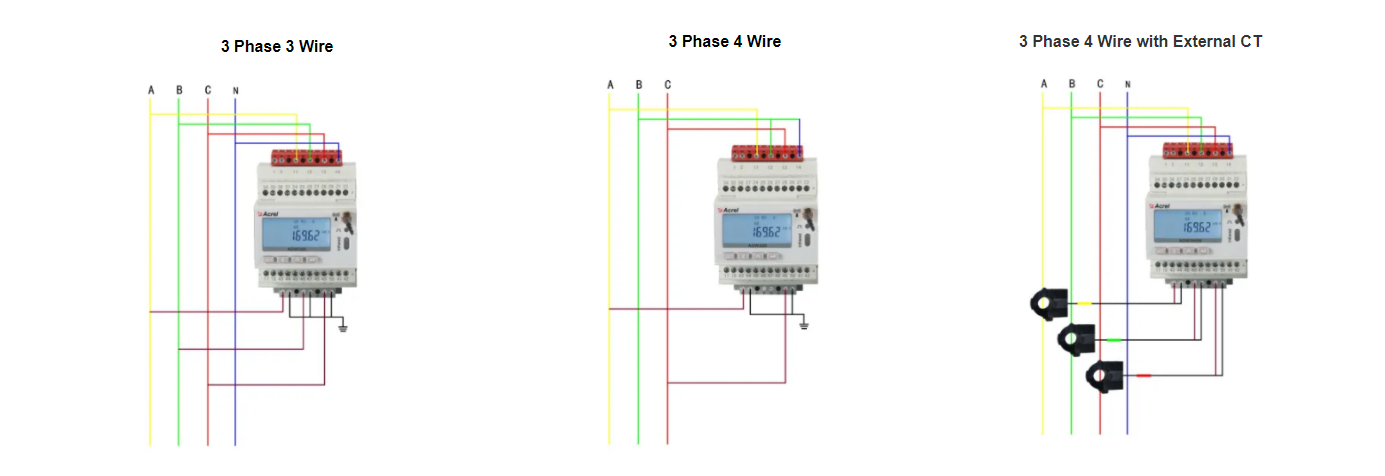

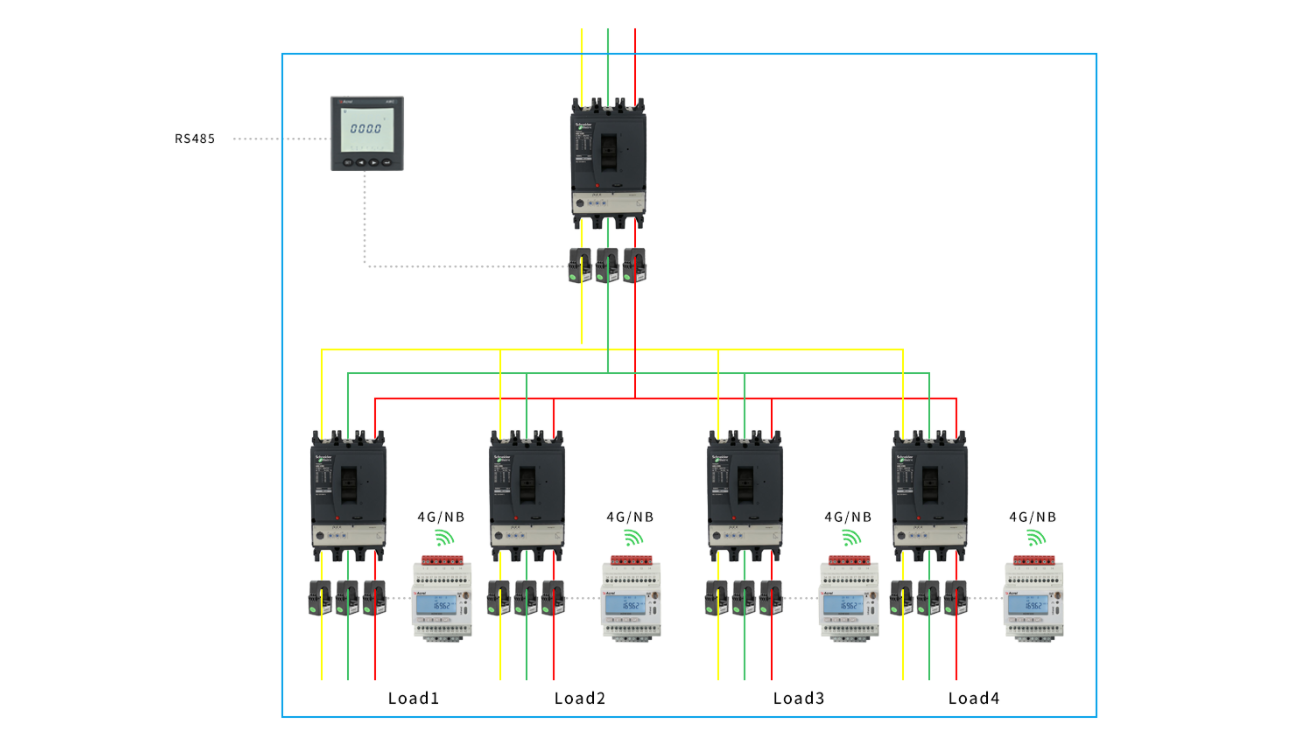

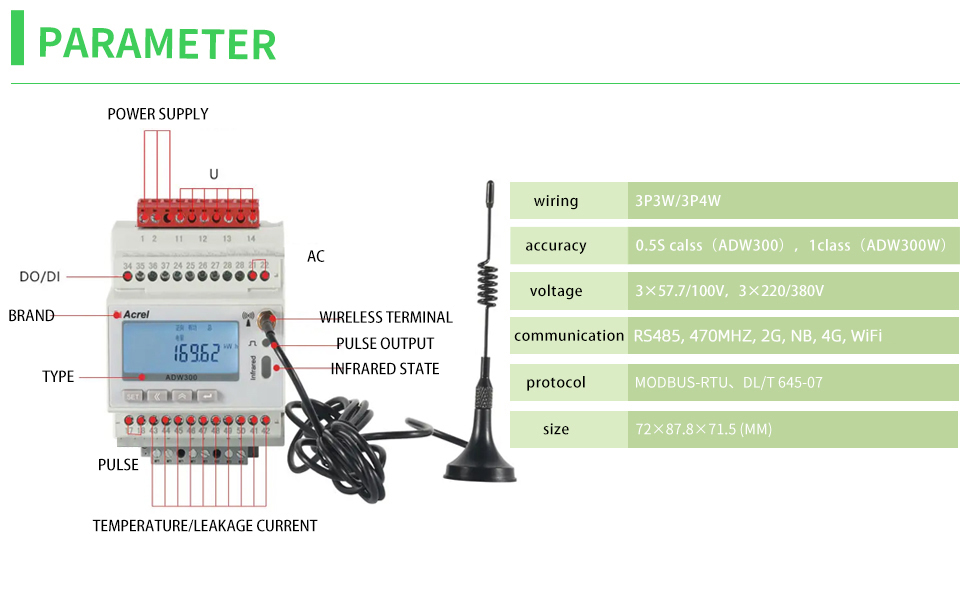

| Parameter Item | Detail Information | |
|---|---|---|
| Voltage Input | Rated Voltage | 3×57.7/100V, 3×220/380V, 3×380/660V, 3×100V, 3×380V, 3×660V |
| Reference Frequency | 50Hz | |
| Power Consumption | Each phase < 0.5VA | |
| Current Input | Input Current | 3×1(6)A, 3×20(100)A (ADW300W) |
| Starting Current | 1‰ Ib (0.5S), 4‰ Ib (Class 1) | |
| Power Consumption | Each phase < 1VA | |
| Auxiliary Supply | Power Supply | AC 85~265V, Consumption < 2W |
| Measurement Performance | Standard | GB/T17215.322-2008, GB/T17215.321-2008 |
| Active Accuracy | Class 0.5S (ADW300), Class 1 (ADW300W) | |
| Temperature Accuracy | ±2℃ | |
| Communication | Wireless | 470MHz (1km), 2G, NB-IoT, 4G |
| Protocol | MODBUS-RTU, DL/T 645-07 | |
| Function | Description |
|---|---|
| Display | LCD (Digital) |
| Electricity Metering | Active power (positive/reverse), four-quadrant reactive power |
| Electrical Measurement | U, I, PF, F, P, Q, S |
| Harmonic Function | Total and individual (2nd to 31st) |
| Pulse Output | Active pulse output |
| Imbalance | Voltage and current imbalance |
| Temperature | 4-channel Temperature Measurement (Optional T) |
| DI/DO | 4DI, 2DO (Optional K) |
| Residual Current | 1 residual current measurement (Optional L) |
| Alarms | Undervoltage, overvoltage, undercurrent, underload, etc. |
