Alkaline Electrolyzer 1000 & 3000: Scalable Hydrogen Solutions

Application Fields:	New Energy
Certification:	CE, ISO
Condition:	New

Send Inquiry

Product Description

Basic Information

Model NO.SSI

Noise LevelUltra Quiet

PurposeGas Manufacturing

TypesWater Electrolysis Hydrogen Production

Purity99.999%

DC Power Consumption4.3 Kwh/Nm3h2

Adjustable Load Range30%-110%

OriginChina

Product Description

Key Product Configurations

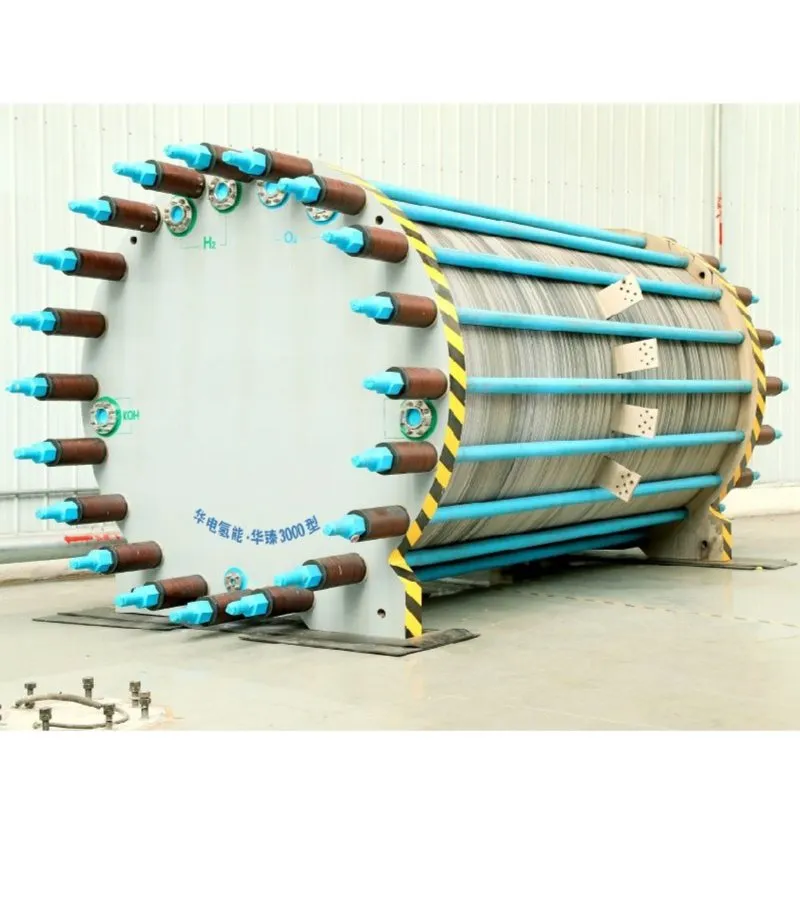

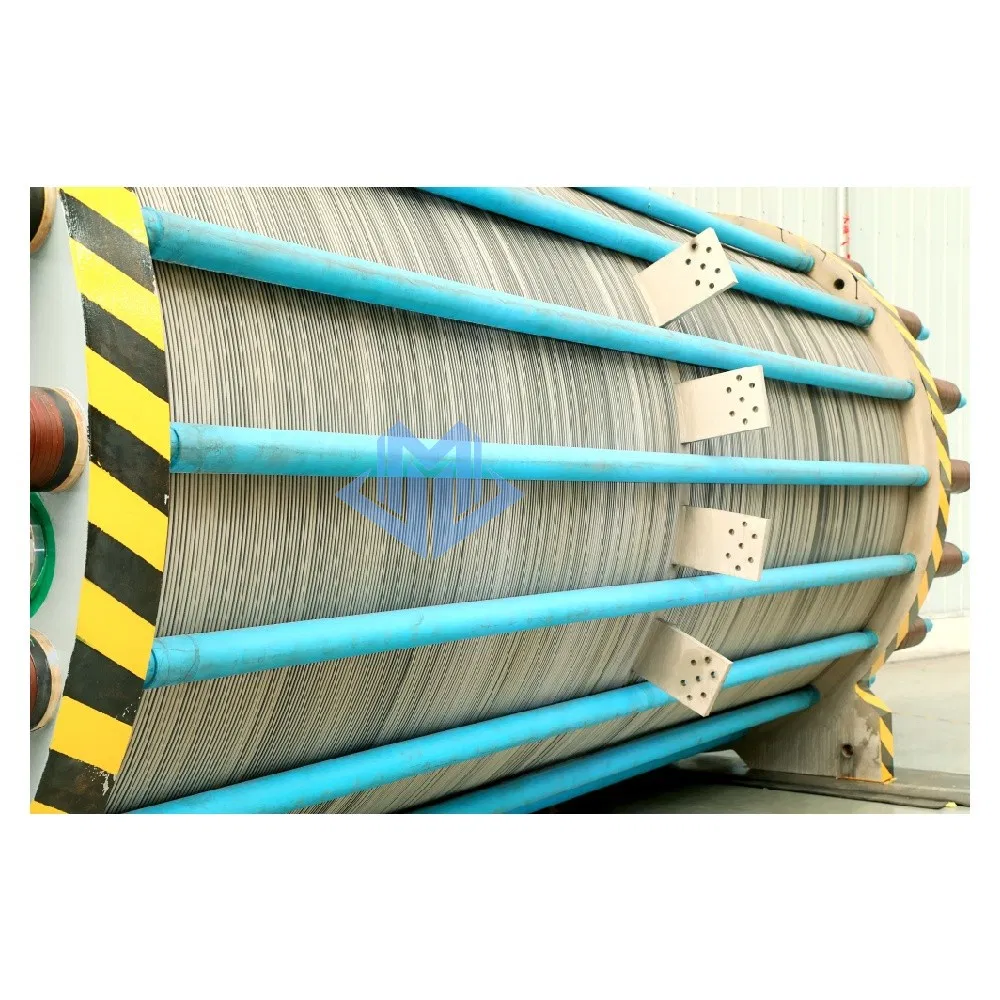

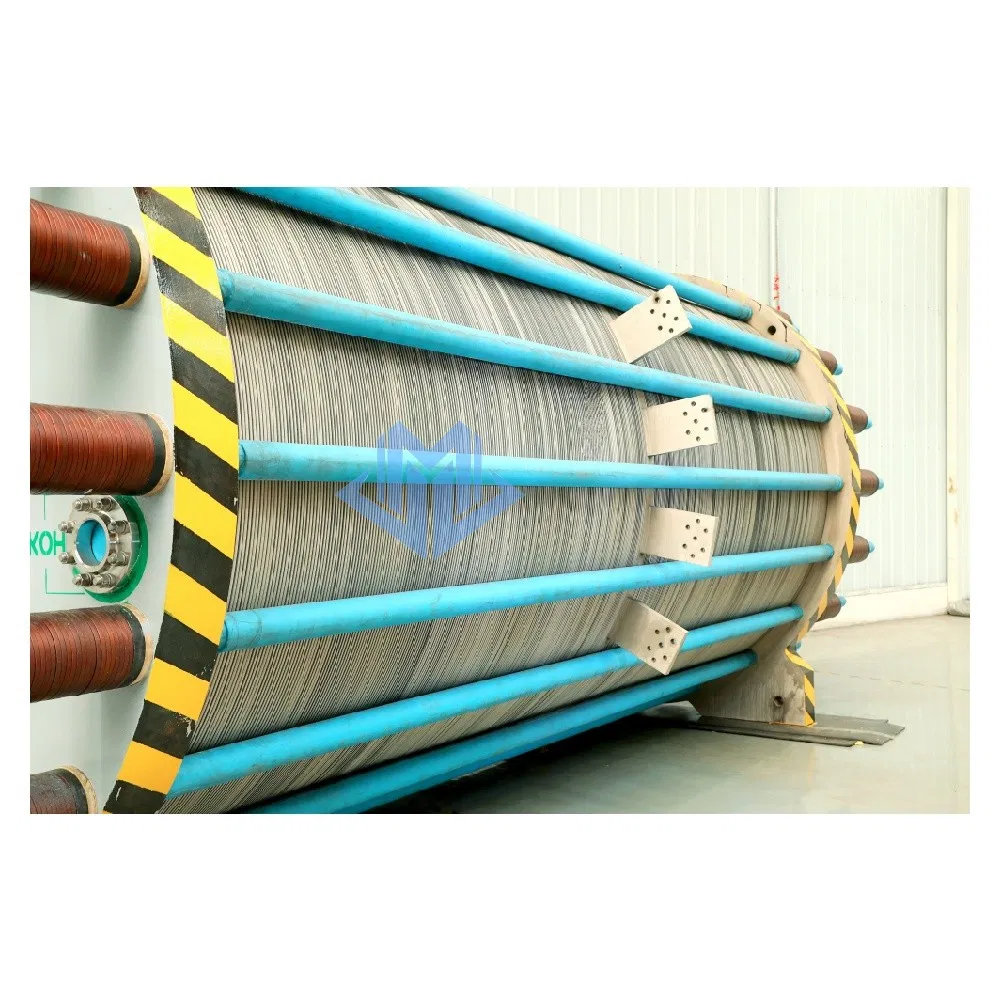

Core Electrolyzer Stack: Design with high current density (≥6,000 A/m²), offering a 100% increase over conventional models.
Energy Efficiency System: DC power consumption ≤4.4 kWh/Nm³ at full load, maximizing energy utilization.
Flexible Operation: Features a wide load regulation range (20%-110%) for variable power inputs.
Modular Design: Available from 50 to 3,300 Nm³/h for flexible configuration and expansion.
Integrated Solutions: Matched gas-liquid separation and purification devices included.

Product Applications

Large-Scale Green Hydrogen: Integration with solar/wind farms for renewable projects.
Industrial Feedstock: High-purity hydrogen for ammonia synthesis and petrochemical refining.
Energy Storage: Converting surplus renewable electricity into storable hydrogen.
Transportation: Core generation unit for hydrogen refueling stations (HRS).

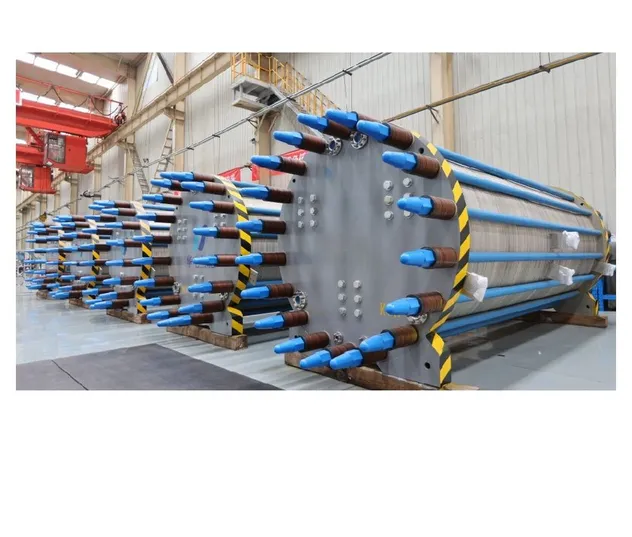

1000 Nm³/h Alkaline Electrolyzer

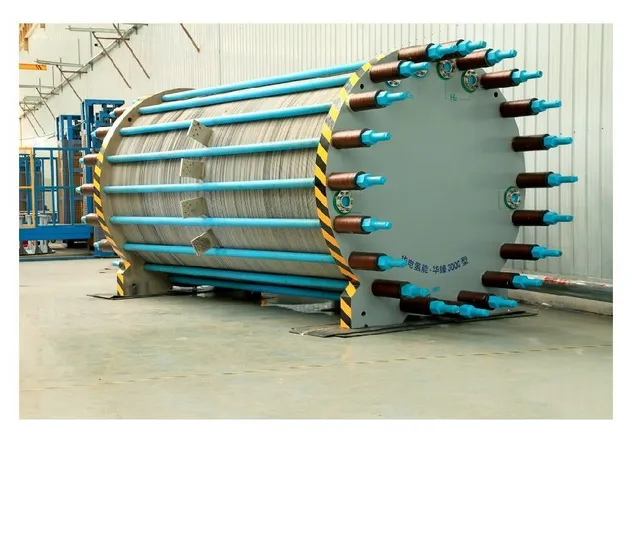

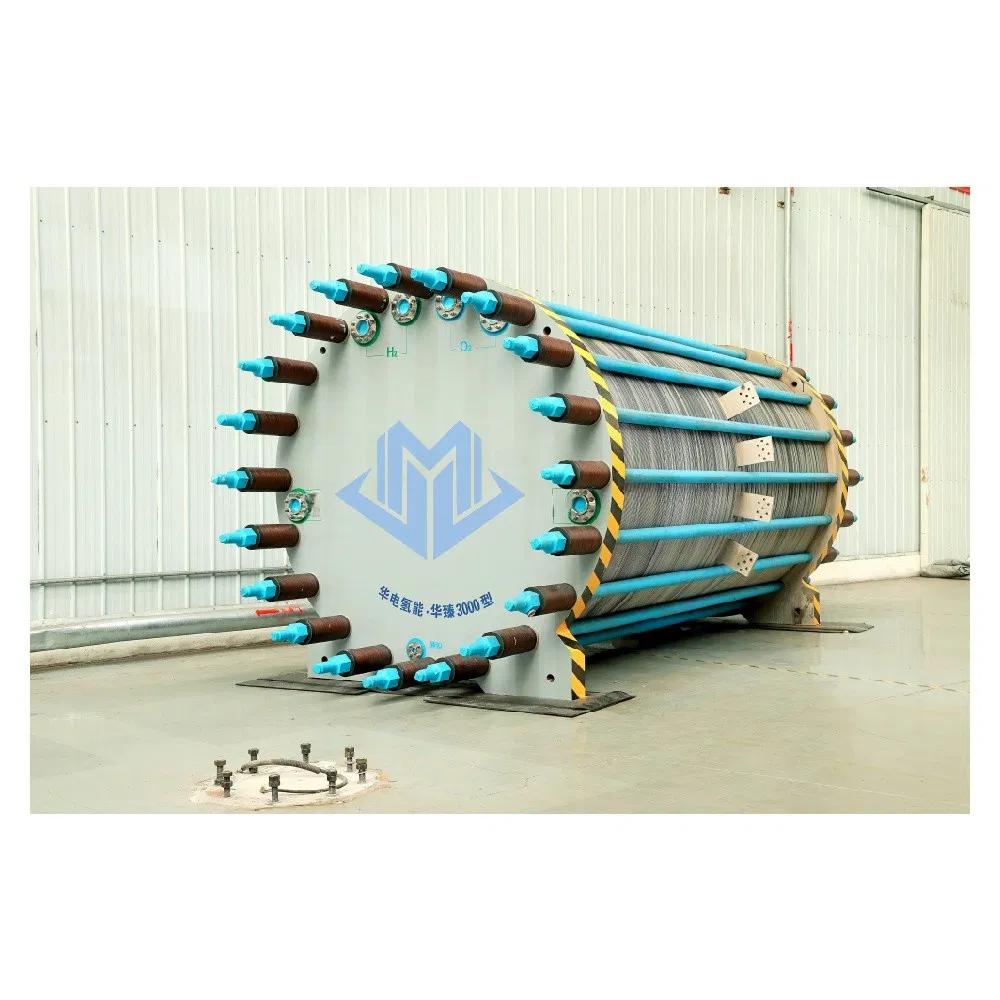

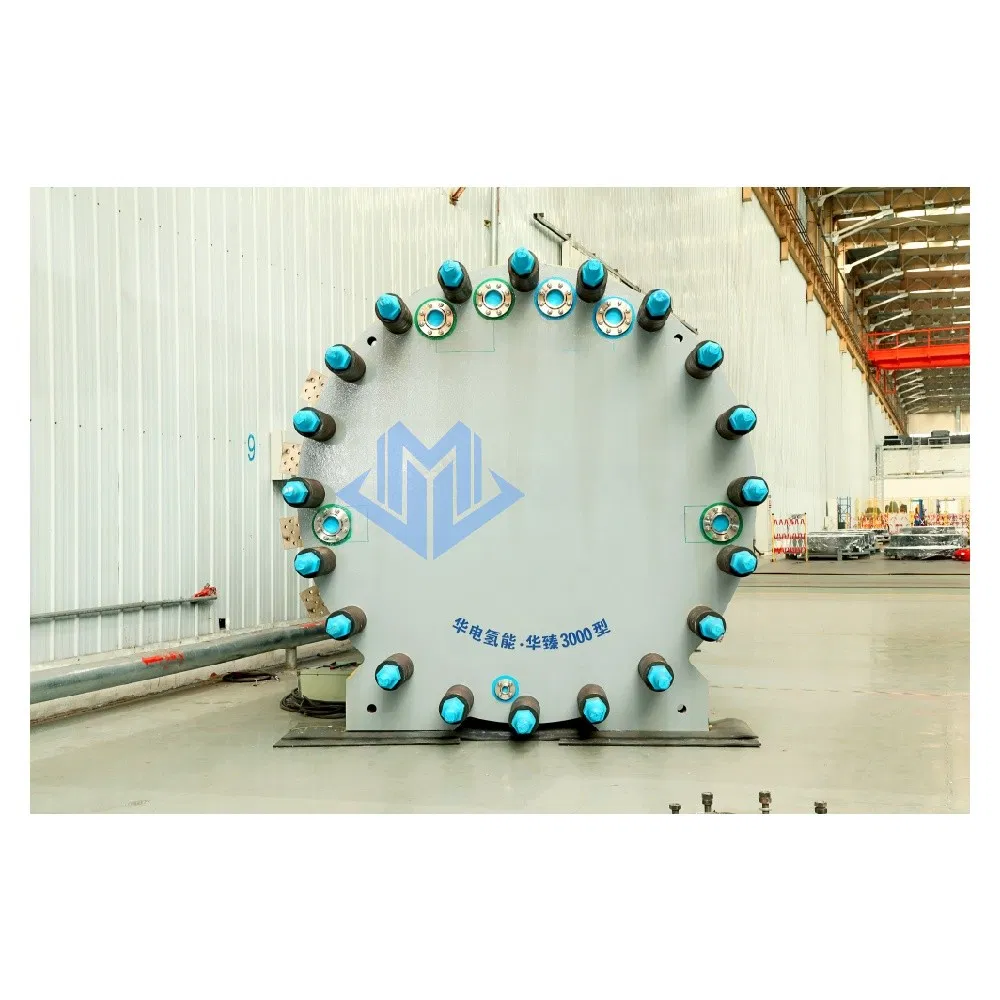

3300 Nm³/h Alkaline Electrolyzer

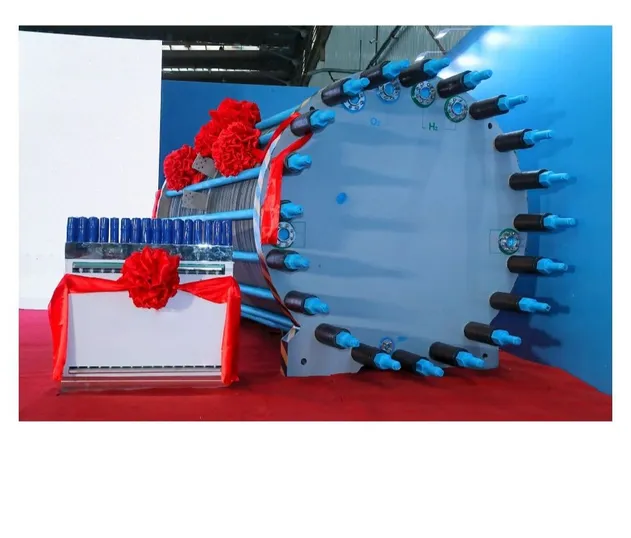

Alkaline and PEM Electrolyzer Systems

Technical Specifications

Model	Hydrogen (Nm³/h)	DC Current (A)	DC Voltage (V)	Dimension (φ×L×W×H)	Weight (kg)	Cells	Cell Diameter (mm)
ADQ100-1.6(1)	100	5373	86	φ 1340×2722×1730×1650	12000	90	1170
ADQ200-1.6(1)	200	7803	119	φ 1620×3020×1900×1930	16730	124	1410
ADQ500-1.6(1)	500	13144	175	φ 1990×3670×2522×2283	33000	182	1830
ADQ1000-1.6(1)	1000	13144	349	φ 1990×6150×2522×2283	51000	364	1830
ADQ3000-1.6(1)	3000	40755	372	φ 2290×5735×2815×2590	60410	388	2080

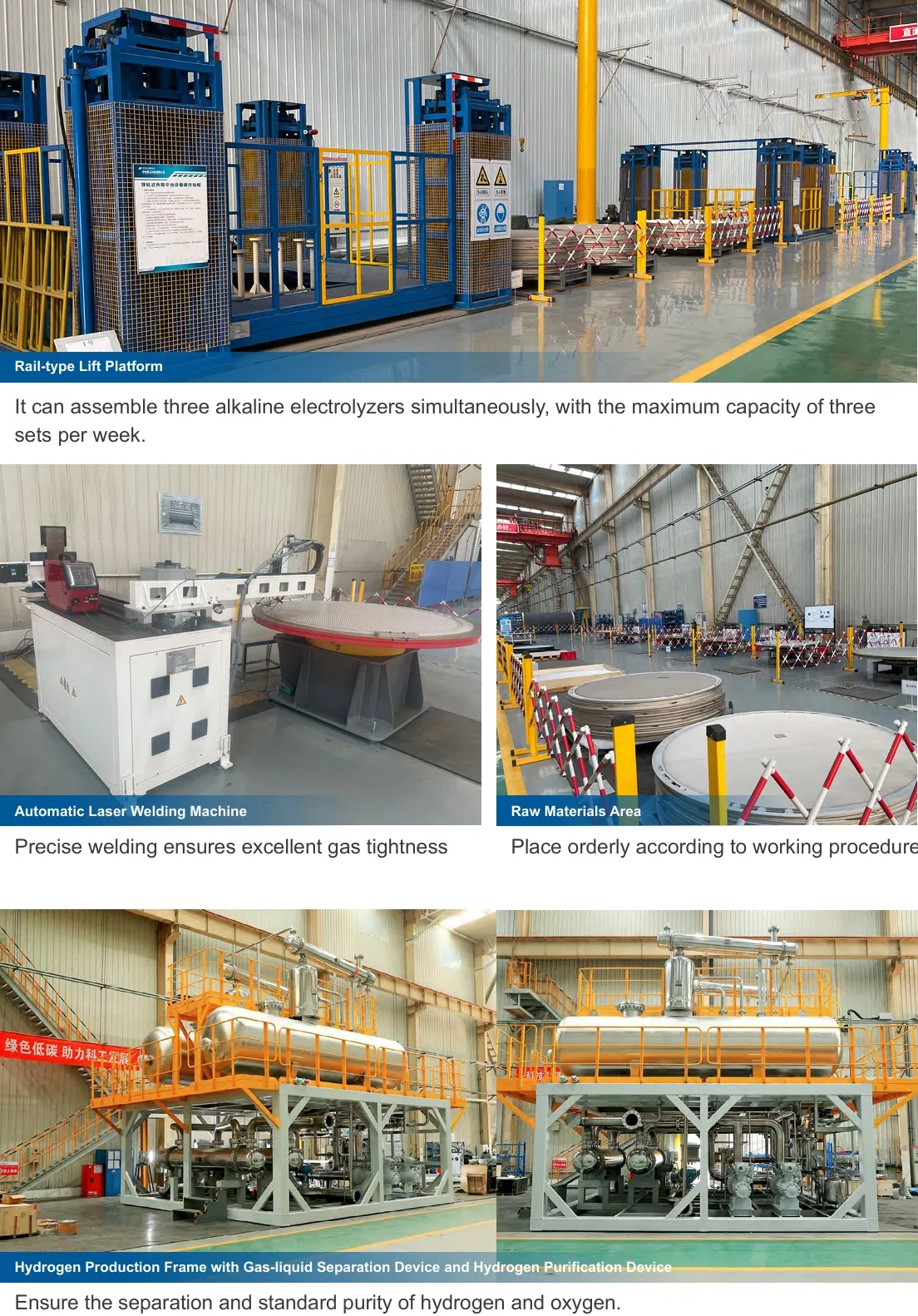

Advanced Production & Key Materials

Self-produced Alkaline Separator

The independently developed alkaline separator adopts a composite structure with high-performance coating. Key features include low resistivity, high gas tightness, high hydrophilicity, and long service life.

Project Case Studies

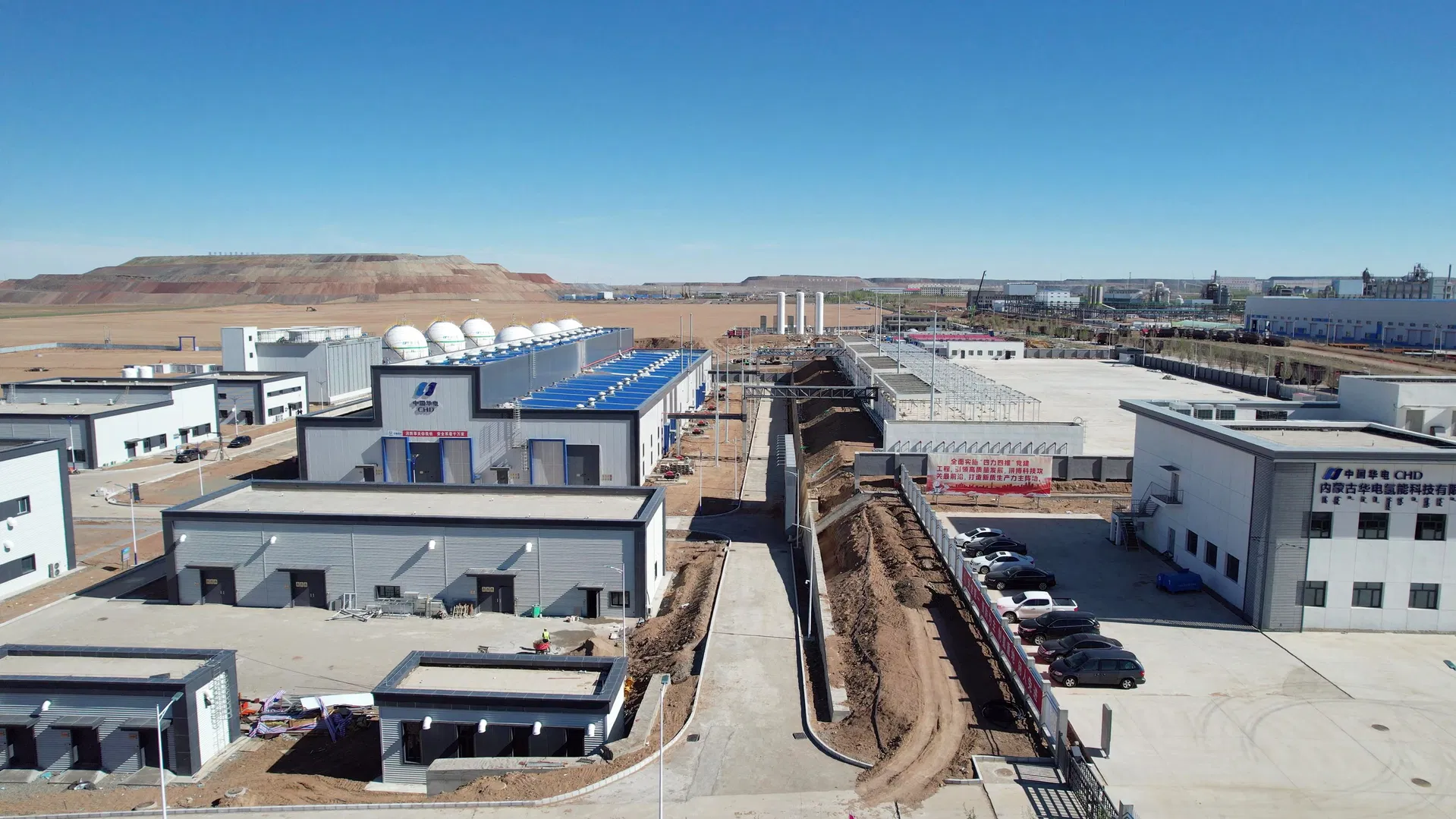

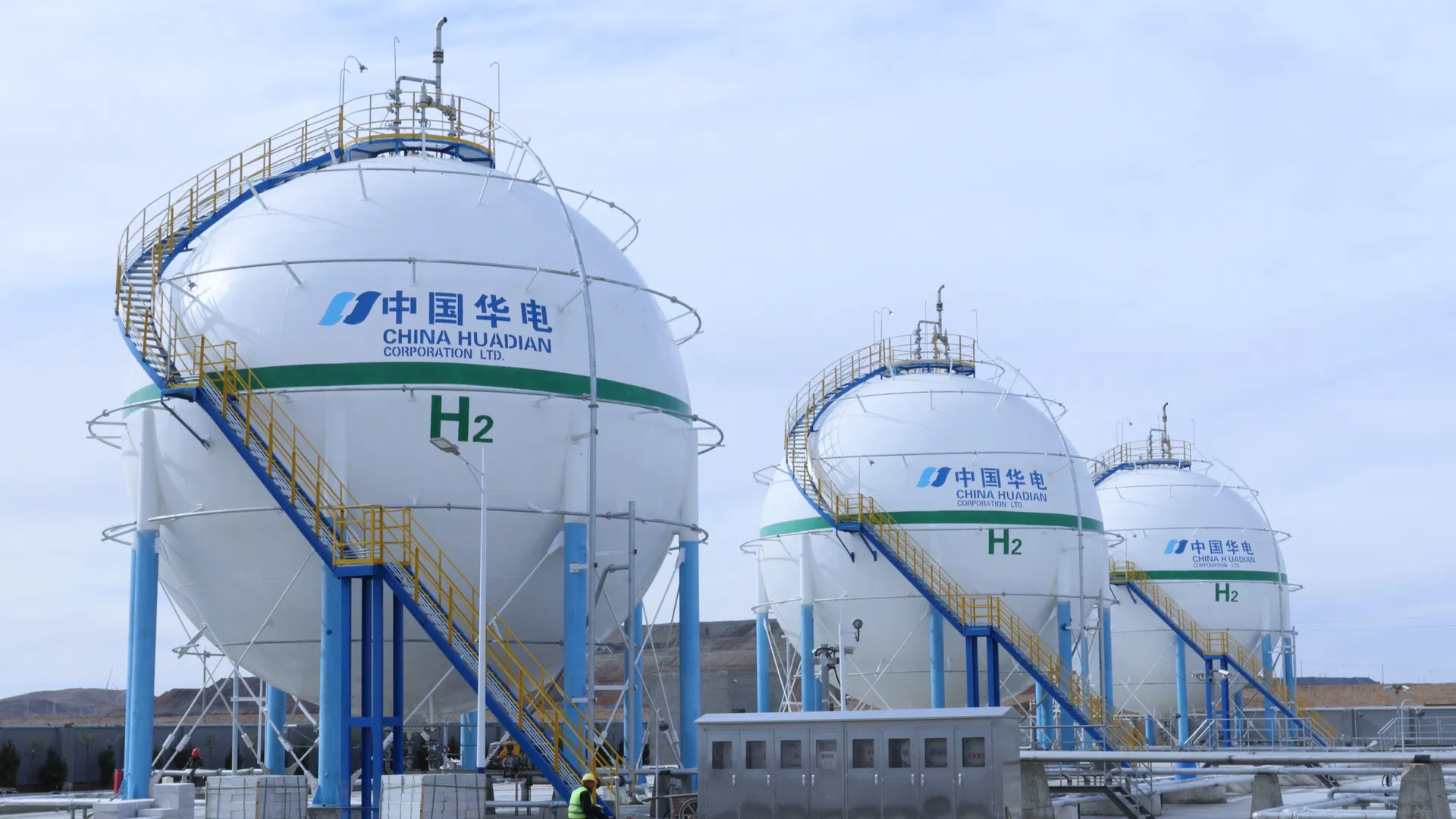

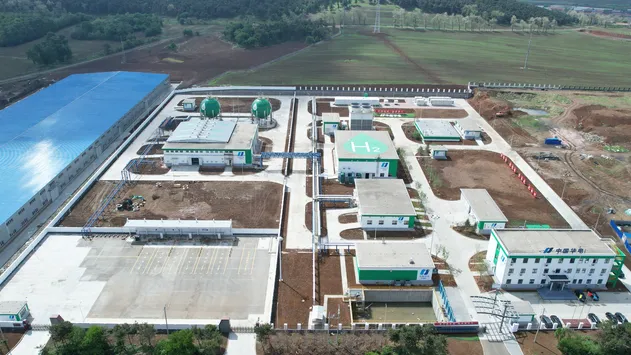

Integrated Wind-Solar-Hydrogen-Storage Project: A large-scale demonstration connecting the whole industrial chain from green power generation to hydrogen application. Production capacity reaches 12,000 Nm³/h.

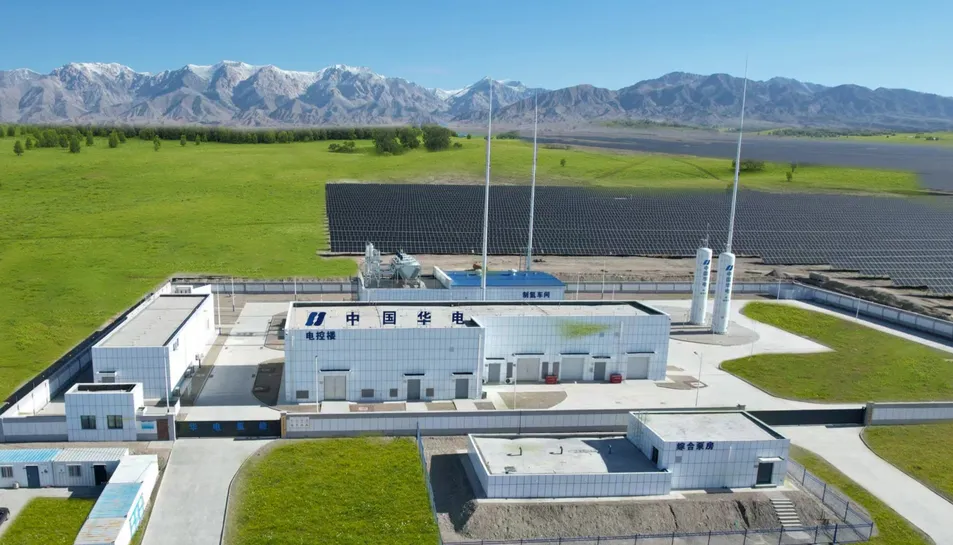

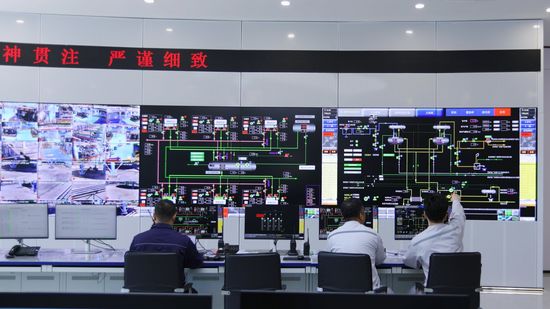

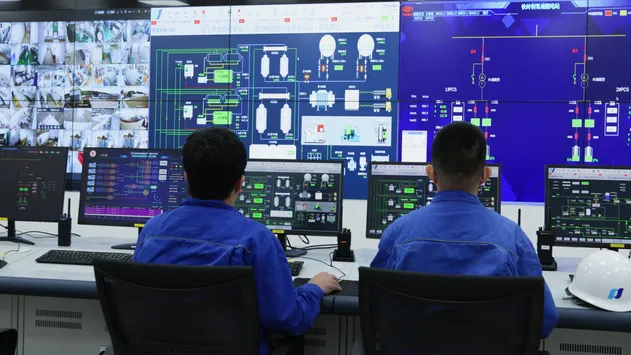

Off-grid Wind Power Hydrogen Project: Utilizes an independently developed EMS system to adapt hydrogen production load to renewable energy volatility. Features unmanned start-stop control and big data management.

Service & Support

Warranty: 12 months standard; optional extension up to lifetime.
Global Support: 24/7 online and on-site technical assistance.
Spare Parts: Guaranteed supply of original components.
Training: Comprehensive maintenance and operation training.

Why Choose Our Solutions?

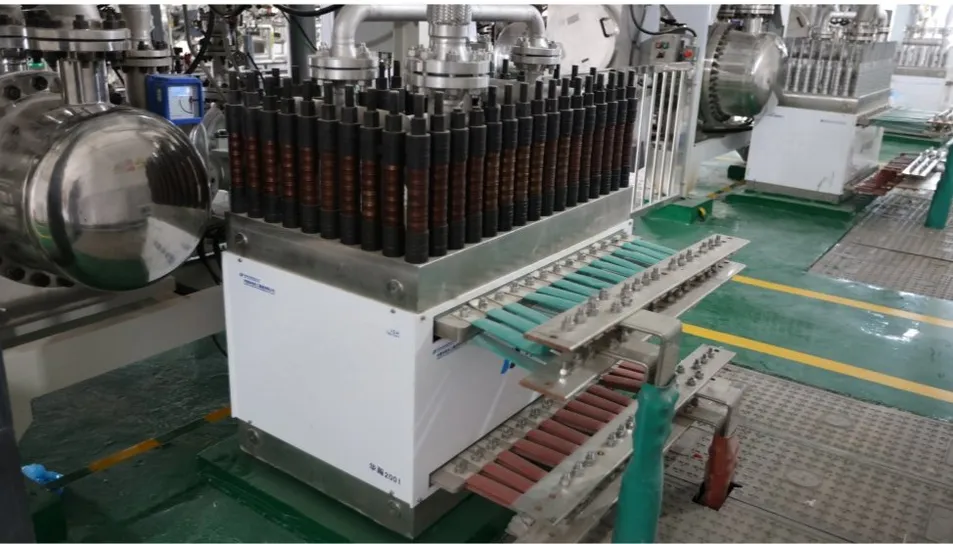

Proven track record with extensive operational data.
Cutting-edge core technology and proprietary materials.

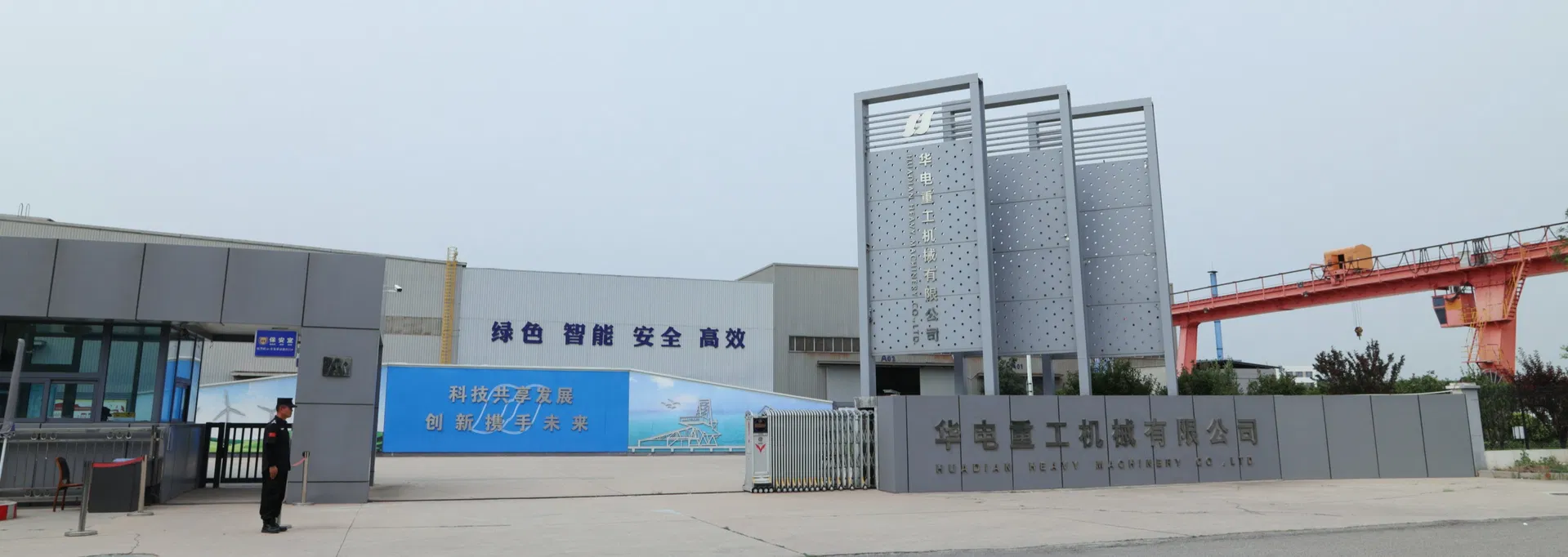

Industrial-scale manufacturing capacity.
Extensive intellectual property portfolio.
End-to-end integrated system provider.

Frequently Asked Questions

Q: What is the purity level of the hydrogen produced? A: Our systems produce high-purity hydrogen reaching 99.999%, suitable for industrial feedstock and fuel cell applications.

Q: How flexible is the operational load range? A: The systems feature a wide load regulation range of 20% to 110%, making them ideal for handling the volatility of renewable energy sources.

Q: What is the typical power consumption? A: The DC power consumption is optimized at ≤4.4 kWh/Nm³ at full load, ensuring high energy efficiency.

Q: Can you provide customized production capacities? A: Yes, our product range spans from 50 to 3,300 Nm³/h, allowing for modular and scalable configurations based on project needs.

Q: What kind of after-sales support do you offer? A: We provide a 12-month standard warranty (extendable), 24/7 technical support, and comprehensive on-site or remote training.

Q: Are the key materials produced in-house? A: Yes, key components like the alkaline separator are independently developed to ensure high mechanical strength and long service life.
