| Model | YJR-C-05HP | YJR-C-07HP | YJR-C-10HP-A | YJR-C-10HP-B | YJR-C-12HP-A | YJR-C-12HP-B | YJR-C-15HP-B | YJR-C-20HP | YJR-C-25HP | YJR-C-30HP | |
| Heating Capacity | kw | 22 | 26 | 36 | 40 | 42 | 48 | 60 | 80 | 95 | 116 |
| Water Volume | m³/h | 3.77 | 4.46 | 6.2 | 6.86 | 7.3 | 8.23 | 10.32 | 13.71 | 16.34 | 19.95 |
| Water Production | L/h | 472 | 558 | 773 | 856 | 902 | 1030 | 1289 | 1715 | 2042 | 2494 |
| Power | 3N/380V~50Hz | ||||||||||
| Rated Power | kw | 4.58 | 5.42 | 9.12 | 8.85 | 10.55 | 10.65 | 13.64 | 18.2 | 21.6 | 27.6 |
| COP | - | 4.8 | 4.8 | 3.94 | 4.52 | 3.98 | 4.51 | 4.39 | 4.4 | 4.39 | 4.21 |
| Ambient Temp | -10~43ºC | ||||||||||
| Net Weight | kg | 140 | 180 | 320 | 350 | 340 | 380 | 480 | 750 | 830 | 950 |
Applicable scope: Perfectly suited for hotels, saunas, entertainment centers, large clubs, homes, and diverse farm settings.
Powered by renowned ZW series scroll compressors, this device showcases proven, reliable technology. Remarkable advancements in heating capacity and longevity are achieved through strategic system optimization and component innovation.
Employing internally threaded copper casing with hydrophilic aluminum foil multi-path evaporator. This design efficiently discharges condensation water, minimizes frost formation, and provides thorough defrosting to maximize heat absorption.
Utilizing WDD intelligent heating technology, the coaxial spiral heat exchange copper tube facilitates turbulent heat exchange, effectively preventing water scale build-up. Corrosion-resistant and highly efficient.
Incorporating electronic expansion valves and four-way reversing valves from leading brands. The system provides automatic adjustments, ensuring seamless reversing without air leakage or jamming even in frigid conditions.
Innovative three-dimensional design turbine fan optimizes heat exchanger efficiency. It autonomously adjusts wind speed based on ambient temperatures, ensuring ultra-quiet operation.
Meticulously designed control logic with high-quality materials. Includes comprehensive protection features such as exhaust, overcurrent, phase sequence, and pressure protections.

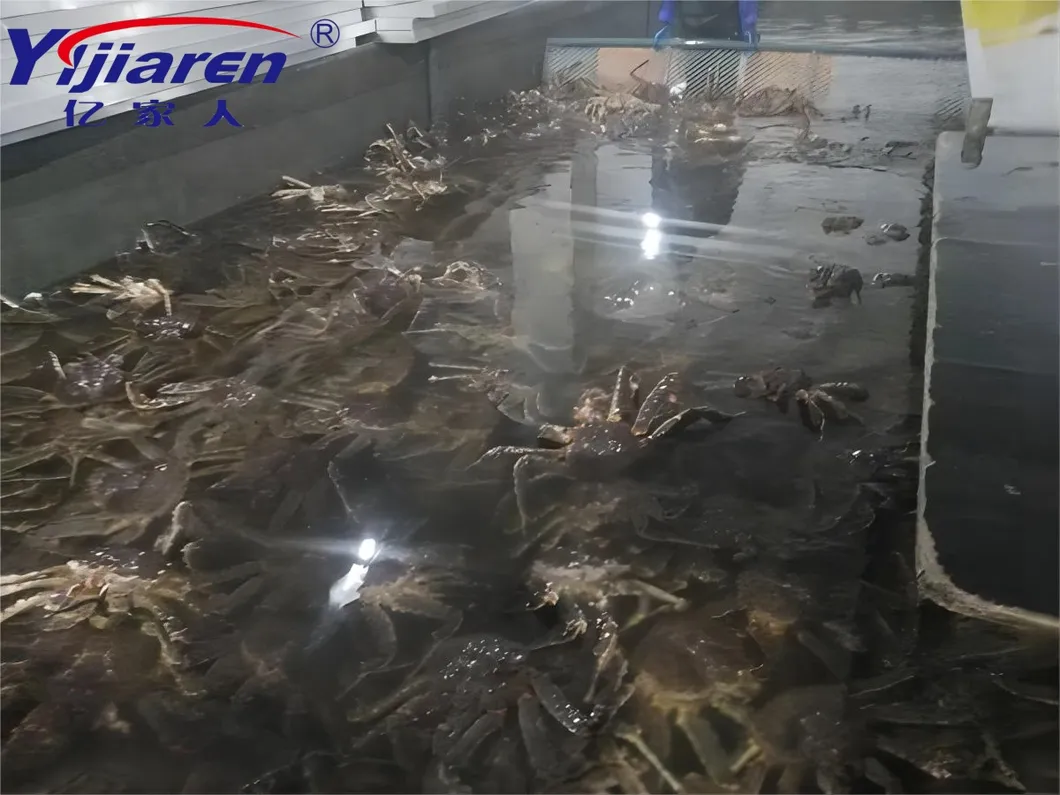

Be it the biting cold of winter or the persistent chill of early spring, low temperatures can disrupt daily life and challenge the breeding industry. Therefore, heating and insulation solutions like heat pumps have become indispensable for facilitating smooth wintering or off-season production across a wide range of aquatic animal operations.

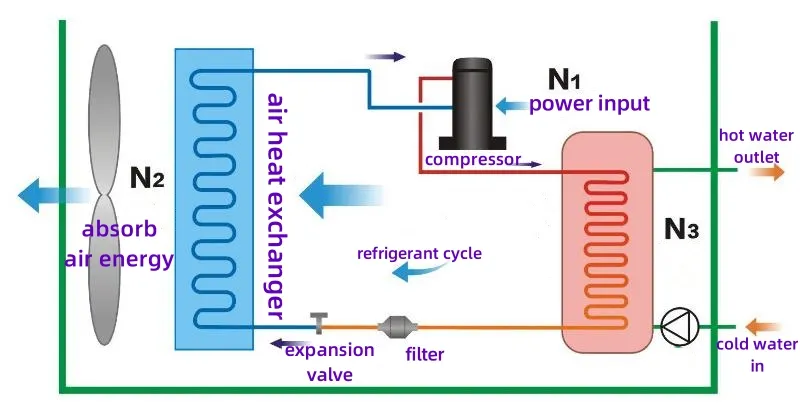

In aquaculture, air source heat pumps do not heat the water directly. Instead, they utilize a heat exchanger submerged in the pond to gradually transfer heat. Similarly, in other animal farming applications, air source heat pumps convert low-temperature air energy into high-temperature heat through a compressor, functioning like an 'air conditioner' for breeding sites.
Our Professional Commercial Heat Pump for Swimming Pool Cooling and Dehumidifying is a pinnacle of efficiency and eco-friendliness, employing state-of-the-art air source technology. Its advanced features and reliable performance make it an indispensable asset for commercial applications.
