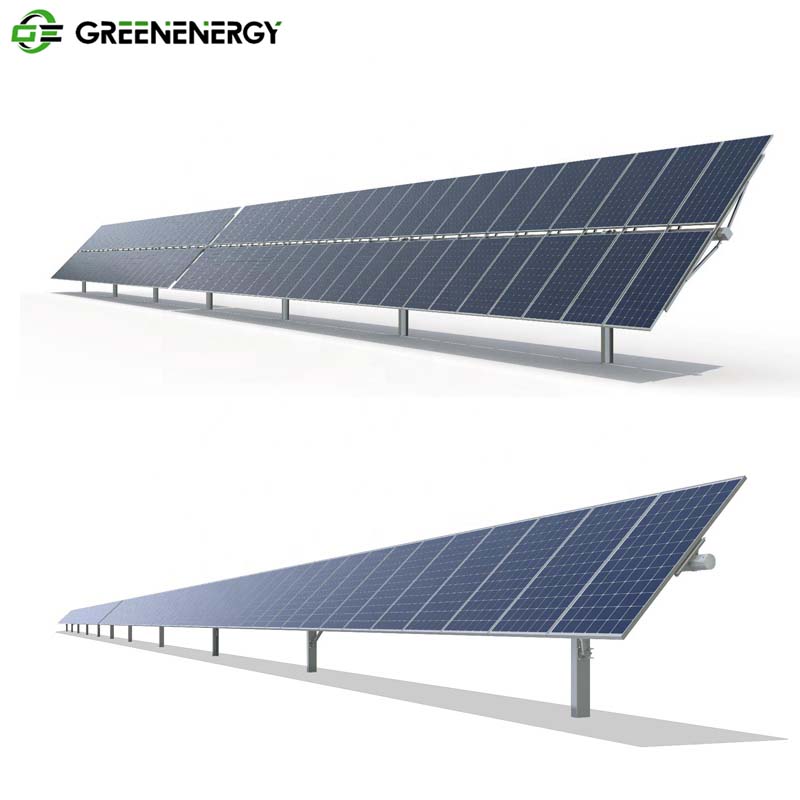

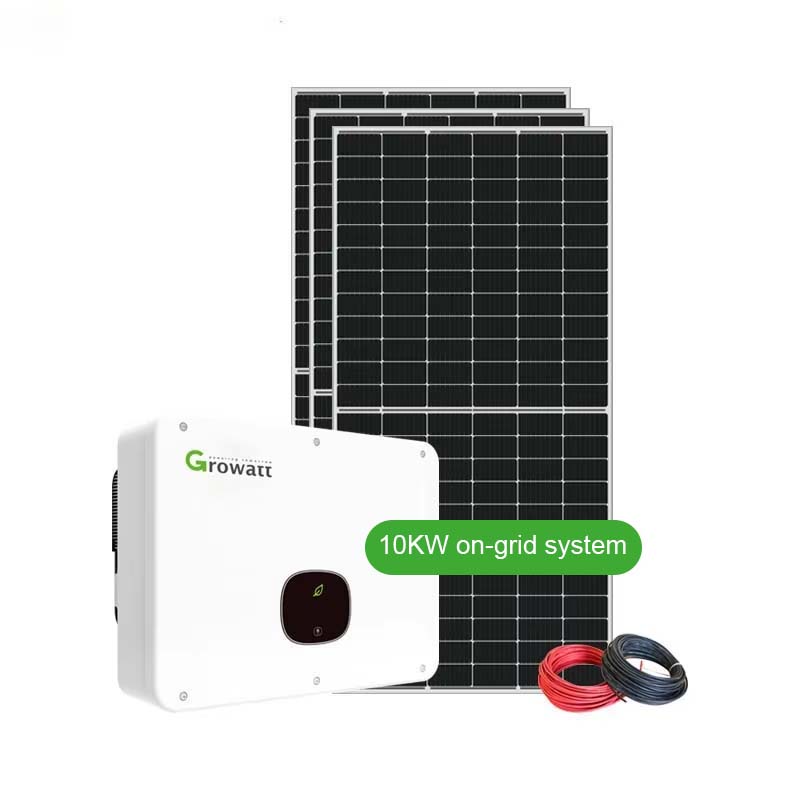

Green Energy Grid Tied Solar Power System 10kW 5kW Home Use Monocrystalline Silicon MPPT Controller on Grid

Product Description

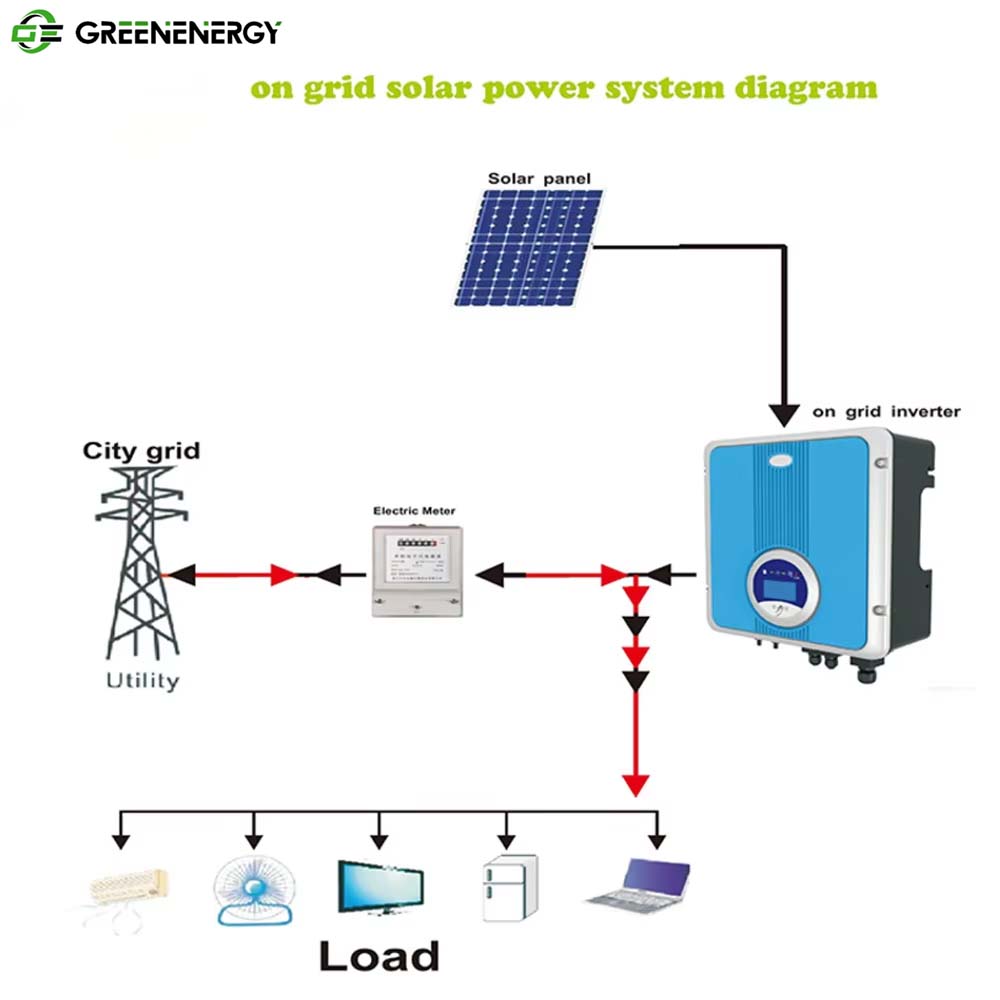

System Show
System Show
System Configuration
On Grid Solar System
Components GE5KW-ON GE8KW-ON GE10KE-0N GE15KW-0N
580W Solar Panels 9 Piece 14 Piece 18 Piece 26 Piece
DC Isolation Switch 2 set 2 set 2 set 2 set
On-grid Inverter 1 set 1 set 1 set 1 set
DC Cable 4mm² 100m 200m 200m 300m
MC4 Connector 10 10 10 10
Mounting System 1 set 1 set 1 set 1 set
PV Tools 1 set 1 set 1 set 1 set
Product Exhibition

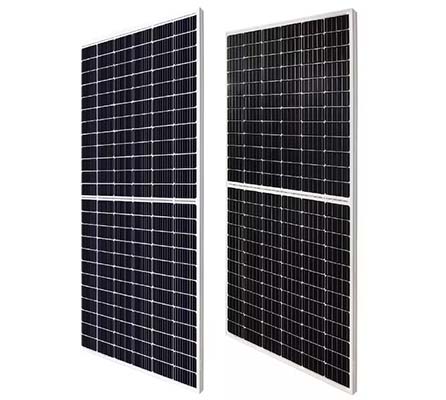

Solar Panels
  • Perc/Bifacial/Double Glass/HJT/All Black/Half Cell/Full Cell Optional
  • 5BB/6BB/9BB/10BB/12BB/MBB
  • 156mm/158mm/166mm/182mm/210mm
  • 25 or 30 years warranty optional
  • Class A with CE/TUV/ISO certificates
  • 5/10/15KW Poly/Mono Solar Panel, Full Cell/Half Cell

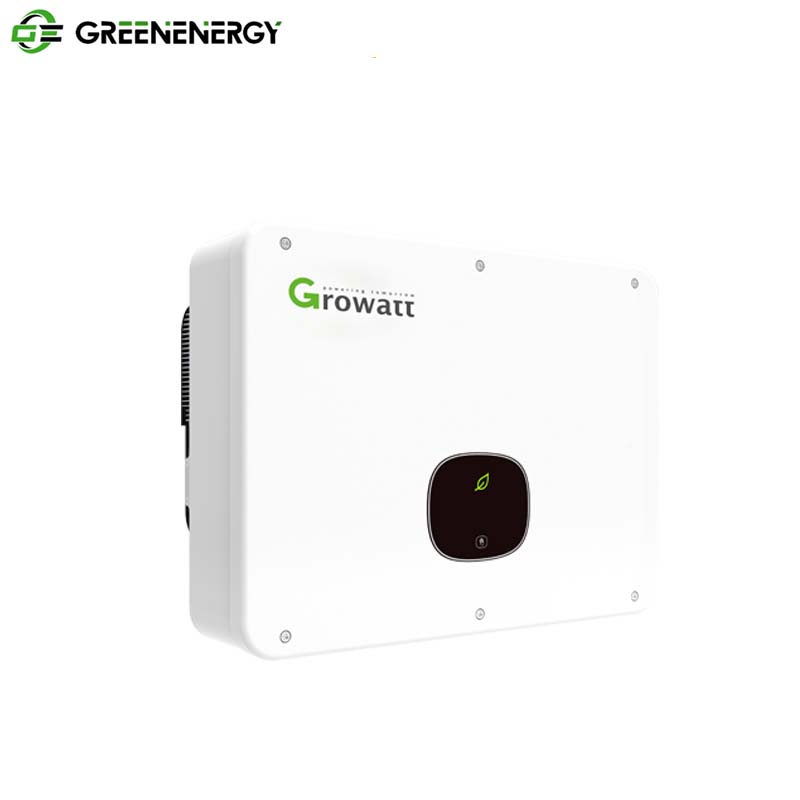

Inverter
  • Max output power: 5/10/15kw
  • Grid Voltage: 3W+N+PE, 230/400V
  • Grid Frequency: 50Hz
  • Warranty: 5 years or 10 years optional
  • Dual MPPT tracker
  • Supports export control
  • Anti-islanding protection
  • AC short circuit protection
  • DC switch equipped

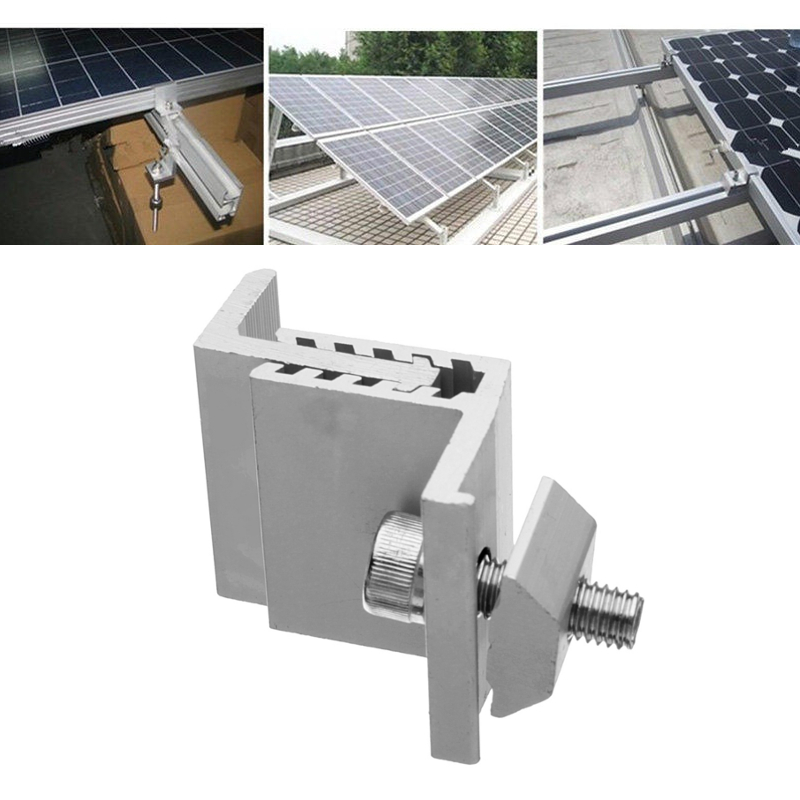

Mounting Bracket
Customized design with CAD drawing.
Suitable for flat/pitched roof, soil/cement ground installation.

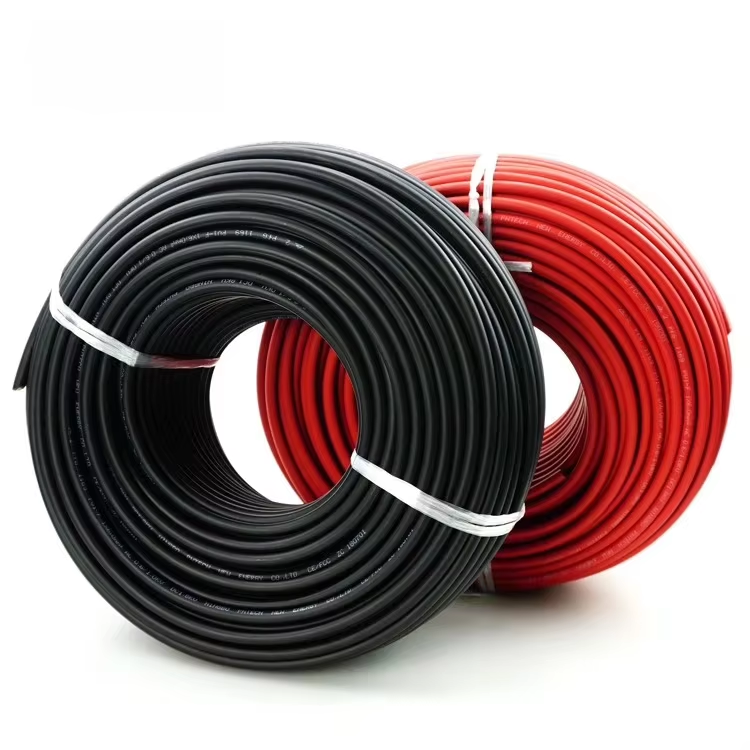

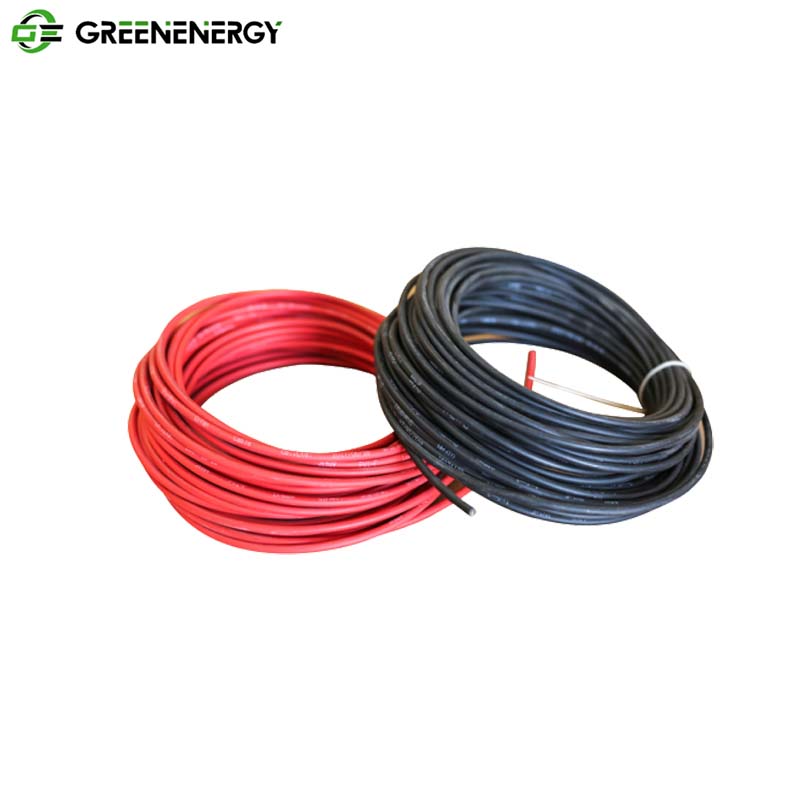

PV Cables
  • Cross Section: 4mm², 6mm² Optional
  • Rated Voltage: 600VDC(UL)/1000VDC(TUV)
  • Rated Current: 55A, 70A
  • Colors: Black for STD, Red Optional
  • Lifetime: ≤25 Years
  • 30A/1000V compatible MC4

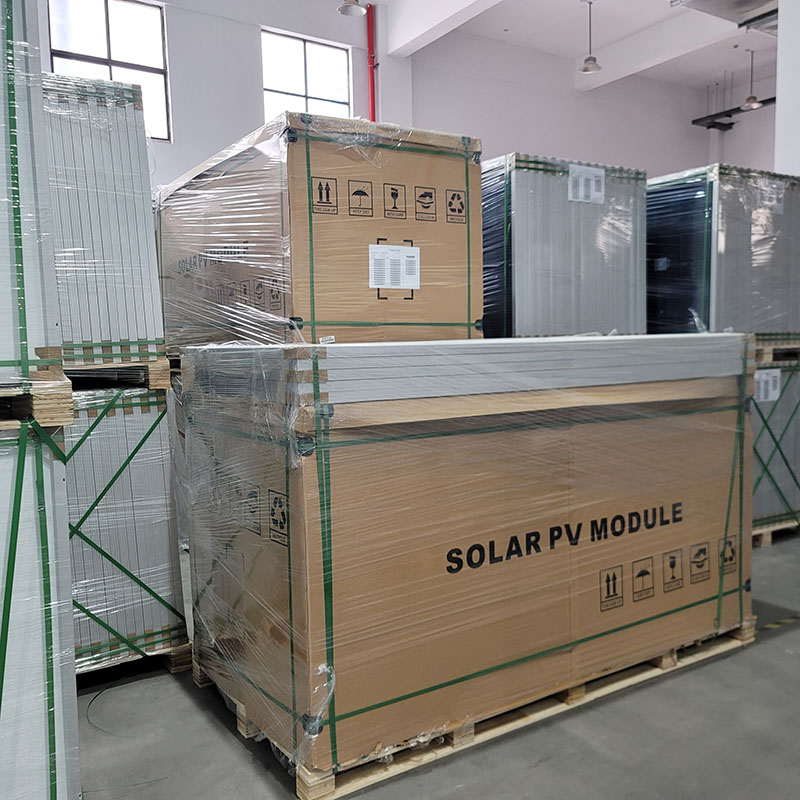

Packing & Delivery

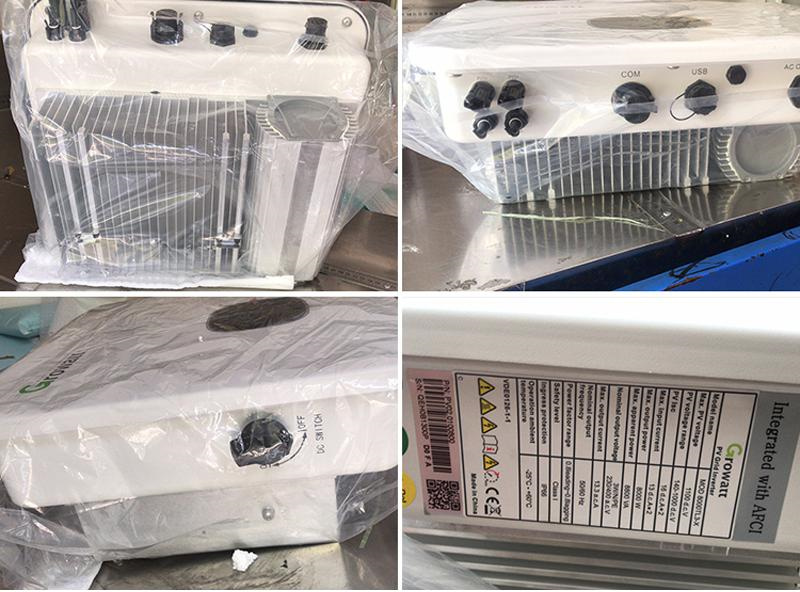

1. Inverter

2. Panels

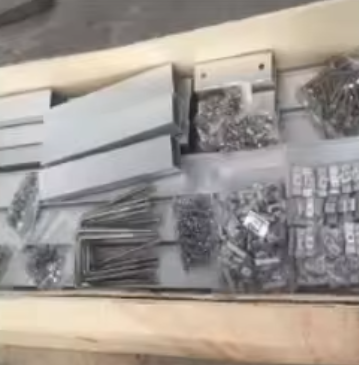

3. Brackets

4. In wooden box

5. Professional package

6. Loading

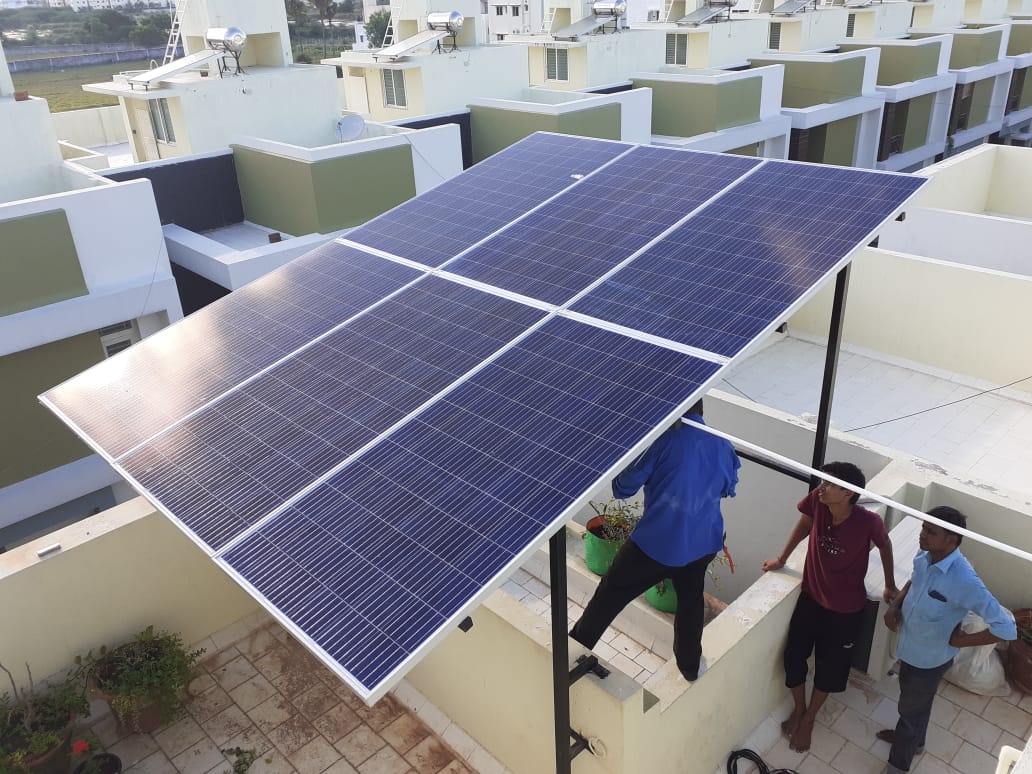

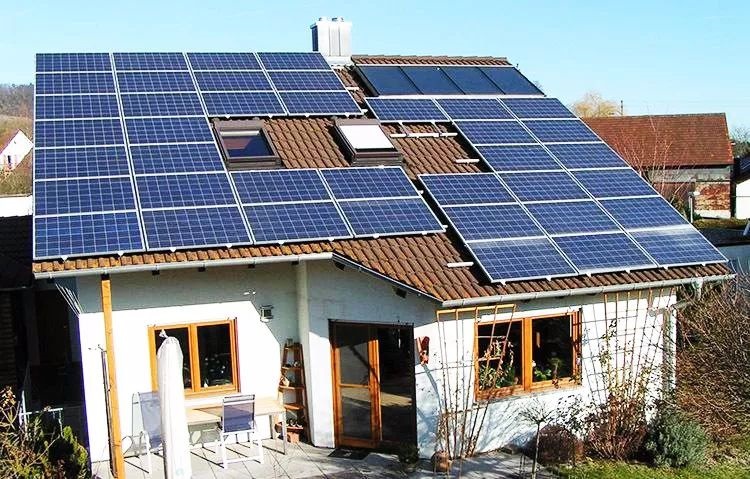

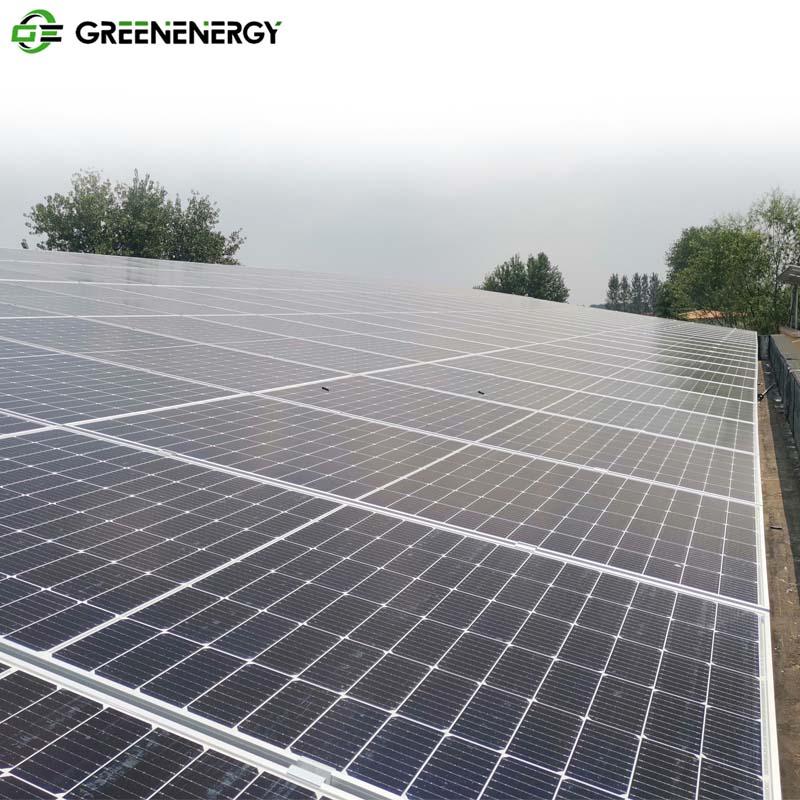

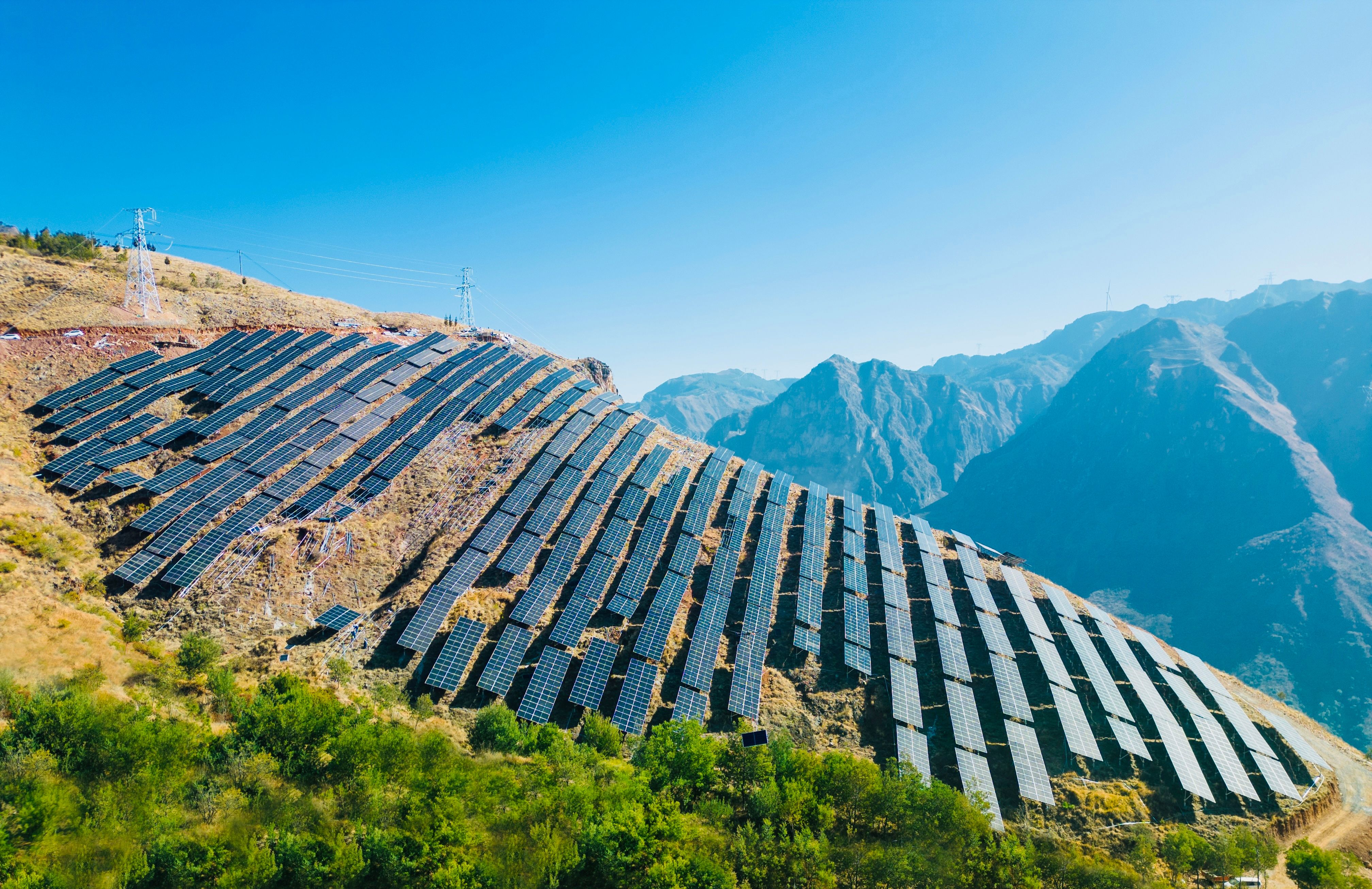

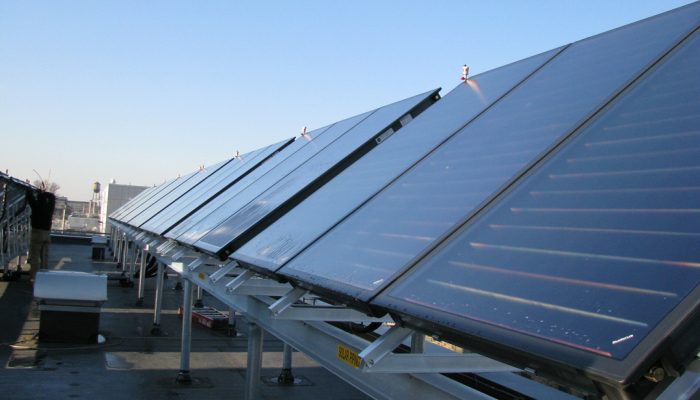

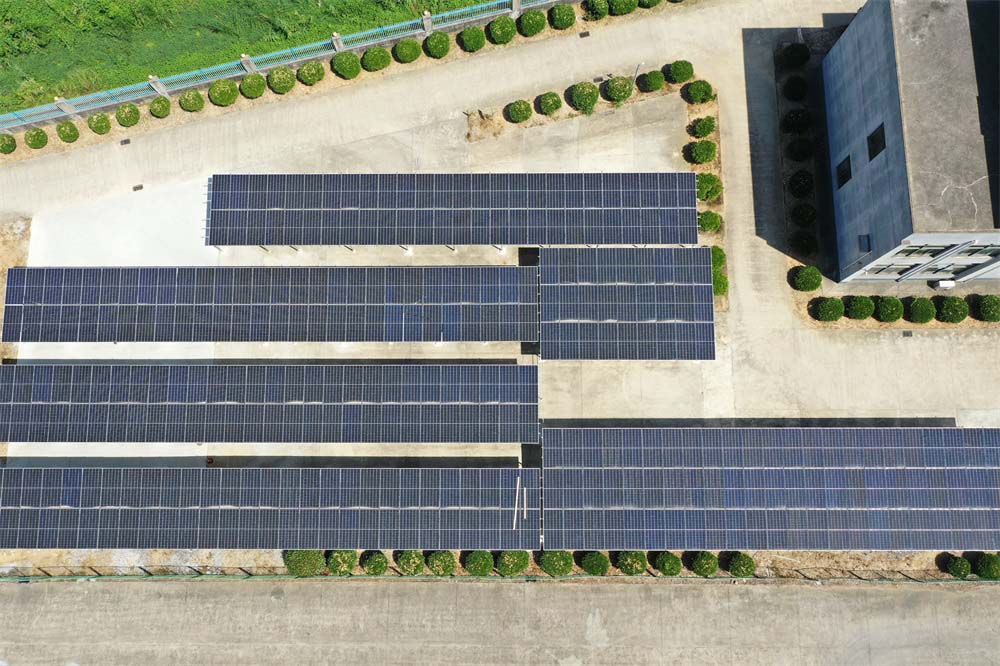

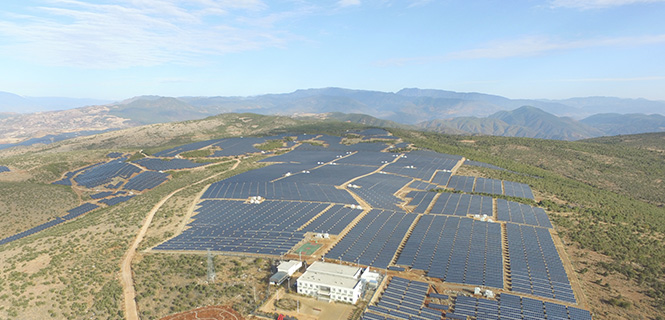

Our Projects

Austria

German

India

Lebanon

Mexico

Spain

Frequently Asked Questions
1. What are the benefits of an On-grid solar system?
On-grid systems allow you to save on electricity bills by using solar energy during the day and feeding excess power back into the grid, often earning credits or payments through net metering.
2. How long do the solar panels and inverters last?
Solar panels typically come with a 25-30 year performance warranty, while on-grid inverters generally offer 5 to 10 years of warranty depending on the selected configuration.
3. Does the system work during a power outage?
Standard on-grid systems are designed to shut down during a power outage for safety reasons (anti-islanding protection) to prevent feeding power back into the grid while workers are repairing lines.
4. What maintenance is required for the system?
On-grid systems require minimal maintenance. Periodic cleaning of the solar panels to remove dust and debris and checking the electrical connections is usually sufficient to ensure peak performance.
5. Can the mounting system be customized for my roof type?
Yes, we provide customized mounting bracket designs with CAD drawings suitable for flat roofs, pitched roofs, and ground installations (soil or cement).
6. Is it easy to monitor the power generation?
Yes, most modern on-grid inverters come with WiFi or GPRS monitoring modules that allow you to track your solar energy production in real-time via a smartphone app or computer.
