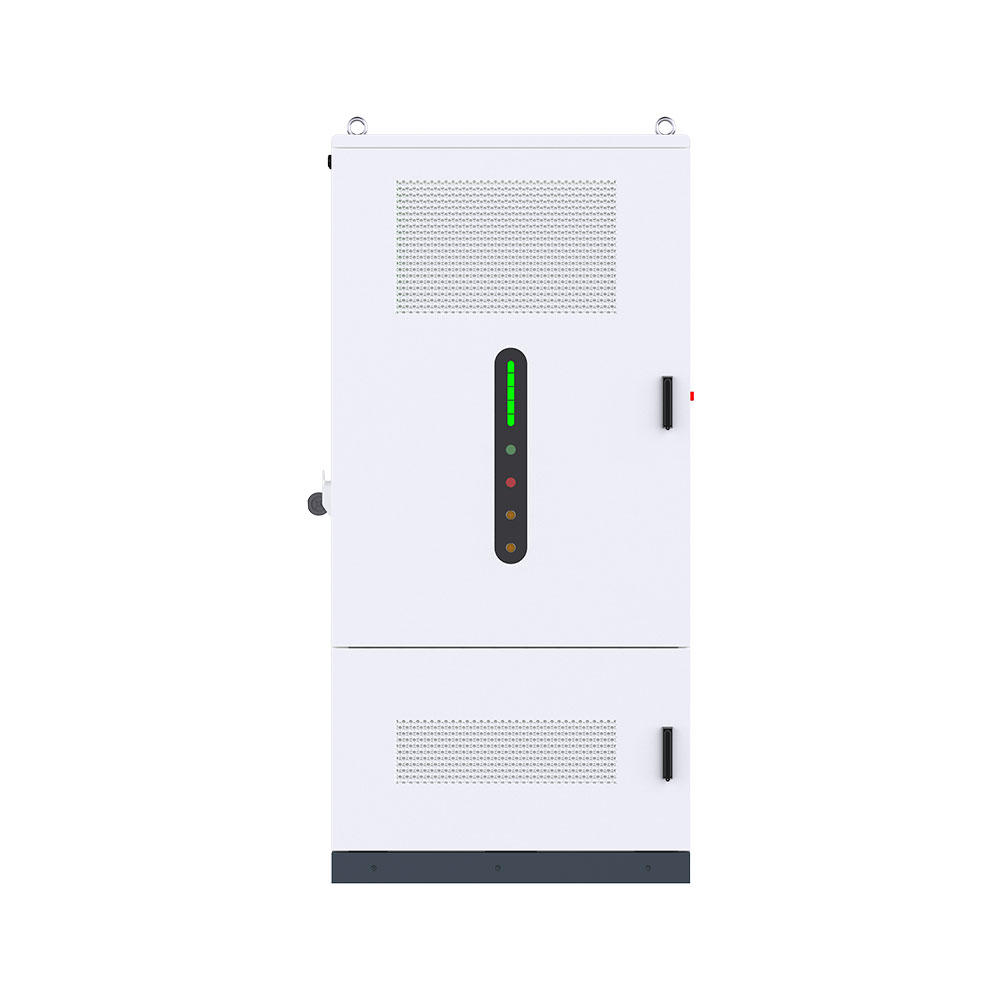

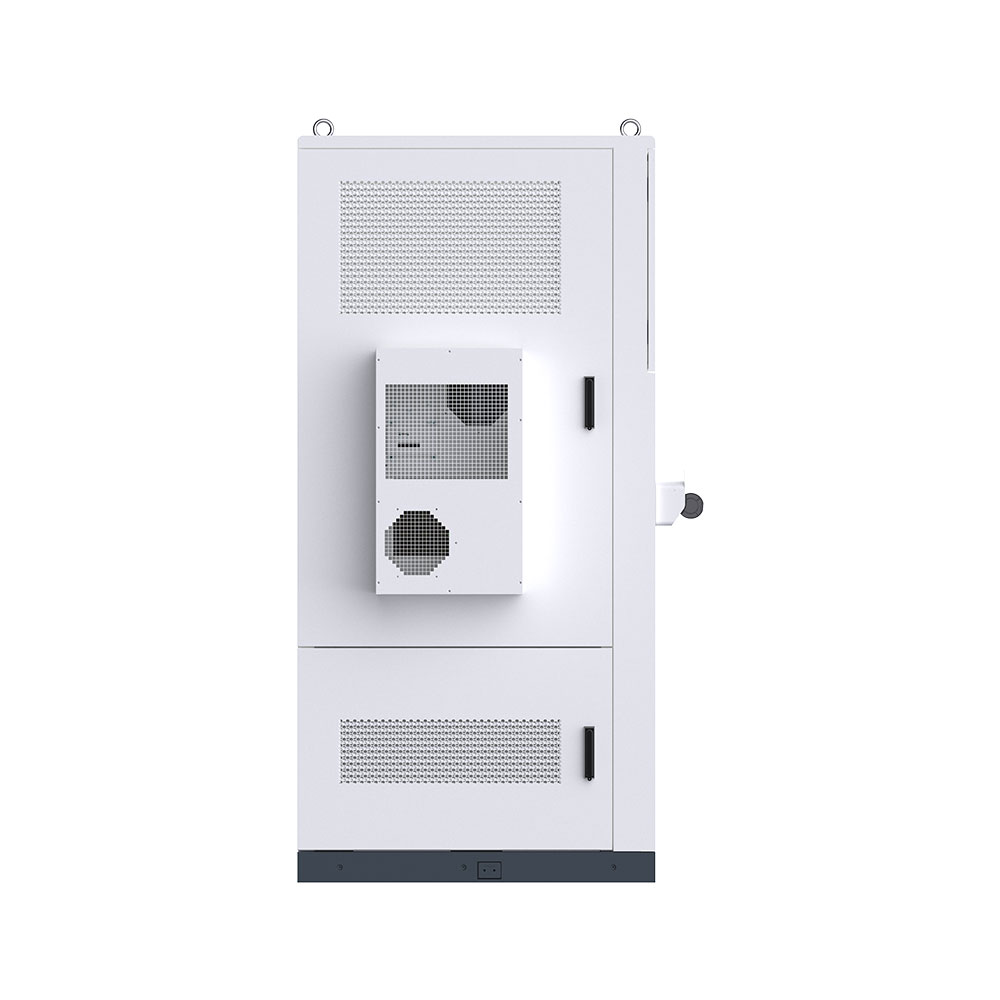

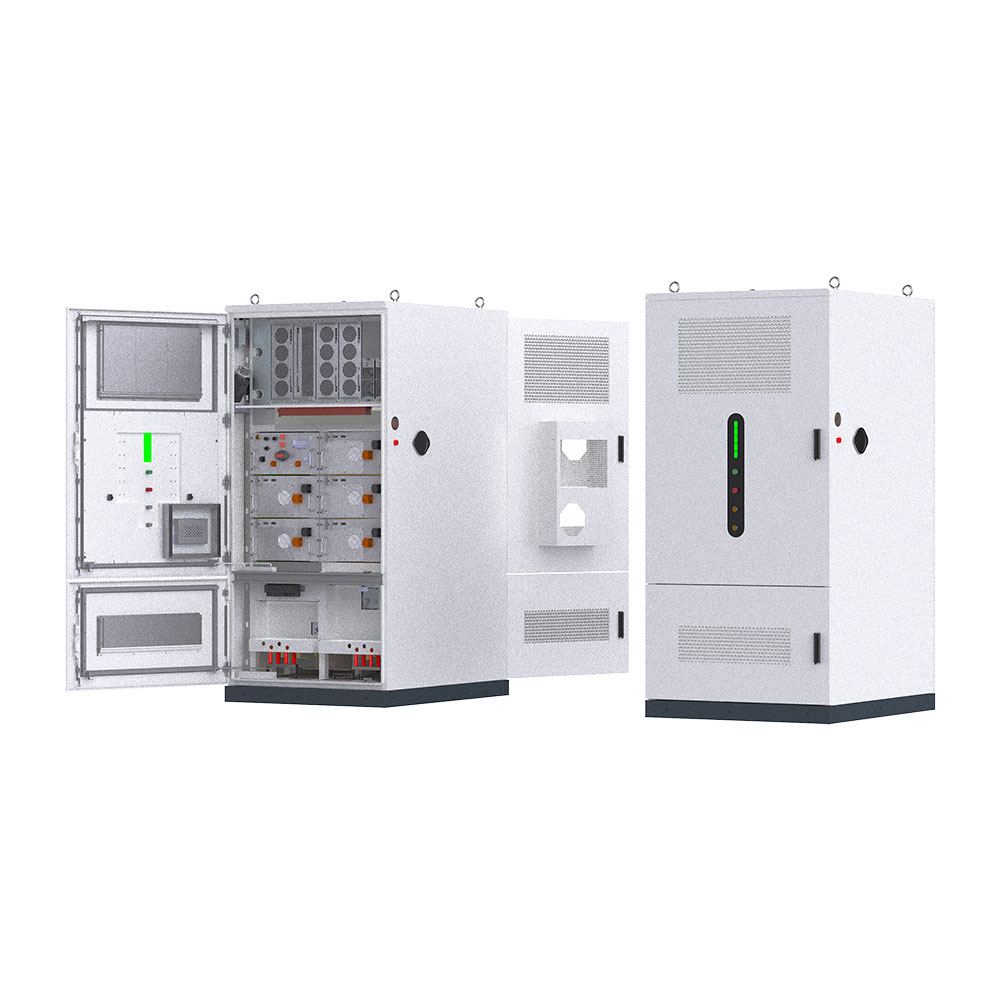

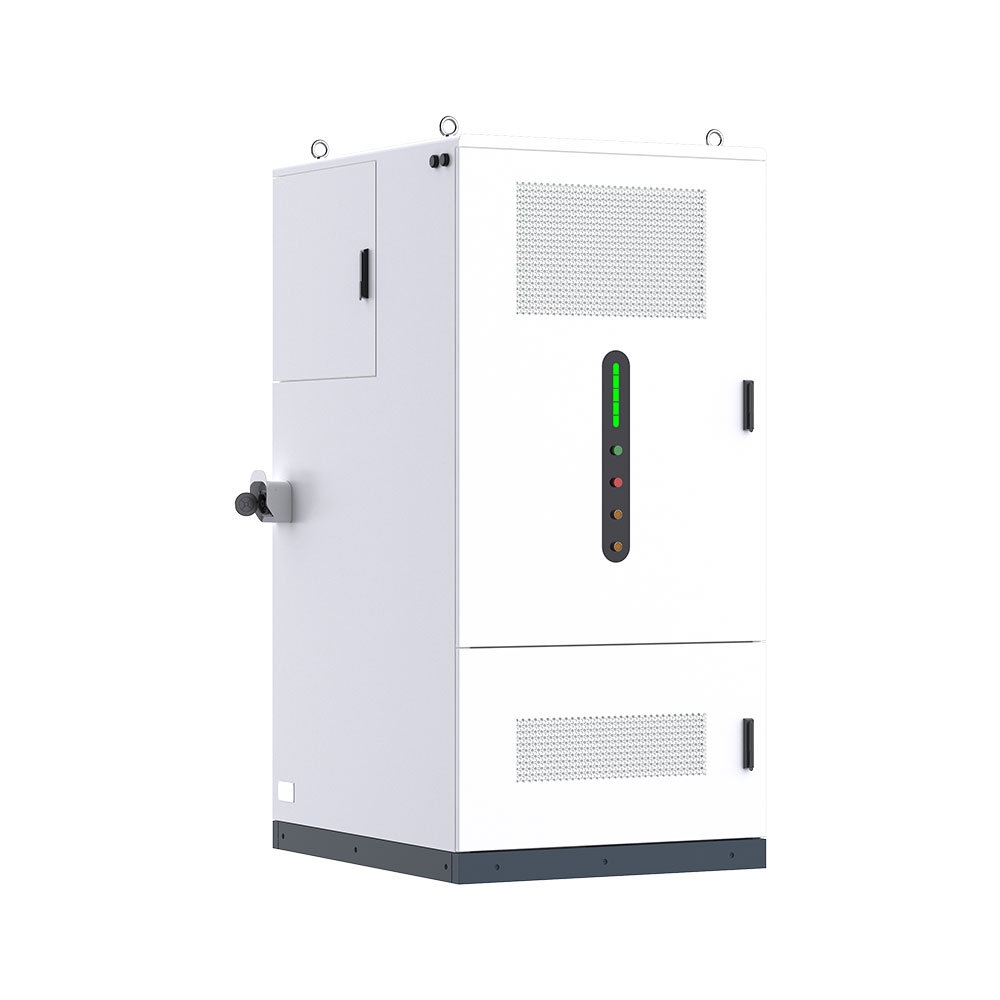

50kW/110kWh LiFePO4 Solar Diesel Hybrid Energy Storage System Grid Microgrid Solution CN

Send Inquiry

Product Description

📊

Product Parameters

Capacity	110 kWh
Battery Voltage Range	308–401.5 Vdc
Diesel Generator Input Power	50 kW
PV Input Power	50 kW
Maximum Load Output Power	100 kW
Diesel Generator Input Voltage	400 ±15% VAC
PV Input Voltage	300–700 Vdc
Load Output Voltage	400 ±15% VAC
Operating Frequency	50 Hz
Battery Charge Rate	0.5C
Battery Discharge Rate	0.5C
Depth of Discharge	≤95%
Nominal Voltage	3.2 V
Cell Configuration	1P22S
Pack Voltage	70.4 V
Pack Weight	320 kg
Cycle Life	>6000 cycles
Operating Temperature	-20 to 50 ℃
Noise Level	<60 dB
Protection Rating	IP54
Cell Type	3.2 V / 314 Ah
Nominal Energy	22.1 kWh

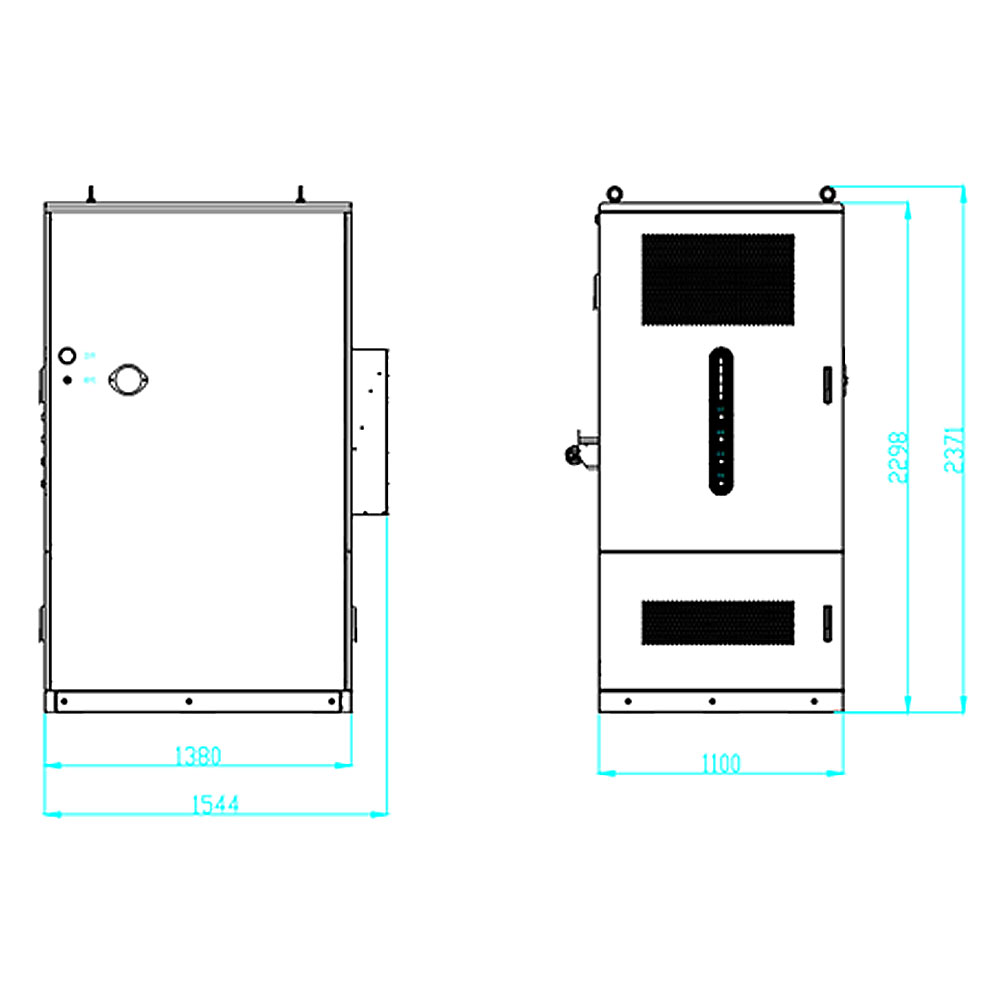

System Dimensions	1560 × 1100 × 2300 mm
System Weight	2 tons

🔍

Product Introduction

📦

Related Products

🏢

Professional Capability

⭐

Recommend Products

🌍

Exhibition

What is the expected lifespan of the energy storage system?

The system utilizes high-quality cells with a cycle life exceeding 6,000 cycles, ensuring long-term reliability for energy storage needs.

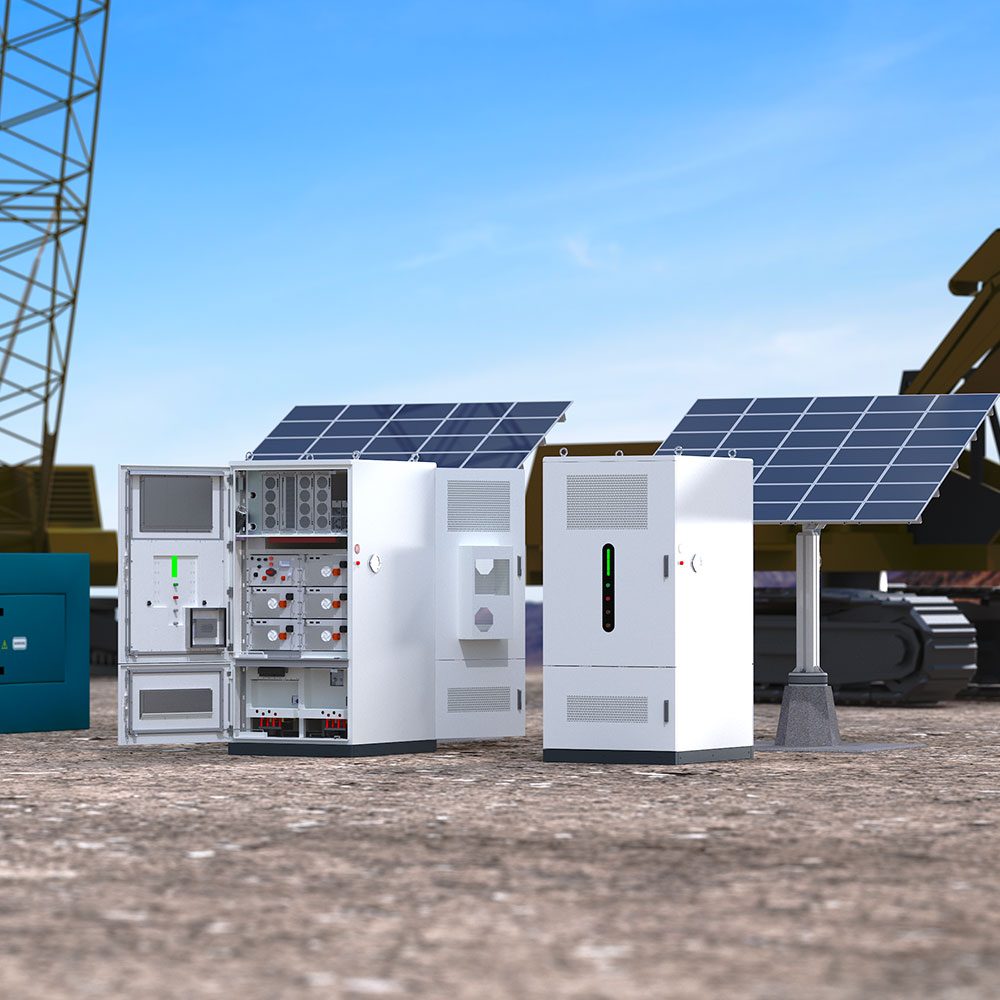

Can this system be integrated with solar power?

Yes, the system supports PV input power up to 50 kW with a voltage range of 300–700 Vdc, making it ideal for solar energy integration.

What is the protection rating for outdoor installation?

The system features an IP54 protection rating, providing significant protection against dust and water splashes, suitable for various environments.

What are the operating temperature limits?

The equipment is designed to operate efficiently in temperatures ranging from -20 to 50 ℃.

How much noise does the system generate during operation?

The noise level is kept under 60 dB, ensuring relatively quiet operation for industrial and commercial settings.

What is the total capacity and weight of the unit?

The system has a capacity of 110 kWh and a total system weight of approximately 2 tons.
