Product Description

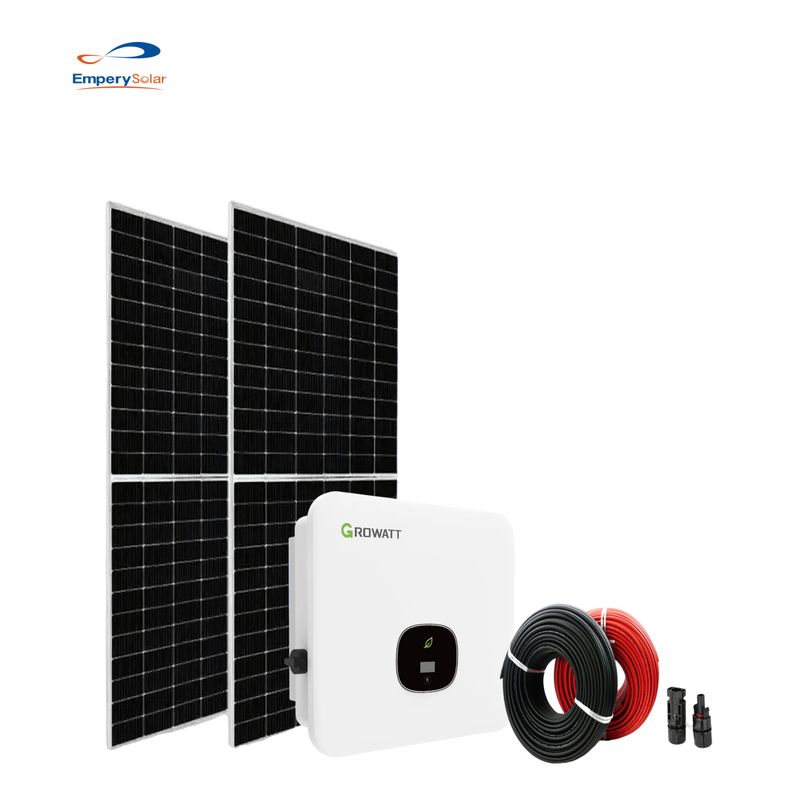

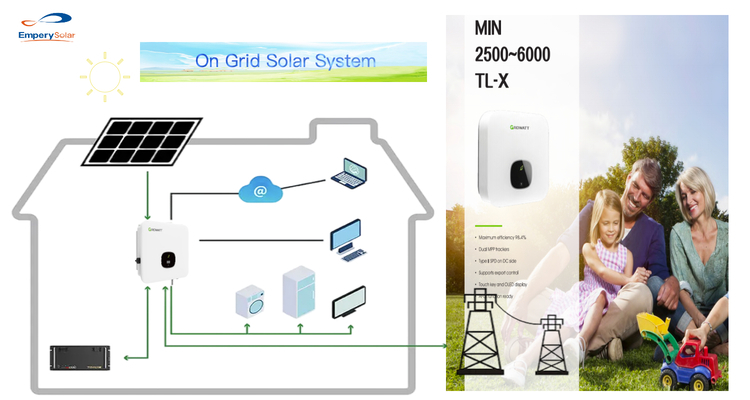

On Grid Tied Solar Power Energy System
Product Description
On Grid Solar System Specifications
Part Name Description QTY Unit
Solar module 5/10/15KW Poly/Mono Solar Panel, Full Cell/Half Cell Optional / PCS
Inverter Max output power: 5/10/15kw 1 Set
Mounting System Customized Roof or Ground Bracket 1 Set
Distribution box 5/10KW Breaker Customized 1 PCS
PV Cable Cross Section: 4mm², 6mm², 10mm², 16mm², 25mm² Optional Customized M
Battery Cable 2*25mm² PV Cable (Inverter to Battery Box) Customized M
AC Cables 2*4mm² (Inverter to AC box) Customized M
Technical Note: The installation area of the components is approximately 15 square meters, providing a daily power generation of 13.5KWH and a storage capacity of 12KWH.

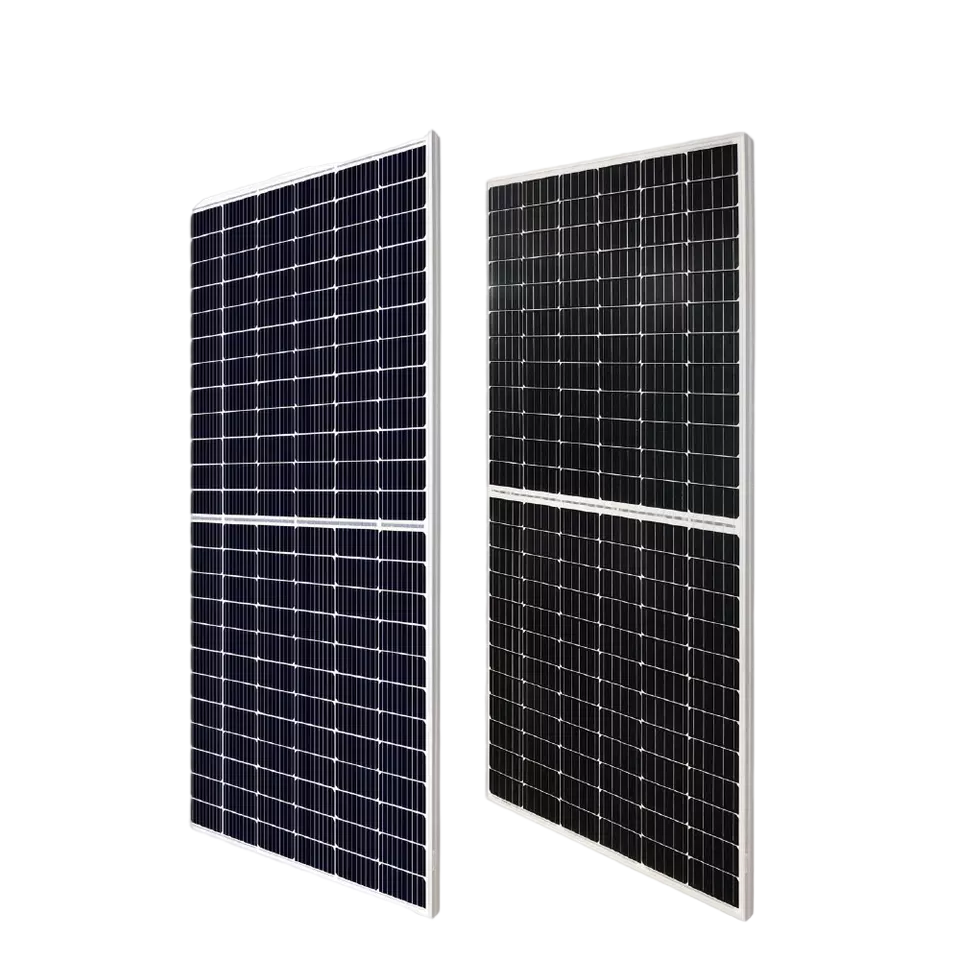

Solar Panel
Solar Panel Features
  • Perc/Bifacial/Double Glass/HJT/All Black Optional
  • 5BB/6BB/9BB/10BB/12BB/MBB Technology
  • 156mm/158mm/166mm/182mm/210mm sizes
  • 25 or 30 years warranty optional
  • Class A with CE/TUV/ISO certificates

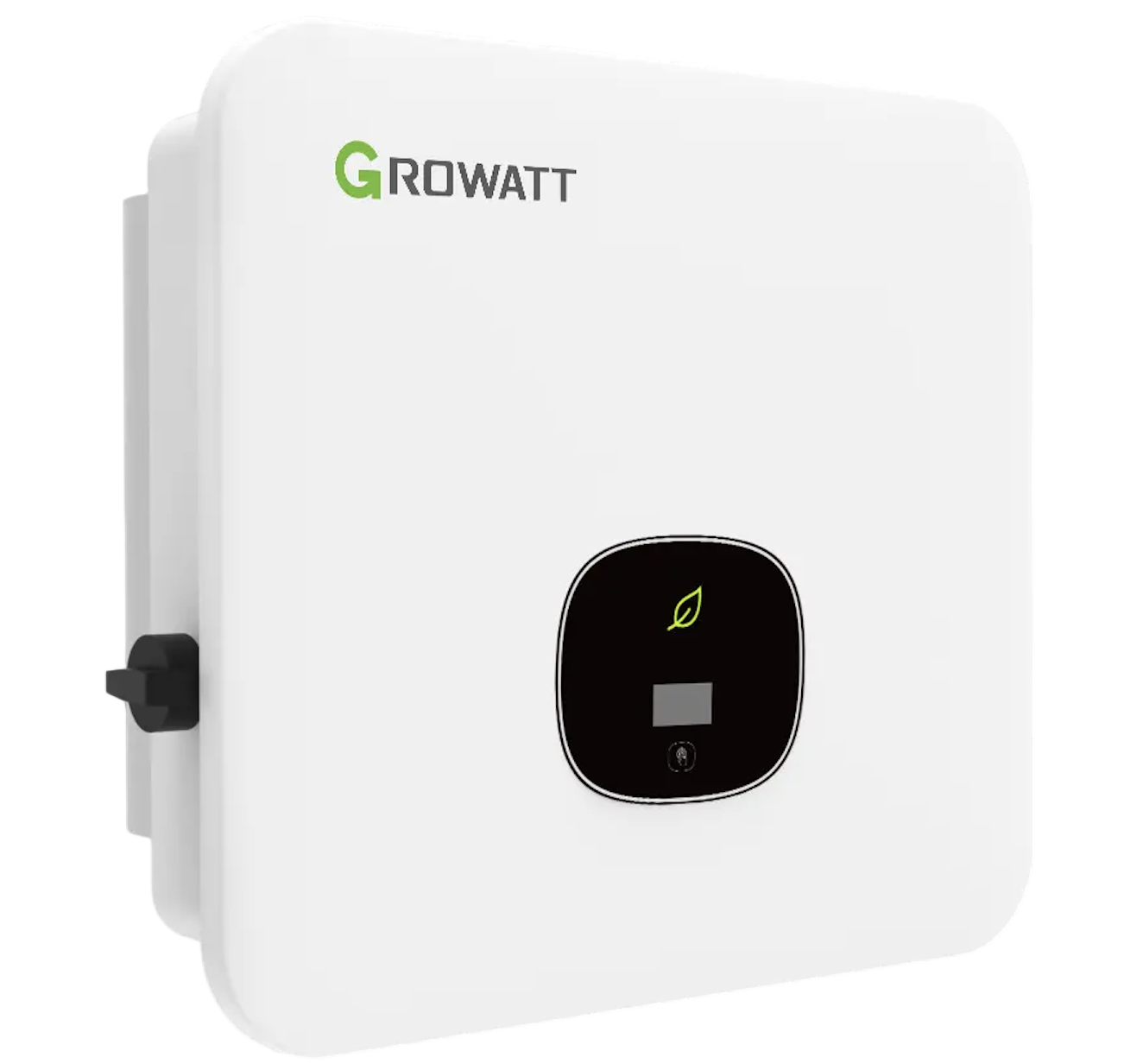

Solar Inverter
Solar Inverter Specs
  • Max power: 5/10/15kw | Dual MPPT tracker
  • Grid Voltage: 230/400V, 50Hz
  • Supports export control & Anti-islanding
  • AC short circuit protection & DC switch
  • Warranty: 5 years or 10 years optional

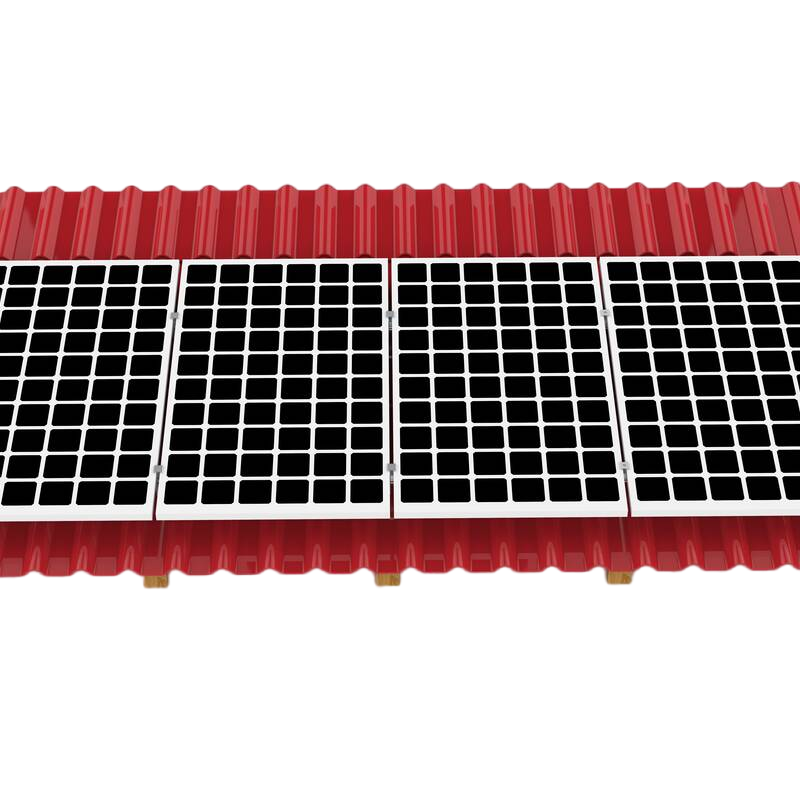

Mounting Bracket
Mounting System
  • Non-Penetrating to roof design
  • Pre-assembled parts for fast installation
  • Fixed or adjustable angles acceptable
  • Suitable for all orientation installations
PV Cables
Cable & Connectors
  • Cross Section: 4mm² to 25mm² Optional
  • Colors: Black or Red available
  • Rated Voltage: 1000VDC
  • Lifetime: More than 30 Years

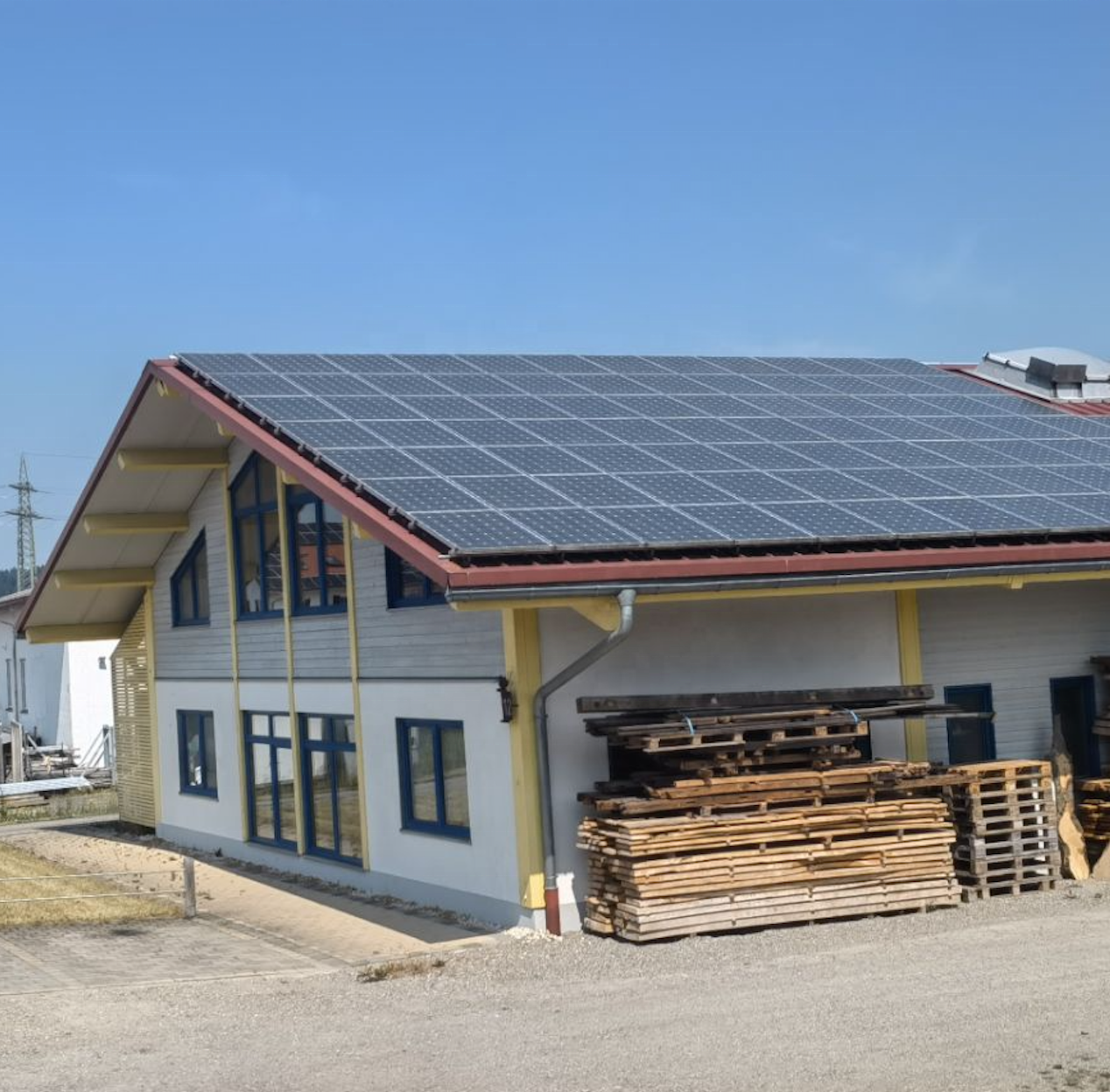

Project Cases
Project case 1 Project case 2
Packaging & Shipping
Packaging details
🚢
By Sea: Regular shipments handled through major professional ports.
✈️
By Express: Fast delivery options available via TNT or DHL.
Certifications & Quality
Production info Certificates Quality control
Quality assurance
Frequently Asked Questions
What is the expected lifespan of the solar system components?
The solar panels are built for longevity, with options for 25 to 30-year warranties. The system is designed to provide stable energy production for decades.
Can the mounting system be adapted for different roof types?
Yes, we provide customized roof and ground brackets. Our systems include non-penetrating designs for roofs and pre-assembled parts for fast, versatile installation.
What safety protections does the inverter include?
The inverter is equipped with comprehensive safety features including anti-islanding protection, AC short circuit protection, and integrated DC switches.
Are the solar panels certified for international standards?
Absolutely. All solar modules are Class A and come with CE, TUV, and ISO certificates, ensuring compliance with global quality and safety standards.
How much space is required for a 10KW system?
While it depends on the specific panel efficiency used, a standard installation typically requires approximately 15 square meters of space for optimal placement.
What shipping methods are available for the system?
We offer secure packaging for sea freight and express shipping via TNT or DHL to ensure components arrive in perfect condition.
