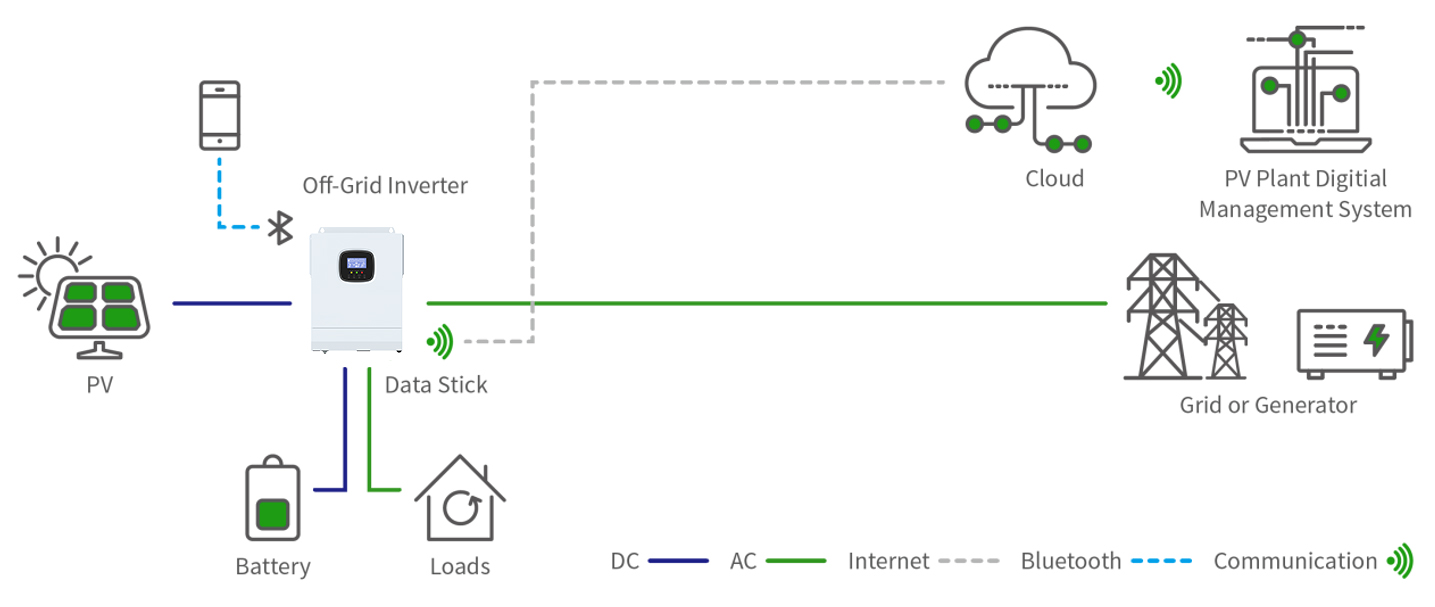

Photovoltaic gives priority to power the user load, and excess solar energy charges the batteries. When the battery is fully charged, the excess power can flow to the grid or photovoltaic limited power operation. Self-use mode is the most popular choice.
Photovoltaic gives priority to charging batteries, and the excess power will supply the user load. When the PV power is insufficient to supply the load, the grid will supplement it. The batteries are fully used as backup power.
Also known as "economic mode," it is divided into peak, normal, and valley periods. The working mode of each time period can be set through the electricity price to achieve the most economical effect.

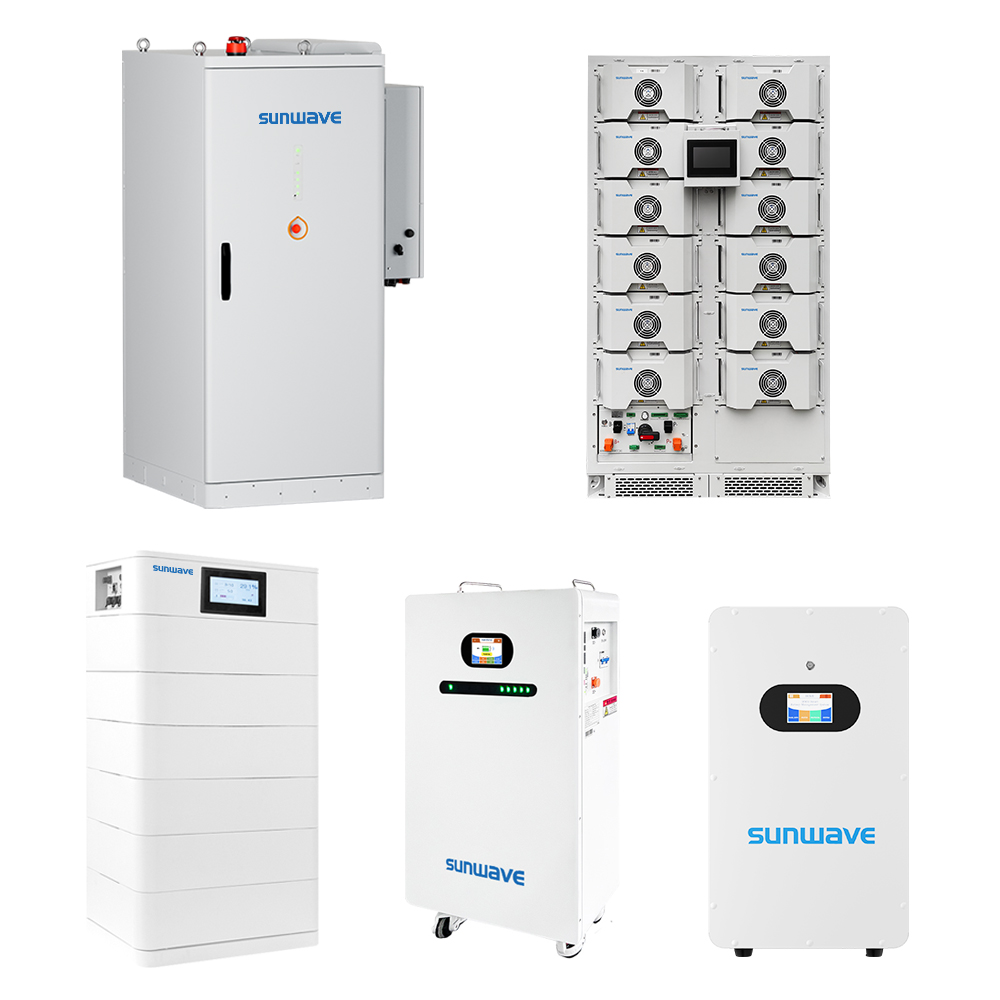

5KWh-21KWh: Home Energy Storage

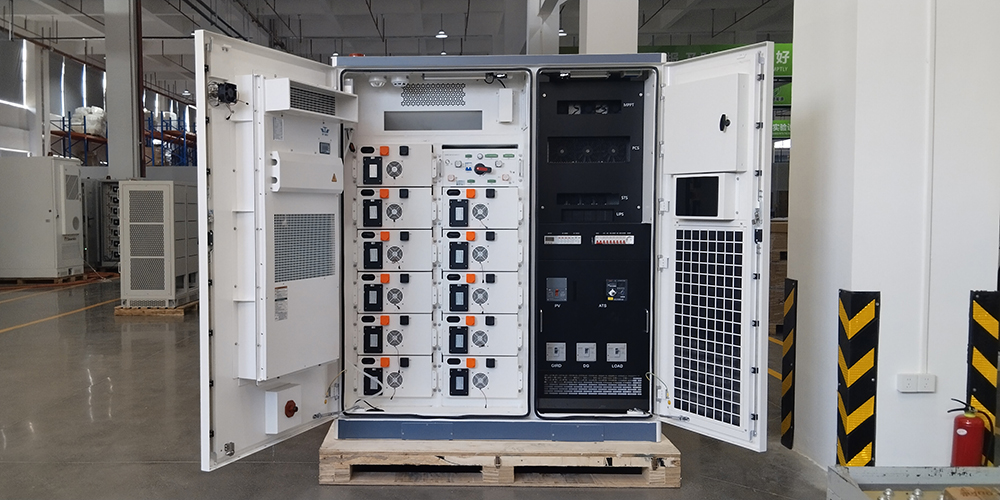

86KWh: High-voltage rack batteries for malls, hospitals, and factories.

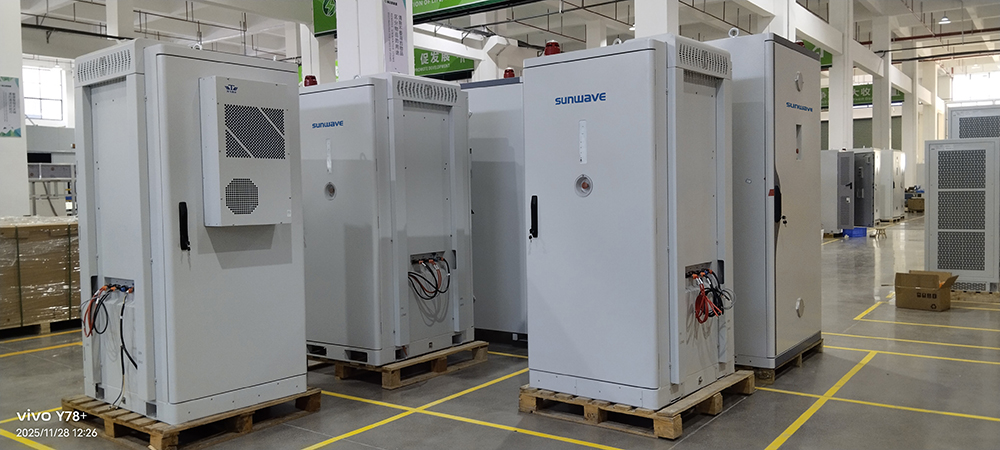

100KWh-200KWH: Commercial & Industrial Storage for peak shaving and load management.

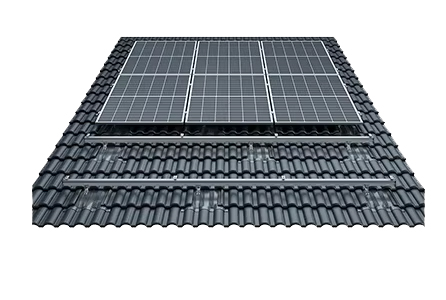

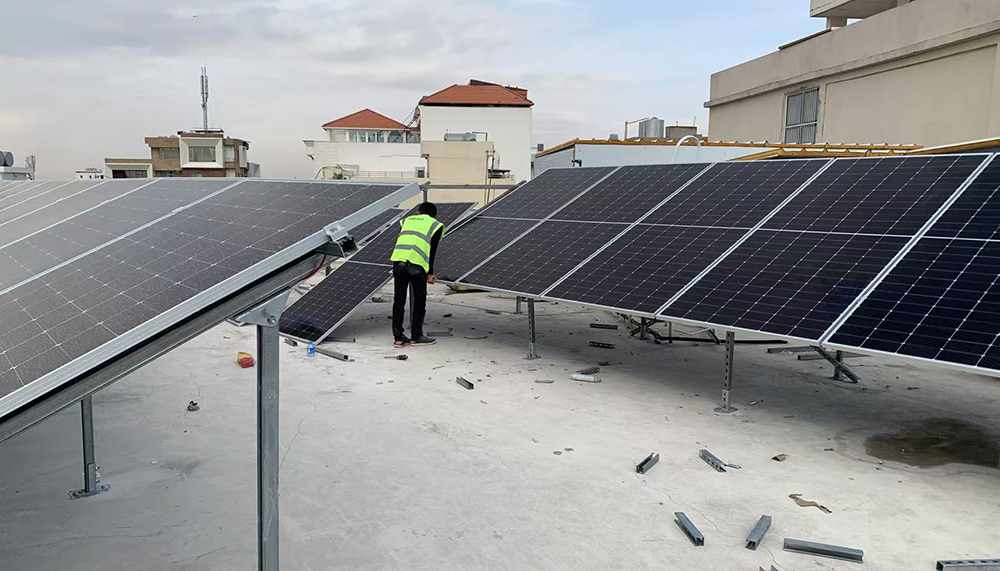

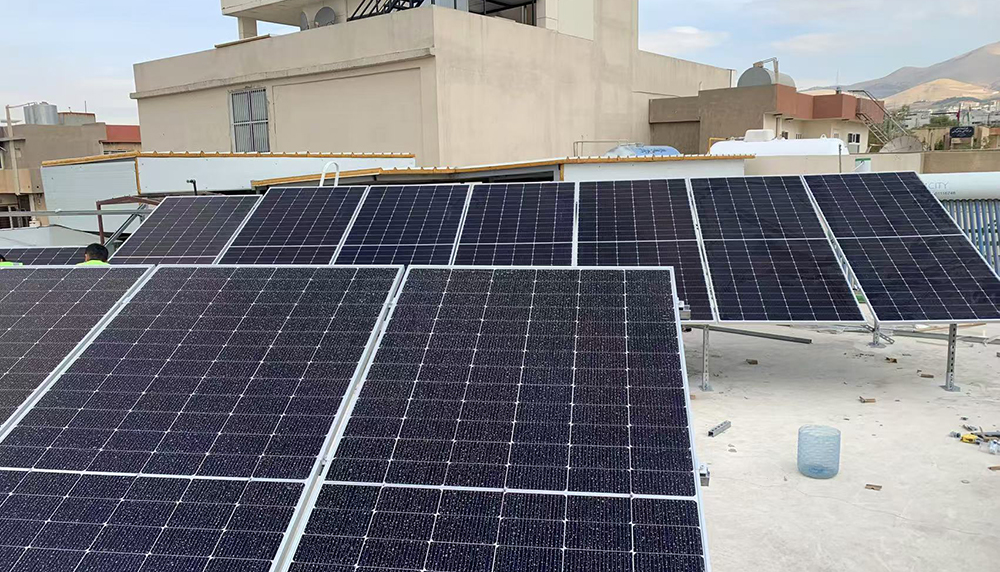

Pitched/Flat Rooftop and Ground Mounting. Aluminum Alloy material with selectable tool bags and PV combiner boxes.

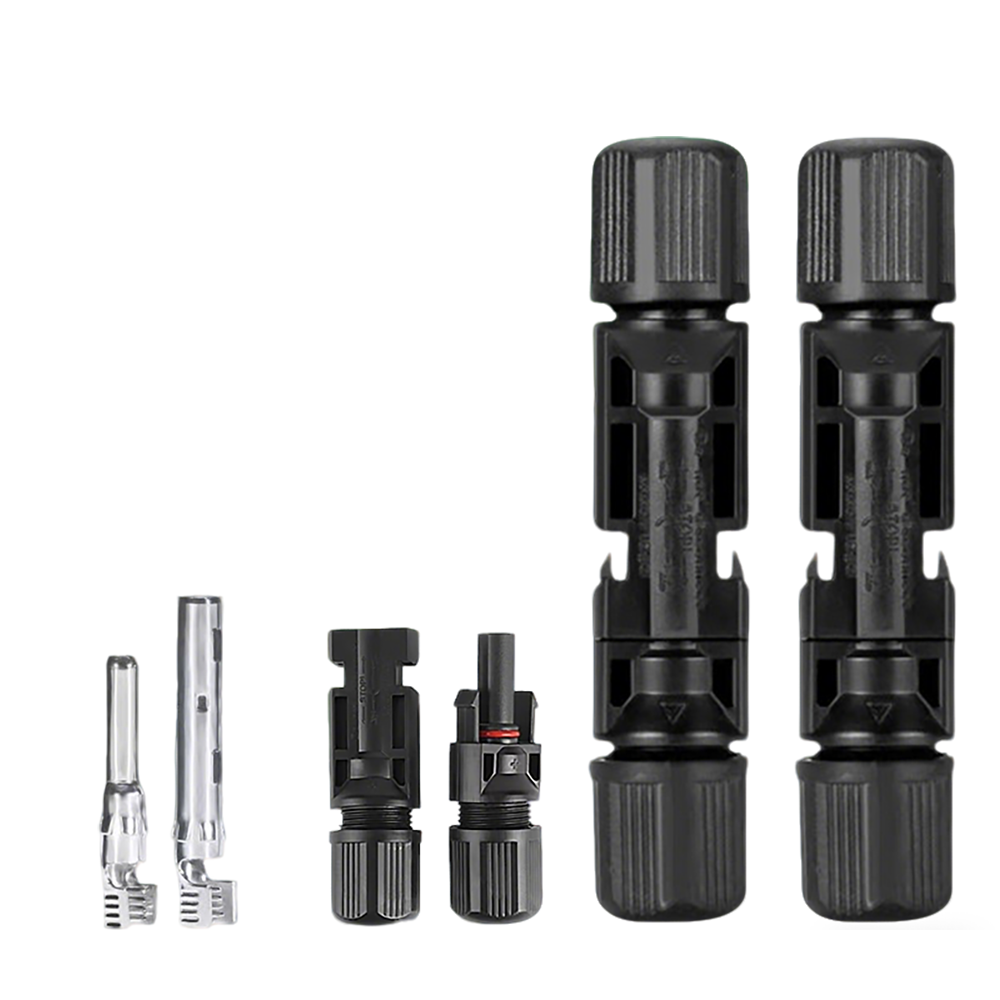

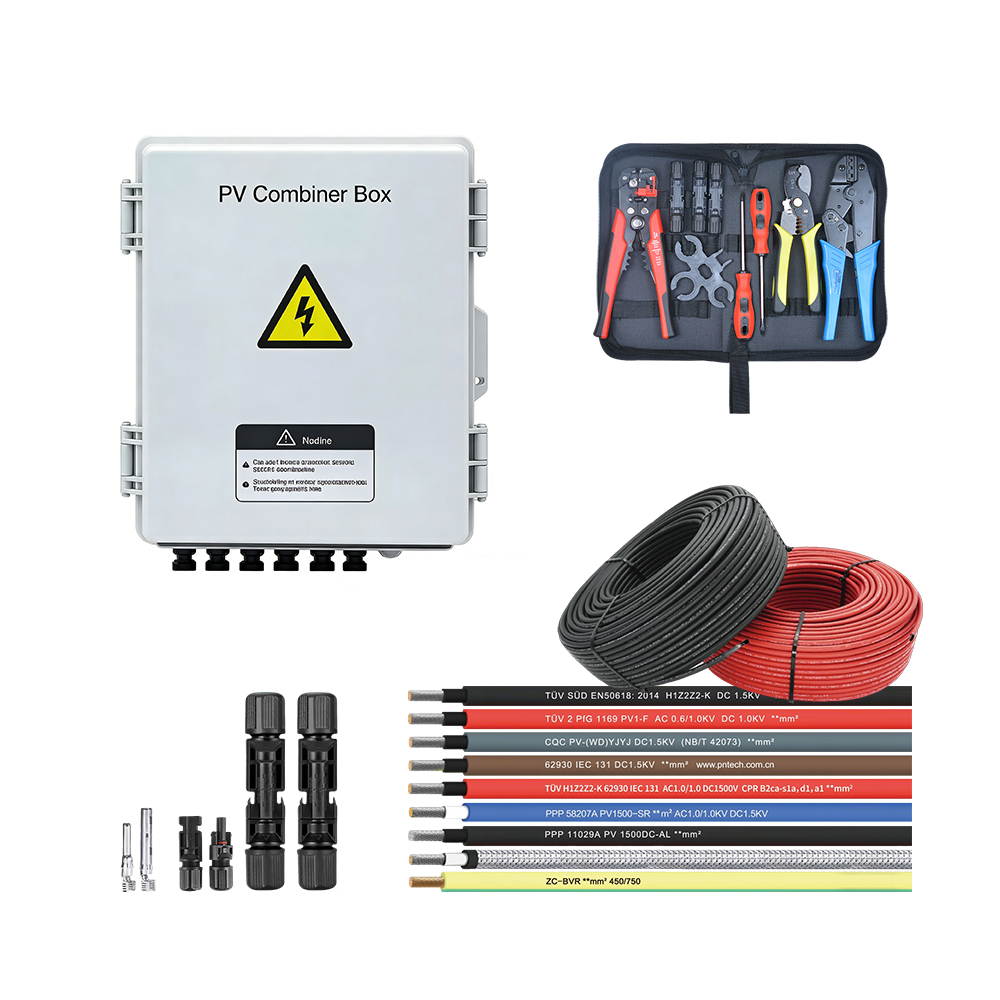

PV Cables, DC Breakers, MC4 Connectors, and Installation tools. Customization supported for diverse electrical environments.
High-strength PPO plastic components, durable from -40°C to 90°C.

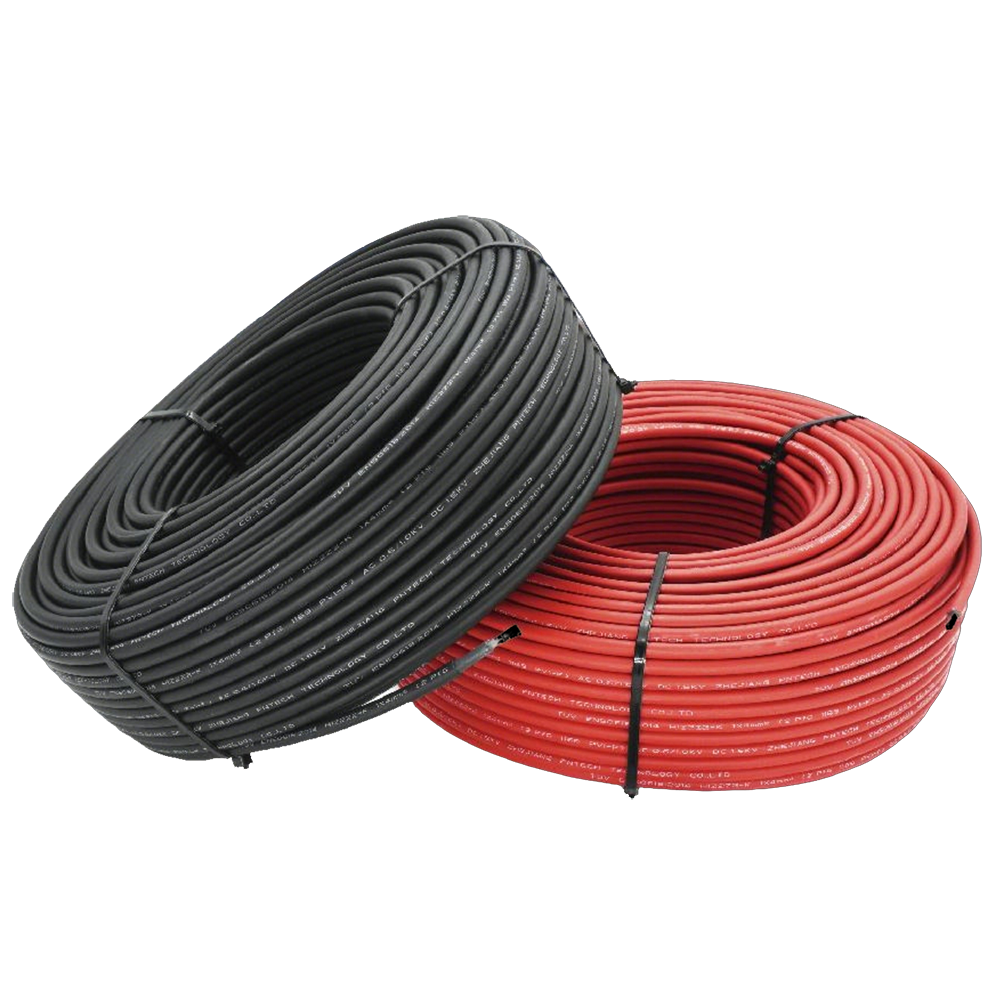

Robust insulation wires for maximum efficiency and uninterrupted power.

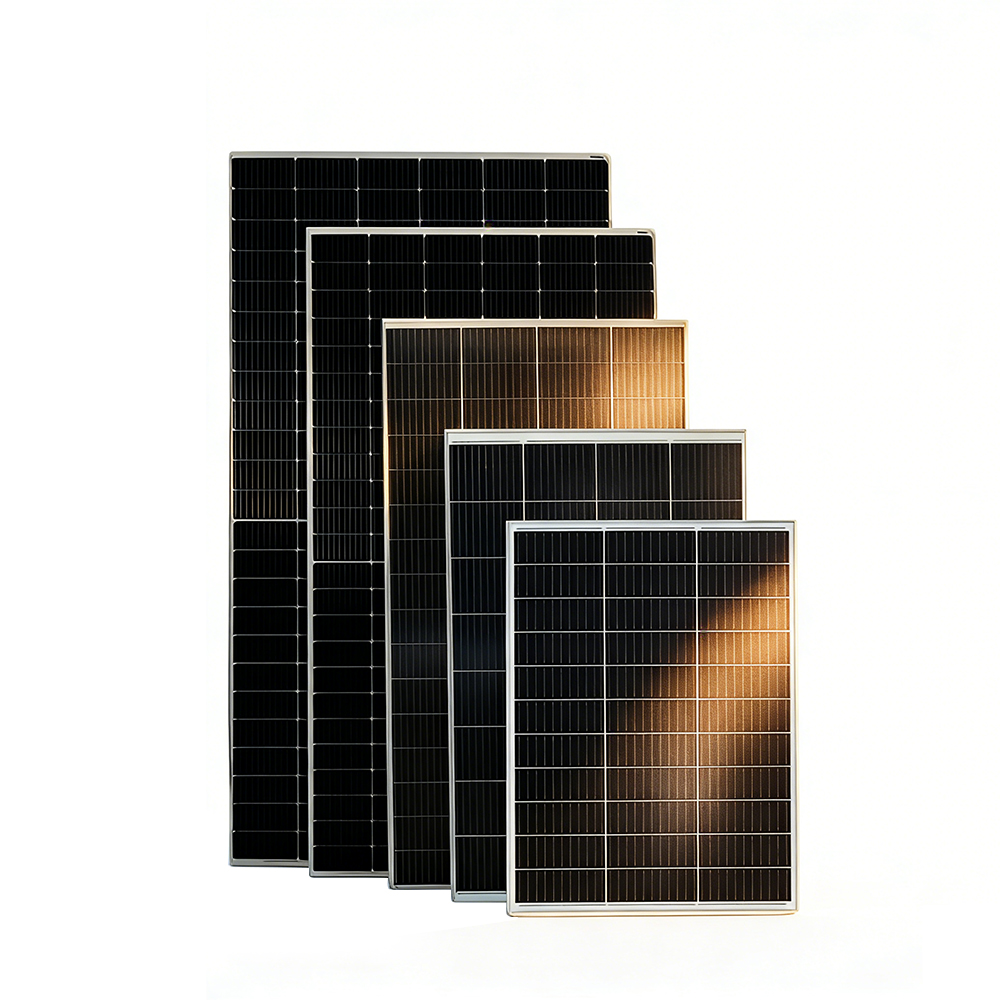

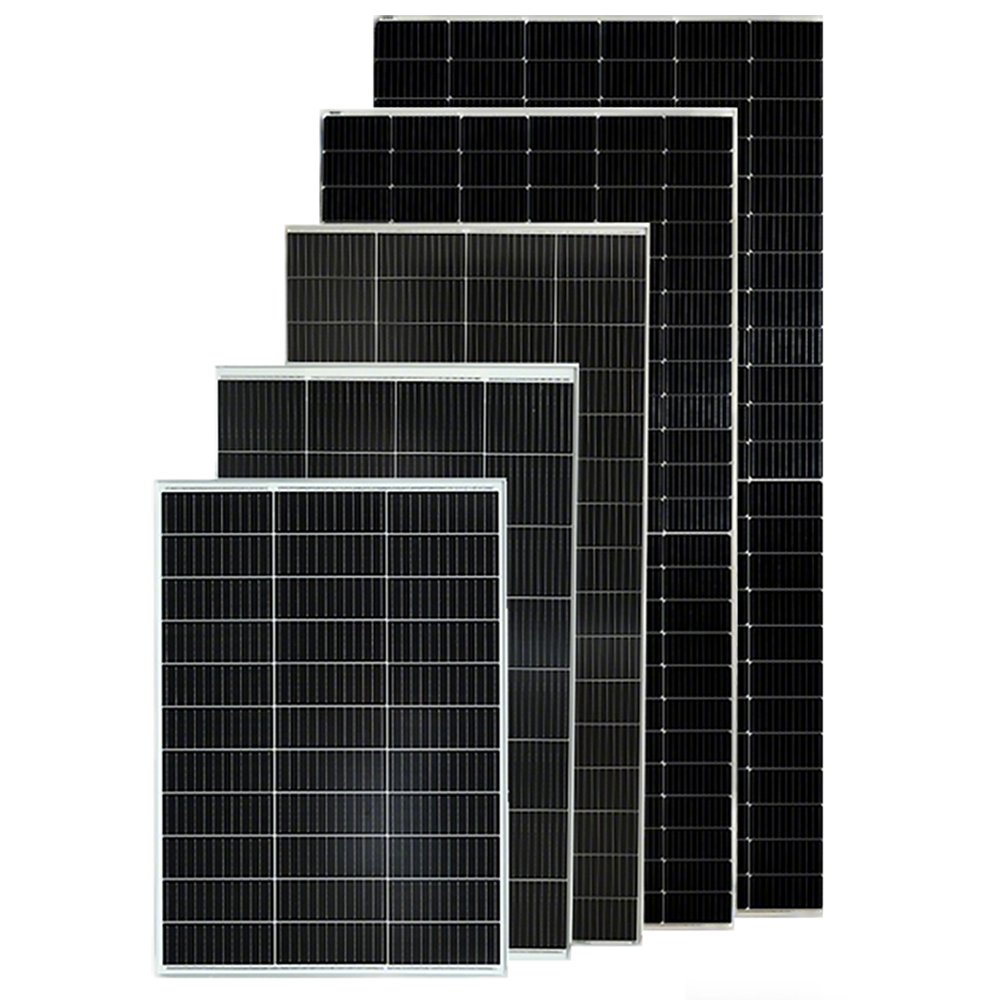

Monocrystalline modules with up to 23.7% conversion rate.

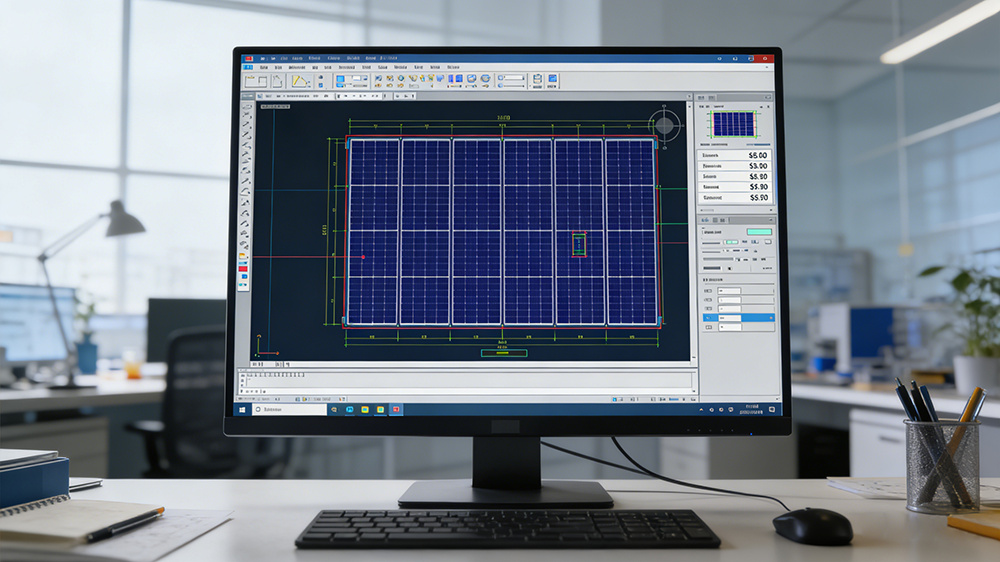

Excellent solar system design solutions to help save costs and obtain high-quality reliability.

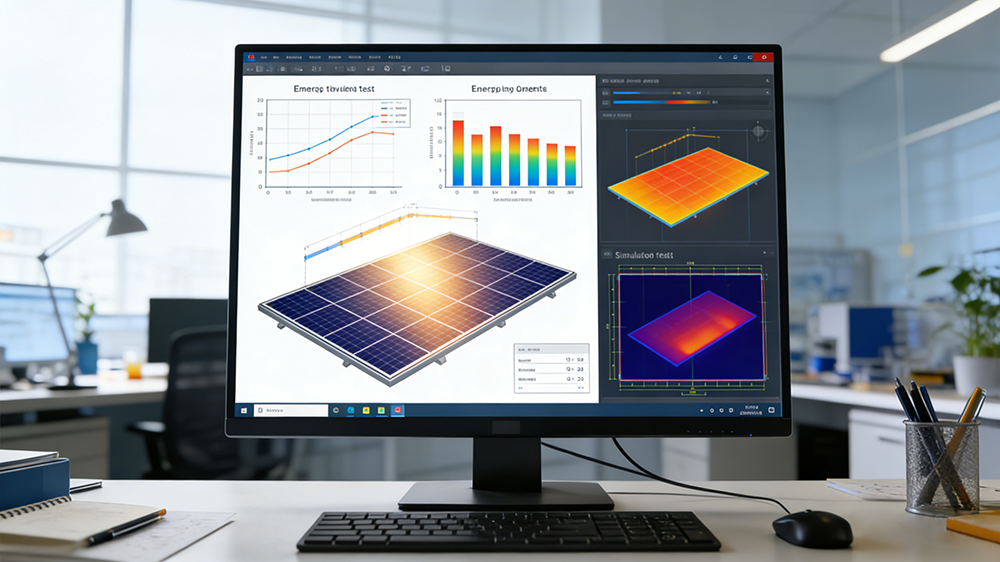

Every component is verified and tested by engineers for decades of stable energy supply.
| 5KW Off Grid Solar Power System Components | |||
|---|---|---|---|
| Item | Model | Description | Quantity |
| 1 | Solar Panel | Mono 390w solar panel | 10 pcs |
| 2 | PV combiner box | 5 input 1 output | 1 pc |

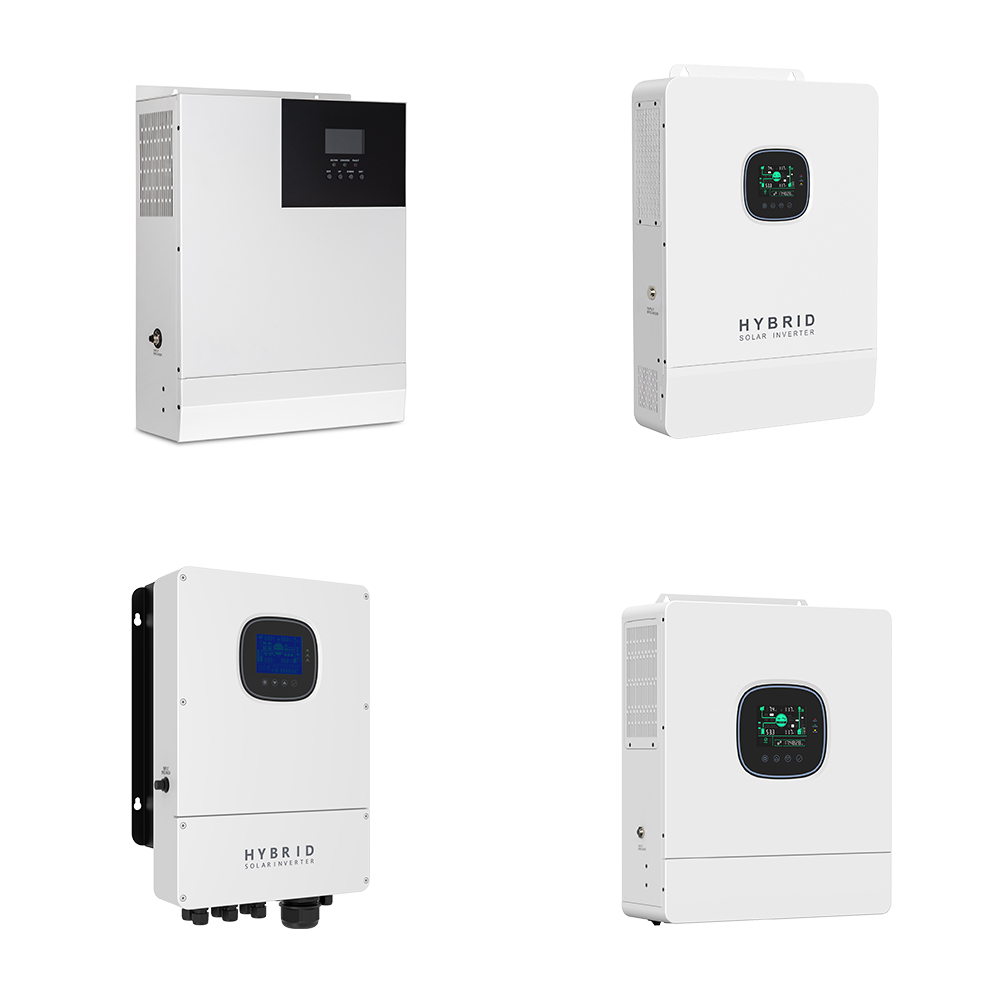

| 3 | Off inverter | MPPT 48V 60A / 5KW | 1 pc |
| 4 | Battery | 12V 200Ah | 4 pc |
| 5 | PV Cable | 4mm² PV cable | 100 m |
| 10KW Off Grid Solar Power System Components | |||
|---|---|---|---|
| Item | Model | Description | Quantity |
| 1 | Solar Panel | Mono 390w solar panel | 18 pcs |
| 2 | PV combiner box | 6 input 2 output | 1 pc |
| 3 | Off inverter | MPPT 48V 120A / 5KW | 2 pc |
| 4 | Battery | 12V 220Ah | 8 pcs |
| 5 | PV Cable | 4mm² PV cable | 200 m |

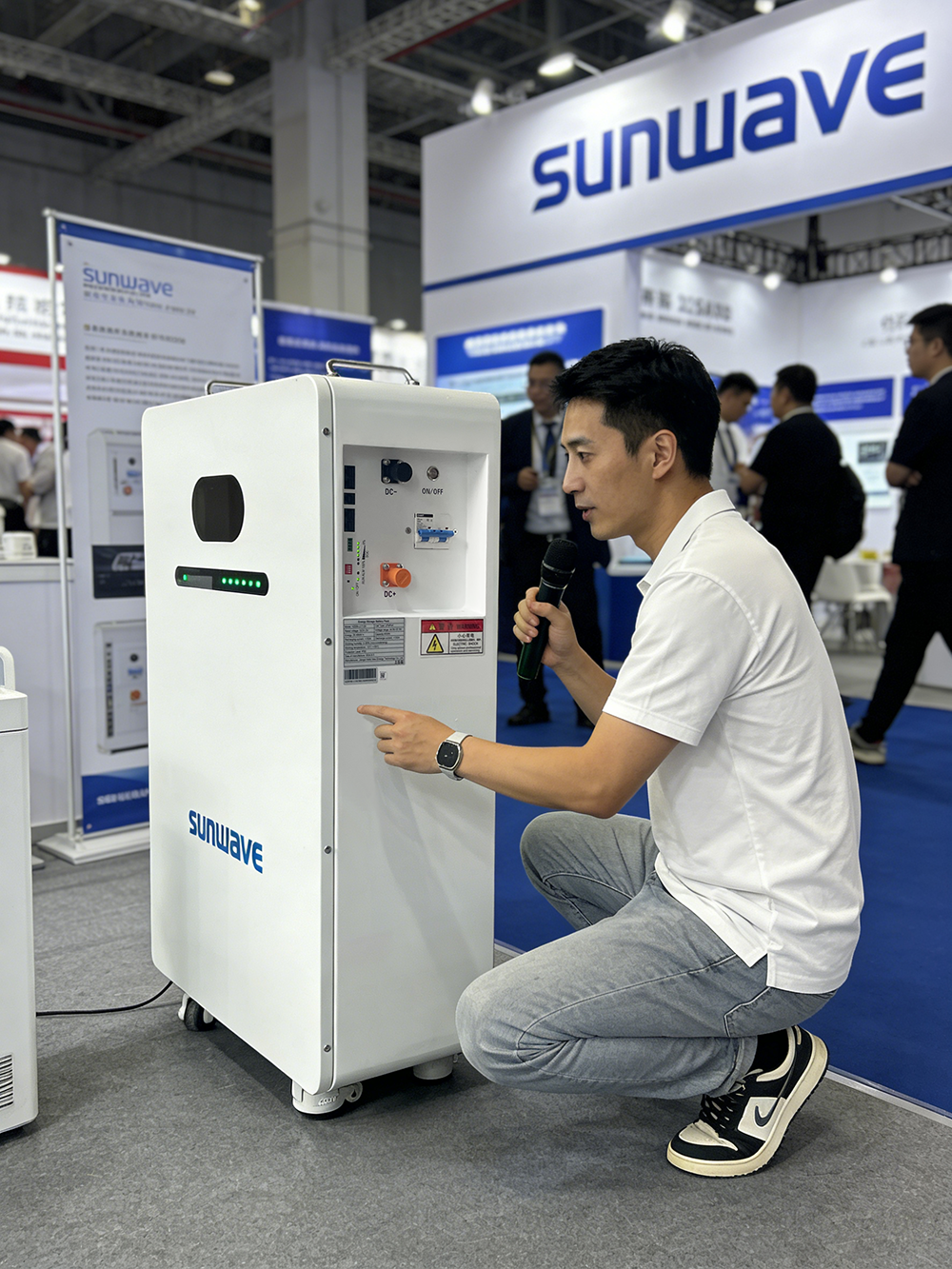

Energy Storage Battery Expo Demonstration

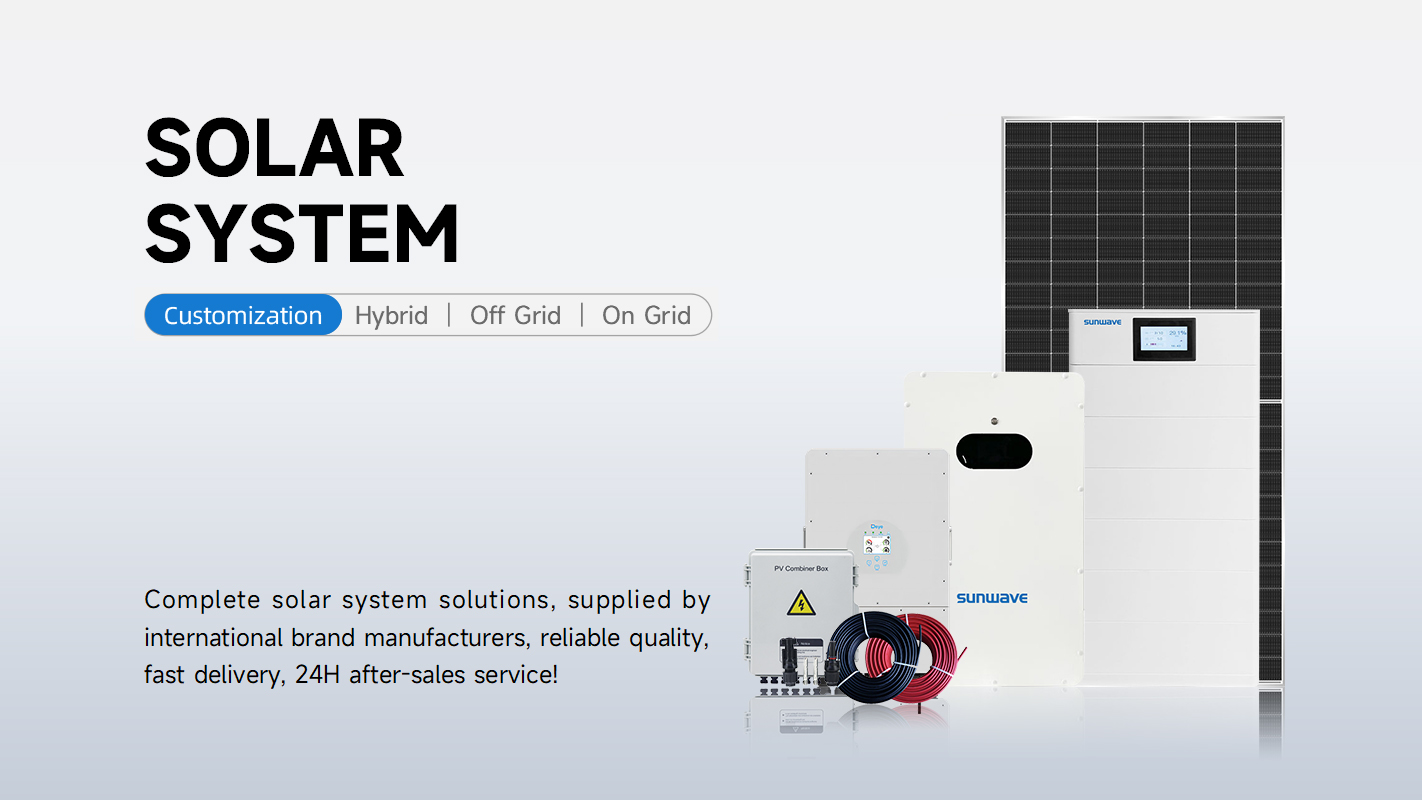

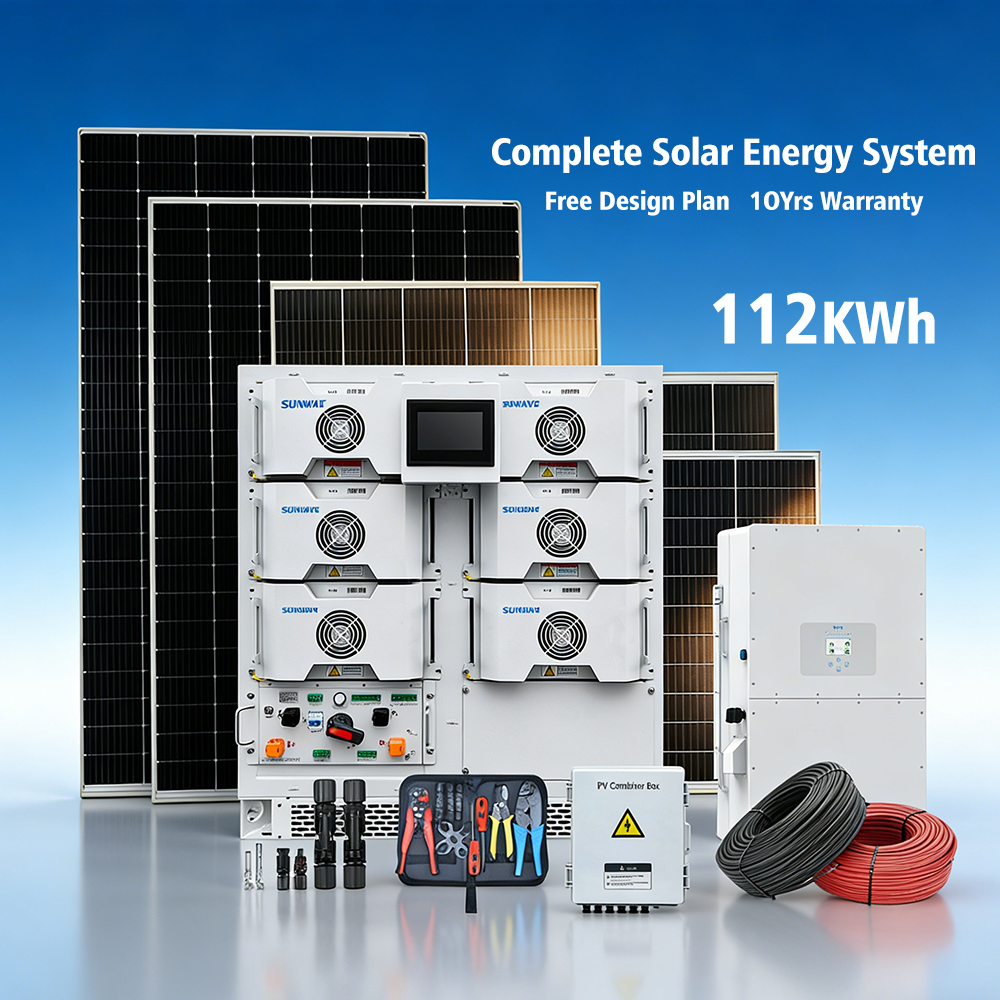

Your All-in-One Solar Energy Ecosystem: From sunlight to reliable power, we deliver a fully integrated system designed to maximize energy autonomy.
