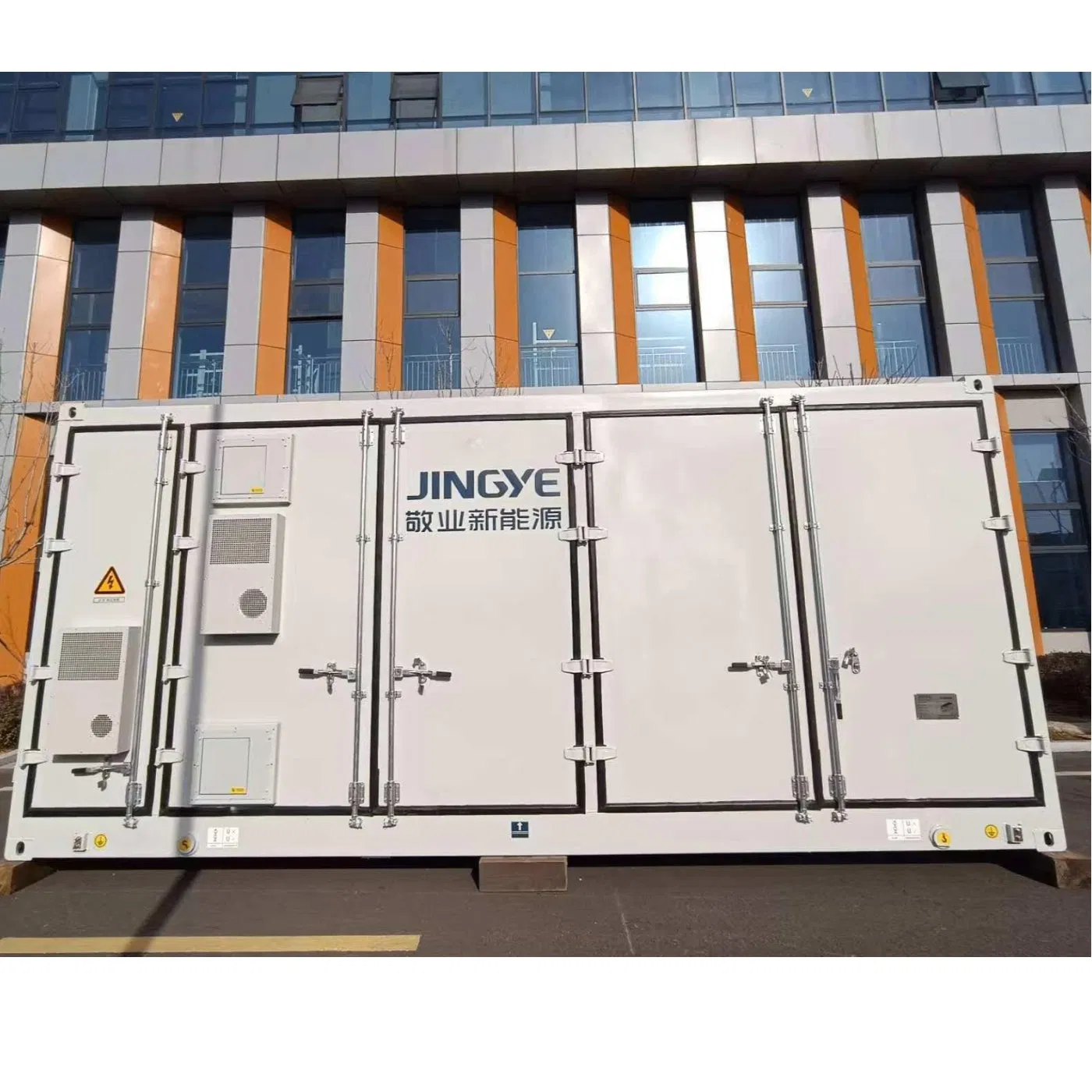

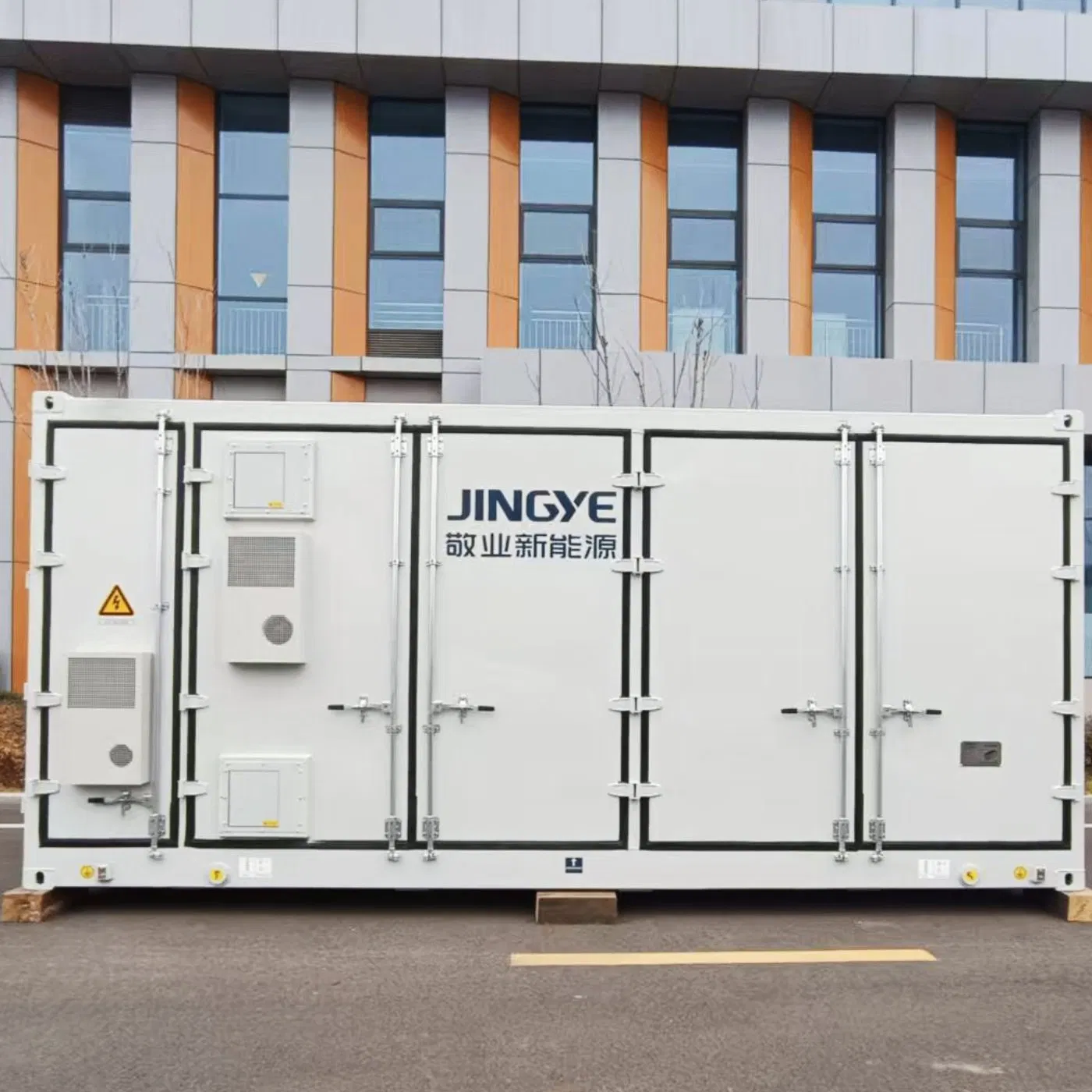

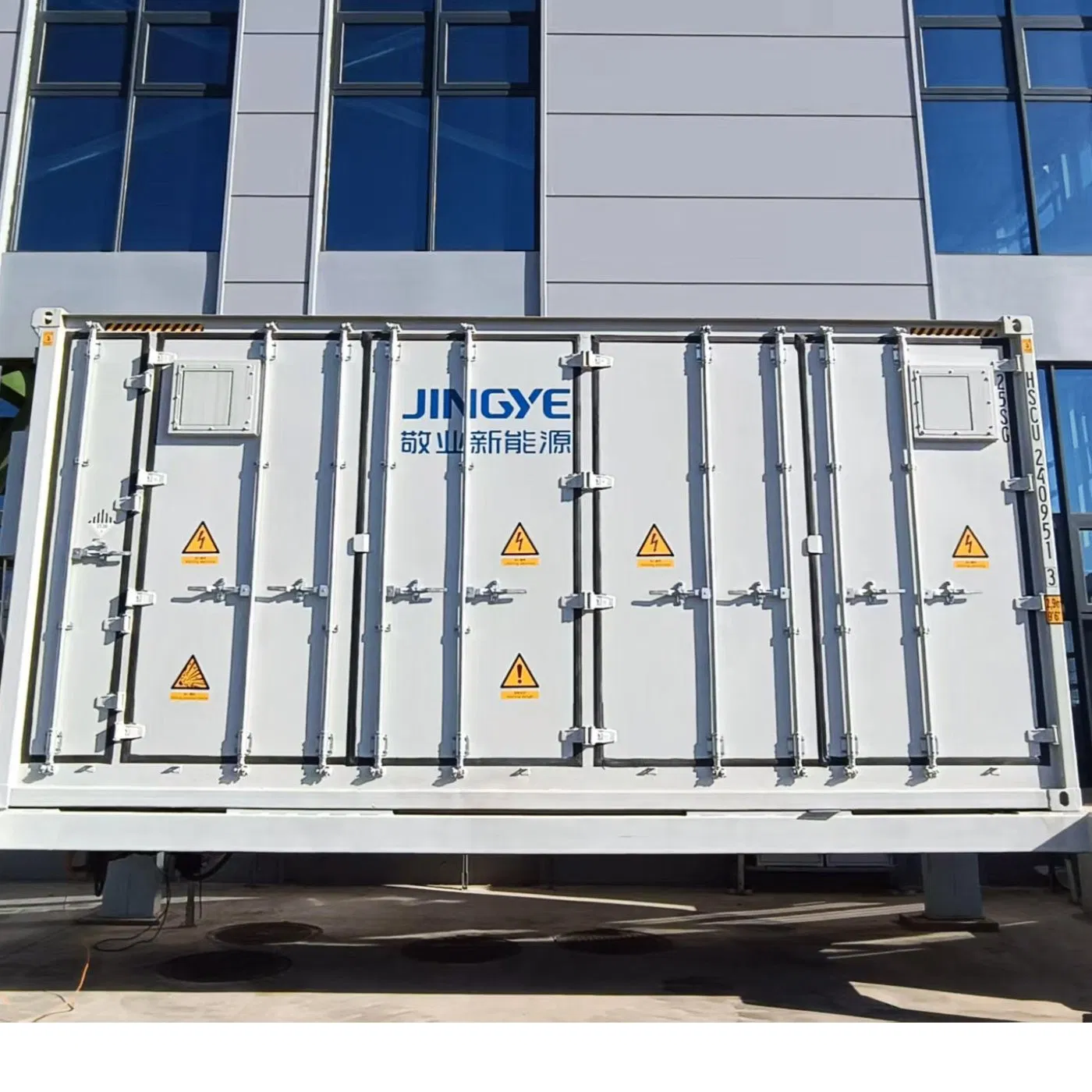

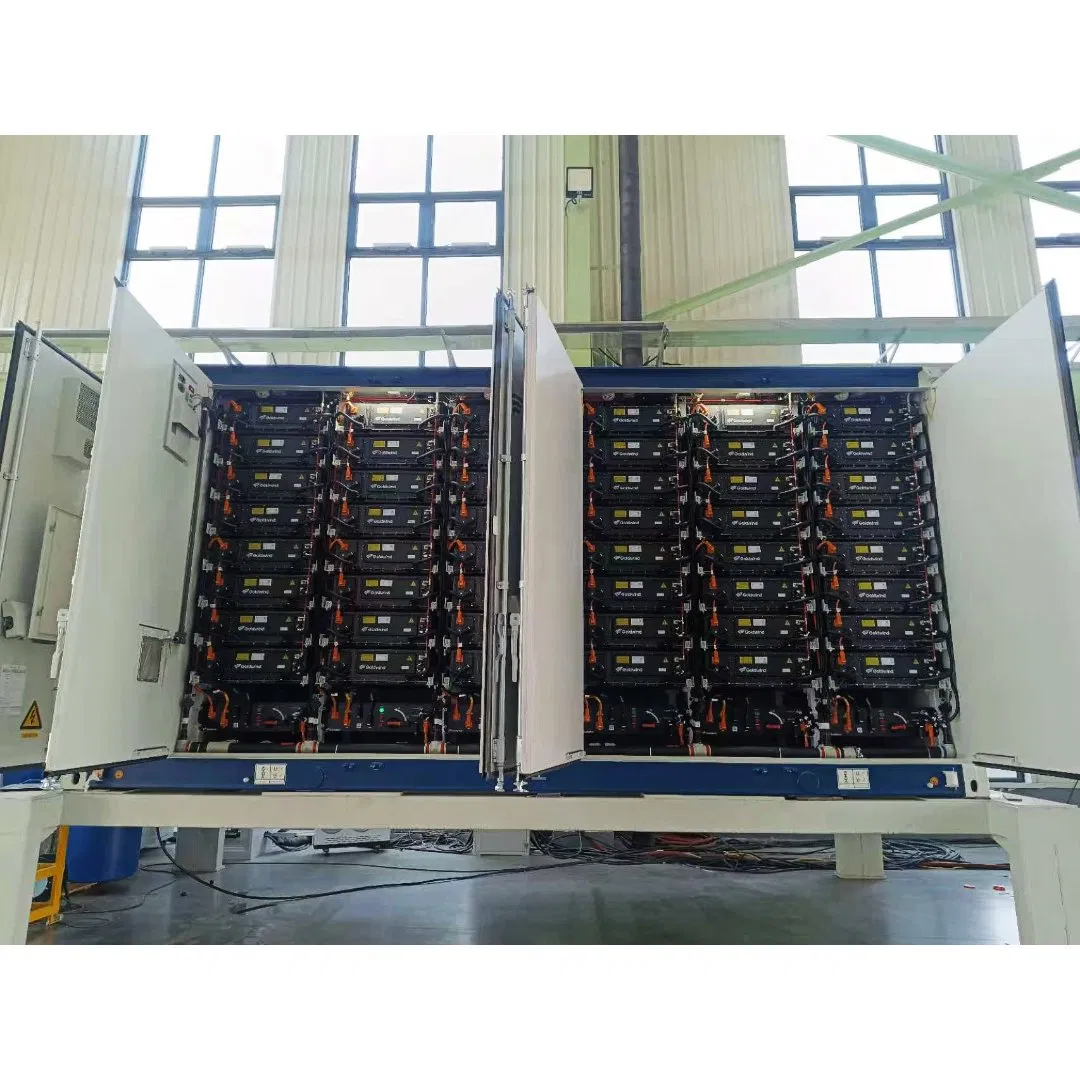

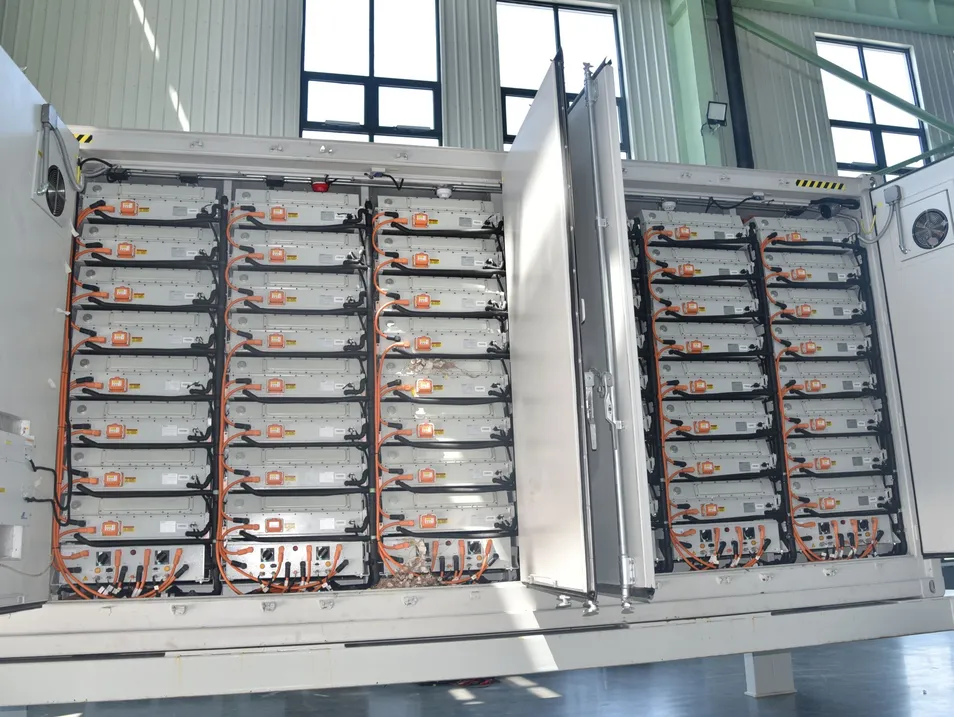

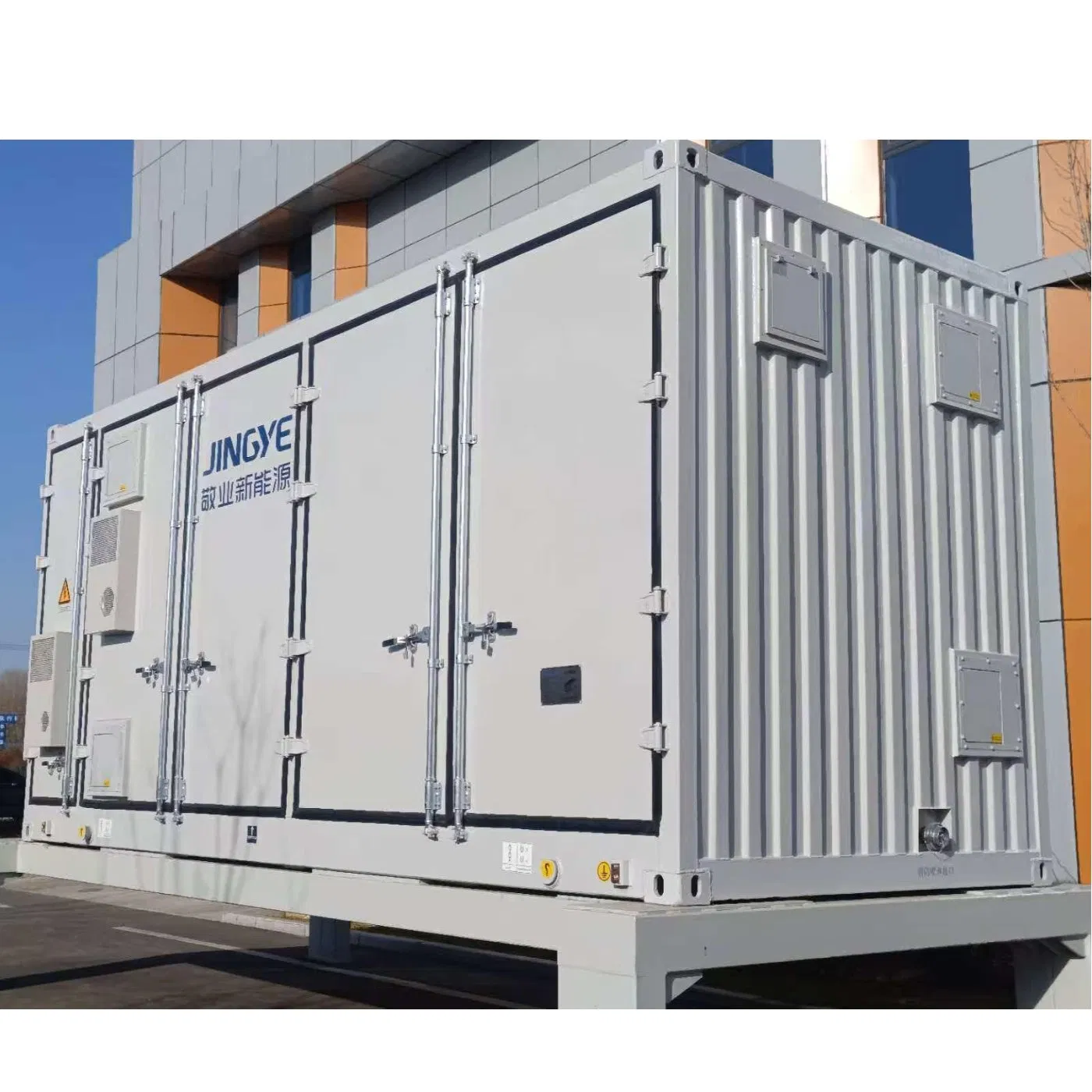

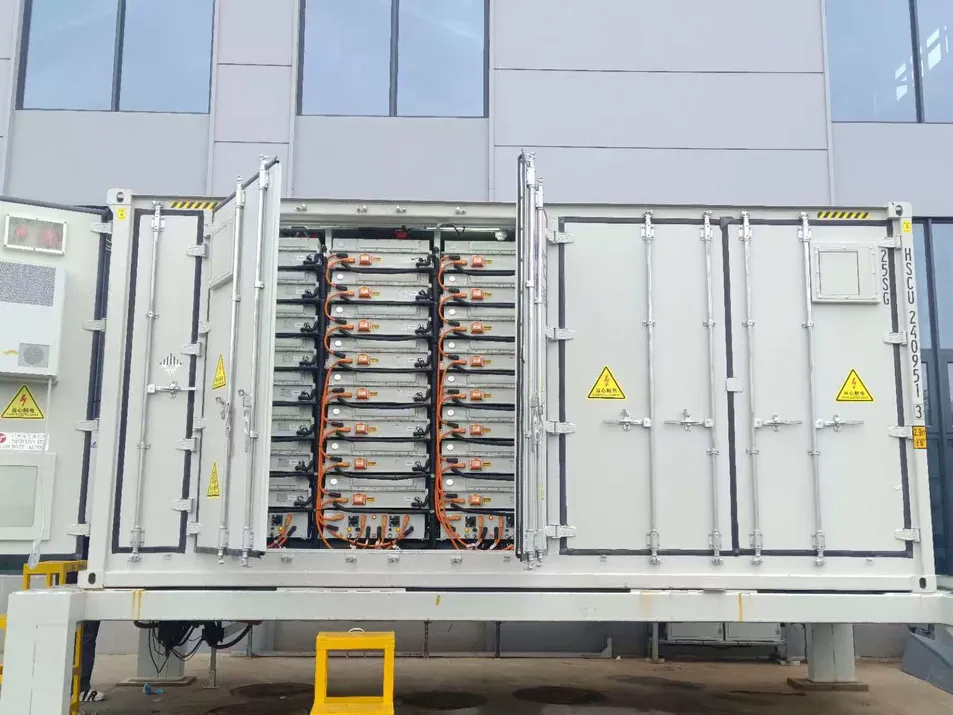

The 5015KWh Liquid Cooling energy storage system is based on high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, thermal management systems, and environmental control systems.

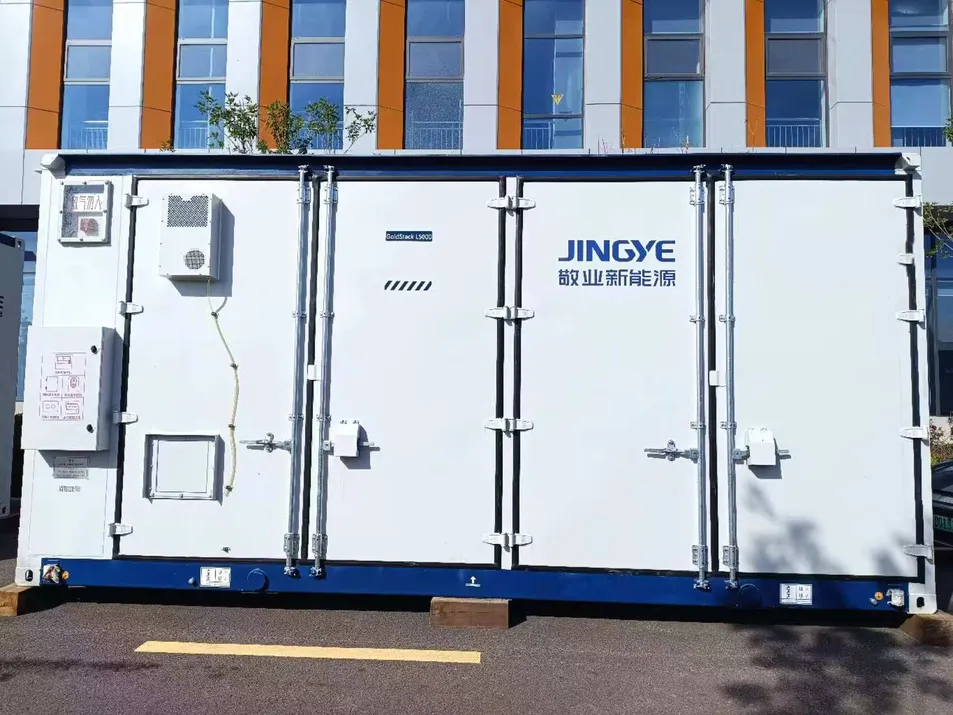

This system utilizes simplified integration technology, installing all critical units within a standard 20-foot container (2438mm-2896mm-6058mm), ensuring safety control while being suitable for various transportation conditions and site designs.
Battery Technology: High-efficiency, long-life large-capacity lithium iron phosphate batteries.
Safety Protection: Fire protection system using perfluorohexane or aerosol with three-level automatic alarm.
Thermal Management: Intelligent industrial-grade air conditioning ensuring 3℃ internal temperature difference.
Modular Design: Simple structure, easy for transportation, installation, and maintenance.
| Item | Specification |
|---|---|
| Configuration | 12*(1P104S*4) |
| Rated Power | 5MWh |
| Rated Voltage | 1331.2VDC |
| Voltage Range | 1164.8V - 1497.6VDC |
| Rated Charging/Discharge Power | ≤ 2.5MW |
| Working Temperature (Charging) | 0℃ < T ≤ 60℃ |
| Working Temperature (Discharging) | -30℃ < T ≤ 60℃ |
| Dimensions | L6058 x W2438 x H2896mm |
| Weight | About 43t |
| Communication Protocol | Ethernet, CAN, ModbusRTU |

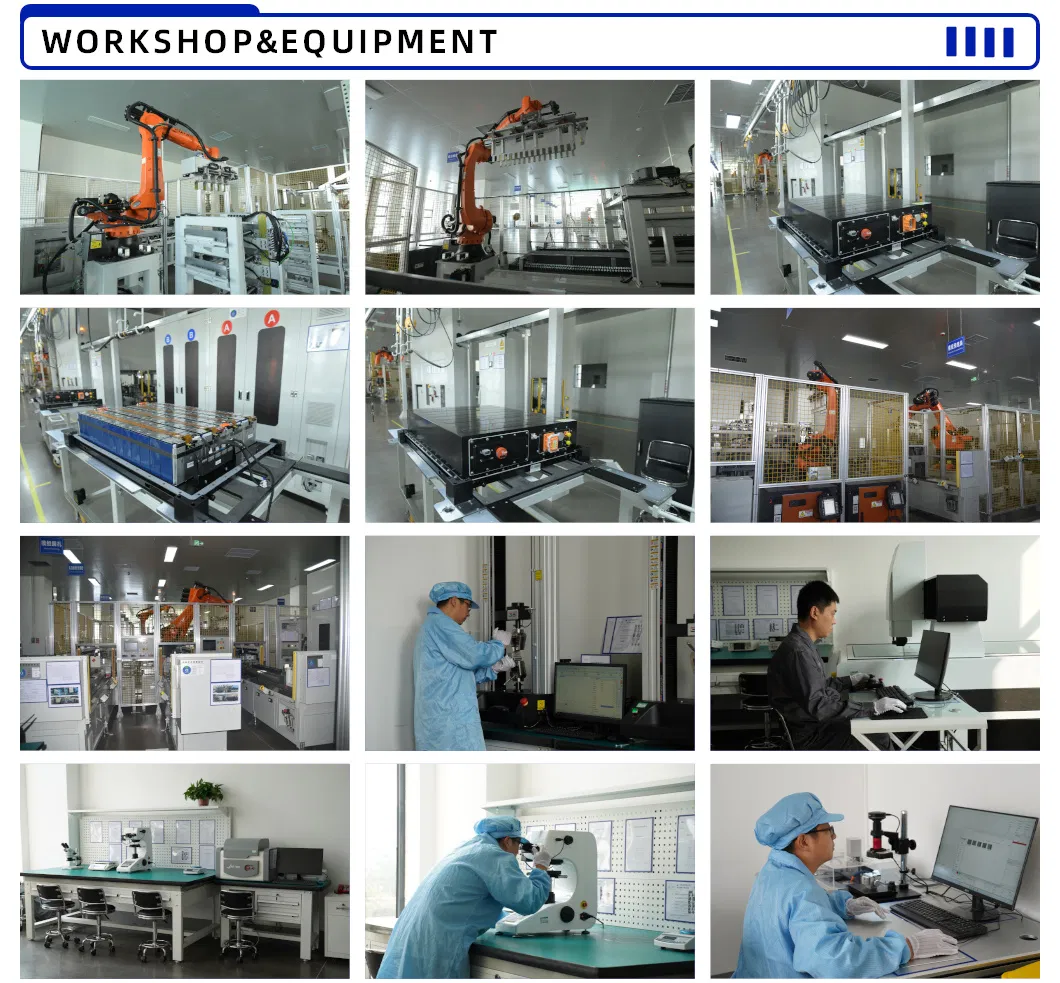

Equipped with the most advanced automated production lines, the facility has an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products serve smart grids, wind/solar distribution, and industrial energy storage globally.
