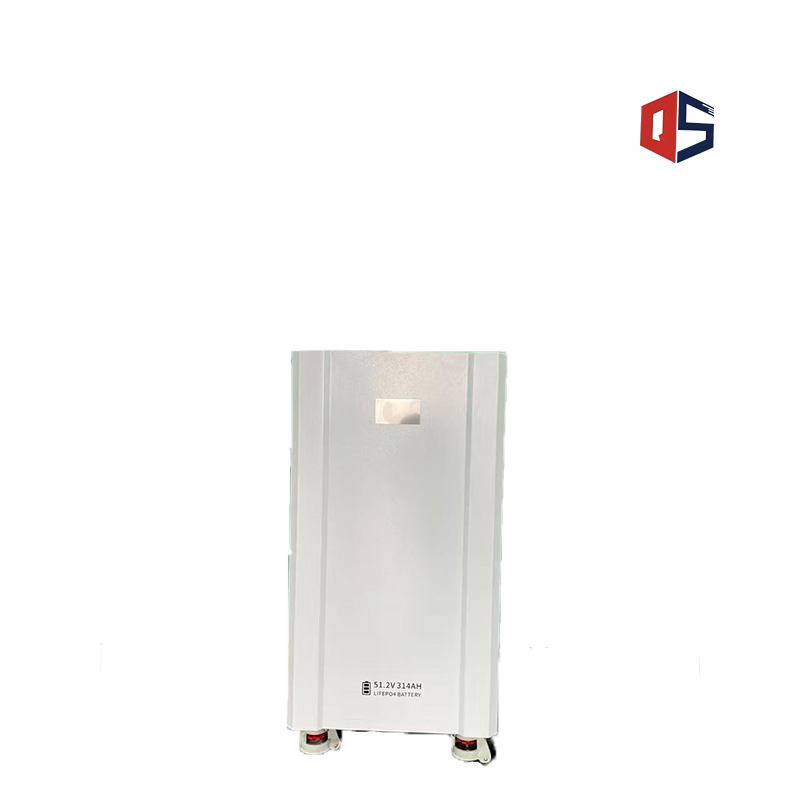

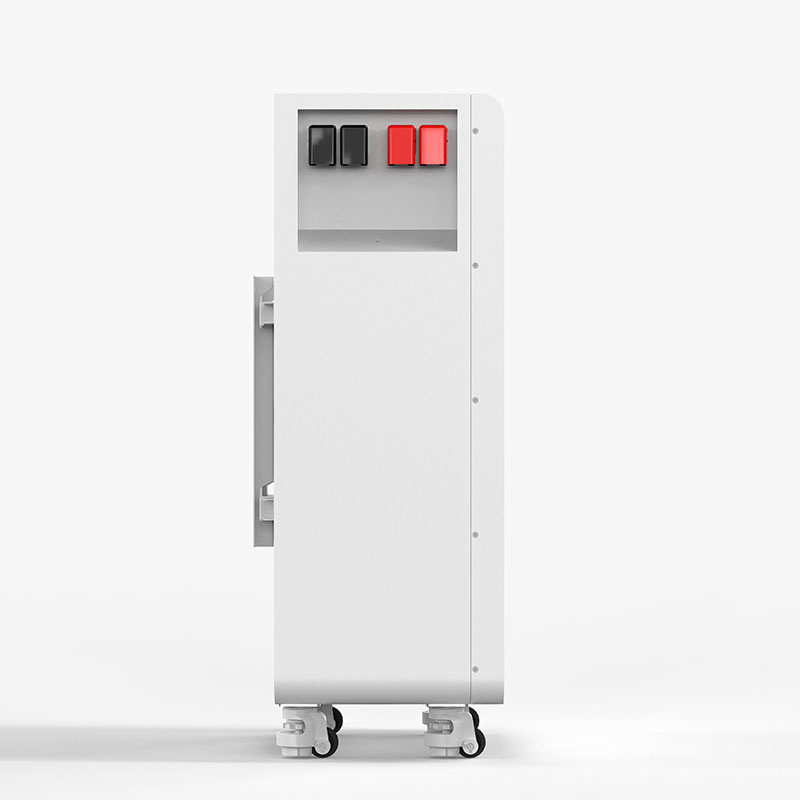

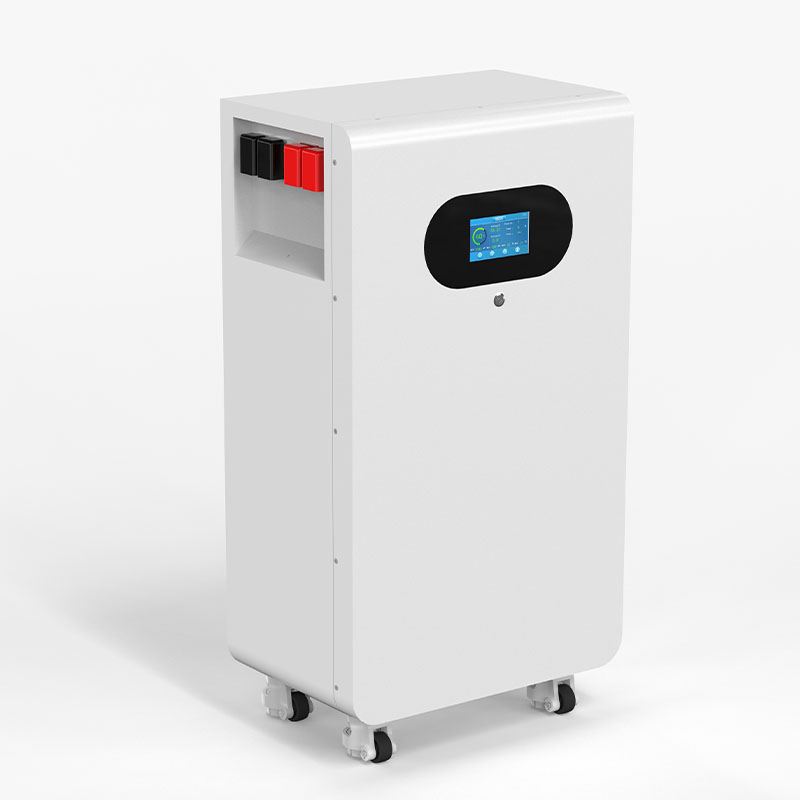

All-in-One Home Energy Storage Solution with Hybrid Inverter

i

Basic Information

Model NO.	QSHY
Rechargeable	Chargeable
Discharge Rate	High Discharge Rate
System Capacity	5kwh / 10kwh / 20kwh / 50kwh / 100kwh+
Cycle Life	≥6000 Cycles @ 80% DOD
Operating Temperature	-20℃ ~ +60℃
IP Rating	IP20 / IP54 / IP65
Cell Brand	CATL / BYD / Customized
Usage	Residential / Commercial / Industrial Backup Power
Package Size	68.00cm * 55.00cm * 26.50cm
Package Gross Weight	124.000kg

★

Product Description

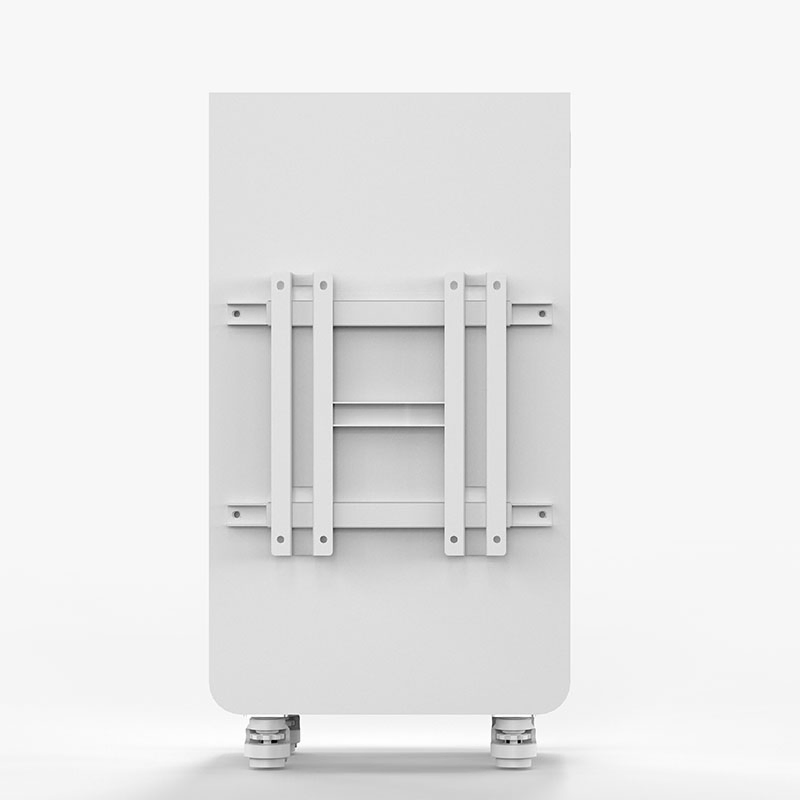

Our energy storage system supports wall-mounting and vertical stacking to adapt to diverse installation scenarios. It allows parallel connection of up to 15 units for flexible capacity expansion.

≥6000 Cycles
Long-lasting Performance

15 Years Warranty
Reliable Quality

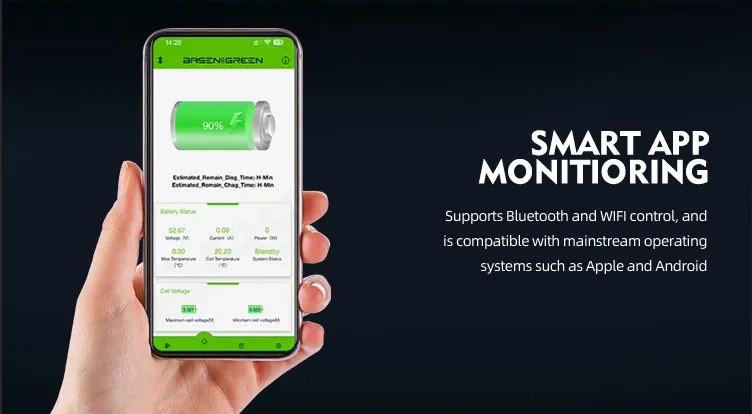

Smart Monitoring
Mobile WiFi/Bluetooth

High Efficiency
95% Round-trip Efficiency

◆

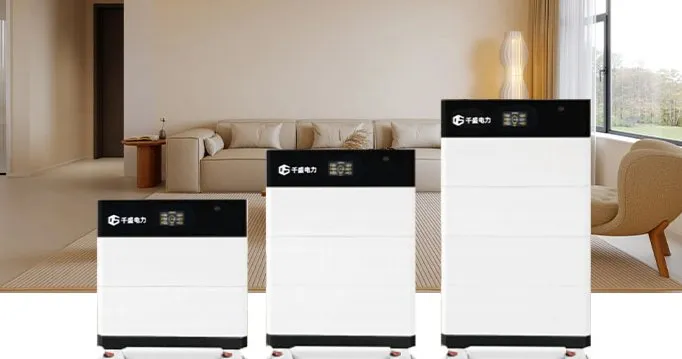

Product Display & Capacities

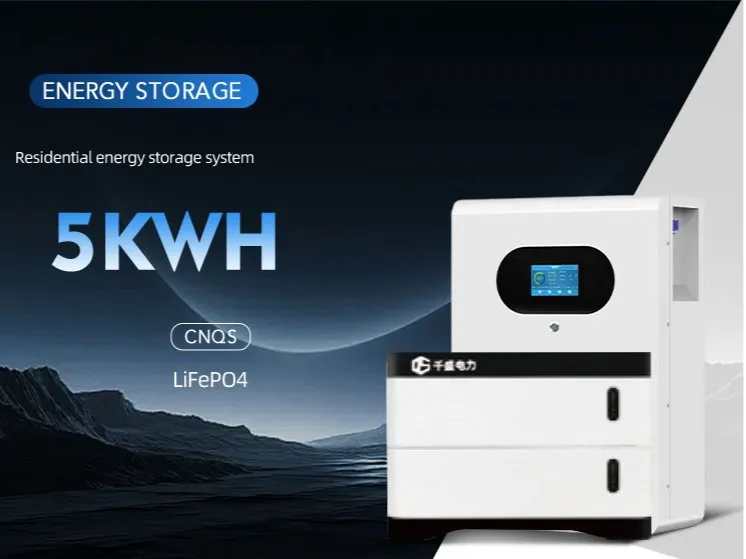

5KWH Solution

Certified to IEC 62619 standard
Compatible with 20+ mainstream inverters
On-demand free assembly

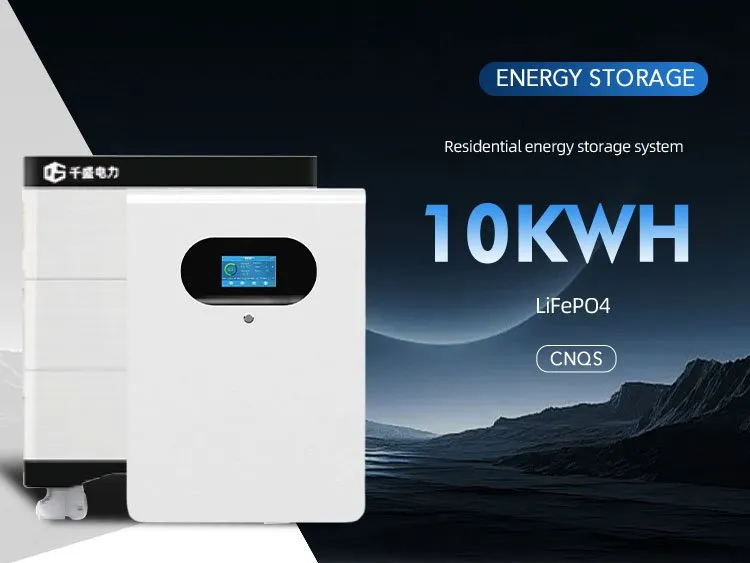

10KWH All-In-One

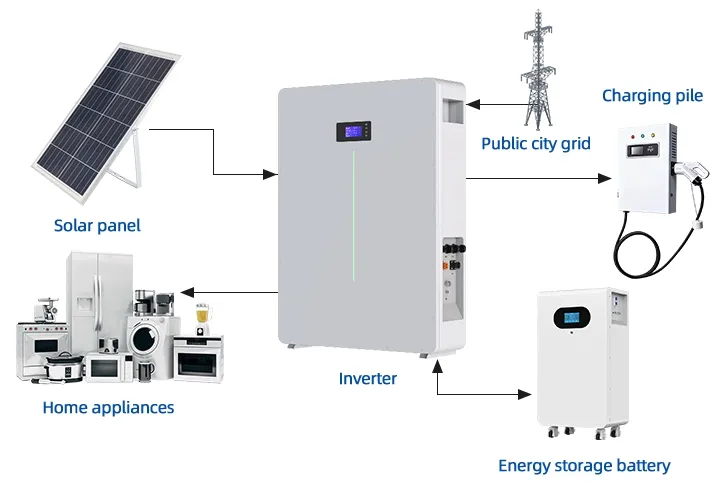

AC + PV Dual Charging
Modular design: 5kWh to 100kWh+
80% DOD for 10-15 years life

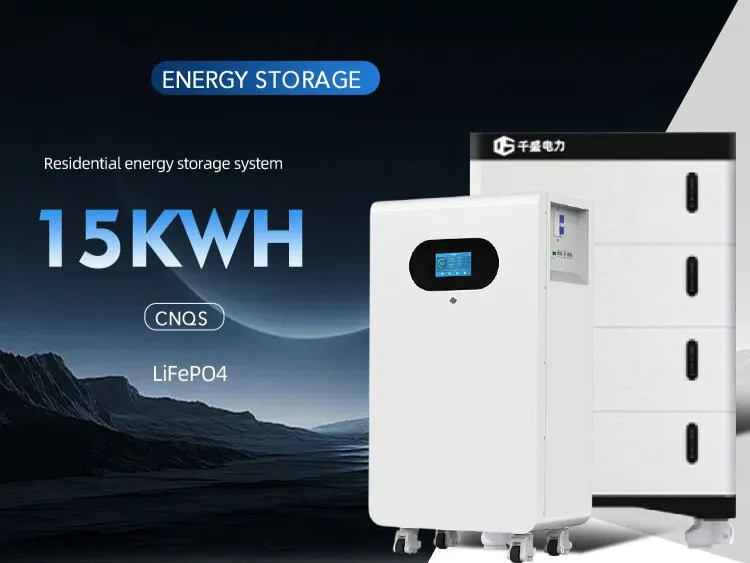

15KWH High Integration

Intelligent BMS Real-time Monitoring
Over-charge & Short Circuit Protection
IP54/IP65 Outdoor Ready Enclosure

⚙

Technical Specification

Parameter	10KWH	15KWH	20KWH	30KWH
Nominal Voltage	204V	307V	409V	409V
Rated Capacity	50AH	50AH	50AH	100AH
Max. Charge current	25A	25A	25A	50A
Max. Discharge Current	50A	50A	50A	100A

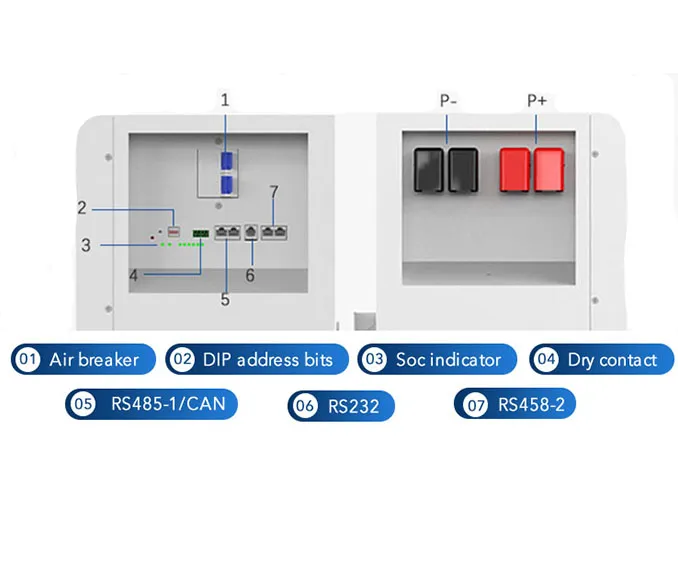

Communication	RS485 / CAN
Weight (approx.)	100kg	140kg	182kg	266kg

✔

Product Details & Production

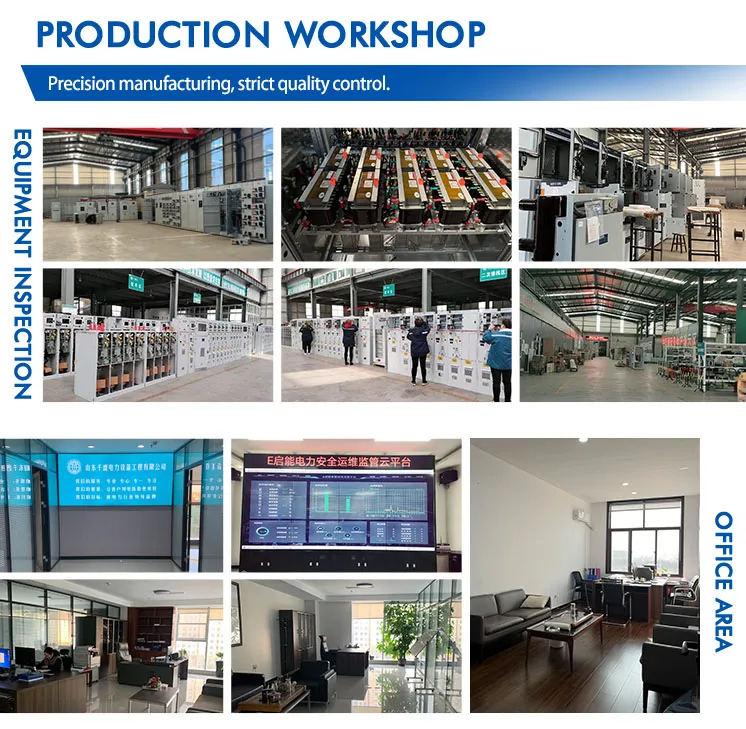

Manufacturing Excellence

The full process automation, refined production control, and multi-dimensional rigorous quality inspection system ensure stable and sustainable power generation performance.

🏛

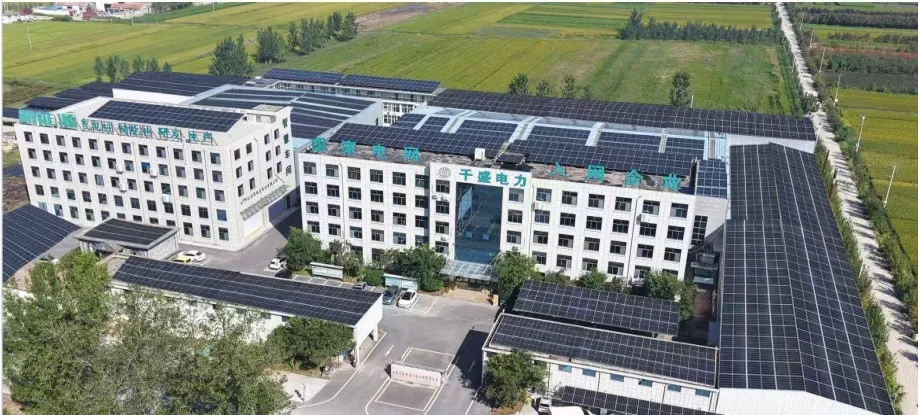

Company Profile

An experienced power equipment manufacturer with over 20 years of industry expertise, serving global markets with reliable power distribution and new energy solutions. The facility covers over 16,000 stere and employs nearly 100 dedicated staff members.

Core Certifications: ISO9001:2000, Environmental Management System, CCC, CQC, and Class II General Contracting Qualification for Electric Power Construction.

Tenet: Safe Production, Quality First.

Our product range includes ring main units, distribution cabinets, transformers, photovoltaic panels, energy storage systems, and inverters, all manufactured under strict quality control.

📦

Packaging & Shipping

Secure wooden box packaging ensures the safety of high-capacity battery systems during international transit.

?

Frequently Asked Questions

What is the expected cycle life of the battery?

The system provides 6000+ cycles for LFP (Lithium Iron Phosphate) batteries under standard operating conditions.

How is the after-sales service handled for international clients?

We provide remote technical support first. If necessary, spare parts will be provided to ensure continuous operation.

Is the warranty comprehensive?

Yes, we offer a 15-year product quality warranty. Repairs for non-human damage are covered free of charge during the warranty period.

Can I expand the system capacity later?

Absolutely. Our modular design allows for flexible expansion from 5kWh to 100kWh+ by connecting up to 15 units in parallel.

Are these batteries compatible with my existing inverter?

The system is designed to be compatible with more than 20 mainstream hybrid inverters available globally.

What safety protections are integrated into the system?

The built-in intelligent BMS monitors voltage, current, and temperature, providing protection against over-charge, over-discharge, short circuits, and over-heating.
