Professional LiFePO4 battery manufacturer and prismatic lithium ion battery supplier. With over 16 years of industry experience, we specialize in high-quality battery solutions and offer comprehensive OEM/ODM services.

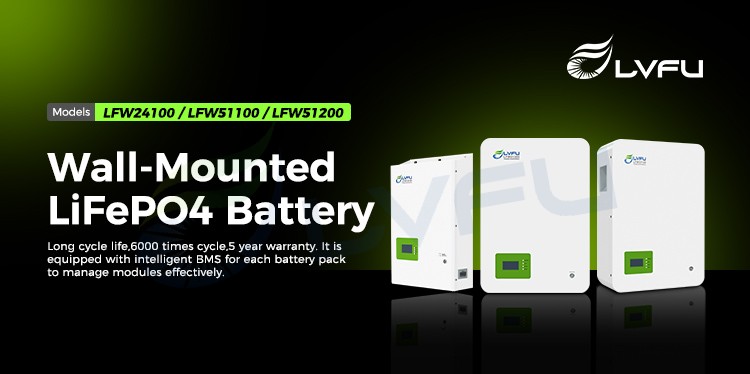

| Model Number | LFW51100 | LFW51200 | LFW48100 |
|---|---|---|---|
| Product Specification | 51.2V 100Ah | 51.2V 200Ah | 48V 100Ah |
| Battery Type | LiFePO4 | ||
| Nominal Voltage (V) | 51.2 | 51.2 | 48 |
| Charging Voltage Range (V) | 44-57.6 | 44-57.6 | 41.5-54 |
| Charge Float Voltage (V) | 54 | 54 | 51 |
| Max Charge Voltage (V) | 57.6 | 57.6 | 54 |
| Max Charging/Discharging Current (A) | 50/100 | 100/100 | 50/100 |
| Rated Battery Energy (kWh) | 5.12 | 10.24 | 4.8 |

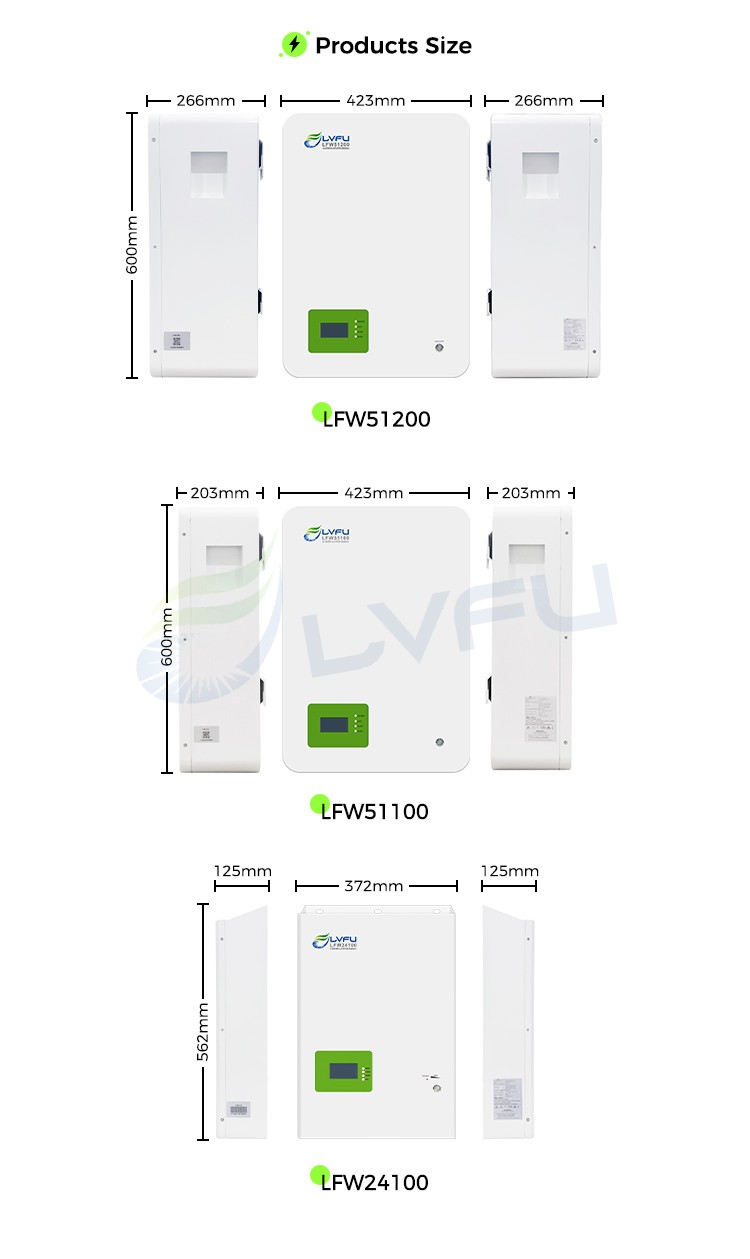

| Dimensions (W*D*H) ±1.2mm | 600*423*203 | 600*423*266 | 600*423*203 |
| Weight (kg) ±3kg | 55 | 90 | 55 |
* Rated capacity at 0.5C discharge rate under 25±5℃ conditions.

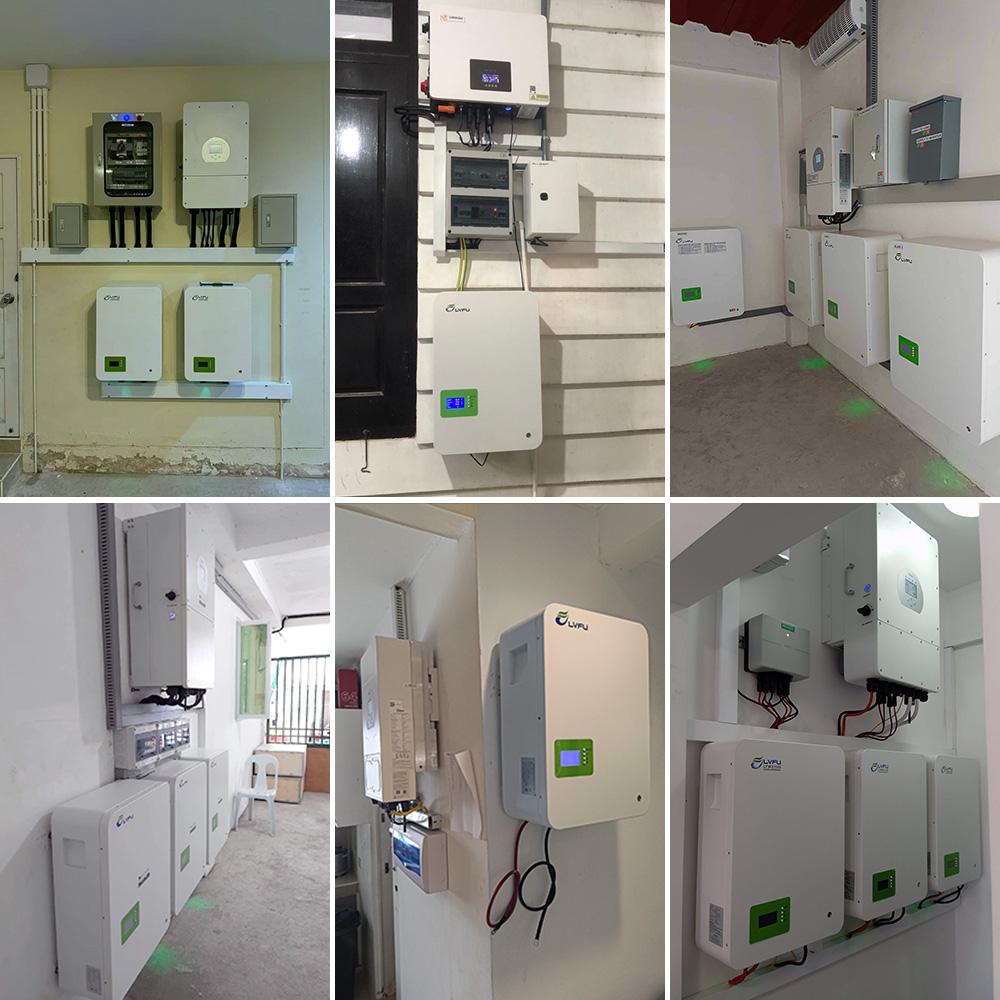

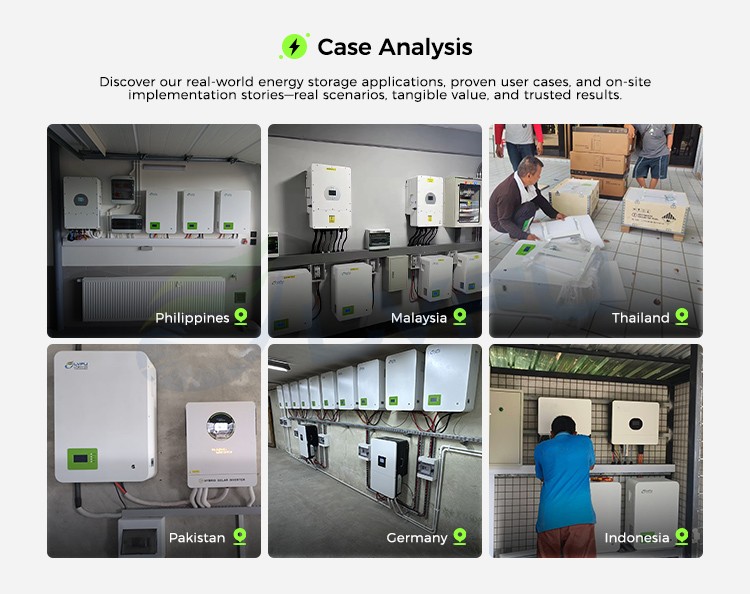

With projects spread across more than 30 countries and regions including the European Union, Southeast Asia, and the Middle East, over 300,000 sets of equipment have been successfully installed. We provide reliable solutions for home energy backup and renewable energy integration.

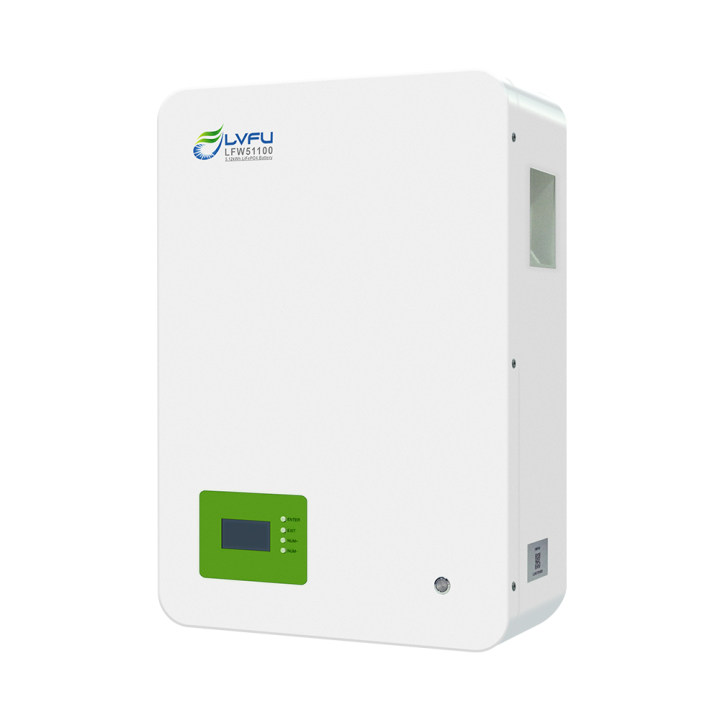

Our 48V/51.2V lithium battery packs offer stable performance and flexible adaptability. Deployed in residential and commercial scenarios globally—from home backup power to small-scale commercial energy storage—its compact design delivers reliable runtime and significant electricity cost savings.
