* Pre-installed containerized systems (battery + PV input) reduce installation/commissioning time and costs.
* Plug-and-play deployment for rapid setup.
* AI-optimized air-cooling maintains full power at 45°C (IP54 rated for dust/moisture).
* Round-trip efficiency (RTE) 3% higher than competitors.
* LFP (LiFePO4) batteries ensure safety and long cycle life.
* Modular cabinets/containers allow flexible capacity customization (e.g., 100kWh–5MWh).
* Supports on/off-grid operation and parallel deployment (up to 4 units off-grid).
* Reduces energy costs by 30%–70% through peak shaving, solar integration, and grid independence.
* Lower maintenance costs via cloud monitoring and quick-plug component design.
* Multi-layer protection: automatic fire extinguishers, PACK-level immersion fire tech, and active thermal management.
* Cell-level temperature control (<5℃ variation) and strict quality certifications (IEC/UN38.3).
* Cloud-based remote monitoring, AI energy optimization, and 24/7 fault detection.
* Adaptive charging/discharging strategies maximize ROI.
* Fully automated production lines (air/liquid-cooled PACKs).

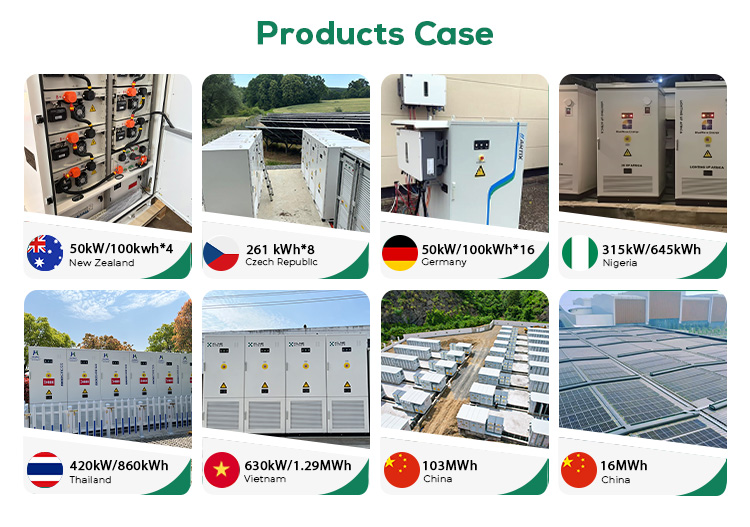

* ODM capabilities and GWh-scale project experience.

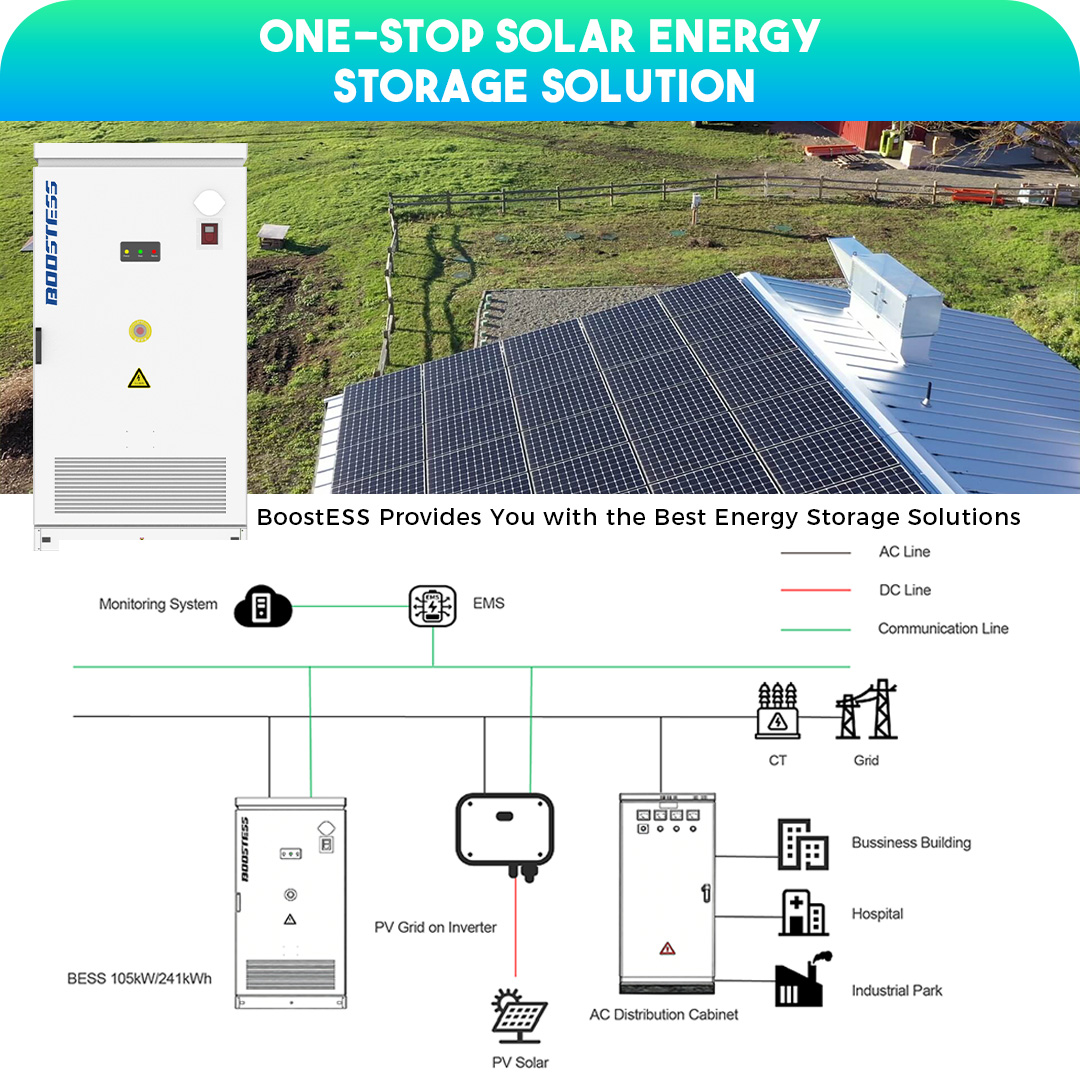

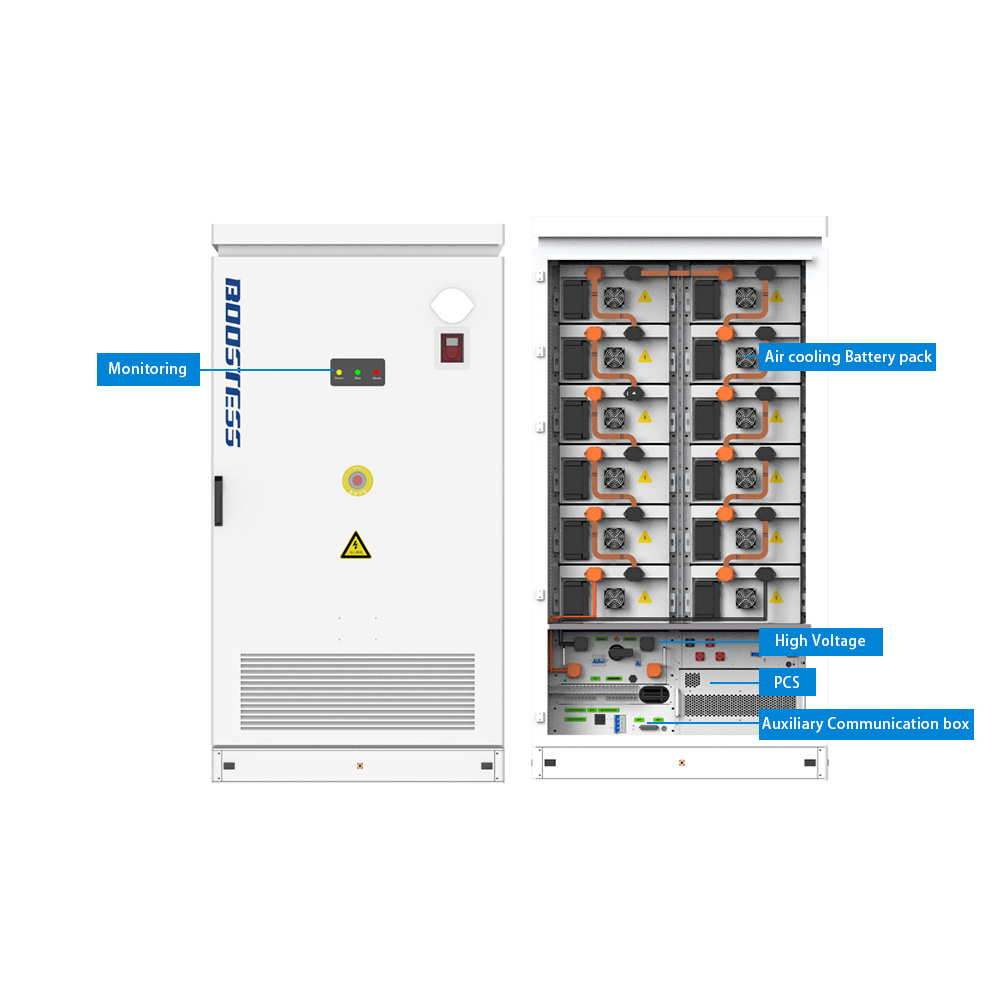

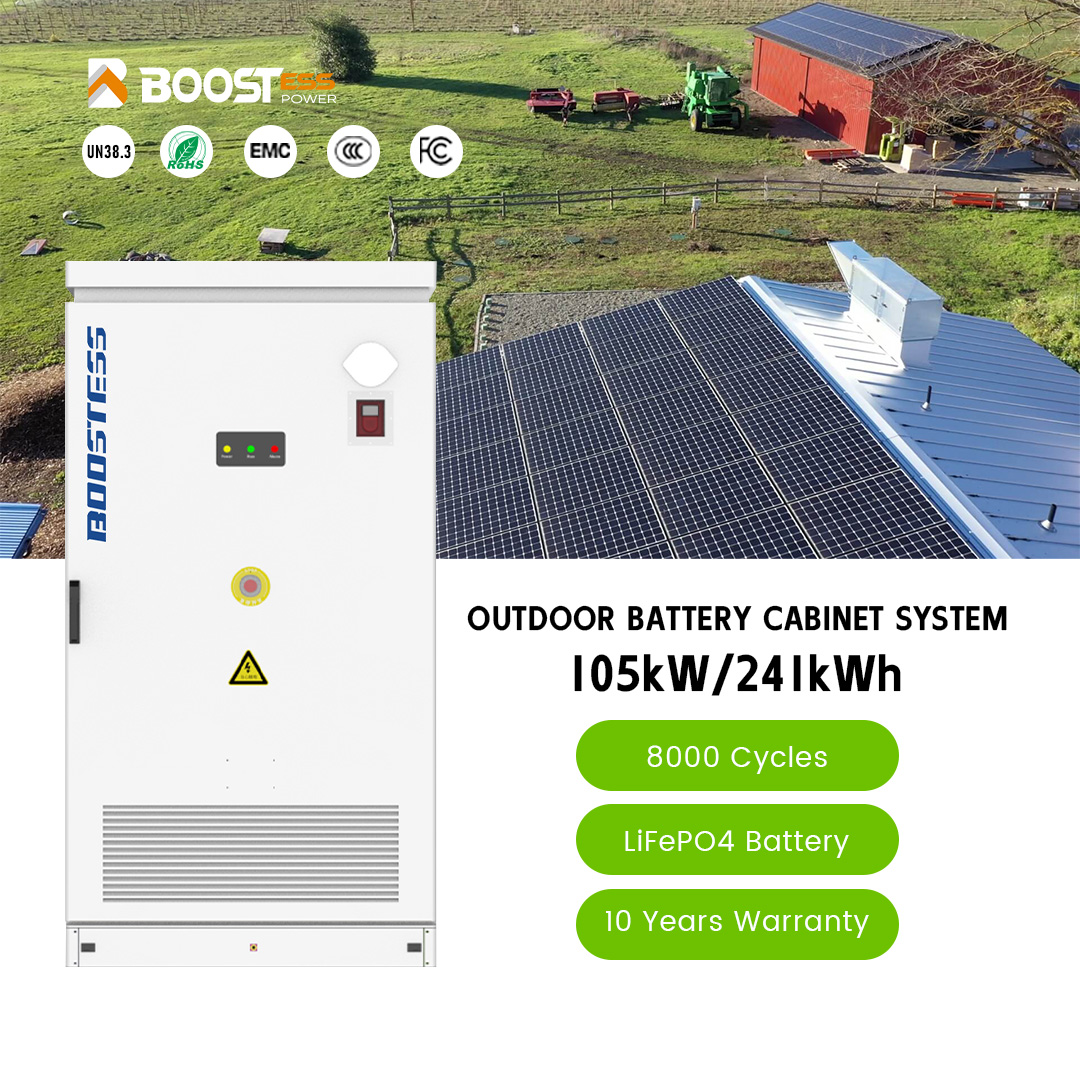

| Industrial Solar Energy System 105kw 241kwh Hybrid All In One | |||
|---|---|---|---|
| BESS SIDE - DC Parameters | |||
| Battery Type | LFP | Voltage Range | 672V-864V |
| Configuration | 1P240S | Cooling Mode | Air Conditioning |

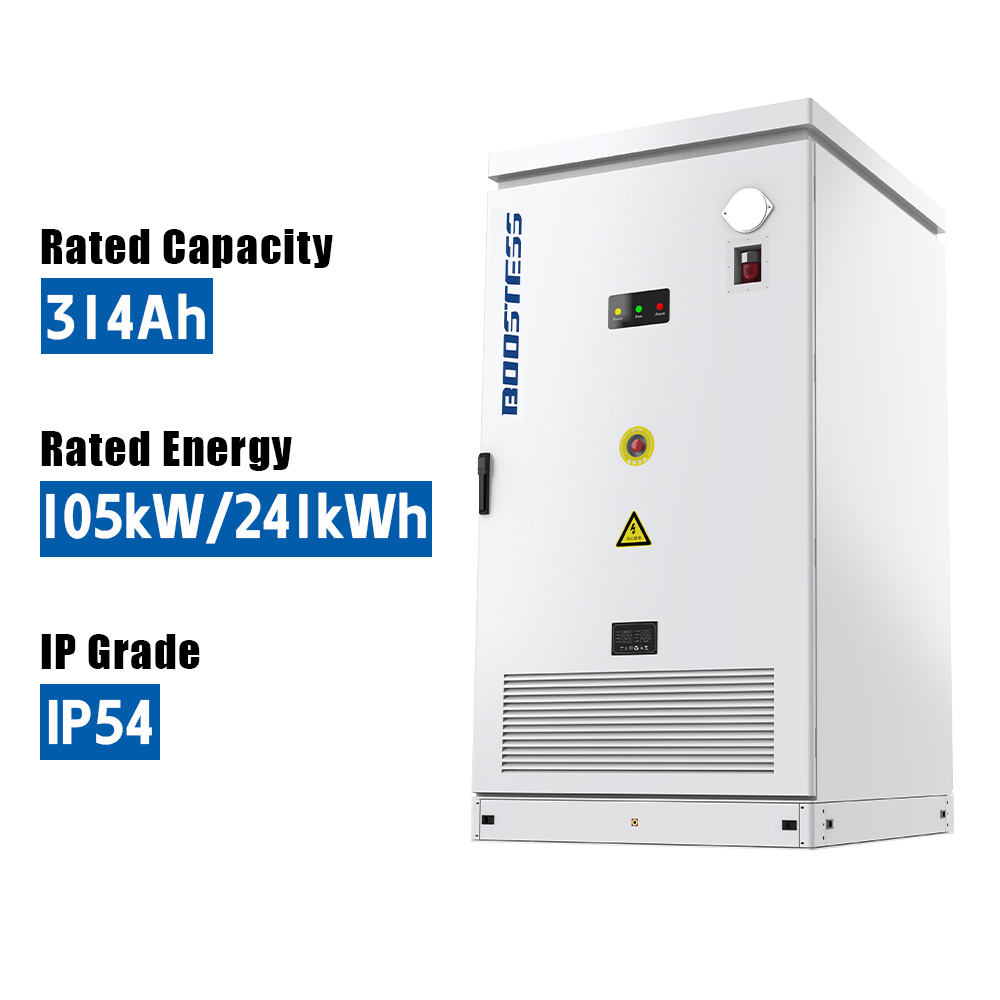

| Rated Capacity | 314Ah | Battery Cycle | 8000 @ 25℃, 80%DOD |
| Rated Energy | 241.152kWh | Fire Protection | Aerosol + Water |
| Rated Voltage | 768V | Sensors | Gas, Smoke, Temp, Water leak |
| AC Parameters | |||
| Rated Output Power | 105kW | Rated Voltage | 230V / 400V |
| Frequency | 50Hz/60Hz | Max. Output Current | 167A |
| System Parameters | |||
| Operating Temp | -20℃~55℃ | Protection Rating | IP54 |
| Dimensions | 1200*1600*2300 mm | Weight | About 2.4t |
| Communication | CAN, Ethernet, MQTT | Certifications | IEC62619, UN38.3, CE |
