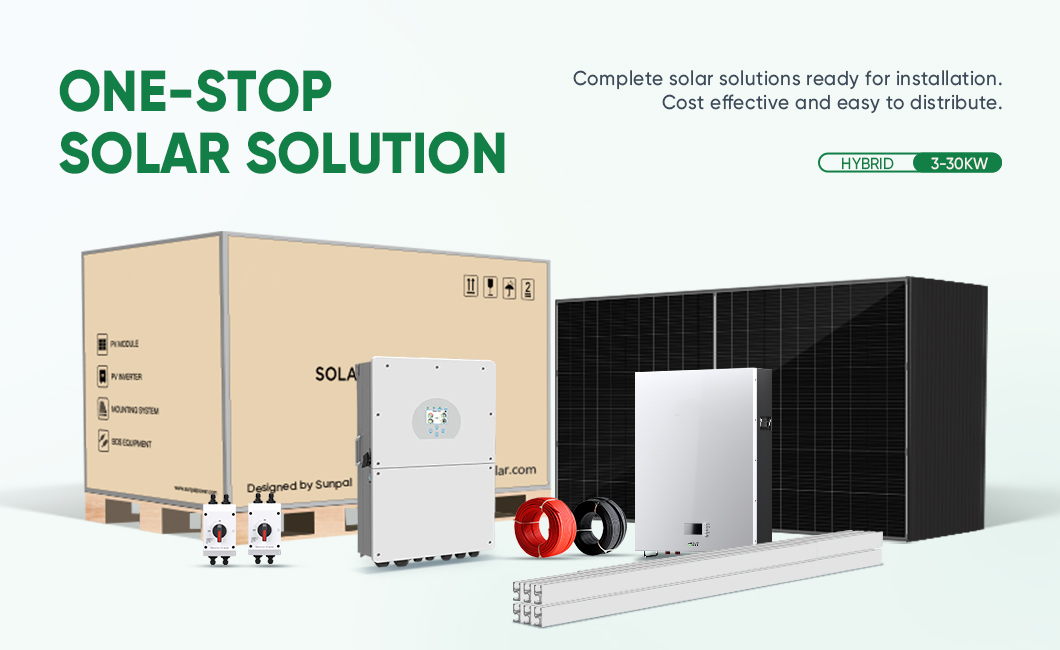

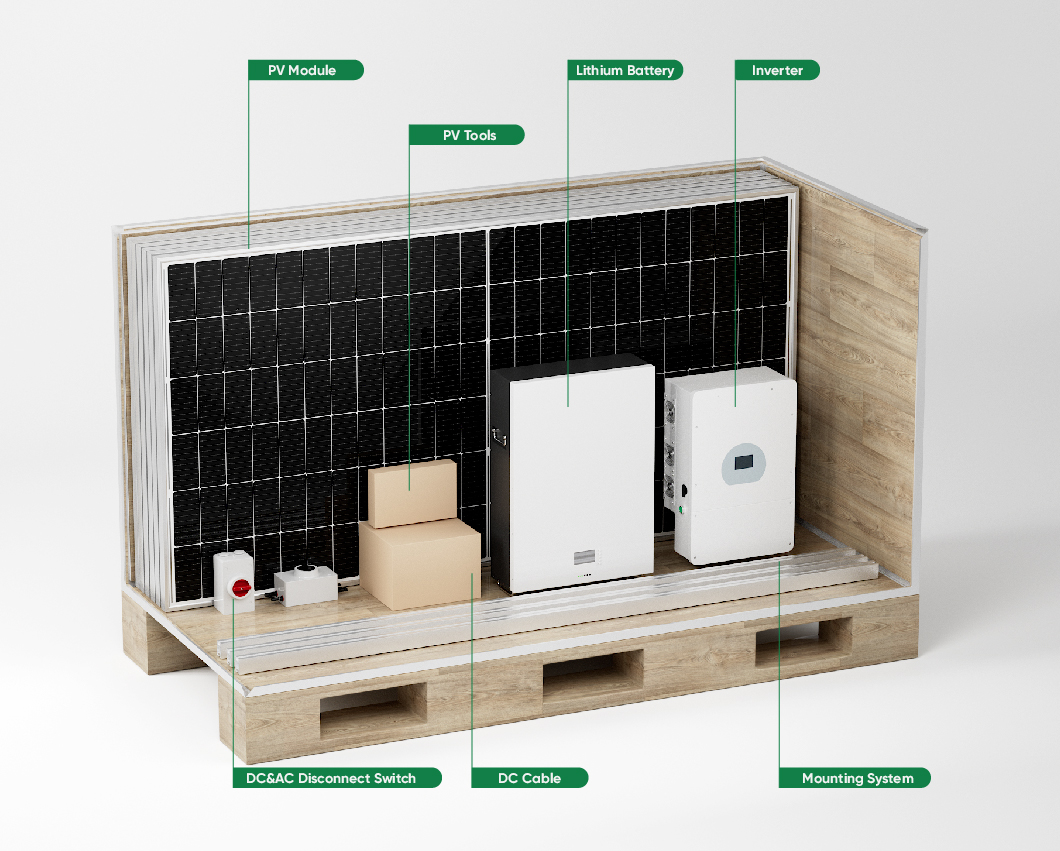

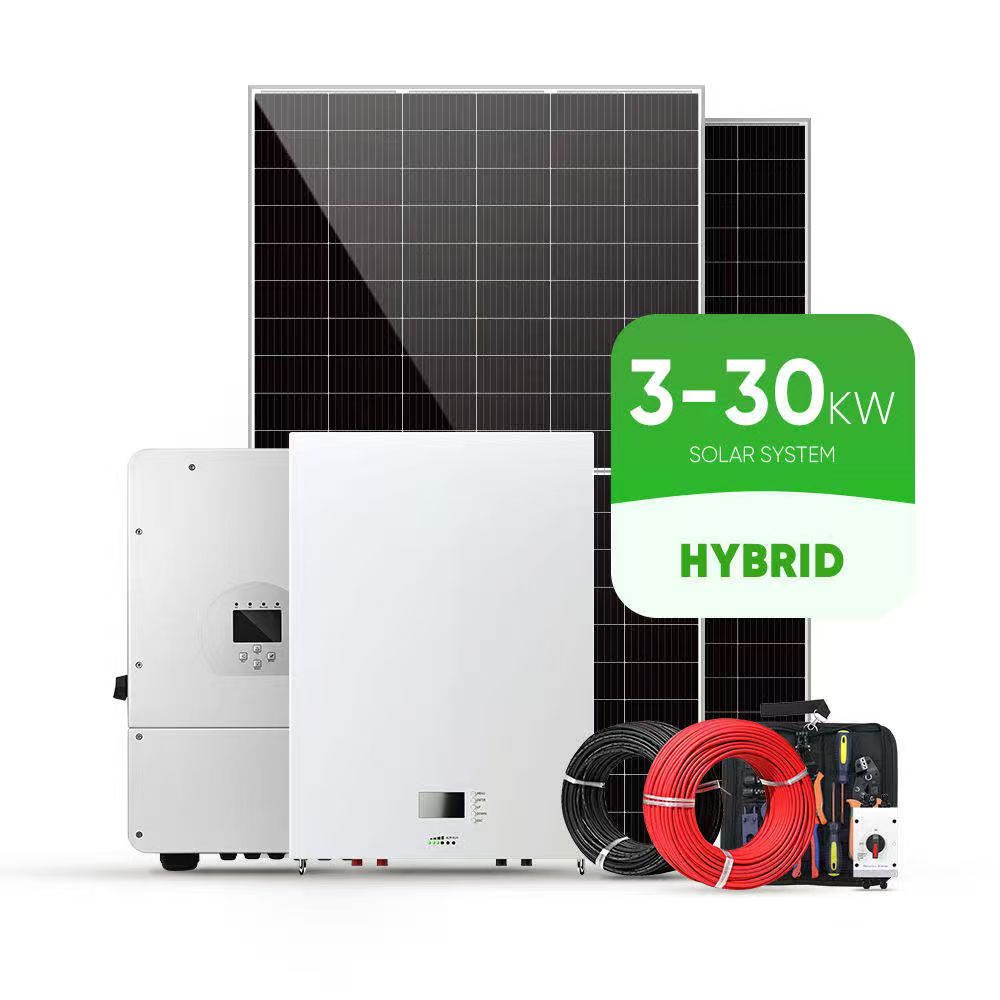

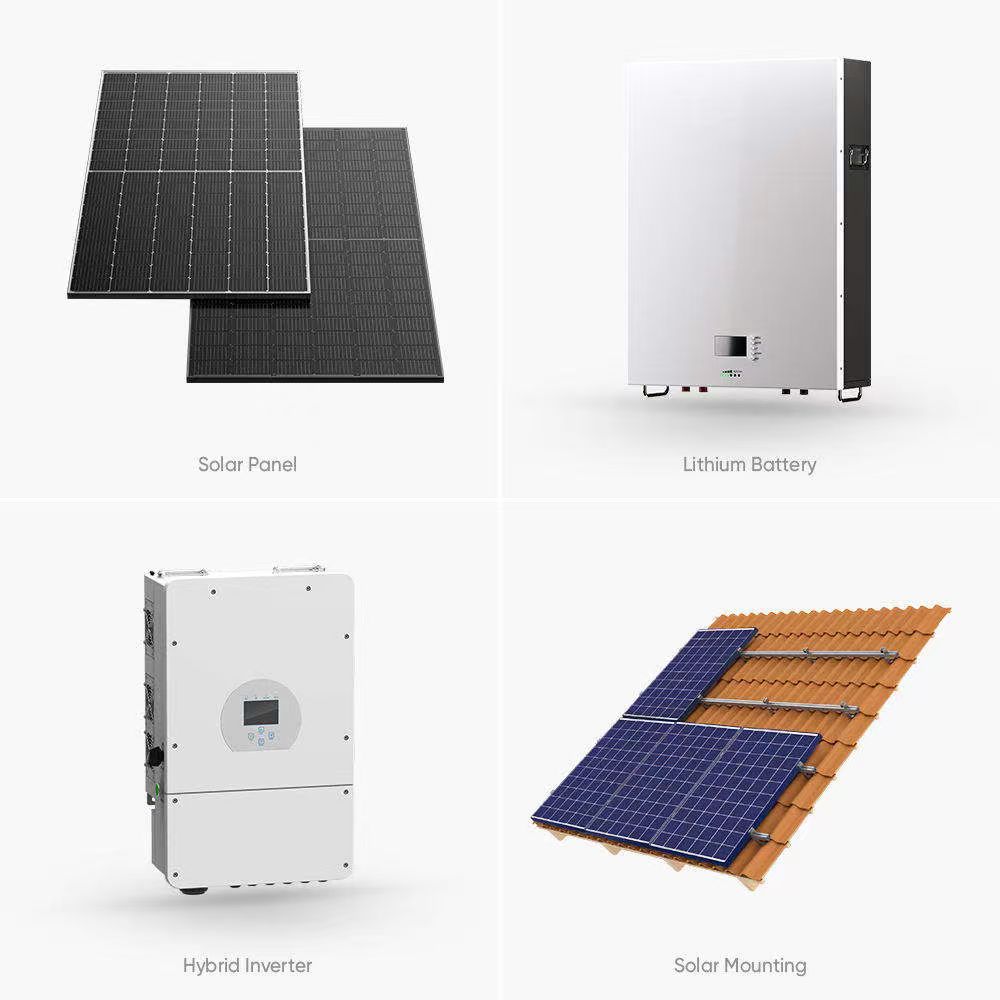

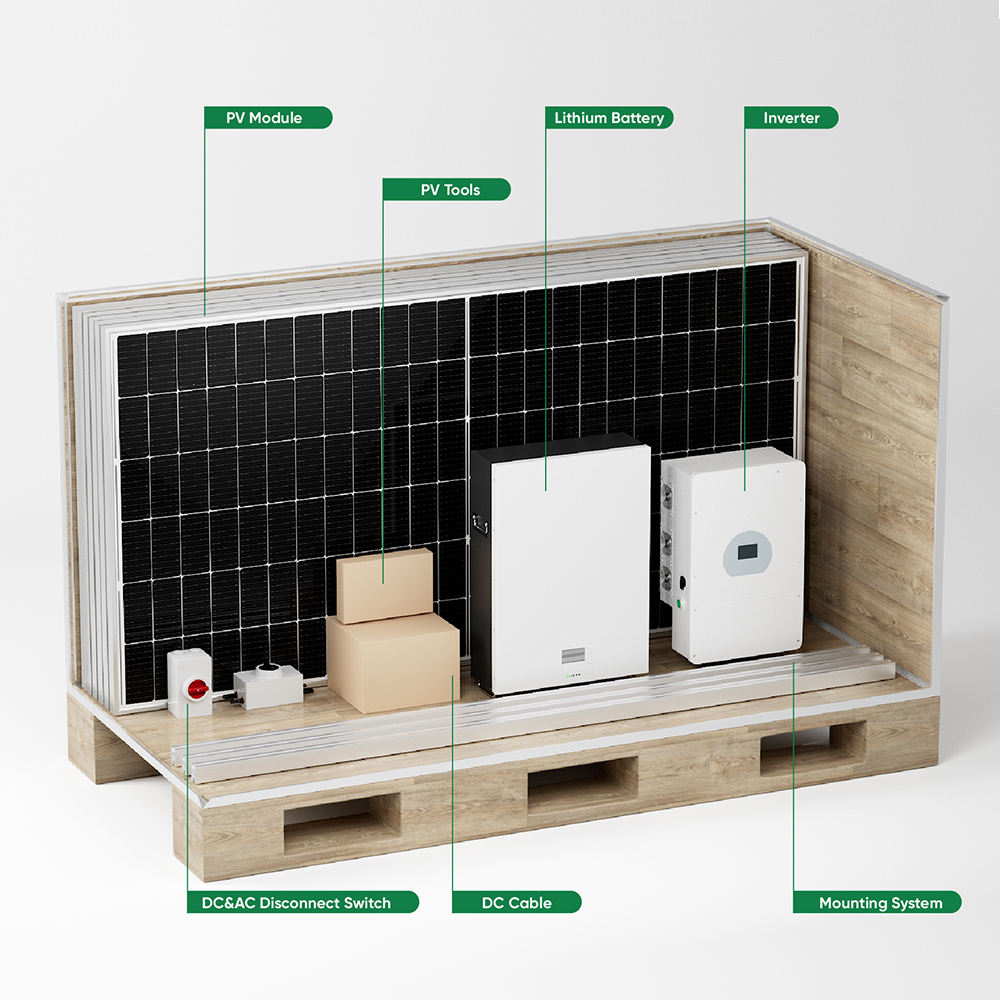

| Model | SP-3KW-HY | SP-5KW-HY | SP-10KW-HY |
| Half Cut Mono 550W Solar Panel | 6 Pieces | 10 Pieces | 20 Pieces |
| DC Disconnect Switch | 1 Piece | 2 Piece | 3 Pieces |
| Hybrid Inverter | SUN-3K-SG04LP1-EU | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU |
| Wall Mounted LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh |
| DC Cable 4mm2 | 100 meter | 200 meter | 400 meter |
| AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece |
| MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | 1 Set | ||
| Model | SP-15KW-HY | SP-20KW-HY | SP-30KW-HY |
| Half Cut Mono 550W Solar Panel | 30 Pieces | 42 Pieces | 63 Pieces |
| DC Disconnect Switch | 4 Piece | 6 Piece | 9 Pieces |
| Hybrid Inverter | SUN-5K-SG03LP1-EU (3 Pcs) | SUN-5K-SG03LP1-EU (3 Pcs) | SUN-5K-SG03LP1-EU (3 Pcs) |
| Wall Mounted LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh |
| DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | 1 Set | ||

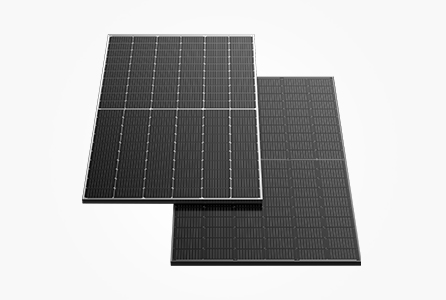

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V | Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V | Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg
48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging.
Max.charging/discharging current of 240A Max.10pcs parallel.

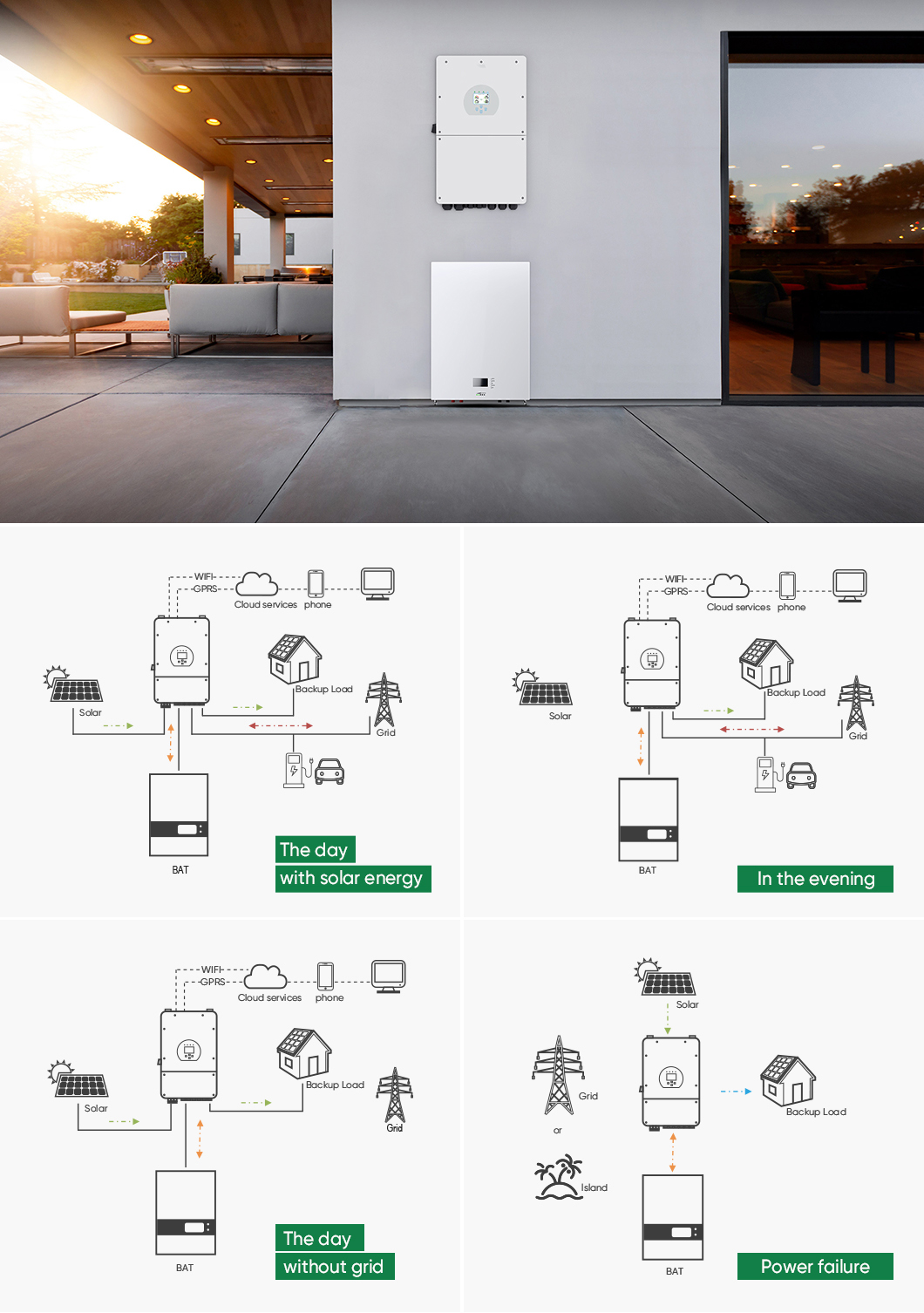

DC couple and AC couple to retrofit existing solar system.

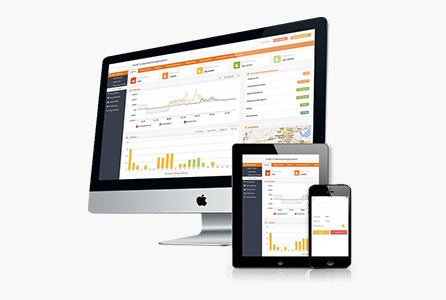

Open station supports one-click installation and registration. Problem support one-click dispatch and navigation. Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.

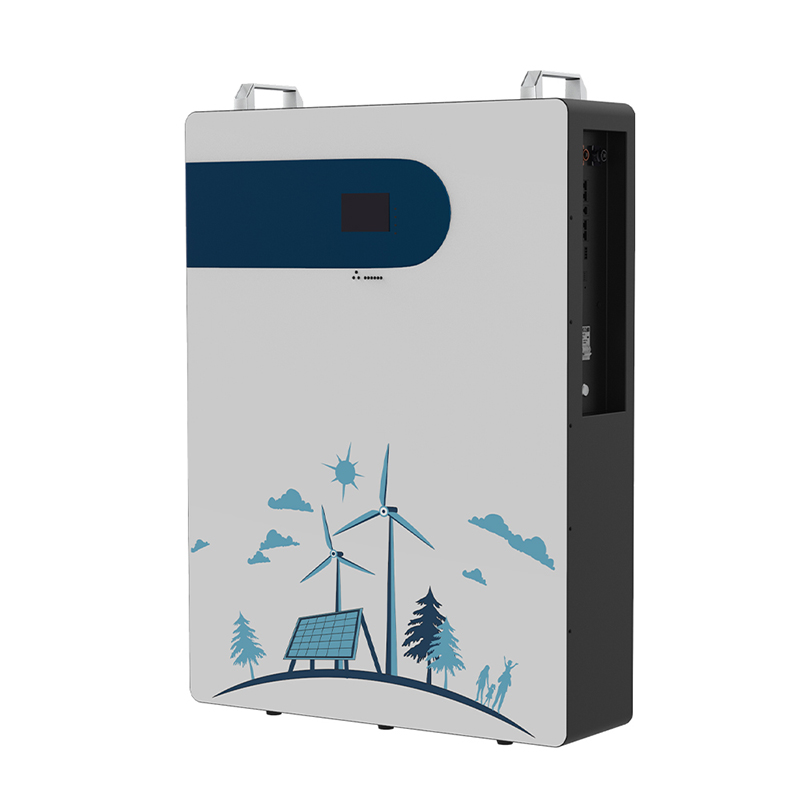

15-20 years design life. Up to 6000 + cycle life. Wall mount or ground stack brick, simply connecting to inverter.
Battery module is scalable for any larger storage system. Built-in high quality BMS to protect battery cells.
Lithium iron phosphate battery cell, stay safe for home storage.

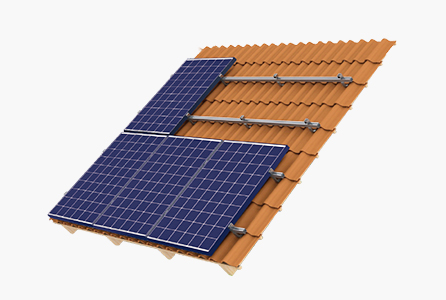

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm.
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.
Cable Clip, Tie, Ground Clip & Lugs Optional.

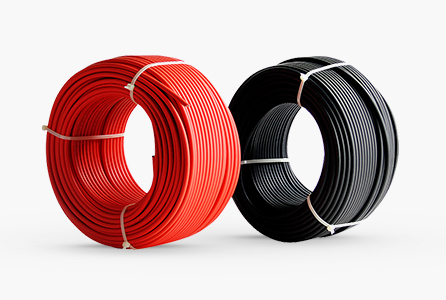

Cross Section: 4mm2, 6mm2 Optional.
Rated Voltage: 600VDC(UL)/1000VDC(TUV).
Rated Current: 55A, 70A.
Colors: Black (STD), Red (Optional). Lifetime: ≤25 Years.

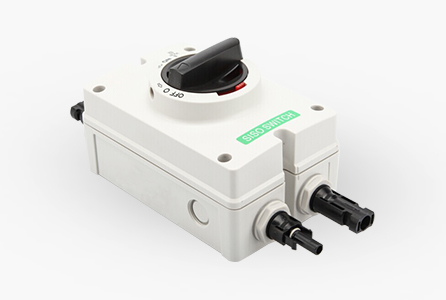

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

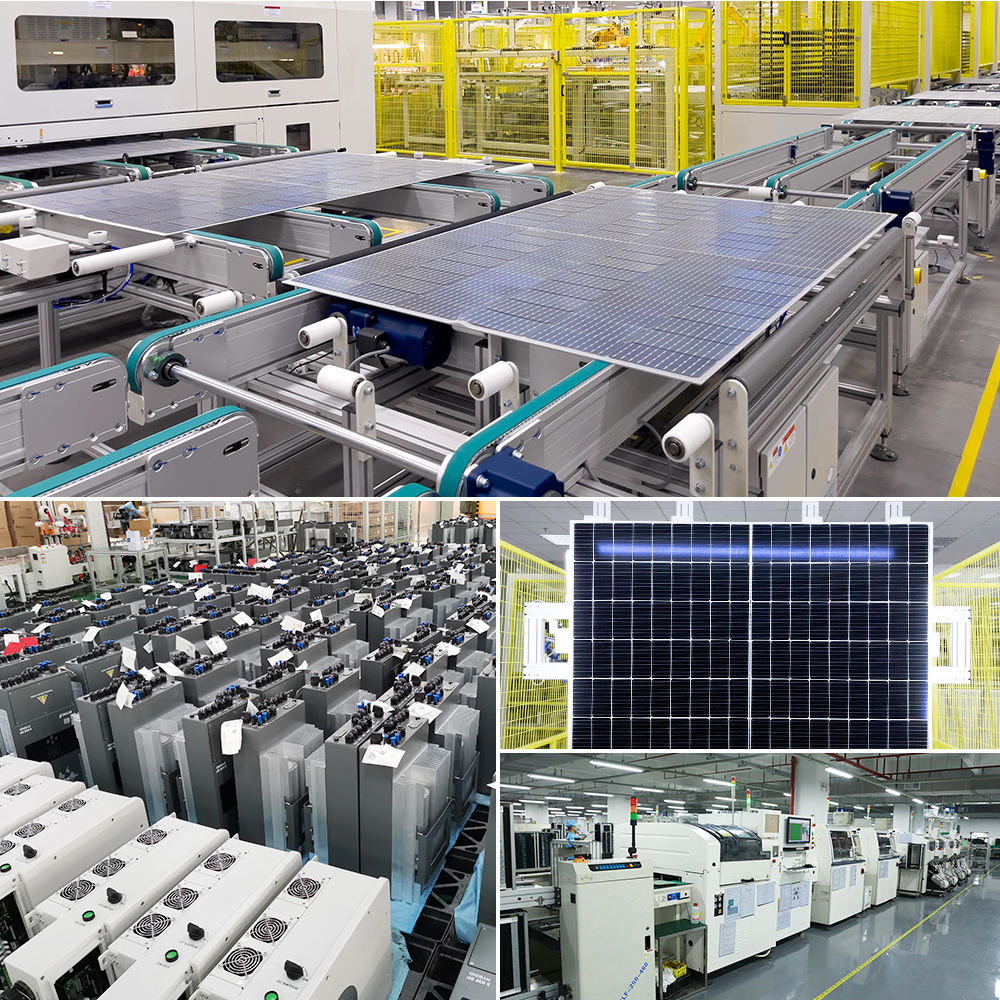

As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products and solar panels. Focused on research and manufacture of all-black solar panels since 1998, we have exported various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, the factory area now covers 150,000 square meters with 600 experienced employees.
