| DC Battery Parameters | |
| Battery Cell Type | LFP 280Ah |

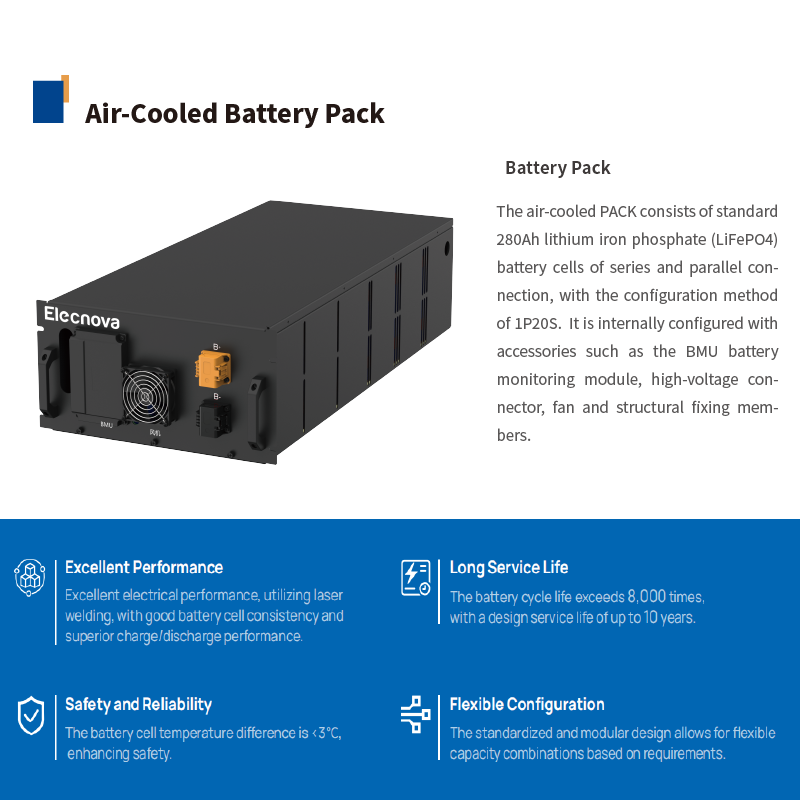

| Battery Pack Configuration | 17.92kWh/1P20S |
| Battery System Configuration | 215kWh/1P240S |
| Battery Voltage Range | 600~876V DC |
| System Rated Voltage | 768V DC |
| AC Side Parameters | |
| AC Rated Power | 100kW |
| AC Maximum Power | 110kW (continuous for 1min) |
| AC Current Distortion Rate | ＜3% |
| DC Component | ＜0.5%Ipn |
| Grid Rated Voltage | 400V AC |
| Adjustable Power Factor Range | -1~1 |
| Rated Grid Frequency | 50Hz |
| System Parameters | |
| Energy Conversion Efficiency | ≥90% |
| Charge/Discharge Rate | ≤0.5P |
| Discharge Depth | 95%DOD |
| Number of Cycles | ≥8,000 times |
| Charge/Discharge Switching Time | ＜100ms |

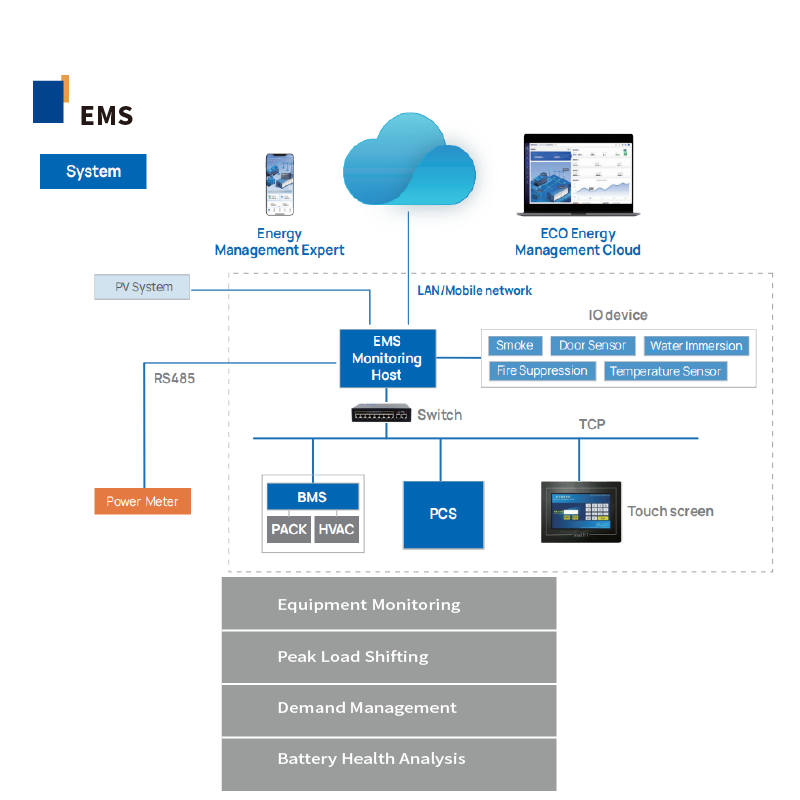

| Communication Interface | Ethernet /RS485 |
| Protection Level | IP55 |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | -25~55℃ |
| Relative Humidity | 0-95%RH, non-condensing |
| Noise | ＜75dB |
| Altitude | ≤2,000m (derating for usage above 2,000m) |
| Fire Suppression System | Aerosol + Active Warning |
| Dimensions (W*D*H) | 1,250*1,300*2,350 (mm) |
| Weight | 2,500kg |
| Compliance Standards | UN38.3, IEC62619, UL1973, UL9540 |

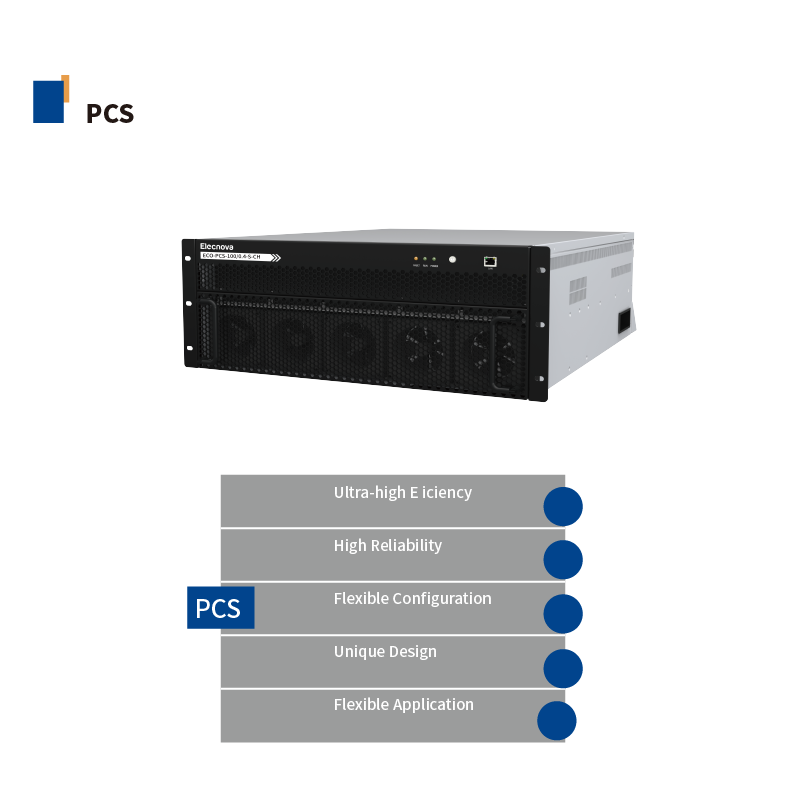

The ECO-PCS series product is a modular converter designed specifically for small-sized energy storage systems. It has a maximum rated power of 200kW and serves as a bidirectional energy converter within the entire energy storage system. It can meet the demands of various application scenarios, such as the industrial and commercial energy storage, substation area energy storage, photovoltaic energy storage micro-grid, etc.
