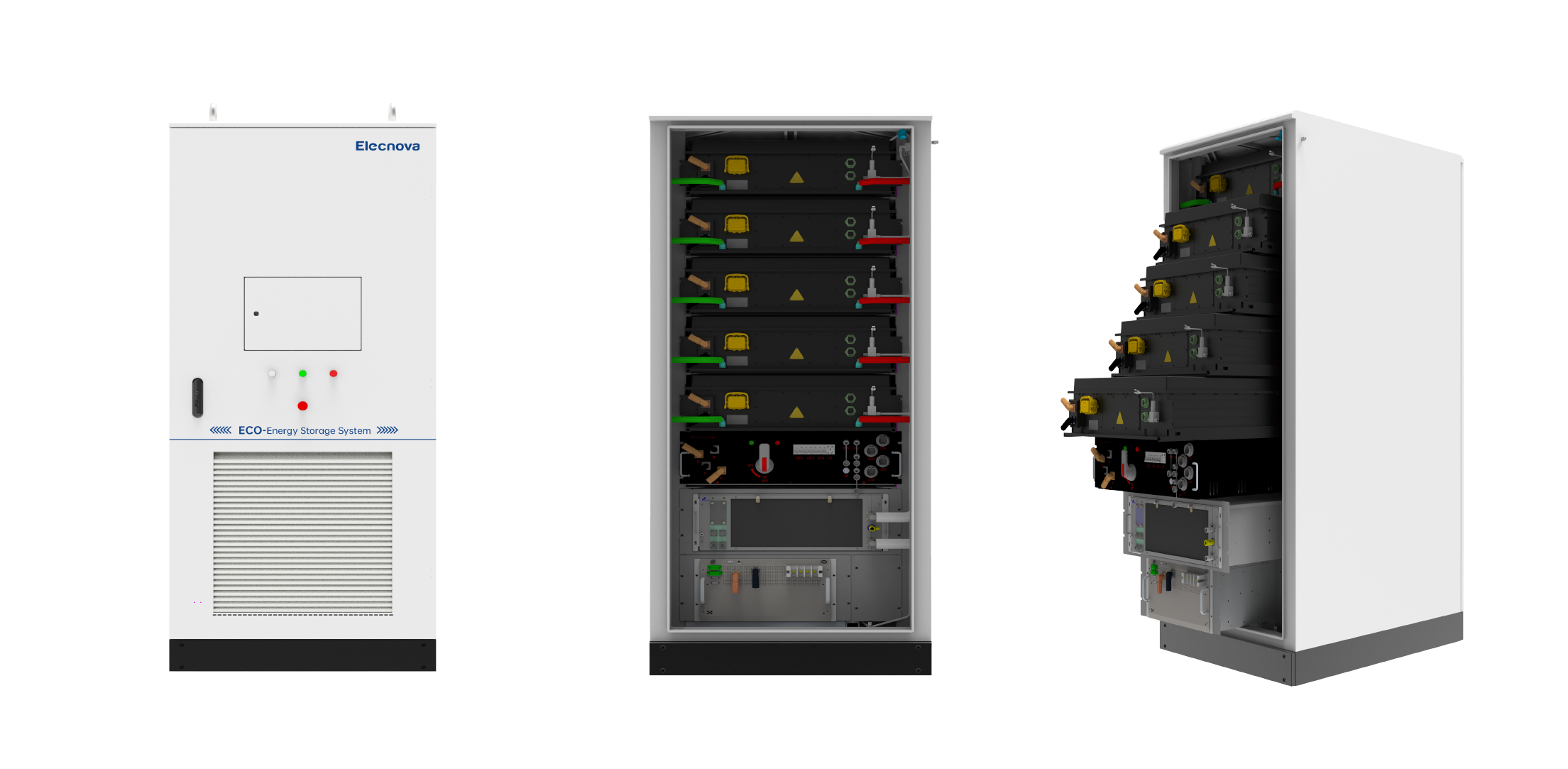

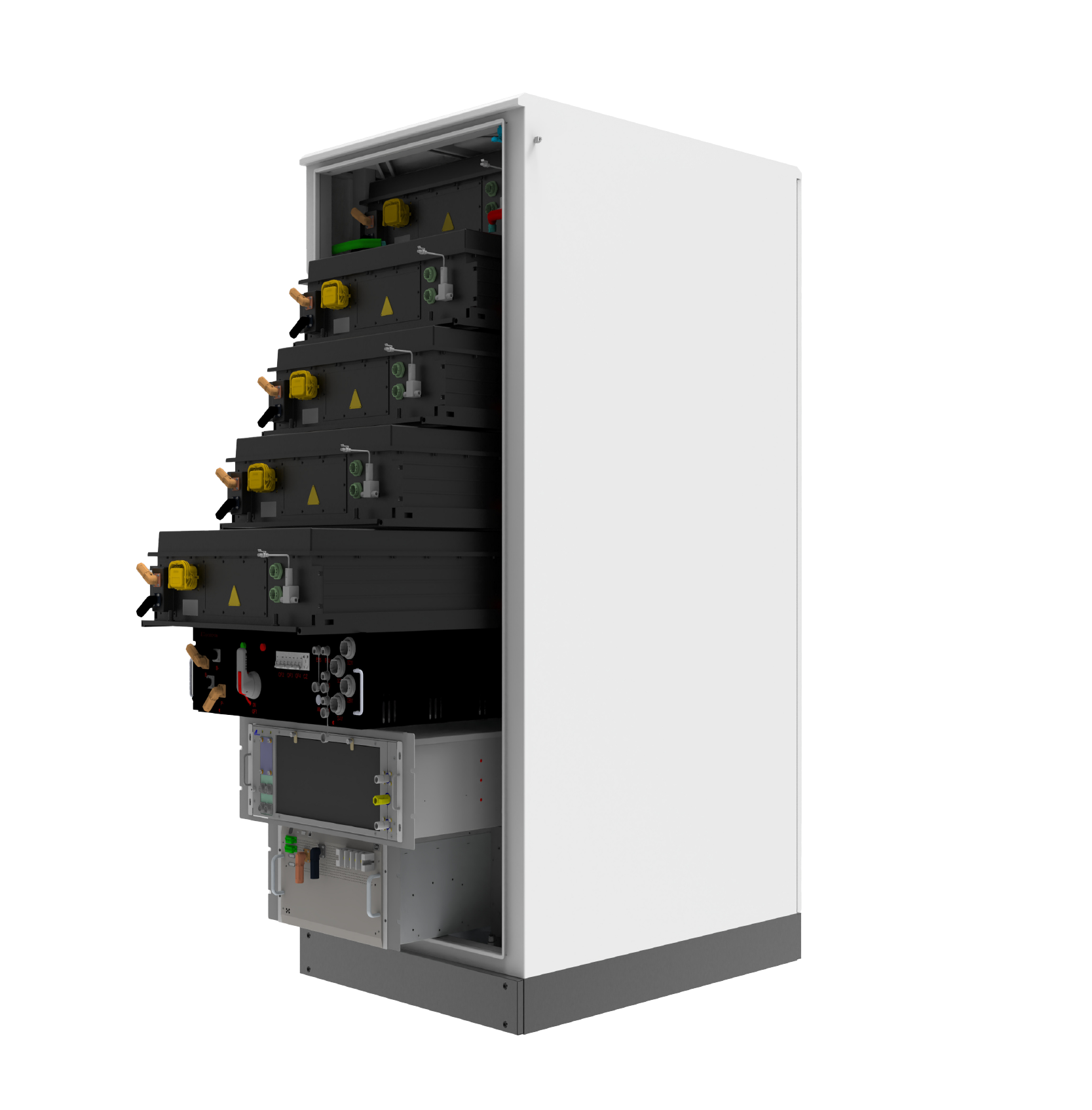

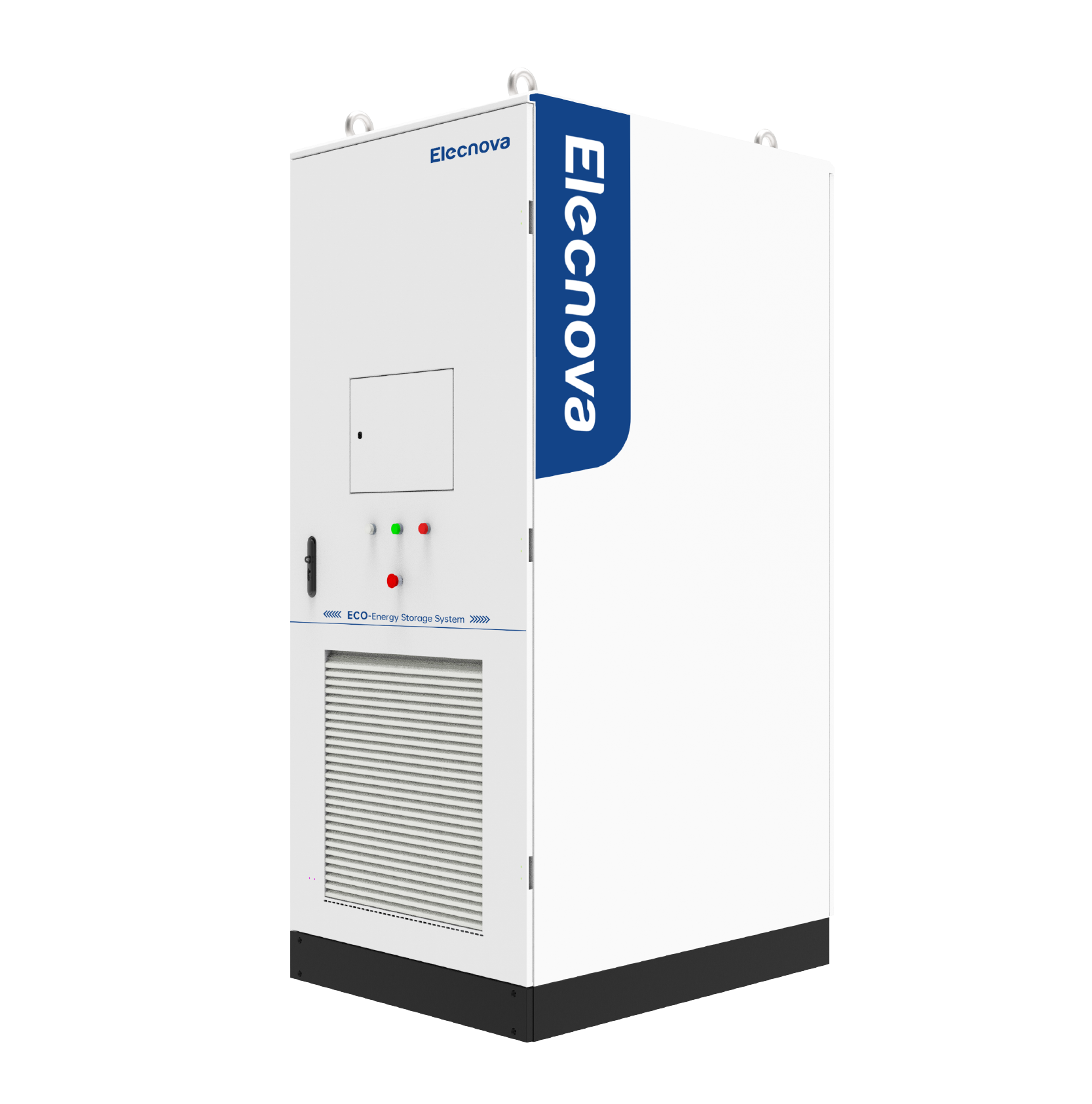

Our 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

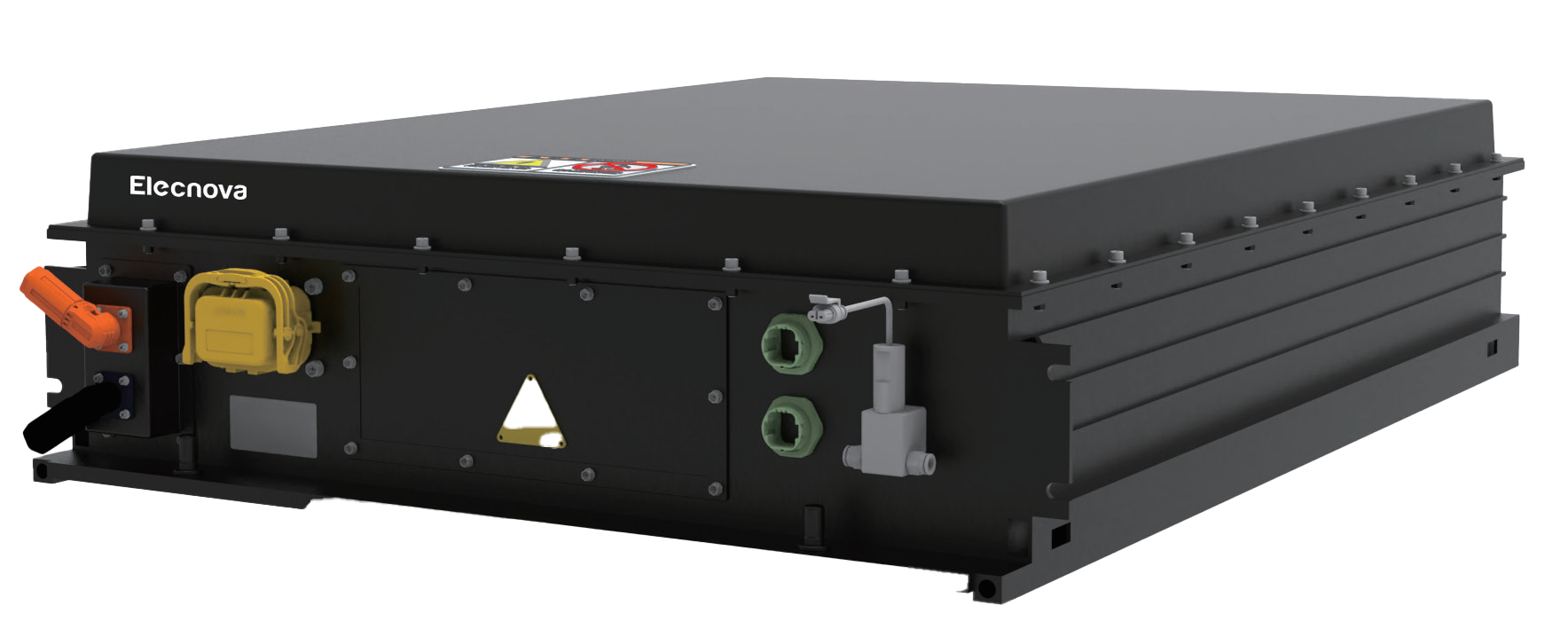

The liquid-cooled PACK consists of LFP cells, grouping in 1P52S. With built-in BMU, HV connectors, liquid cooling plate module, fixed structural components, these accessories enable the PACK module to have protection functions such as overvoltage, undervoltage, overcurrent, insulation, short circuit, and overheat. Combined with PCS, it achieves energy charge and discharge.

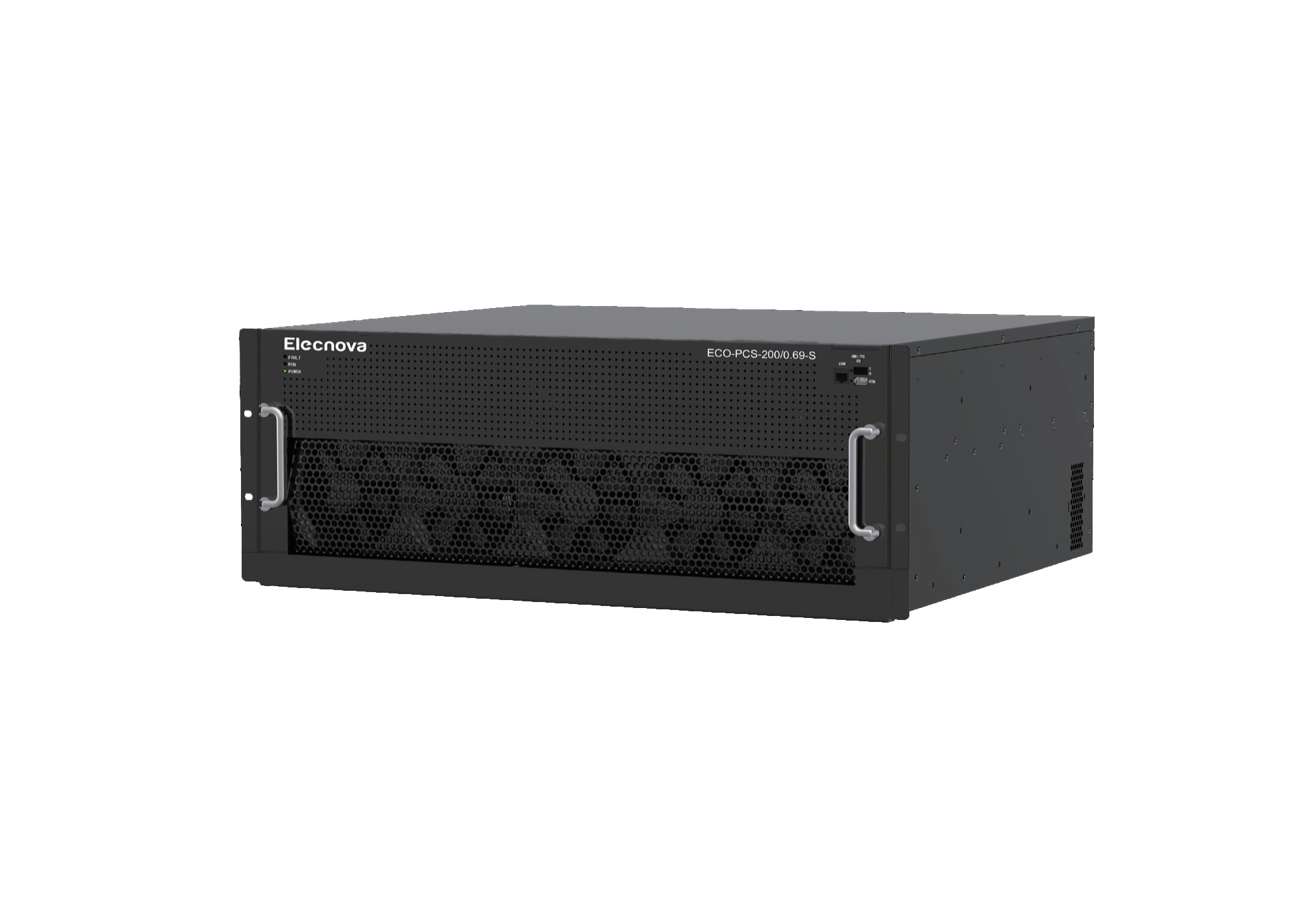

The PCS is a modular inverter specifically designed for small-scale energy storage systems. It achieves bidirectional energy conversion in ESS and can meet the requirements of various scenarios such as C&I ESS, substation energy storage, PV-plus microgrid with ESS.

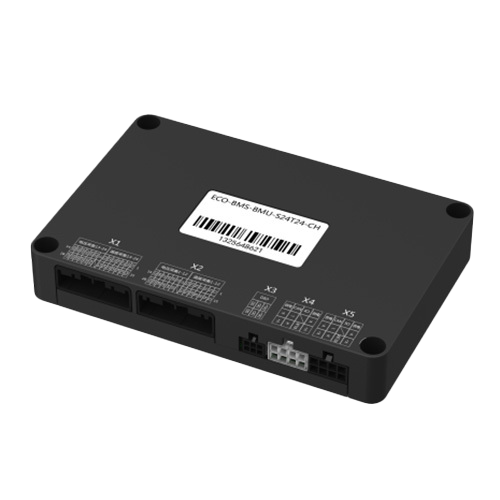

BMS supports two architectures: three-level architecture (BMU+BCU+BAU) and two-level architecture (BMU+BCU). BMU, BCU and BAU respectively other PACK-level, cluster-level and array-level protection against overcharging, over-discharging, overcurrent, overheat and short circuit for battery clusters. Real-time monitoring of battery safety status, fault diagnosis, and warnings are provided.

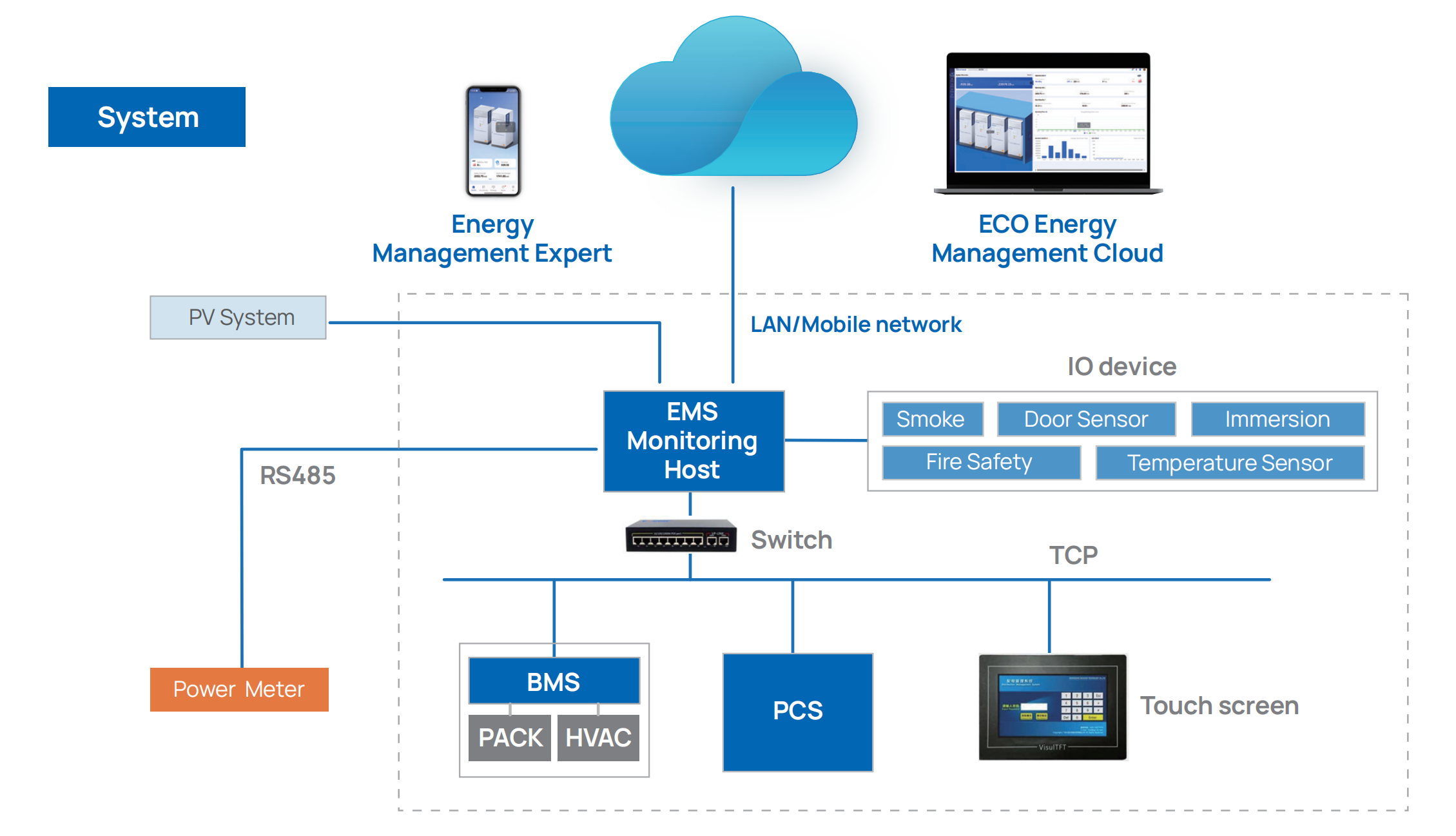

Our integrated architecture EMS products are suitable for user-side ESS, microgrid and PV-plus ESS and more. It ensures that the system operates optimally at all times, maximizing overall benefits and shortening ROI.
| DC Side | |
| Cell Type | LFP280Ah |
| PACK | 46.592kWh/1P52S |
| Battery System | 233.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| THDi | ≤3% |
| Nominal Voltage | 400Vac/3P+N+PE |
| Power Factor | -1 lagging~1 leading |
| Nominal Frequency | 50Hz/60Hz |
| General Data | |
| System Efficiency | ≥90% |
| Charge/Discharge Rate | 0.5P |
| DoD | 95% (25±2℃) |
| SOC Accuracy | <3% |
| Cycle Life | ≥8,000 times |
| Switching Time | <100ms |
| Connectivity | Ethernet /RS485 |
| Ingress Rating | IP55 |
| Cooling | Active liquid cooling |
| Operating Temperature | -25℃~55℃ |
| Humidity | 5~95%RH, non-condensing |
| Noise | ≤75dB |
| Altitude | ≤2,000m (derating above 2,000m) |
| Fire Safety | NOVEC1230/aerosol |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2500kg |
| Compliance | UN38.3, IEC62619, UL1973, UL9540 and CE-EMC |
Our ESS solutions can be widely used in these scenarios: Industrial Park, Factory, Microgrid, EV Charging station, Commercial complexes, Data Center and so on.

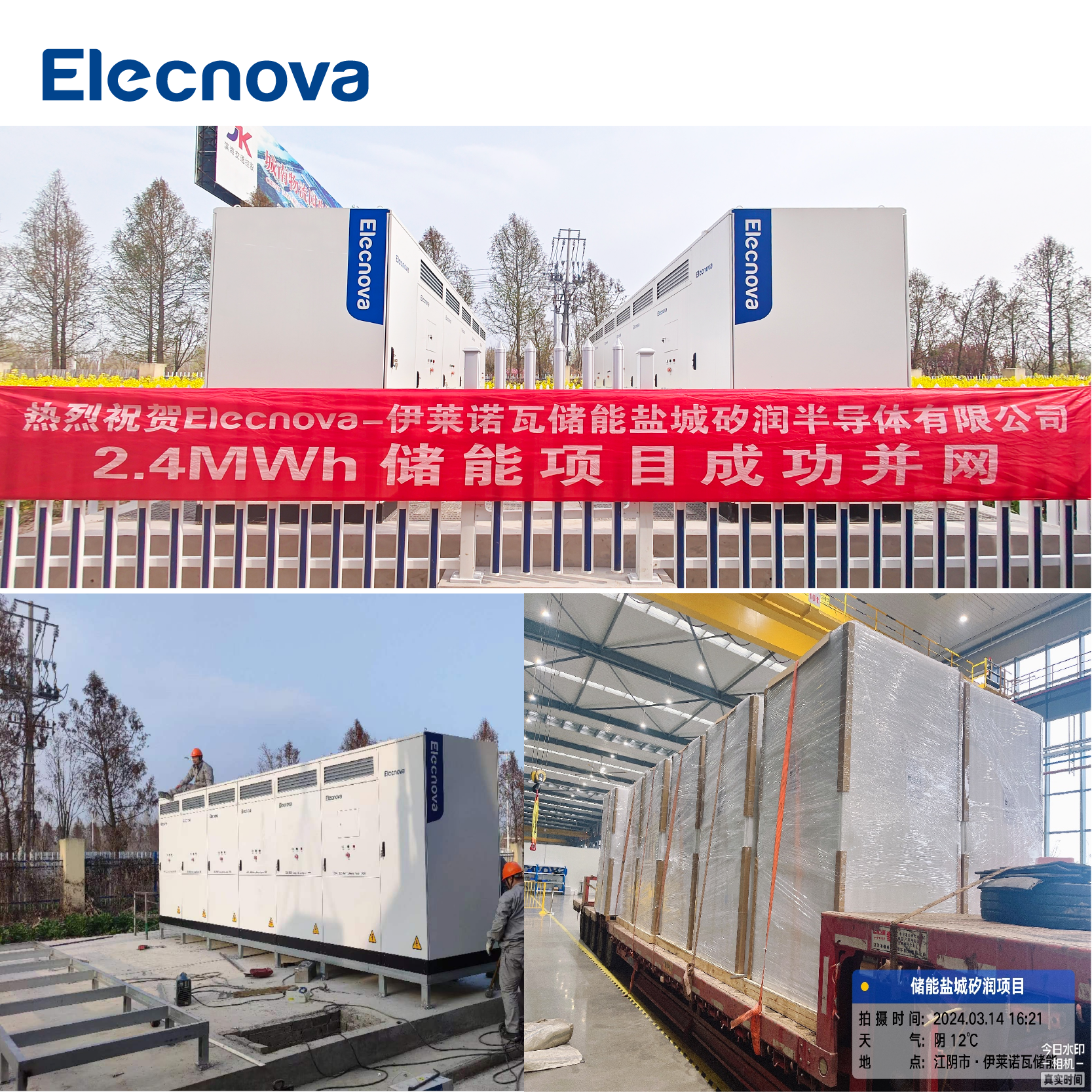

Our 2.4MWh energy storage project successfully connected to the grid! The project adopts advanced energy storage technology and equipment, which has the characteristics of high efficiency, stability and safety.
