| Product Model | GCC1000K-500 |
| Battery Level | 1000kwh |
| Charge And Discharge Power | 500kW |
| Cooling Method | Liquid cooling /Air cooling |
| Cell Type | 280Ah lithium iron phosphate |
| Grid Voltage | 380VAC |
| Dc Voltage Range | 672~876Vdc |
| Discharge Depth | <95% |
| Cycle Times | 6000 |
| Battery Brand | EVE Energy |
| Pack Voltage | 153.6V |
| Noise | 65dB |
| Size | 12050*2340*2680 |
| Protection Level | IP54 |
The system utilizes premium 280Ah lithium iron phosphate (LiFePO4) cells manufactured by EVE Energy, which are highly regarded for their safety, thermal stability, and long cycle life.
This system supports both liquid cooling and air cooling methods. The specific configurations can be tailored to match the thermal regulation requirements of your operational environment.
The GCC1000K-500 offers up to 6000 cycles with a depth of discharge (DoD) of less than 95%, ensuring reliable performance and a high return on investment over its operating life.

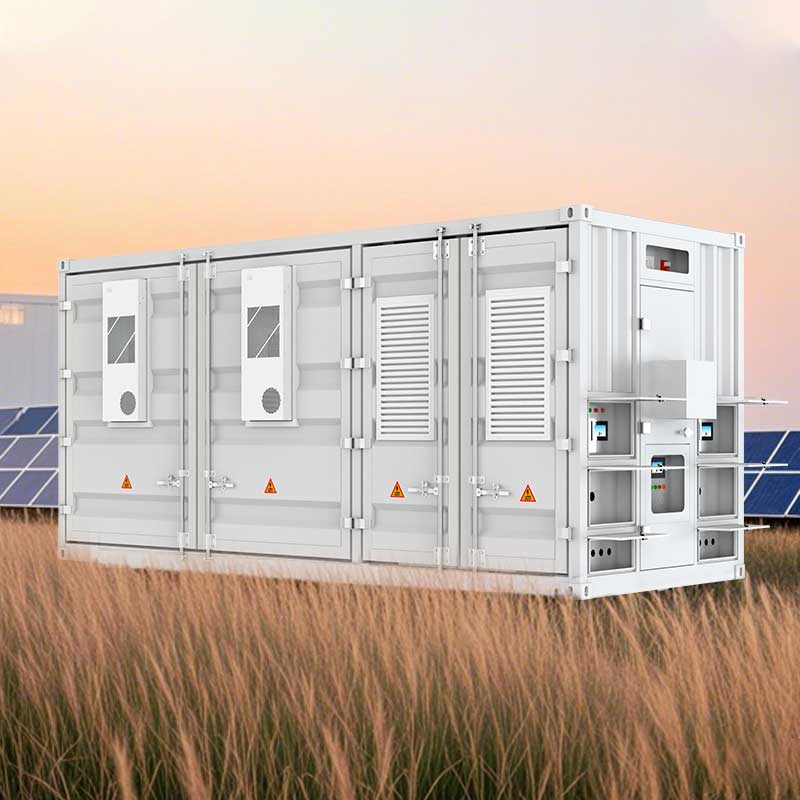

The unit comes with an IP54 protection level, indicating solid defense against dust ingress and water splashes, making it fully capable of reliable outdoor installation.

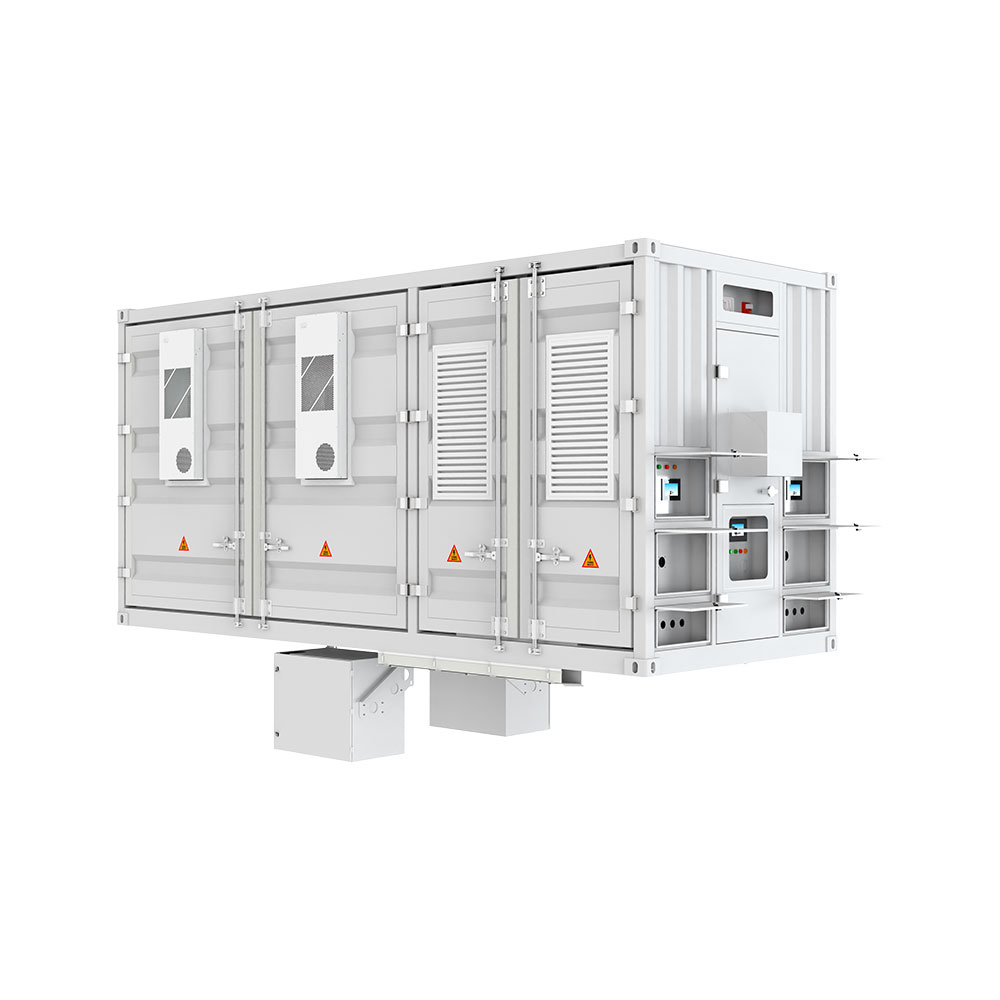

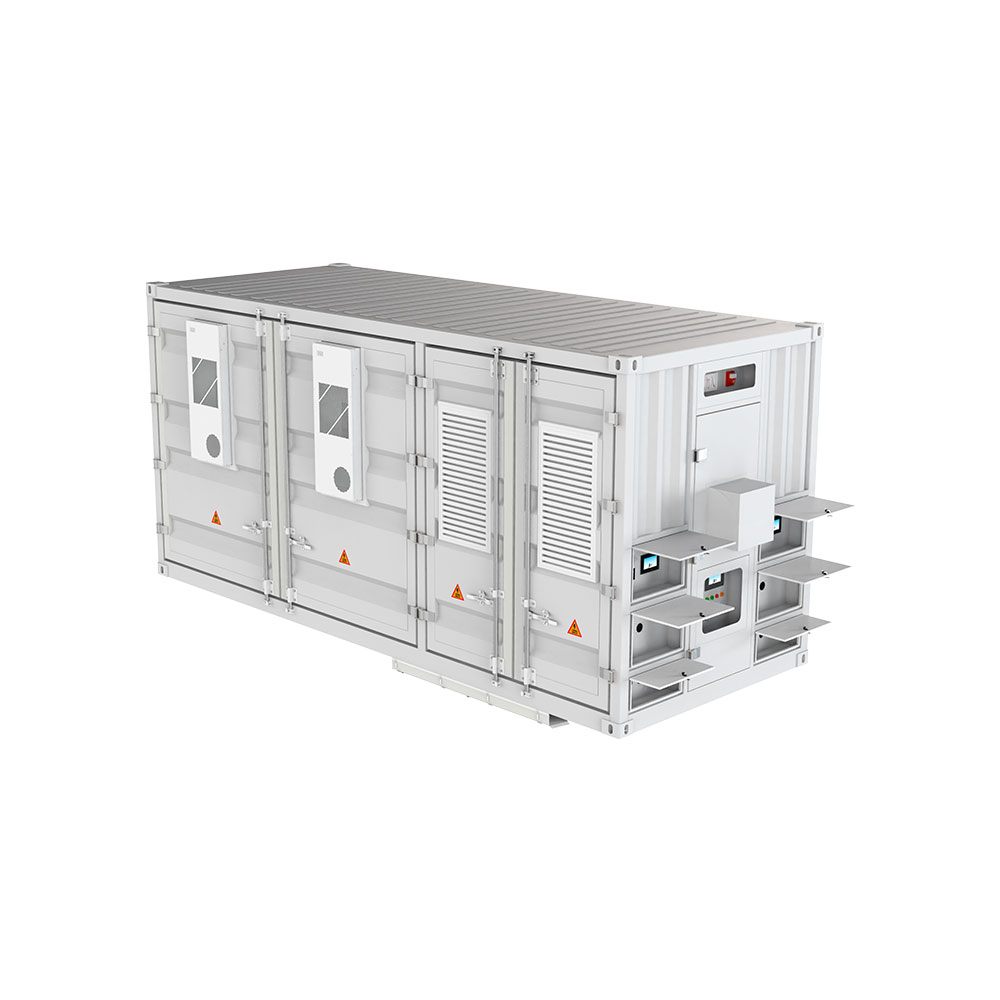

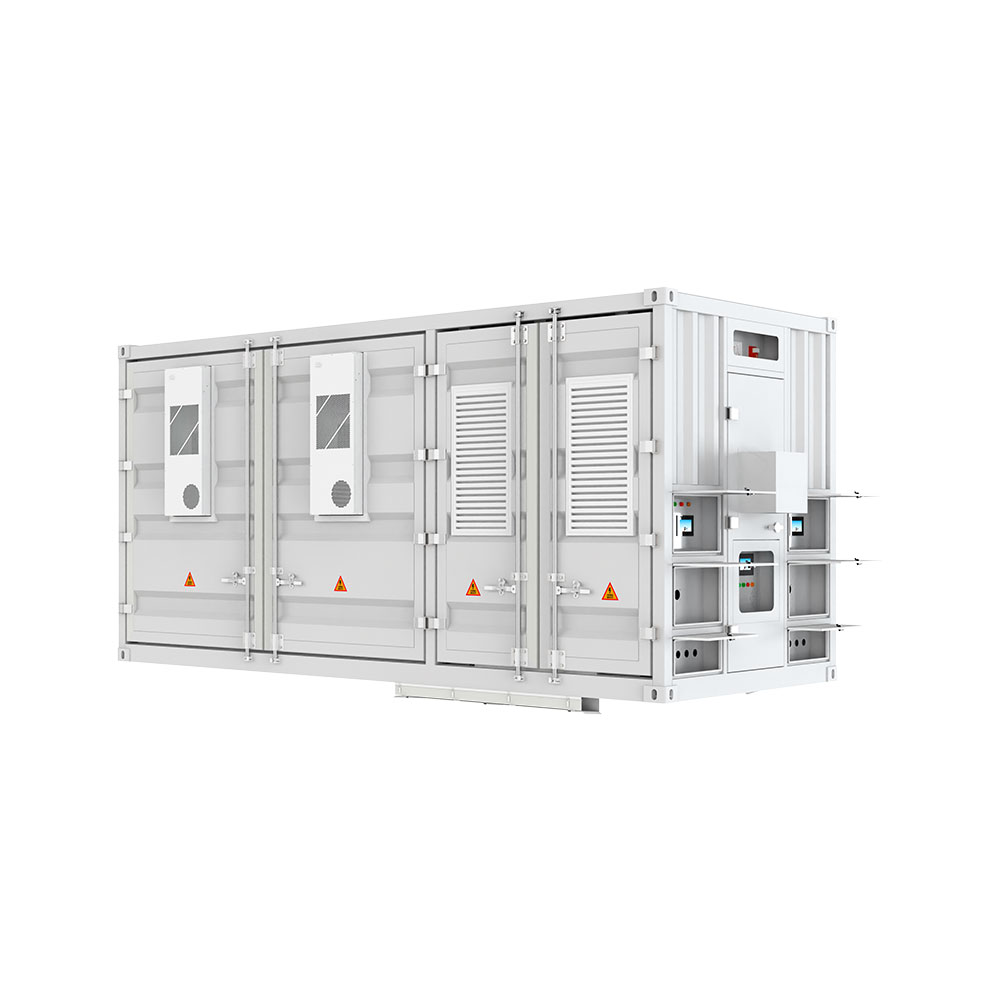

The physical dimensions of the container system are 12050mm in length, 2340mm in width, and 2680mm in height.
The system supports a standard grid voltage of 380VAC, and operates within a DC voltage range of 672Vdc to 876Vdc.
