| Technical Specifications | |
|---|---|
| Electrical Design | |
| Charging power | 1.4-22kW, 1~3 phase |
| Power supply | Single phase: 230VAC ± 20%, 50/60Hz. Three phase: 230/400VAC ± 20%, 50/60Hz. TN/TT/IT |
| Protection | UVP, OVP, OCP, Relay Stuck, Over Temperature |
| RCD Protection | Integrated 6mA DC |
| Metering Accuracy | ±2% Cl.A (1% by request) |
| Protection Rating | IP55, IK10 |
| General | |
| Charging mode | AC Mode 3 |
| HMI | 5 LEDs |

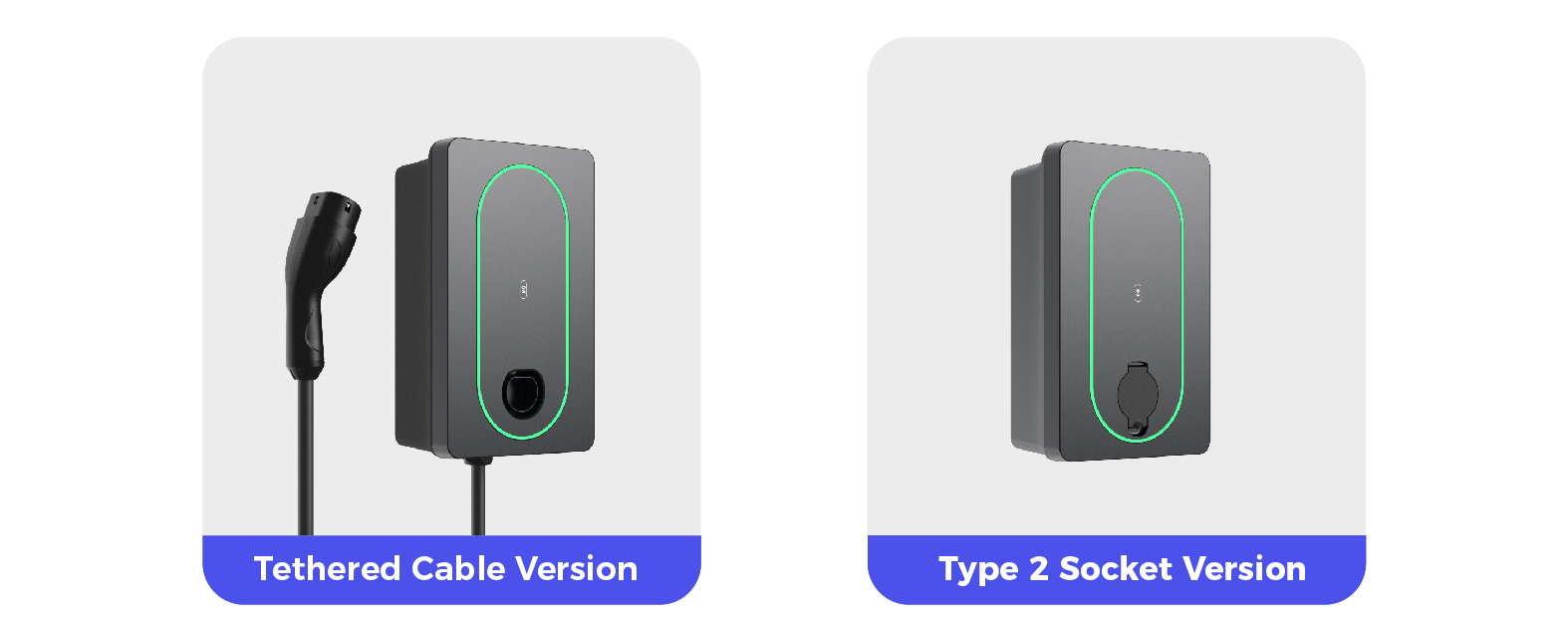

| Charging connector | Cable/Socket/Socket with shutter |
| Cable Length | 5m/7.5m (tethered varient only) |

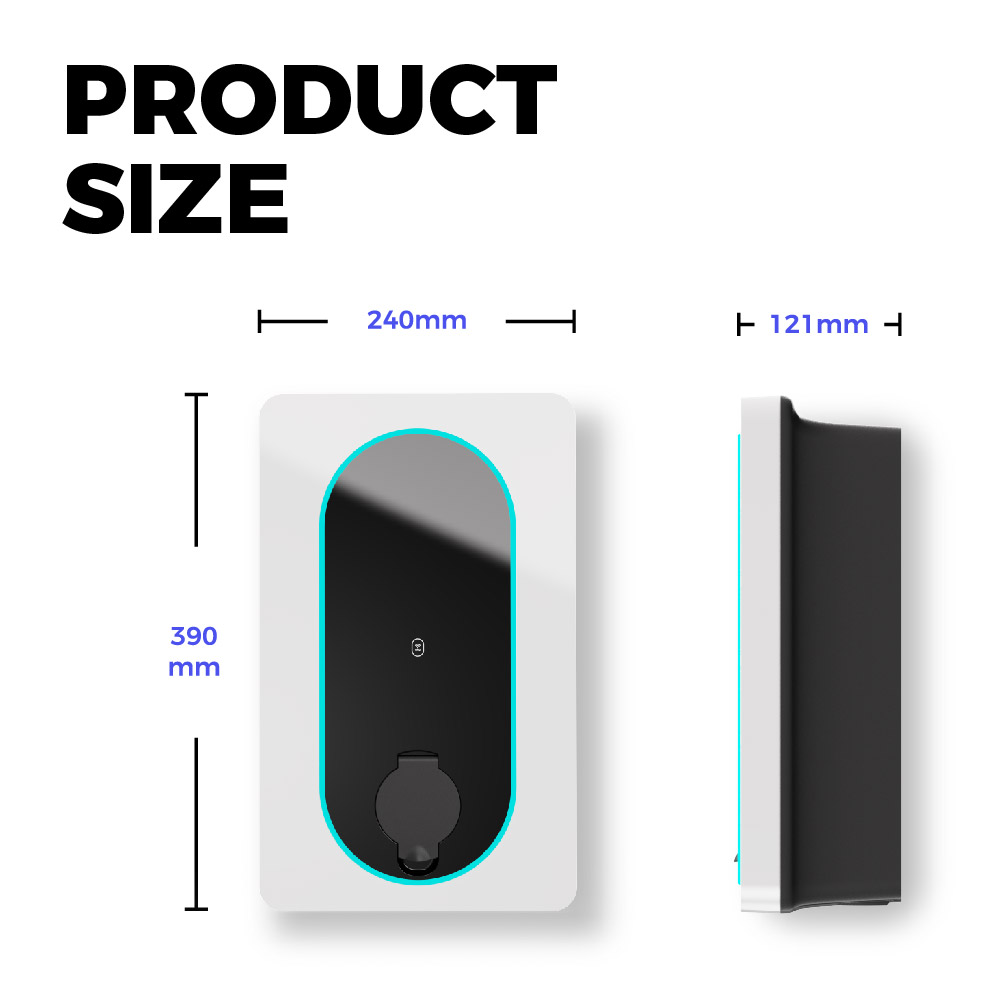

| Dimensions | 390*240*122mm |
| Weight | 4.3 ~ 7.2kg |
| Operating Temperature | -30°C~55°C |
| Communication | |
| Connectivity | RFID/ WIFI/ BLE/LAN(Optional) |
| User authentication | RFID, App, Plug & Charge |
| Backend protocol | OCPP 1.6 JSON |
Built with high-quality materials to withstand harsh environmental conditions and frequent use, ensuring long-lasting performance.
Delivers fast and efficient charging, reducing downtime and enhancing user convenience. Fully Certified to safety standards.

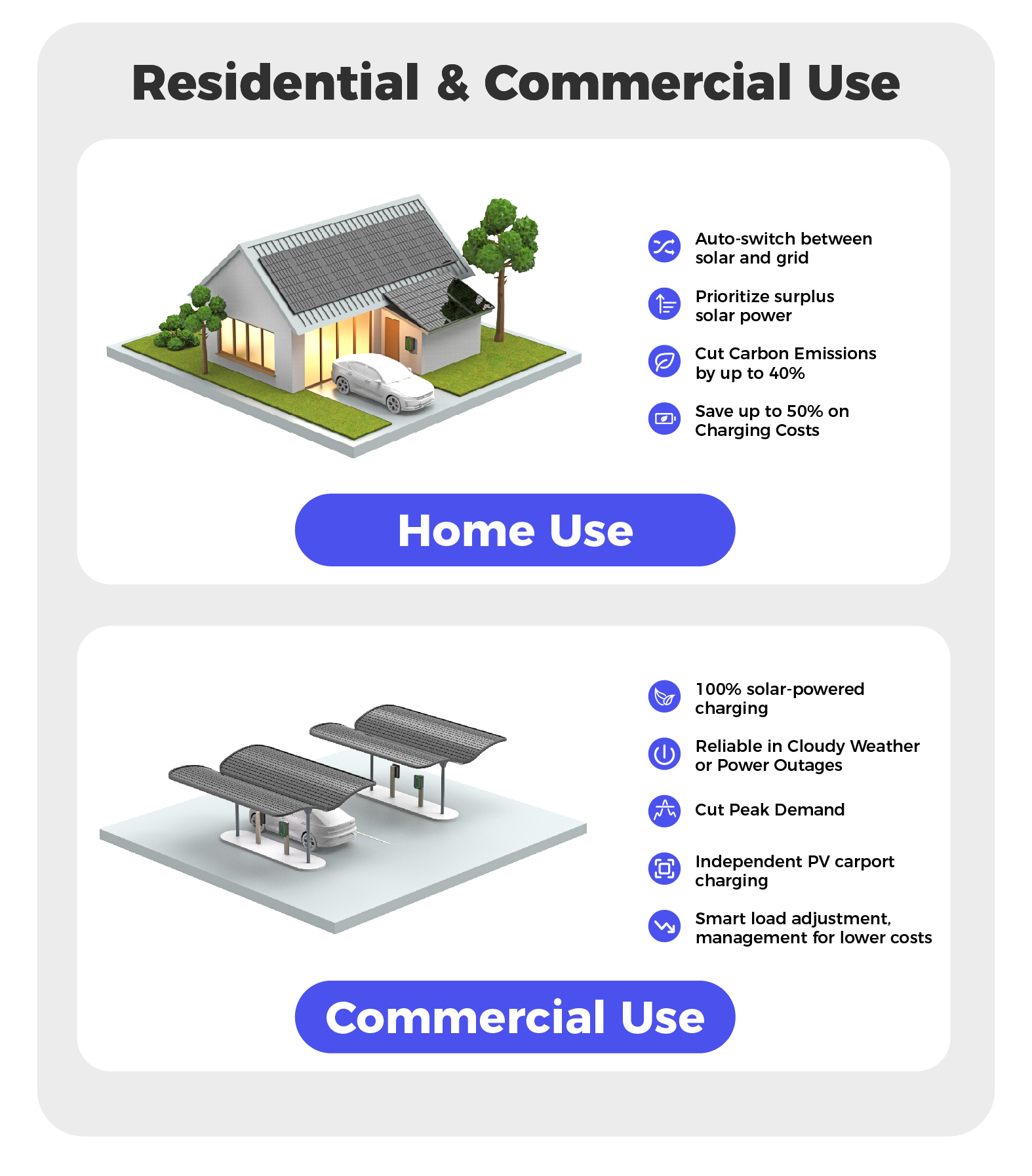

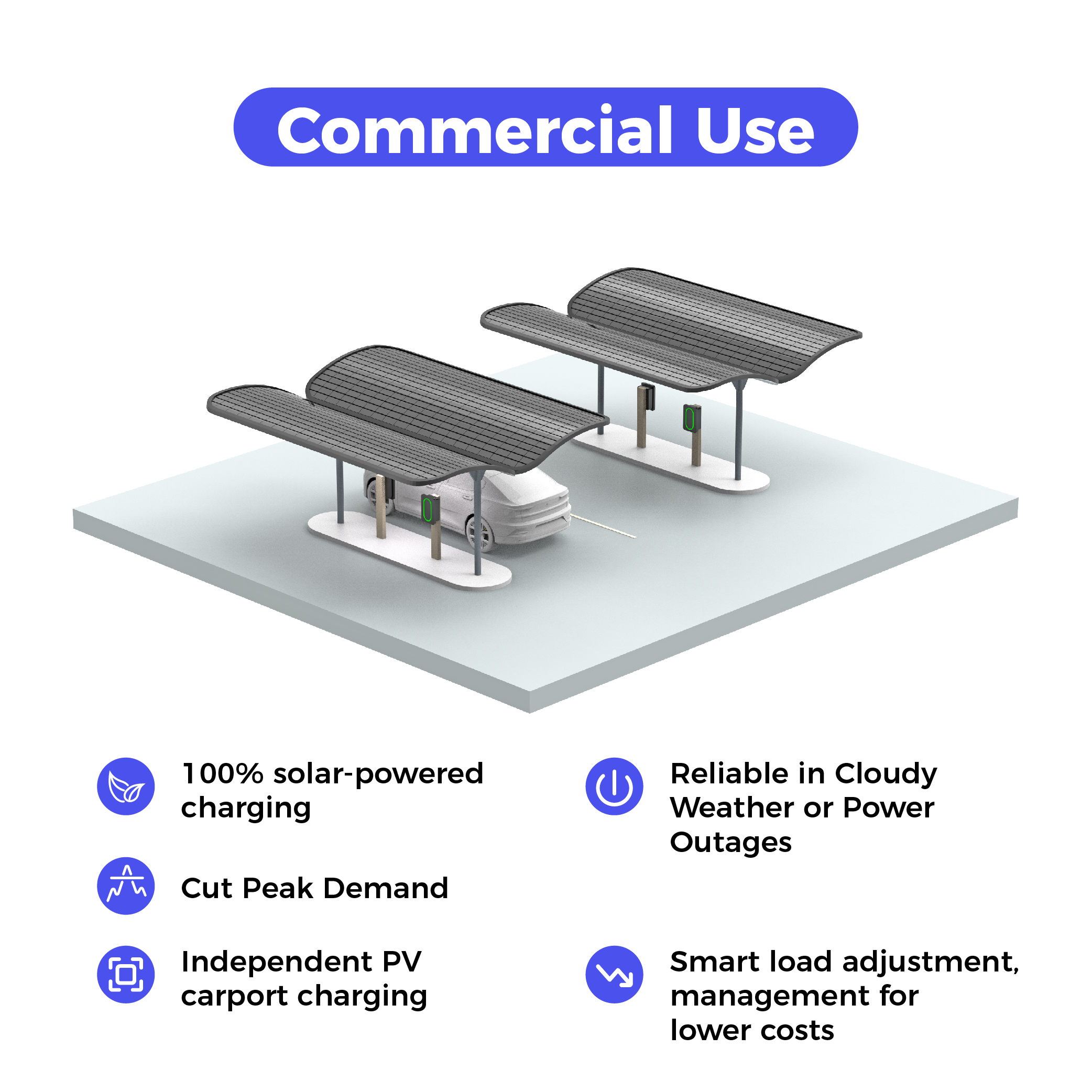

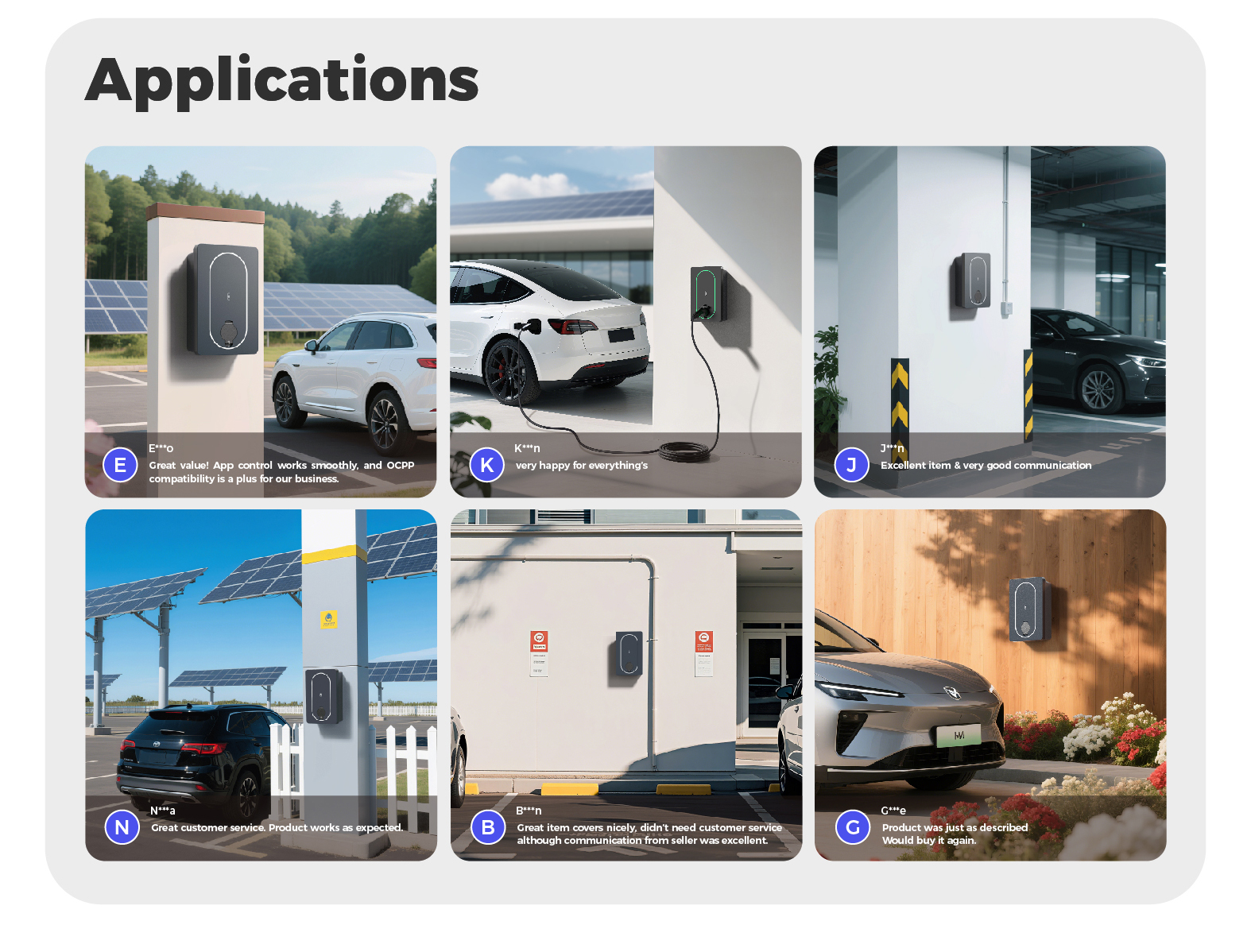

Versatile Installation: Can be installed in various locations such as homes, commercial buildings, parking lots, and more.

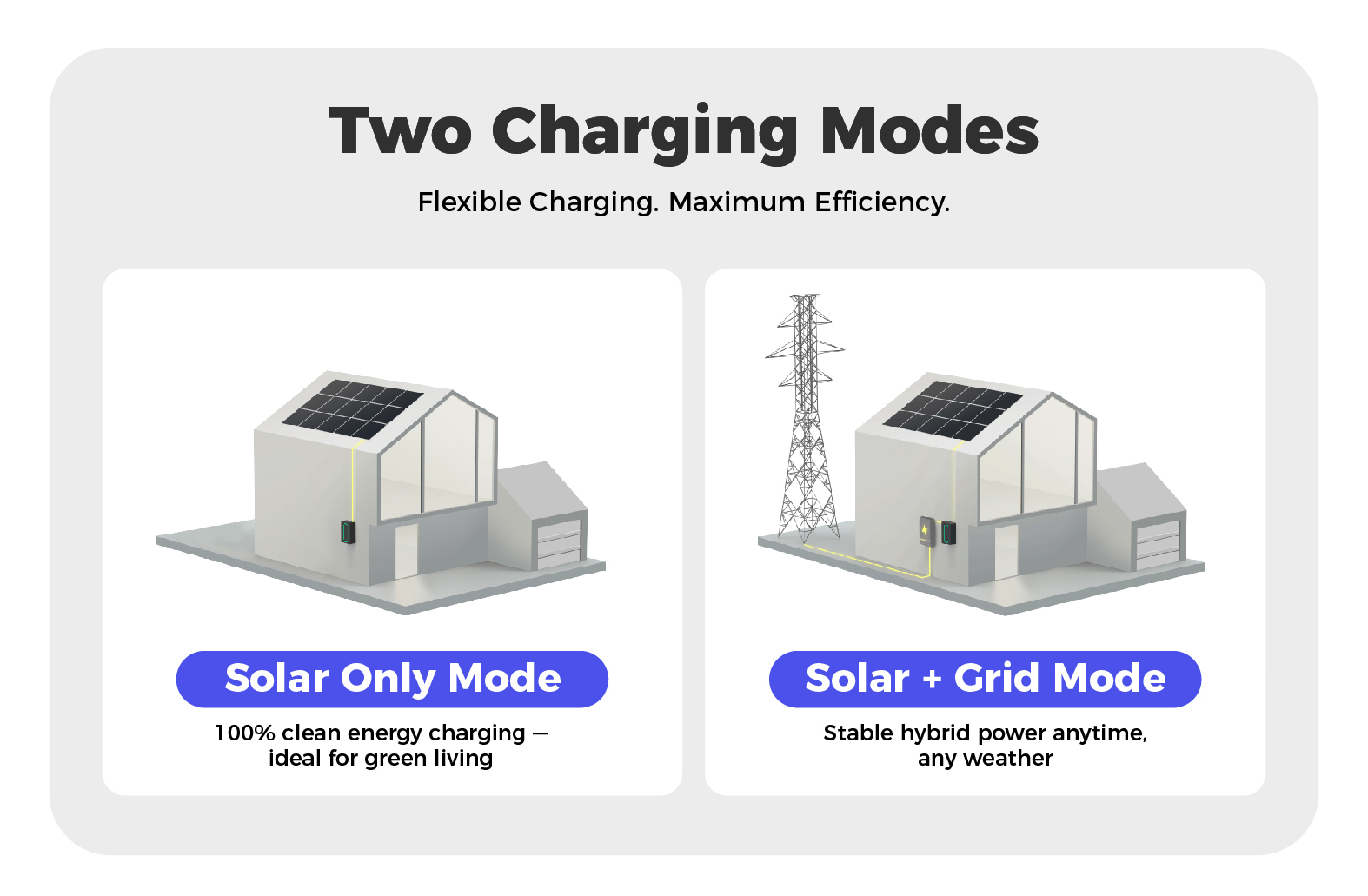

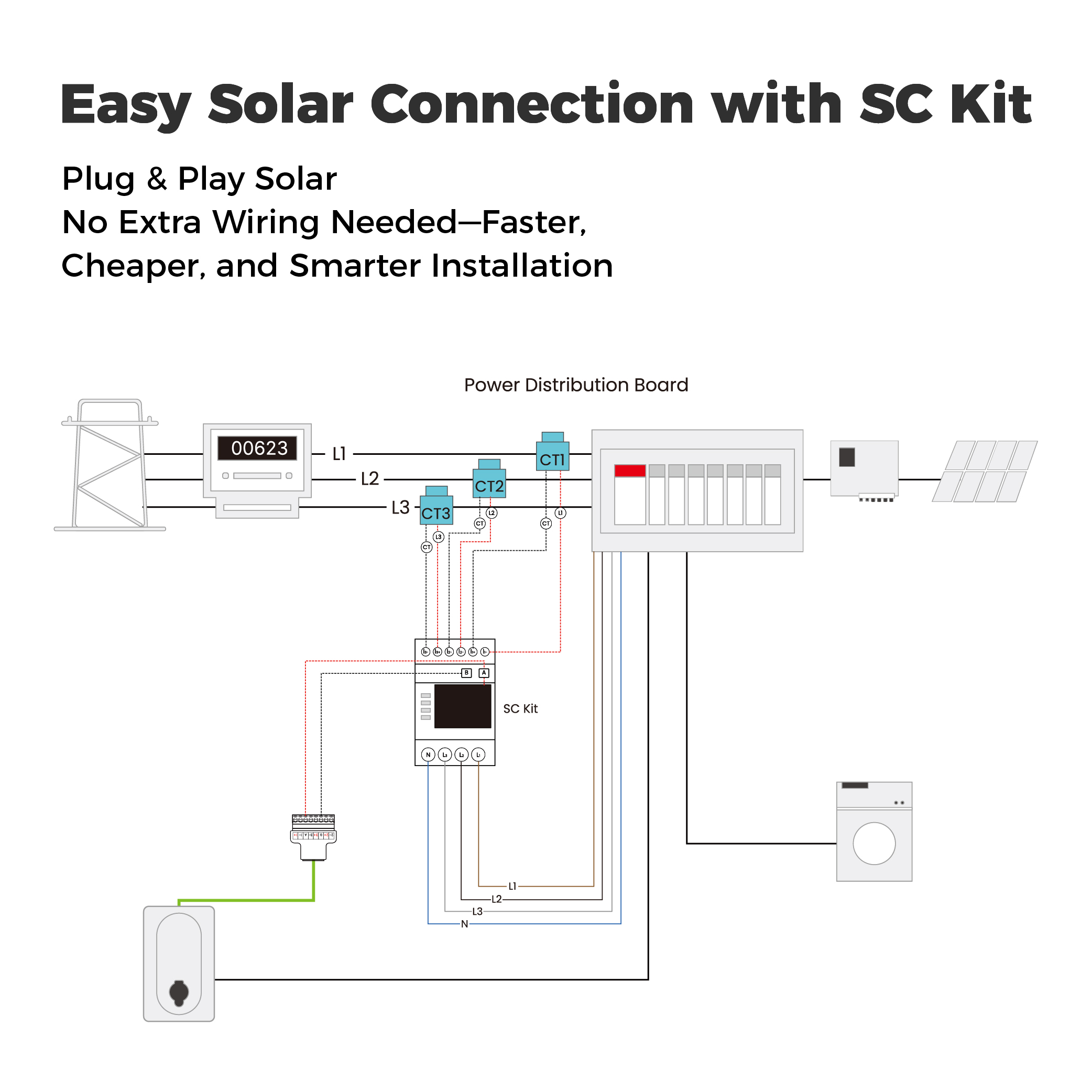

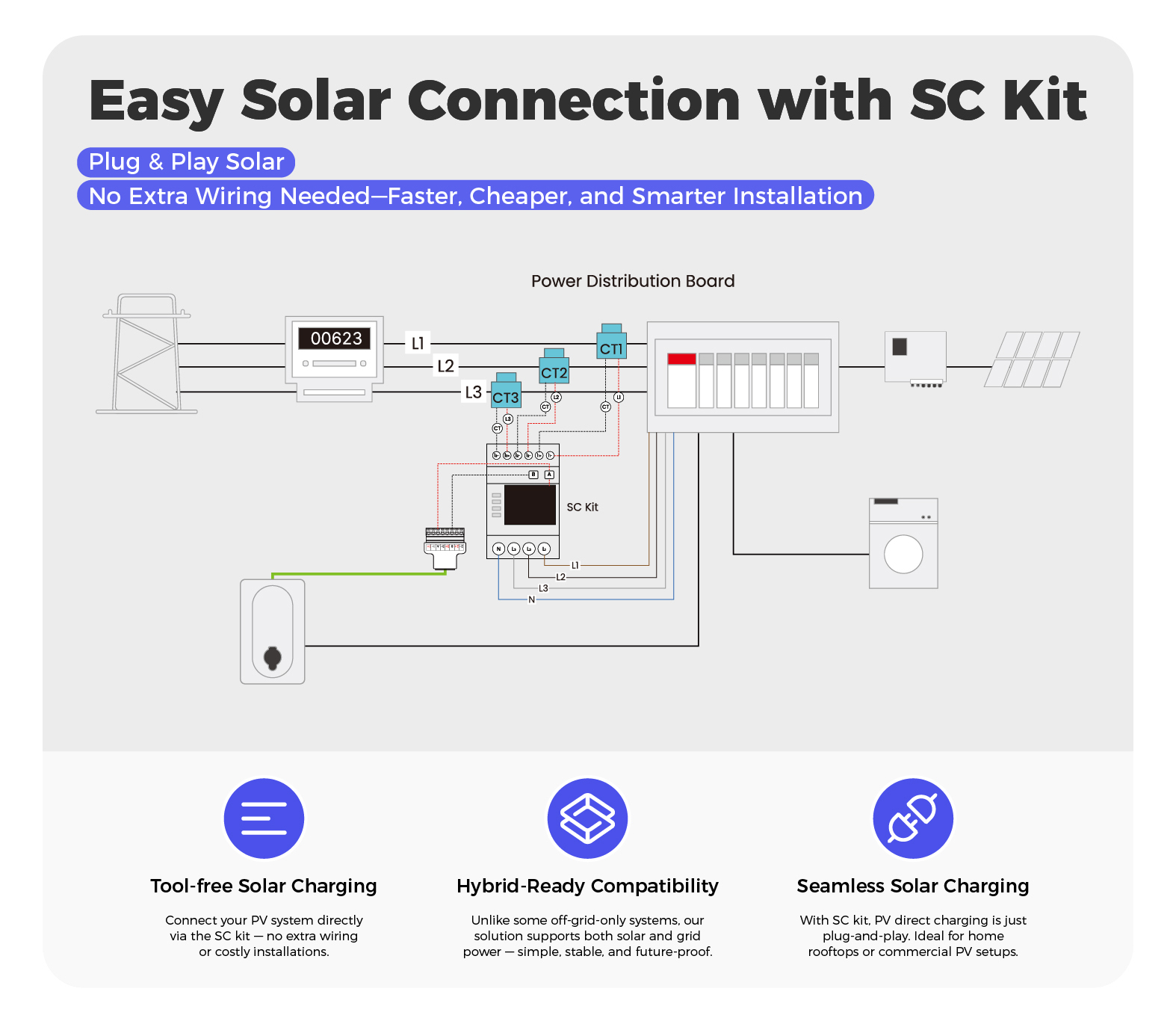

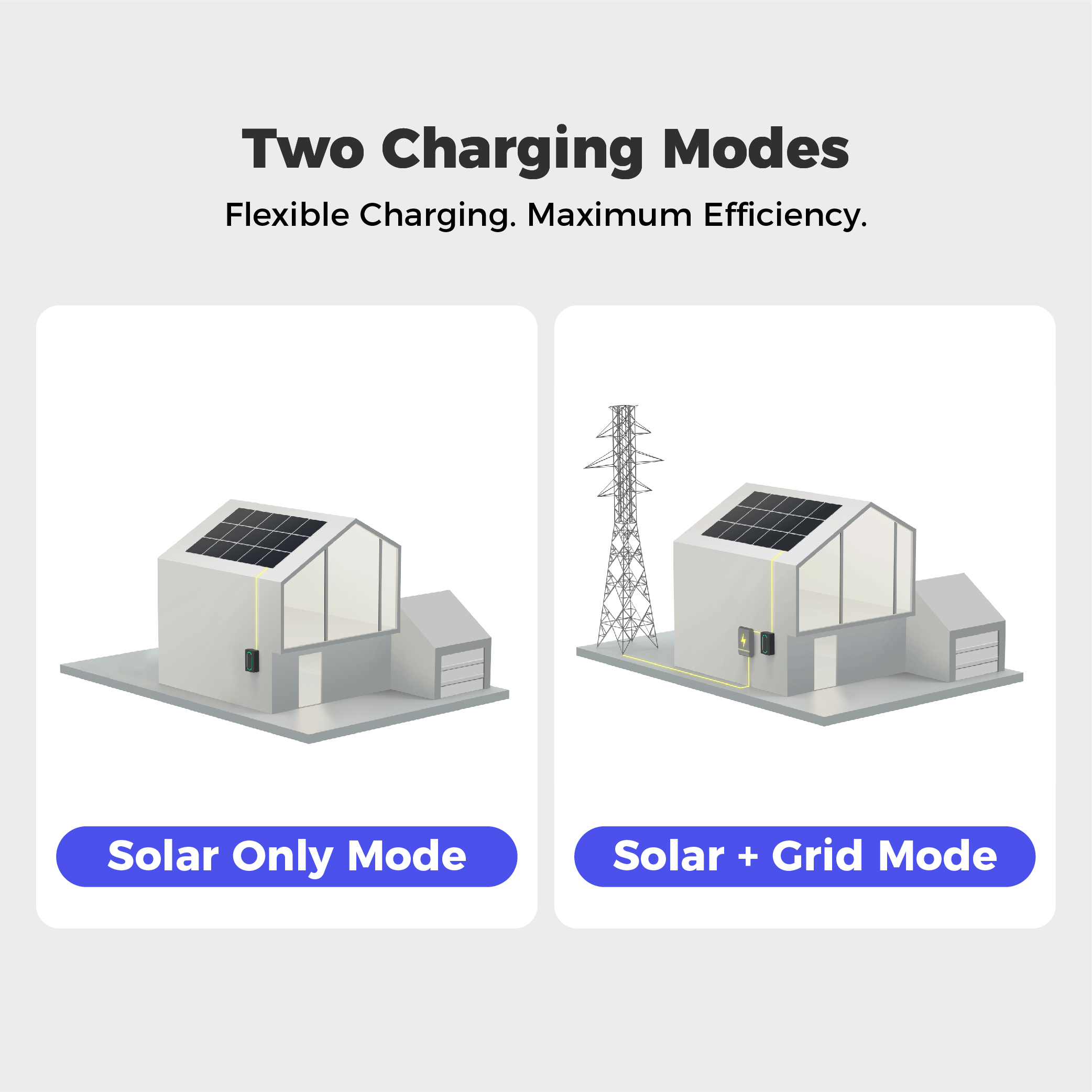

Reduced carbon footprint: Charge with solar energy or even use the energy in your car to power your home.
The charger supports a power range from 1.4kW up to 22kW, compatible with both single-phase and three-phase power systems.
Yes, it has an IP55 protection rating and IK10 impact resistance, making it suitable for outdoor environments and harsh weather conditions.
Users can authenticate via RFID cards, a mobile App, or by using the convenient Plug & Charge feature.
Yes, with connectivity options like WIFI, BLE, and LAN, and support for the OCPP 1.6 JSON protocol, it integrates easily with smart systems.
The device includes protection against under-voltage (UVP), over-voltage (OVP), over-current (OCP), relay stuck issues, and over-temperature, along with integrated 6mA DC RCD protection.

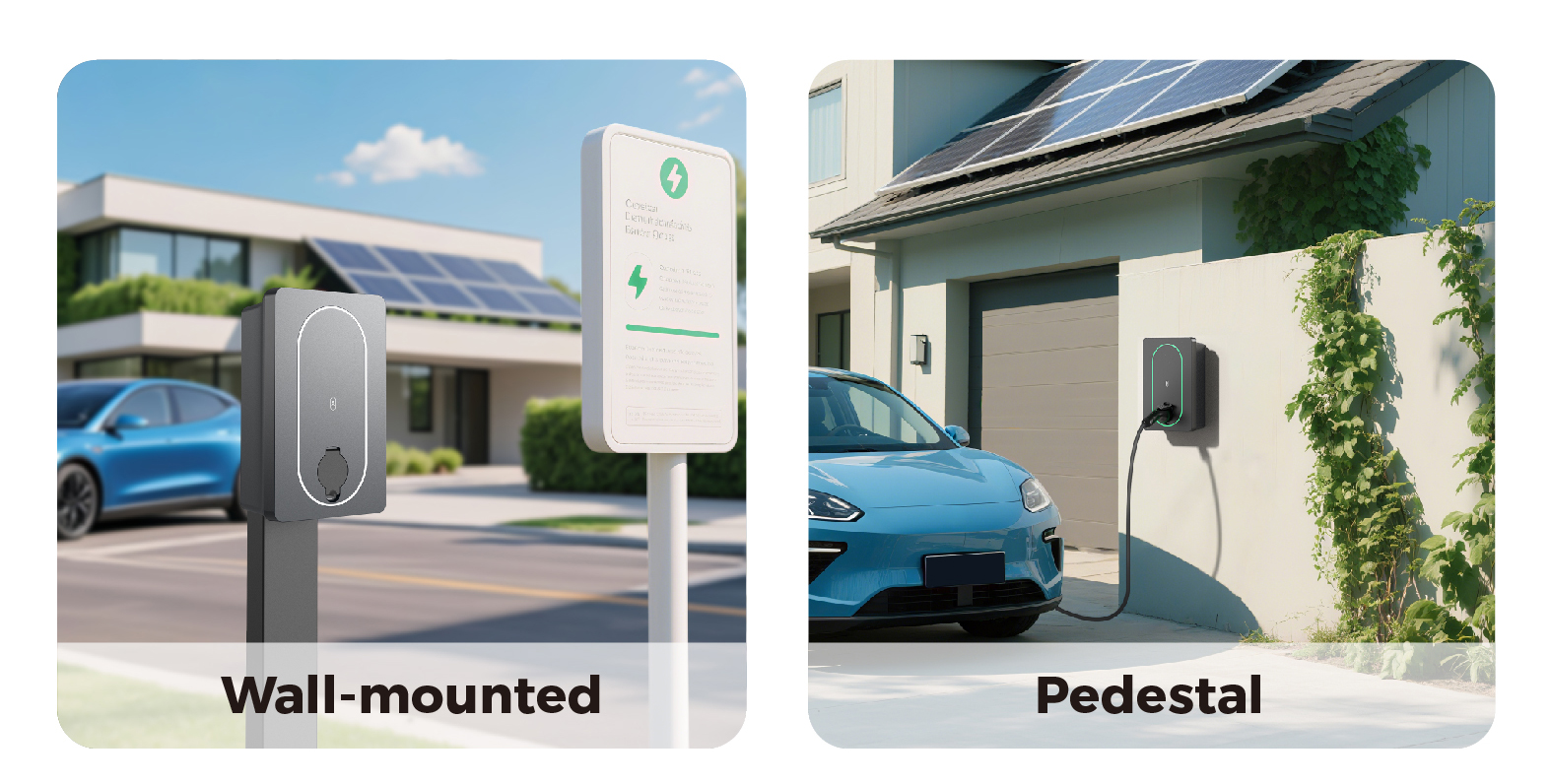

Absolutely. The charger is designed for versatility and supports both wall-mounted and pole-mounted installation methods.
