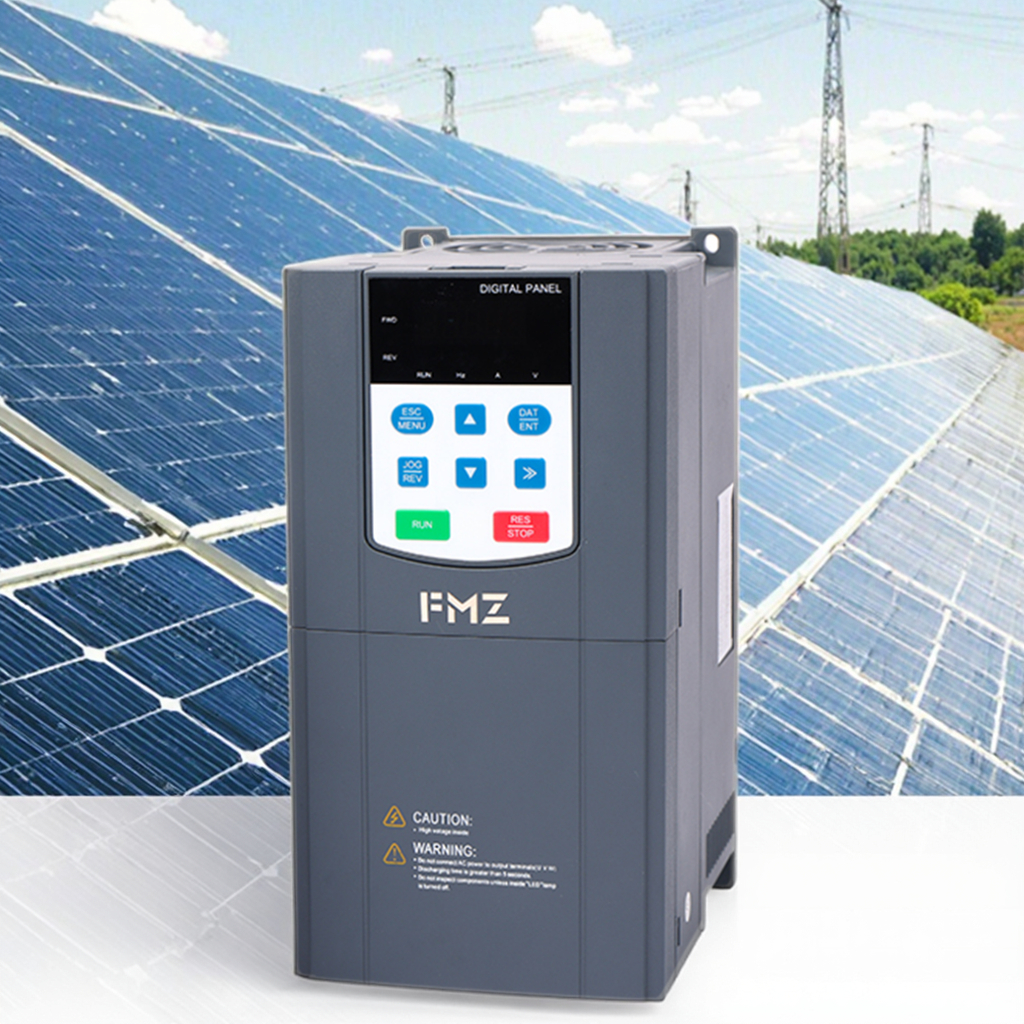

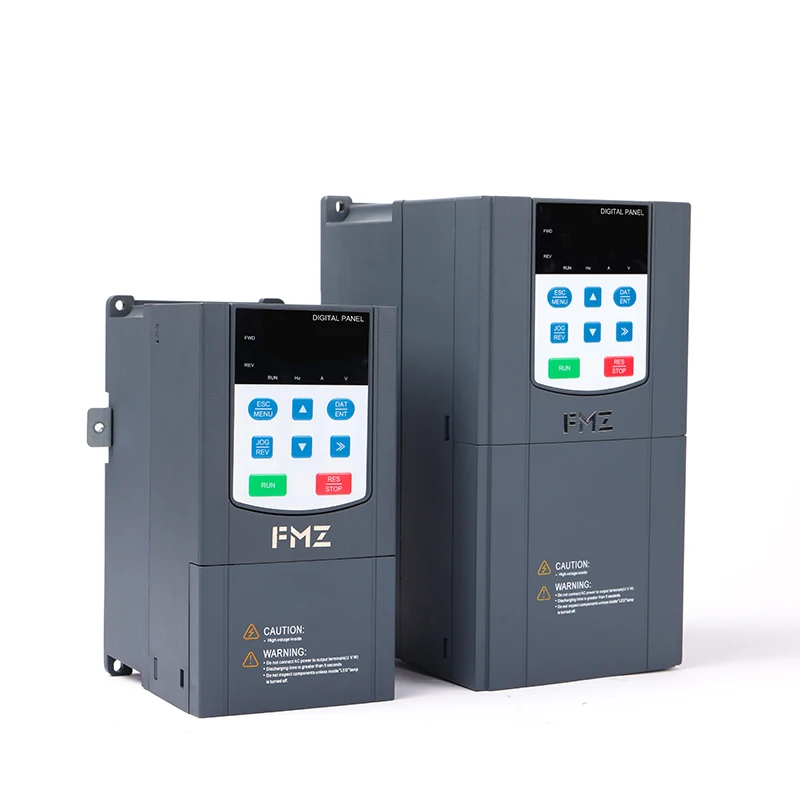

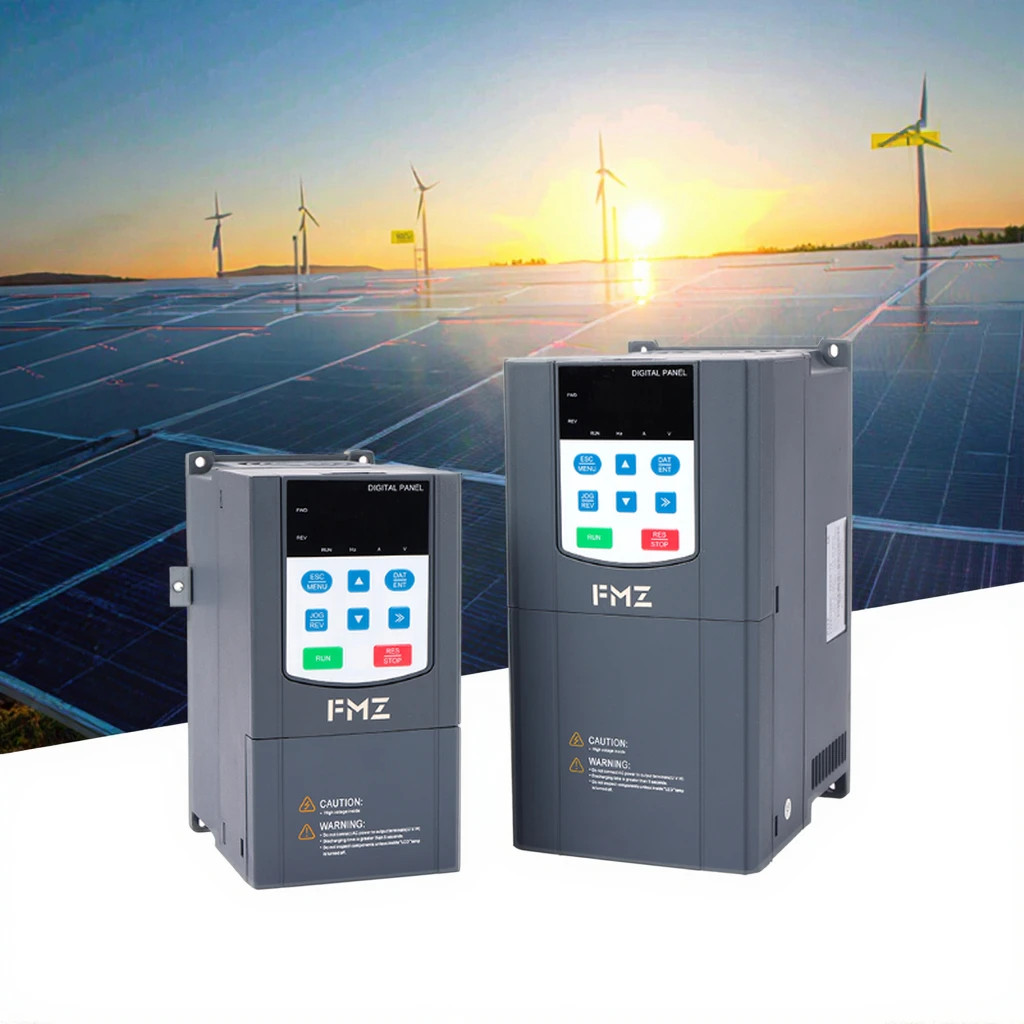

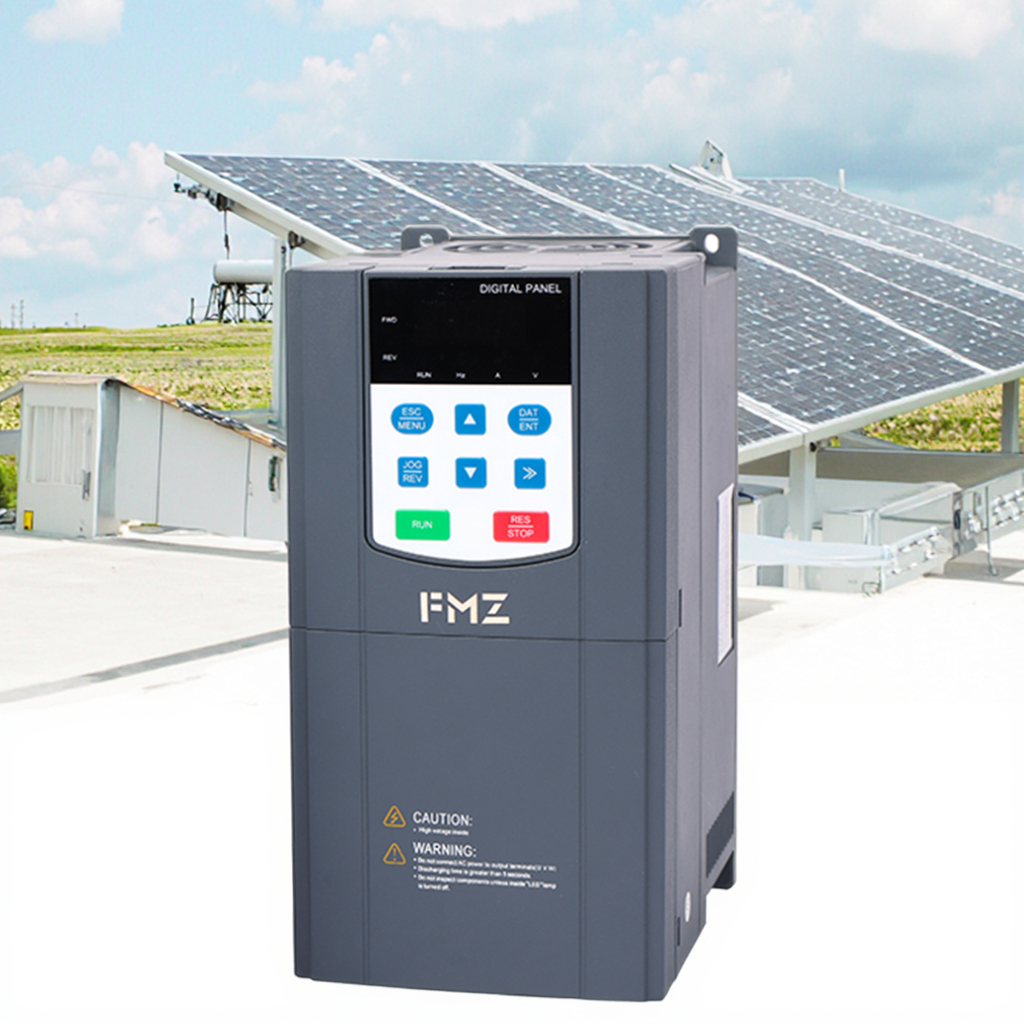

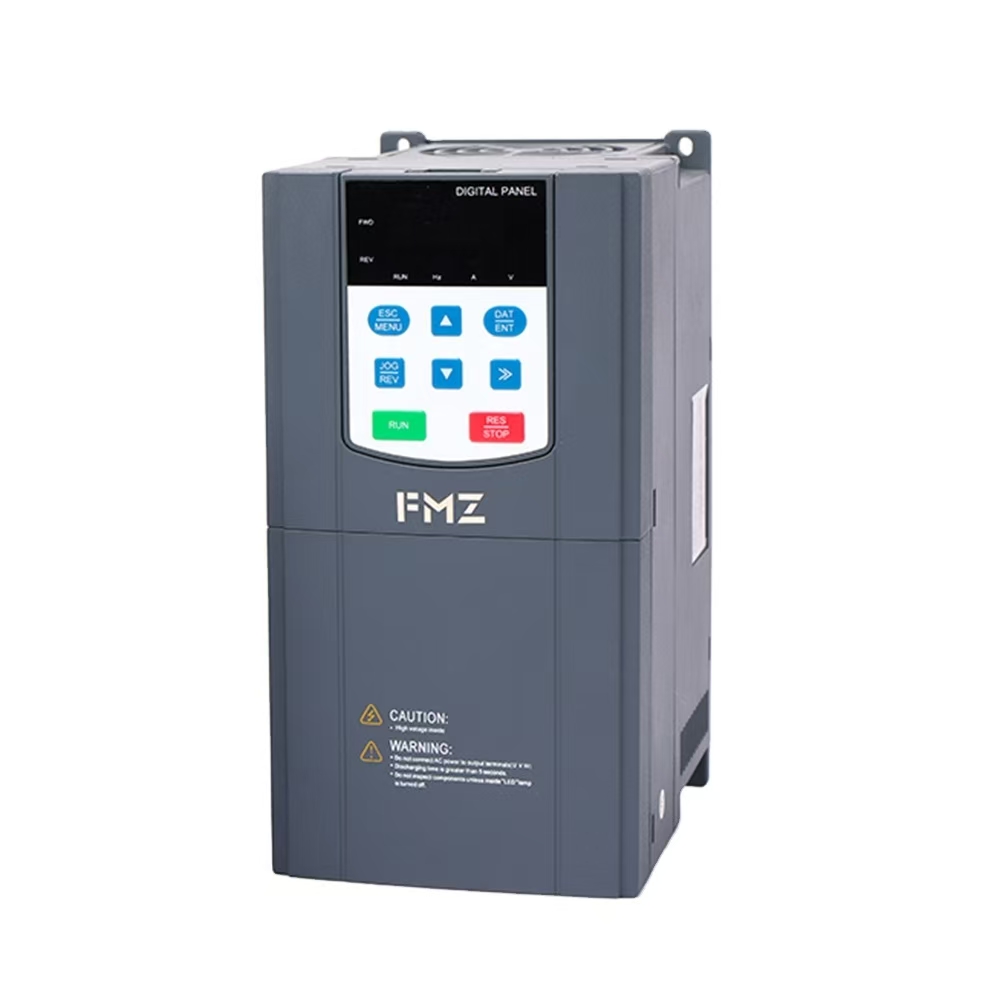

| Product Name | H880G Solar Pump Inverter |
| Model Number | H880G-22RG/30RP-T4 |
| Rated Power(kW) | 22kW |
| Control Mode | VF, SVC |
| Rated AC Input Voltage(VAC) | 220VAC/380VAC |
| Rated DC Input Voltage(VDC) | 200~400VDC |
| Maximum DC Voltage(V) | 800V |
| Starting Voltage(V) | 300V |
| Minimum Working Voltage(V) | 250V |
| Recommended DC Input Range (V) | 300~750V |
| Overload Capacity | 150% 1 min, 180% 10s, 200% 0.5s |
| Output Frequency | 0~600Hz |
| Operating Temperature | -10 to 40℃ |
| IP Protection | IP20 |
| Application | Solar Water Pump |
| Circuit Terminal | Function Description |
|---|---|
| R/L1, S/L2, T/L3 | Three-phase 380V AC or Single-phase 220V AC power supply connection. |
| P+, PB | External braking resistor connection |
| U, V, W | Three-phase AC output motor connection |
| PE | Ground Terminal |
We specialize in R&D, manufacture, sales, and professional technical services for industrial automation control products such as frequency inverters (VFD, AC Drive), soft starters, HMI, motor servos, and PLCs.
Our products are widely applied to CNC machine tools, mining, textiles, metallurgy, lifting, plastics, chemicals, and municipal projects. We focus on providing reliable, intelligent, and customized solutions to meet all machinery equipment and system integration demands.
With an experienced technical team, we offer effective after-sales support including equipment commissioning, operation training, and on-site troubleshooting.
