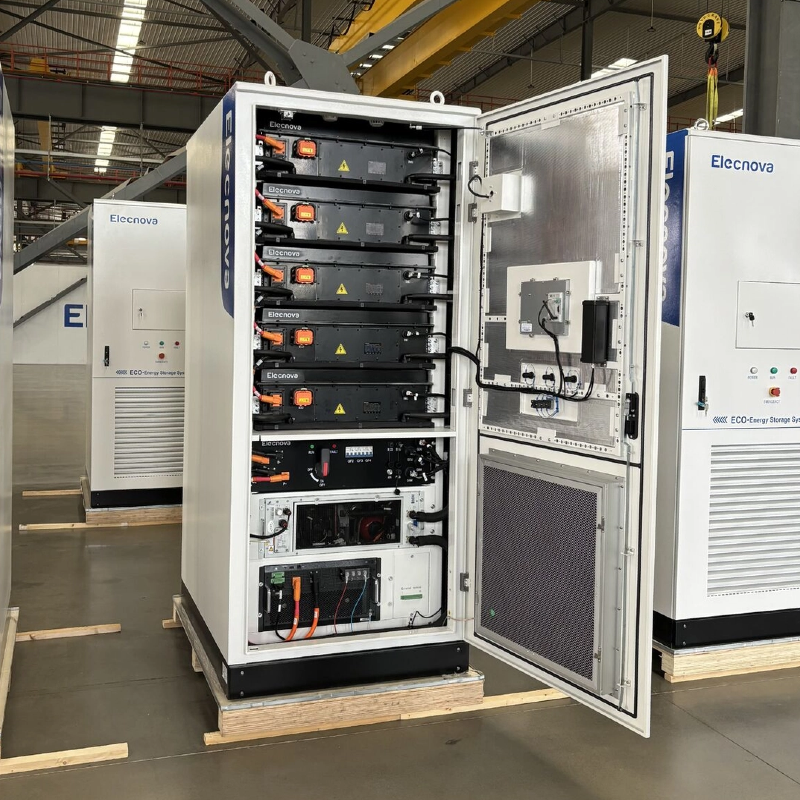

| Parameter | Details | |
|---|---|---|
| DC Side | ||
| Cell Type | LFP 280Ah | |

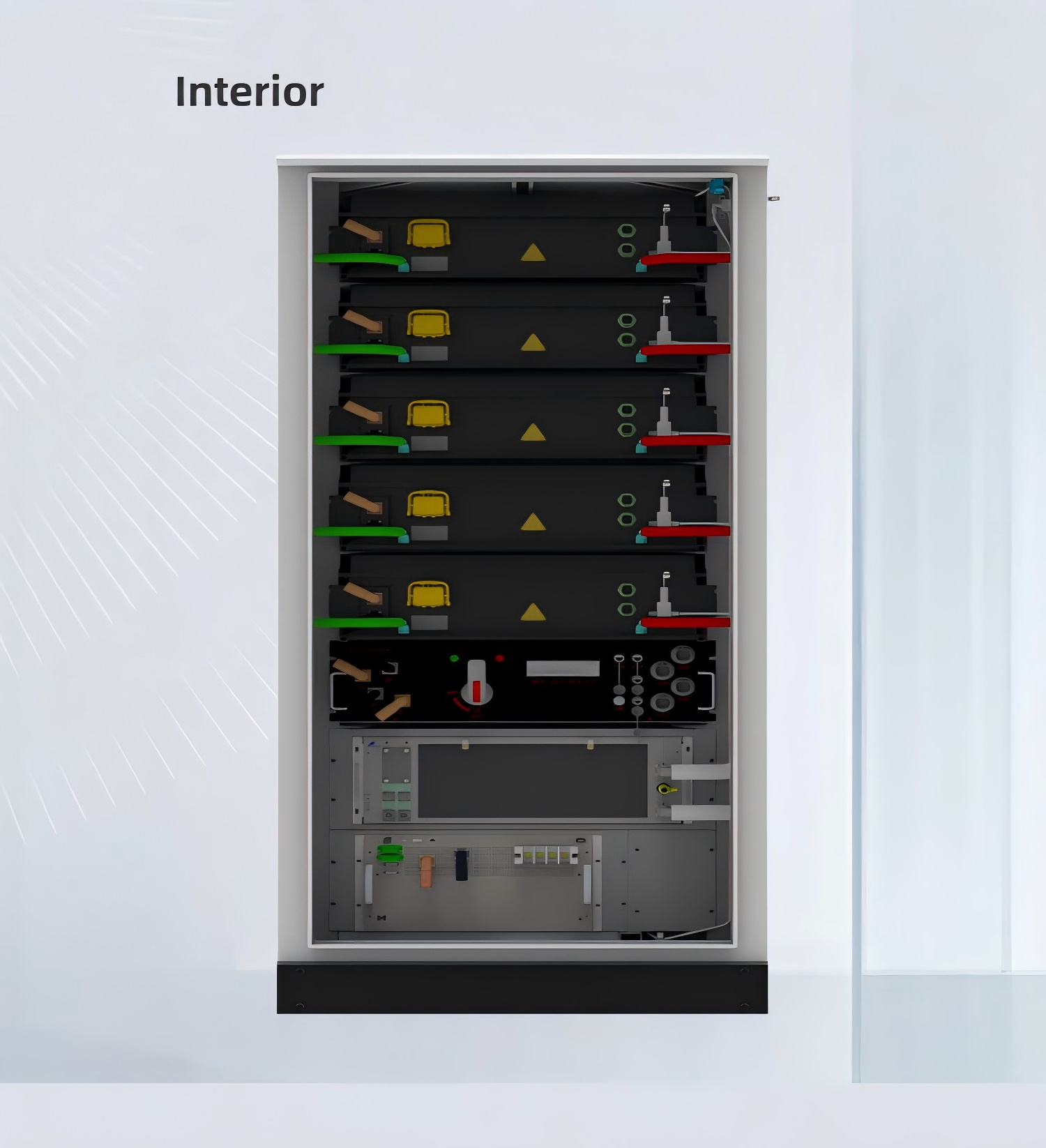

| PACK | 46.592kWh / 1P52S | |
| Battery System | 232.96kWh / 1P260S | |
| Voltage Range | 728~936Vdc | |
| PACK Ingress Rating | IP65 | |
| AC Side | ||
| Rated Power | 100kW | |
| Max. Power | 110kW | |
| THDi | ＜ 3% | |
| DC Ratio | ＜ 0.5%Ip | |
| Nominal Voltage | 400Vac / 3P+N+PE | |
| Nominal Frequency | 50/60 Hz | |
| General Information | ||

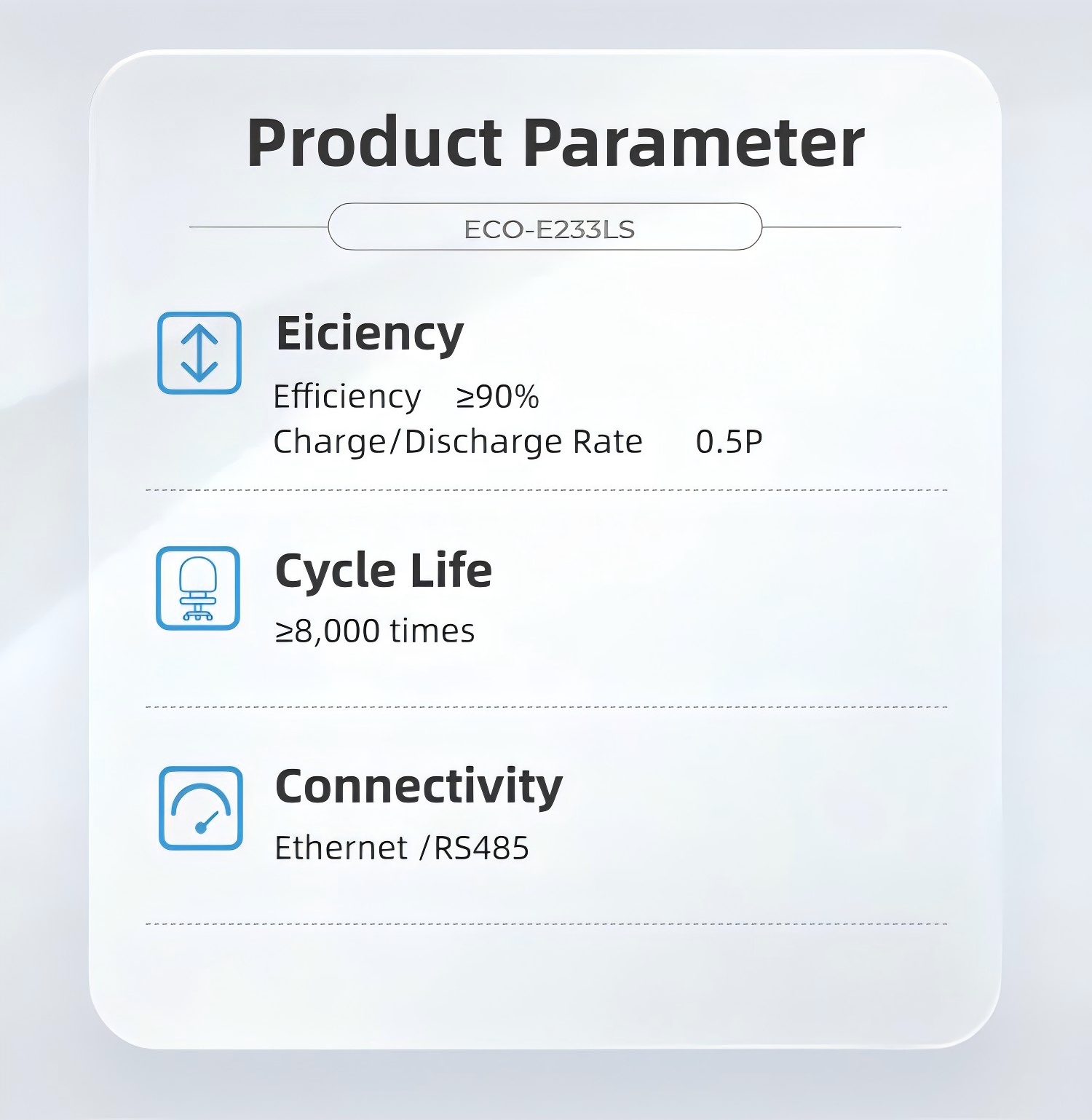

| System Efficiency | ≥ 90% | |
| Charge/Discharge Rate | 0.5P | |
| DoD | 95% | |
| SOC Accuracy | ＜ 3% | |

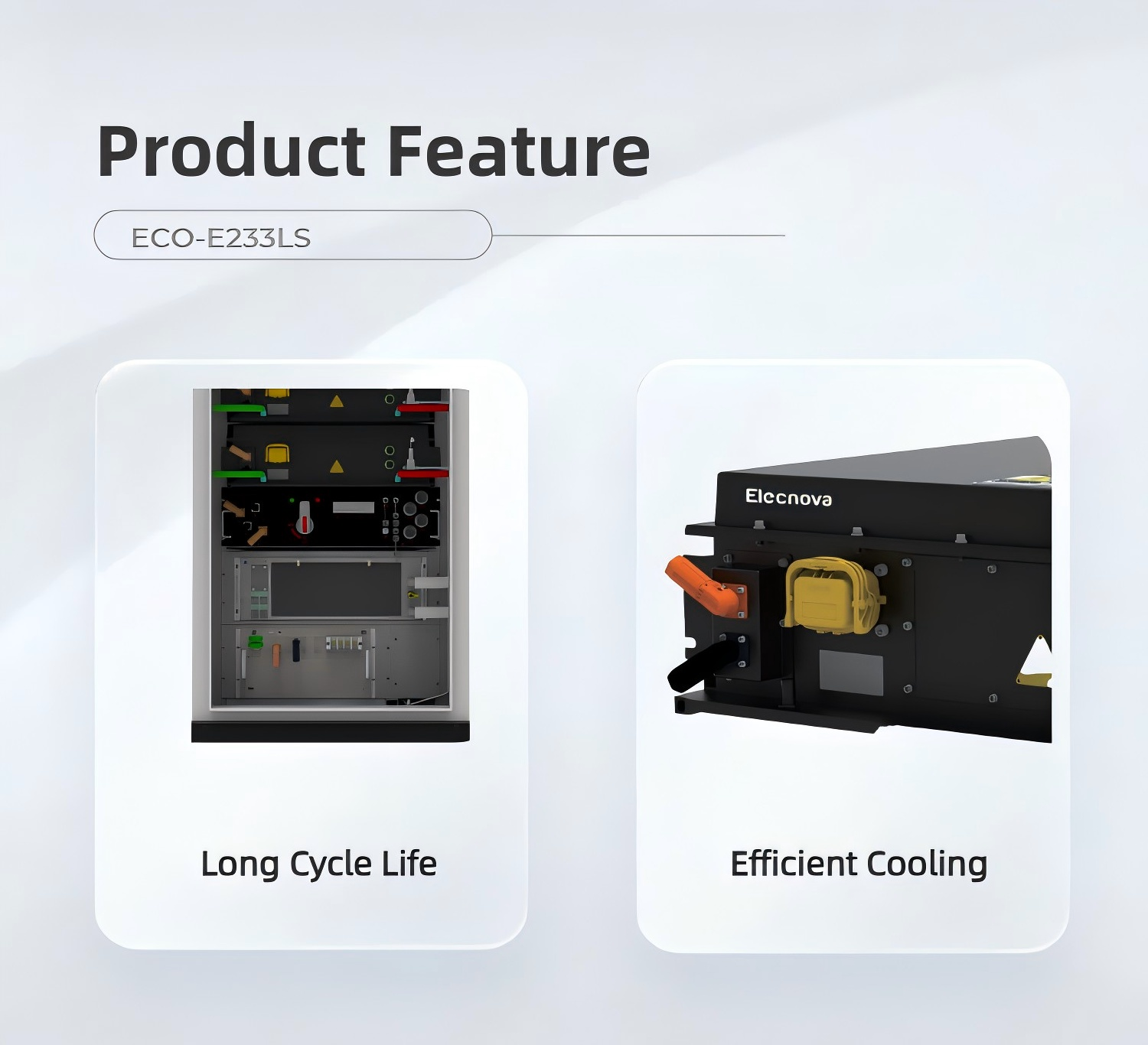

| Cycle Life | ≥ 8,000 times | |
| Switching Time | ＜ 100ms | |
| Connectivity | Ethernet / RS485 | |
| Ingress Rating | IP55 | |
| Cooling | Active liquid cooling | |
| Operating Temperature | -25℃ ~ 55℃ | |
| Humidity | 5-95%RH, non-condensing | |
| Fire Safety | Aerosol | |

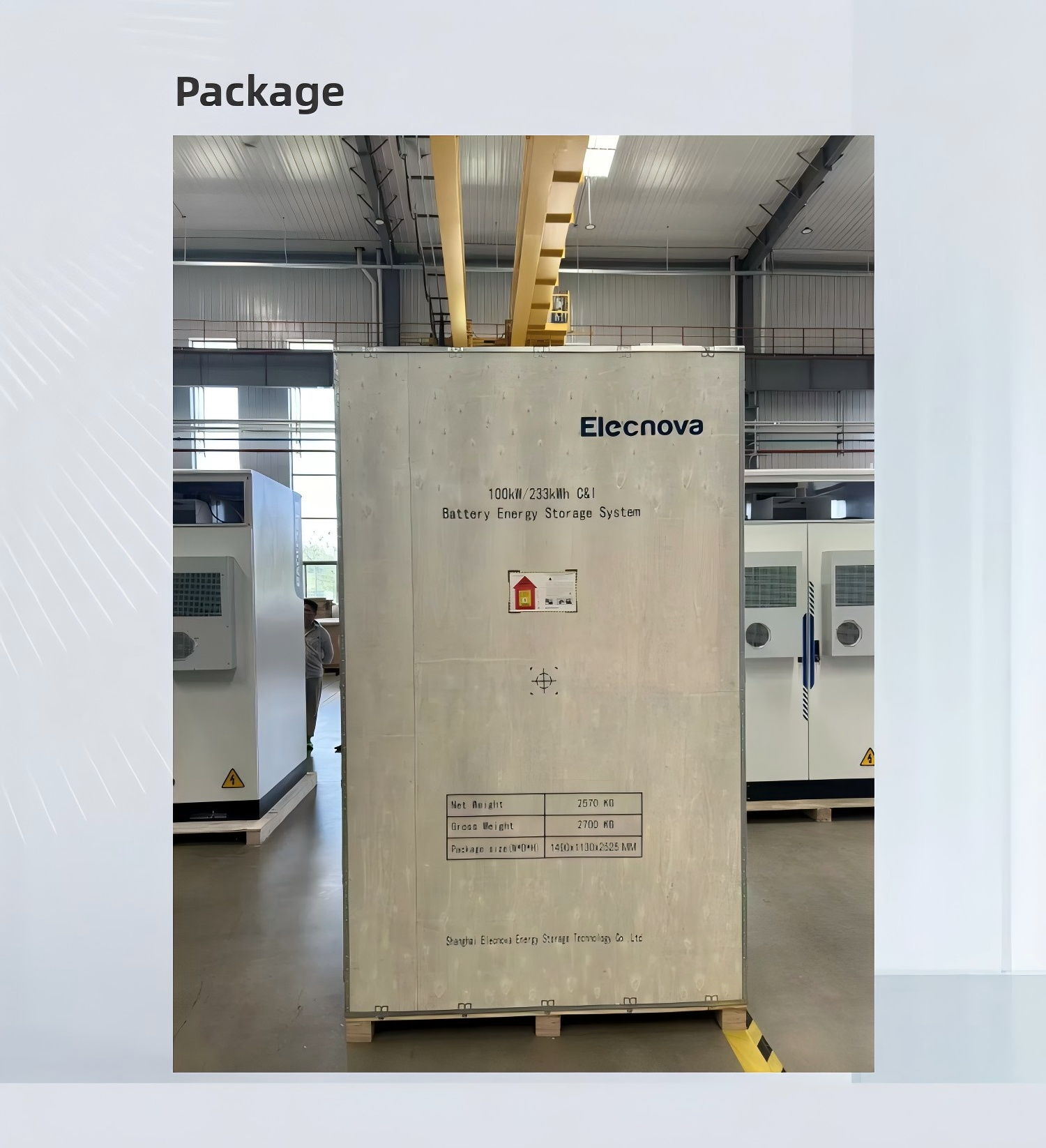

| Dimensions (W*D*H) | 1,050 * 1,350 * 2,400 (mm) | |
| Weight | 2,570kg | |

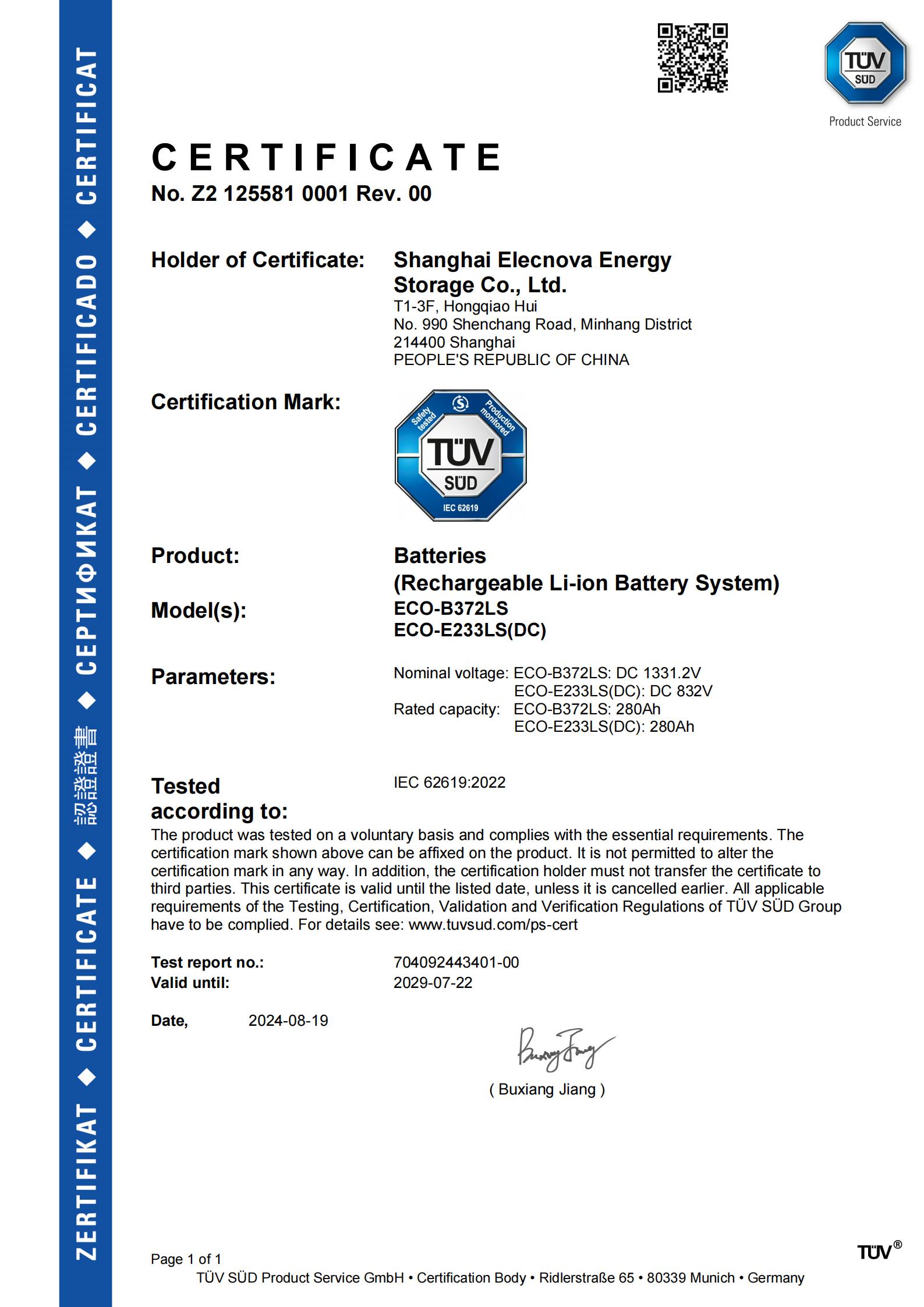

| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, EN50549 | |

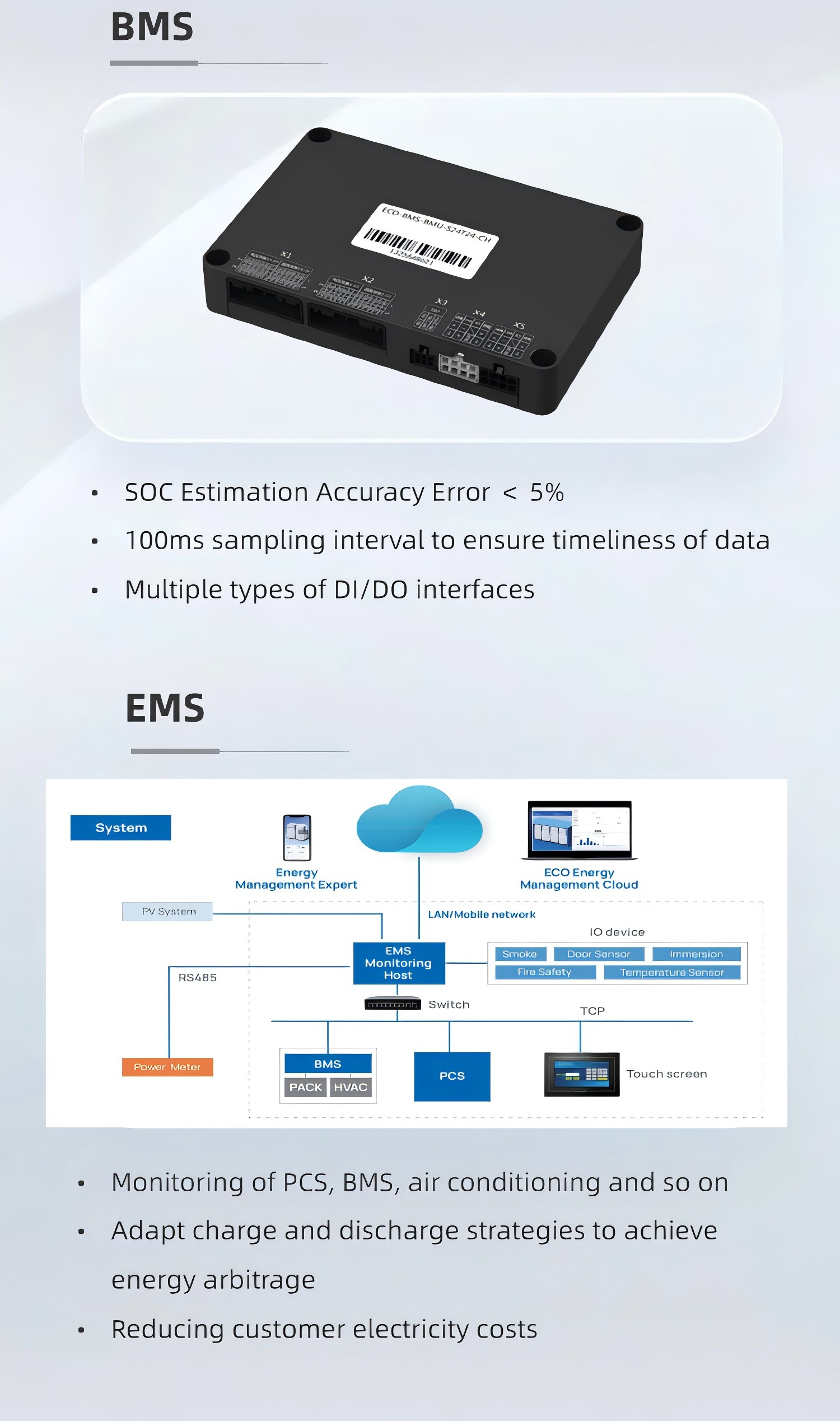

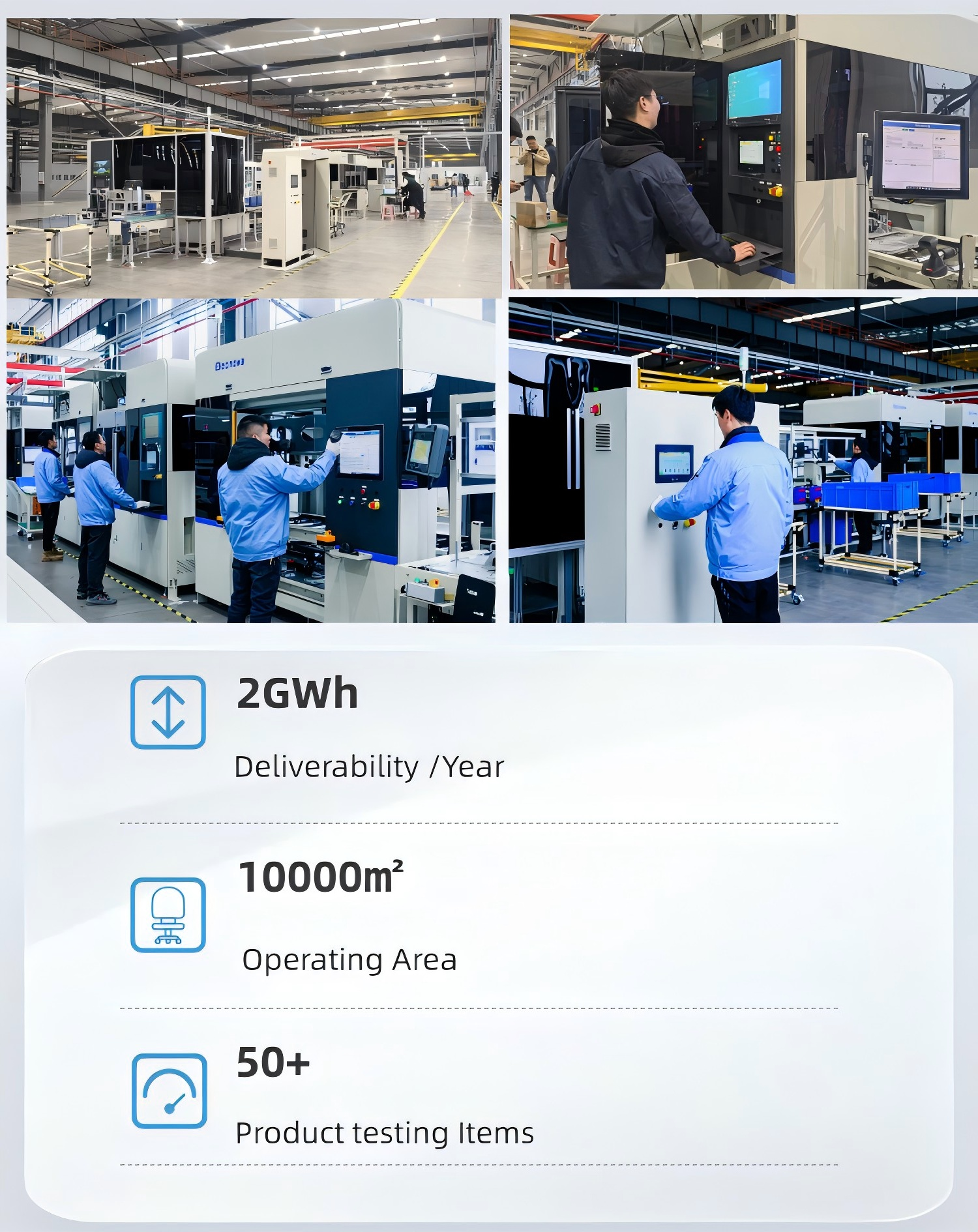

Technology-based enterprise focusing on overall solutions for energy storage systems. The company possesses full supporting capabilities for system integration, including PACK, PCS, BMS, and EMS.
Aimed at meeting diversified energy requirements across segmented markets, the products serve as the core with quality as the cornerstone. We provide high-quality customized products for various scenarios including power generation side, grid side, and user side energy consumption.
