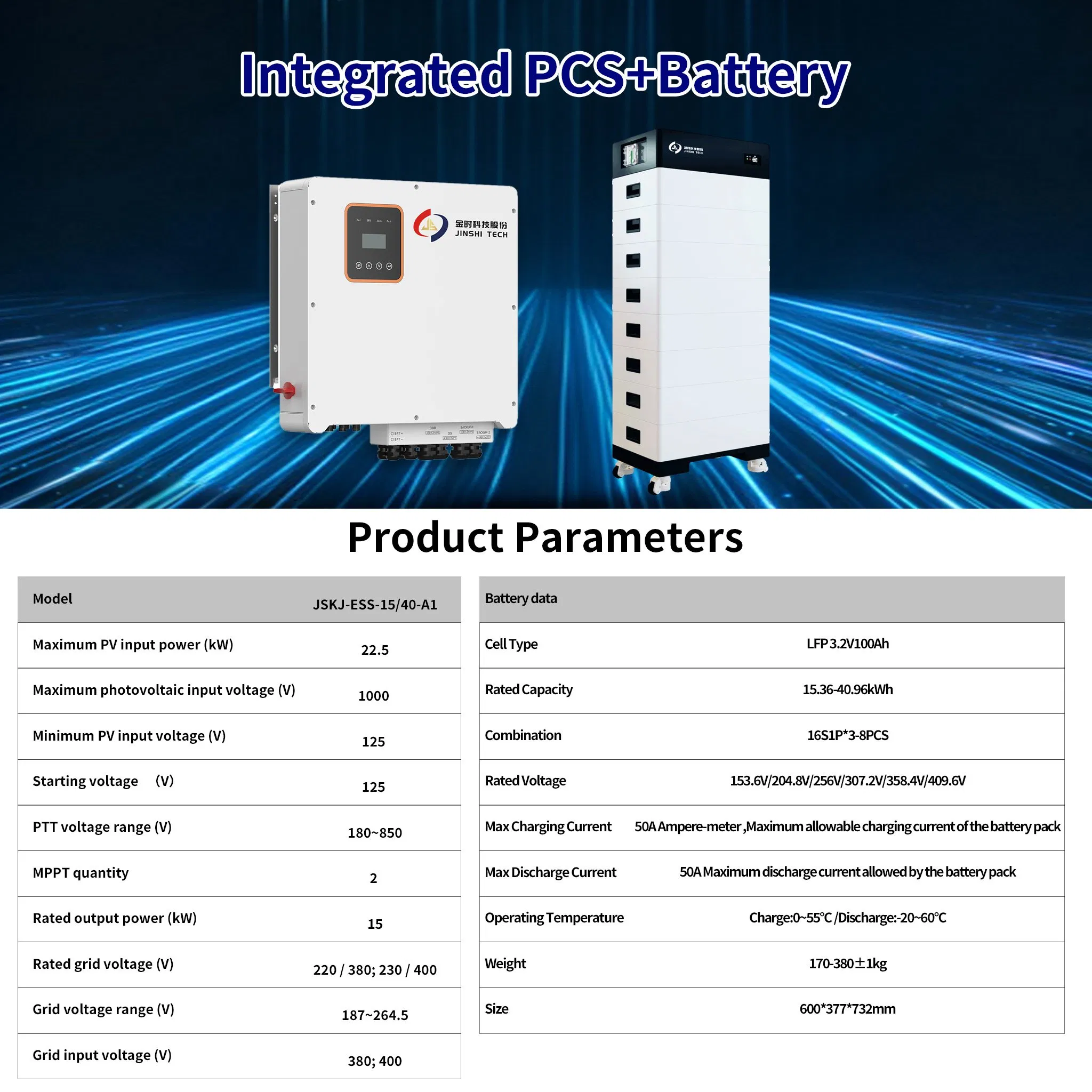

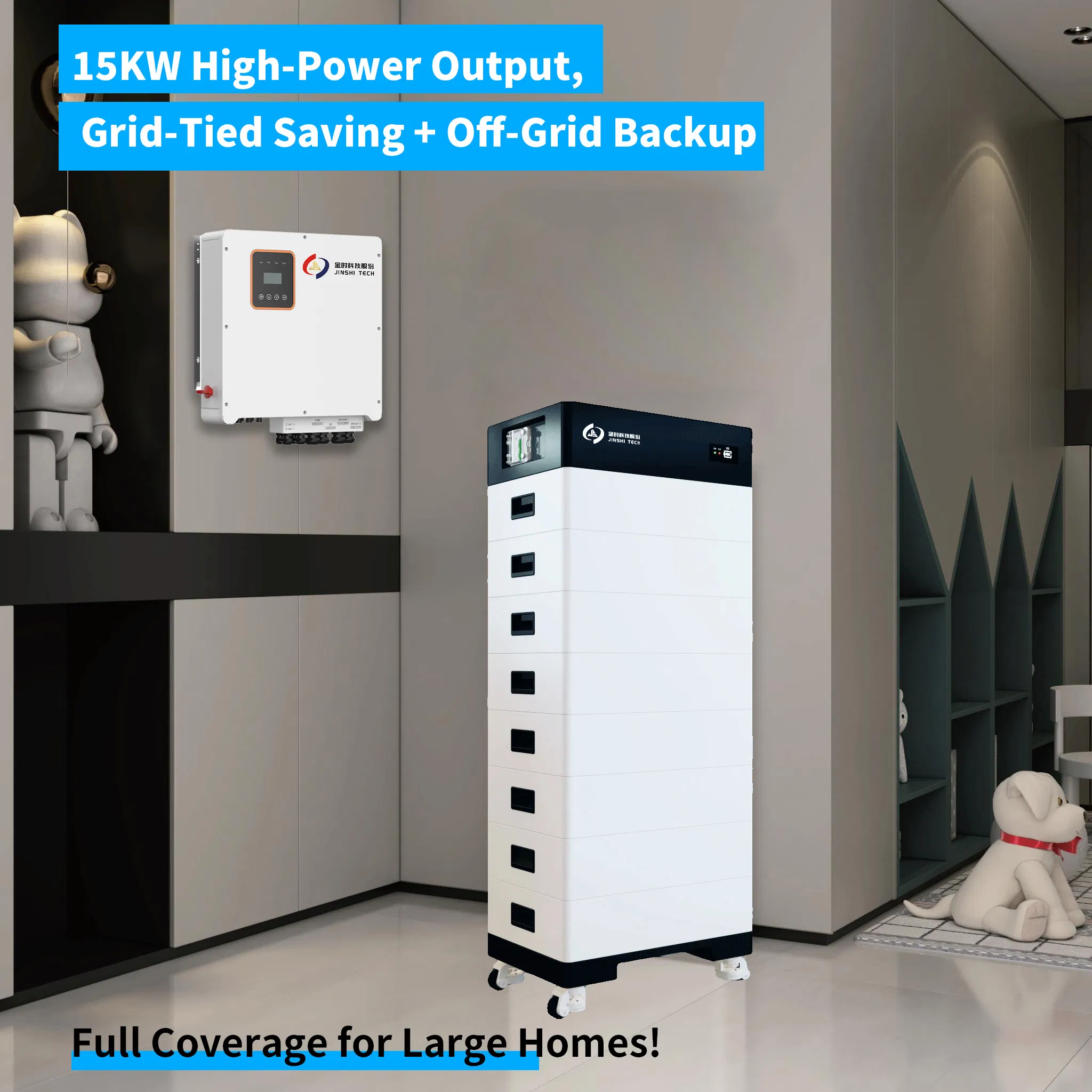

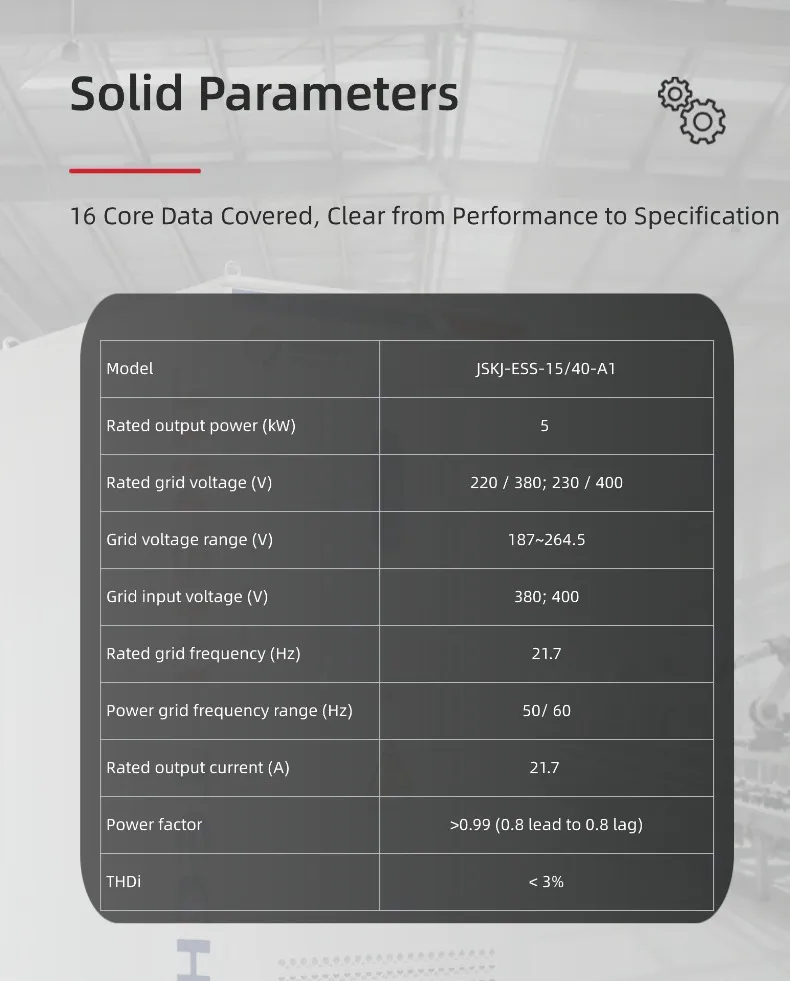

Model NO.
JSKJ-ESS-15KW/40KWh
Maximum Photovoltaic Power
22.5kw
MPPT Operating Voltage Range
180~850
Battery Type
3.2V/100ah/LFP
Rated Voltage
51.2V/1p16s
Nominal Capacity of Battery
40.96kwh
Battery Operating Voltage Range
358.4-467.2V
Maximum Charge Discharge Rate
0.5c@25℃
Cooling System
Natural Cooling
Maximum Working Height
3000m
Frequently Asked Questions
What is the expected cycle life of this battery system?
The system features a cycle life of 6000 cycles at 25℃, ensuring long-term reliability for residential energy storage.
What type of battery technology is used?
It utilizes 3.2V/100ah LFP (Lithium Iron Phosphate) cells, known for their safety and high thermal stability.
Is this system suitable for outdoor installation?
Yes, with an IP65 protection level, the system is designed to withstand various environmental conditions, including dust and low-pressure water jets.
How is the system cooled during operation?
The system employs a natural cooling mechanism, which reduces noise and maintenance requirements while maintaining optimal operating temperatures.
What is the maximum photovoltaic power input supported?
The system can handle a maximum photovoltaic power input of 22.5kw with an MPPT voltage range between 180V and 850V.
What is the nominal capacity of the entire unit?
The nominal capacity of the battery system is 40.96kWh, providing substantial energy backup for three-phase grid/off-grid solutions.
