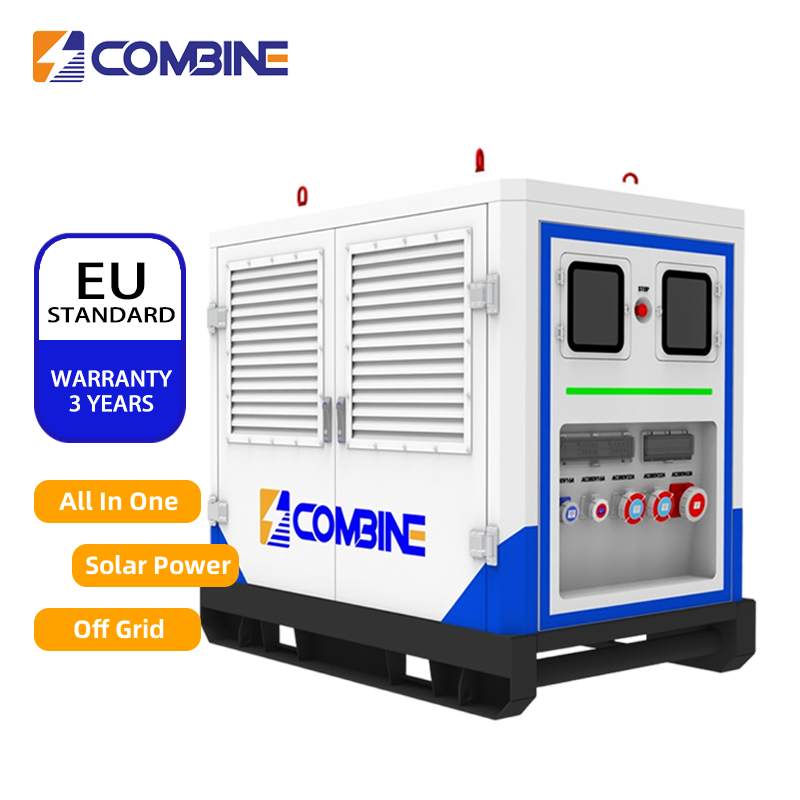

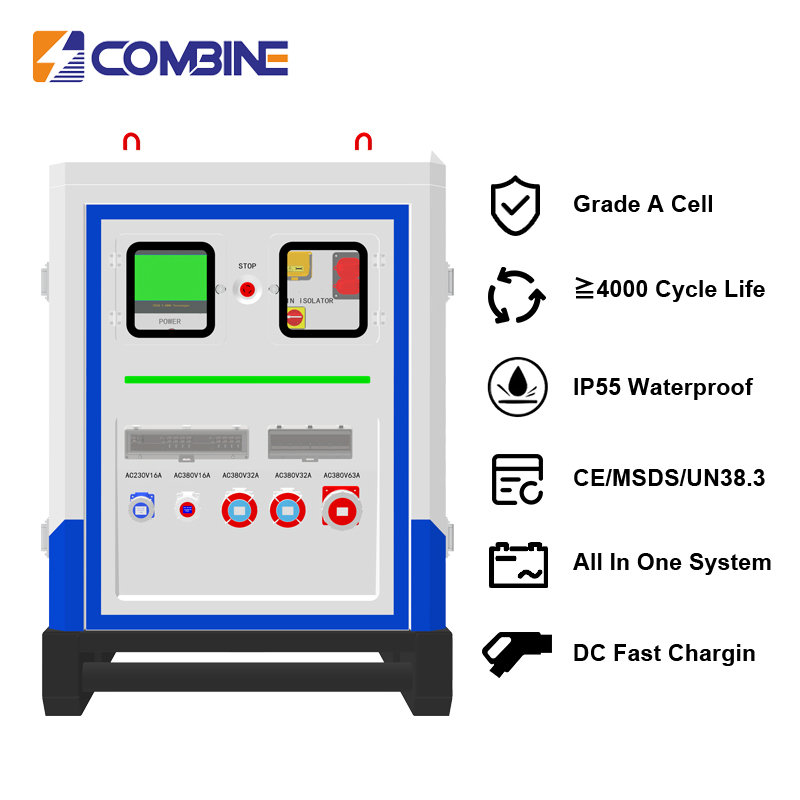

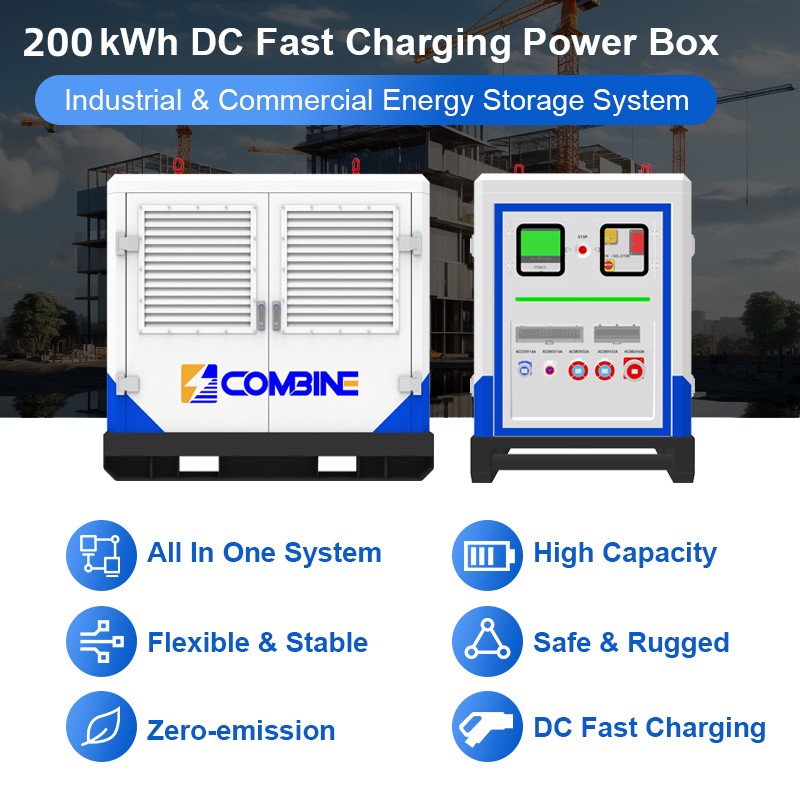

200kWh Hybrid Mobile EV Charger Integration PV Inverter Customize 400V AC/DC Output Charger for Rental Company Distributor

Product Description

Energy Vision
The Vision of Advanced Energy Systems

A clean, safe, economical, and efficient power energy system.

Under the global trend of electrification, our system provides a continuous supply of power for different industries and fields through modular design. Customized local standards are used in different countries and regions. Years of product testing in Europe, Australia, and Africa have proven the stability and powerful performance of the product.

Mobile ESS Future
The Future of Industrial MOBILE ESS

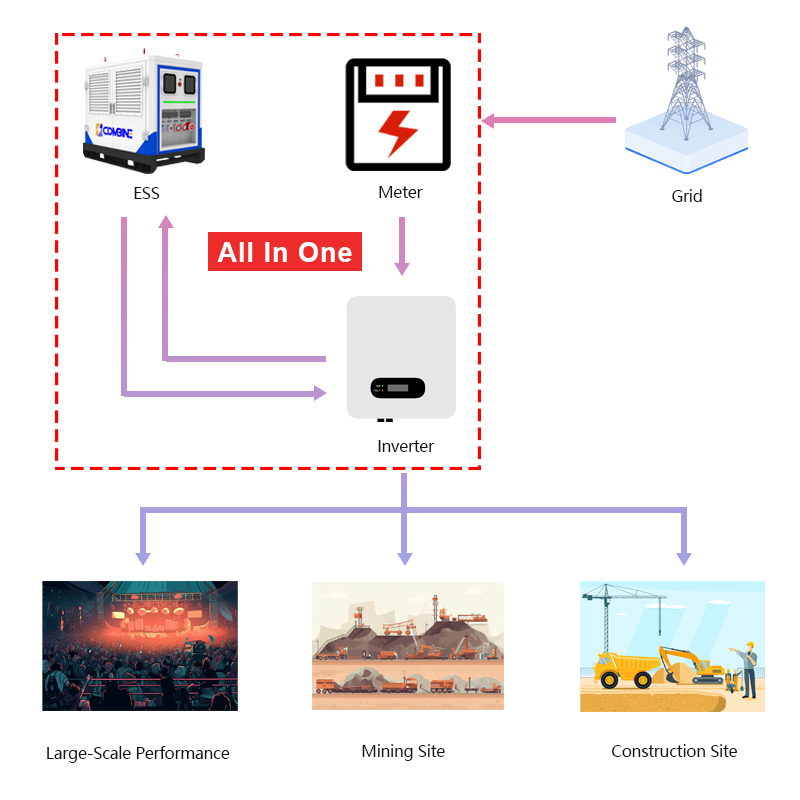

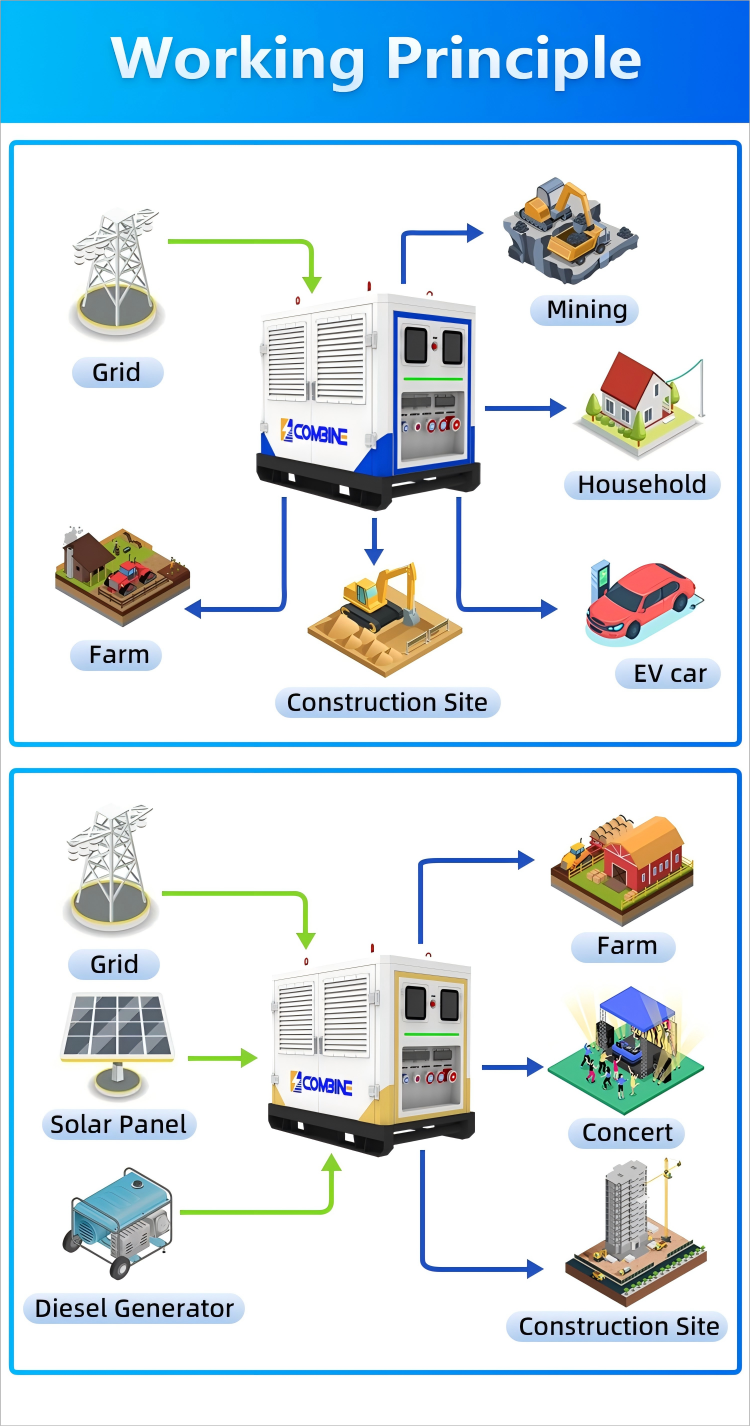

This ESS perfectly adapts to diesel generators, mains power, and solar power input, providing all imaginable power output methods and interfaces. Whether it's a small electric wrench or a large excavator weighing over 5 tons, an electric solution can be found in our mobile ESS. Our equipment includes up to 10 output ports of different specifications, ranging from 220V AC to 800V DC output.

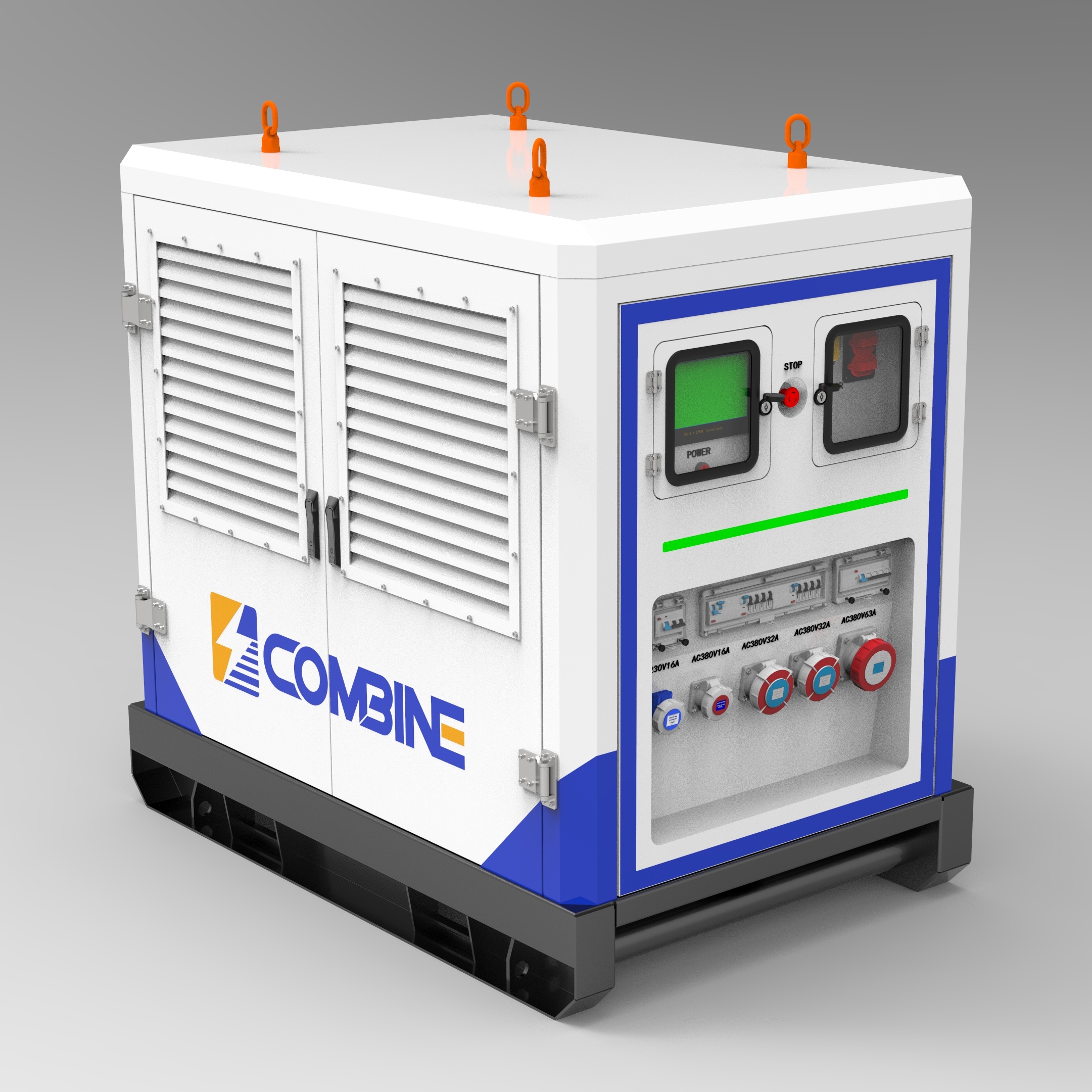

Unit View 1
Unit View 2
Technical Specifications
Parameter Specifications Details
Energy 160 kWh 280Ah/180S1P
Voltage 576V -
Capacity 280Ah 3.2V 280Ah (Cells)
Input AC Input Power 40kW Three-phase Backward Compatibility
AC Input Plug CEE 380V 63A/32A -
DC Input Current 150A -
DC Input Plug CCS2 / GB -
Output AC Output Power 40kW -
AC Output Plug CEE 380V 63A/32A/16A CEE 230V 16A
DC Output Current 150A -
DC Output Plug CCS2 / GB Gun -
Application Outdoor / Construction Site Mining / Industrial
IP Rating IP55 High Durability
Device Dimensions
Core Technology & Features

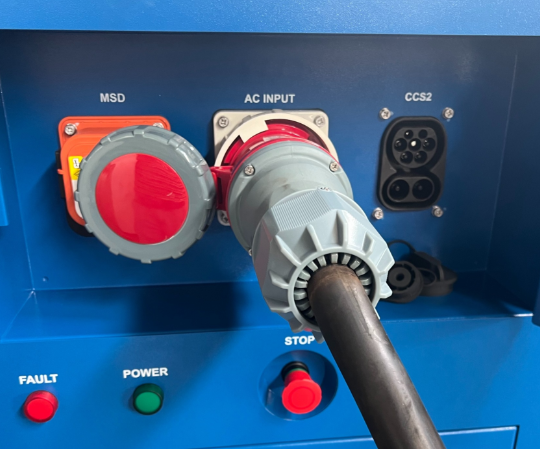

AC/DC Port

AC/DC Input Port Fast Charge: Combining AC and DC charging methods for a wider range of application options. Plug and play design.

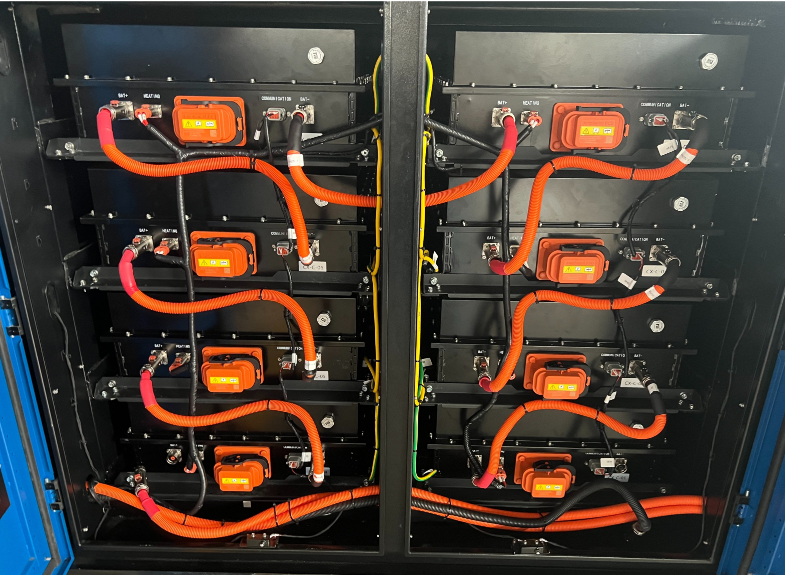

Battery Pack

IP 65 Standard Battery Pack: High-standard battery packs with strong dust and water resistance. Over 6000+ cycle life.

DC Charge Gun

Max 160kW DC Output: Mobile EV charging stations can recharge vehicles with over 100kW of power anytime and anywhere.

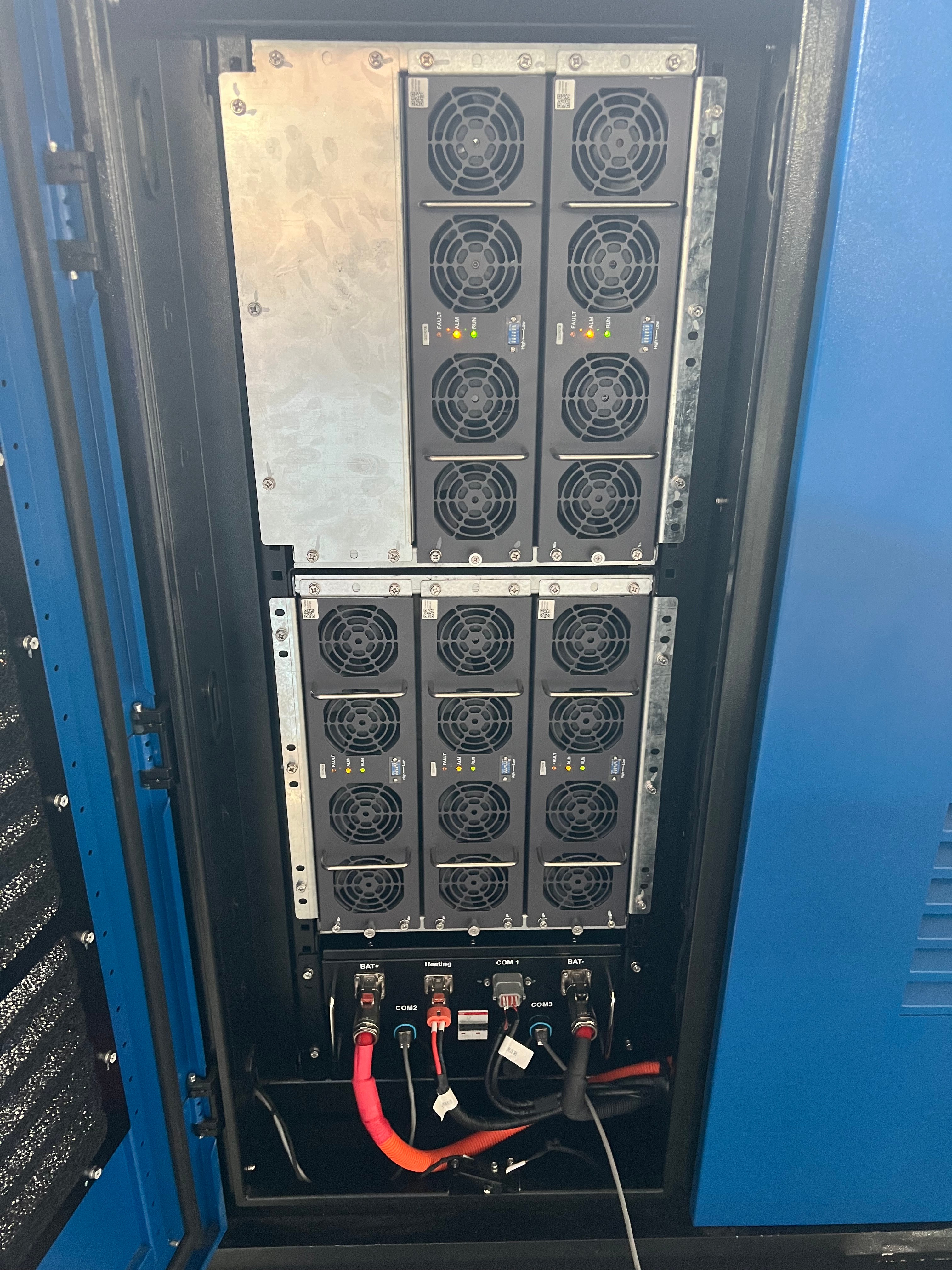

PCS Module

High Quality PCS: Maintains stability during charging/discharging. Freely switch between AC and DC demands.

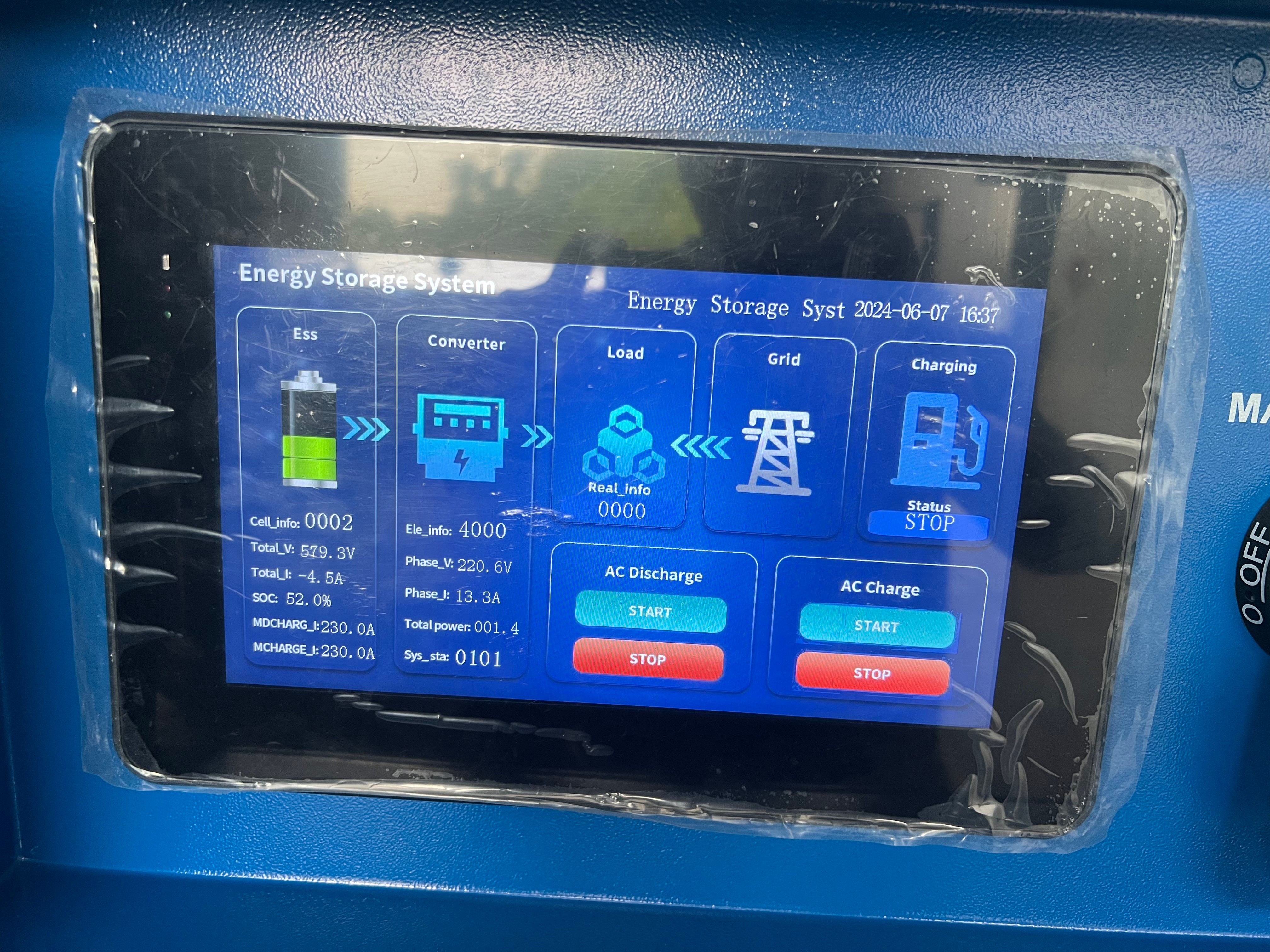

Touch Screen

Full-color Touch Screen: Intuitive control and monitoring interface.

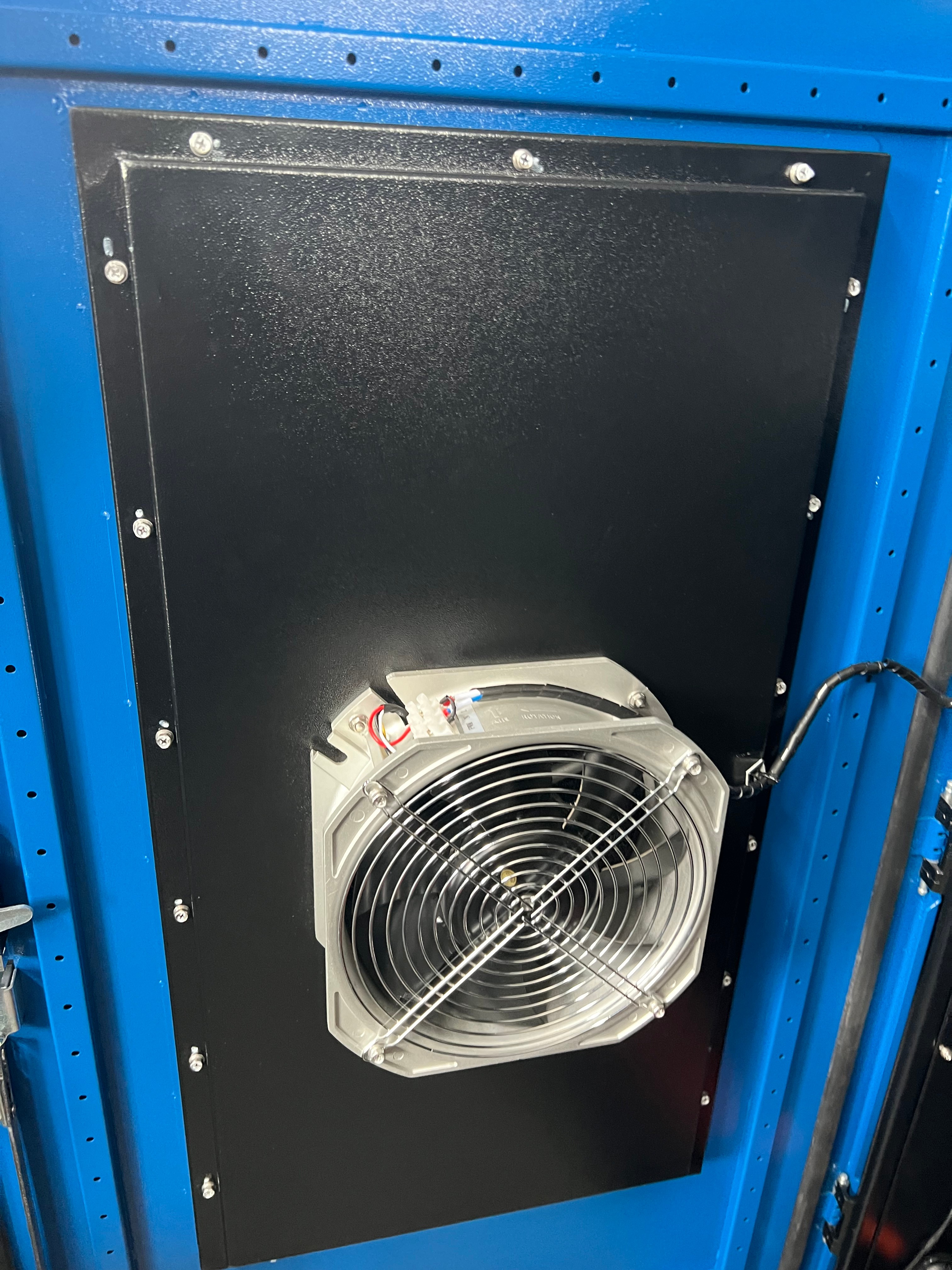

Cooling System

Air Cooling System: Efficient thermal management for stable performance.

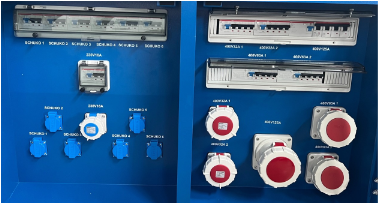

CEE Plugs

Multiple CEE Output Plugs: Versatile connectivity for various equipment.

Industry Applications
Application Case
🛡️ 1. Strict Environment: Adaptable to harsh mining environments. Shell sealing, internal battery packs, and fire/water resistance standards ensure the safest performance.
🏗️ 2. Versatility in Industrial: On complex construction sites, it can charge various power tools or provide stable temporary power.
💰 3. Economic Efficiency: Combined with solar PV power, it offers cheap electricity for over ten years and enables on-grid systems to sell electricity.
⚙️ 4. For Rental & Distribution: Modular design with customization services (OEM). Sheet metal, LOGO, and external spray painting can be changed at will.
Display 1
Display 2
Display 3

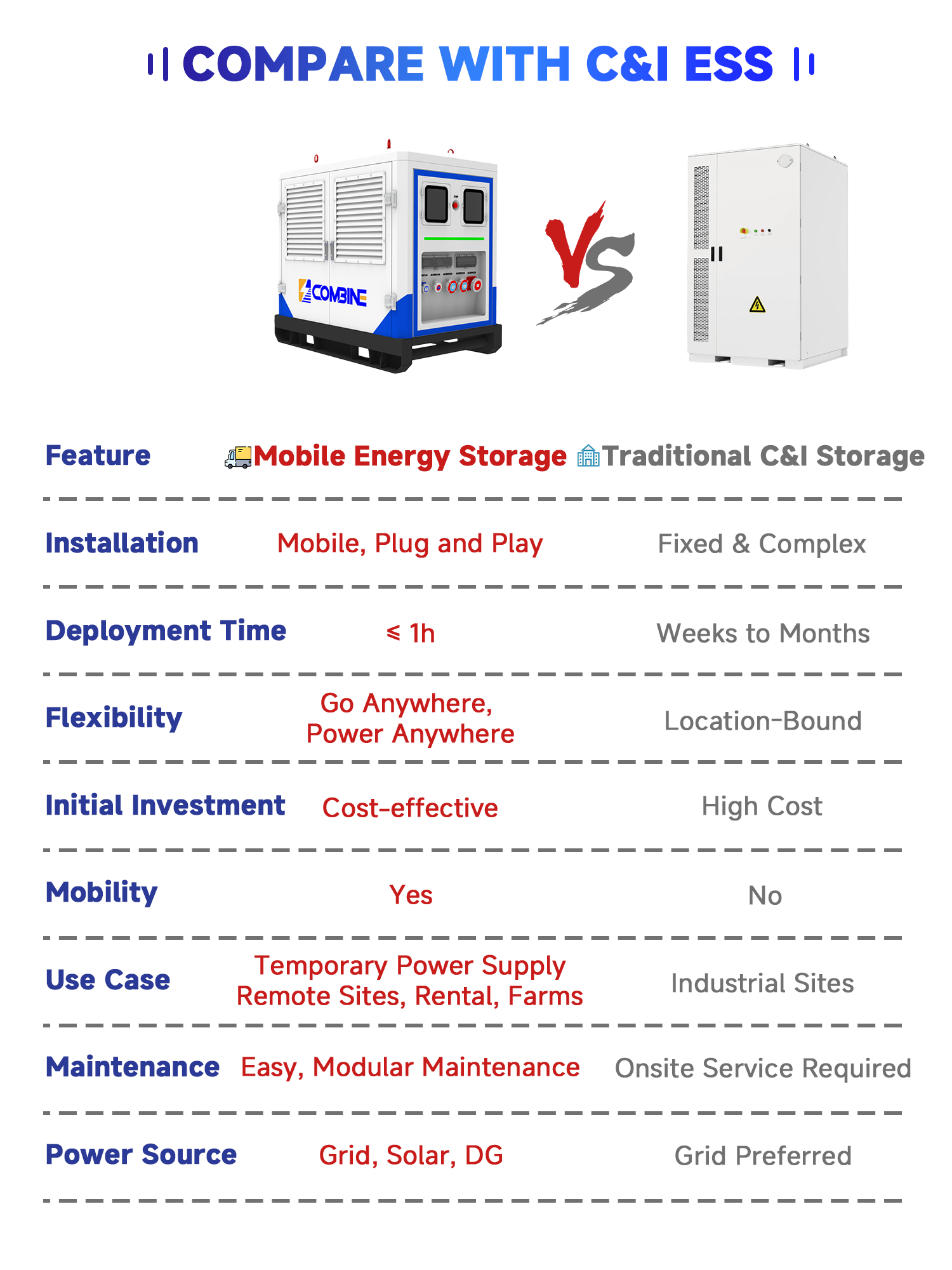

Display 4
Display 5
Display 6
Frequently Asked Questions
Q1: What is the total energy capacity of the mobile ESS?
A: The system provides a high capacity of 160 kWh, utilizing 280Ah high-standard cells for long-duration power supply.
Q2: Can the system be used in harsh outdoor environments?
A: Yes, the unit is rated at IP55, and the internal battery packs meet IP65 standards, making it highly resistant to dust and water in mining or construction sites.
Q3: What are the charging input options?
A: It supports both AC input (40kW via CEE 380V plugs) and DC input (150A via CCS2 or GB ports) for fast and flexible recharging.
Q4: How many power output ports are available?
A: The equipment features up to 10 output ports, including various CEE AC plugs (380V and 230V) and a DC charging gun with up to 160kW output power.
Q5: What is the expected lifespan of the battery system?
A: The battery packs are designed for longevity with over 6000+ cycle life, ensuring years of maintenance-free operation.
Q6: Is customization available for distributors?
A: Yes, the system adopts a modular design. We offer OEM services including customized sheet metal, LOGO branding, and external paint colors.
