| Installation Site | Open ground | Ground clearance | Customized |
| Panel | Solar panel for any size | Inclination | Customized |
| Structural materials | Aluminum alloy 6005 T5+Q235 | Panel direction | Portrait or Landscape |
| Survival wind load | Up to 130mph | Design standard | BS 6399-2-1997 |
| Design snow pressure | Up to 30psf(1.4kn/m2) | Warranty | 10 years on Aluminum material |

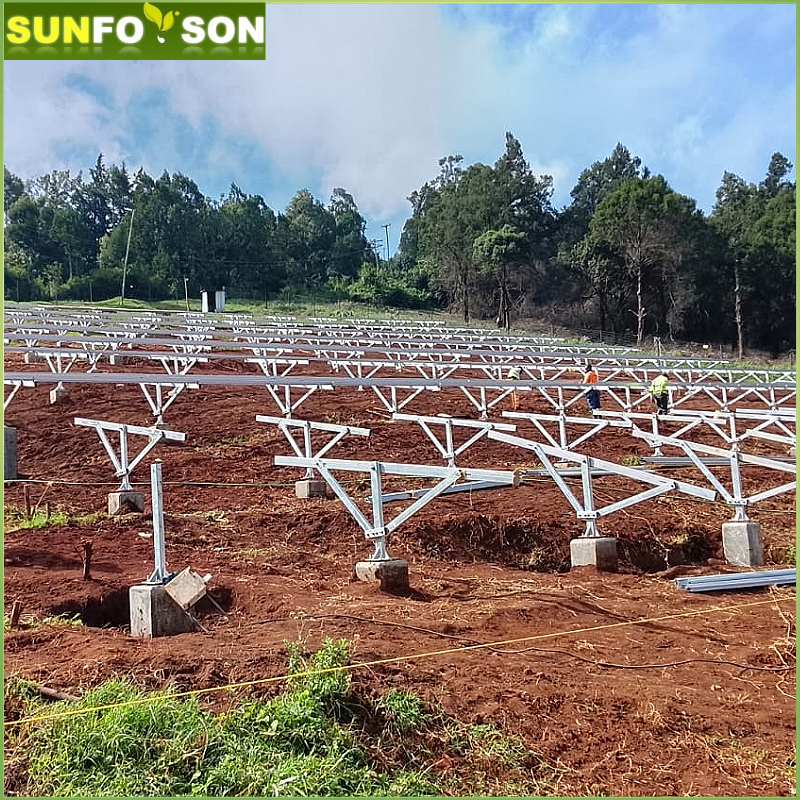

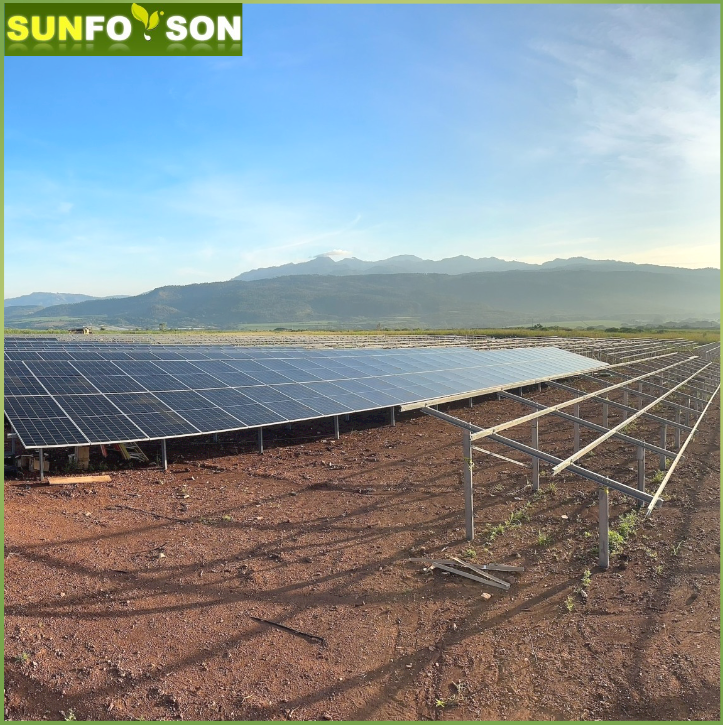

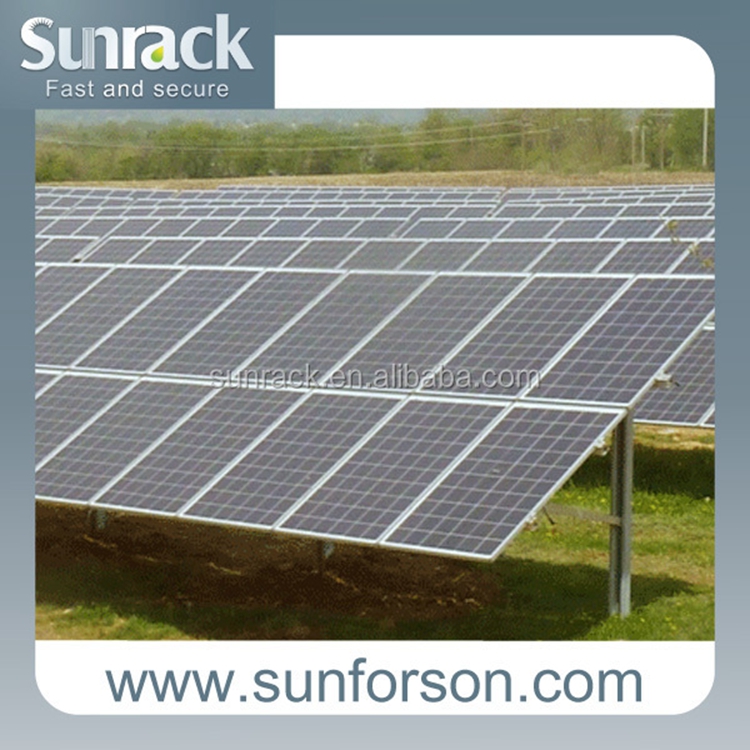

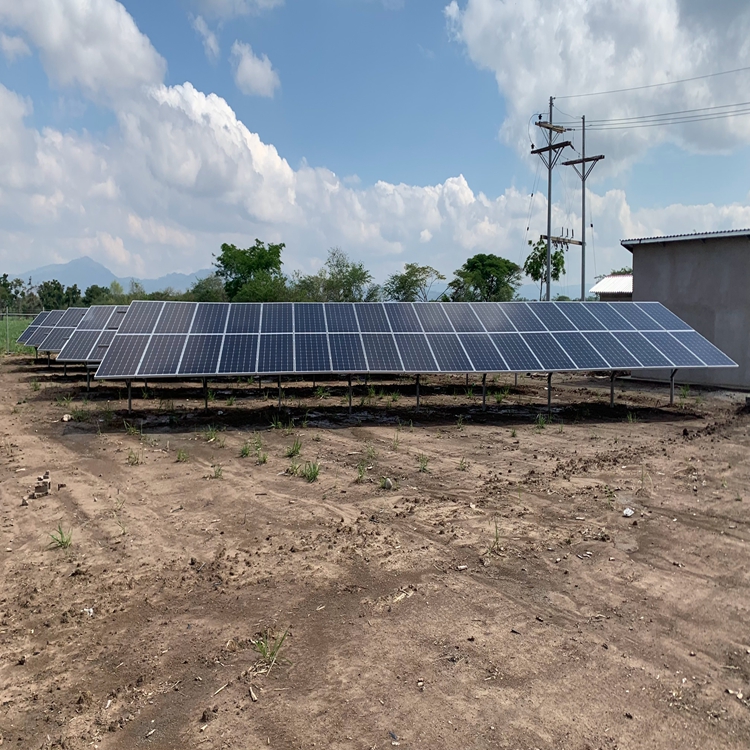

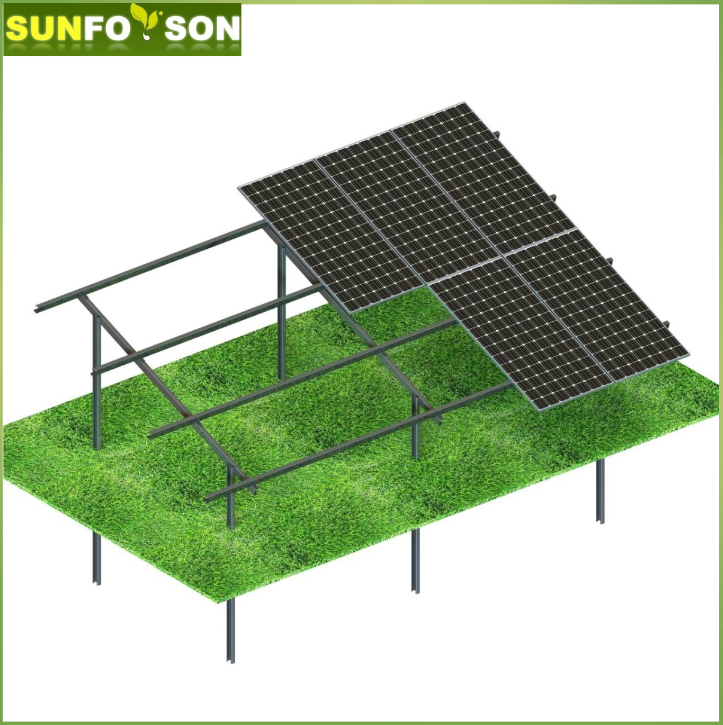

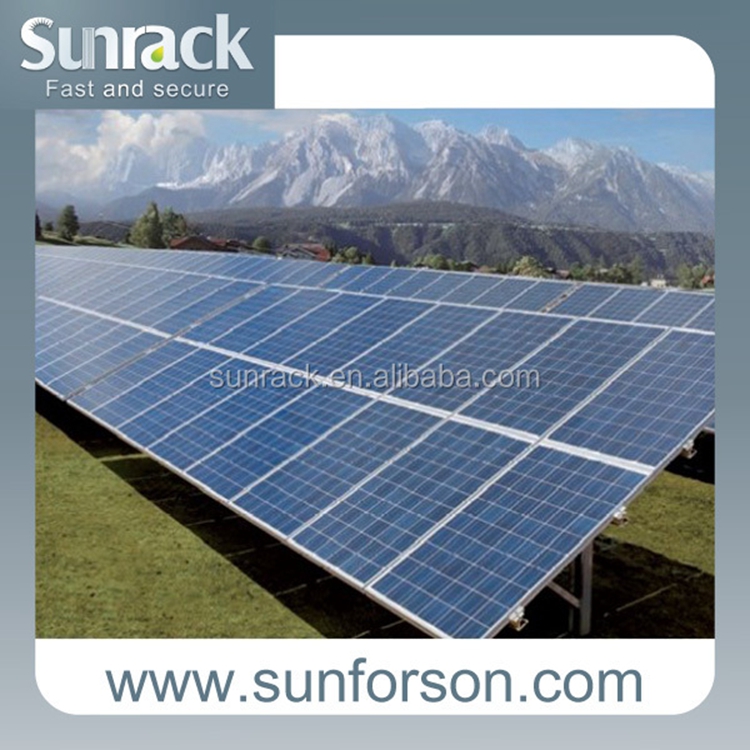

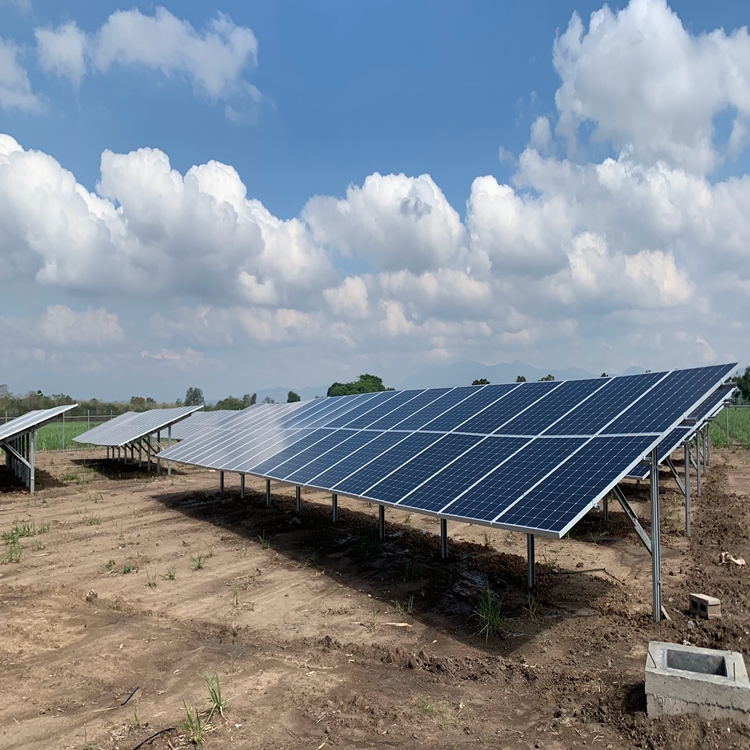

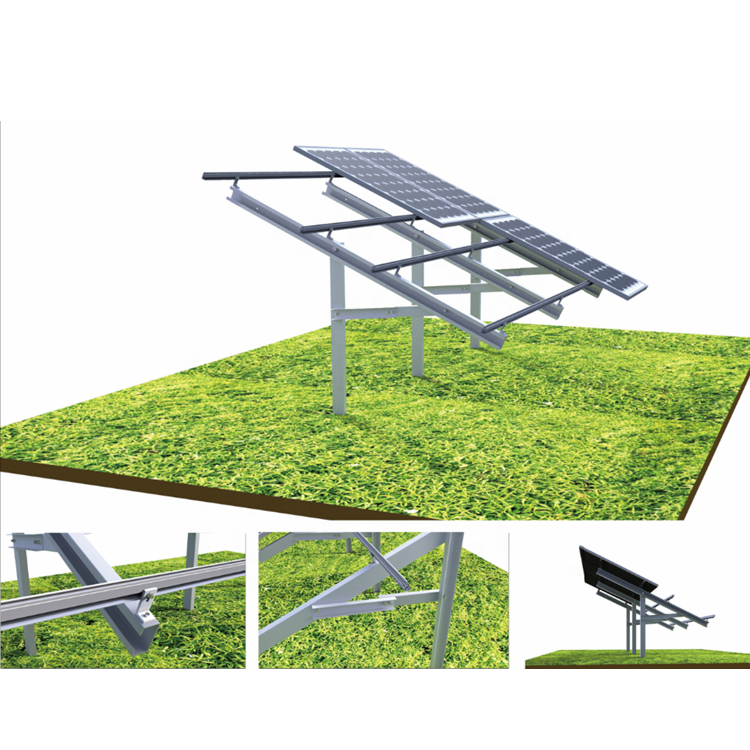

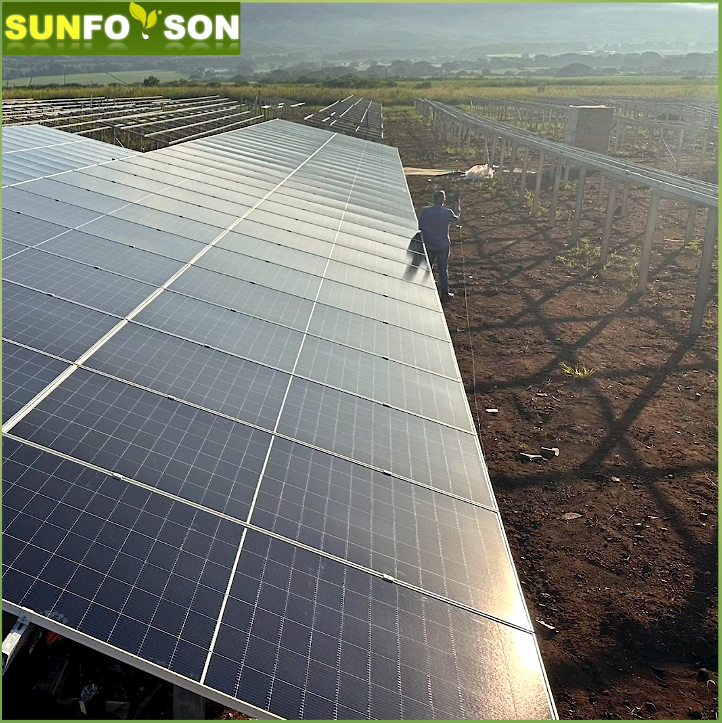

SunRack Pile Ground Mounting System is applied for large scale solar projects installation on a non-sandy ground. The C post can be easily rammed into the ground 1~2 meters by pile machine, then you can mount the pre-assembled beam structure and other mounts easily.
The Pile Ground Mounting System is ideal for large-scale solar projects on non-sandy ground. It uses C-shaped steel posts that are driven directly into the ground using a pile machine, making it a robust solution for vast open areas.
The structure is manufactured using high-quality Aluminum Alloy 6005 T5 and Q235 steel. This combination provides excellent strength, durability, and corrosion resistance for long-term outdoor exposure.
The system is engineered to withstand survival wind loads of up to 130 mph and design snow pressures of up to 30 psf (1.4 kn/m²), designed in accordance with the BS 6399-2-1997 standard.
We offer a 10-year warranty specifically covering the aluminum structural components, ensuring long-term reliability and performance of your solar mounting investment.
Yes, both the installation tilt angle and the ground clearance (the height between the lowest point of the solar panel and the ground) can be fully customized based on your regional requirements and site conditions.
Yes, key parts of the beam structures and mounting clamps are pre-assembled in the factory. This design minimizes on-site assembly steps and significantly accelerates the overall installation process.
