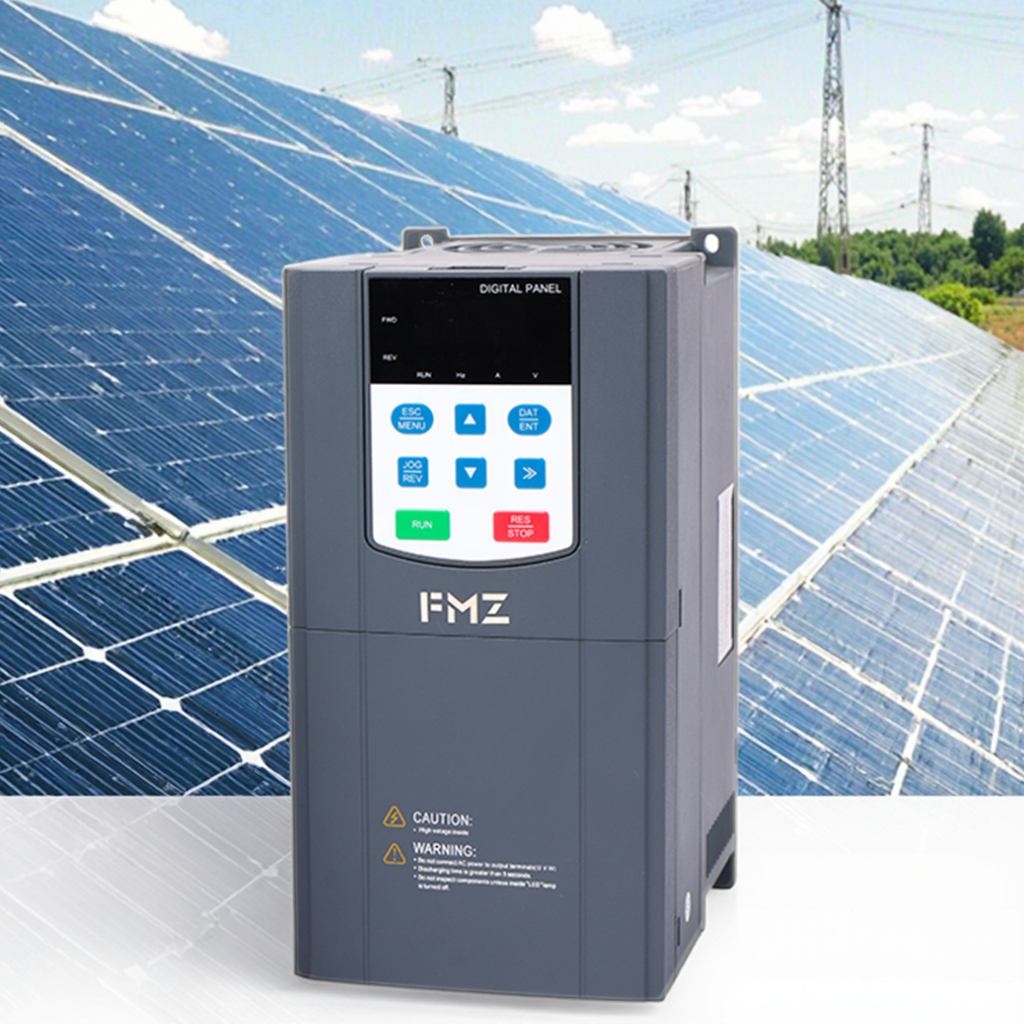

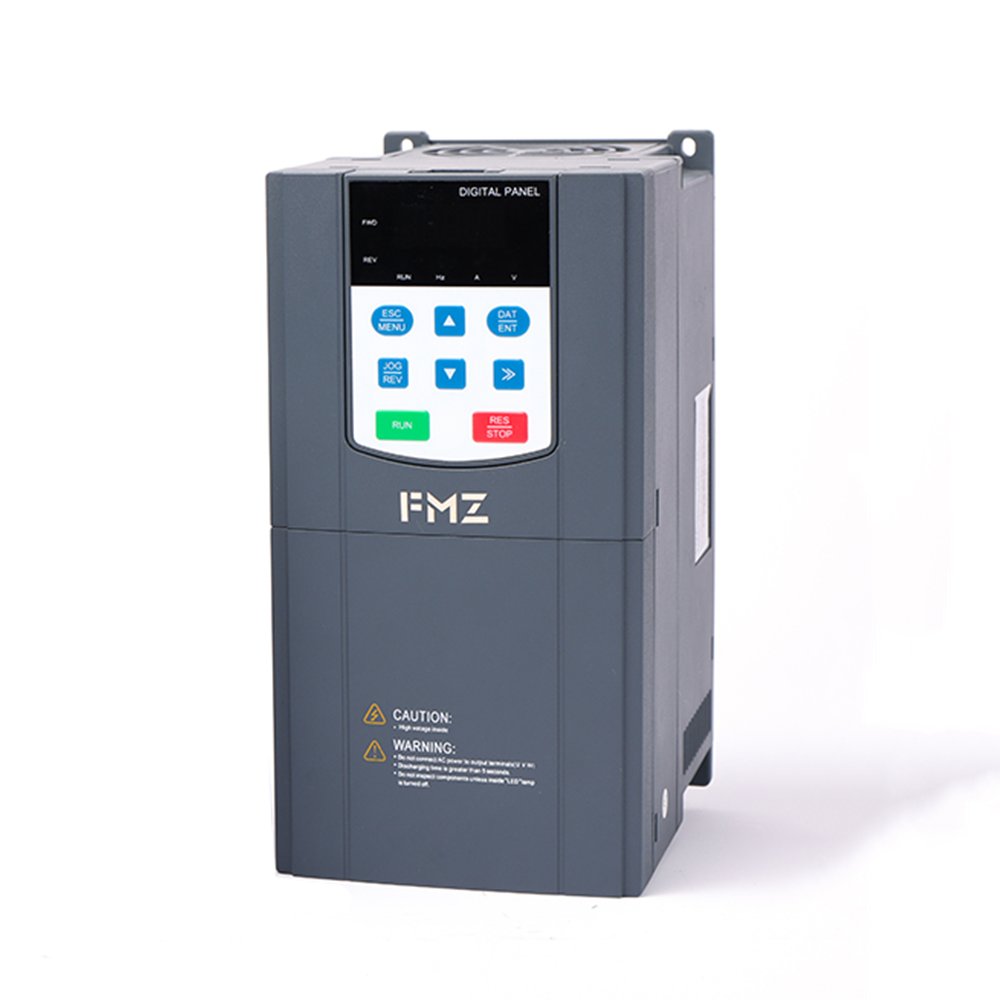

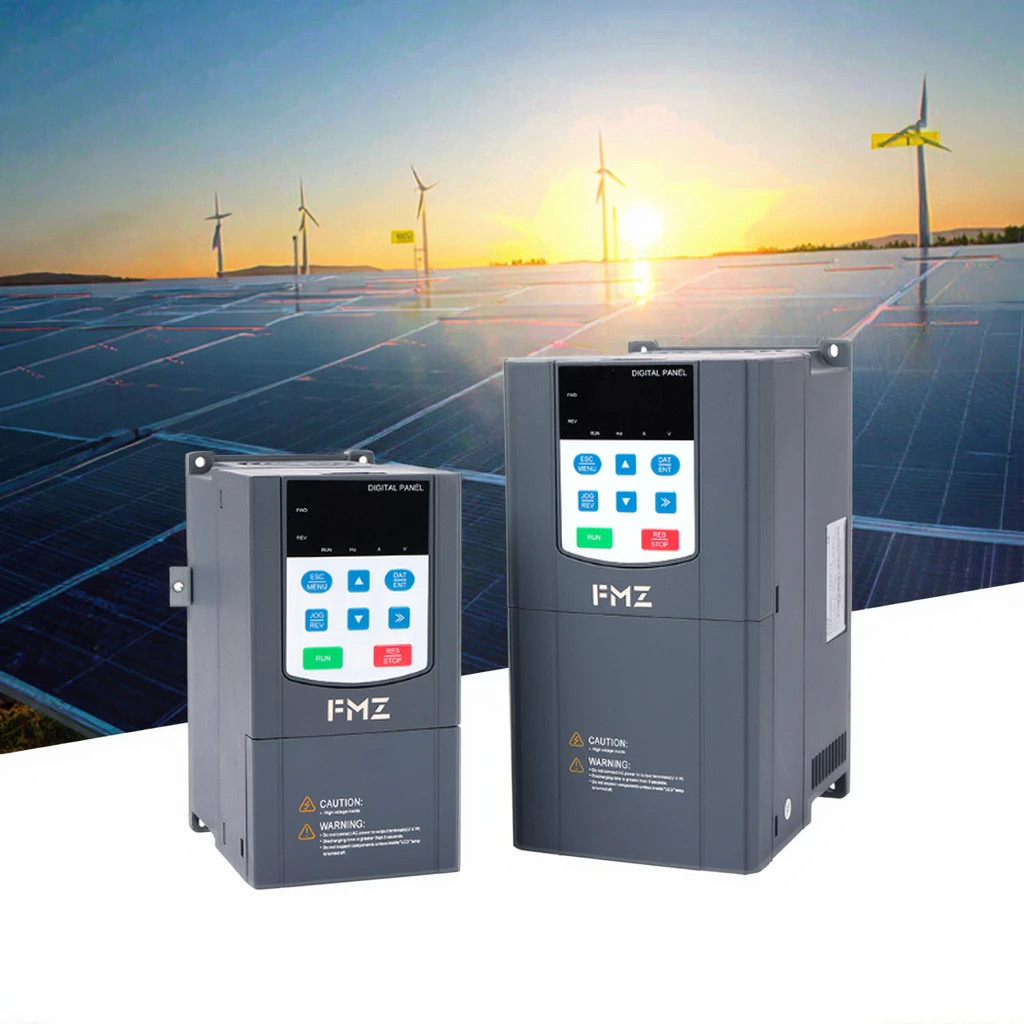

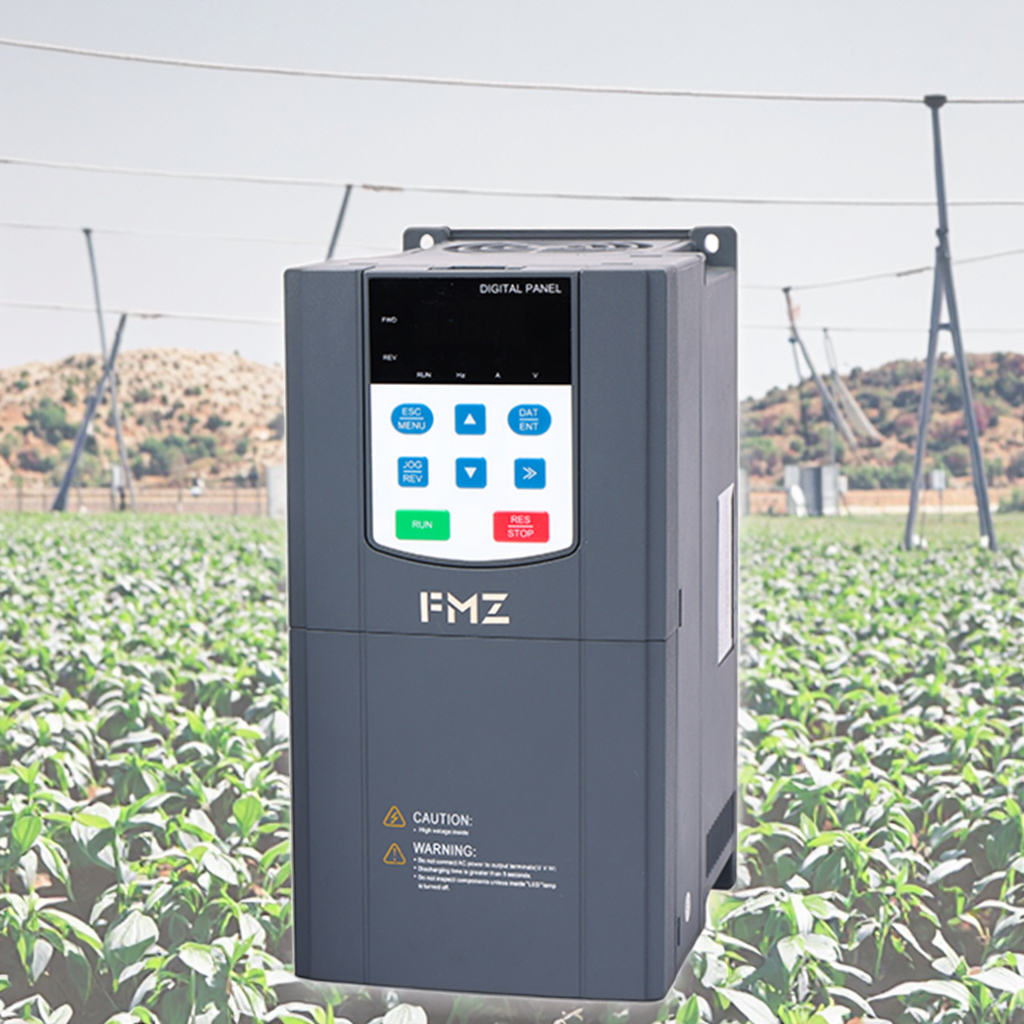

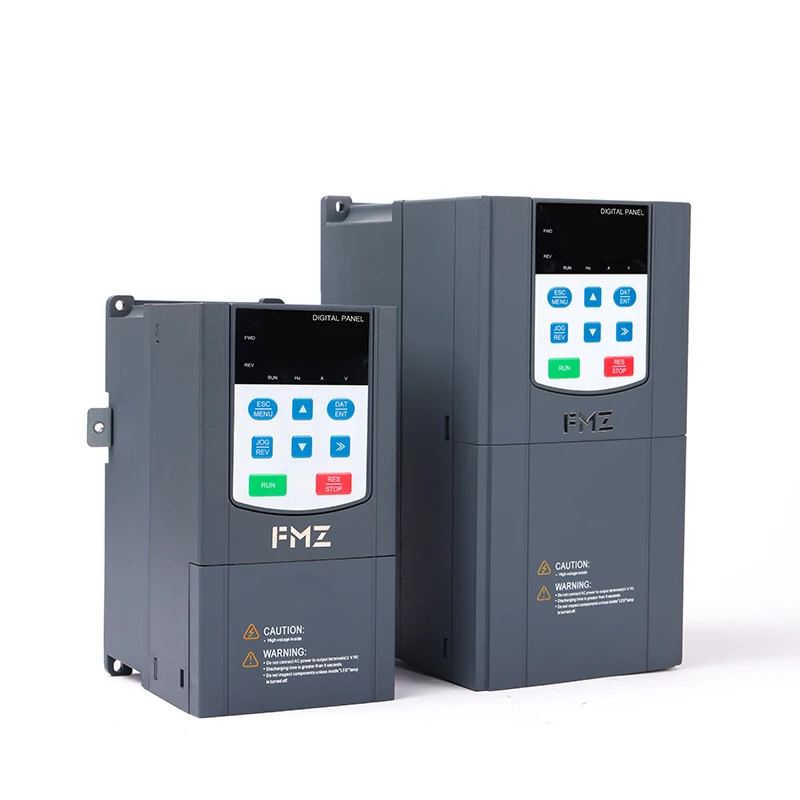

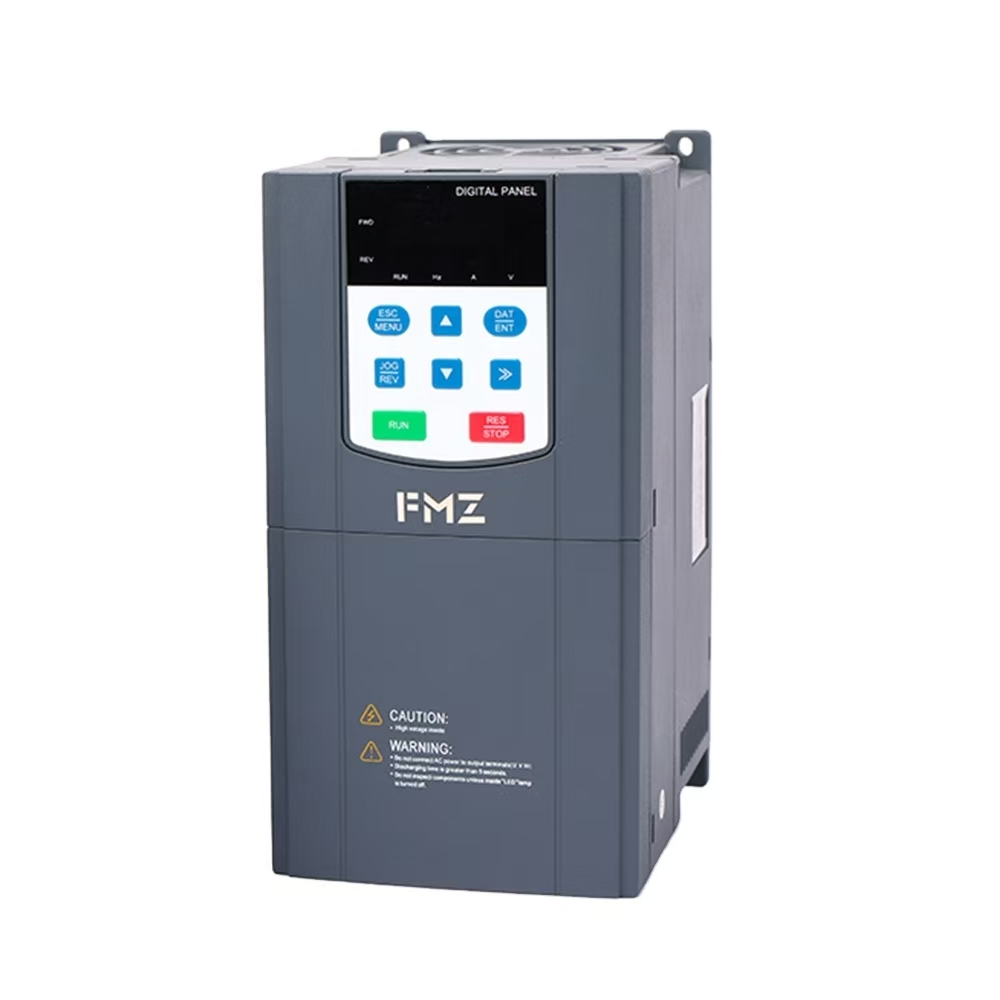

| Product Name | H880G Solar Pump Inverter |
| Model Number | H880G-30RG/37RP-T4 |
| Rated Power(kW) | 30kW |
| Control Mode | VF, SVC |

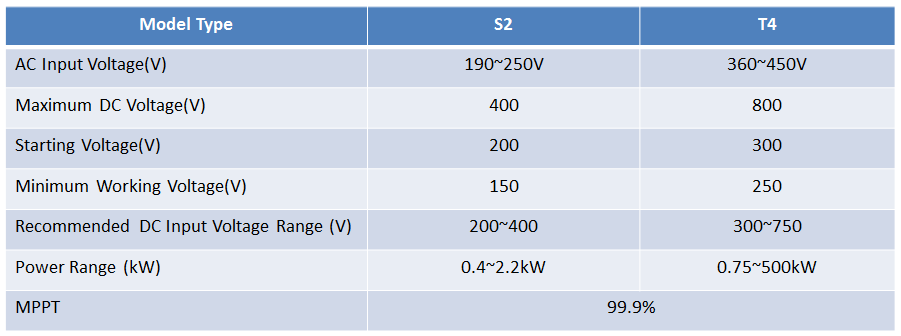

| Rated AC Input Voltage(VAC) | 220VAC/380VAC |
| Rated DC Input Voltage(VDC) | 200~400VDC |
| Maximum DC Voltage(V) | 800V |
| Starting Voltage(V) | 300V |
| Minimum Working Voltage(V) | 250V |
| Recommended DC Input Voltage Range (V) | 300~750V |
| Overload Capacity | 150% 1 min, 180% 10s, 200% 0.5s |
| Output Frequency | 0~600Hz |
| Operating Temperature | -10 to 40℃ |
| IP Protection | IP20 |

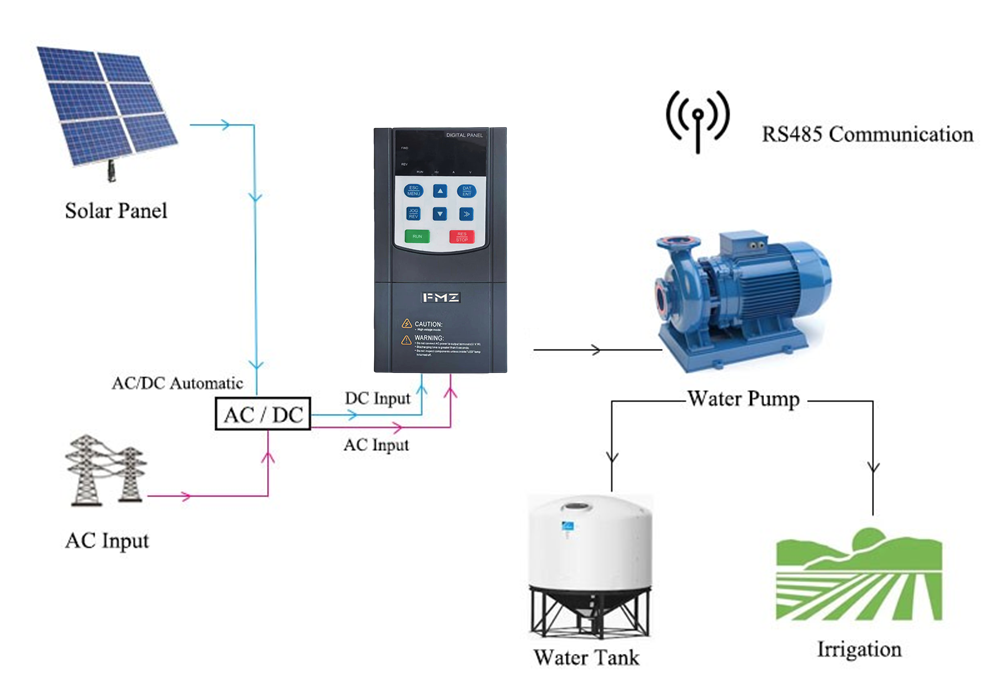

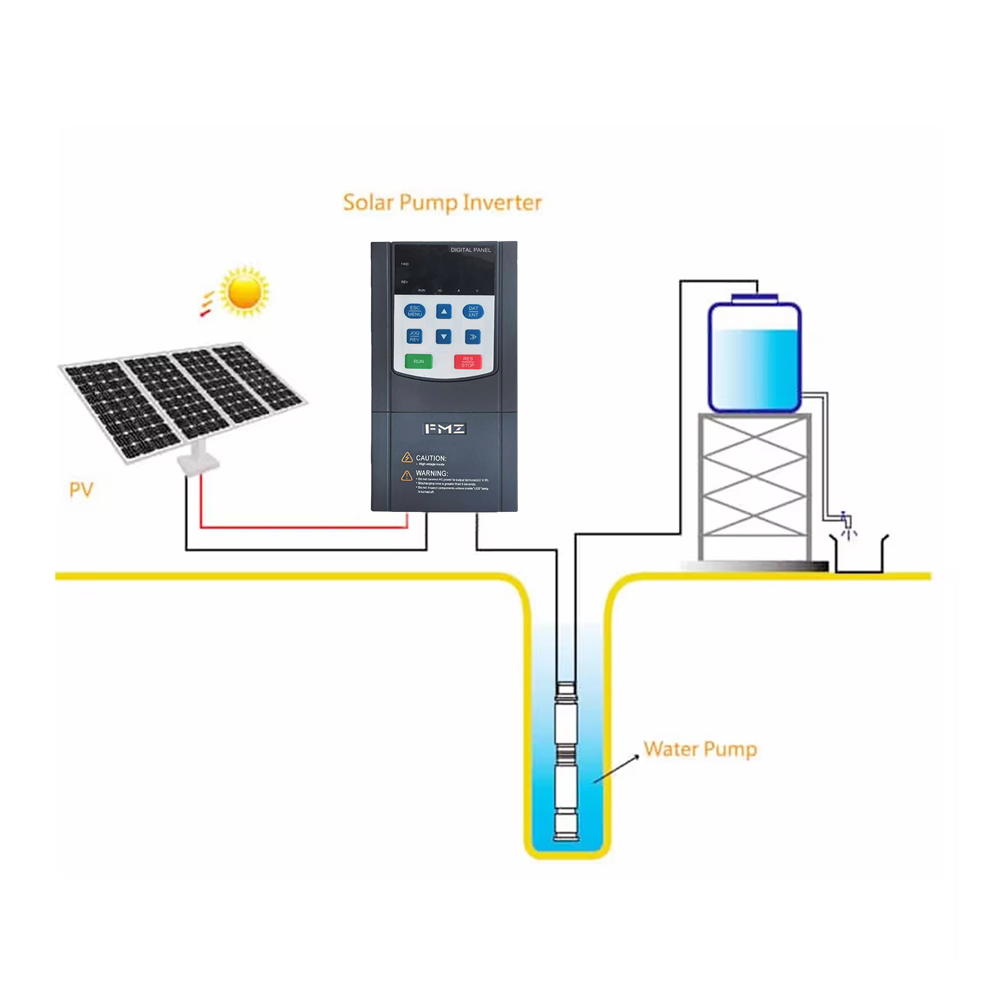

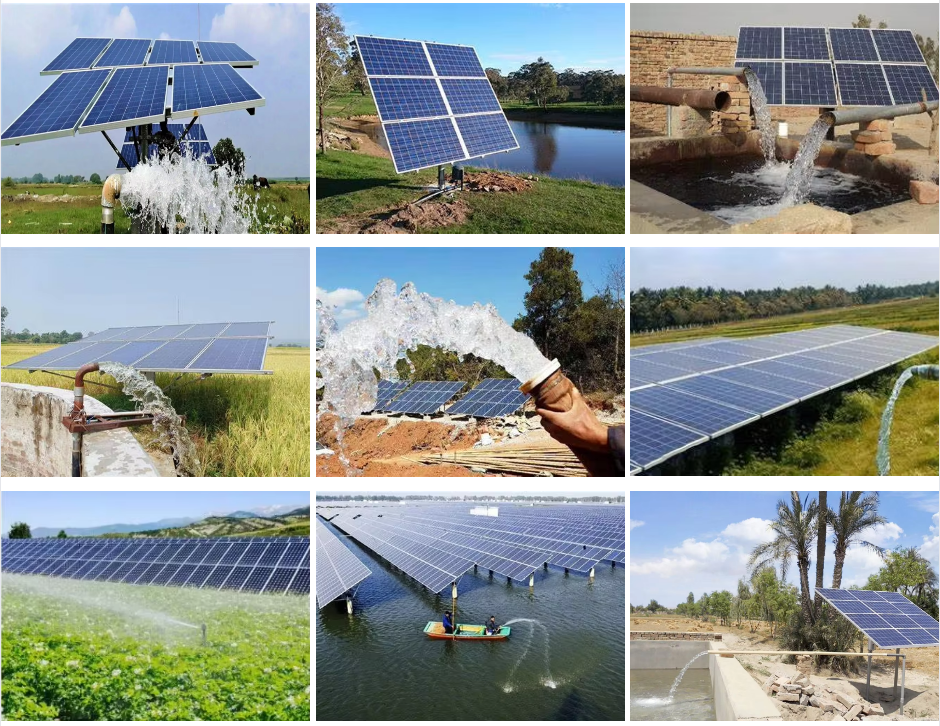

| Application | Solar Water Pump |

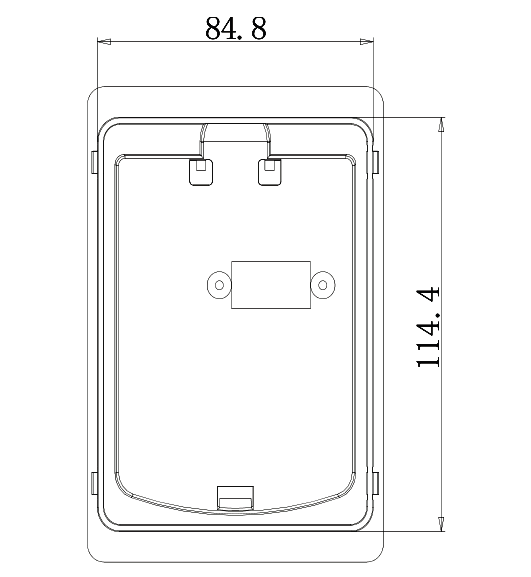

| Model | Motor Power(kW) | Rated Current(A) | Outline Dimensions (H*W*D)(mm) | Packaging Dimensions (mm) | Weight (KG) |
|---|---|---|---|---|---|
| AC 220V Single phase input / DC Input MPPT AC 220V Three phase output | |||||
| H880G-0R4G-S2 | 0.4 | 2.5 | 85*129*170 | 220*140*185 | 1.3 |
| H880G-1R5G-S2 | 1.5 | 7 | 85*129*170 | 220*140*185 | 1.3 |
| H880G-4R0G-S2 | 4.0 | 17 | 124*171*245 | 320*195*255 | 3.05 |
| AC 380V Three phase input / DC Input MPPT AC 380V Three phase output | |||||
| H880G-0R7G/1R5P-T4 | 0.75 | 2.1/3.8 | 85*129*170 | 220*140*185 | 1.3 |
| H880G-5R5G/7R5P-T4 | 5.5 | 13/17 | 97*144*194 | 245*145*210 | 1.8 |
| H880G-15RG/18RP-T4 | 15 | 32/37 | 200*178*335 | 390*250*270 | 5.55 |
| H880G-30RG/37RP-T4 | 30 | 60/75 | 255*195*390 | 470*330*280 | 13 |
| H880G-75RG/90RP-T4 | 75 | 152/176 | 330*260*530 | 630*440*370 | 39.5 |

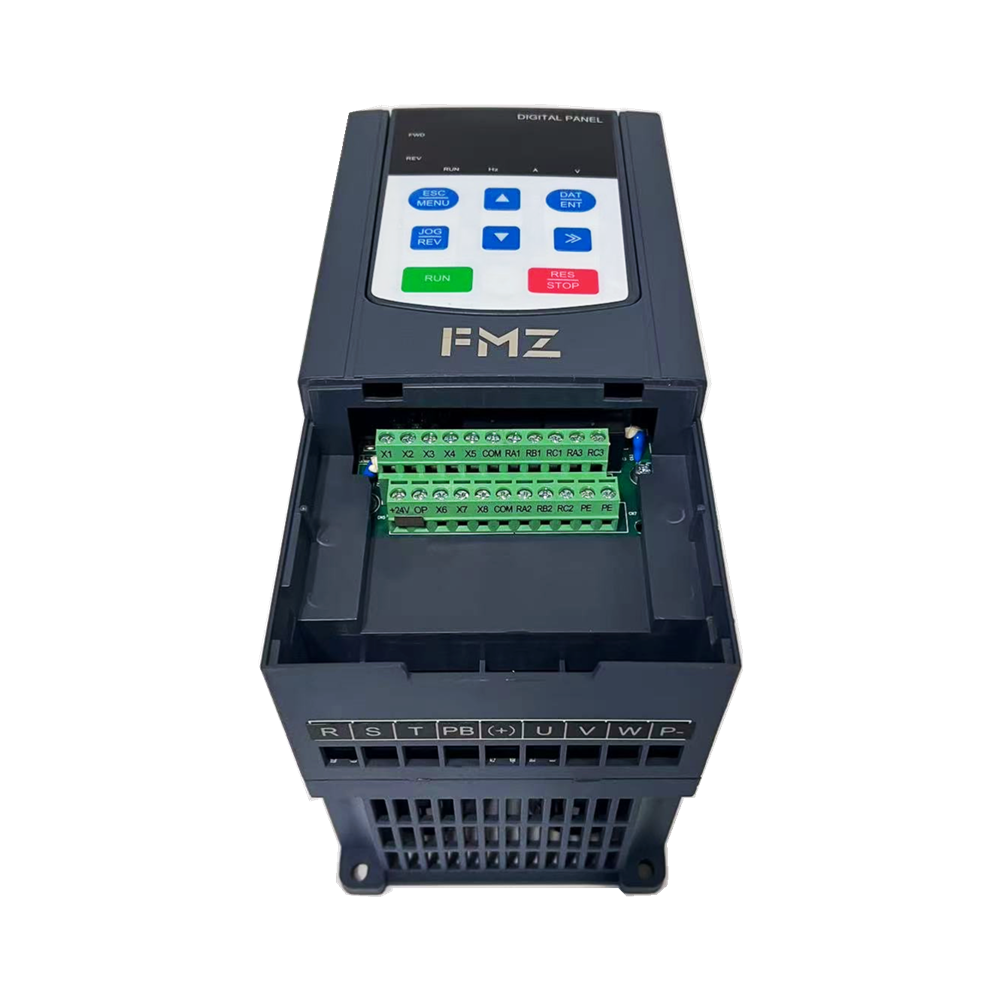

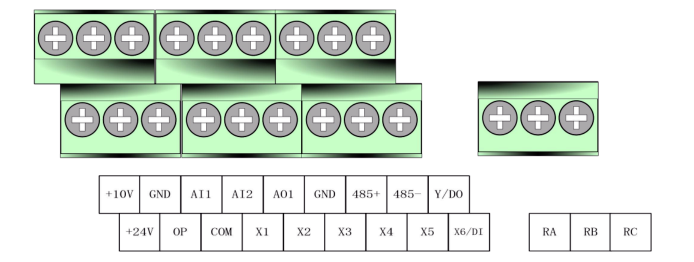

| Circuit Terminal | Function Description |
|---|---|
| R/L1, S/L2, T/L3 | Three-phase 380V or Single-phase 220V AC power supply connection. |
| P+, PB | External braking resistor connection |
| U, V, W | Three-phase AC output motor connection |
| PE | Ground Terminal |

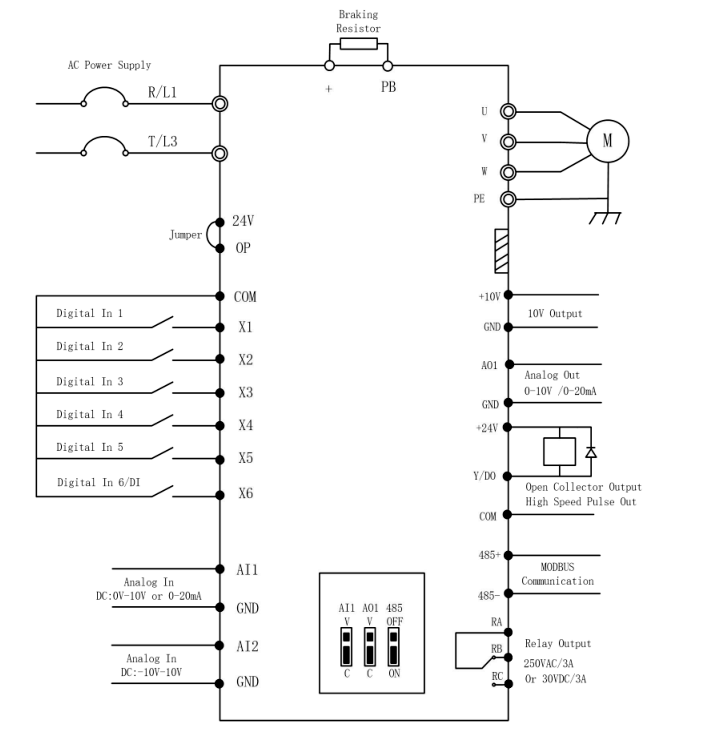

Wiring Diagram of 220V Single Phase VFD

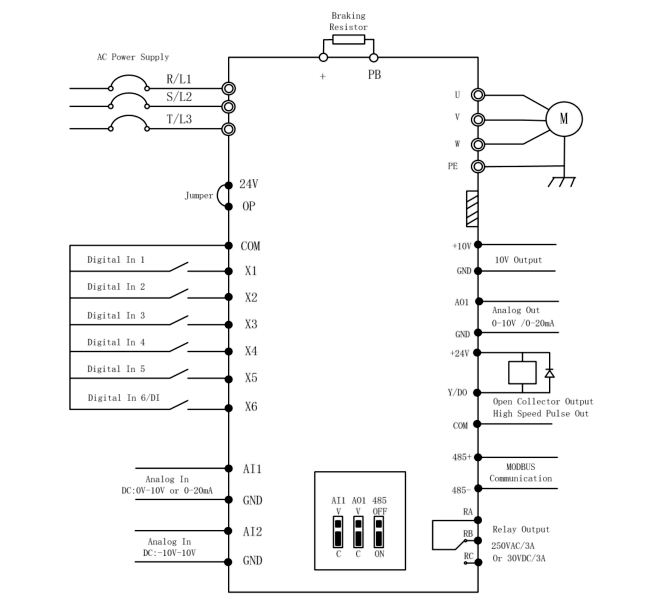

Wiring Diagram of 380V Three Phase VFD

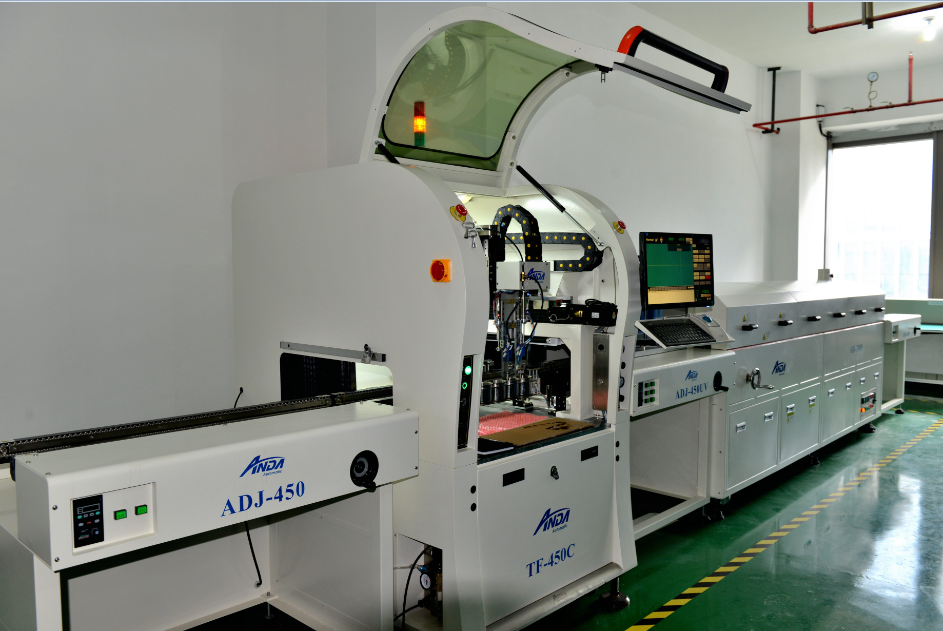

Our team specializes in R&D, manufacture, sales and professional technical services for industrial automation control products such as frequency inverters (VFD, VSD, AC Drive), soft starters, HMI, servo motors, and PLC.
Our products are widely applied to CNC machine tools, mining, textiles, metallurgy, lifting, plastics, chemicals, and municipal projects. We emphasize reliable, intelligent, and excellent solutions to meet the demands of global industrial applications.
After-sales support is provided by an experienced technical team capable of equipment commissioning, problem shooting, and offering training to ensure system stability.
