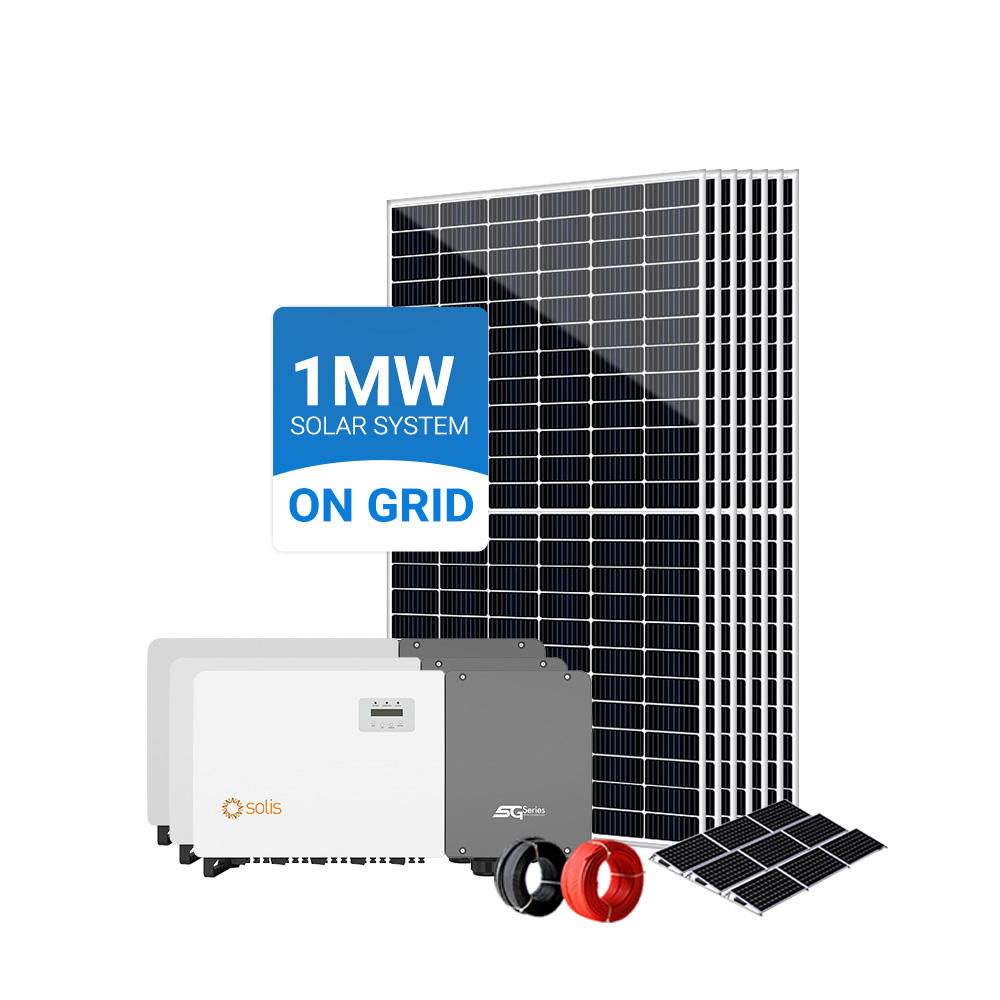

1MW 2MW 3MW 5MW Full Set Renewable Energy Solar Energy System 500kw on Grid Solar Power System for Commercial Use

Product Description

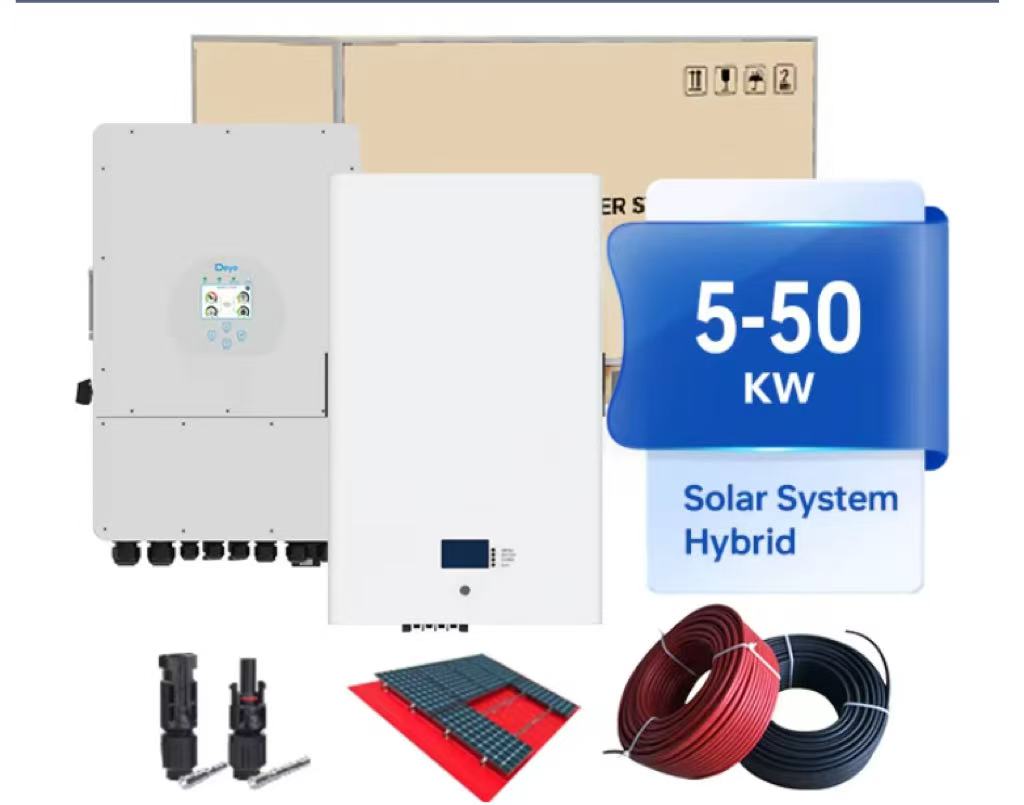

Solar Energy Banner

Products Description

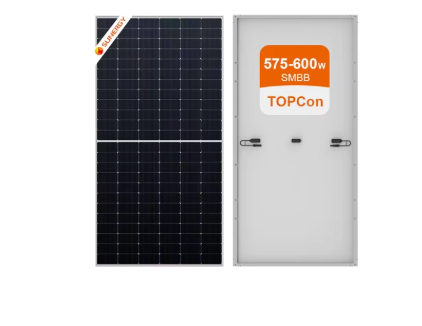

Half Cut Mono 580W Solar Panel
Half Cut Mono 580W Solar Panel
N-type TopCon

Peak Power Watt: 580W
Maximum Power Voltage: 42.78V
Maximum Power Current: 13.56A
Open Circuit Voltage: 51.32V
Short Circuit Current: 14.33A
Dimensions: 2278*1134*35mm
Weight: 27.0kg

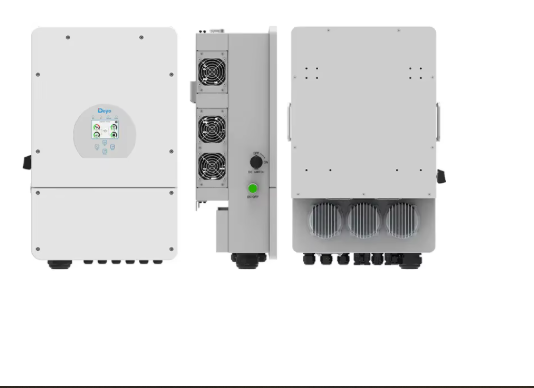

All In One Hybrid Grid Inverter
* Colorful touch LCD, IP65 protection degree.
* AC couple to retrofit existing solar system.
* Max. charging/discharging current of 250A.
* 6 time periods for battery charging /discharging.
* Support storing energy from diesel generator.
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
All In One Hybrid Grid Inverter

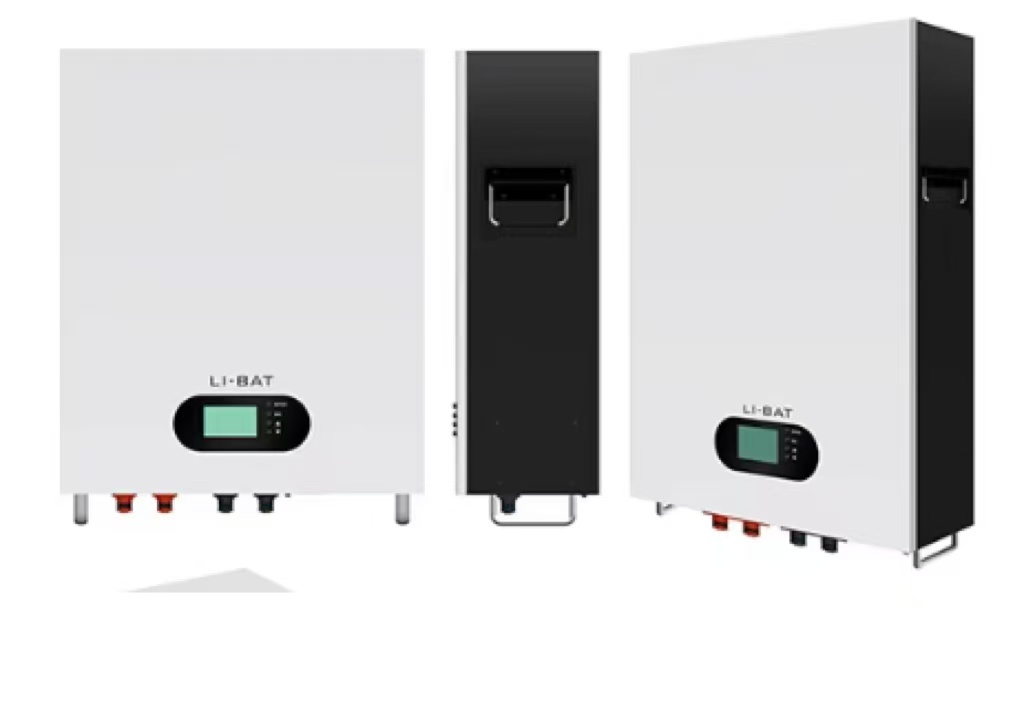

Low Voltage Lithium Battery
Low Voltage Lithium Battery
Rated Voltage: 48V/51.2V (Optional)
Rated Capacity: 100Ah/200AhAh (Optional)
Cycle Life: 5000 cycles@80% DOD 0.5C
Material System: LiFePO4
Case Type: Wall Mounted

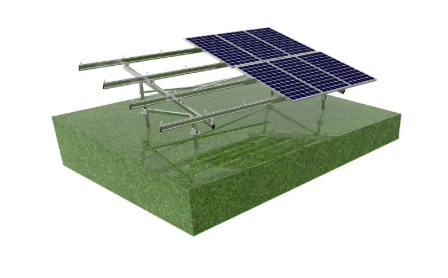

PV Mounting System
Pitched/Flat Rooftop/Ground Brackets
10 Years Warranty
Aluminum Alloy/Galvanized Steel
Provide Free Brackets Installation Design
PV Mounting System

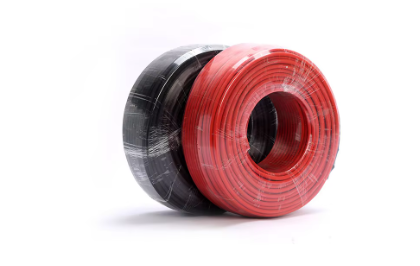

DC Cable & MC4 Connector
DC Cable & MC4 Connector
Cross Section: 4mm²/6mm² (Optional)
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A/70A
Colors: Black For STD, Red (Optional)
Lifetime: ≤25 Years
📋

Specification

System Model TY5KW-HY TY8KW-HY TY10KW-HY TY12KW-HY
PV MODULE SPECIFICATIONS (*half cell mono)
Power (W) 440-700
Vmp (V) 36.33-41.96
Certifications CE / TUV (IEC 61215 & IEC 61730)
INVERTER SPECIFICATIONS
Rated Power (KW) 5 8 10 12
Max DC Power (W) 6000 10400 13000 15600
Max DC Voltage (V) 500 1000
MPPT Voltage Range (V) 120-450 125-425 120-450 125-425
Output Voltage (Vac) 220/230 220/380, 230/400
BATTERY BANK SPECIFICATIONS
Number Of Batteries 1 2 3 4
Battery Bank Power (kWh) 4.8 9.6 14.4 19.2
Battery Voltage (V) 48/51.2
Battery Current (Ah) 100/200/280/304
Number Of PV Modules 10 16 20 24
📦

Packing and Shipping

Packing 1
Packing 2
Shipping 1
Shipping 2
🏗️

Project Cases

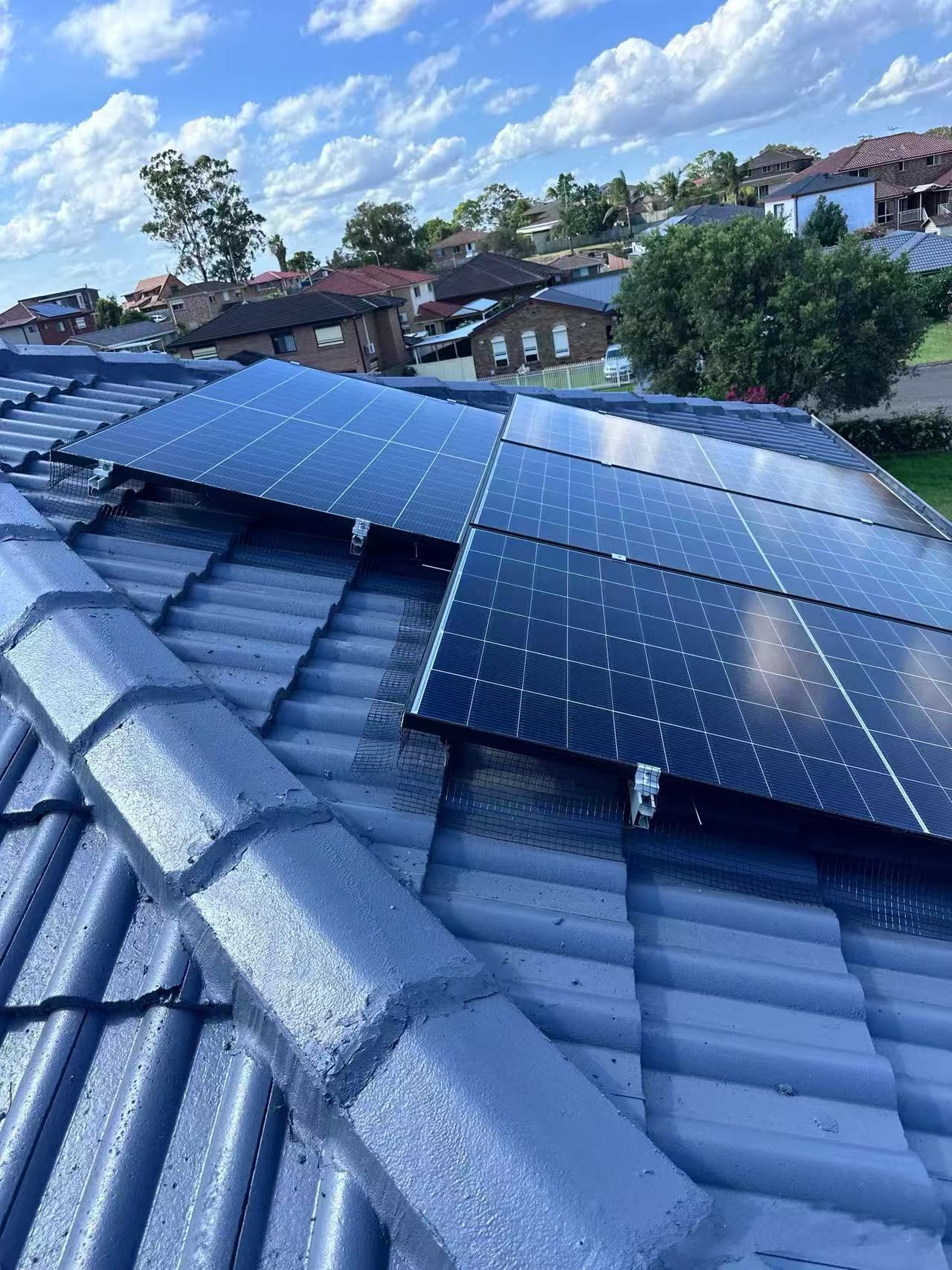

Case 1

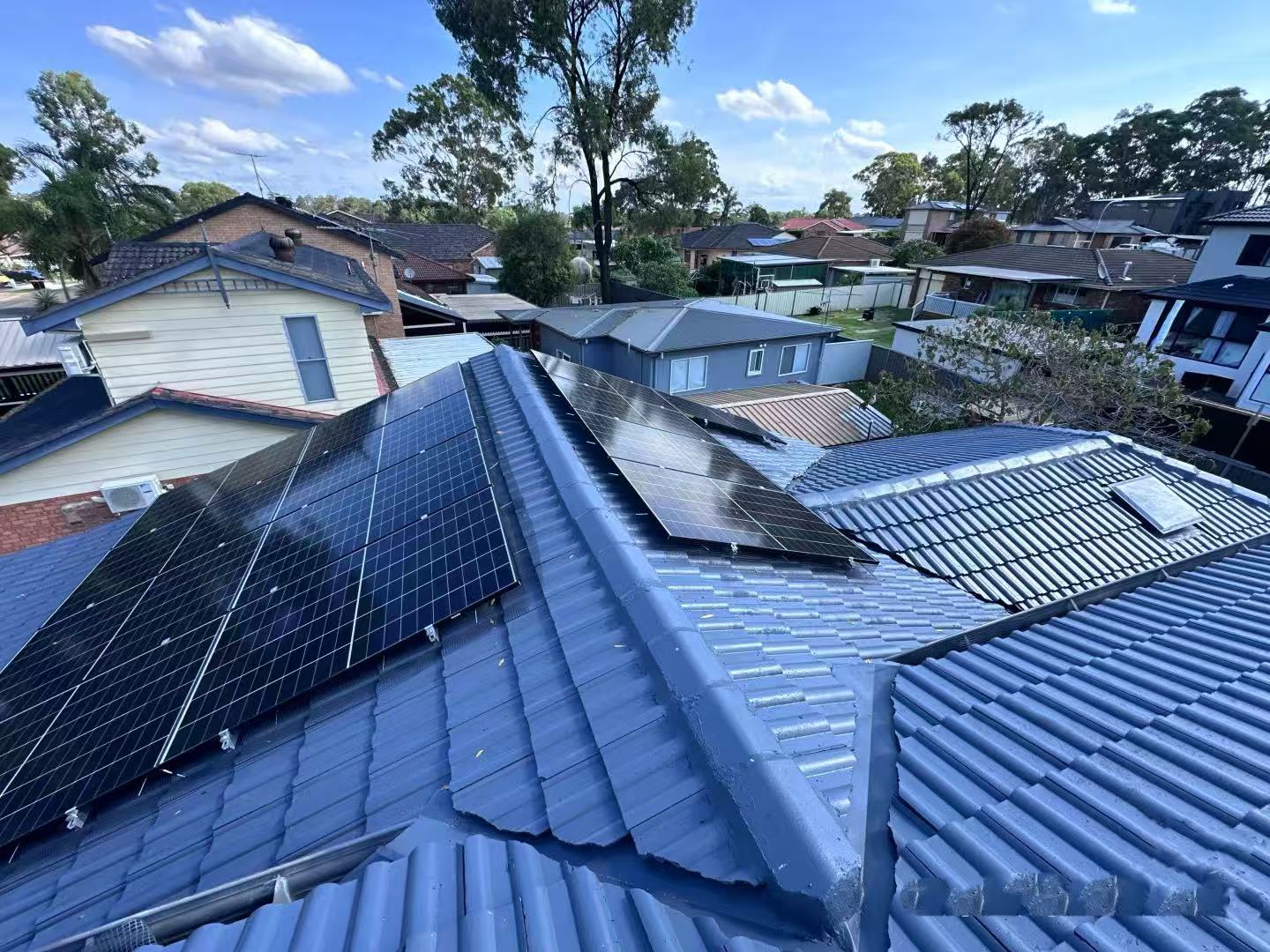

Case 2

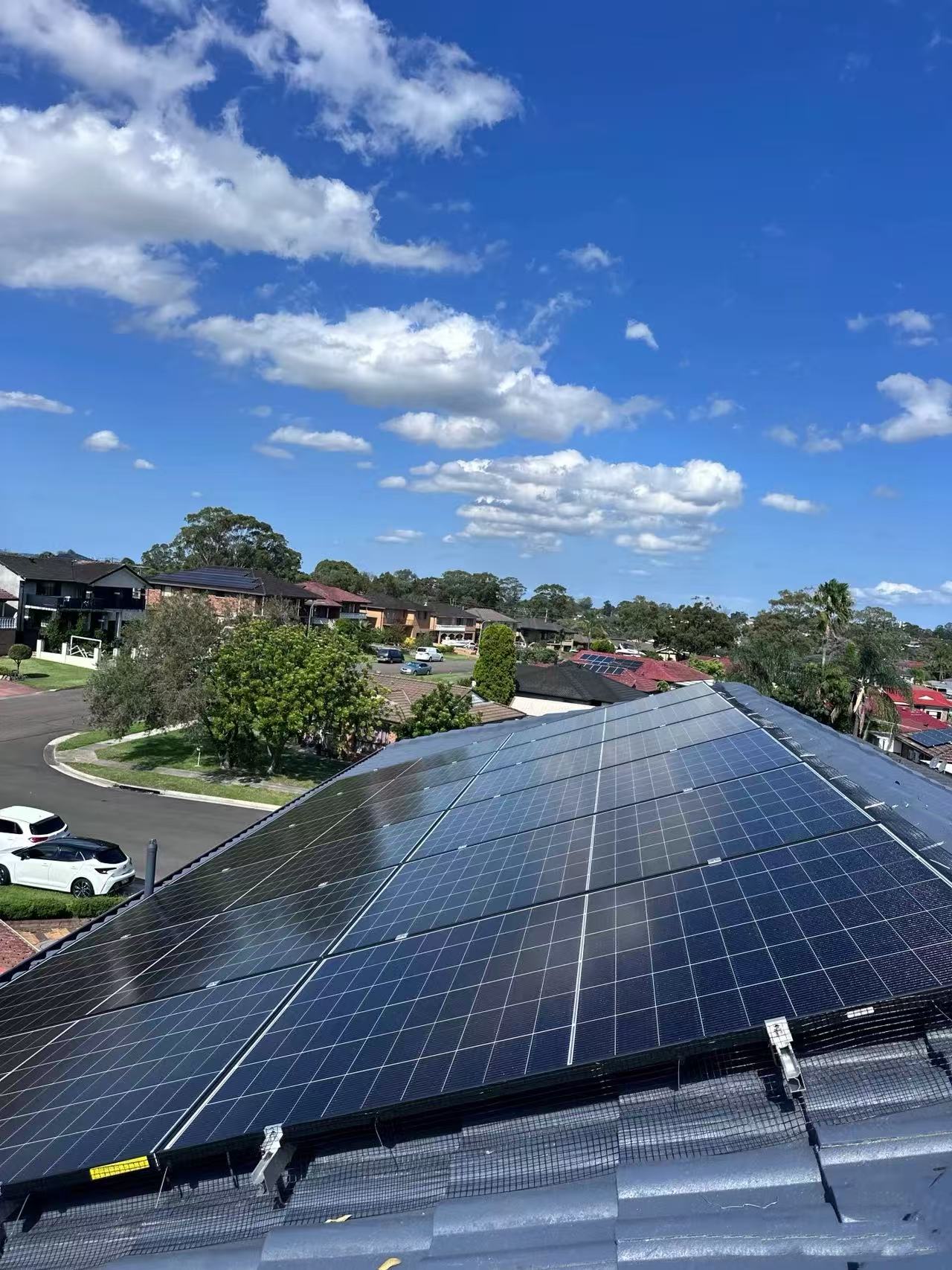

Case 3

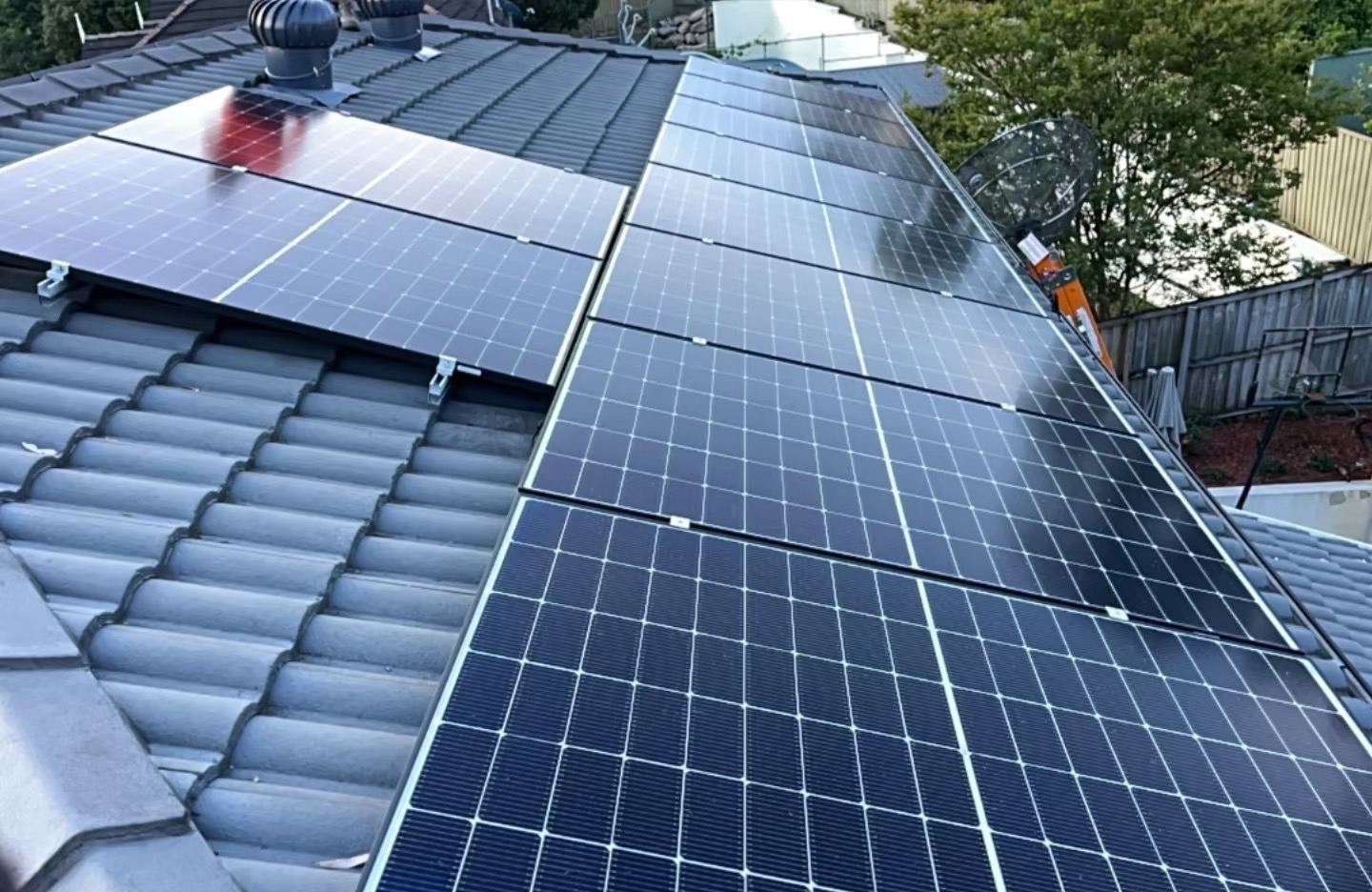

Case 4

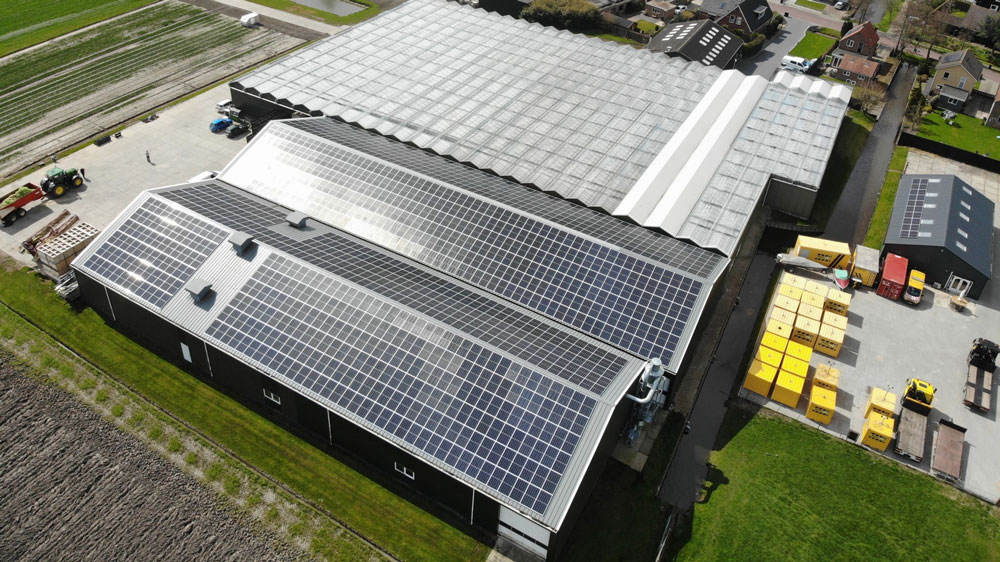

Full System Case
Installation 1
Installation 2

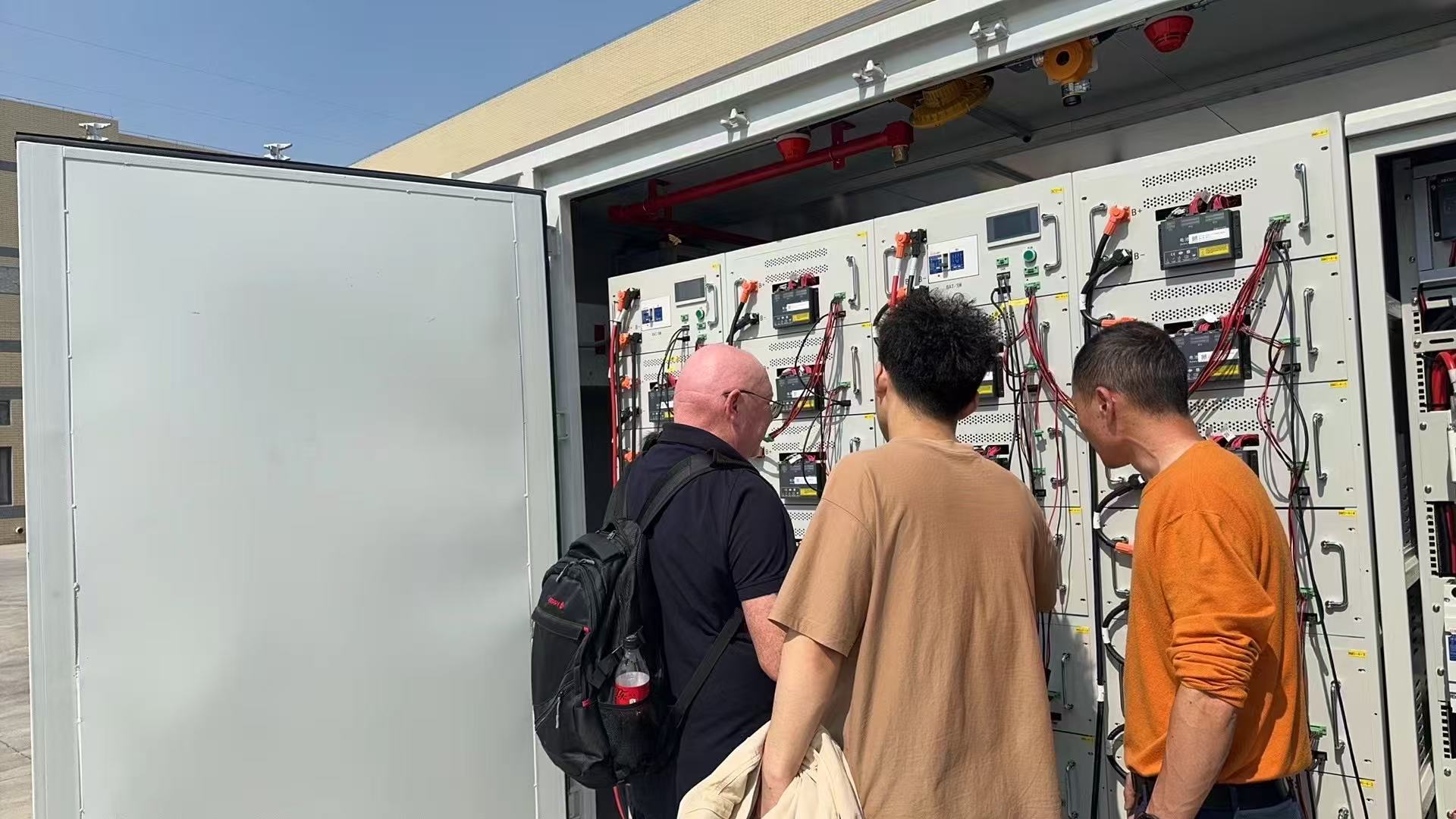

Installation 3
Installation 4
Project Overview
🏢

Our Company

Our manufacturing facility specializes in producing solar mounting systems for domestic and international solar power markets. Our main products include whole solar mounting brackets, roof solar mounting accessories, solar carports, off-grid/on-grid/hybrid solar systems, and more. With a complete and scientific quality management system, we provide high-quality mounting brackets at competitive prices. Integrity, efficiency, and perfect service are our core values. Our technical experts and consultants have rich experience in engineering, manufacturing, and international building standards, ensuring great quality and convenient usage. We provide a series of mounting systems covering all fields from residential and commercial to public utilities. To meet special requirements, our engineering team offers customized solutions.

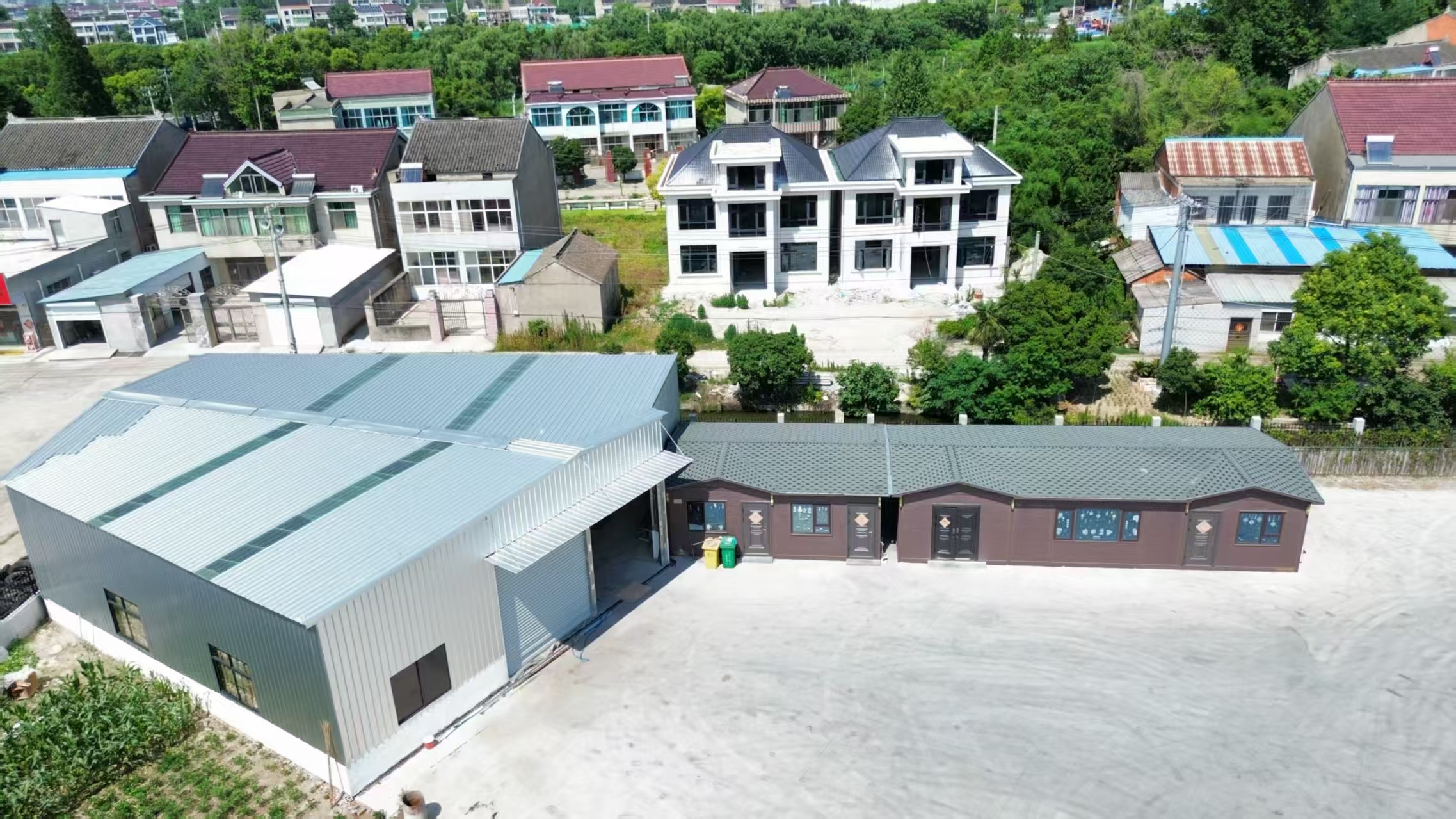

Factory 1

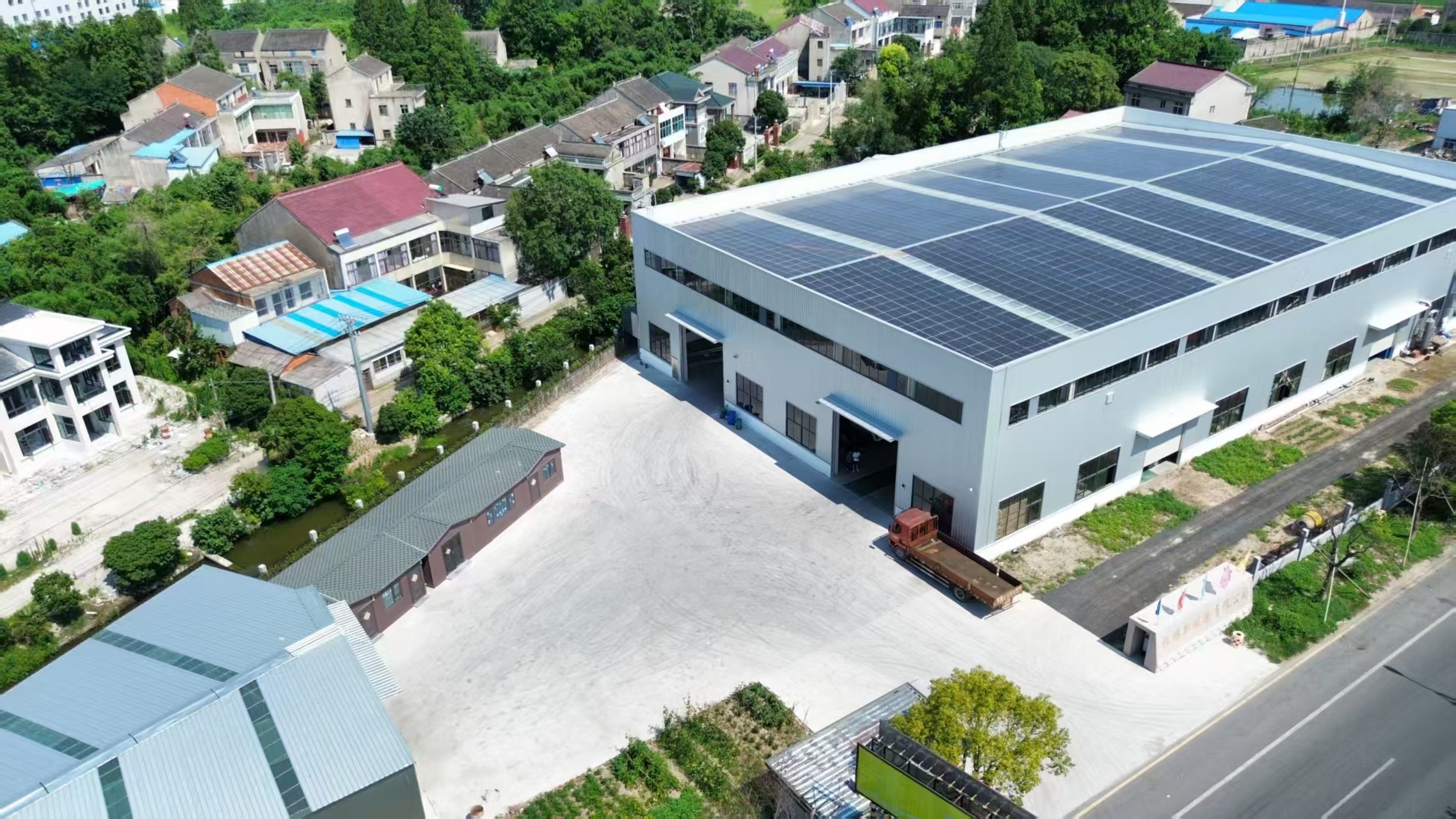

Factory 2

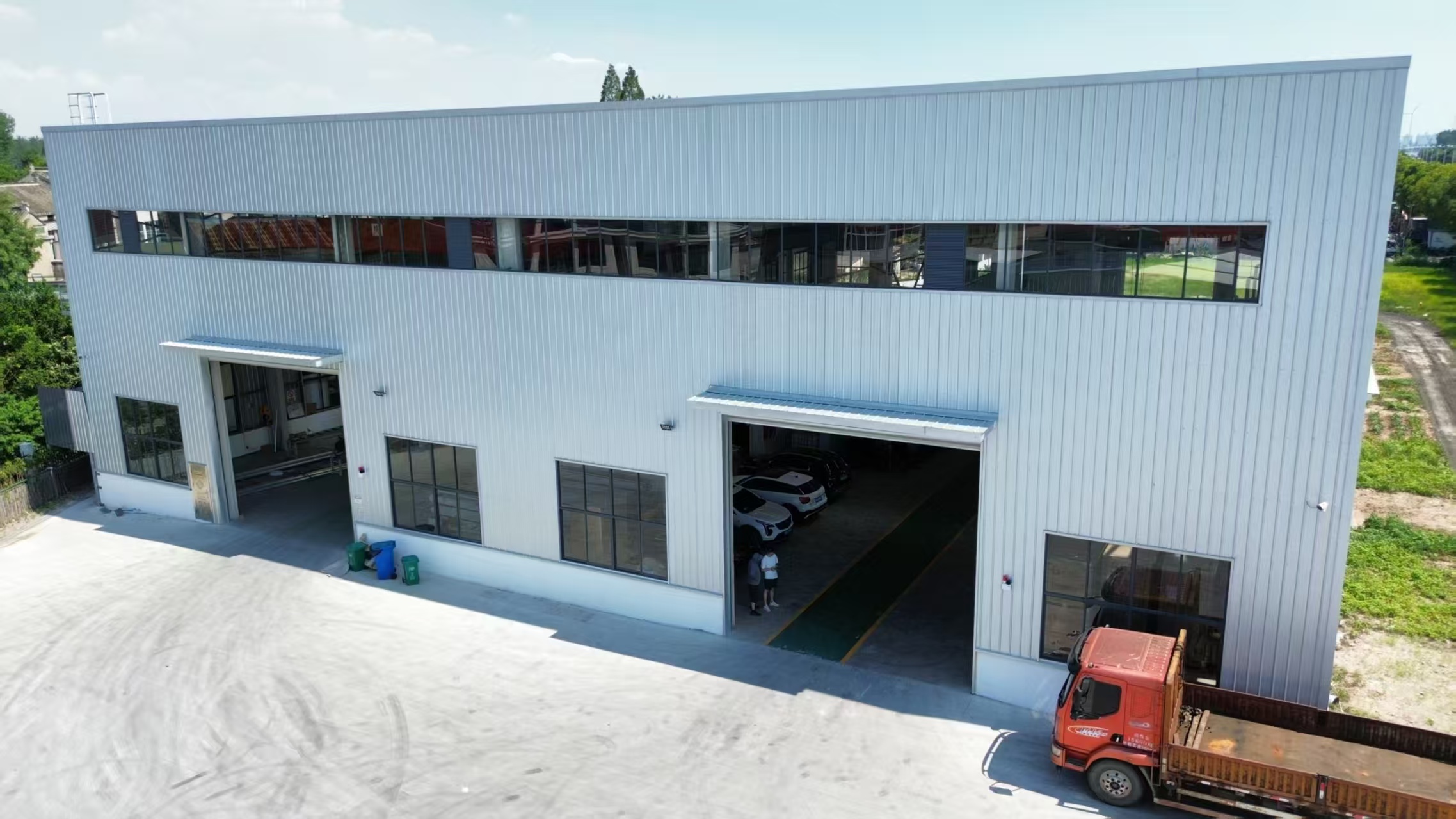

Factory 3

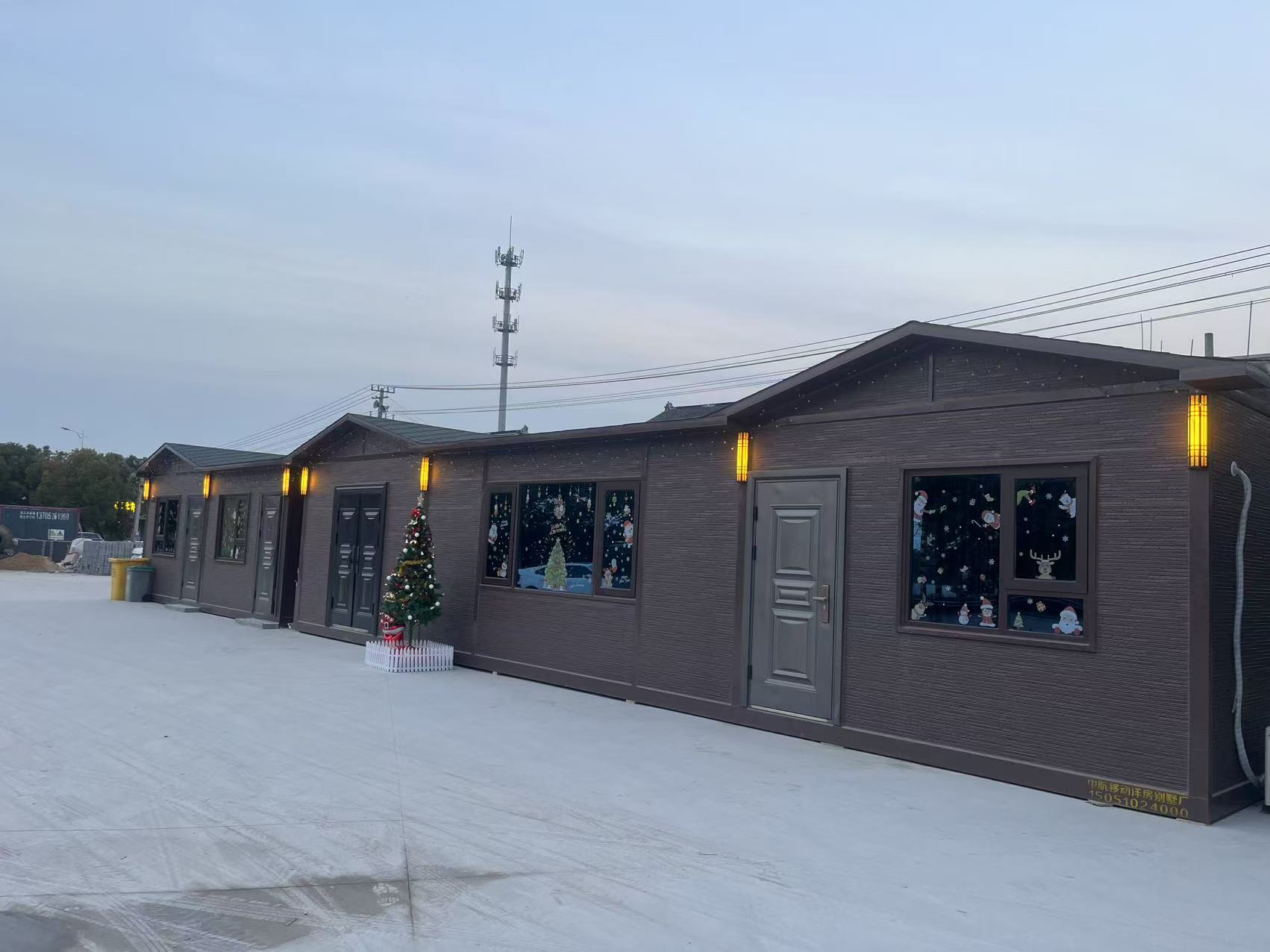

Factory 4
📜

Certificate

Certificate 1
Certificate 2

FAQ

What are your main products?
Our main products include solar systems, solar panels, inverters, controllers, batteries, mounting systems, and all related solar power accessories.
Are you a factory or trading company?
We are a professional manufacturer with export licenses and all necessary certifications.
Can you print our logo on the nameplate and package?
Yes, we can provide logo printing services according to your specific design requirements.
Do you support OEM and on-site installation?
Yes, as a professional manufacturer, we offer OEM services and can provide on-site installation support and assistance.
How does your factory handle quality control?
Quality is our priority. We have a professional QC team to carry out strict quality control throughout the production process.
What are your production advantages?
We utilize automatic production lines equipped with international advanced production technology to ensure efficiency and stability.
💎
