RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT
RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT
RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT
RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT
RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT
1 / 5
RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT
RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT
RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT
RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT
RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT

RIQNO A800 1.5KW 220V 1/3-Phase To 220V 3-Phase High Performance Vector Variable Frequency VFD For Solar Water Pump With MPPT

Send Inquiry

Product Description

⚡ Product Specification
Low Power Range:
0.4KW-30KW
220V 1 Phase to 220V 3 Phase
Medium Power Range:
0.4KW-200KW
220V 3 Phase to 220V 3 Phase
High Power Range:
0.4KW-450KW
380V 3 Phase to 380V 3 Phase
Product Specification
⭐ Core Features
Features Overview
  • 1 Wide Voltage design to service complicated site applications
  • 2 Both AC and DC input are supported
  • 3 Built-in PID & RS485 communication
  • 4 Standard built-in braking unit up to 37kw
  • 5 Support OEM & ODM services
  • 6 Warranty: 18 Months
  • 7 Special Applications: Elevator, Solar water pump, etc.

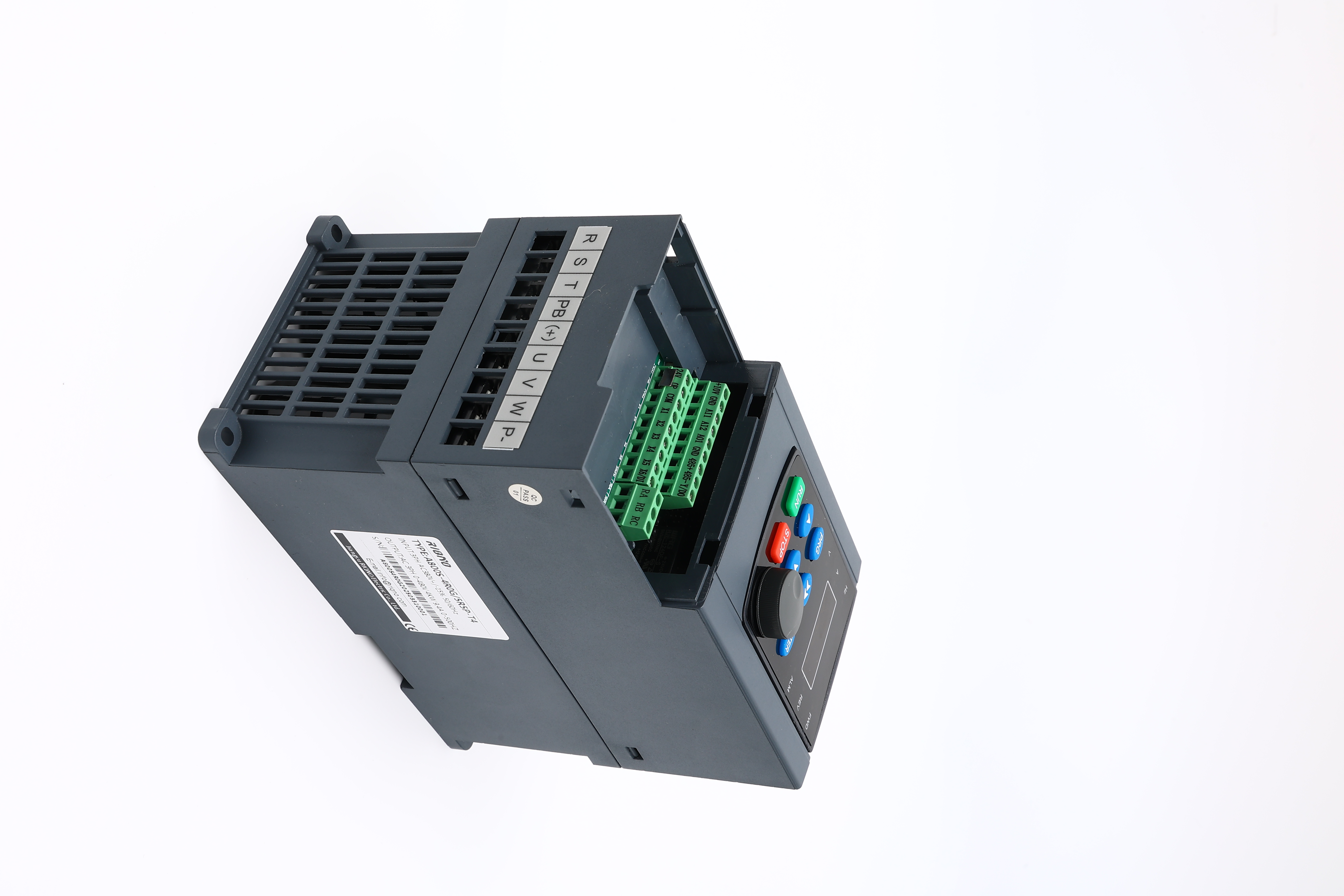

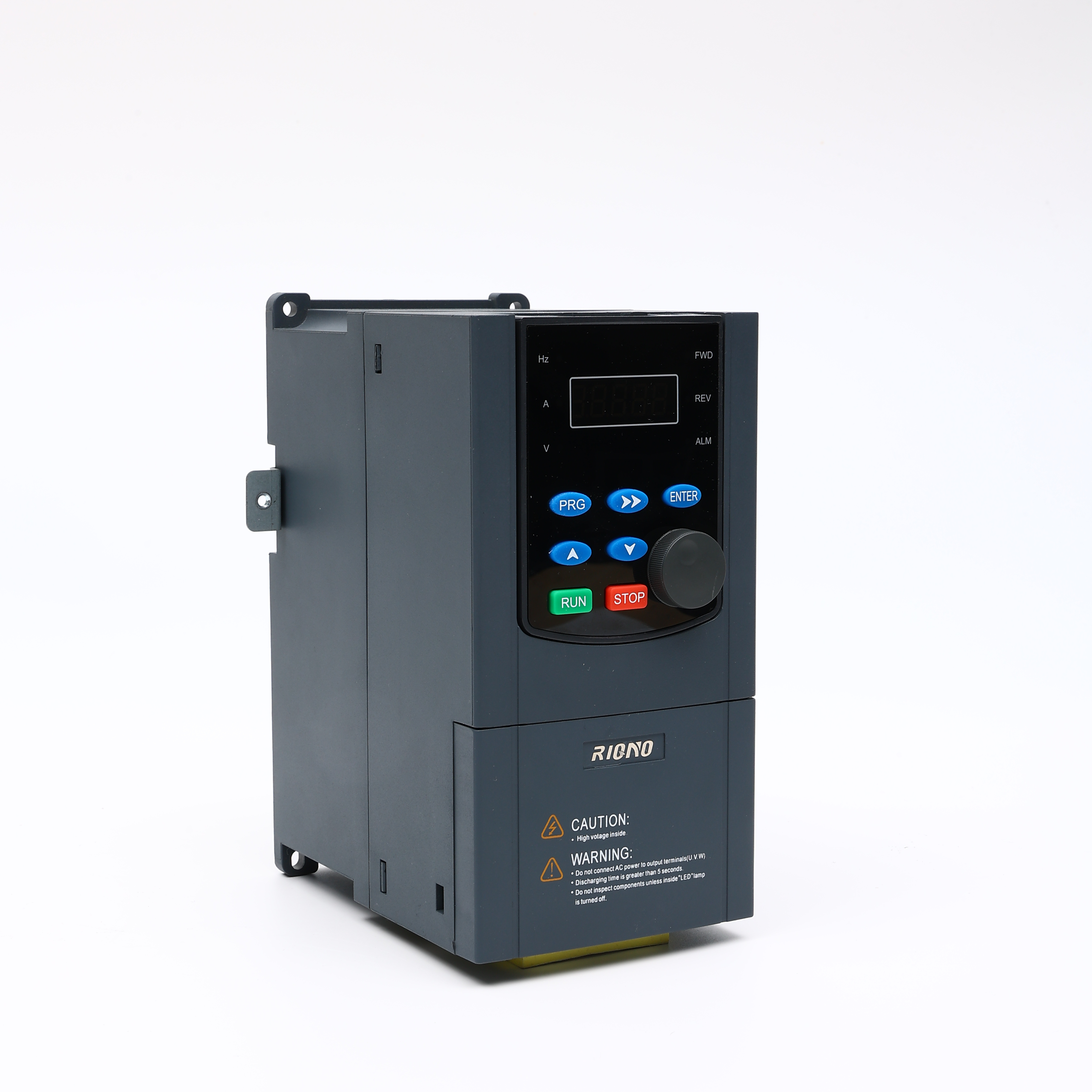

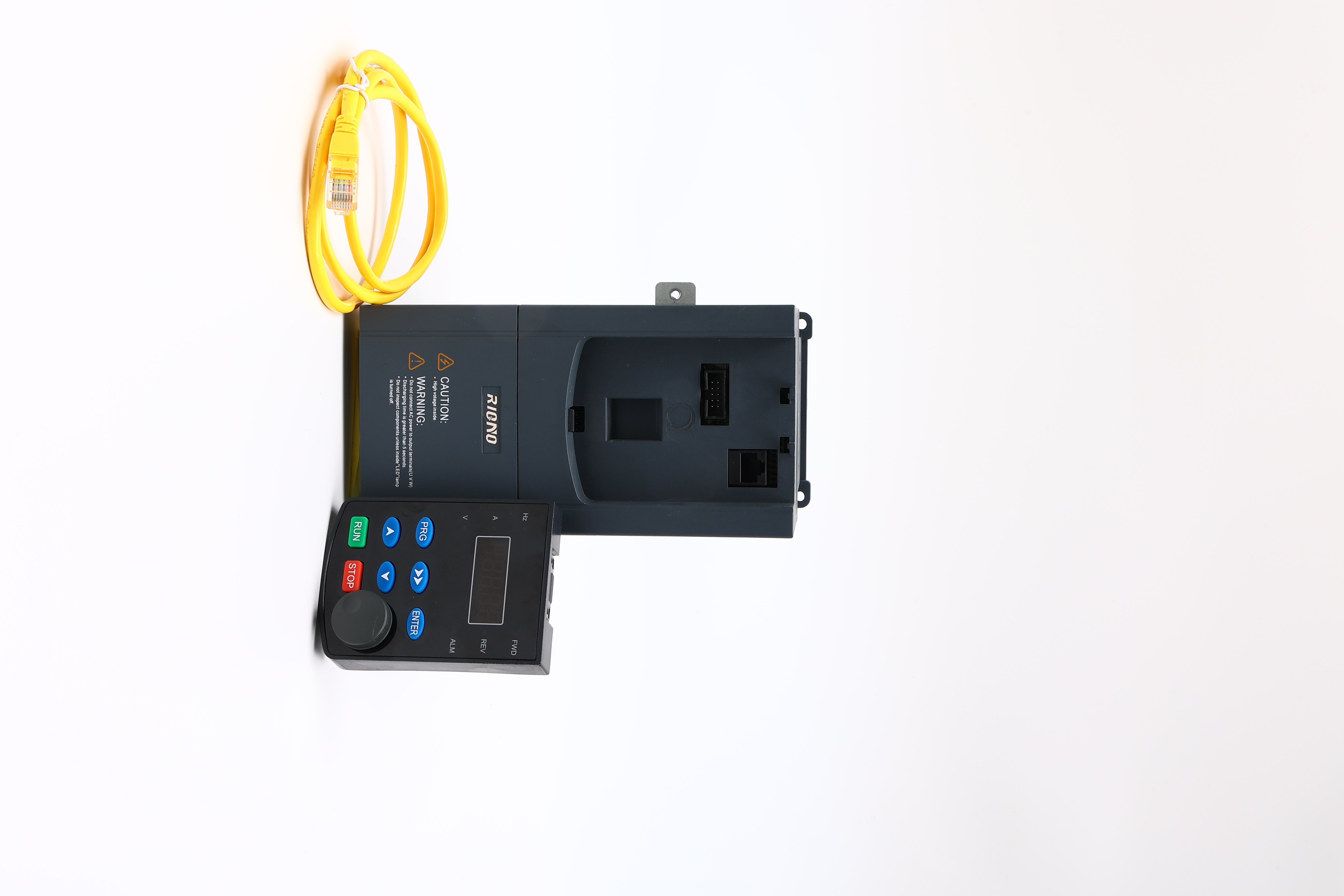

📷 Product Showcase
Product Detail

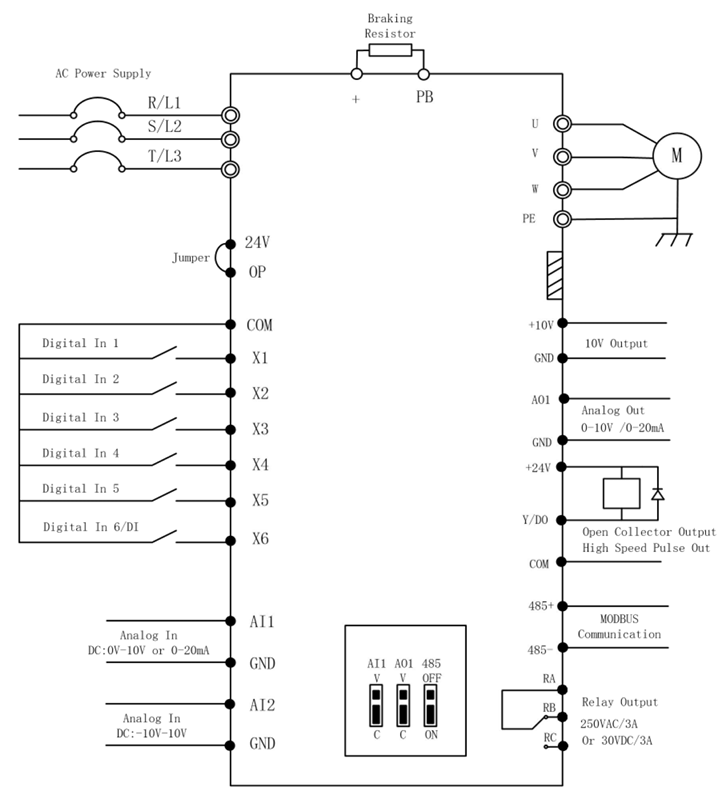

🔗 Wiring Diagram
Wiring Diagram
📋 Technical Parameters
Product Name: A800 Series High Performance Vector Frequency Inverter
Nominal Voltage: 220V & 380V
Temperature Range: -10°C - 50°C
Output Frequency: 0-3000HZ
Protection Level: IP20
Cooling Method: Fan cooling
Applications: Elevator, Solar water pump, Conveyor Belt, Crusher, Concrete mixer, Textile, etc.
No. Model No. Motor Power (KW) Rated Current (A) Outline Dimensions (mm) Gross Weight (KG)
1A800-0R7G/1R5P-T40.752.1/3.885*129*1701.3
2A800-1R5G/2R2P-T41.53.8/5.185*129*1701.3
3A800-4R0G/5R5P-T449/1397*144*1941.75
4A800-11RG/15RP-T41125/32124*171*2453.05
5A800-30RG/37RP-T43060/75255*195*39013
6A800-110RG/132RP-T4110210/253395*285*78560.5
🏭 Application Scenarios
Applications
⚙️ Production & Quality Control

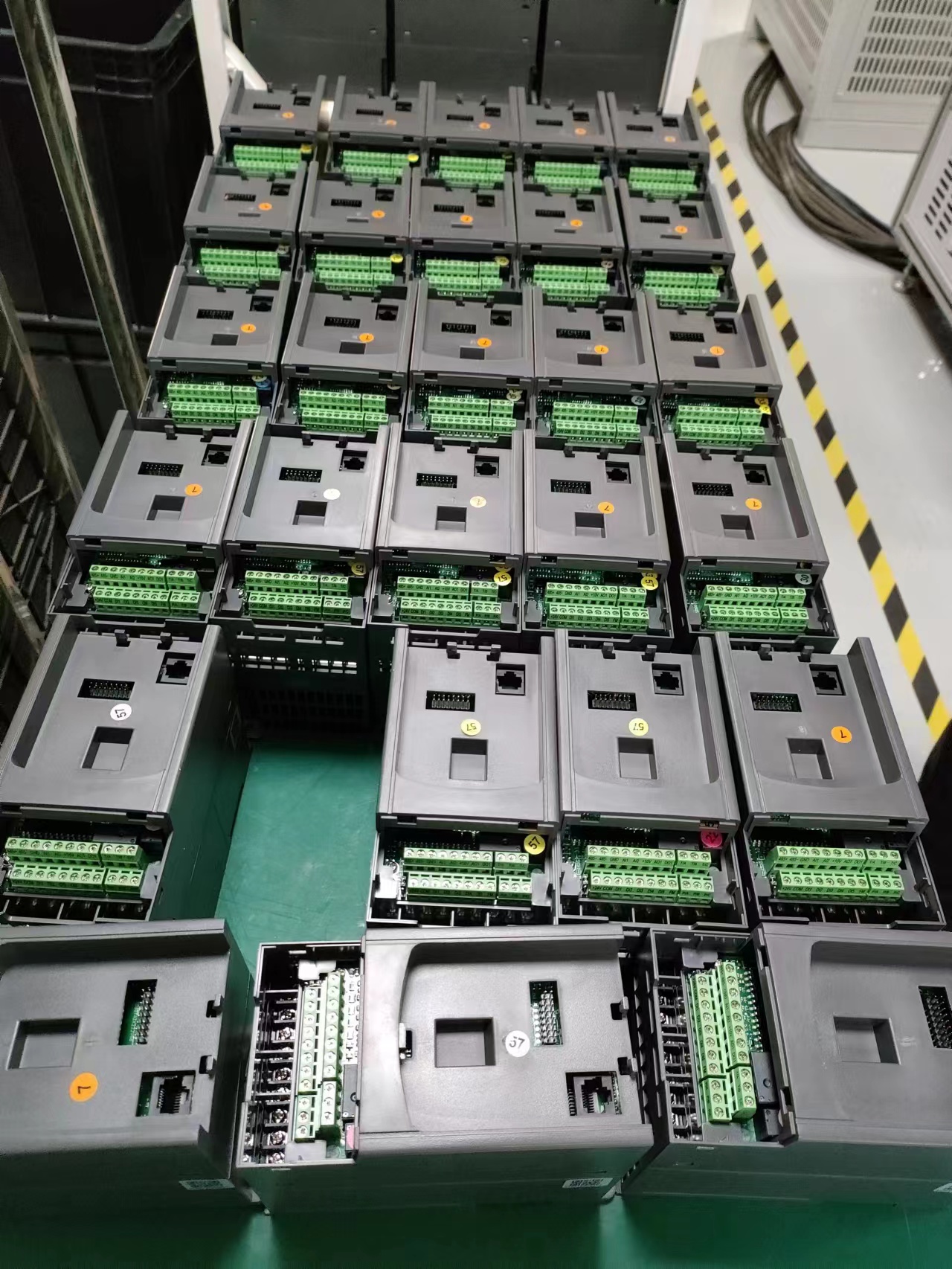

Advanced Production

Equipped with professional PCB assembling machines, automatic spraying equipment, and intelligent testing benches to ensure reliable automation products.

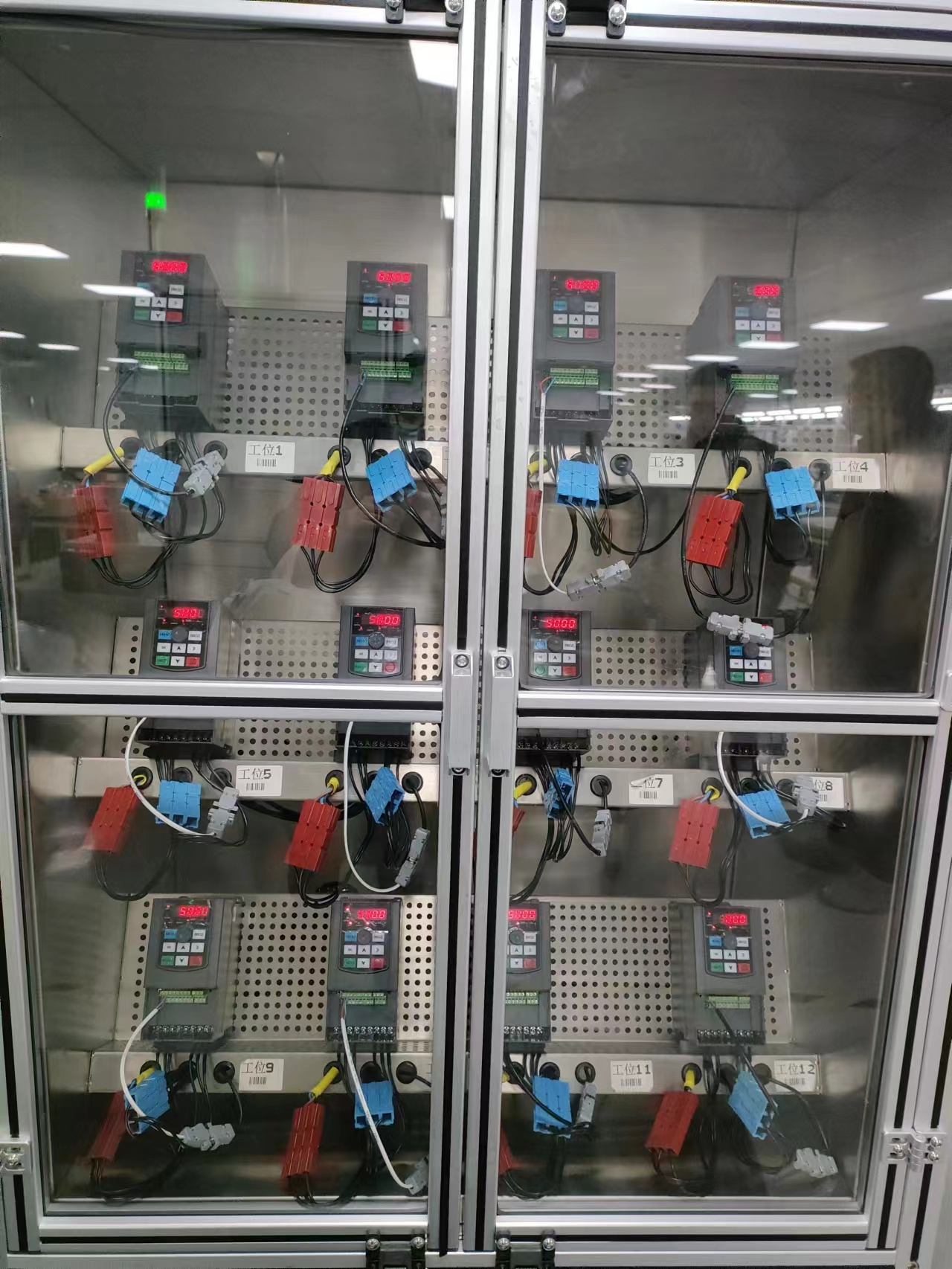

Strict QC Procedures

All products go through strict quality control from international automation production process control to regular maintenance of testing accuracy.

📦 Packing & Delivery
Packing Info
❓ Frequently Asked Questions
1. What are the primary applications for the A800 series inverter?
The A800 series is widely used in elevators, solar water pumps, conveyor belts, crushers, concrete mixers, textile machinery, and other industrial automation fields.
2. What input voltages are supported?
We provide models supporting 220V (1-phase or 3-phase) and 380V (3-phase) inputs, suitable for various power grid requirements.
3. How is the quality of the products guaranteed?
Quality is ensured through pre-production samples before mass production and a final comprehensive inspection before every shipment.
4. Does the inverter support both AC and DC input?
Yes, the hardware design supports both AC and DC inputs, making it highly versatile for solar and traditional power applications.
5. What is the warranty period for these frequency inverters?
All A800 series high-performance vector frequency inverters come with an 18-month standard warranty.
6. Are OEM and ODM services available?
Yes, we provide full support for OEM and ODM requests to meet specific technical or branding requirements for our global clients.
