Power Range:

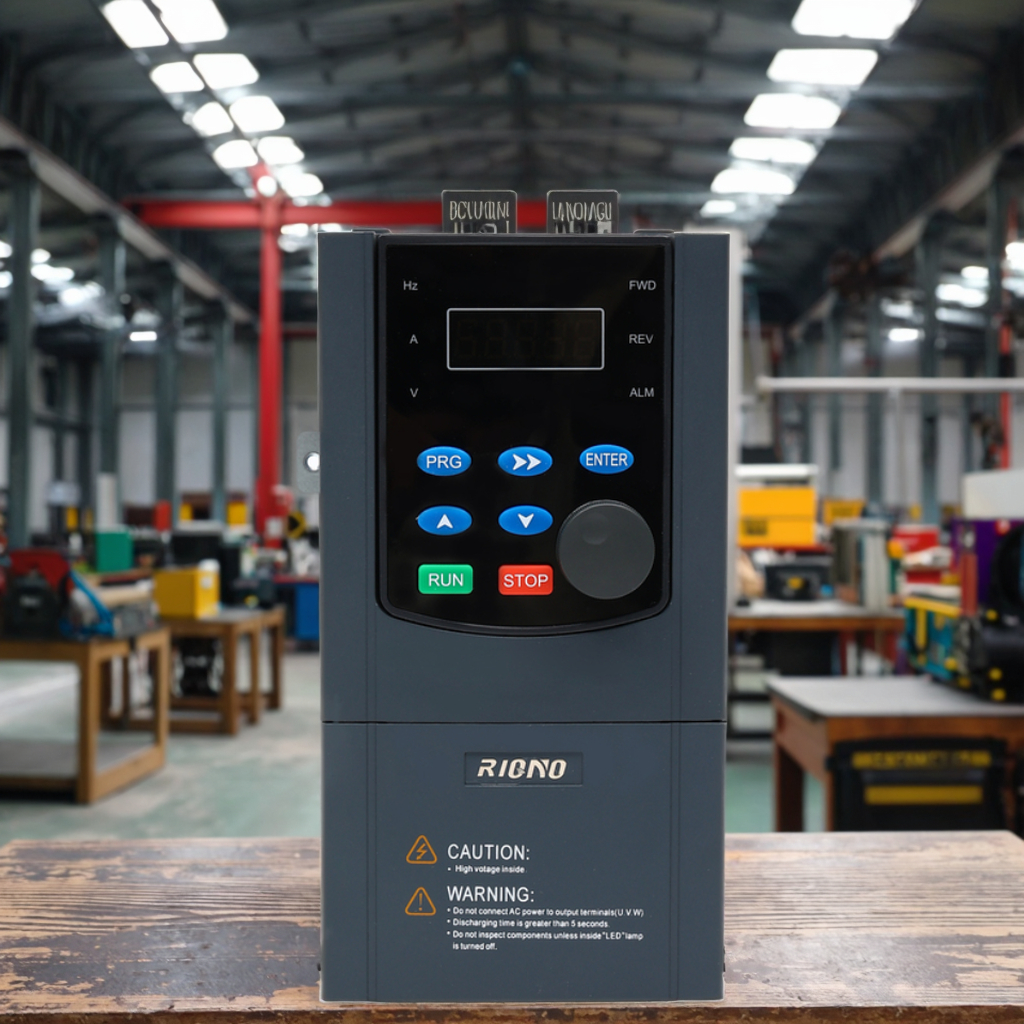

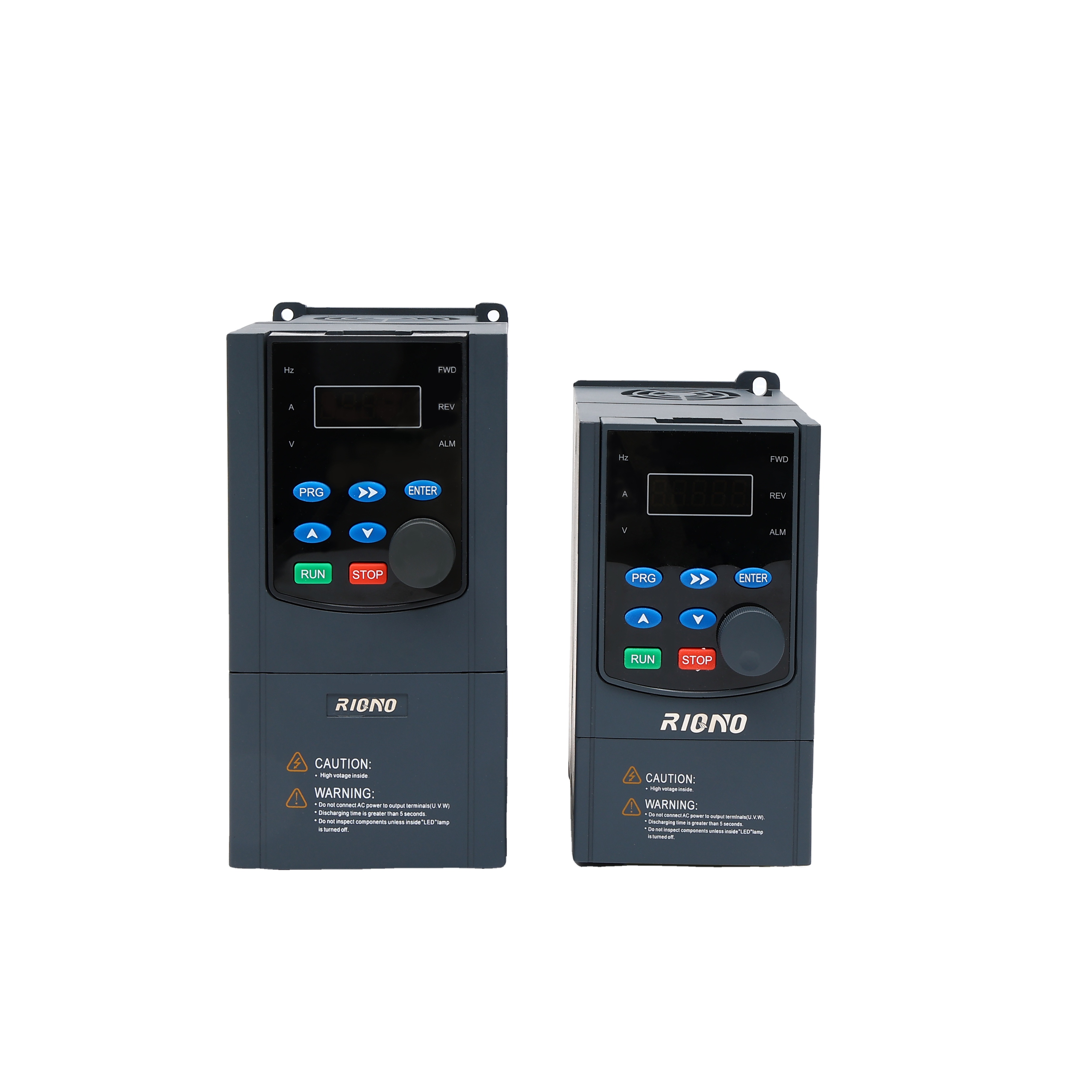

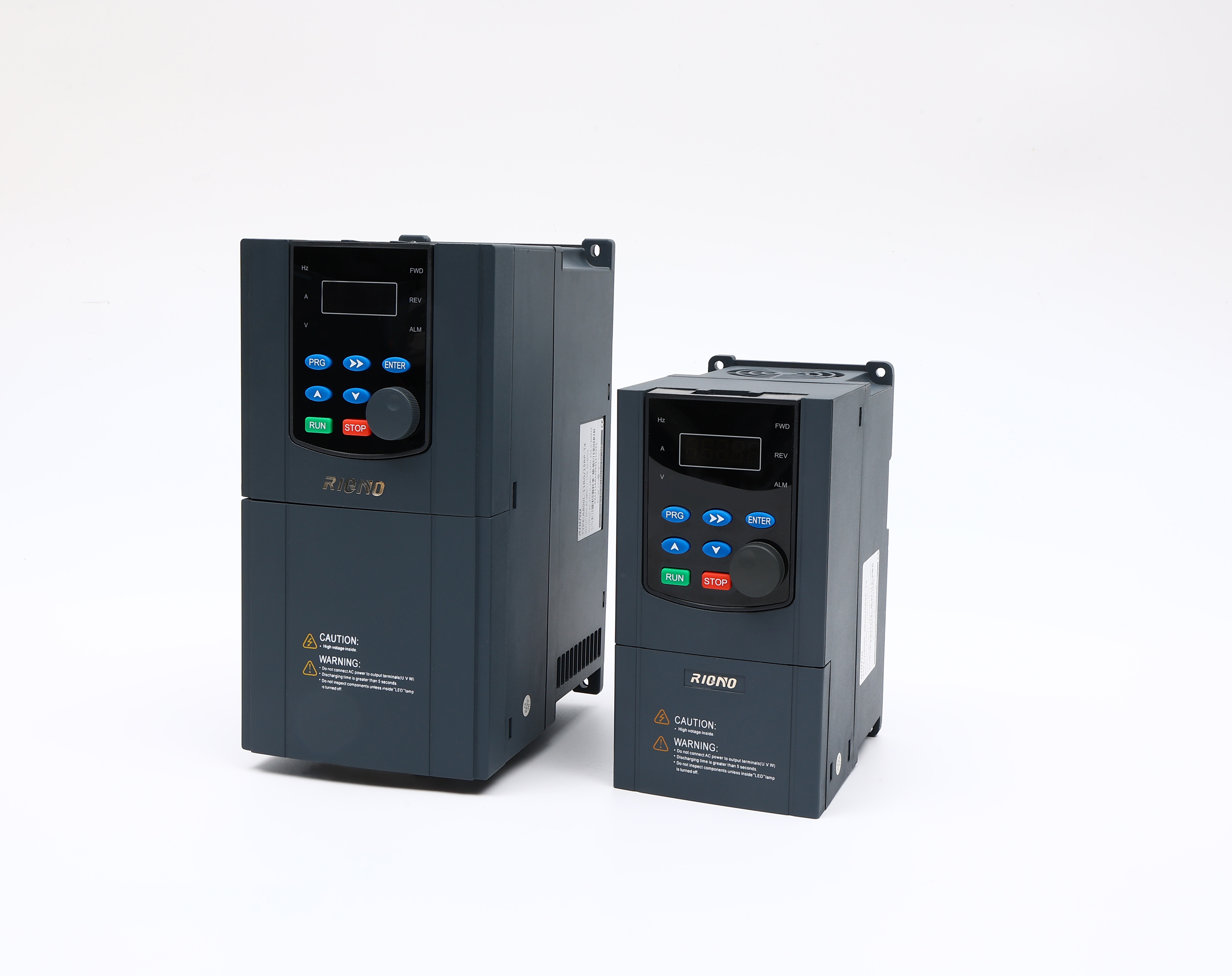

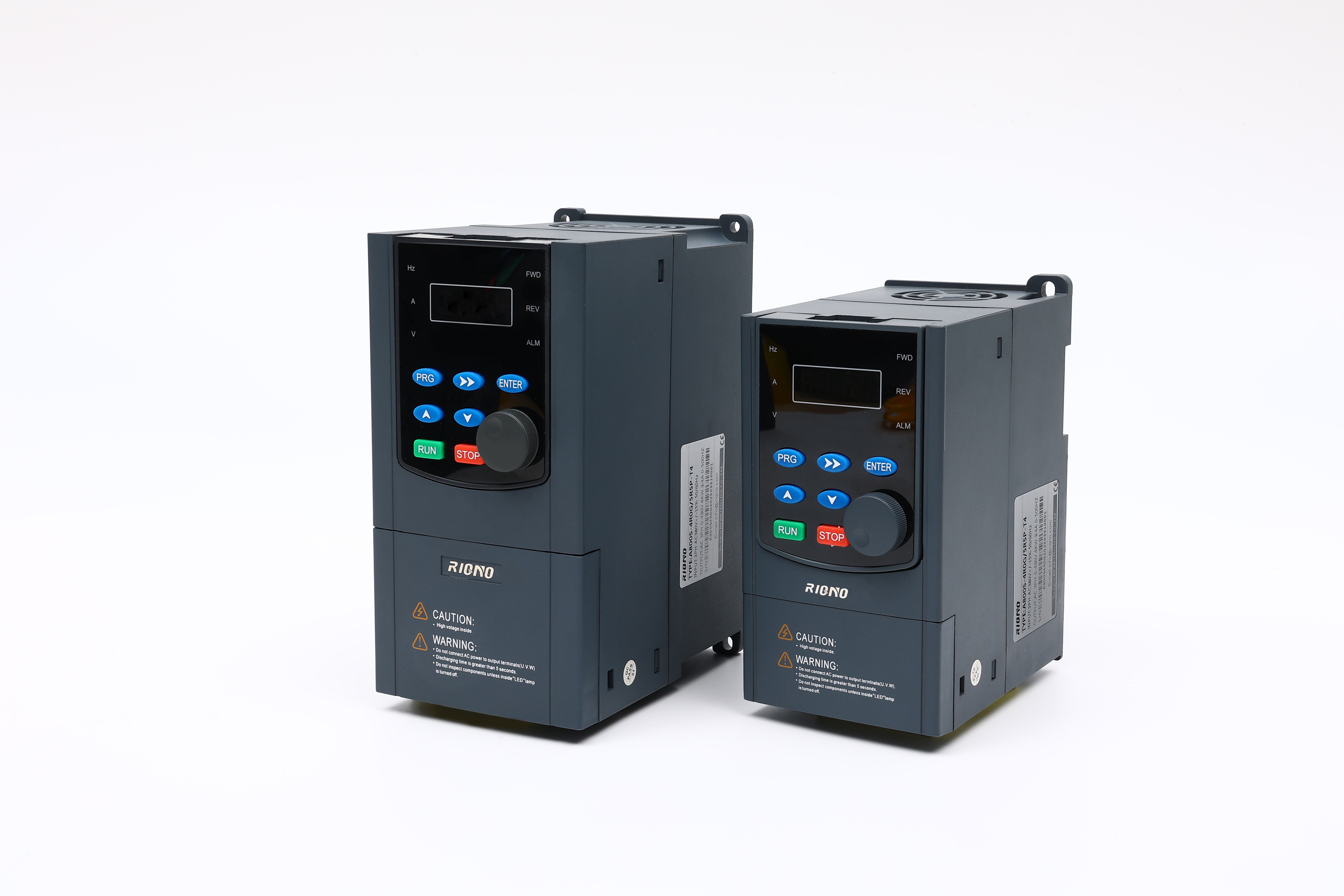

Product name: A800 Series High Performance Vector Frequency Inverter
Nominal voltage: 220V & 380V
Temperature range: -10°C to 50°C
Output frequency: 0-3000Hz
Protection level: IP20
Cooling method: Fan cooling
Application: Elevator, Solar water pump, Conveyor Belt, Crusher, Concrete mixer, Textile, etc.
| No. | Model No. | Motor Power (KW) | Rated Current (A) | Outline Dimensions (W*D*H)(mm) | Package Dimensions (H*D*W)(mm) | Gross Weight (KG) |
|---|---|---|---|---|---|---|
| 1 | A800-0R7G/1R5P-T4 | 0.75 | 2.1/3.8 | 85*129*170 | 220*140*185 | 1.3 |
| 2 | A800-1R5G/2R2P-T4 | 1.5 | 3.8/5.1 | 85*129*170 | 220*140*185 | 1.3 |
| 3 | A800-2R2G/4R0P-T4 | 2.2 | 5.1/9 | 85*129*170 | 220*140*185 | 1.3 |
| 4 | A800-4R0G/5R5P-T4 | 4 | 9/13 | 97*144*194 | 245*145*210 | 1.75 |
| 5 | A800-5R5G/7R5P-T4 | 5.5 | 13/17 | 97*144*194 | 245*145*210 | 1.8 |
| 7 | A800-7R5G/11RP-T4 | 7.5 | 17/25 | 124*171*245 | 320*195*255 | 3 |
| 8 | A800-11RG/15RP-T4 | 11 | 25/32 | 124*171*245 | 320*195*255 | 3.05 |
| 12 | A800-30RG/37RP-T4 | 30 | 60/75 | 255*195*390 | 470*330*280 | 13 |
| 18 | A800-110RG/132RP-T4 | 110 | 210/253 | 395*285*785 | 900*500*480 | 60.5 |
Advanced automatic production line: Our professional production lines are equipped with automatic PCB assembling machines, spraying equipment, and intelligent testing benches. We focus on manufacturing reliable automation products.
Strict quality control: All products undergo strict quality control procedures, from customer demand standards to international automation production process control.
