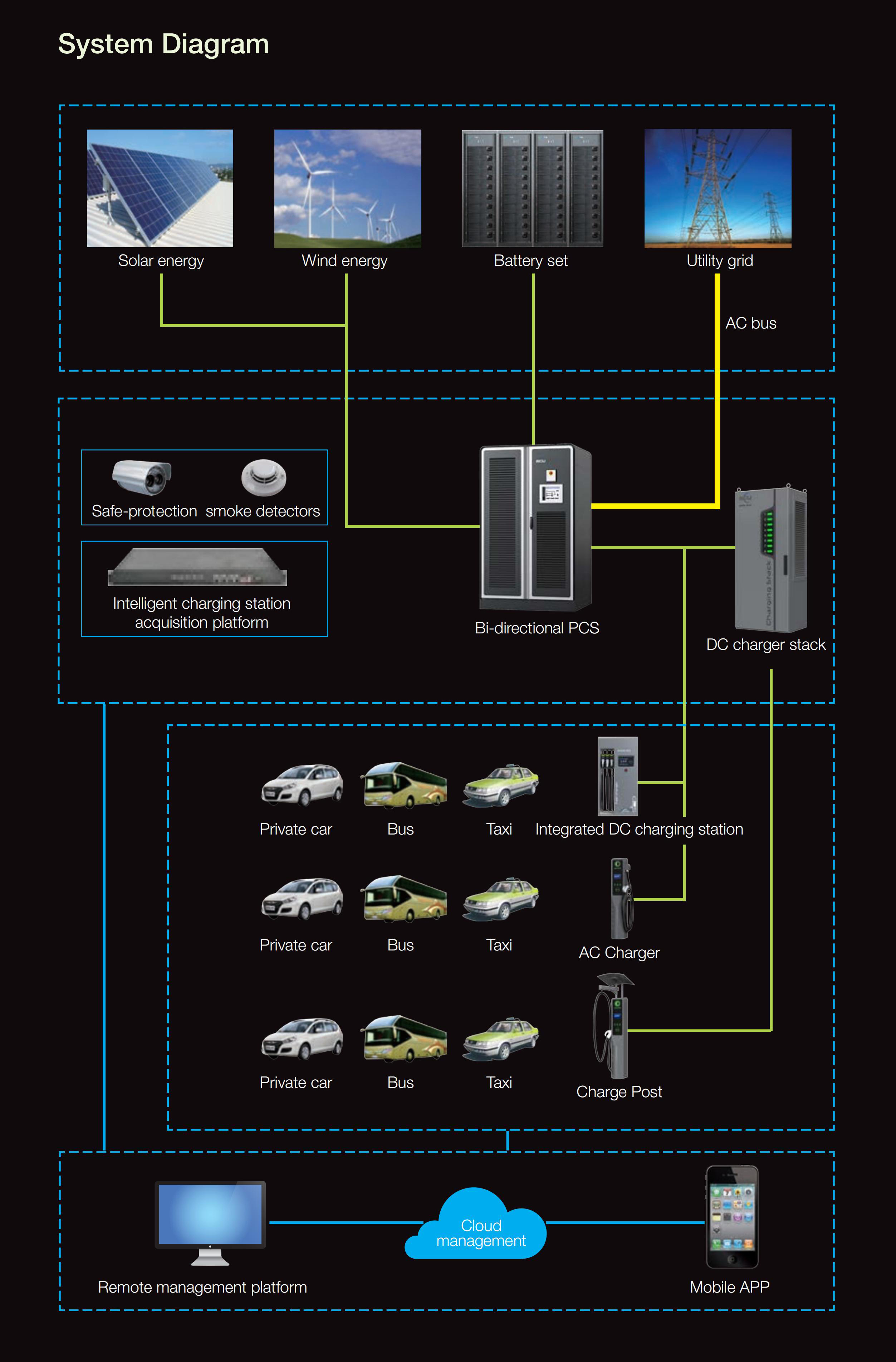

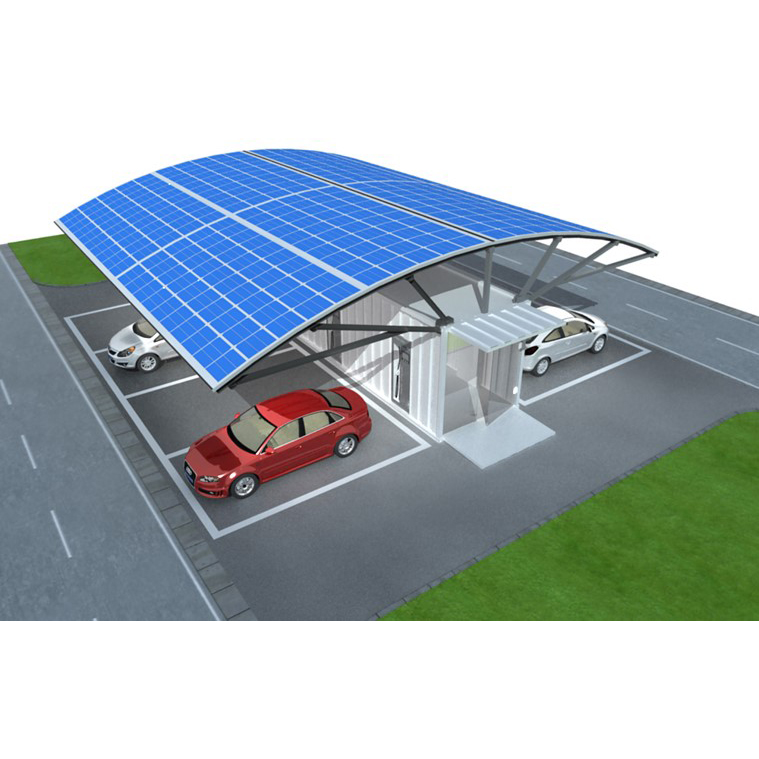

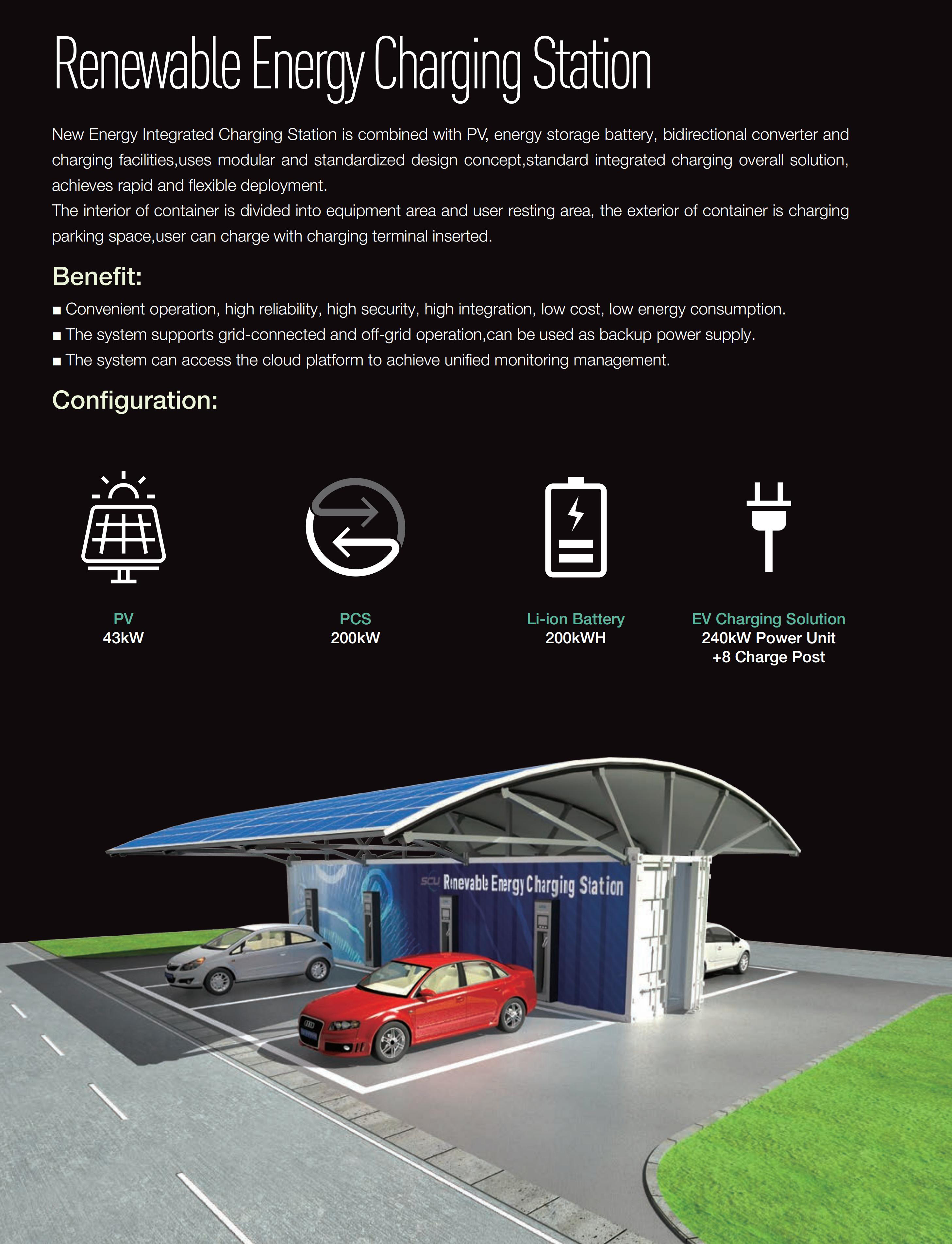

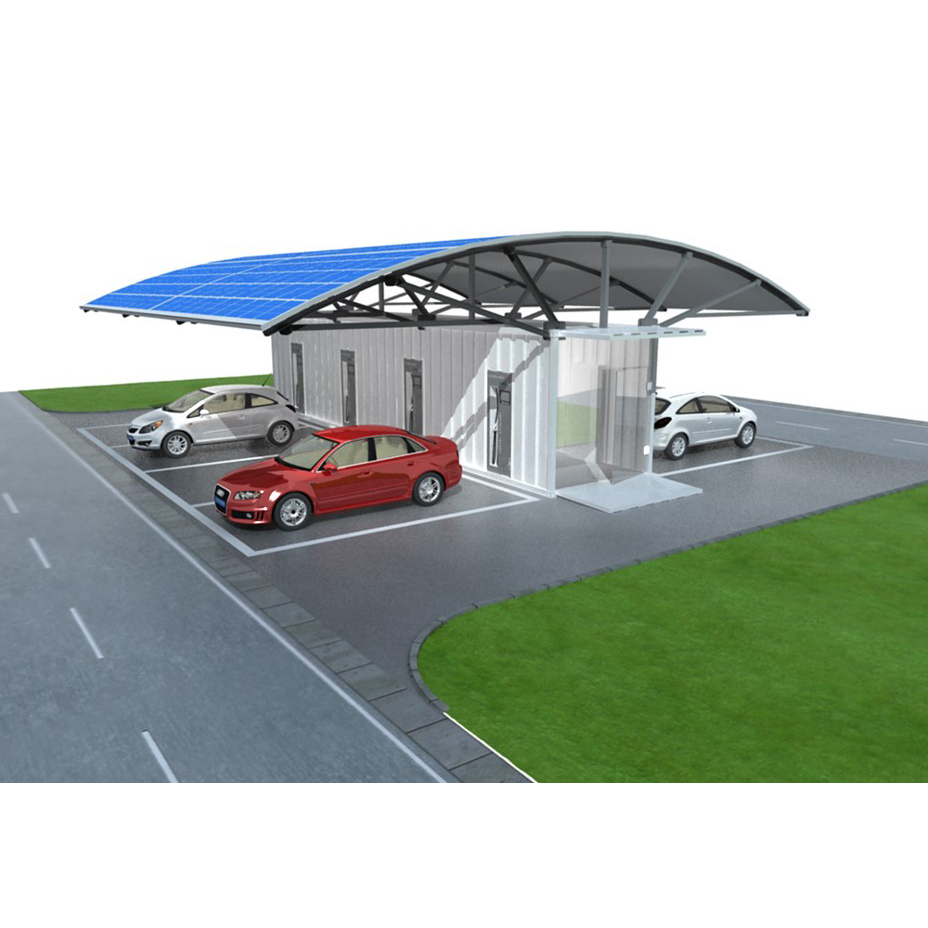

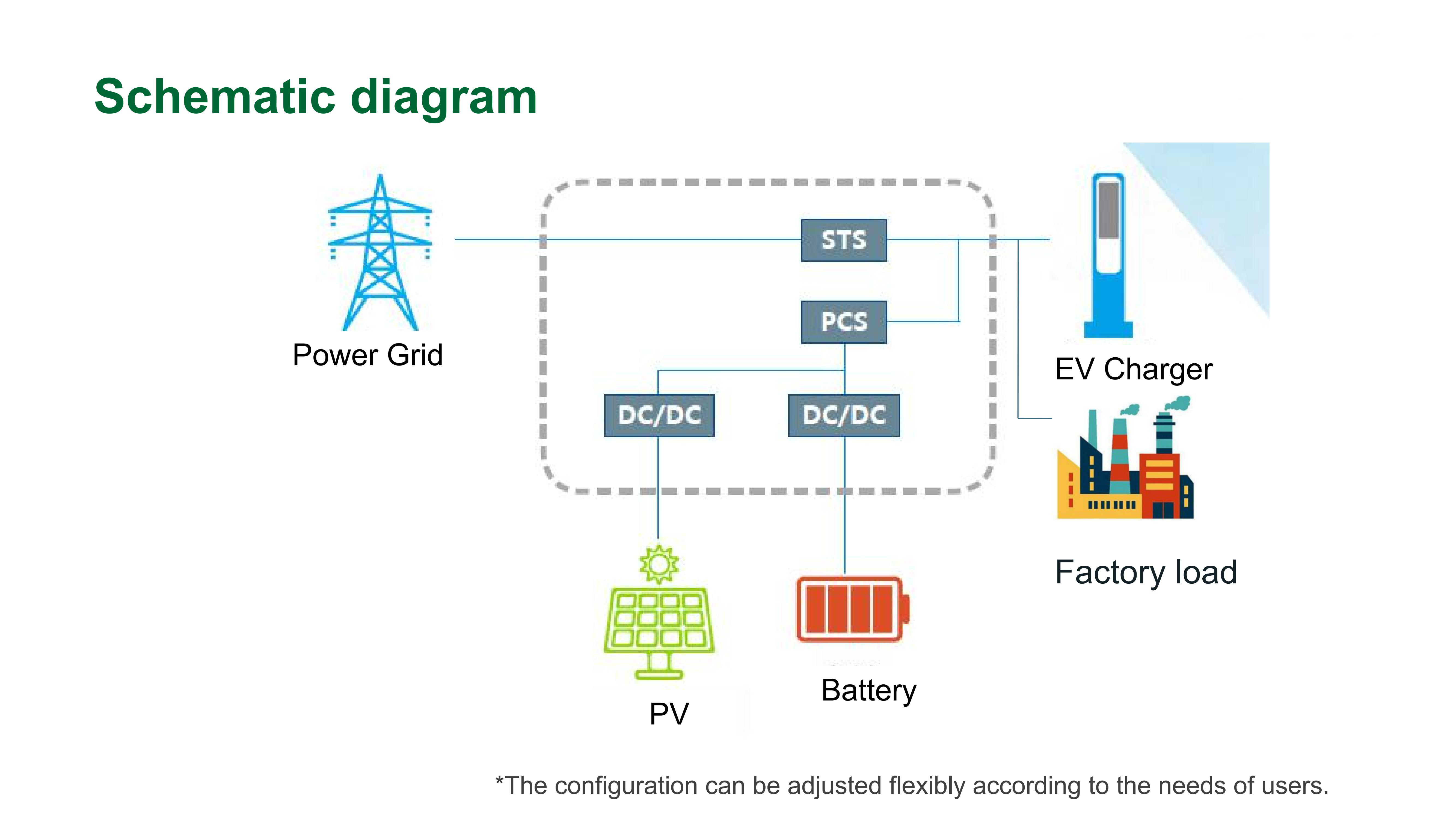

New energy charging station is a set of standard one-for-eight charging solution by modular and standardized designing philosophy. It is composed of PV modules, energy storage batteries, PCS and charging facilities. It can realize dynamic growth according to the needs of users and the priority of using new energy. Charging facilities, energy storage facilities, power distribution, monitoring and temperature control system are integrated in the container. A charging parking space is arranged outside the container, and the charging terminal is embedded on the outer wall of the container, which the user can operate conveniently. The equipment has high reliability and safety, high integration, low cost and low energy consumption, which can realize rapid and flexible deployment. It is a standard and integrated solution for new energy charging station.

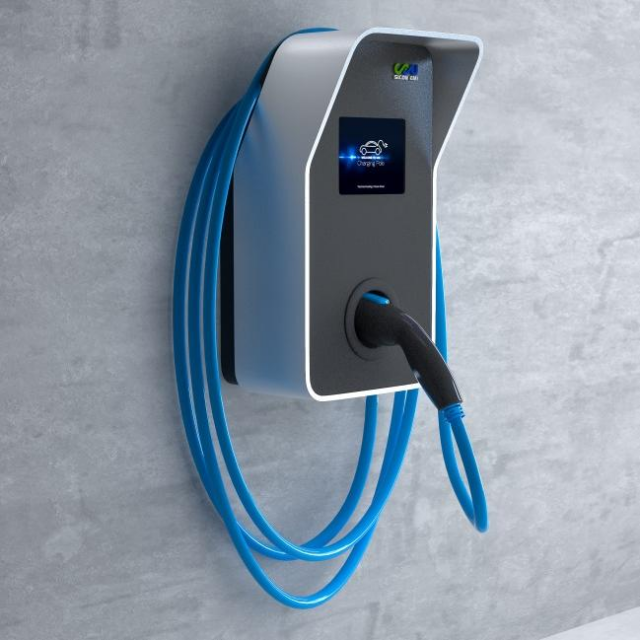

The EVMS DC Wallbox charger is able to charge all current and next generation vehicles with CCS and CHAdeMO. The 30kW charging station is a configurable single or dual outlet wall mounted DC fast charger, supporting the changing needs of each customer. With compact, space-saving and attractive design, it is ideal for a wide range of installations, both indoors and outdoors available.
| General Specifications | |
| Model | EVMS-30 |
| System capacity | 30kW |
| Input parameters | |
| Voltage | 400Vac, 3P+N+PE |
| Voltage range | 304V~456Vac |
| Power factor | >0.99 |
| Frequency | 50/60Hz |
| Output parameters | |
| Connectors | Single output CCS1/CCS2/ CHAdeMO |
| Voltage | 50-1000Vdc |
| Current / Power | Maximum 100A, 30kW |
| Overall efficiency | 95% |
| Control & Safety | |
| Display | 10.4’’ TFT Touch screen |
| Protection | IP54, IK10, Leakage, Over/Under-voltage, Lightning protection |
| Compliance | CE, IEC EN61851, EN62196, DIN70121, ISO15118 |

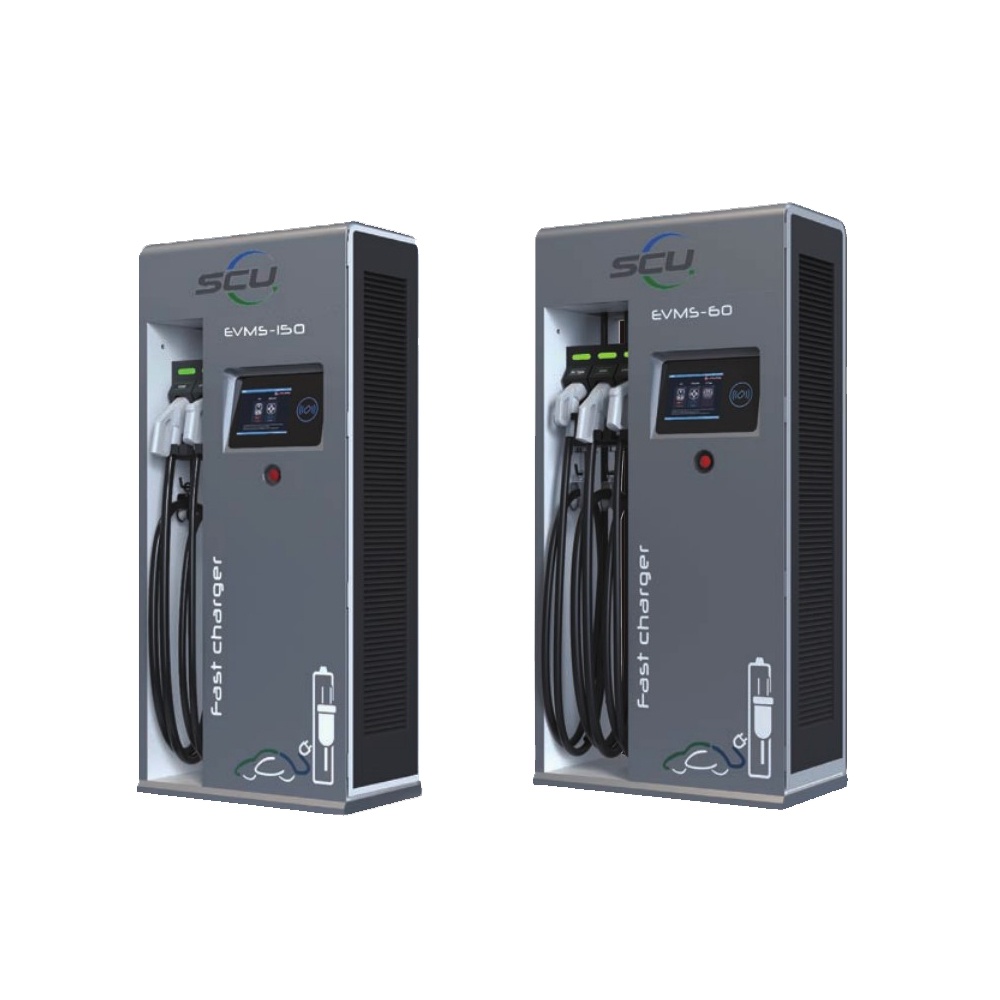

The EVMS DC Fast Charging Station is able to charge all current and next generation vehicles with CCS, CHAdeMO and AC Type 2. The power covers 60KW ~ 150KW, and can be configurable single, dual or triple connectors to meet the changing charging needs of customers.
| Model | EVMS-60 | EVMS-150 |
|---|---|---|
| Nominal Input Power | 60kW | 150kW |
| Voltage Range | 400 Vac ± 20 % | |
| DC Output Voltage | 50Vdc-1000Vdc | |
| Max Current | 200A | 250A (200A optional) |
| Connectors | CCS2, CHAdeMO, AC Type 2 | |
| Network | 4G | LAN | Wi-Fi | OCPP1.6J | |
| Operating Temp | -35ºC to 60ºC | |
| Protection Grade | IP54, IK10 | |

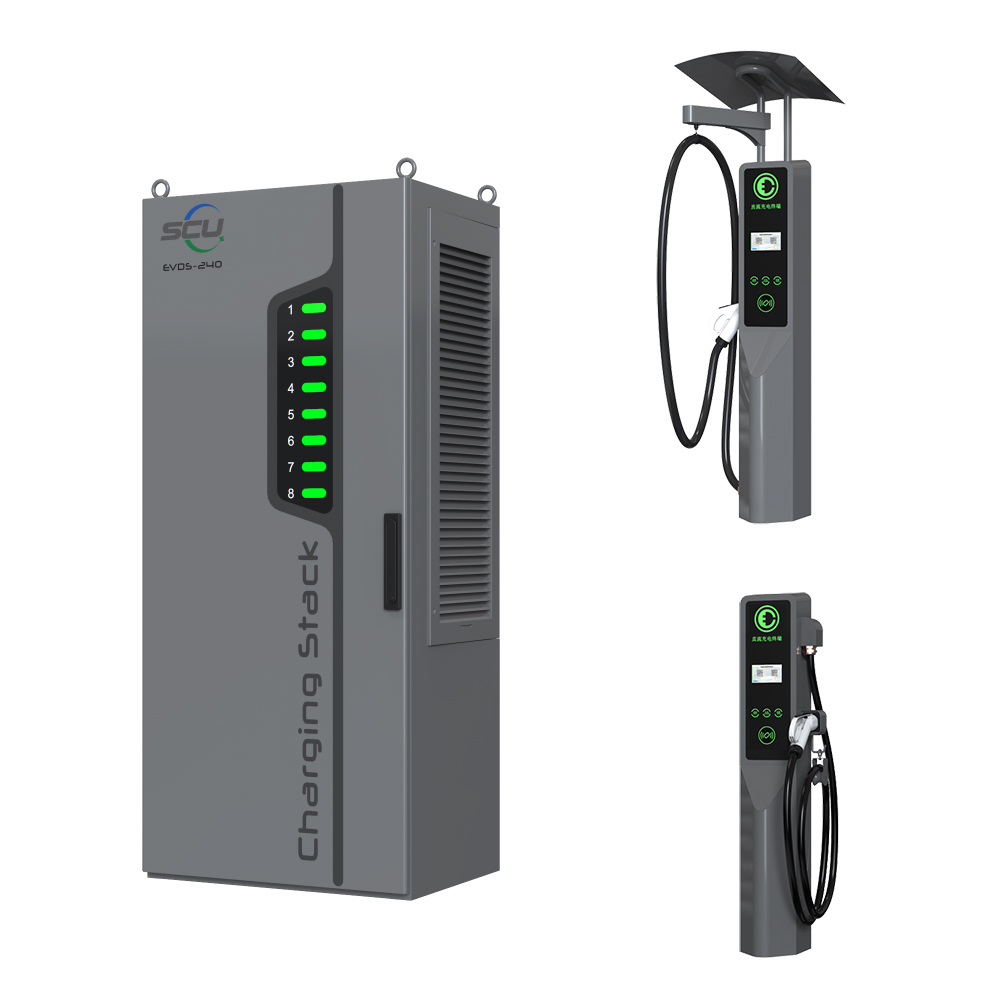

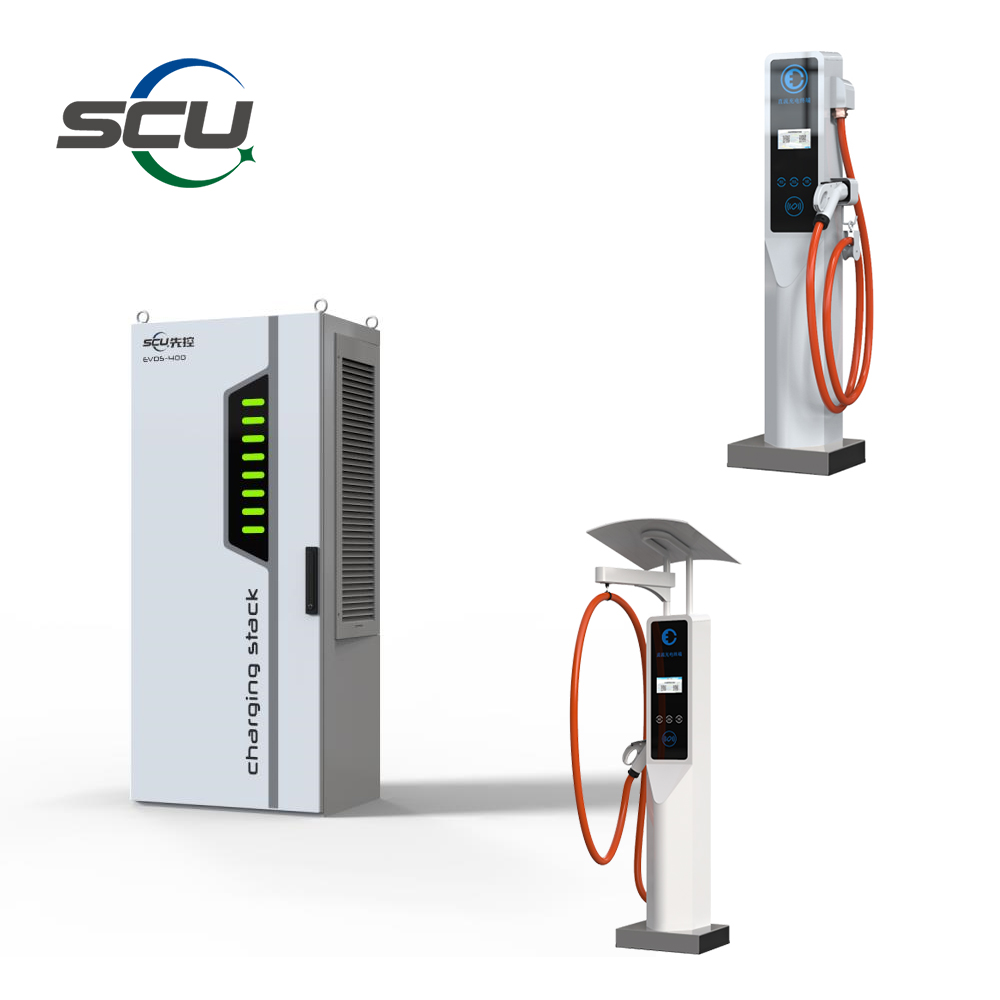

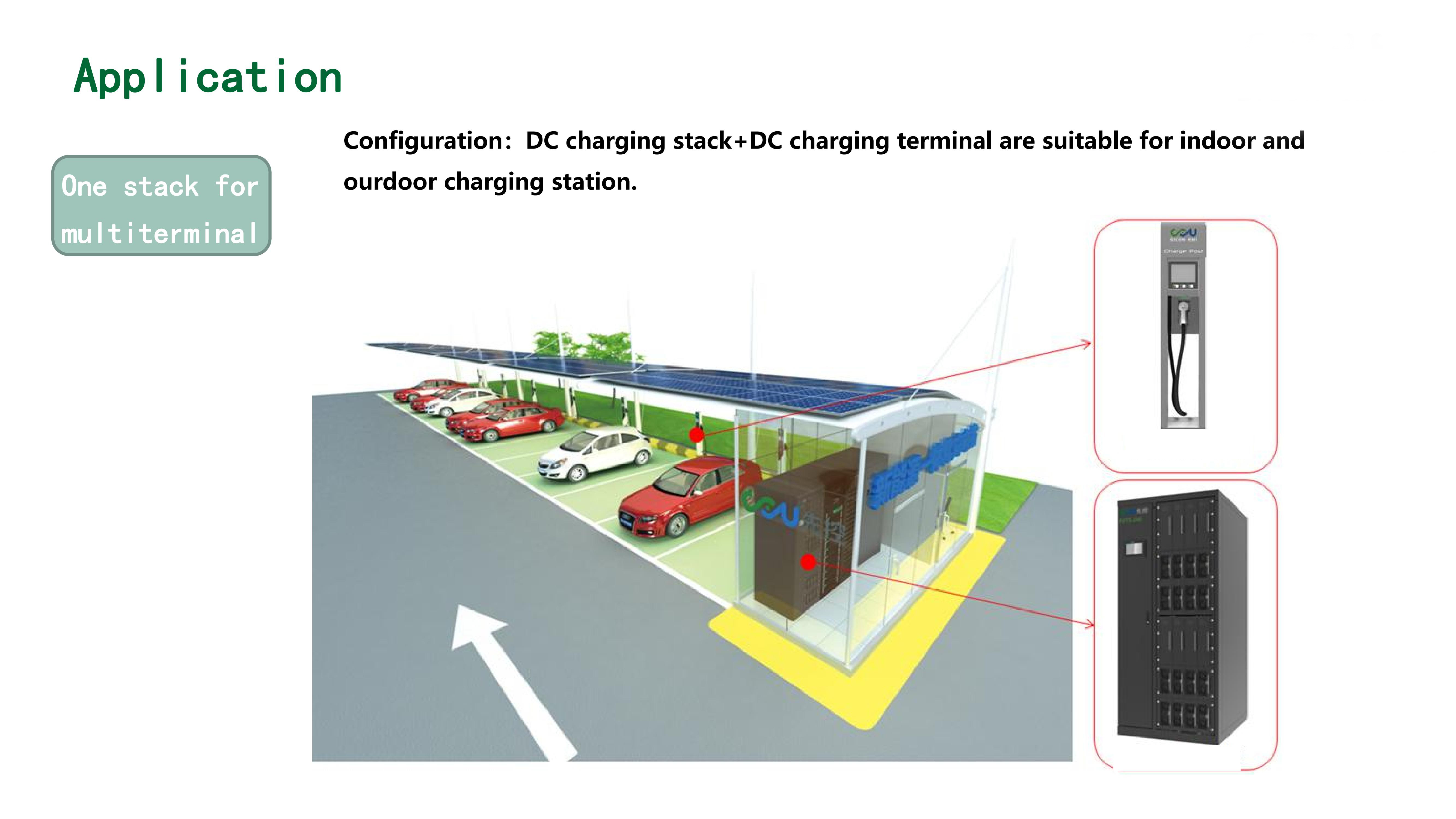

EVMS series EV charging stack is a split-type charging system meeting multiple standards CCS, CHAdeMO, GB/T. Adopting modular design concept and forefront power electronic technology, consists of power stack, control units and charge posts. Can be installed both outdoor and indoor.

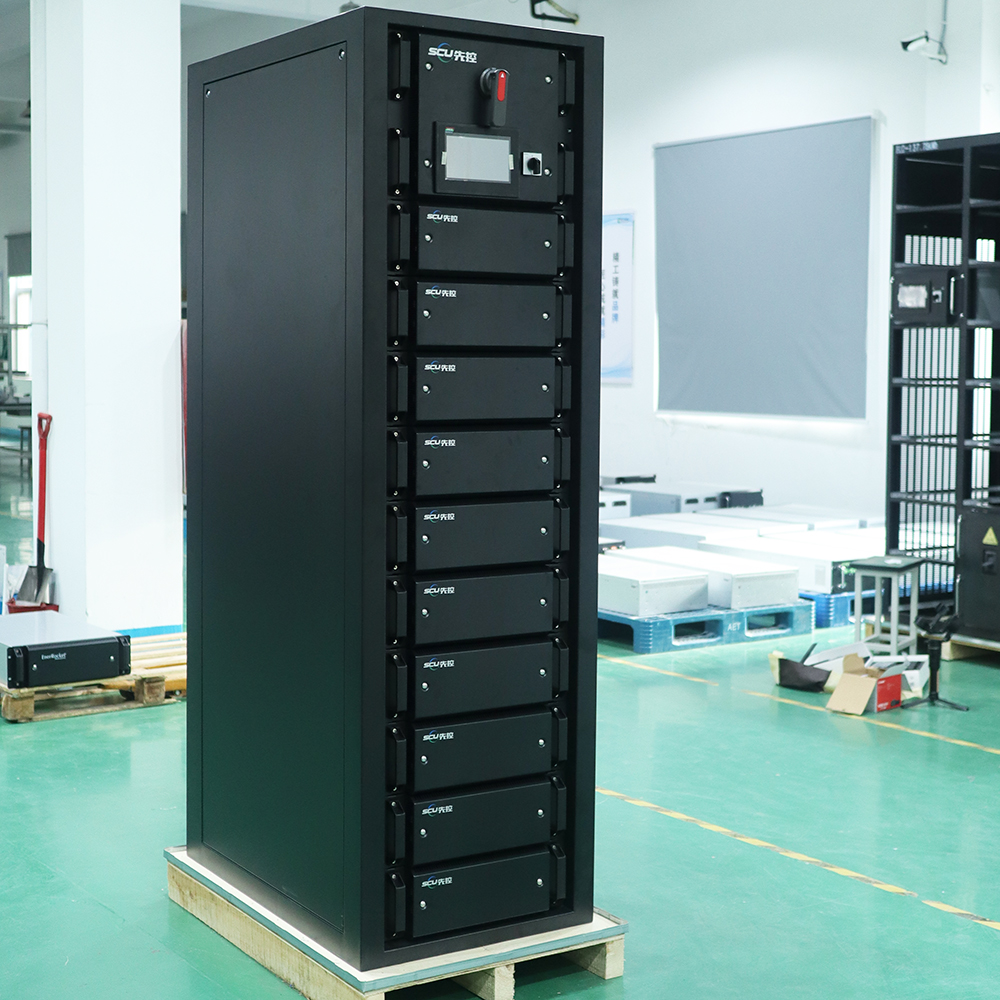

Lithium Battery System

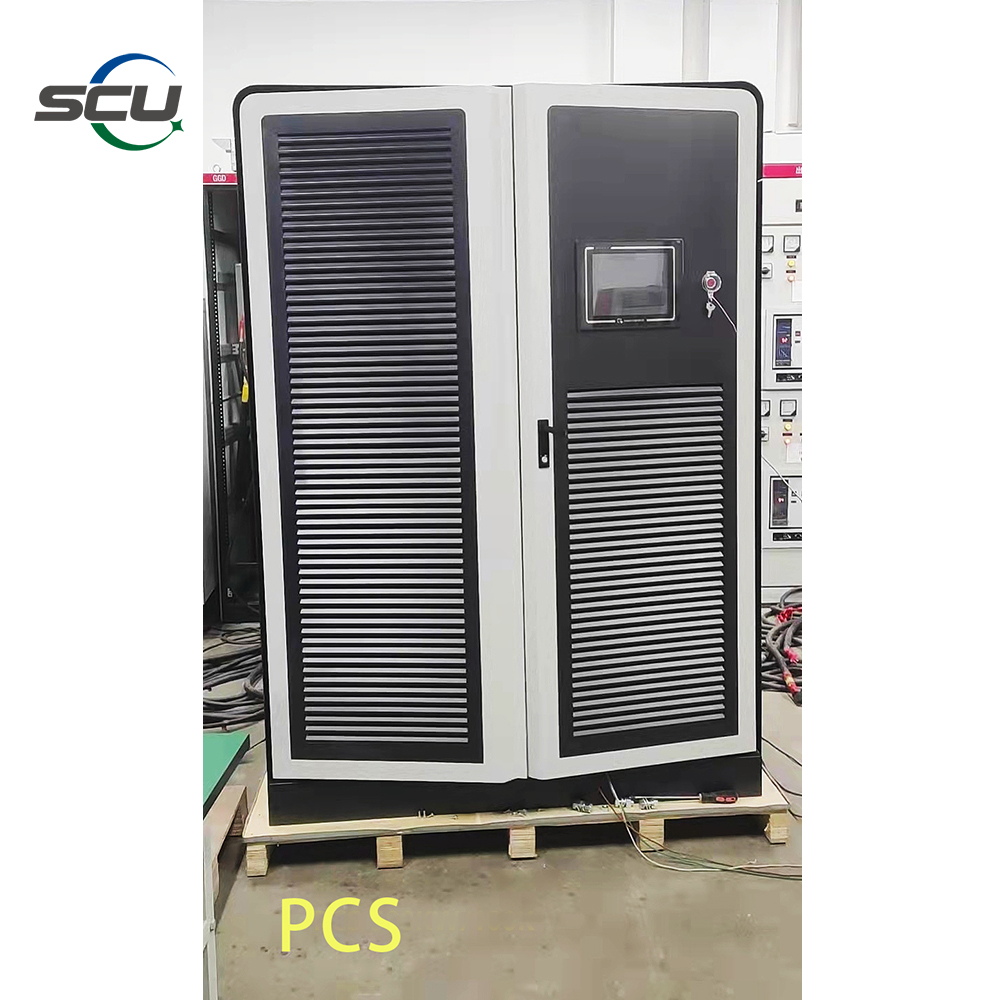

PCS (Hybrid Inverter)

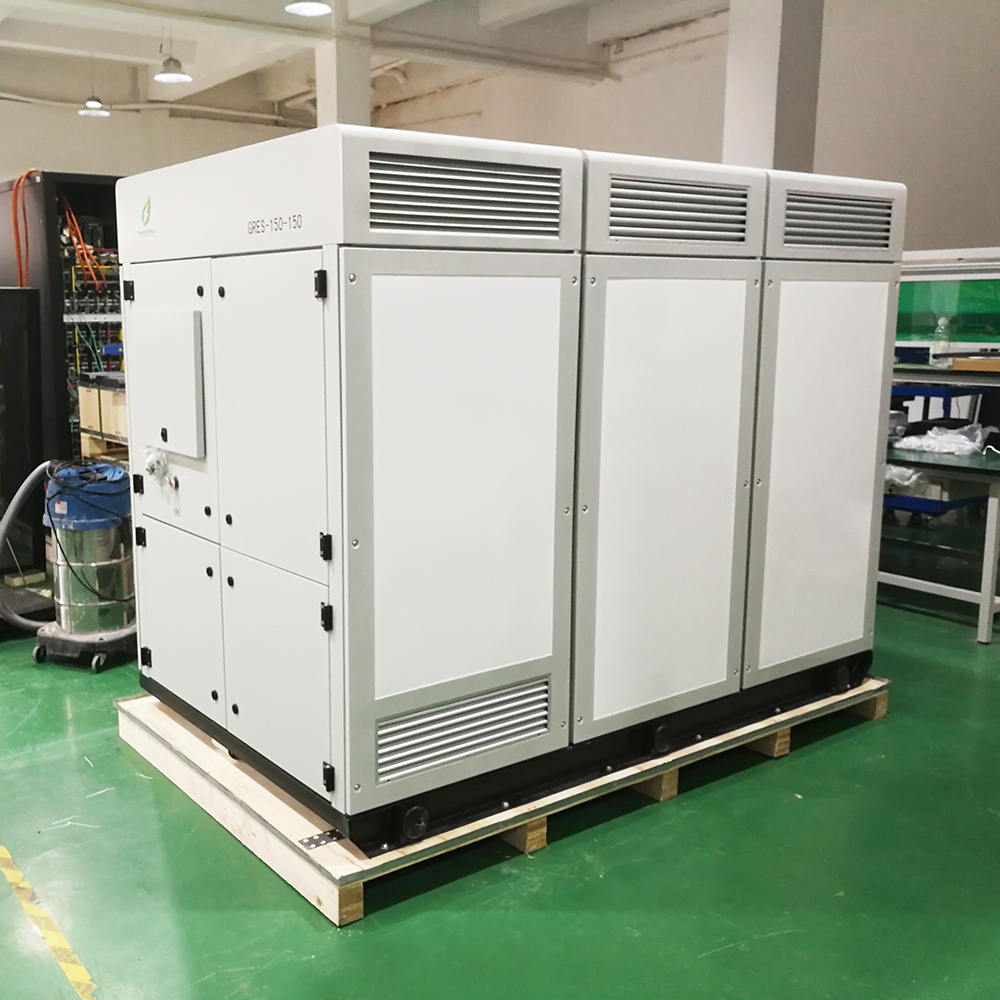

GRES (Energy Storage System)
