Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess
Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess
Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess
Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess
Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess
1 / 5
Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess
Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess
Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess
Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess
Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess

Solar Battery Energy Storage System New Design Customized 100kw/232kwh Modularized Integrated Micro Grid Battery Container Bess

Send Inquiry

Product Description

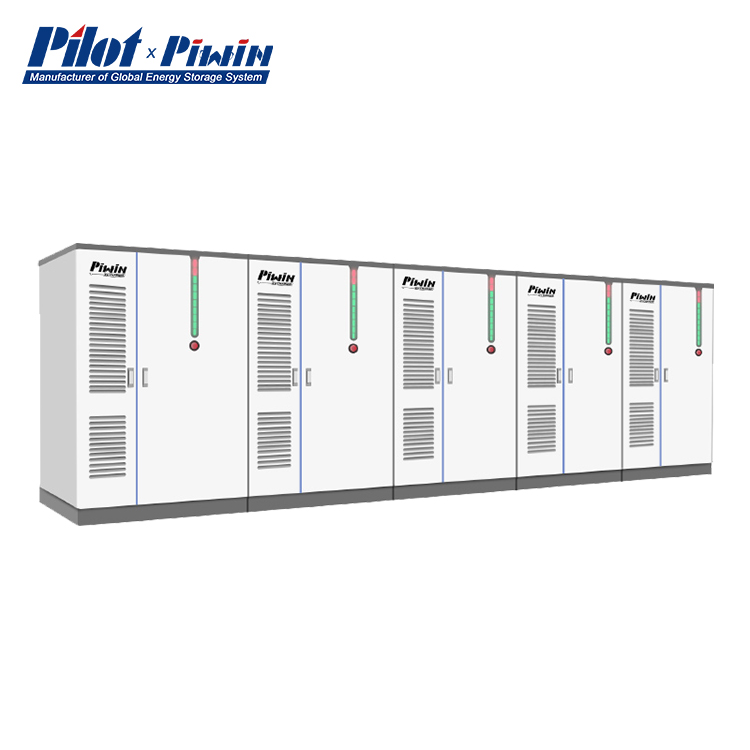

Main Product Image
Products Description

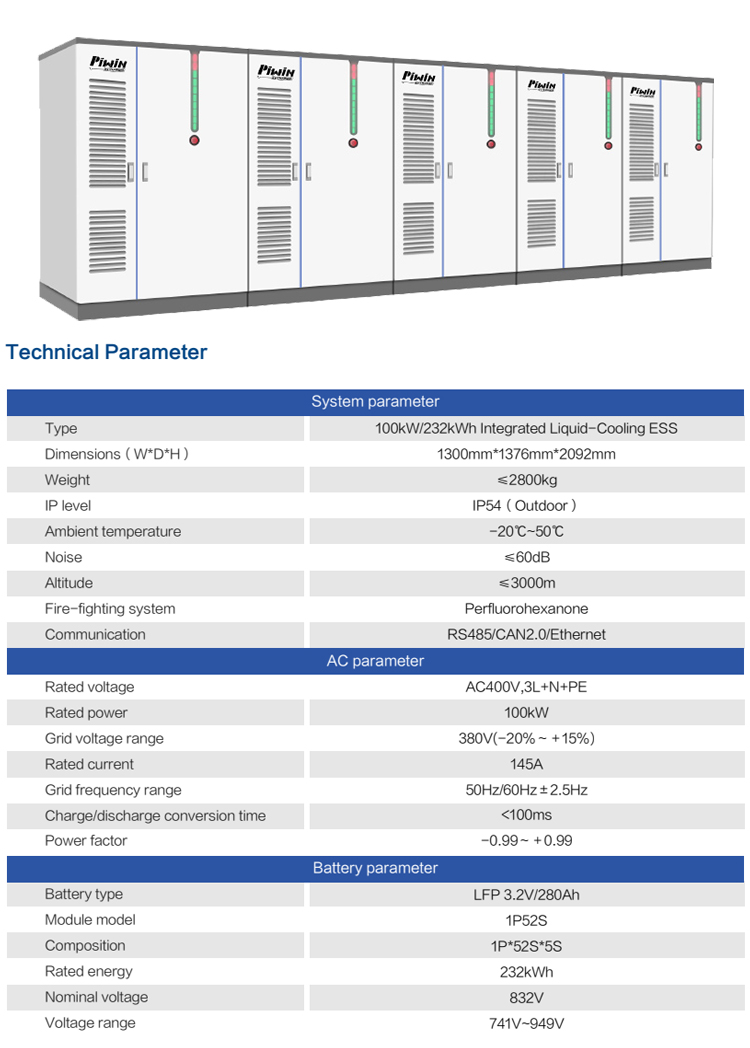

System Parameters
Type100kW/232kWh Integrated Liquid-Cooling ESS
Dimensions (W*D*H)1300mm*1376mm*2092mm
Weight≤2800kg
IP LevelIP54 (Outdoor)
Ambient Temperature-20℃ ~ 50℃
Noise≤60dB
Altitude≤3000m
Fire-fighting SystemPerfluorohexanone
CommunicationRS485/CAN2.0/Ethernet
AC Parameters
Rated VoltageAC400V, 3L+N+PE
Rated Power100kW
Grid Voltage RangeStandard Grid Voltage Range
Charge/Discharge Conversion＜100ms
Power Factor-0.99 ~ +0.99
Battery Parameters
Battery TypeLFP 3.2V/280Ah
Module Model1P52S
Composition1P*52S*5S
Rated Energy232kWh
Nominal Voltage832V
Voltage Range741V ~ 949V

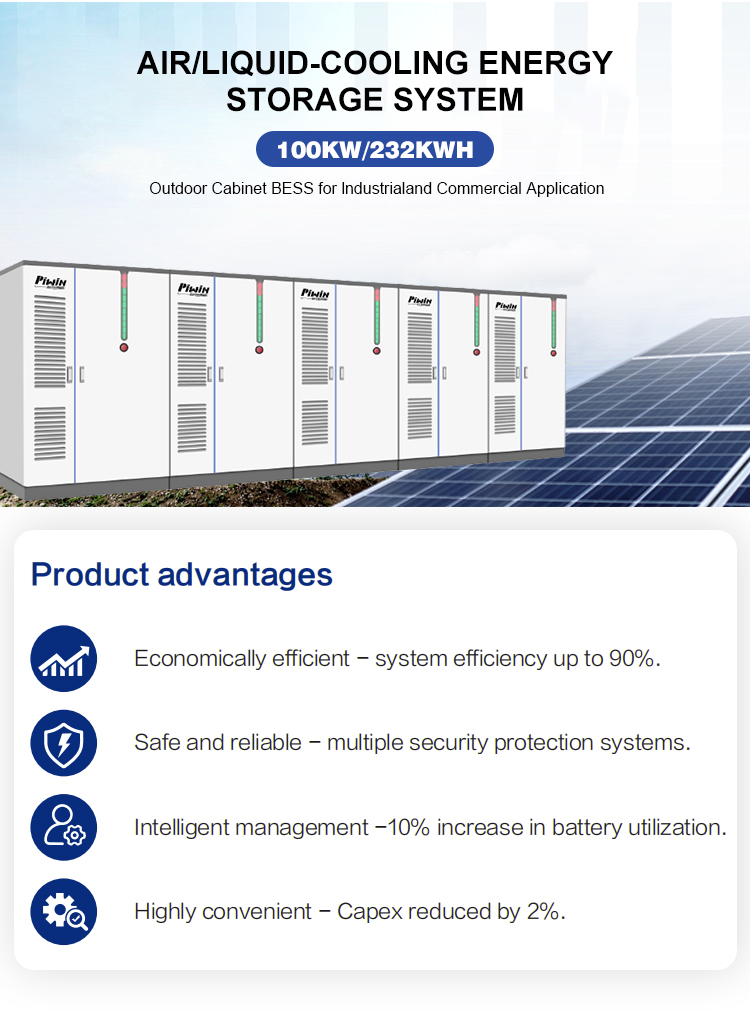

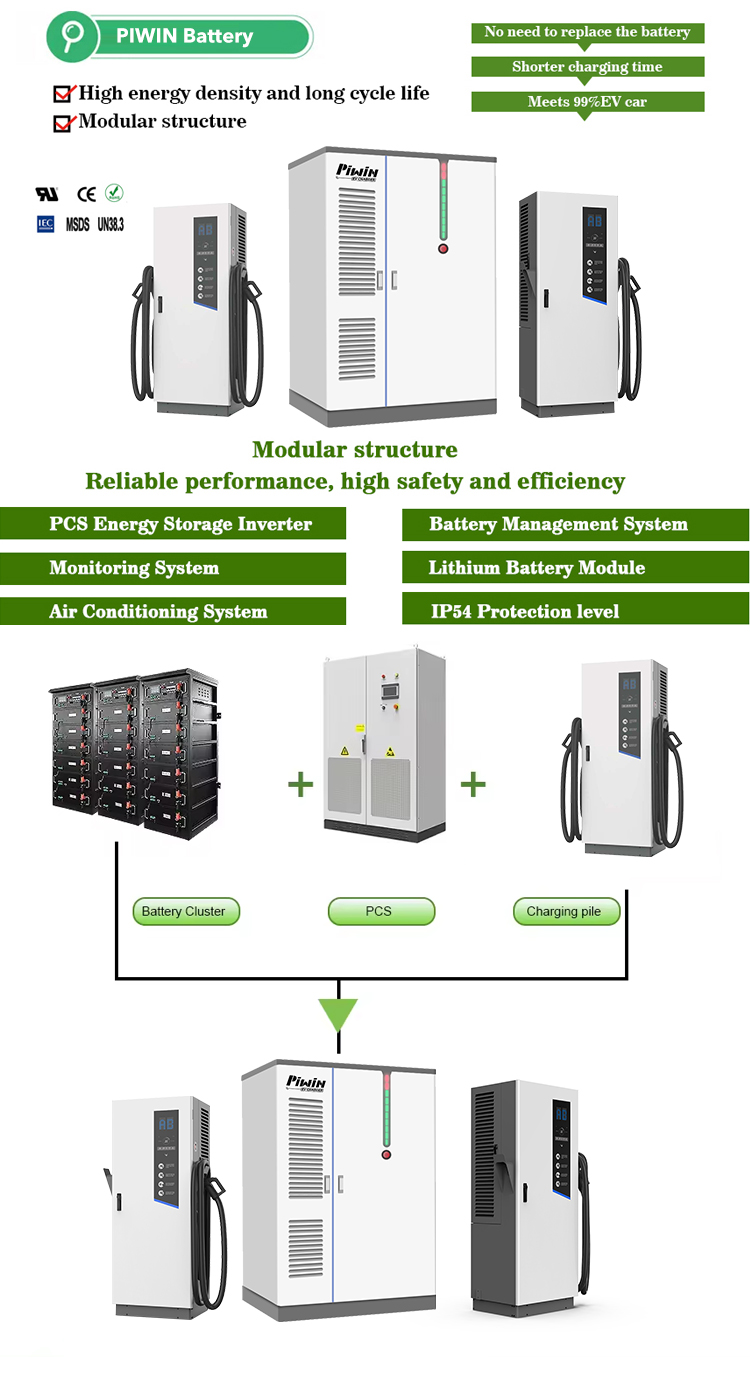

Product Display

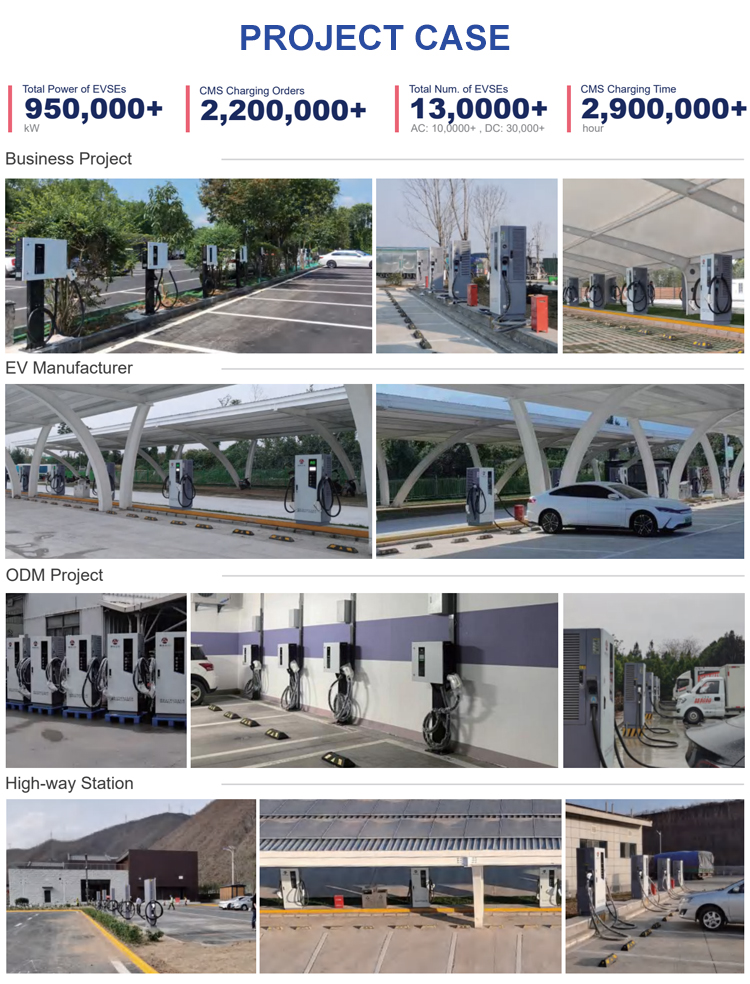

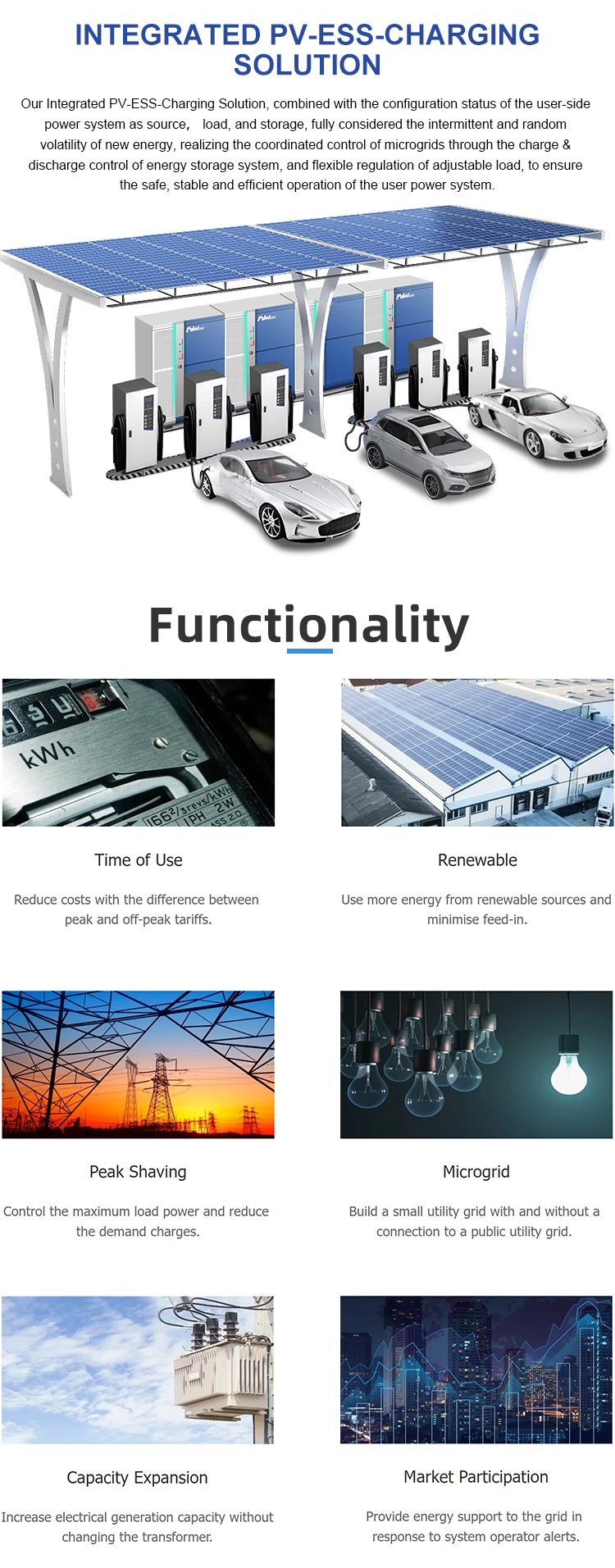

Project Case
Our Service
Company Profile
Packaging & Shipping
Frequently Asked Questions
What is the total capacity of this liquid-cooling ESS?
The system provides a rated energy capacity of 232kWh with a 100kW power rating, specifically designed for industrial and commercial applications.
Is this system suitable for outdoor installation?
Yes, it features an IP54 protection level, making it suitable for outdoor environments within an ambient temperature range of -20℃ to 50℃.
What safety features are integrated into the unit?
The system is equipped with a professional Perfluorohexanone fire-fighting system to ensure maximum safety and rapid fire suppression if required.
What battery technology is used in the system?
The system utilizes high-quality LFP (Lithium Iron Phosphate) 3.2V/280Ah cells in a 1P52S module configuration for long cycle life and high stability.
What are the communication options available for monitoring?
The system supports multiple communication protocols including RS485, CAN2.0, and Ethernet for seamless integration with local or remote monitoring systems.
What is the conversion time between charging and discharging?
The system boasts a rapid charge/discharge conversion time of less than 100ms, ensuring efficient energy management and response.
