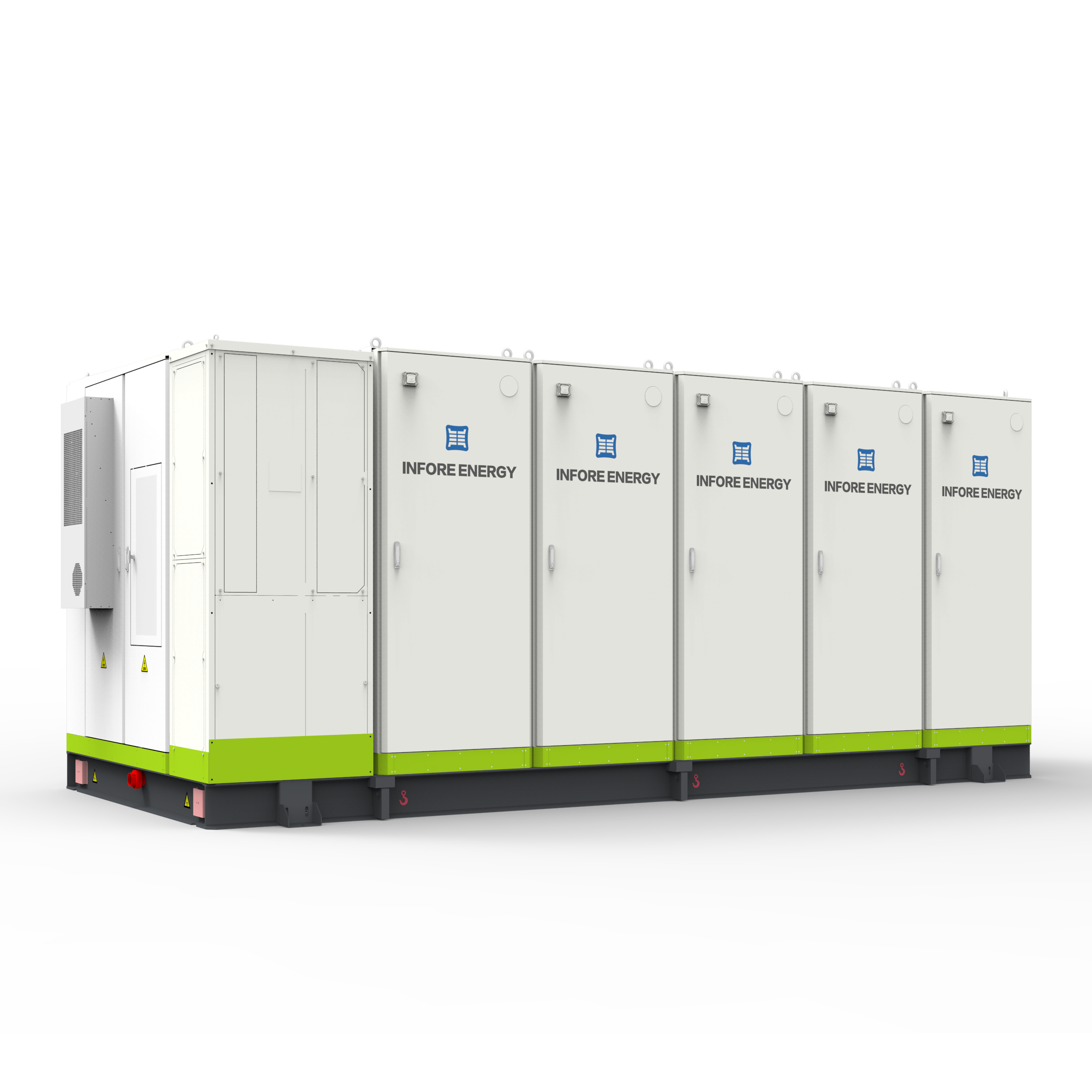

Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage
Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage
Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage
Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage
Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage
1 / 5
Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage
Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage
Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage
Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage
Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage

Sustainable Energy System 3720Kwh Liquid Cooling for Lithium Ion On-Grid 100Kwh to 500Kwh Range Cabinet Container Storage

Send Inquiry

Product Description

📊 Product Parameters
Item 280AH/3.2V Specification 314AH/3.2V Specification
Cell Type Lithium iron phosphate Lithium iron phosphate
Rated Discharge Rate ≤0.5C ≤0.5C
Rated Voltage 1331.2V 1331.2V
Operating Voltage Range 1164.8V-1497.6V 1164.8V-1497.6V
Nominal Energy 3.72MWh 5MWh
Protection Rating IP55 IP55
Corrosion Resistance C4 C4
Weight ≈37T ≈44T
Cooling Method Intelligent liquid cooling Intelligent liquid cooling
Dimensions (L×W×H, mm) 6170×2710×2683 6800×2650×2896
Operating Temperature -25℃ ～ 55℃ -35℃ ～ 55℃
Maximum Altitude ≤4,000m ≤5,000m
Communication Interface RS485/Ethernet RS485/Ethernet
💡 Products Description

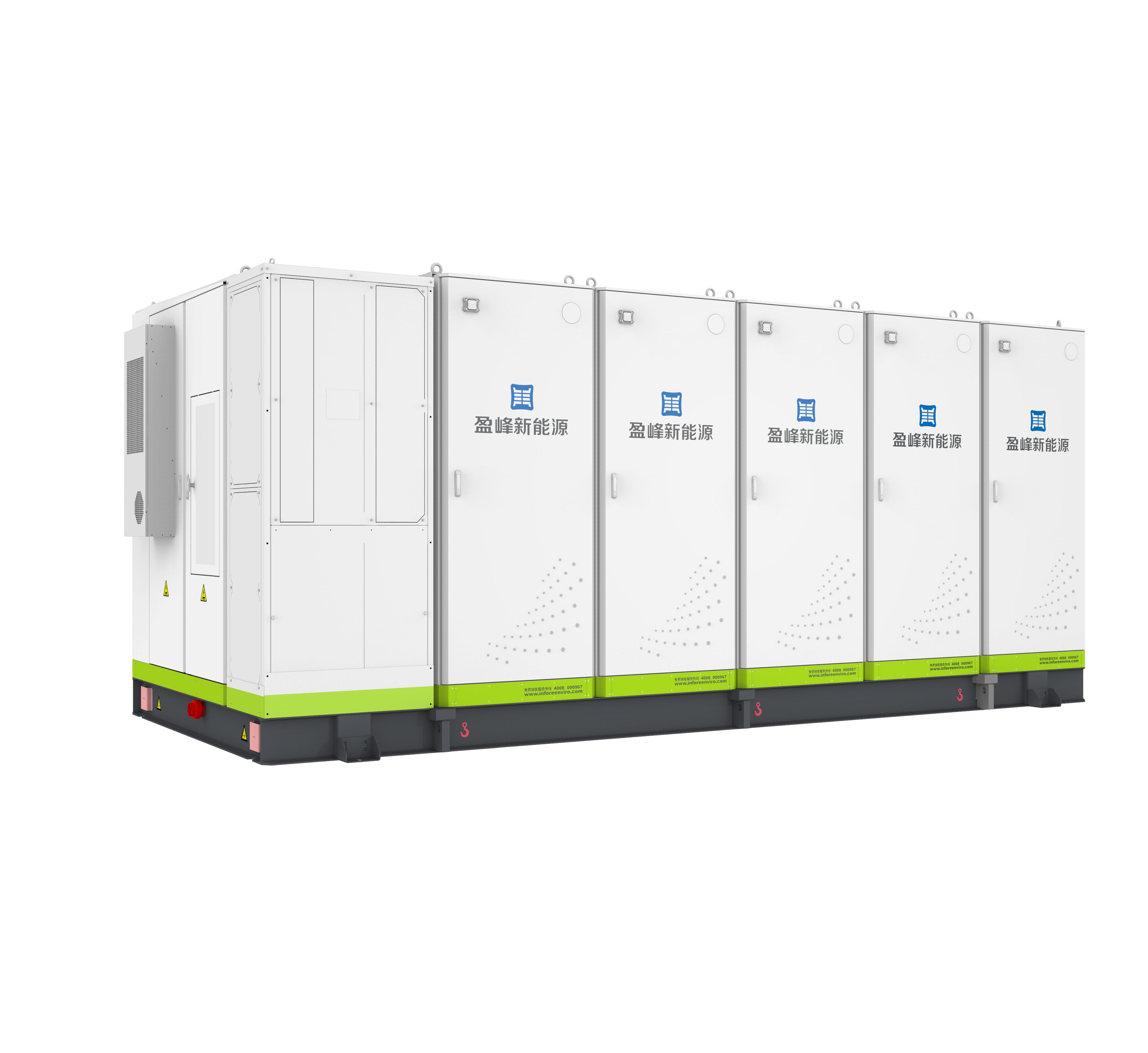

Technical Reliability
Technically Proven and Reliable
Wholly tested and verified products, with reliable quality.
One-stop integration of cells, pack and system.
Supporting whole-body hoisting and transportation, short lead time.
Widely verified by market and highly recognized by clients.
Flexible Configuration & Proposal
Highly integrated and standardized design for rapid deployment.
Small floor area, high space efficiency and convenient maintenance.
Flexible adaptability to various environments with adjustable system energy.
Flexible Configuration
🏭 Manufacturing Excellence
📜 Certifications
Product Certifications
🌍 Global Exhibitions
2025.4.21 IE Expo 2025.5 CICEE Expo 2025.6.12 CAETE 2025

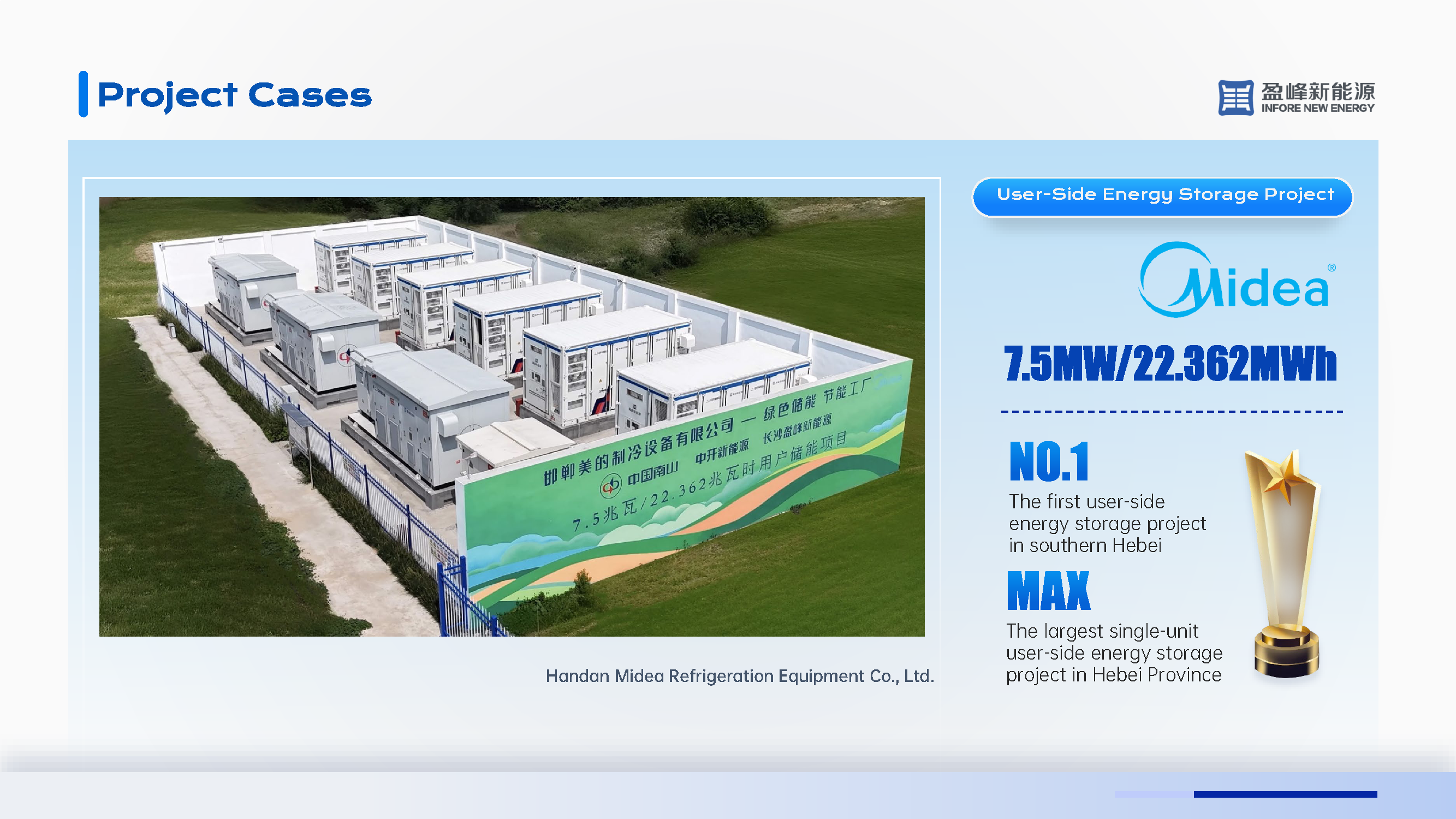

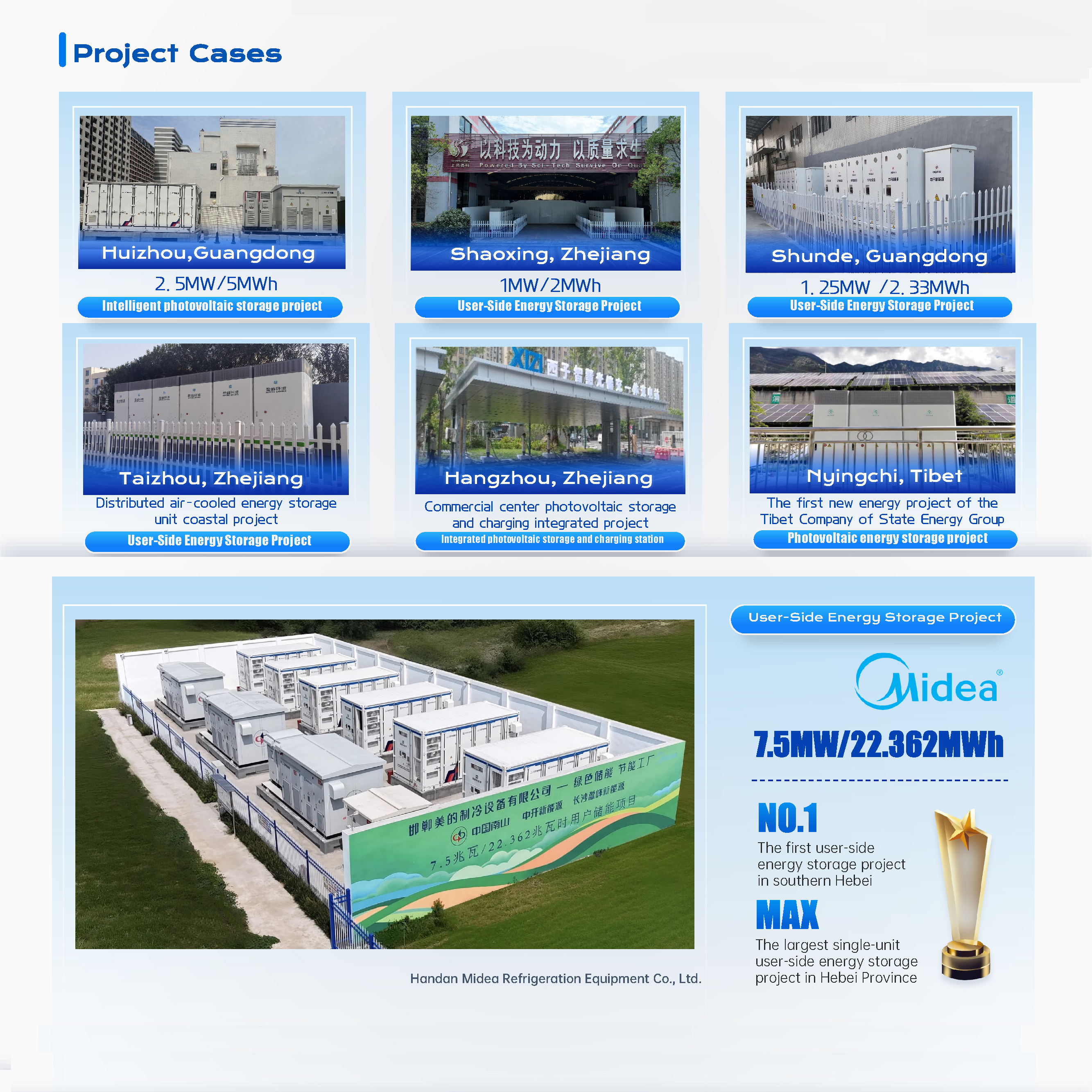

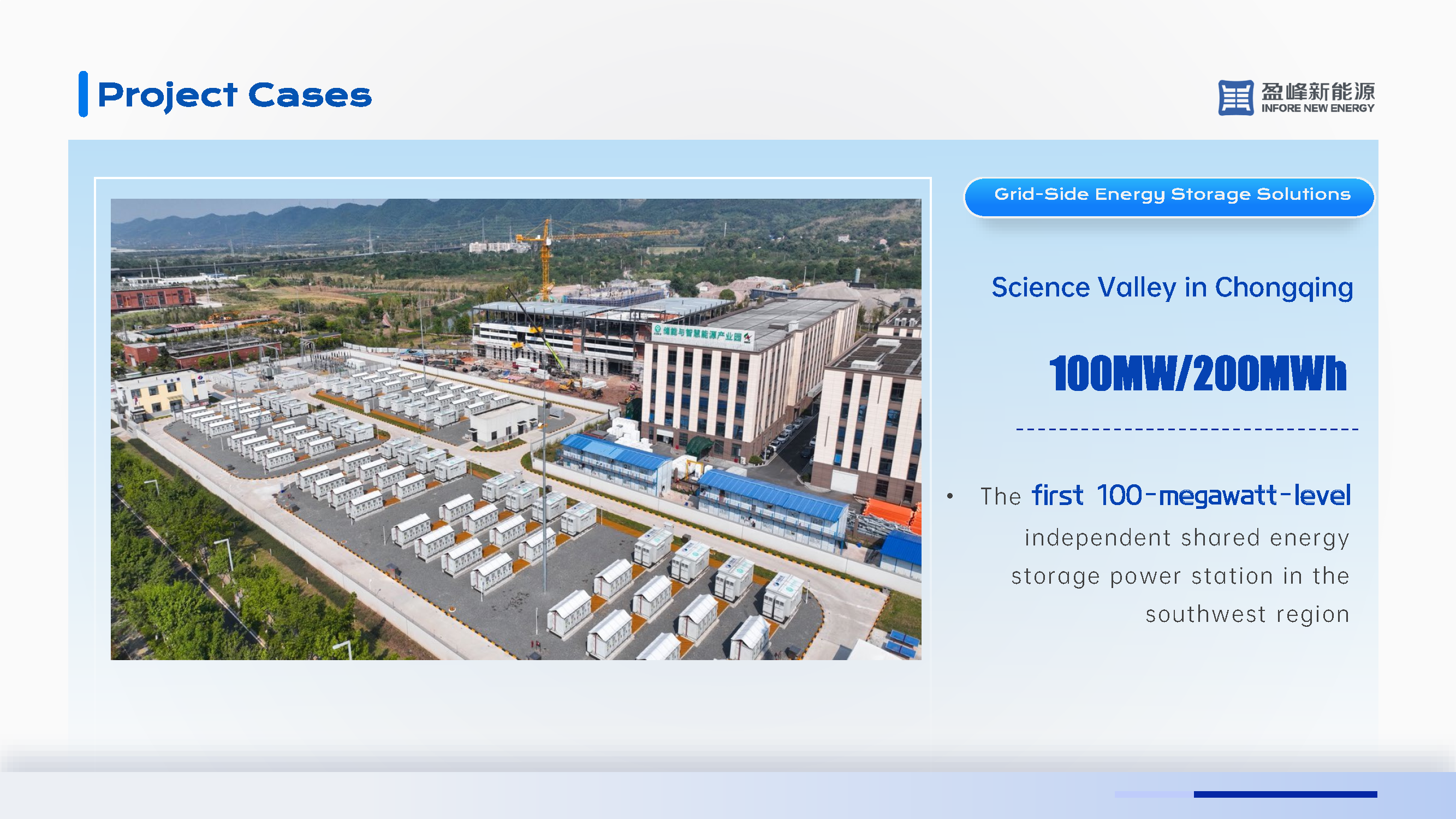

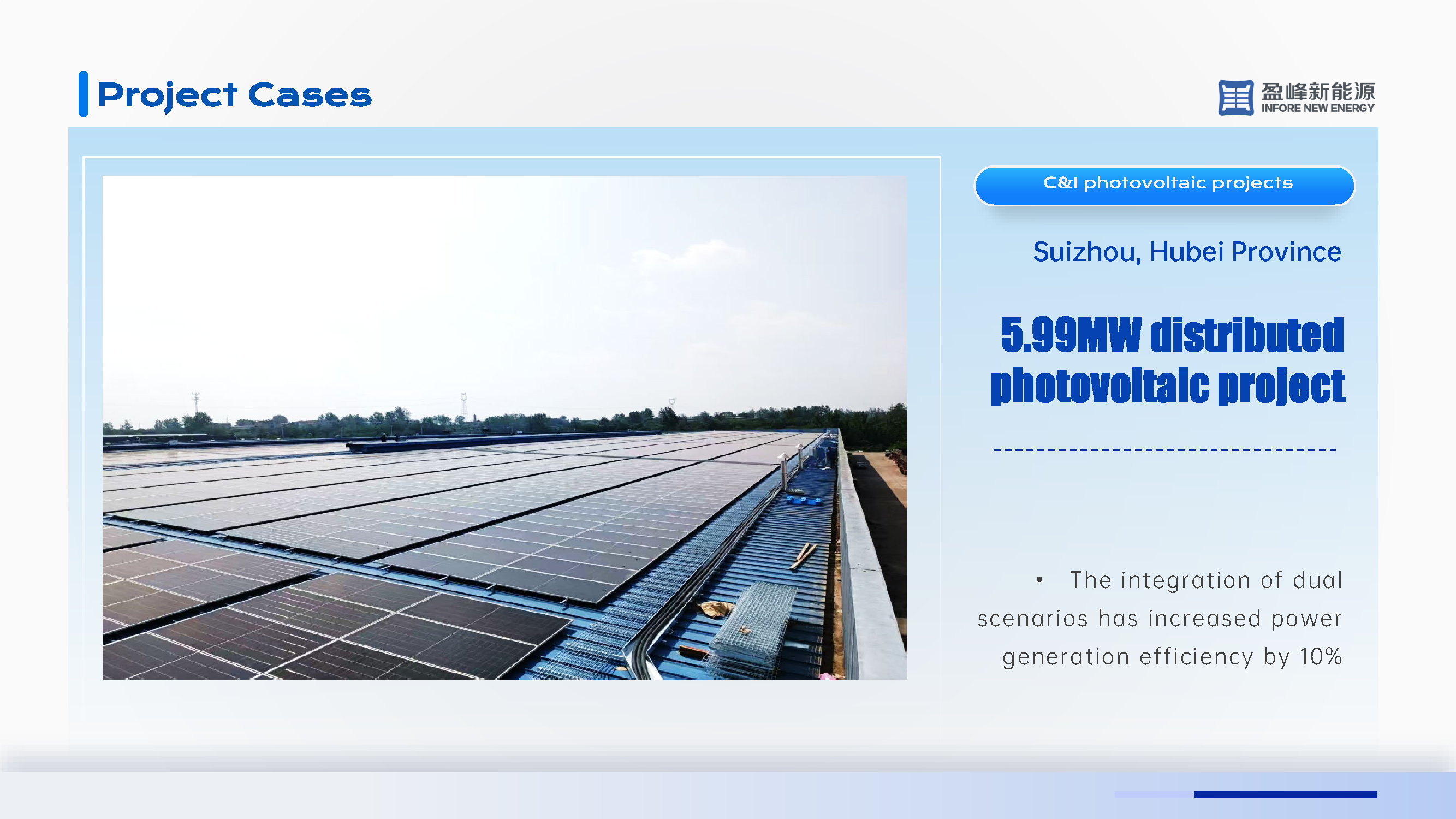

🏗️ Our Projects

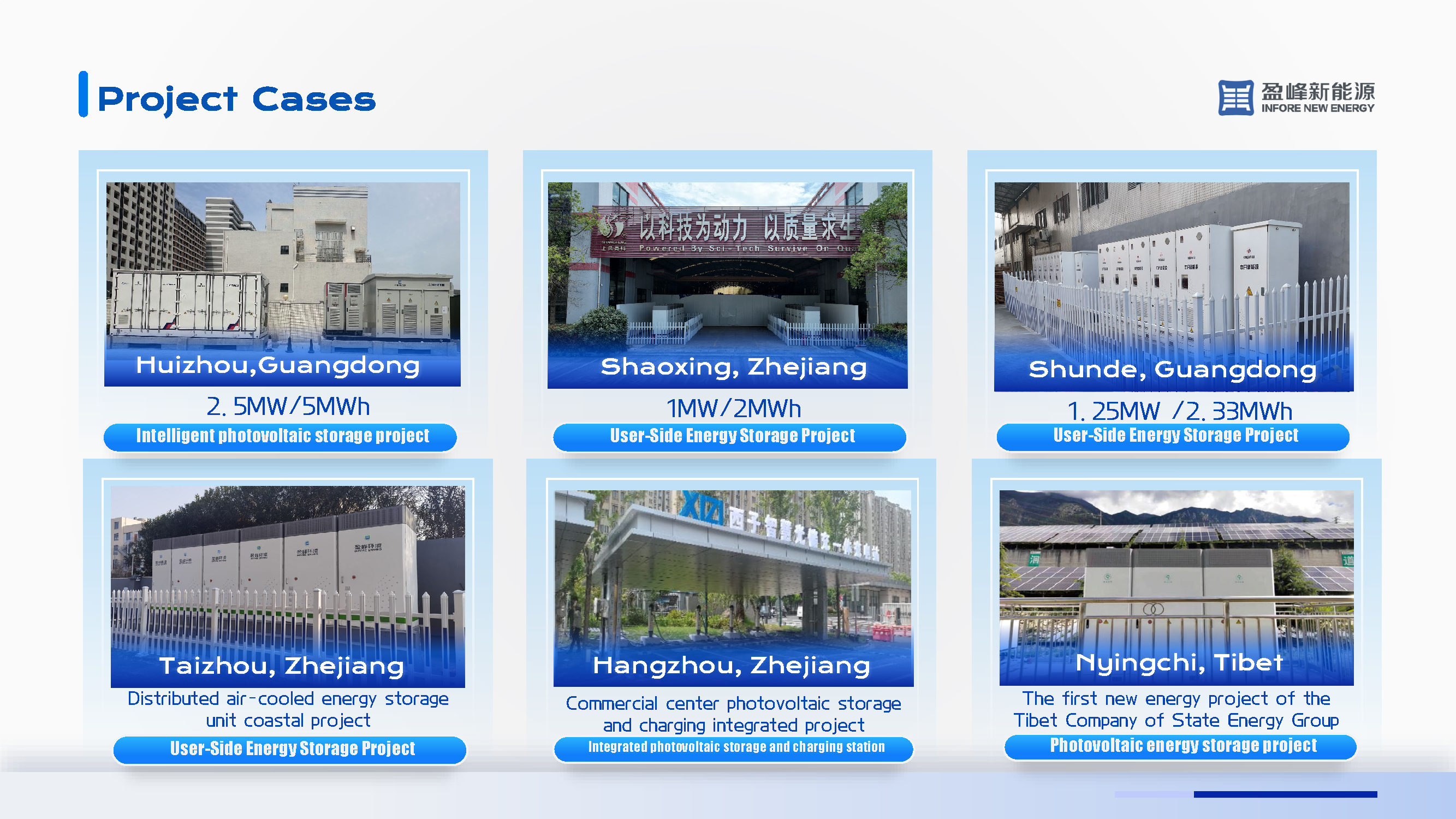

Project Overview
❓ Frequently Asked Questions
What are the advantages of the intelligent liquid cooling system?
Intelligent liquid cooling ensures uniform temperature distribution across all cells, significantly extending battery life and improving overall system safety compared to traditional air cooling.
Can this energy storage system operate in extreme weather conditions?
Yes, the system is designed to operate in a wide temperature range from -35℃ to 55℃ and features an IP55 protection rating and C4 corrosion resistance for harsh environments.
What is the difference between the 280AH and 314AH models?
The 314AH model offers a higher nominal energy capacity of 5MWh compared to the 3.72MWh of the 280AH model, providing more energy density within a similar footprint.
Is the system easy to transport and install?
Absolutely. The system supports whole-body hoisting and transportation, and its highly integrated, standardized design allows for rapid deployment and easy commissioning on-site.
What communication protocols does the system support?
The system is equipped with RS485 and Ethernet interfaces, ensuring seamless integration with various industrial monitoring and control systems.
How does the system perform at high altitudes?
The system is rated for operation up to 4,000m-5,000m. Please note that capacity derating applies when operating above 2,000m-3,000m to maintain optimal performance.
