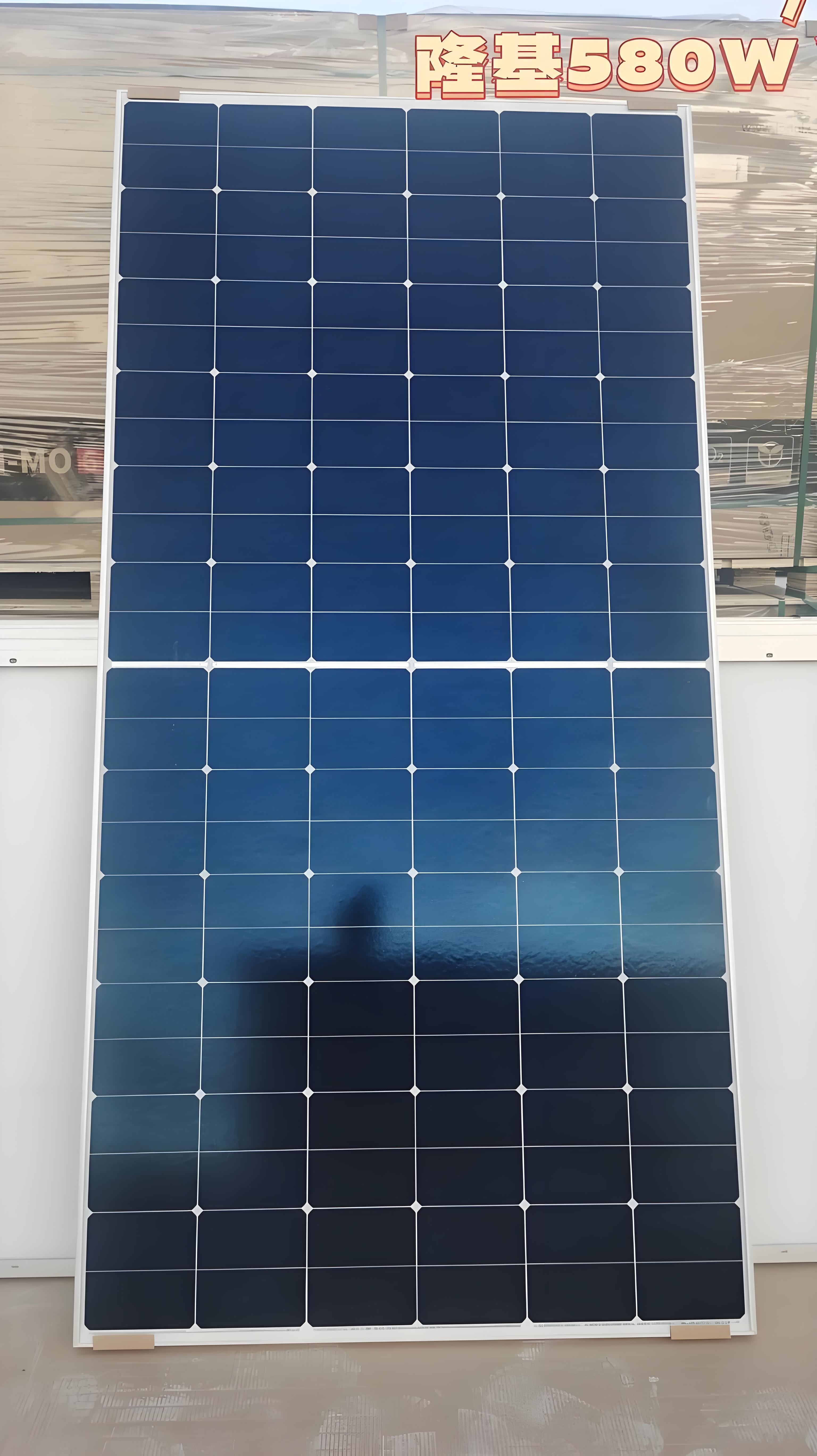

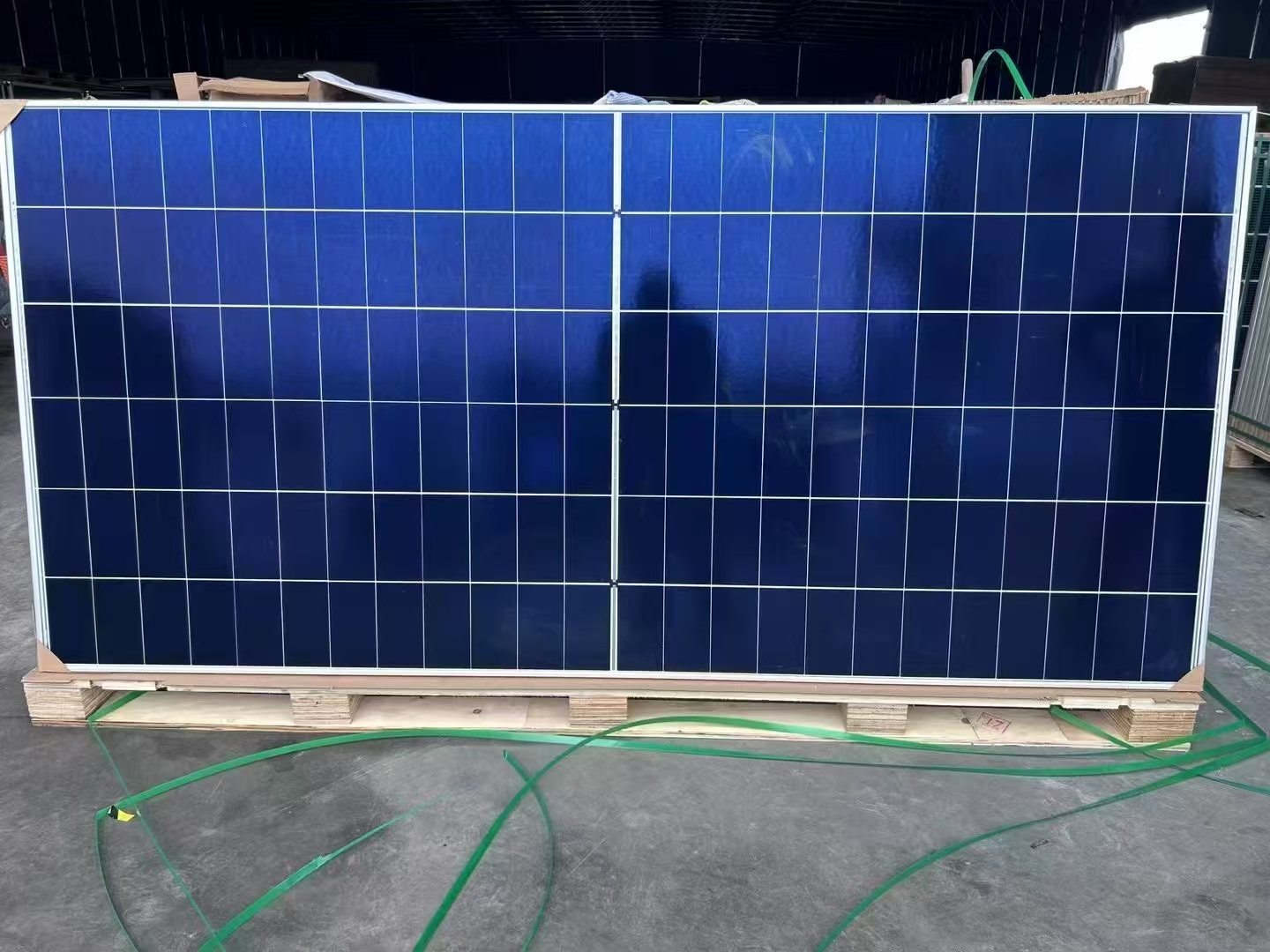

Commercial Buildings Sustainable Modules Monocrystalline Silicon Solar for Domestic Commercial and Industrial Use

Product Description

Product Description

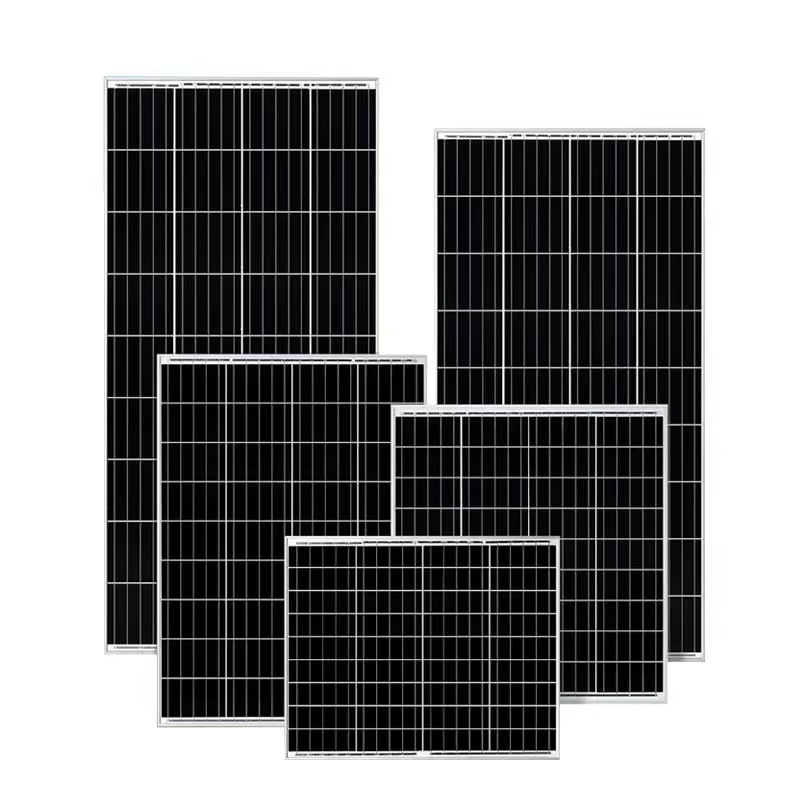

Solar Panel Feature 1

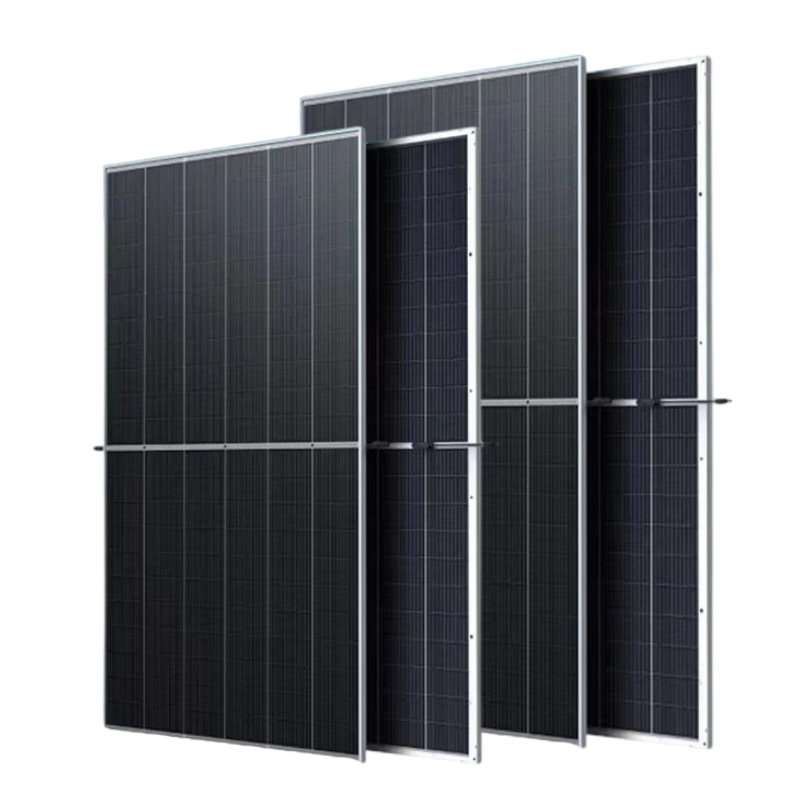

Solar Panel Feature 2

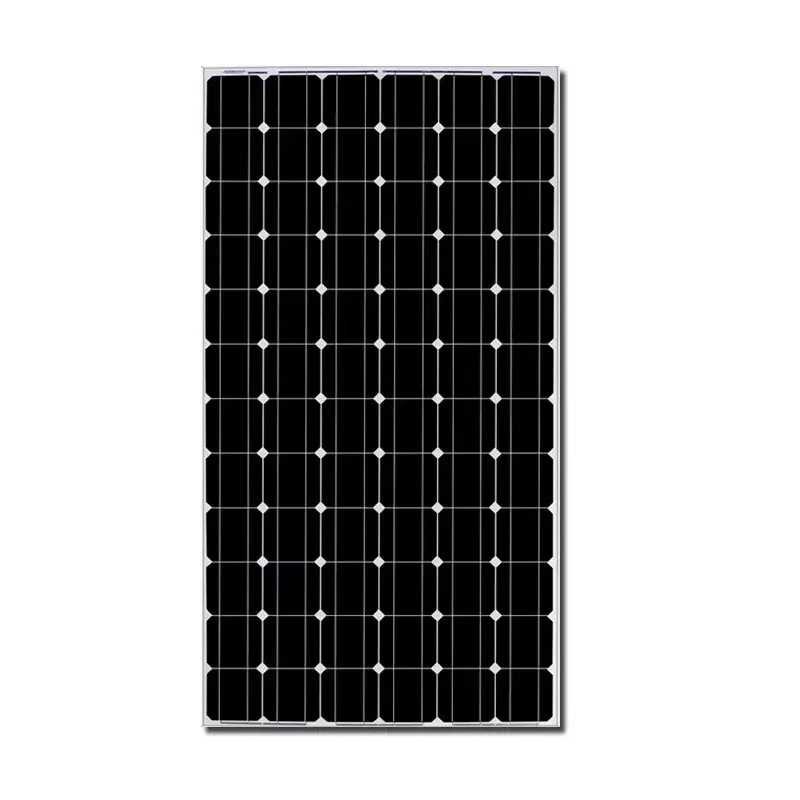

Solar Panel Feature 3
Specification
Mechanical Characteristics
Cell TypeN type Mono-crystalline
No. of cells132 (66*2)
Dimensions2382 x 1134 x 30 mm
Weight32.4 kg
Front Glass2.0mm, Anti-Reflection Coating
Back Glass2.0mm, Heat Strengthened Glass
FrameAnodized Aluminium Alloy
Junction BoxIP68 Rated
Protection ClassClass II
IEC Fire TypeClass C
Connector TypeJK03M / MC4 / Others
Output CablesTUV 1×4.0mm² (+): 400mm, (-): 200mm or Customized
Pallet Dimensions2396 x 1110 x 1251 mm
Packing Detail36pcs/pallets, 720pcs/40'HQ Container
Specifications (STC) 610W 615W 620W 625W 630W
Maximum Power - Pmax [Wp]610615620625630
Max Power Voltage - Vmp [V]40.4640.6040.7440.8841.02
Max Power Current - Imp [A]15.0815.1515.2215.2915.36
Open-circuit Voltage - Voc [V]48.6848.8849.0849.2849.48
Short-circuit Current - Isc [A]15.9616.0216.0816.1416.20
Module Efficiency STC [%]22.5822.7722.9523.1423.32
Power Tolerance0 ~ +3%
Temp. Coeff. of Pmax-0.29% / ℃
Temp. Coeff. of Voc-0.25% / ℃
Temp. Coeff. of Isc0.045% / ℃
*STC: Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5

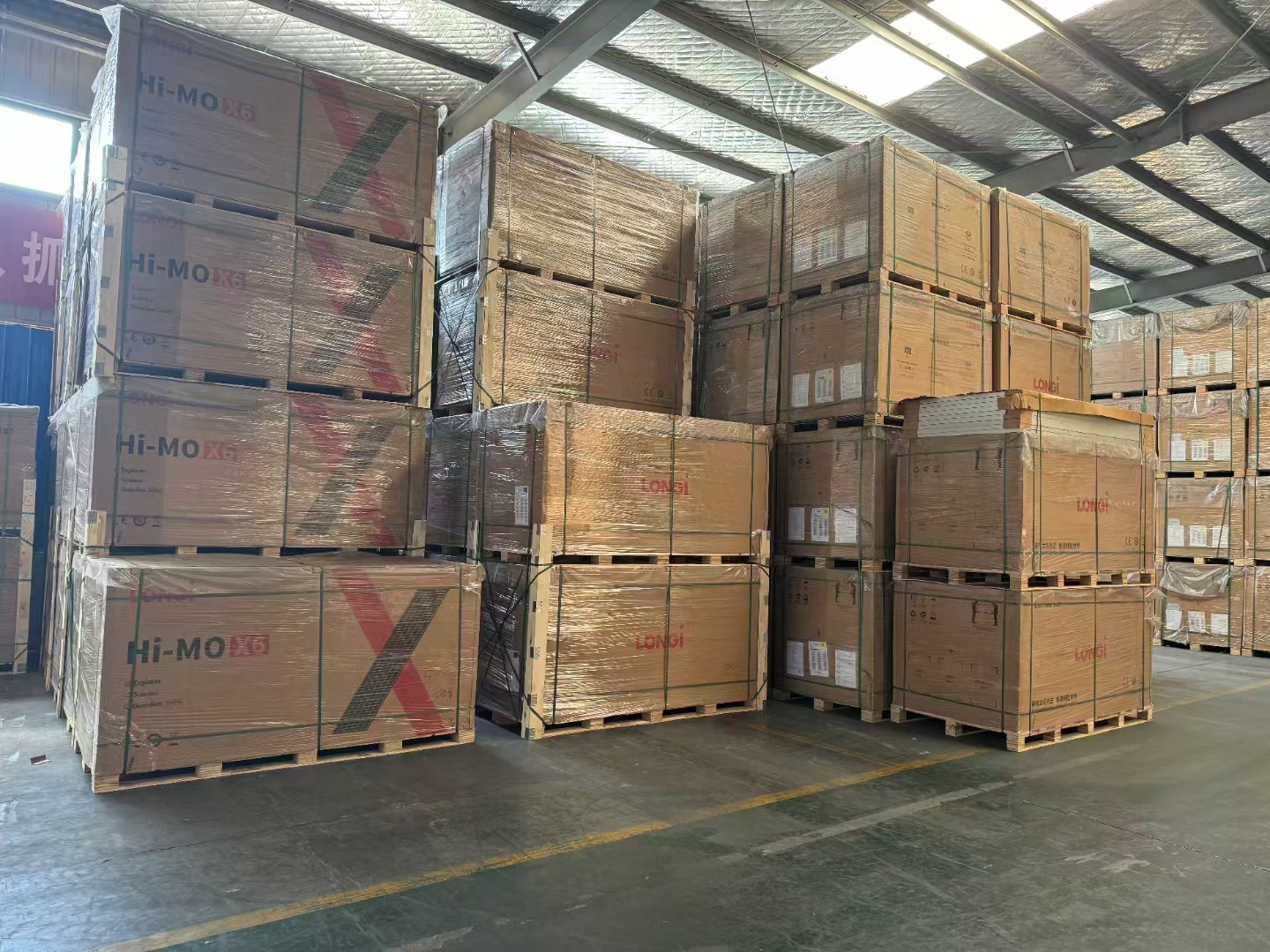

Packing & Delivery

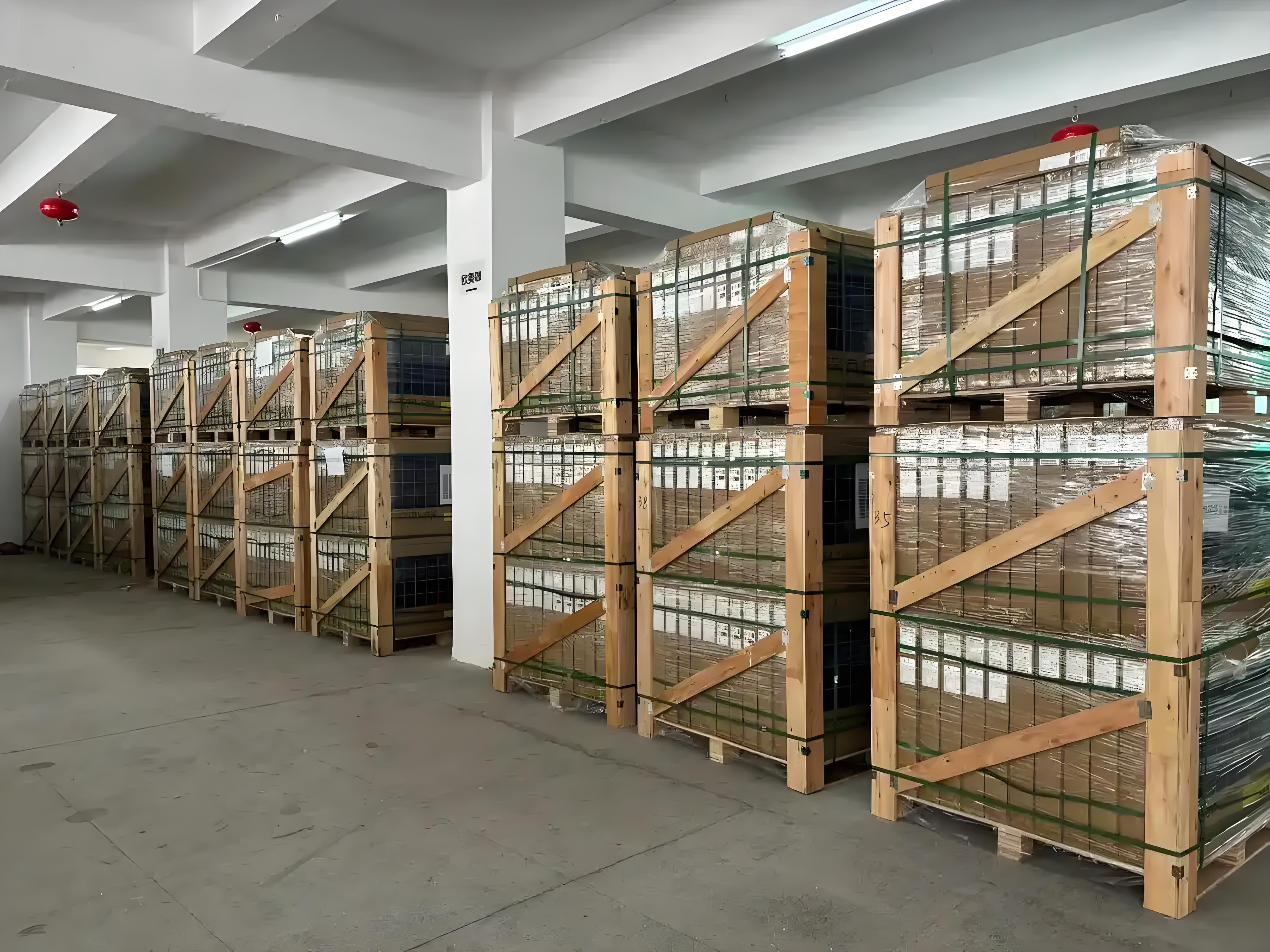

Packing Process 1

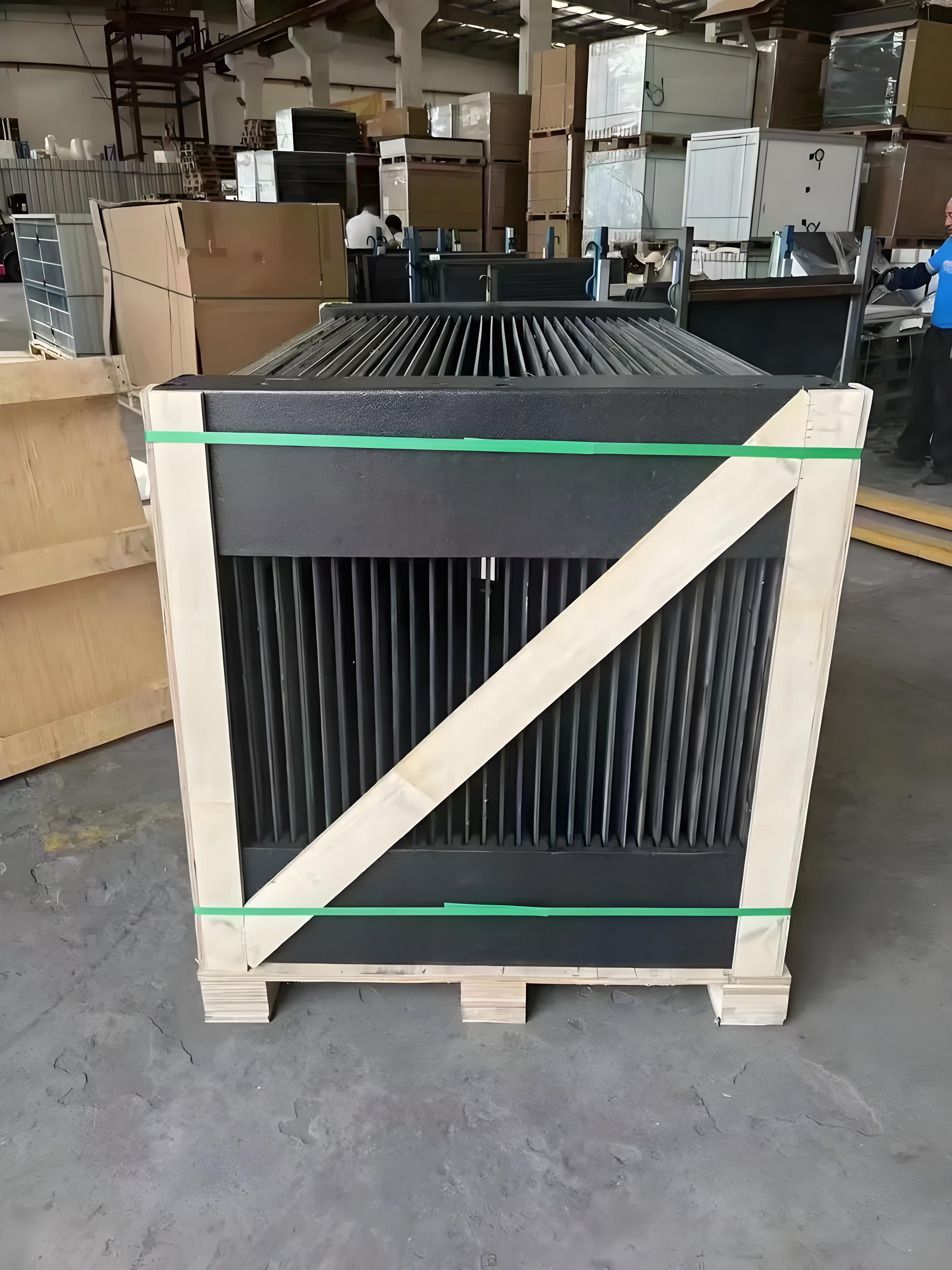

Packing Process 2

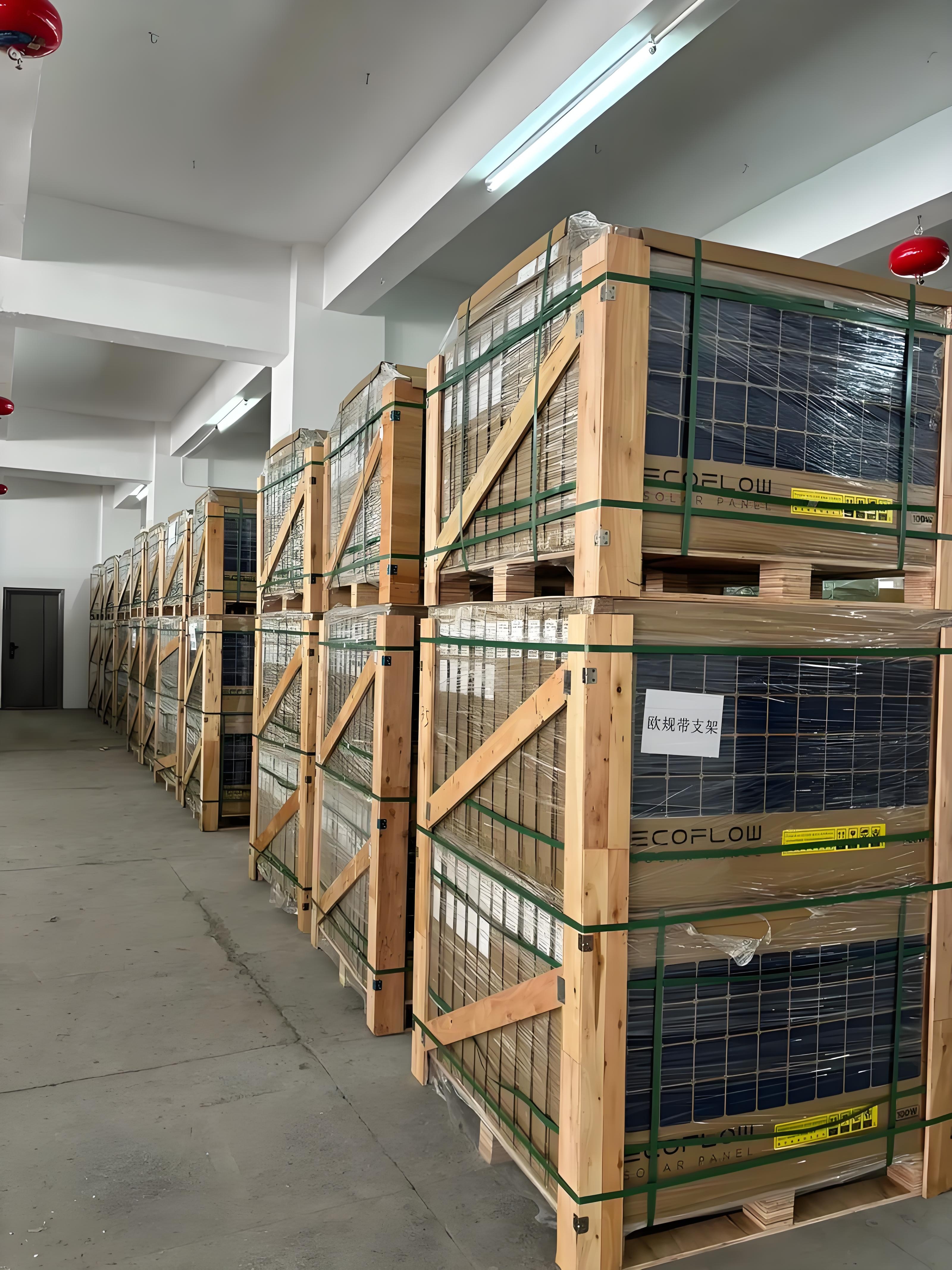

Delivery 1

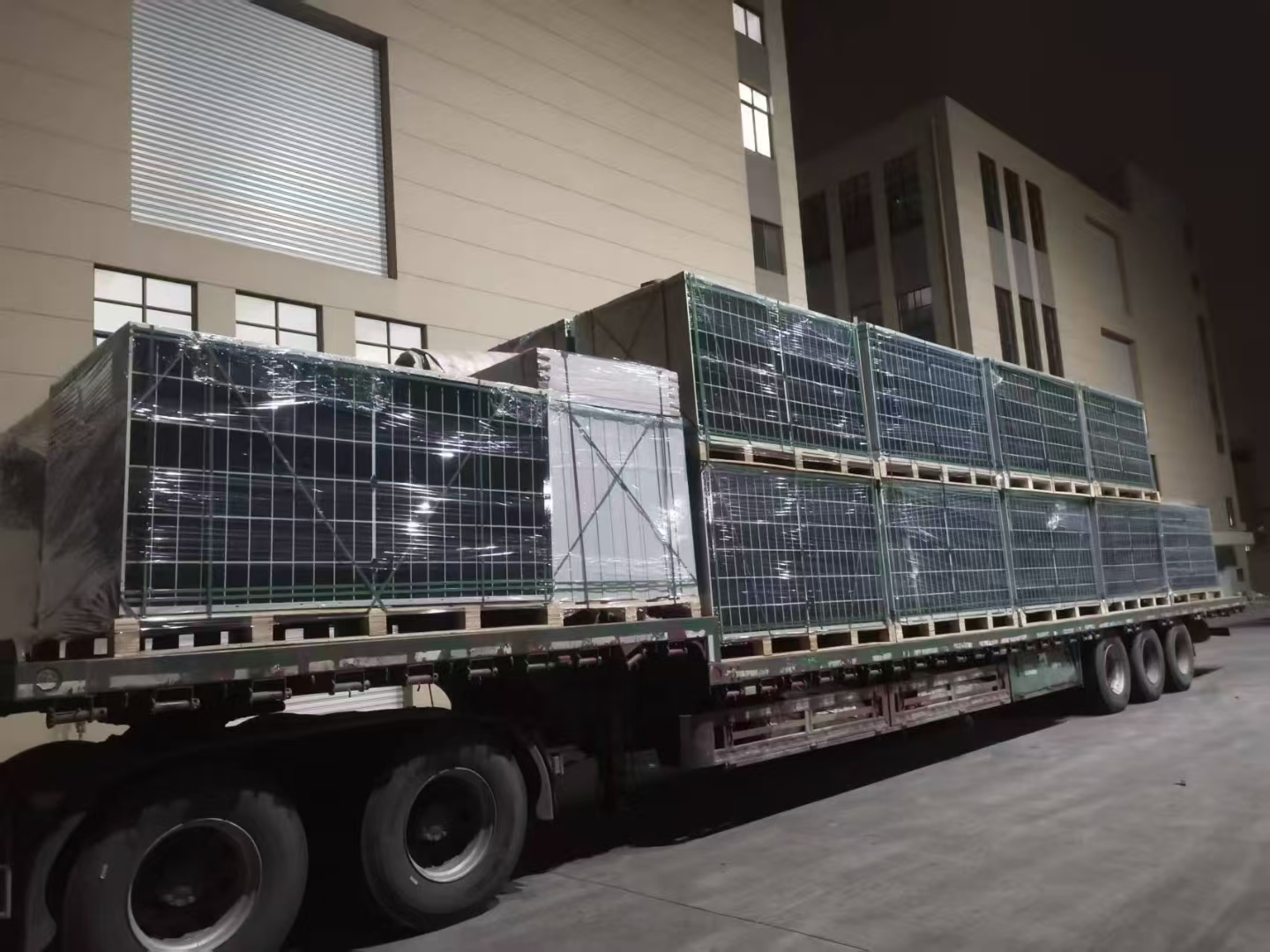

Delivery 2
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a high-tech enterprise integrating R&D and production. Our portfolio includes monocrystalline and polycrystalline photovoltaic modules, solar street lights, photovoltaic brackets, and various off-grid and on-grid solar systems. Our products are widely used across diverse sectors and are exported globally. We adhere to the principles of "customer first, pioneering, and innovative," focusing on delivering professional products and efficient solar power solutions. Our major offerings include solar panels, solar controllers, solar inverters, batteries, and complete DC output solar systems. We provide comprehensive technical services to support our global users.
Frequently Asked Questions
What is the advantage of N-type monocrystalline cells?
N-type cells offer higher efficiency, lower degradation rates, and better performance in high-temperature environments compared to traditional P-type cells.
Do you provide custom cable lengths for solar modules?
Yes, we support customized output cable lengths to meet specific installation requirements for your solar projects.
How are the solar panels protected during international shipping?
Panels are securely packed in professional export-grade pallets (36pcs per pallet) designed to withstand long-distance sea and land transportation.
What certifications do your solar products hold?
Our products meet international standards including TUV and IEC ratings for safety, fire resistance (Class C), and protection (Class II).
Can these modules be used for both residential and commercial projects?
Absolutely. With high power output ranging up to 630W, these modules are ideal for large-scale commercial plants as well as efficient residential systems.
What is the IP rating of the junction box?
The junction boxes are IP68 rated, ensuring complete protection against dust and high-pressure water jets from any direction.
