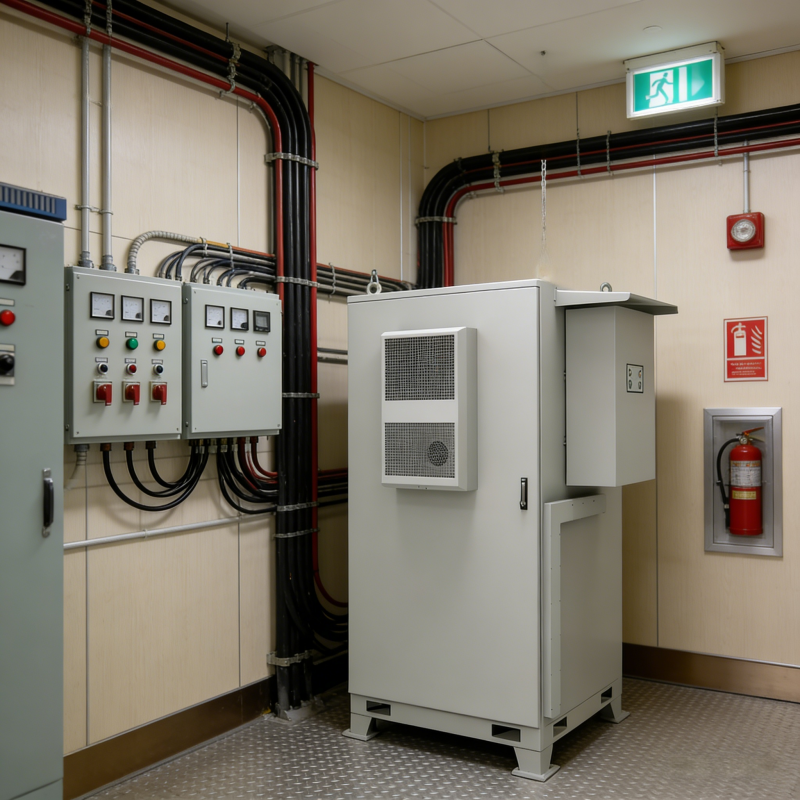

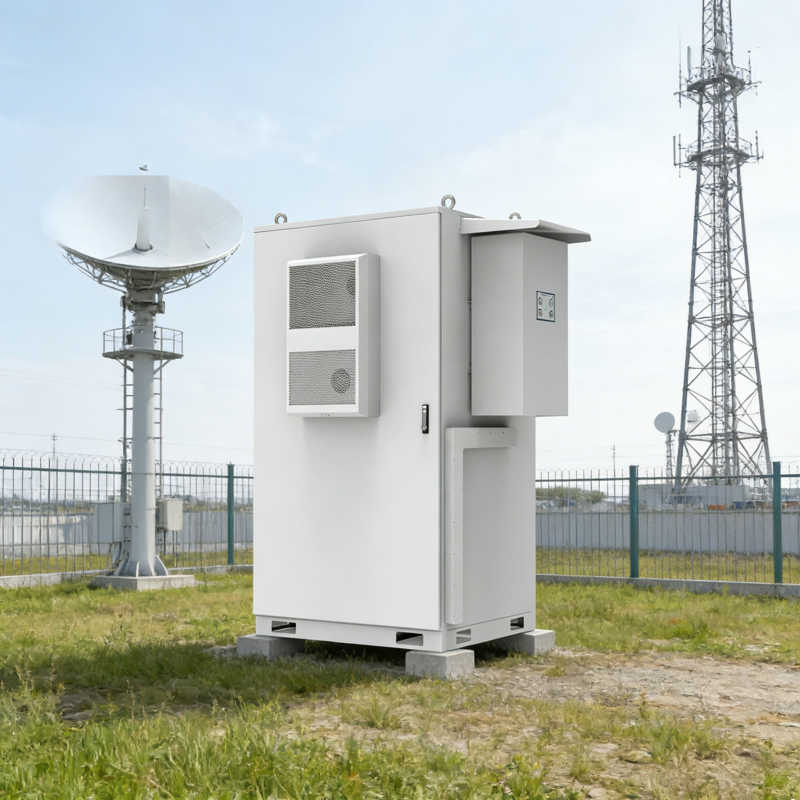

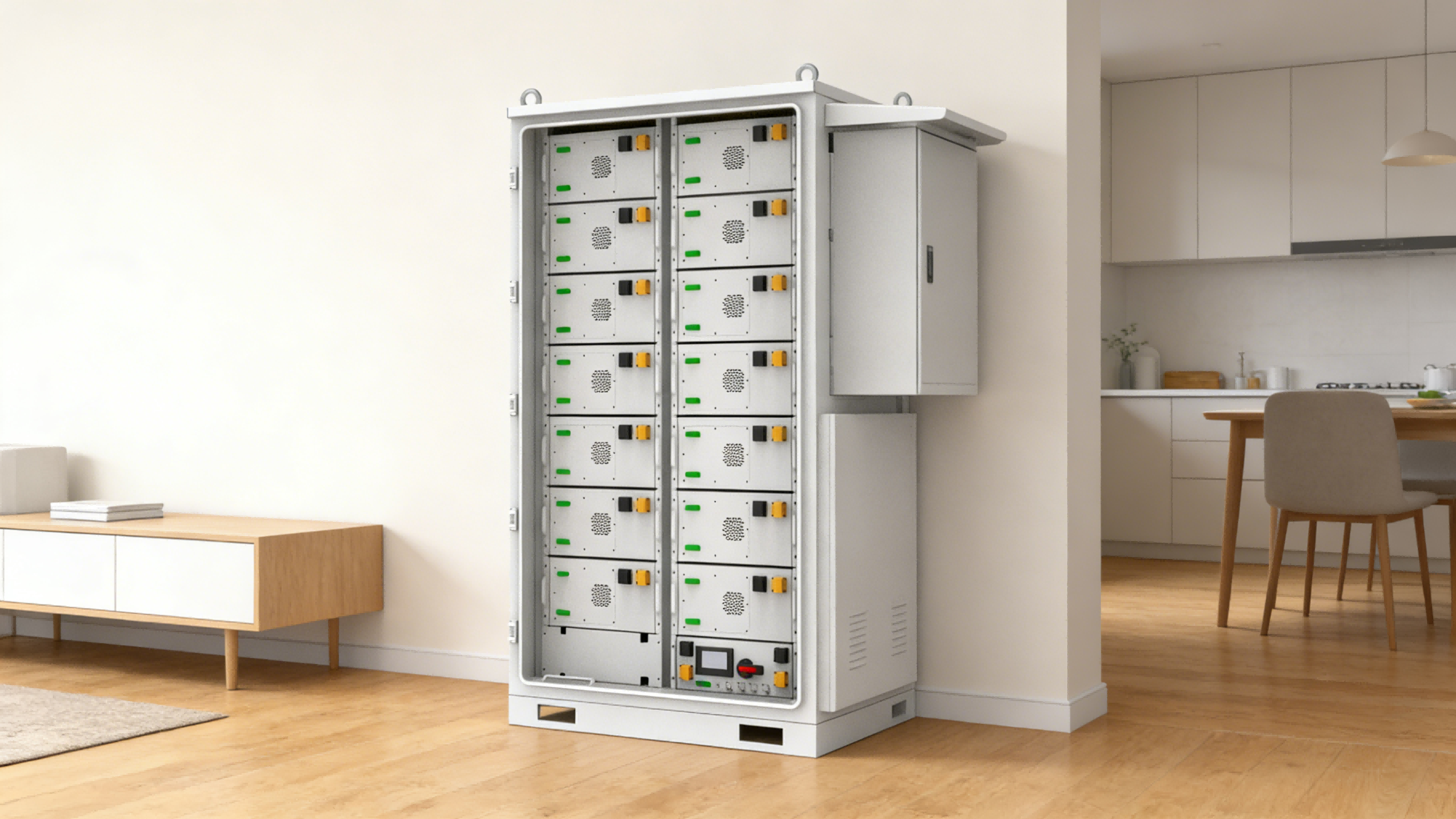

The All-in-One Cabinet Home Energy Storage System is a pre-integrated solution that combines battery modules, Battery Management System (BMS), Power Conversion System (PCS), thermal management, and safety protection systems into a single unit. Featuring integrated industrial design for plug-and-play operation, it is specifically designed for household and commercial users seeking easy installation, high safety, clean aesthetics, and low maintenance requirements.
| Model | BOX-A515 |
|---|---|
| System Parameters | |
| AC Rated Power(kW) | 50 |
| Battery Capacity(kWh) | 54 |
| AC Voltage | 3P/400V |
| Rated Grid Frequency(Hz) | 50/60 |
| Voltage Range | 728~910VDC |
| IP Level | IP65 (Out Door) |
| Warranty | Battery: 5 years or 6,000 cycles; Electrical Components: 10 years |
| Inverter Parameter | |
| Rated Power | 30kVA/30kW |
| Max. Efficiency | 98.5% |
| Max. PV Voltage(V) | 1000 |
| MPPT Voltage Range(VDC) | 150~850 |
| Dimension (WLH) / Weight | 640*830*1900mm / 750Kg |
| Battery Parameter | |
| Battery Type | LiFePO4 |
| Nominal Voltage(V) | 51.2 |
| Cycle Life | 8000 (@25℃) |
| Communication | RS485/CAN |
| Certification | CE/IEC/UL/UN38.3/MSDS |

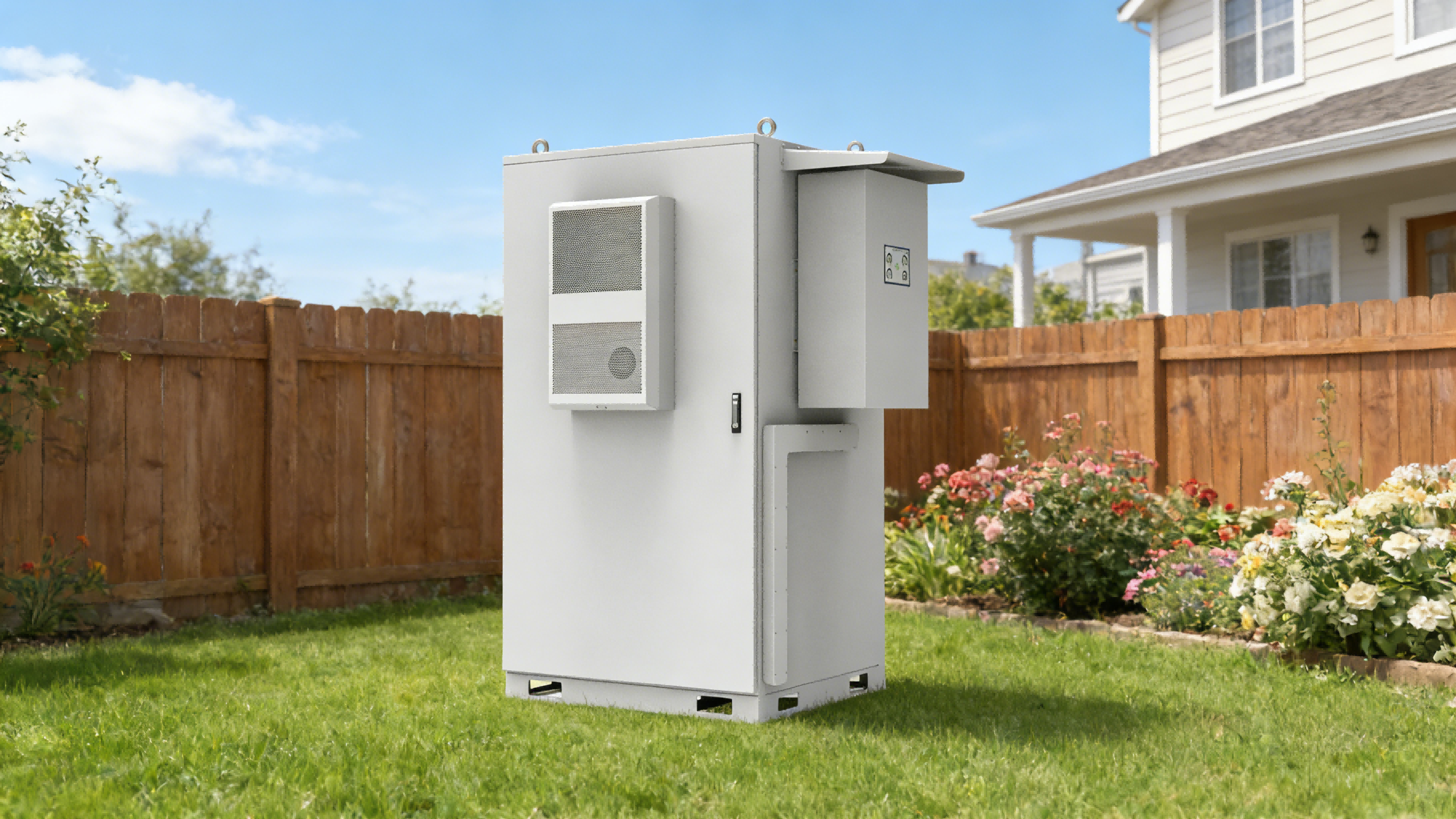

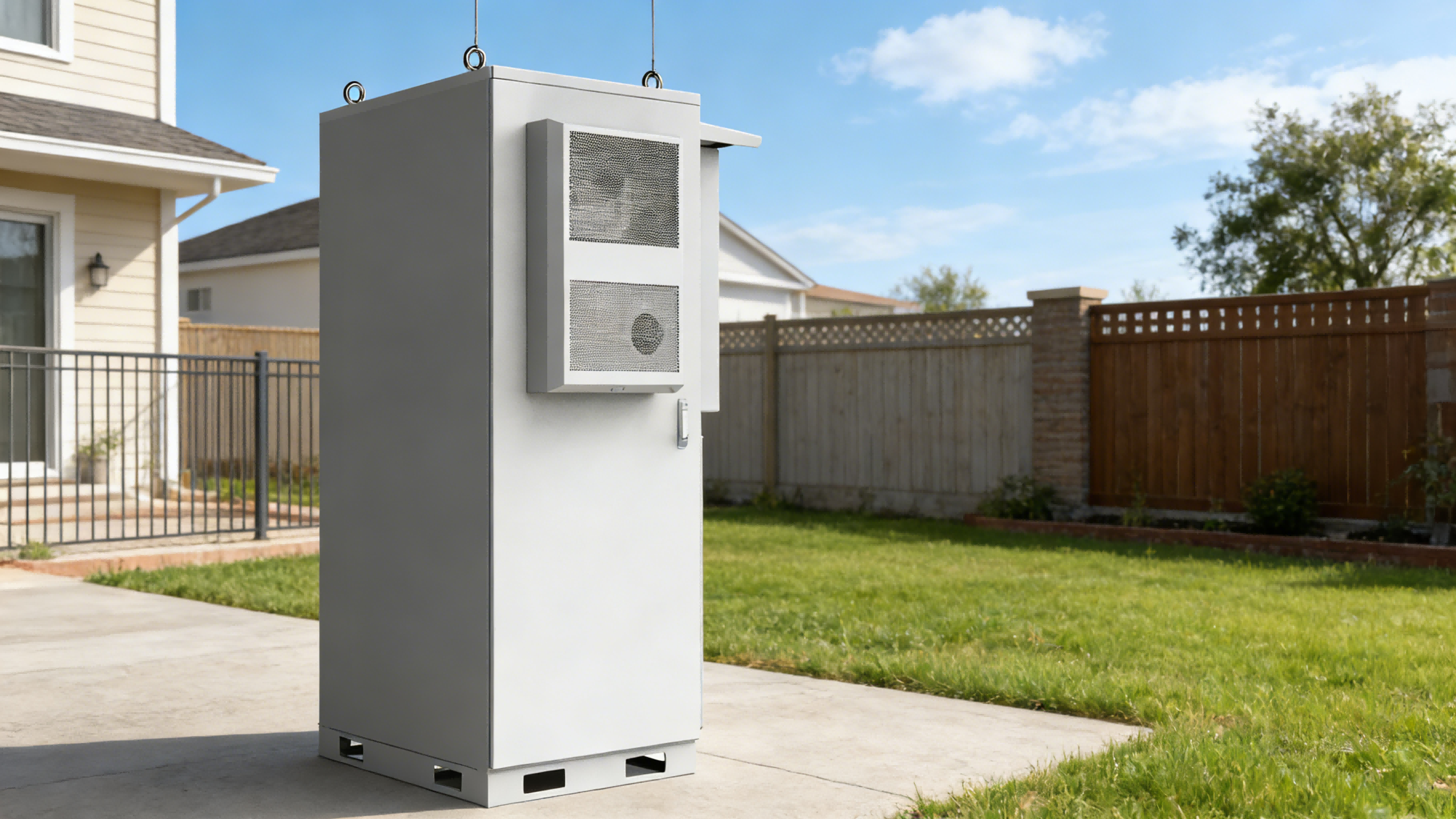

1. General Households
2. New Residential Projects
3. Old Electrical Circuit Retrofits
4. Aesthetic-Sensitive Spaces

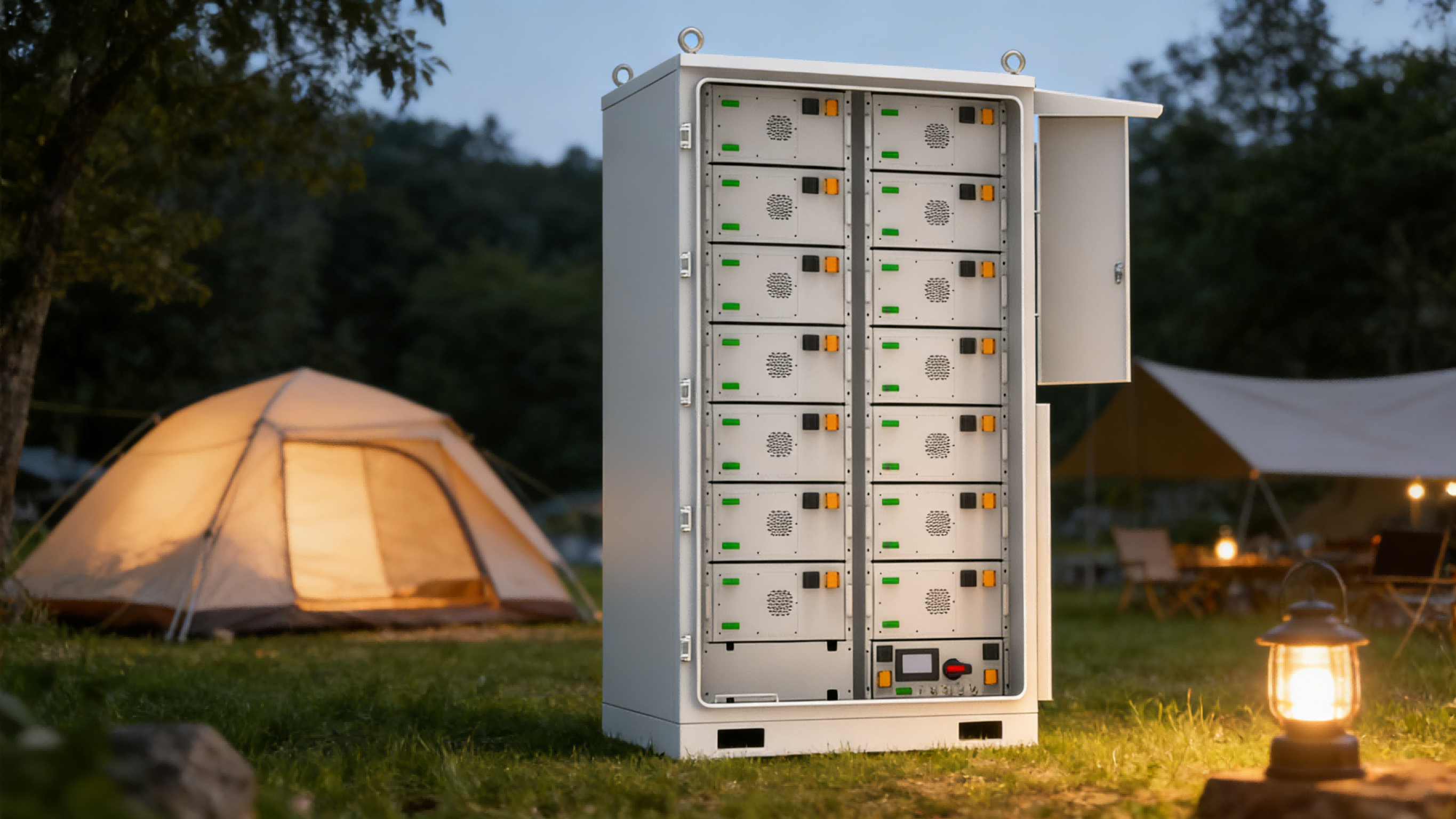

1. Convenience Stores/Supermarkets
2. Small Business Offices
3. Rural B&Bs & Inns
4. EV Charging Station Integration

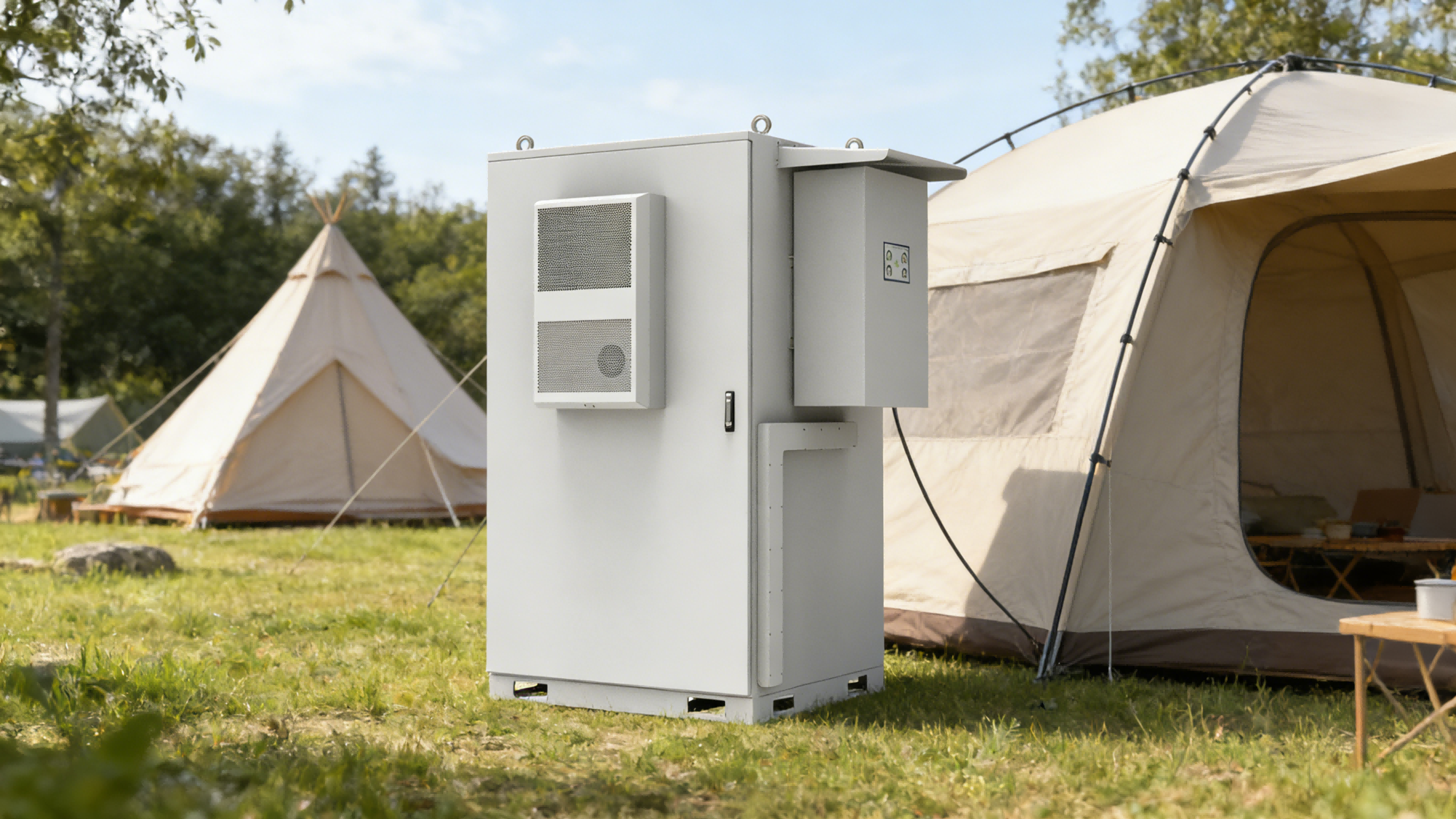

1. Overseas Market Users
2. Rental Housing Projects
3. Emergency & Disaster Relief
4. Educational Institutions
Our manufacturing facility is a comprehensive enterprise integrating design, research and development, and manufacturing, specializing in the production of energy storage containers, container modular houses, and standard containers.
The facility covers an area of 20,000 square meters, featuring a well-organized layout including frame processing, equipment assembly, painting, and testing areas. Equipped with 55 advanced production machines, we achieve a fully automated production process from raw material cutting to final assembly, ensuring high efficiency and superior product quality.

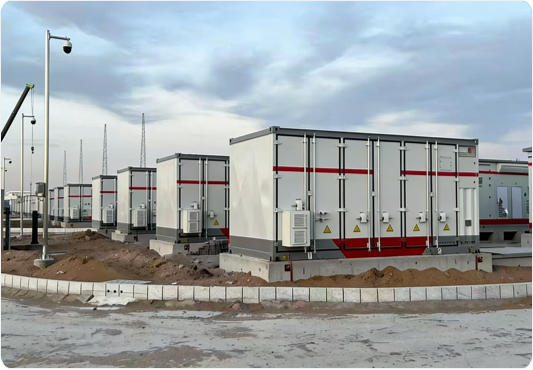

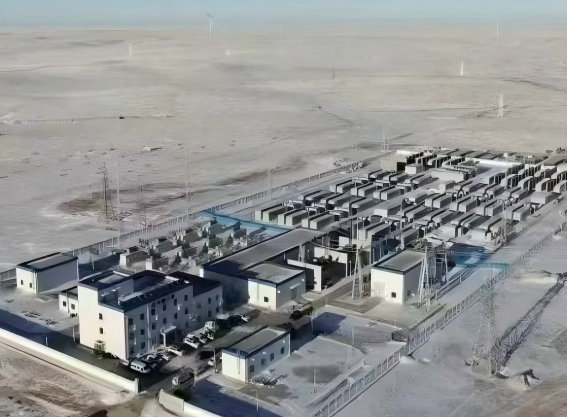

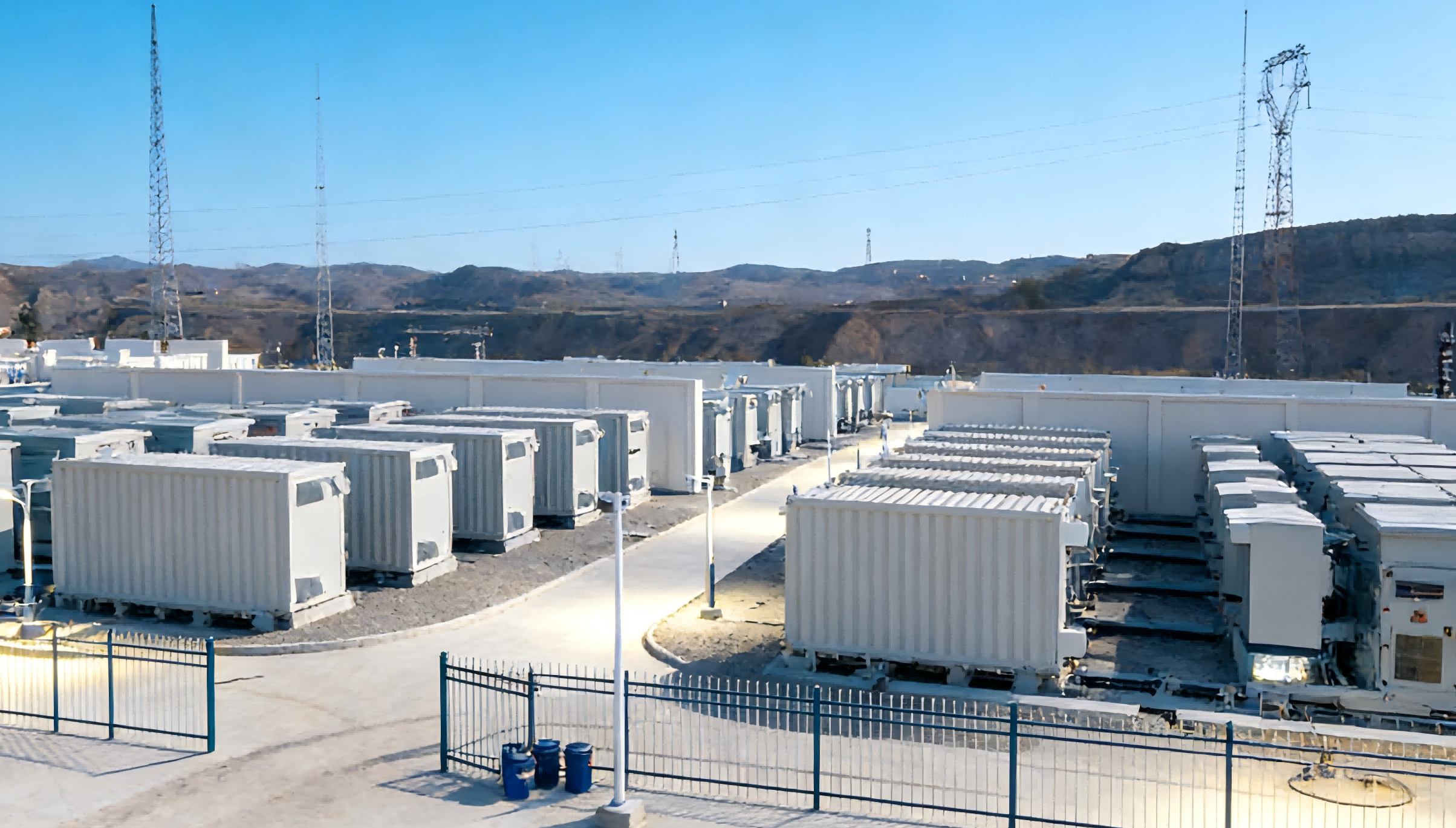

400MWH Shared energy storage power station
300MWh New Energy Storage Power Station
600 MWh Independent Energy Storage Station
New energy transmission base
