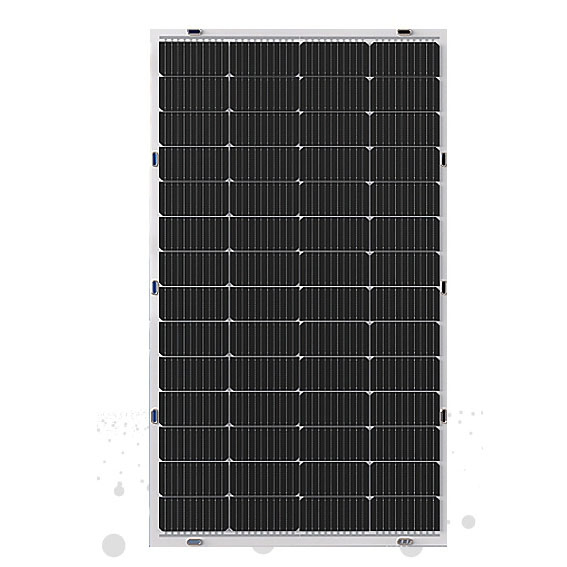

Wholesale Redsolar N Series G12r-Mbb Topcon Bifacial Module TUV CE ISO

1 / 5

Wholesale Redsolar N Series G12r-Mbb Topcon Bifacial Module TUV CE ISO

Customization:	Available
After-sales Service:	30 Year Power Warranty
Warranty:	12 Years

Send Inquiry

Product Description

Basic Information

Model NO.

CETC-435-455TR(GDF)96

Number of Cells

Application

Light Industry

Condition

New

Certification

ISO, CE, TUV

Material

Monocrystalline Silicon

Customizable

Yes

OEM/ODM

Yes

Weight

31kg

Specification

1762x1134x30mm

Product Specifications

Number of solar cells	96 cells (268)
Weight	26.8 kg ±5%
Junction Box	IP 68, 3 diodes
Cables	4mm², 300mm (Customizable)
Front plate glass	2.0mm ultra white AR coated semi-toughened glass
Rear plate glass	2.0mm semi-toughened glass
Static load (Front)	5400 Pa
Static load (Back)	2400 Pa

Unite with the Fortune Global 500 companies, with their fully support, we supply a full range of Solar Cells, PV Modules and PV Production Line and Turnkey Solutions.

Also we can provide a complete production line of photovoltaic and energy storage systems, an integrated solution for supply, installation, commissioning and long-term raw material supply.

Packaging & Shipping

Frequently Asked Questions

What is the difference between your module series and other suppliers in household projects?

As a leading global solar technology provider, we have been engaging in the household distributed power generation market for many years with a powerful solution team. We provide professional project survey, system design, construction, and acceptance standards, along with full-life-cycle monitored maintenance. We are among the few who provide standard, customized, and differentiated products simultaneously.

Can I install wire mesh protective nets to prevent modules from being hit by objects?

It is not recommended, as it may shade the modules and form a hot spot effect, significantly affecting the power generation efficiency of the entire photovoltaic system.

How can I effectively prevent fires in a distributed rooftop photovoltaic power station?

1. Adhere to national design standards and ensure quality construction to avoid false cable connections. 2. Regularly clear flammable materials under brackets to ensure air circulation. 3. Check inverter heat dissipation and ventilation. 4. Regularly inspect for hot spots, cracks, or pollutant occlusion.

How do we judge if the glass is broken by self-explosion or external force?

Spontaneous breakage is caused by internal defects and usually shows butterfly patterns on the surface. External force impact is characterized by clear signs of impact or compression points at the shattering origin.

Will power generation be affected if modules are damaged or broken?

Yes. When a module is damaged, electrical insulation is reduced, posing a risk of leakage and electric shock. It is recommended to replace the damaged module immediately after disconnecting the power.

How can I get local solar resource data?

Analyzing solar radiation, precipitation, and wind speed is critical for system design. You can access reliable meteorological data for free through the NASA Meteorological Database.
