Product Description

Committed to becoming the leading provider of all-scenario one-stop energy solution systems.
Product Description
Model SE-10KW3-HY
Half Cut Mono 750W Solar Panels 20 pcs
Hybrid Solar Inverter 1 pc
Lithium Batteries 48V 200Ah 1 pc
PV Cable 4mm2 200m
Earthing cable 6mm2 100m
MC4 Connector 20 pcs
PV Tools 1 pc
Roof Mounting System 1 set
Wooden box 1 pc
Warranty

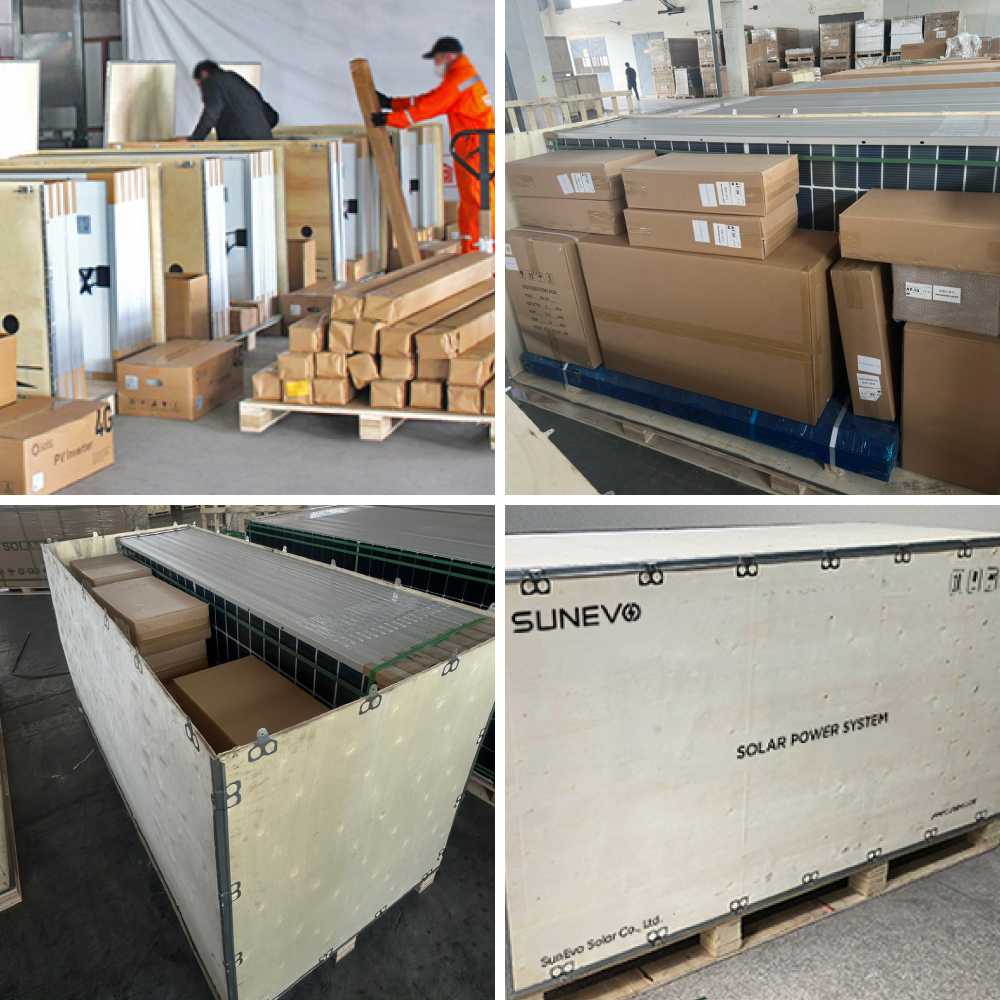

Product Packaging
Below is the packaging diagram of the 10kw system. It includes internal components, inverter, lithium battery, circuit breaker, MC4 connector, cables, distribution box and other auxiliary materials.

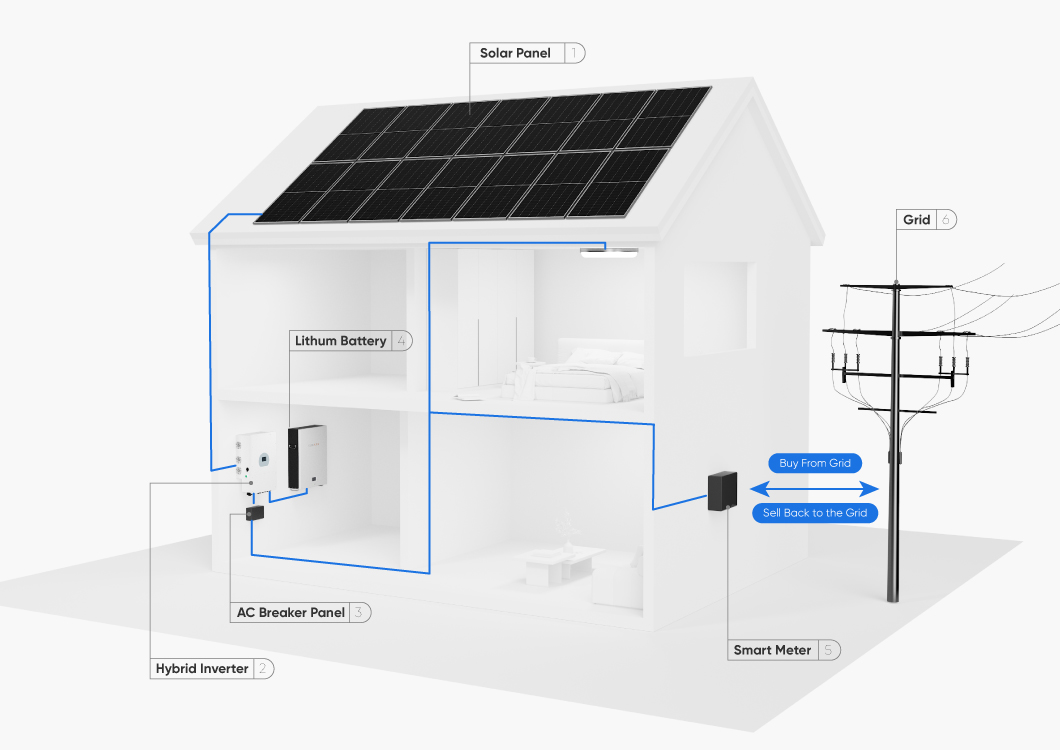

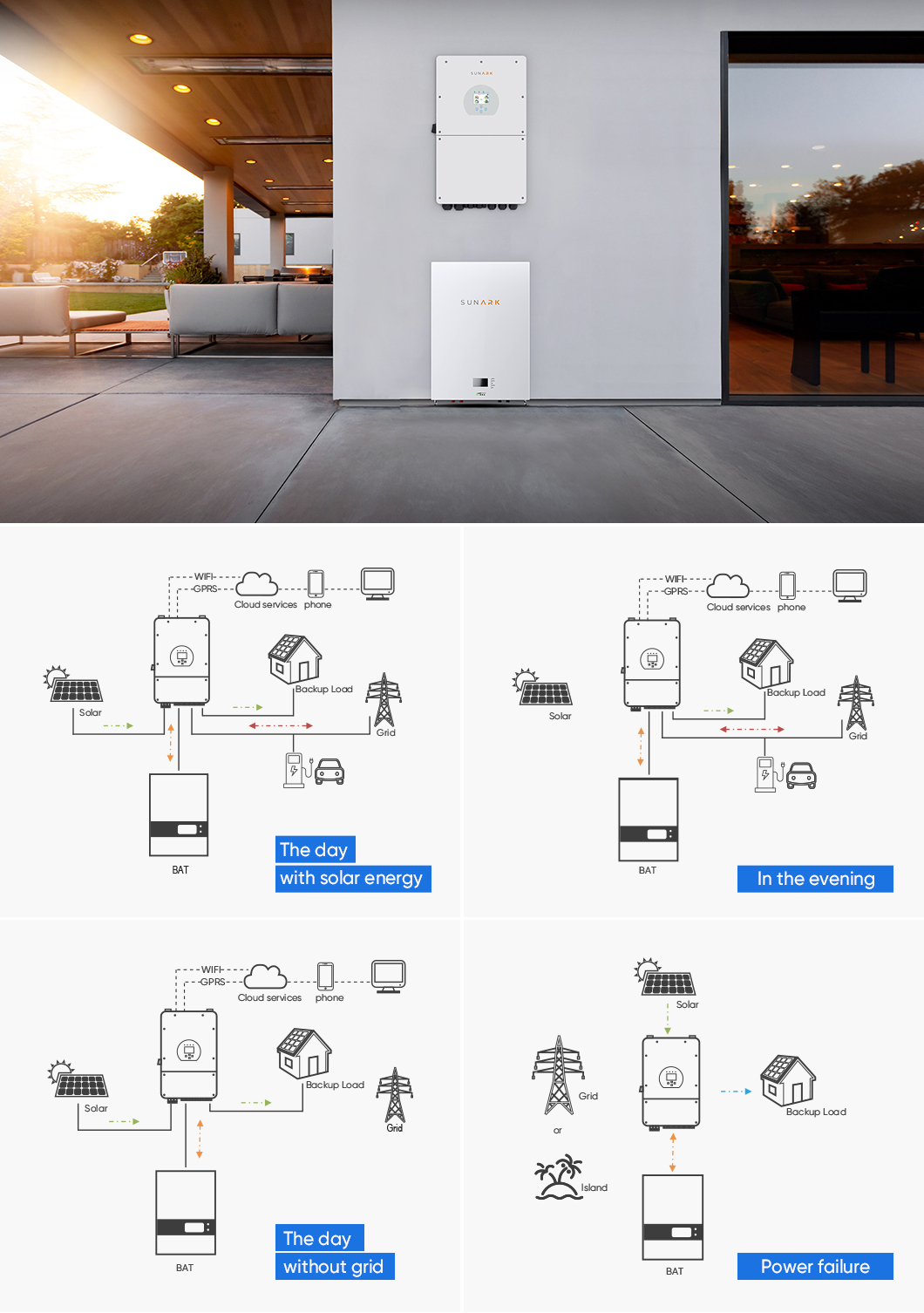

How It Works

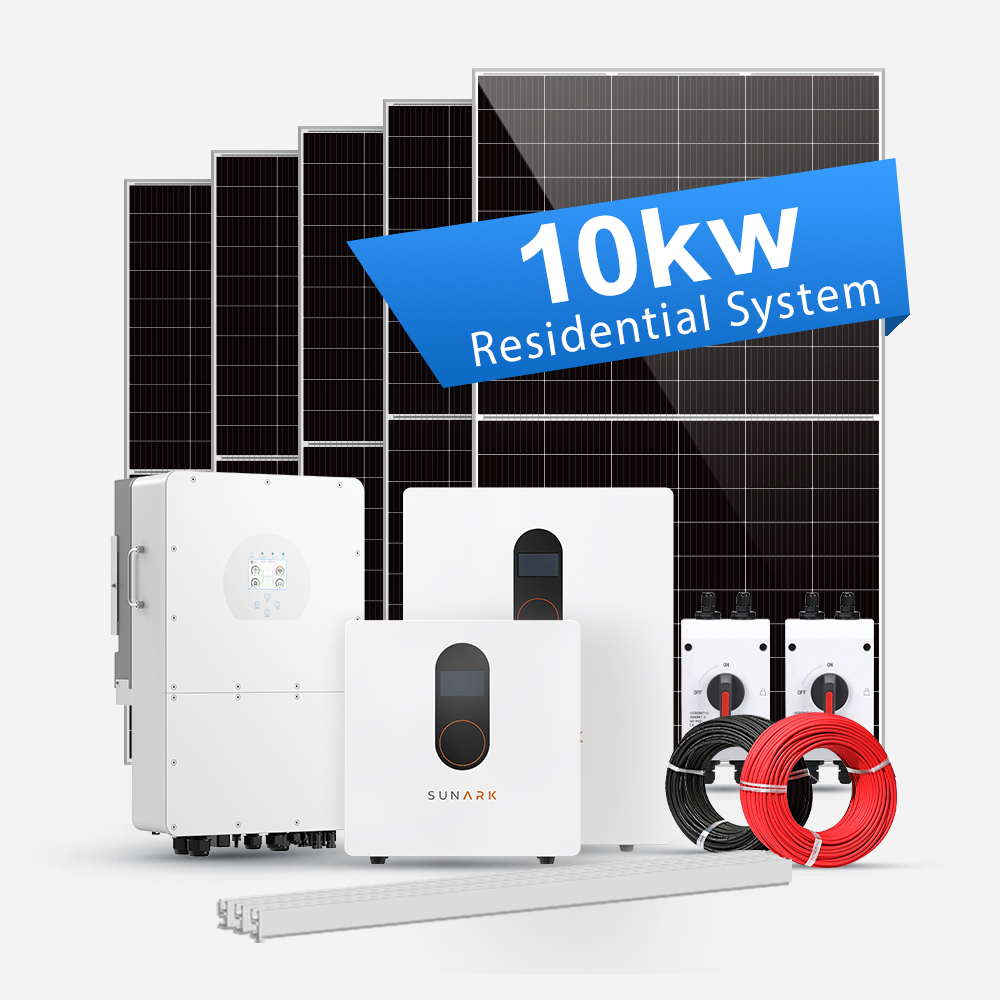

What's Included

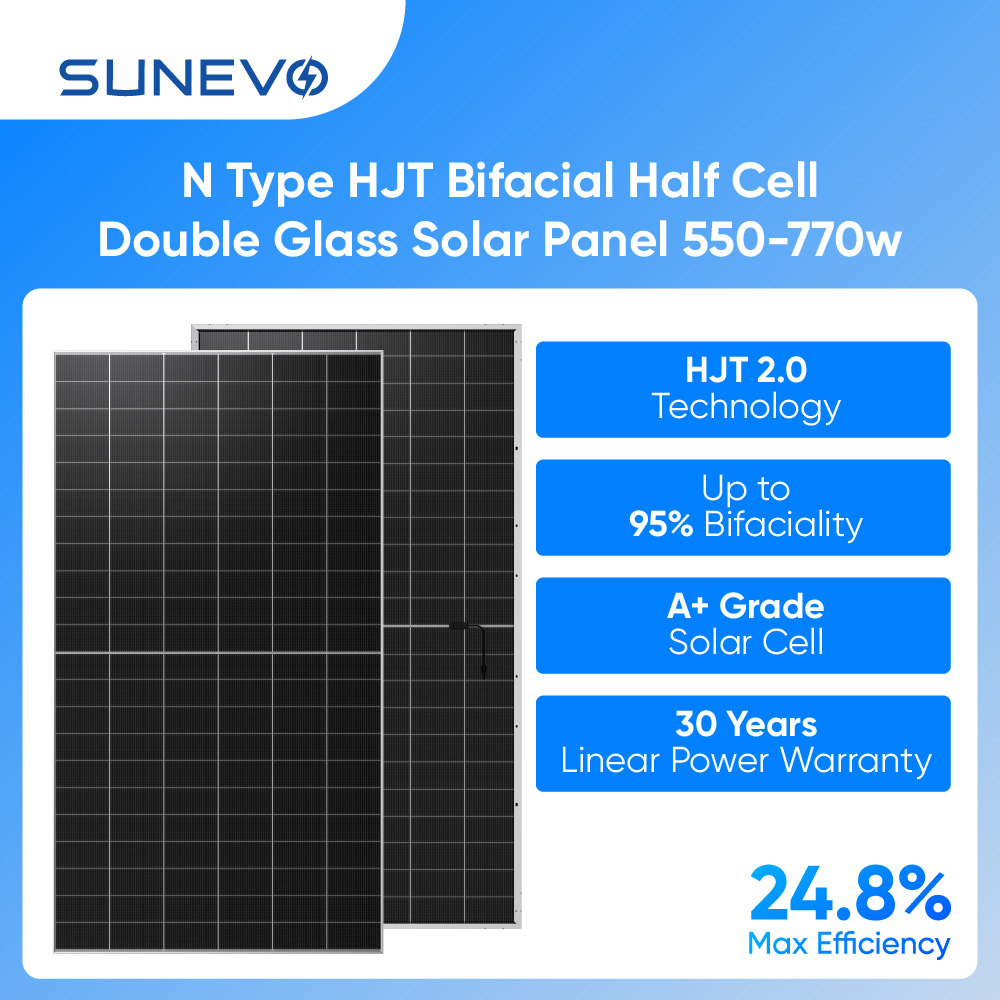

Half Cut Mono 750W Solar Panel
Peak Power Watts: 750W
Maximum Power Voltage: 42.68V
Maximum Power Current: 17.58A
Open Circuit Voltage: 50.77V
Short Circuit Current: 18.71A
Dimensions: 2384*1303*33mm
Weight: 37.9kg

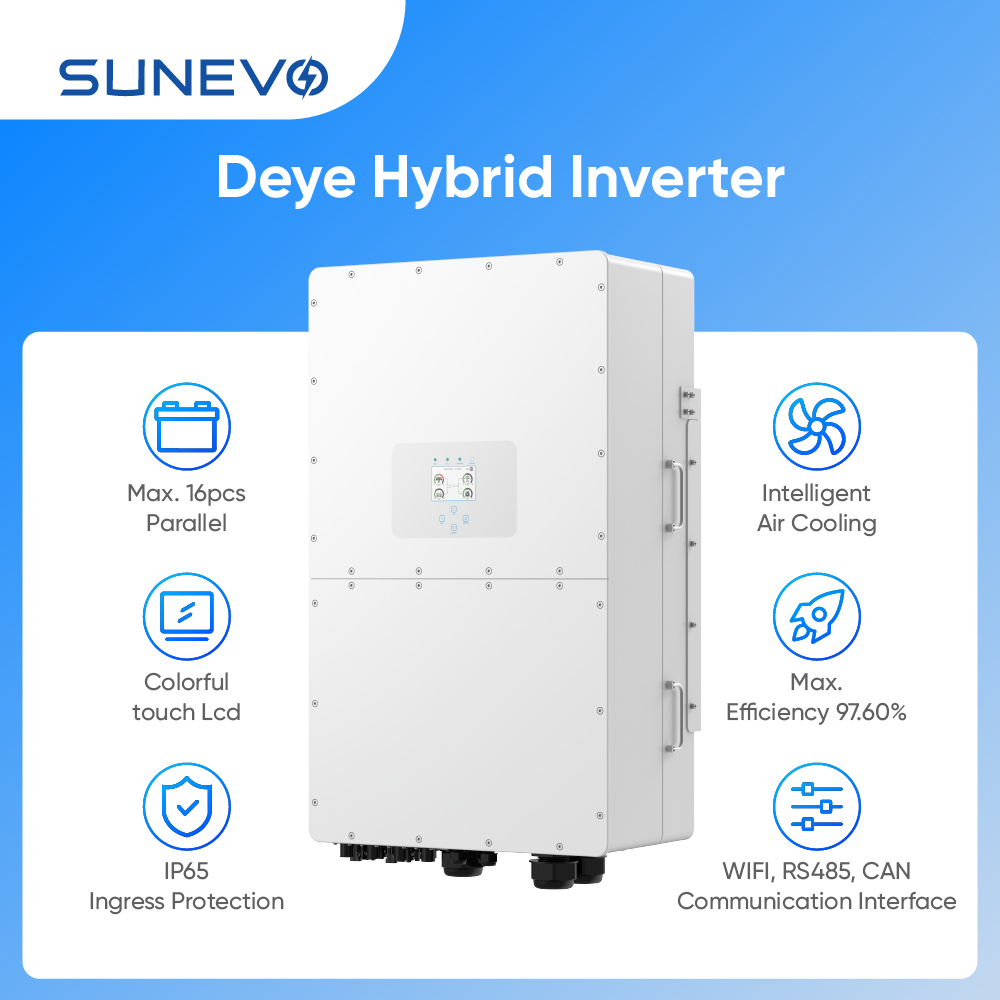

Hybrid Solar Inverter
Support both single phase and three phase, transformer isolation design. Different modes make system work more efficiency.
Max. charging/discharging current of 240A
Max. 6pcs parallel
DC couple and AC couple to retrofit existing solar system

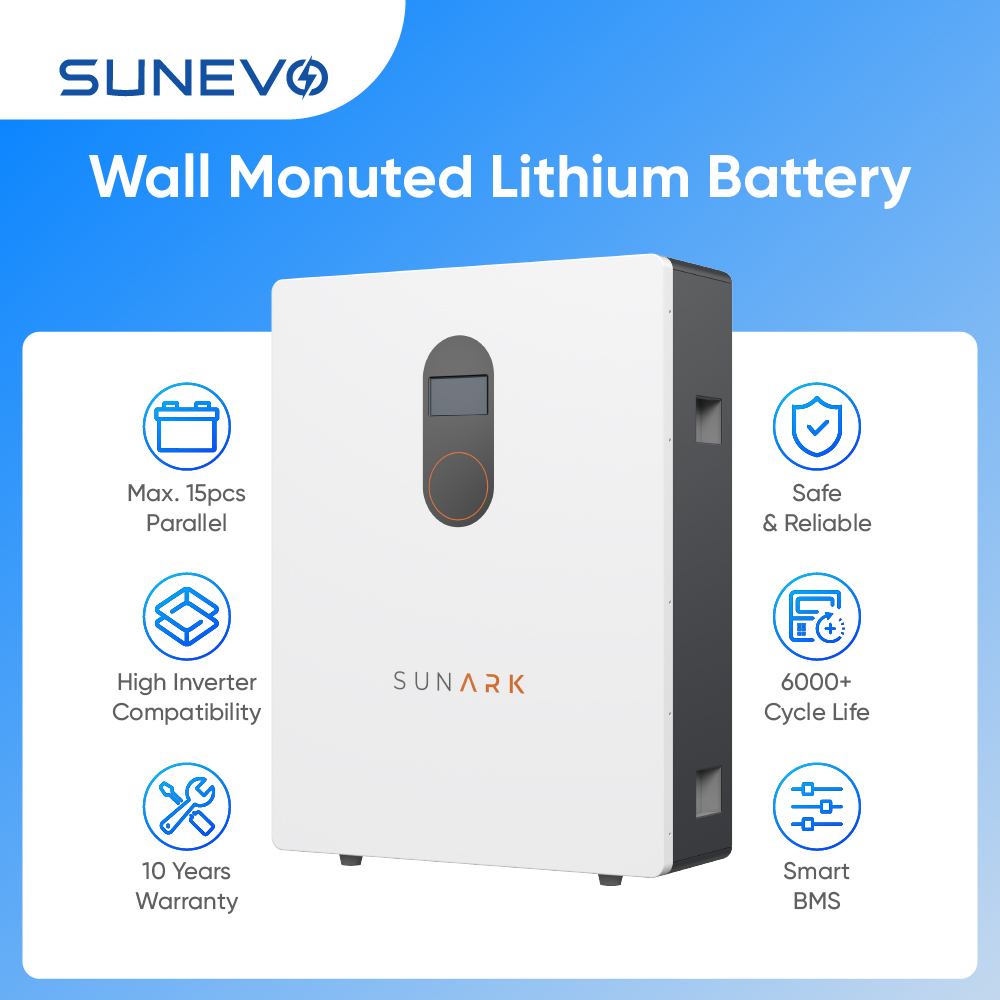

Low Voltage LiFePo4 Battery Bank
12V, 24V, 48V, 51.2V available.
15-20 years design life. Up to 6000+ cycle life.
Wall mount or ground stack brick, simply connecting to inverter.
Battery module is scalable for any larger storage system.
Battery modular built-in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A
Monitoring System
Open station supports one-click installation and registration. Problem support one-click dispatch and navigation.
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.
Project Case

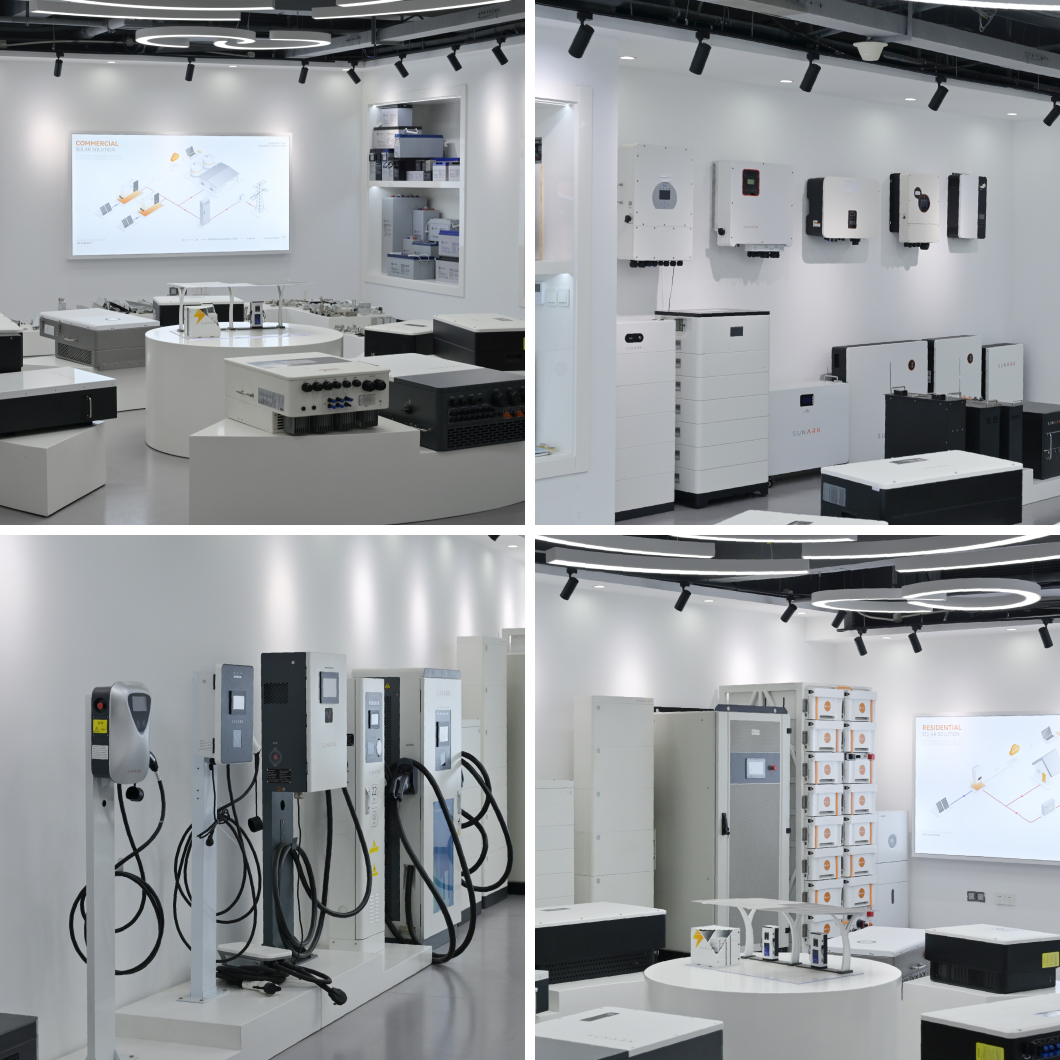

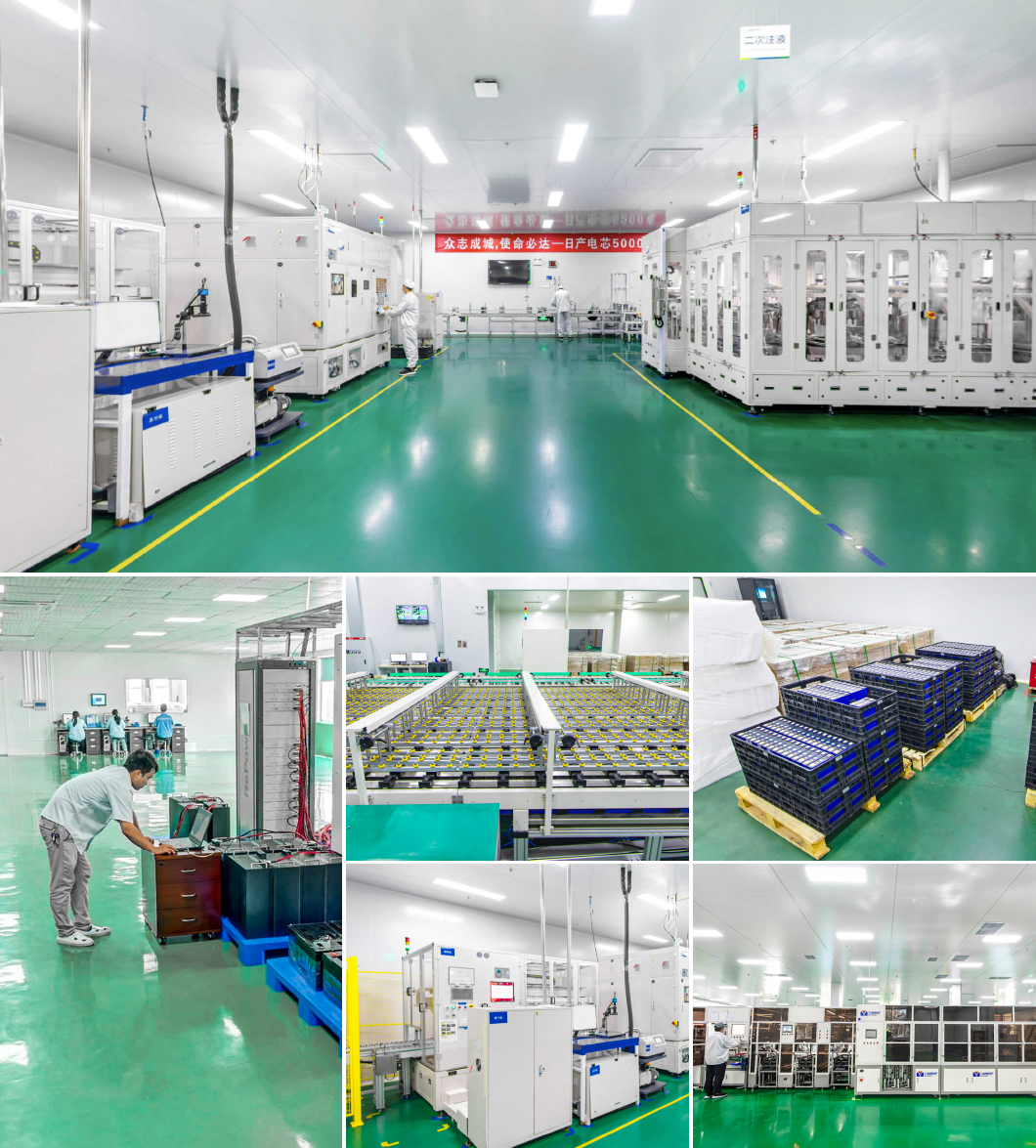

Our Factory
Wish You Have A Pleasant Purchasing Time!
About Us
Certifications
Frequently Asked Questions
What is included in a complete 10kW solar system?
The system includes high-efficiency 750W solar panels, a hybrid solar inverter, lithium battery storage (48V 200Ah), roof mounting structures, PV and earthing cables, MC4 connectors, and a professional distribution box.
How long do the solar panels and batteries last?
The half-cut mono solar panels are designed for long-term durability, while the LiFePo4 battery bank features a 15-20 year design life with over 6000 cycles.
Is the mounting system compatible with my roof?
Our mounting system is highly versatile, with options for asphalt shingles, hanger bolts, and adjustable clamps (35-50mm) to suit most residential and commercial roof types.
Can I monitor the system's performance remotely?
Yes, the system includes a smart monitoring platform that supports one-click registration and real-time data tracking to ensure safety and reliability.
Can the hybrid inverter work with existing solar setups?
Absolutely. The hybrid inverter supports both DC and AC coupling, making it easy to retrofit into existing solar systems or scale up with up to 6 units in parallel.
Are the components weather-resistant?
Yes, key components like the DC/AC disconnect switches carry an IP66 rating, ensuring full protection against dust and high-pressure water jets for outdoor installation.
