KEVOLT Hybrid Solar System 5kW 10kW 15kW 20kW 50kW Off Grid Solar Power System Complete Kit Solar Energy System for Home

Product Description

Configuration Details

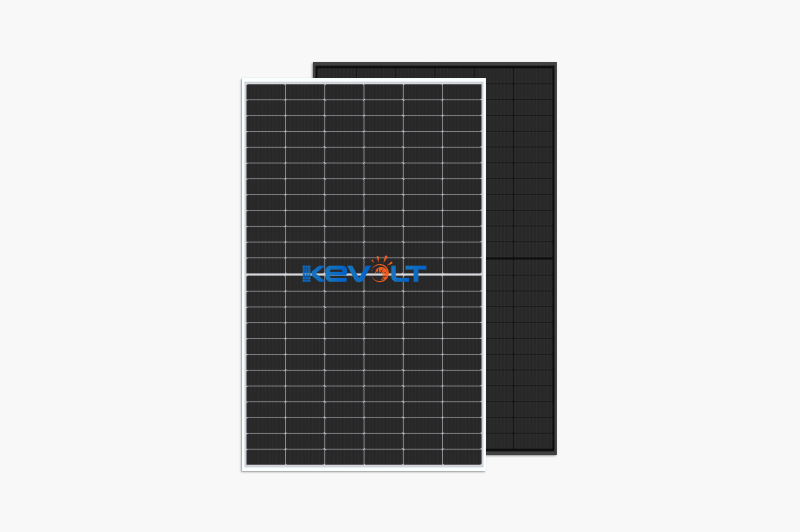

Solar Panels

1. Brand Name: KEVOLT
2. Peak Power: 550~580W
3. Peak Voltage: 40.90V
4. Peak Current: 13.45A
5. ±Tolerance: -0~+3%
6. Materials: Monocrystalline Silicon
7. Batteries Number: 144
8. Warranty: 15 Years

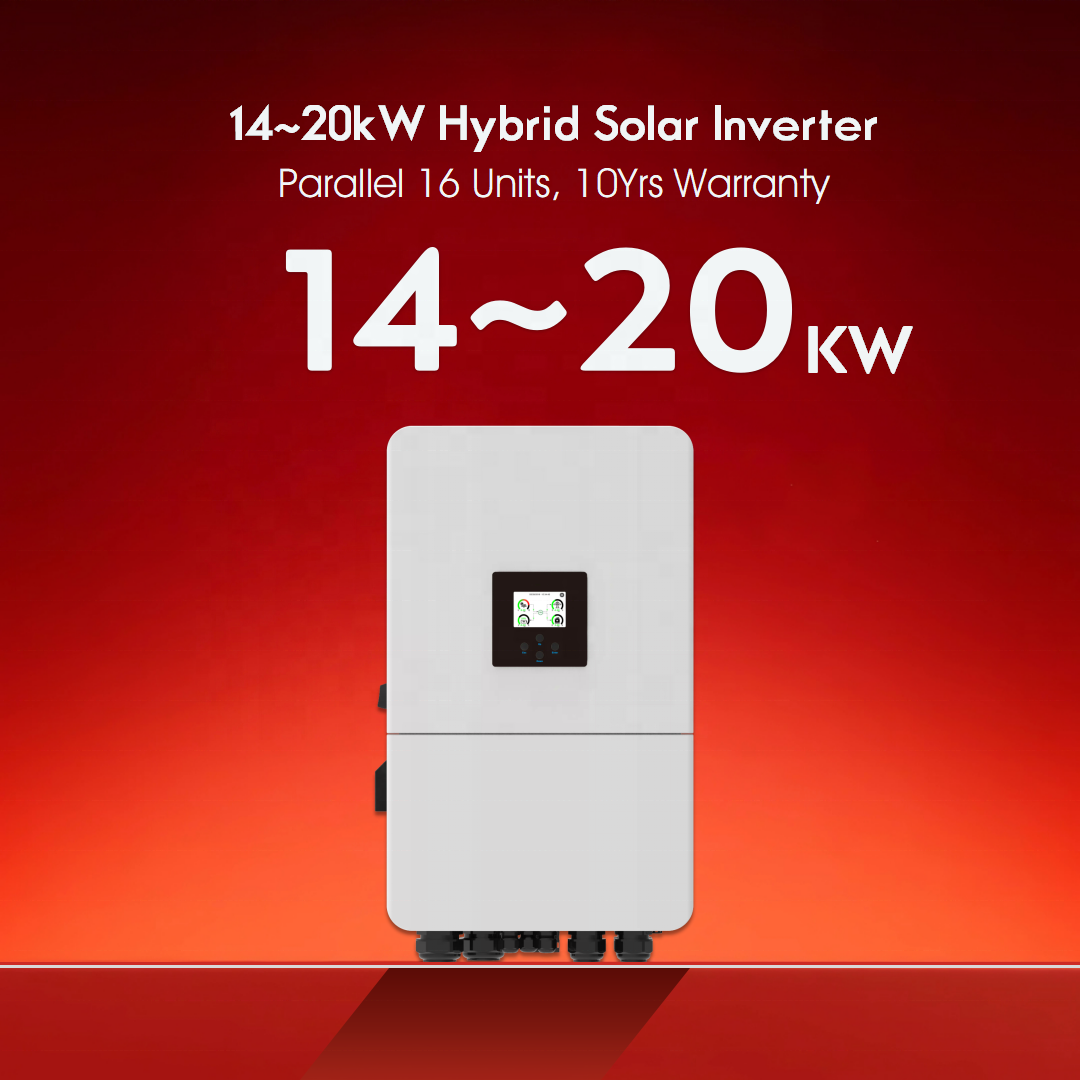

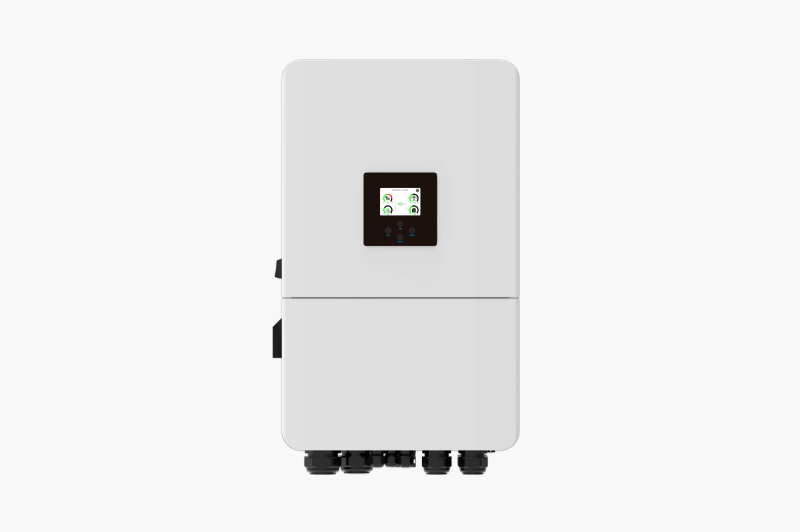

Solar Inverter

1. Brand Name: KEVOLT
2. Inventory: Spot Goods
3. Rated Power: 14-20kW
4. Input Voltage: 550V
5. Output Voltage: 220/380V, 230/400V
6. Output Type: Three Phase
7. System Type: Hybrid
8. Warranty: 10 Years

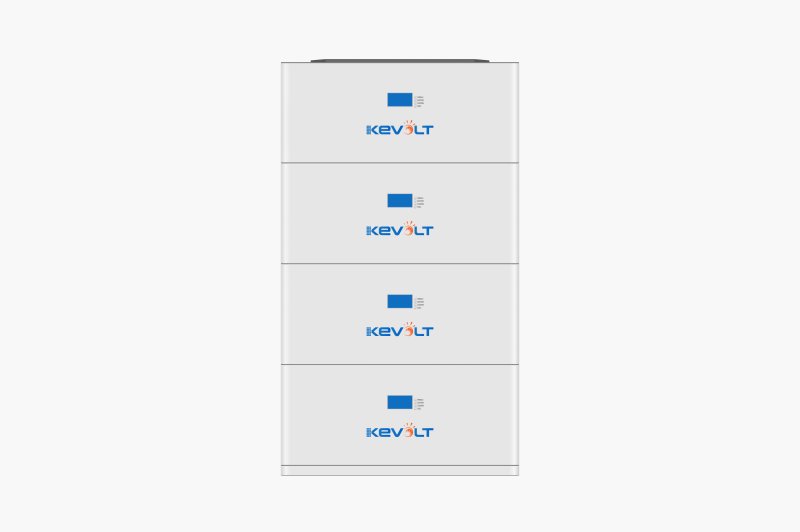

Solar Battery

1. Brand Name: KEVOLT
2. Battery Materials: Level A LiFePO4
3. Capacity: 100~300Ah
4. Rated Voltage: 51.2V
5. Cycle Life: 6000 Cycles
6. Max Charging Current: 50~200A
7. Installation Method: Stacked
8. Warranty: 10 Years

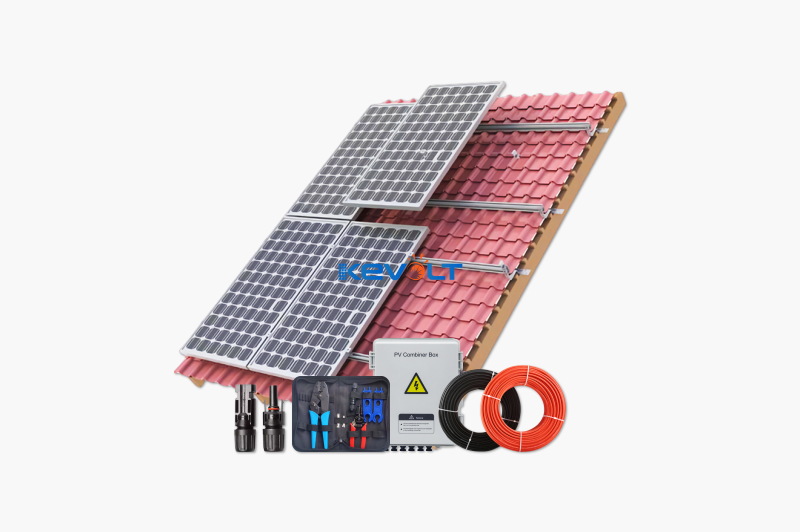

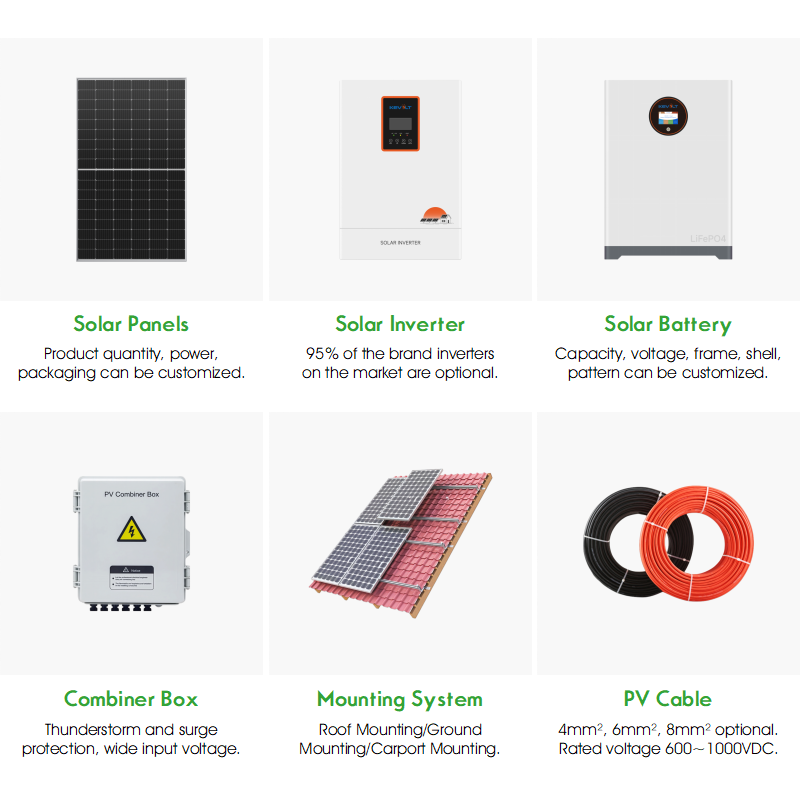

Installation System

1. Mode: Roof / Ground / Carport Mounting
2. Support Material: Aluminium Alloy
3. Tools Bag: Selectable
4. MC4 Connector: 30A, 1000VDC
5. PV Combiner Box: 8 Inputs, 1 Outputs
6. PV Cable: 4mm²
7. Breakers Switches: Selectable
Configuration List
10kW Solar System
ItemModelDescriptionQuantity
1Solar Panel550W18 PCS
2Solar Inverter10kW1 PCS
3Solar BatteryLiFePO4 16kWh1 PCS
4Mounting SystemPV Cable, Collecting Box, MC41 Set

15kW Solar System
ItemModelDescriptionQuantity
1Solar Panel550W27 PCS
2Solar Inverter15kW1 PCS
3Solar BatteryLiFePO4 20kWh1 PCS
4Mounting SystemPV Cable, Collecting Box, MC41 Set

20kW Solar System
ItemModelDescriptionQuantity
1Solar Panel550W36 PCS
2Solar Inverter20kW1 PCS
3Solar BatteryLiFePO4 30kWh1 PCS
4Mounting SystemPV Cable, Collecting Box, MC41 Set

30kW Solar System
ItemModelDescriptionQuantity
1Solar Panel550W54 PCS
2Solar Inverter15kW2 PCS
3Solar BatteryLiFePO4 50kWh1 PCS
4Mounting SystemPV Cable, Collecting Box, MC41 Set

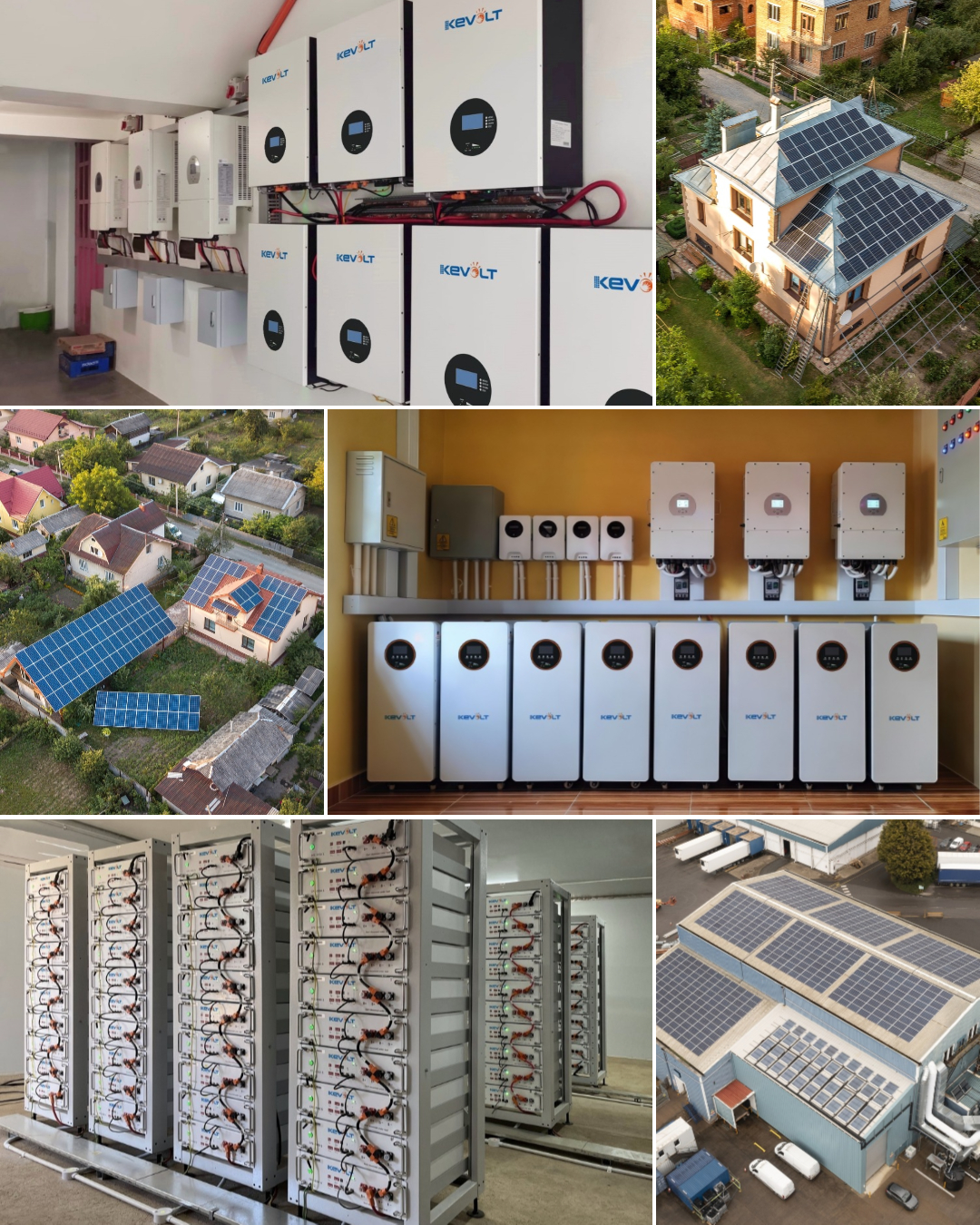

Project Case
Solar System Customization
Company Profile
Frequently Asked Questions
Q1: What is the lifespan and warranty of the solar panels?
The solar panels use high-efficiency Monocrystalline Silicon and come with a 15-year warranty, ensuring long-term reliability and performance.
Q2: How many cycles can the solar energy storage battery perform?
Our Level A LiFePO4 batteries are designed for high durability, supporting up to 6000 cycles with a 10-year warranty.
Q3: Is the solar inverter compatible with three-phase power systems?
Yes, our hybrid solar inverters are specifically designed for Three Phase output, with rated power options ranging from 14kW to 20kW.
Q4: What mounting options are available for the installation system?
The installation system is versatile and supports Roof Mounting, Ground Mounting, and Carport Mounting using durable Aluminium Alloy materials.
Q5: Can the solar system configuration be customized?
Absolutely. We provide comprehensive customization services for 10kW, 15kW, 20kW, 30kW, and other customized solar systems based on your specific energy needs.
Q6: What are the key features of the battery installation?
The batteries utilize a stacked installation method, which is space-efficient and allows for easy capacity expansion between 100Ah to 300Ah.
