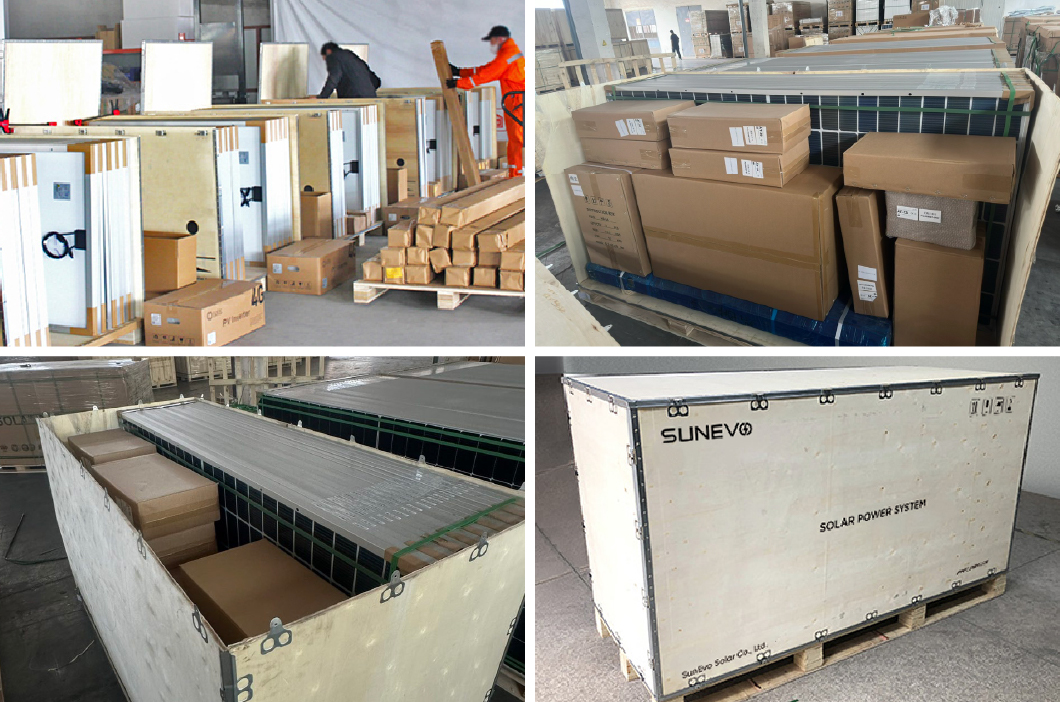

Product Packaging

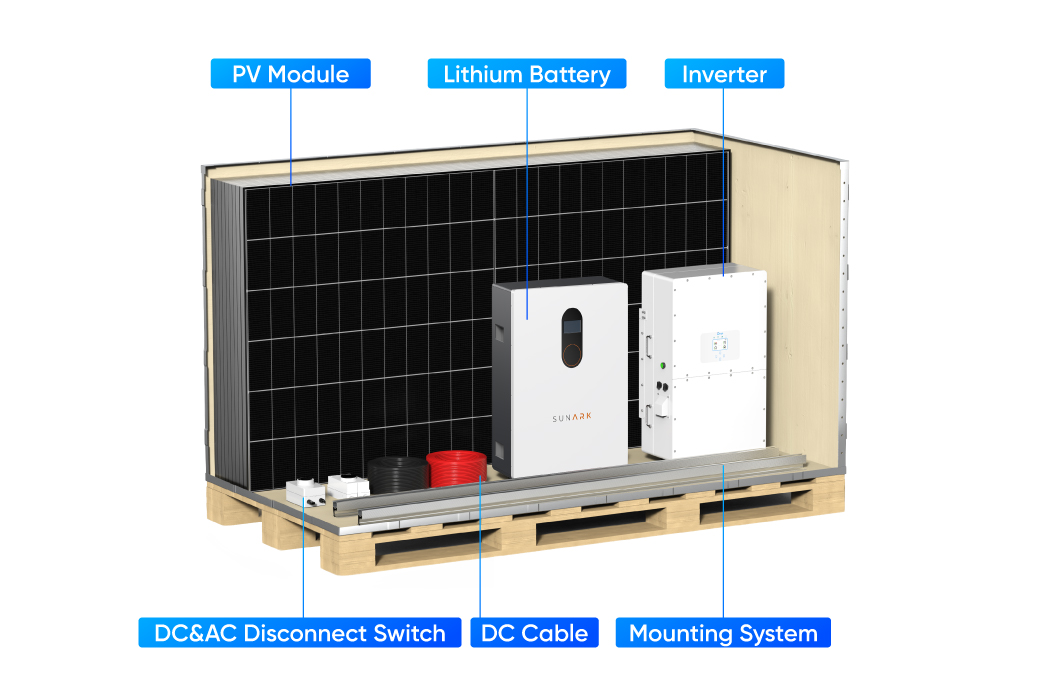

Below is the packaging diagram of the 10kw system. It includes internal components, inverter, lithium battery, circuit breaker, MC4 connector, cables, distribution box and other auxiliary materials.

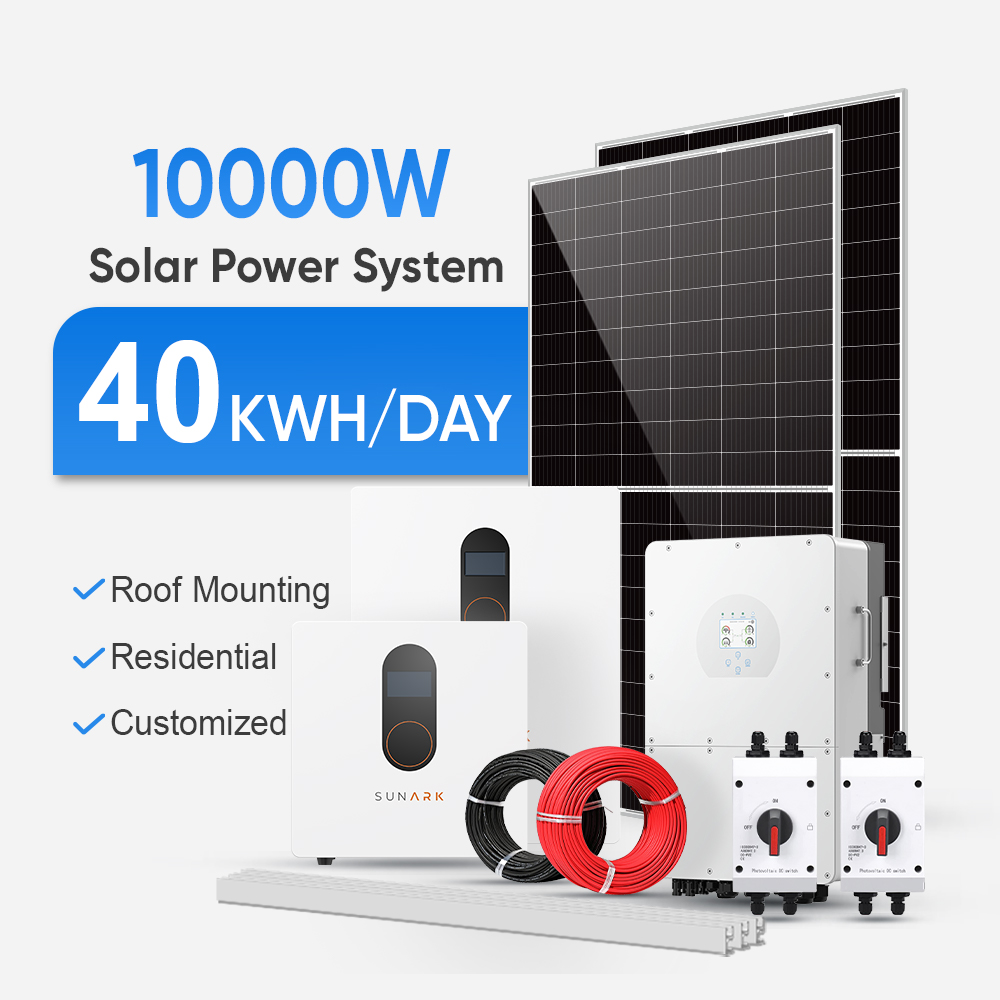

What's Included

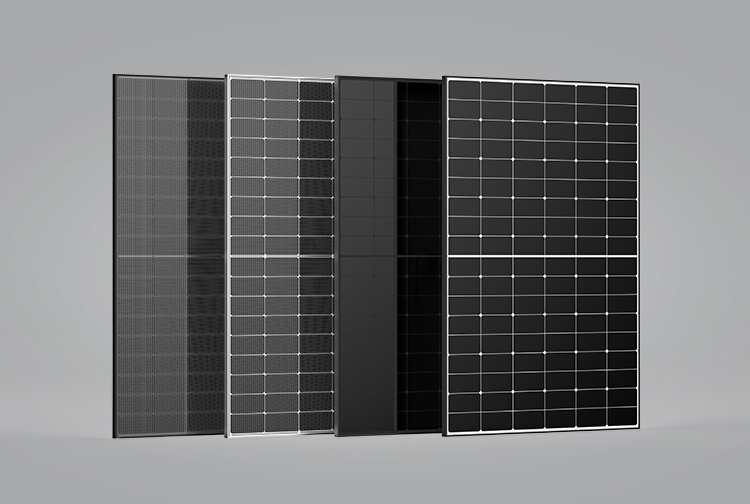

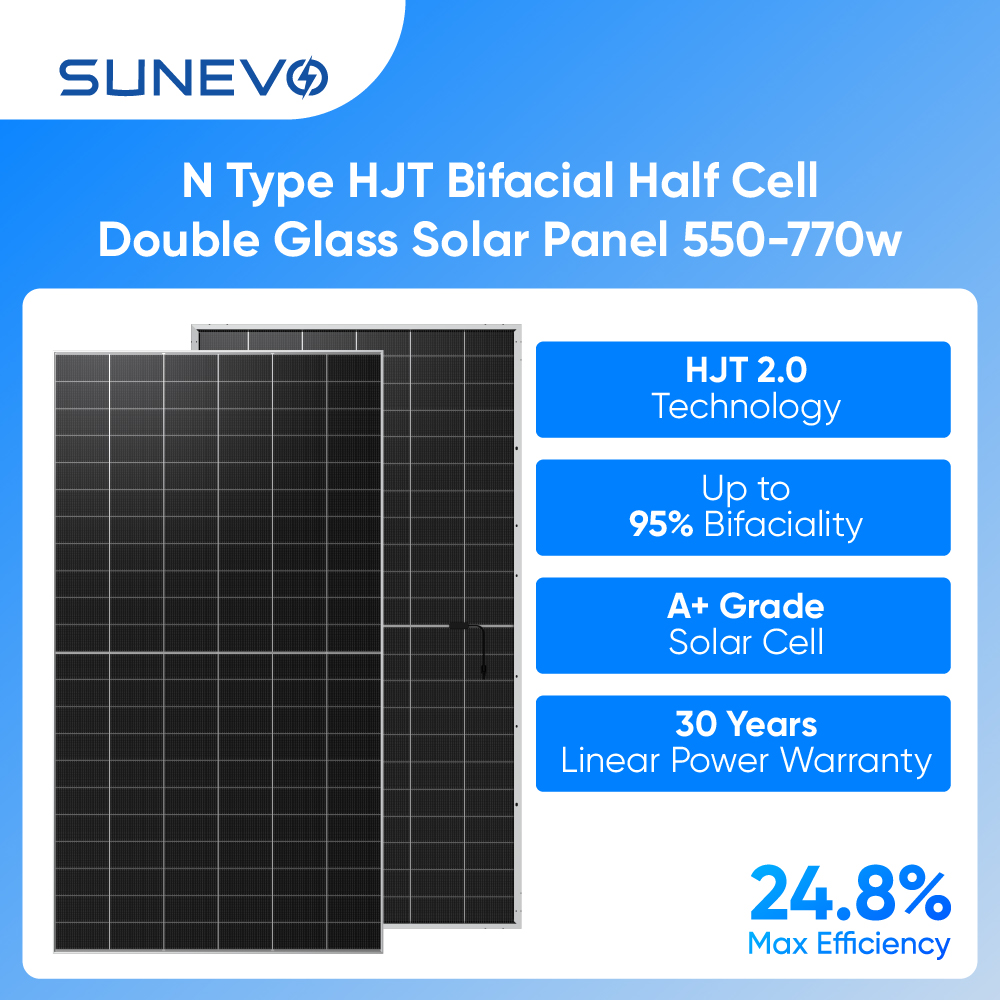

Half Cut Mono 550W Solar Panel
Peak Power Watts: 550W | Max Voltage: 42.06V | Max Current: 12.84A | Open Circuit Voltage: 49.75V | Short Circuit Current: 13.63A | Dim: 2279x1134x35mm | Weight: 26.9 kg

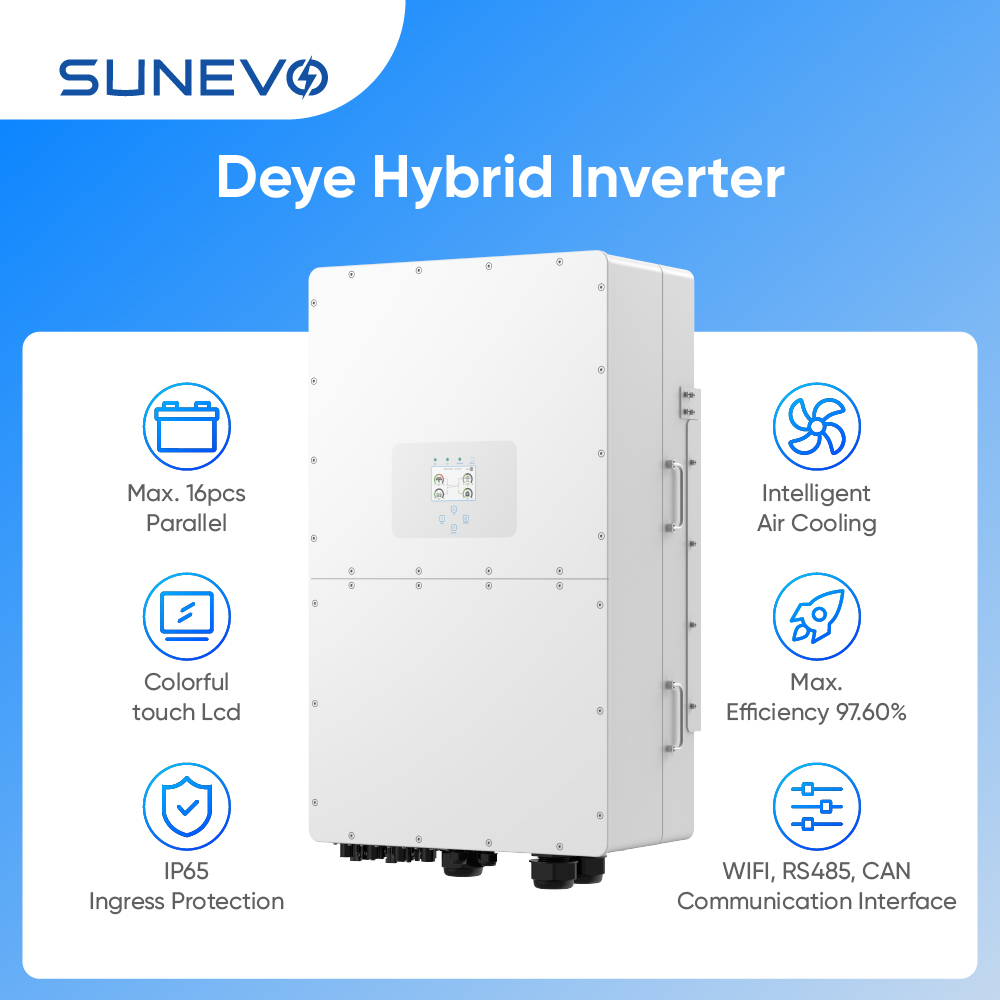

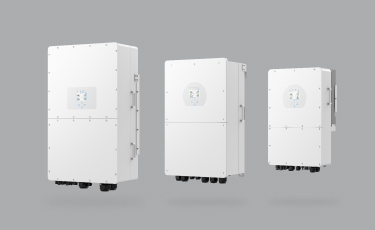

Hybrid Solar Inverter
Support both single phase and three phase, transformer isolation design. Max.charging/discharging current of 240A. Supports up to 6pcs in parallel. DC and AC couple options available.

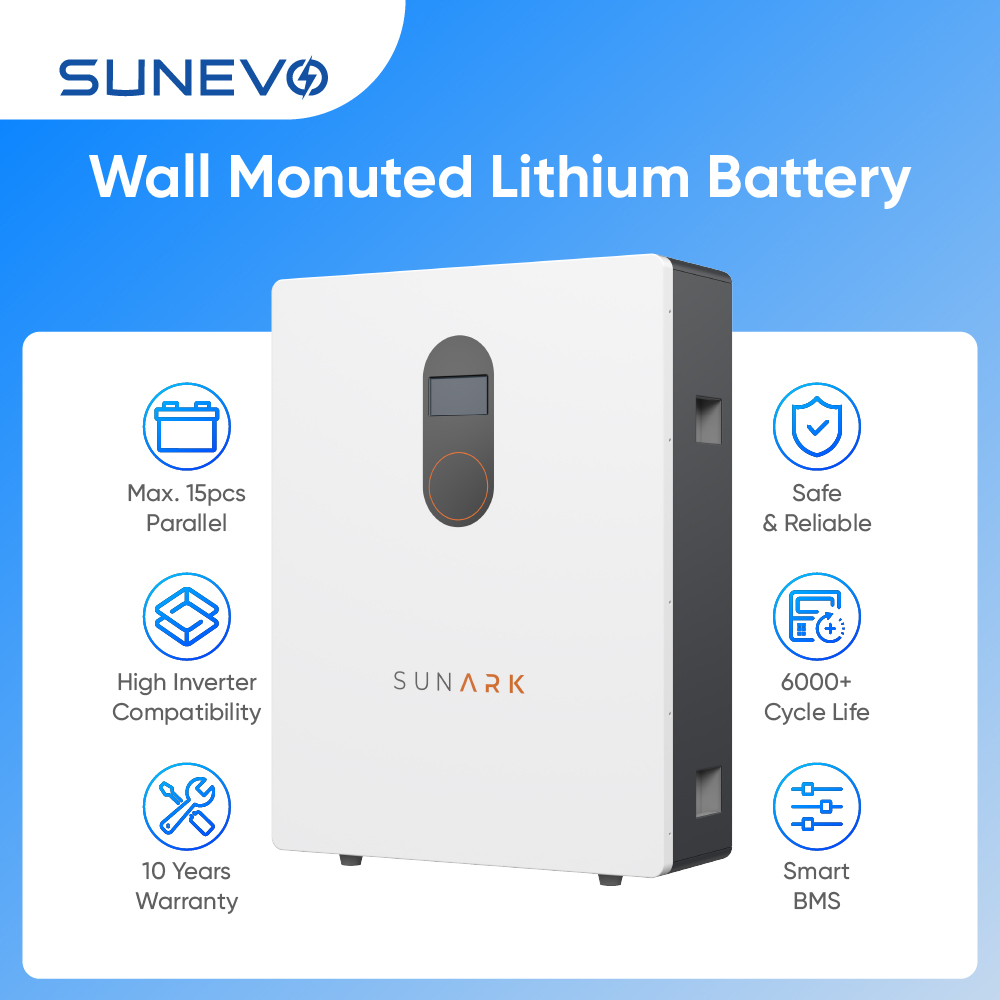

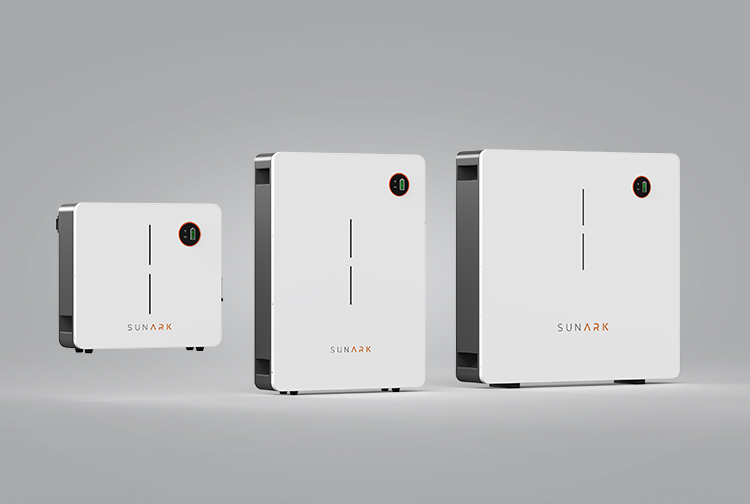

Low Voltage LiFePo4 Battery Bank
12V, 24V 48V, 51.2V available. 15-20 years design life. Up to 6000+ cycle life. Scalable modular design with high-quality built-in BMS for maximum safety.

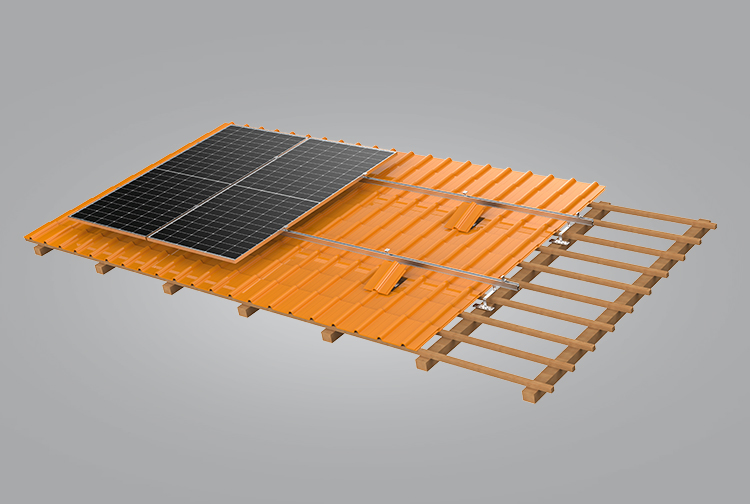

PV Mounting System
AI6005 & SUS304 Components. Mid & End Clamps (35-50mm). Supports Asphalt Shingle, Hanger Bolts, and multiple roof/ground configurations.

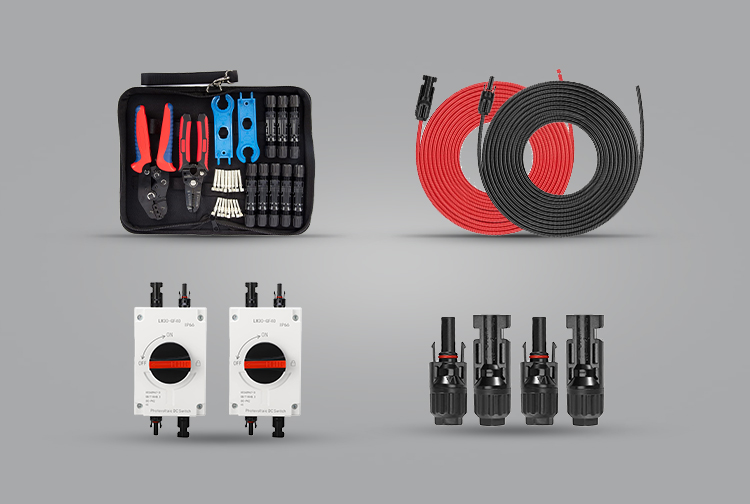

DC & AC Disconnect Switch
IP Rating: IP66 | Rated Voltage: 1000VDC | Connection: M20, M25, MC4 | Rated Current: 16A, 20A.

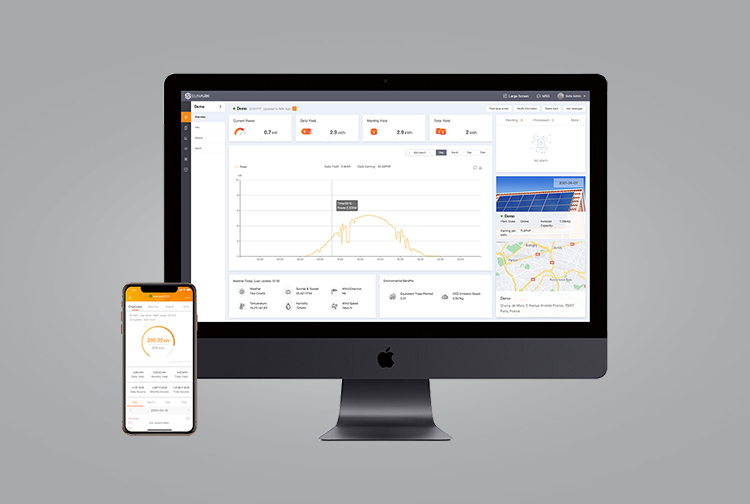

Monitoring System
Supports one-click installation and registration. Real-time data storage ensures security and reliability for the full lifecycle of the system.
Frequently Asked Questions
What components are included in the complete solar system kit?
The system includes high-efficiency solar panels, a hybrid inverter, LiFePo4 battery storage, mounting structures, DC/AC disconnect switches, cables, MC4 connectors, and necessary installation tools.
Is the system compatible with both single-phase and three-phase power?
Yes, our hybrid inverters are designed to support both single-phase and three-phase configurations to suit different residential and commercial needs.
How long is the lifespan of the lithium battery bank?
Our LiFePo4 battery modules have a design life of 15-20 years and can sustain over 6000 cycles while maintaining high performance.
Can the system be monitored remotely?
Absolutely. The included monitoring system allows for real-time tracking of energy production and system health through a dedicated platform.
Are the mounting systems suitable for all roof types?
Yes, our mounting systems are customized based on your specific installation requirements, whether it is for a tiled roof, flat roof, or ground-mount setup.
