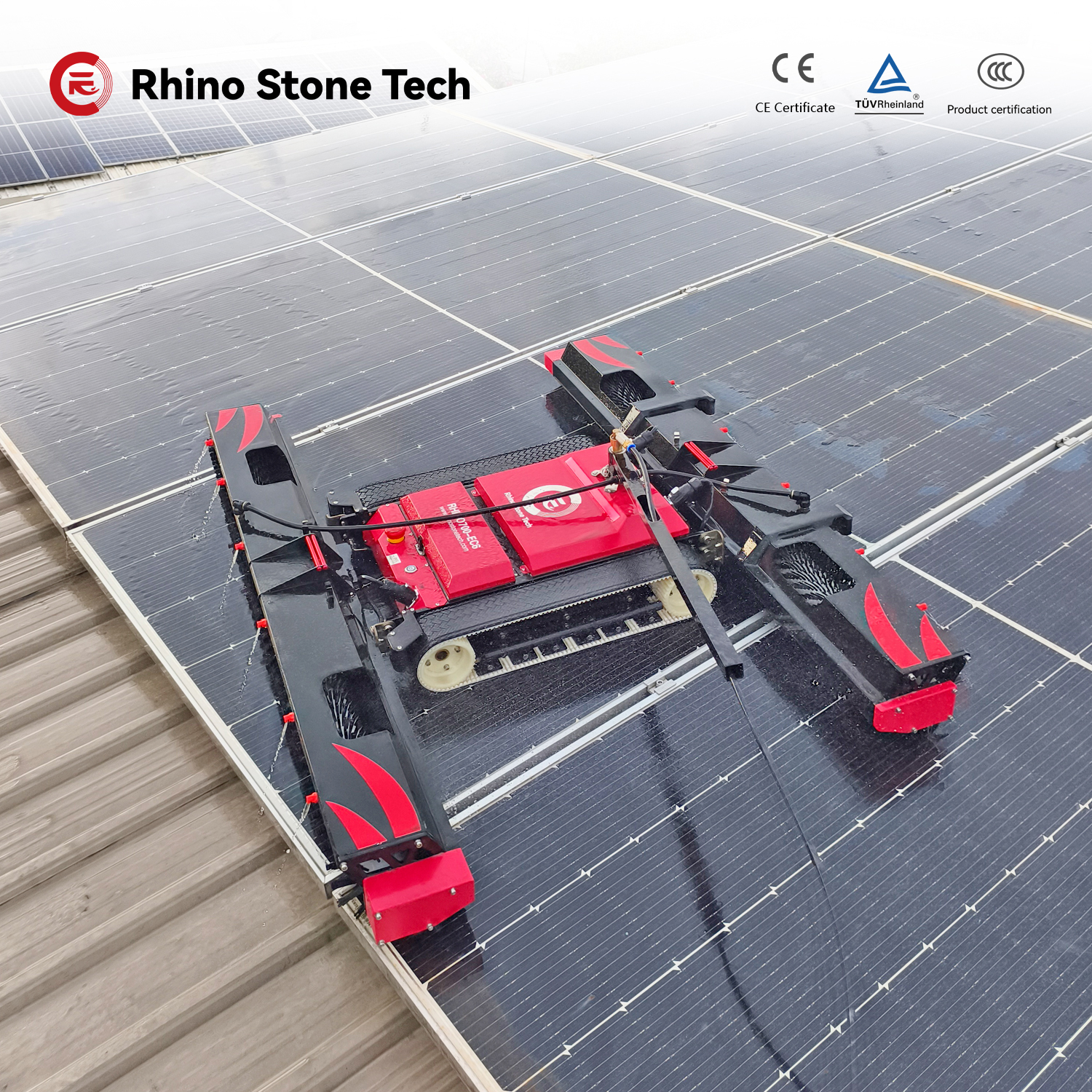

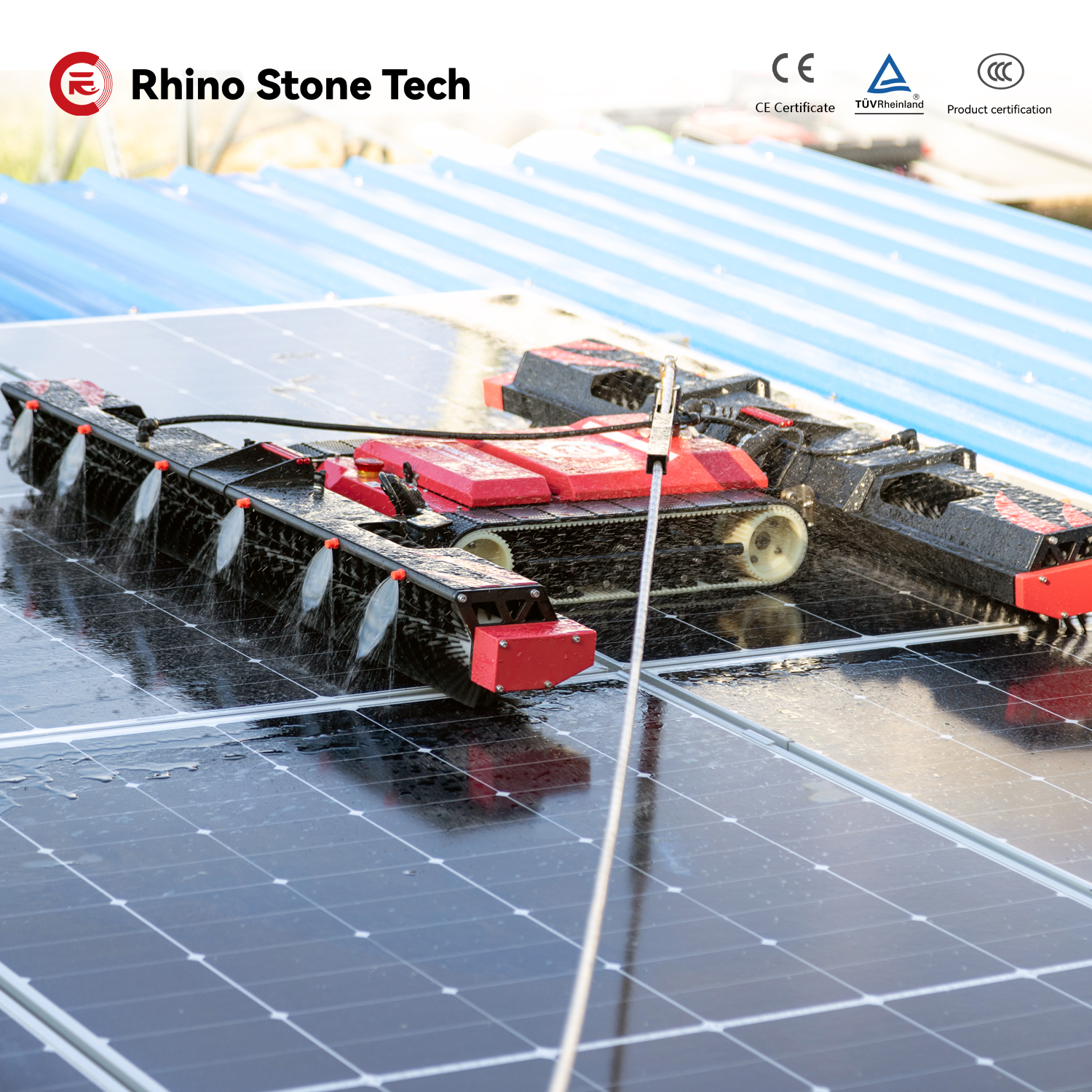

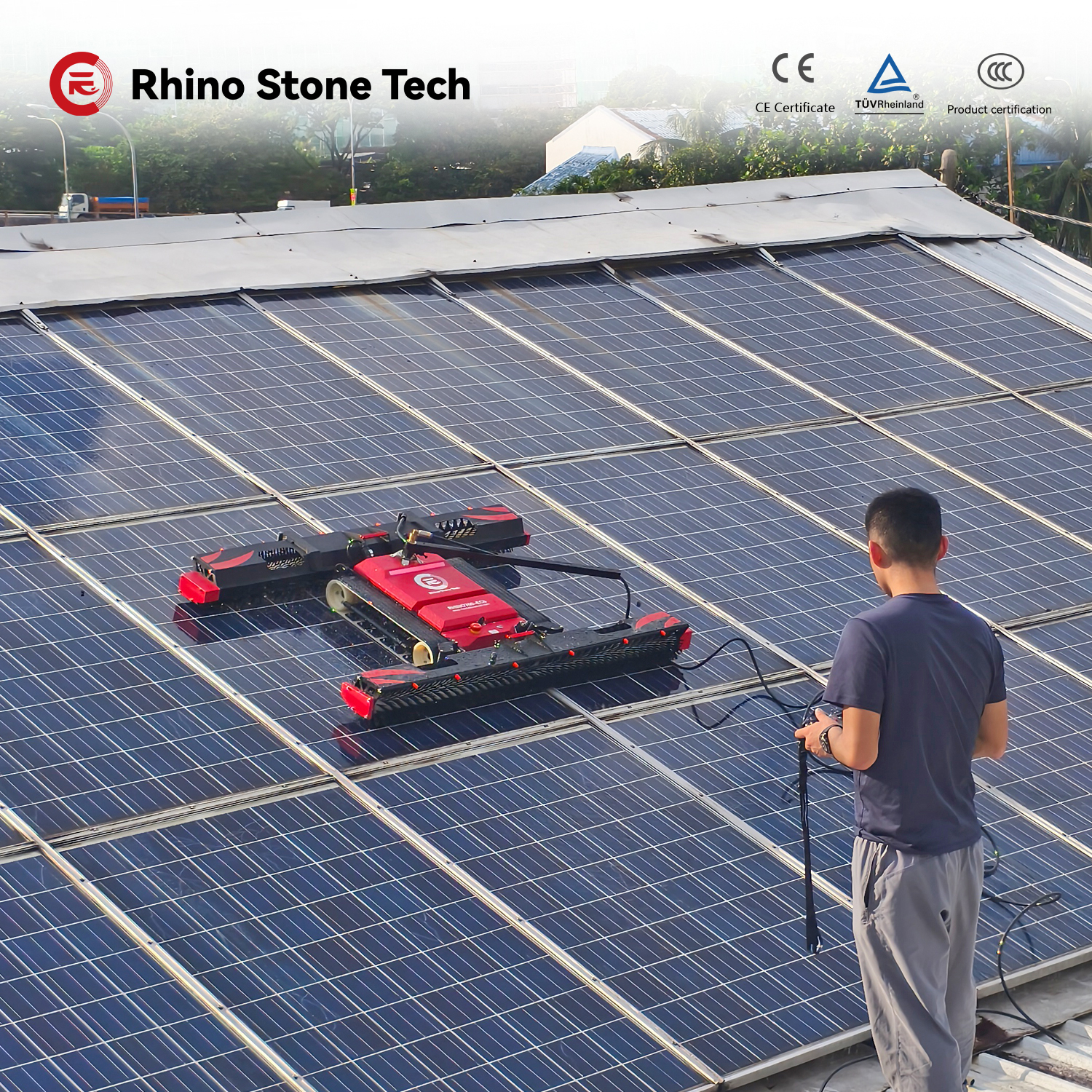

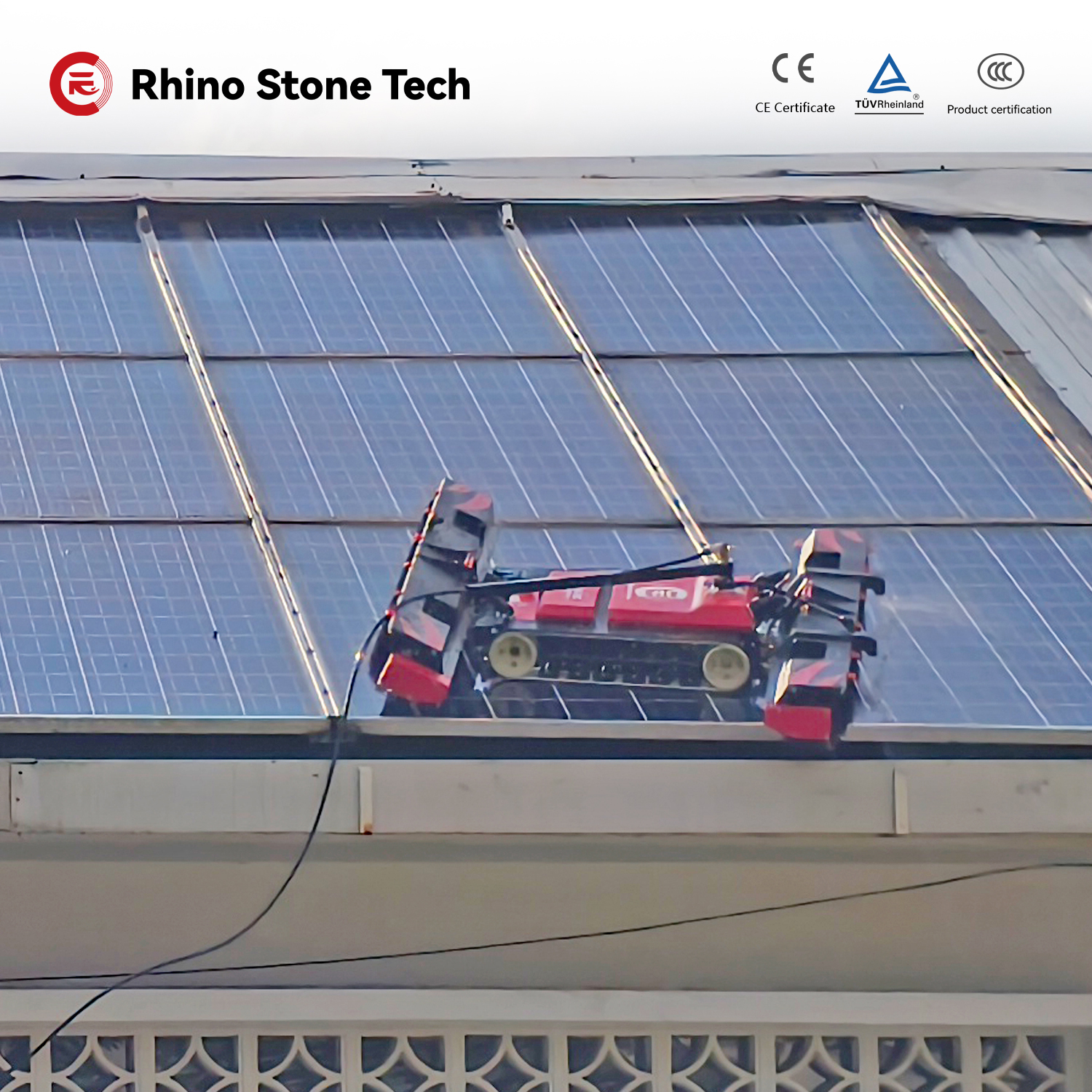

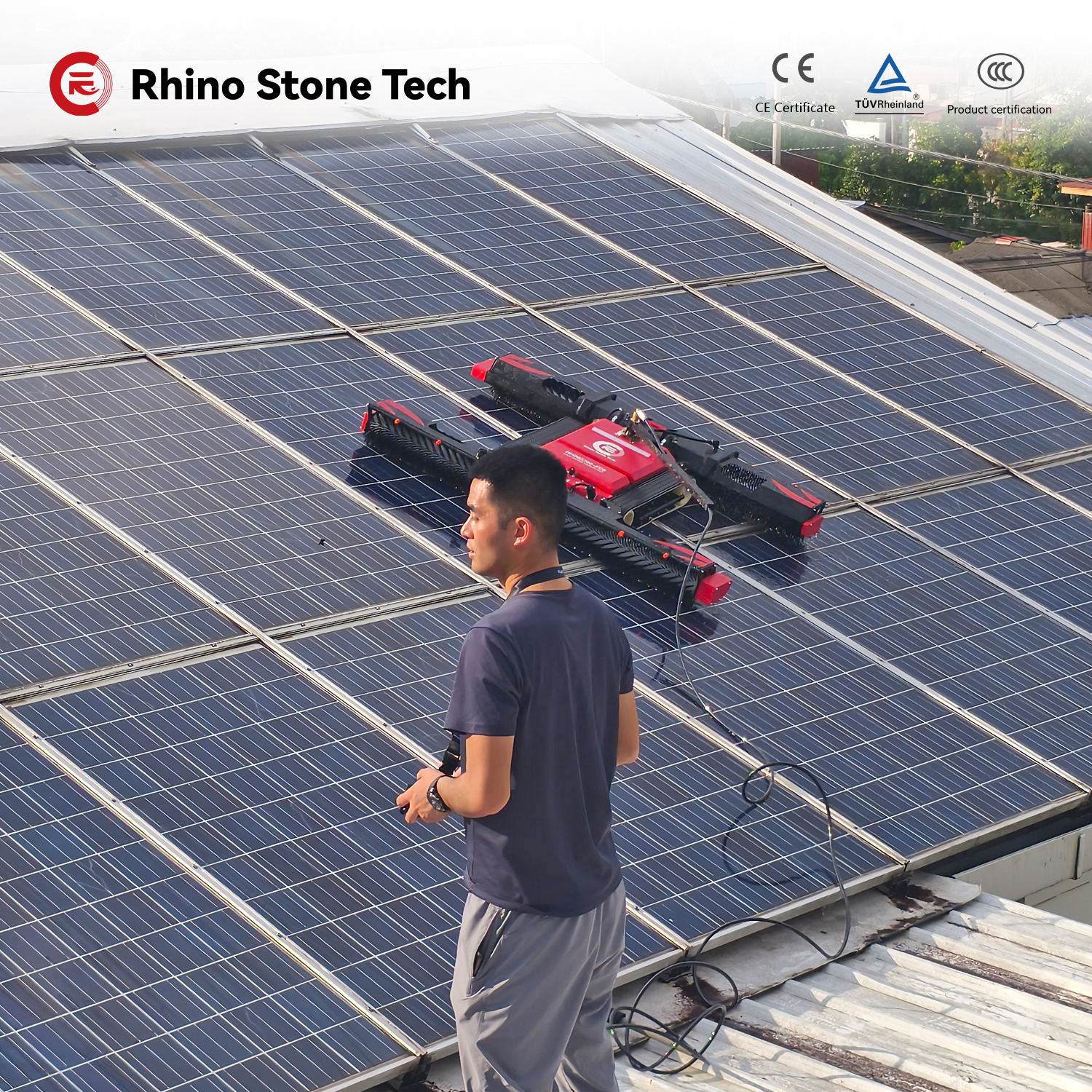

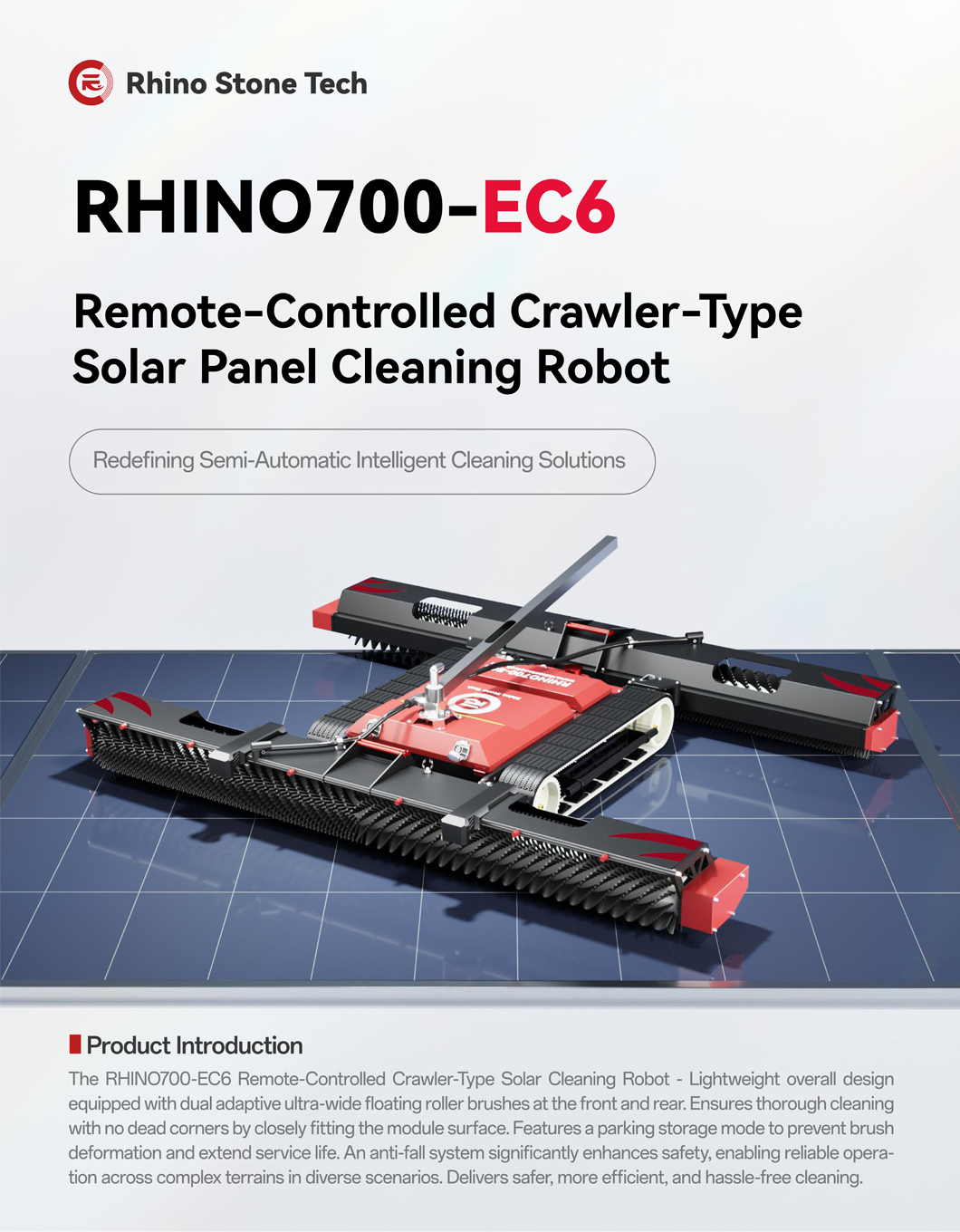

The RHINO700-EC6 Remote-Controlled Crawler-Type Solar Cleaning Robot - It employs front and rear dual adaptive ultra-wide floating roller brushes that maintain perfect contact with module surfaces for comprehensive, streak-free cleaning. An intelligent parking/storage mode prevents brush deformation, extending service life. The integrated anti-fall system enhances operational safety, enabling reliable performance across complex terrains for safer, more efficient, and more effortless cleaning.

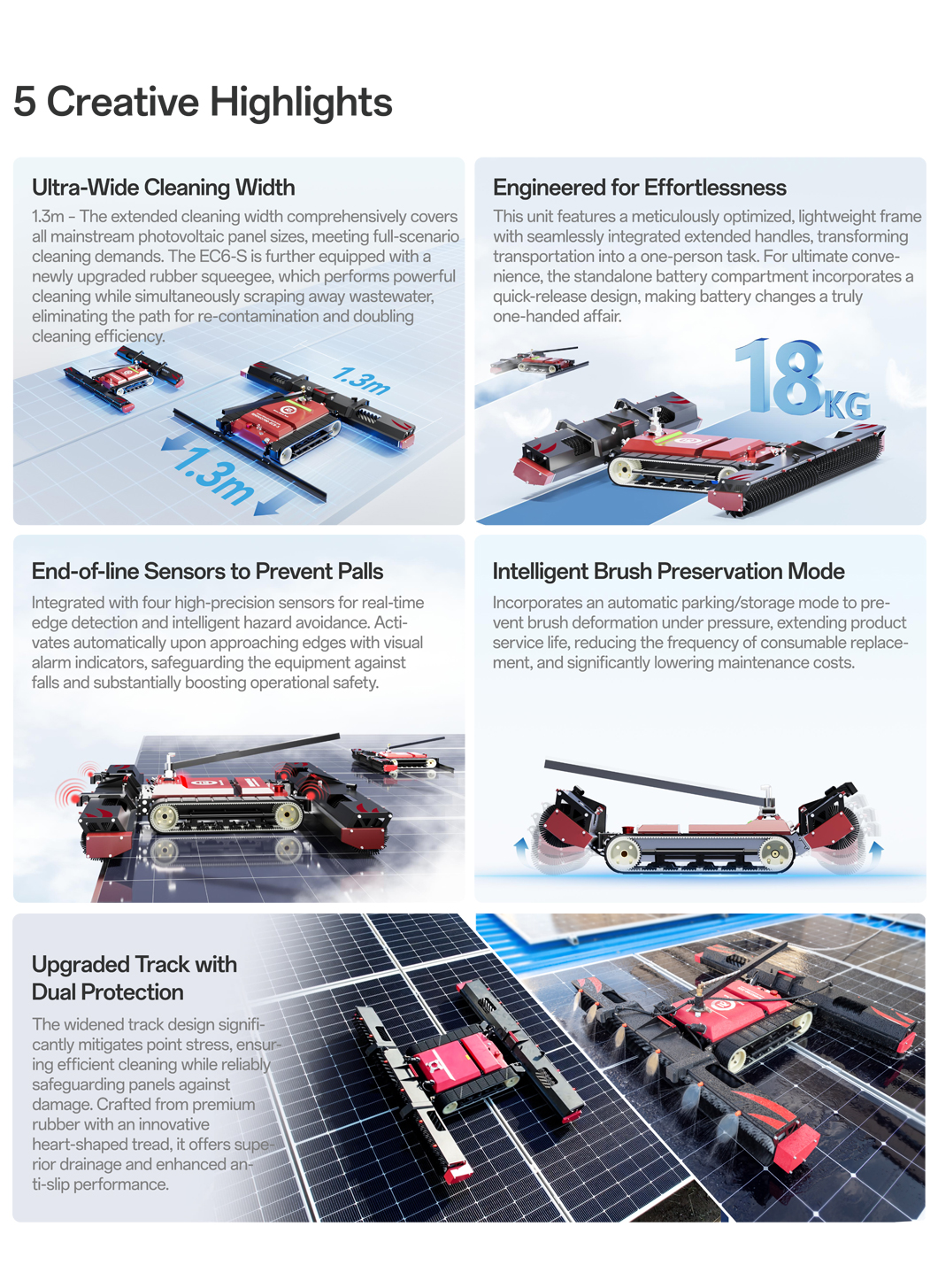

The extended cleaning width comprehensively covers all mainstream photovoltaic panel sizes. Equipped with a newly upgraded rubber squeegee for powerful wastewater removal, doubling cleaning efficiency.
Features a meticulously optimized, lightweight frame with integrated handles. The standalone battery compartment incorporates a quick-release design for one-handed battery changes.
Integrated with four high-precision sensors for real-time edge detection and intelligent hazard avoidance, safeguarding against falls.
Automatic parking/storage mode prevents brush deformation under pressure, reducing maintenance costs and extending consumable life.
Widened track design mitigates cleaning stress and safeguards panels. Crafted from premium rubber with heart-shaped thread for superior drainage and anti-slip performance.

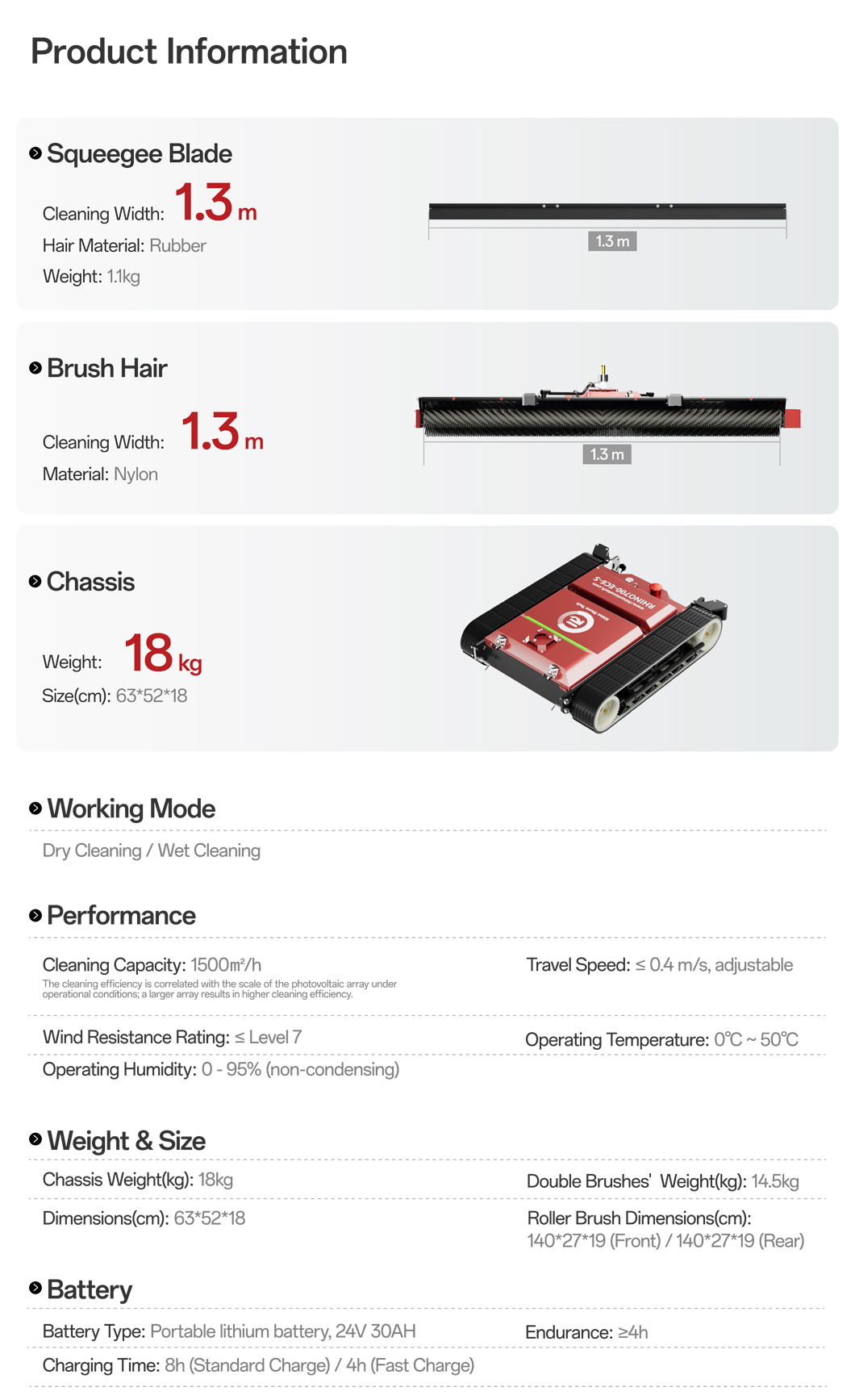

| RHINO700-EC6 Technical Data | |
|---|---|
| Working Mode | Dry Cleaning / Wet Cleaning |
| Travel Speed | ≤ 0.4 m/s (adjustable) |
| Daily Cleaning Capacity (8h) | 1.2 MW |
| Wind Resistance Rating | ≤ Level 7 |
| Operating Temperature | 0ºC ~ 50ºC |
| Operating Humidity | 0 - 95% (non-condensing) |
| Dimensions | 63cm x 52cm x 18cm |
| Roller Brush Dimensions | Front: 140x27x19cm / Rear: 140x23x19cm |
| Chassis Weight | 18kg |
| Double Brushes Weight | 14.5kg |
| Battery Type | Portable lithium battery, 24V 30AH |
| Endurance | ≥ 4h |
| Charging Time | 8h (Standard) / 4h (Fast) |
| Pipe Length | 20m |
A: The robot uses a widened rubber track with a heart-shaped thread to distribute pressure evenly and prevent damage. Additionally, integrated anti-fall sensors detect panel edges in real-time to avoid accidents.
A: Yes, the RHINO700-EC6 is designed for dual-mode operation, making it suitable for removing dry dust as well as stubborn wet grime with its 20m water pipe system.
A: Under standard operating conditions, the robot can clean approximately 1.2 MW of solar panels in an 8-hour workday.
A: The portable lithium battery provides over 4 hours of continuous operation. It can be fully charged in 8 hours with a standard charger or 4 hours using a fast charger.
A: Not at all. The chassis weighs only 18kg and features an optimized lightweight frame with extended handles, allowing a single operator to move it easily.
A: We offer a 12-month comprehensive warranty. Accepted payment methods include T/T, Western Union, and PayPal, with typical lead times of 10-20 days for mass production.
