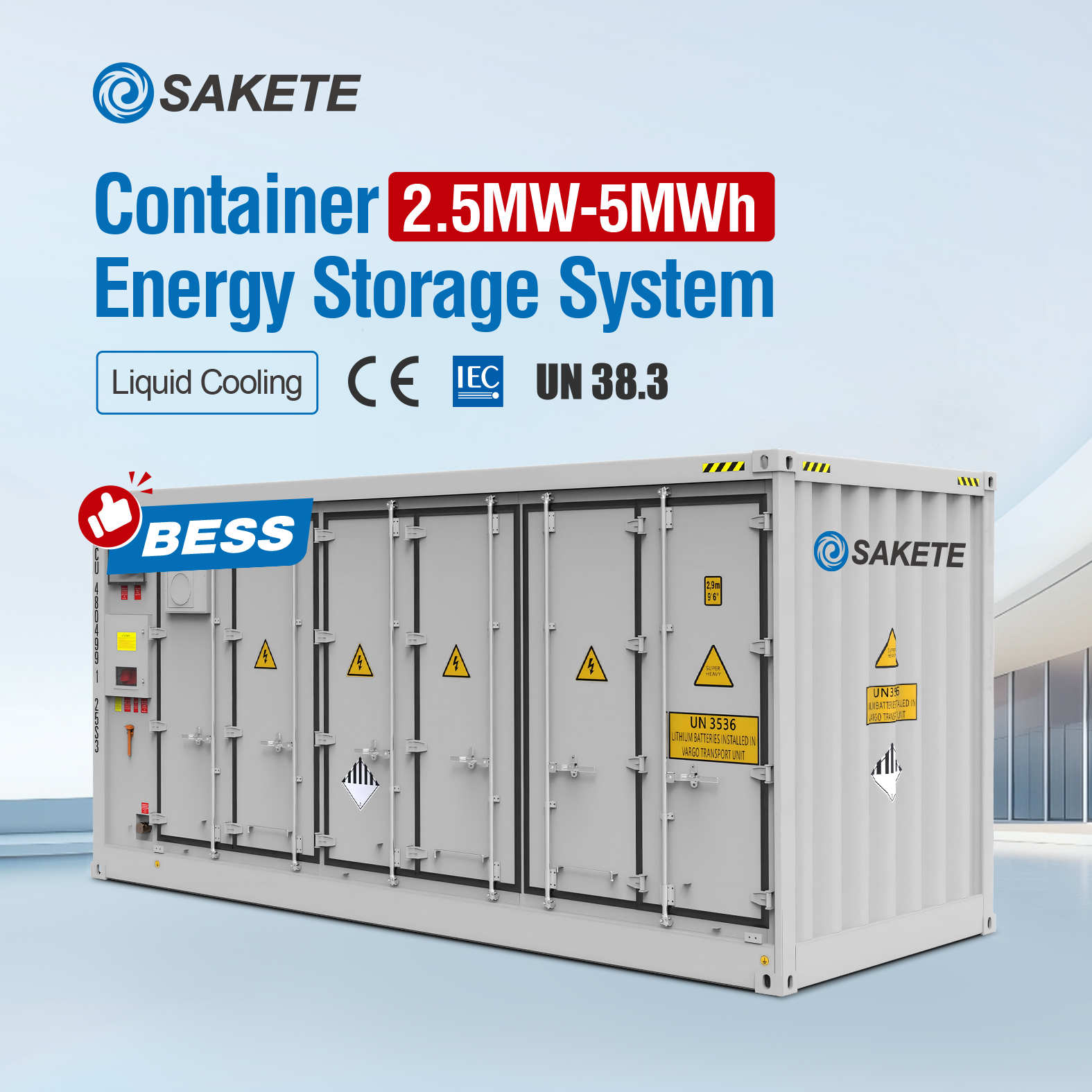

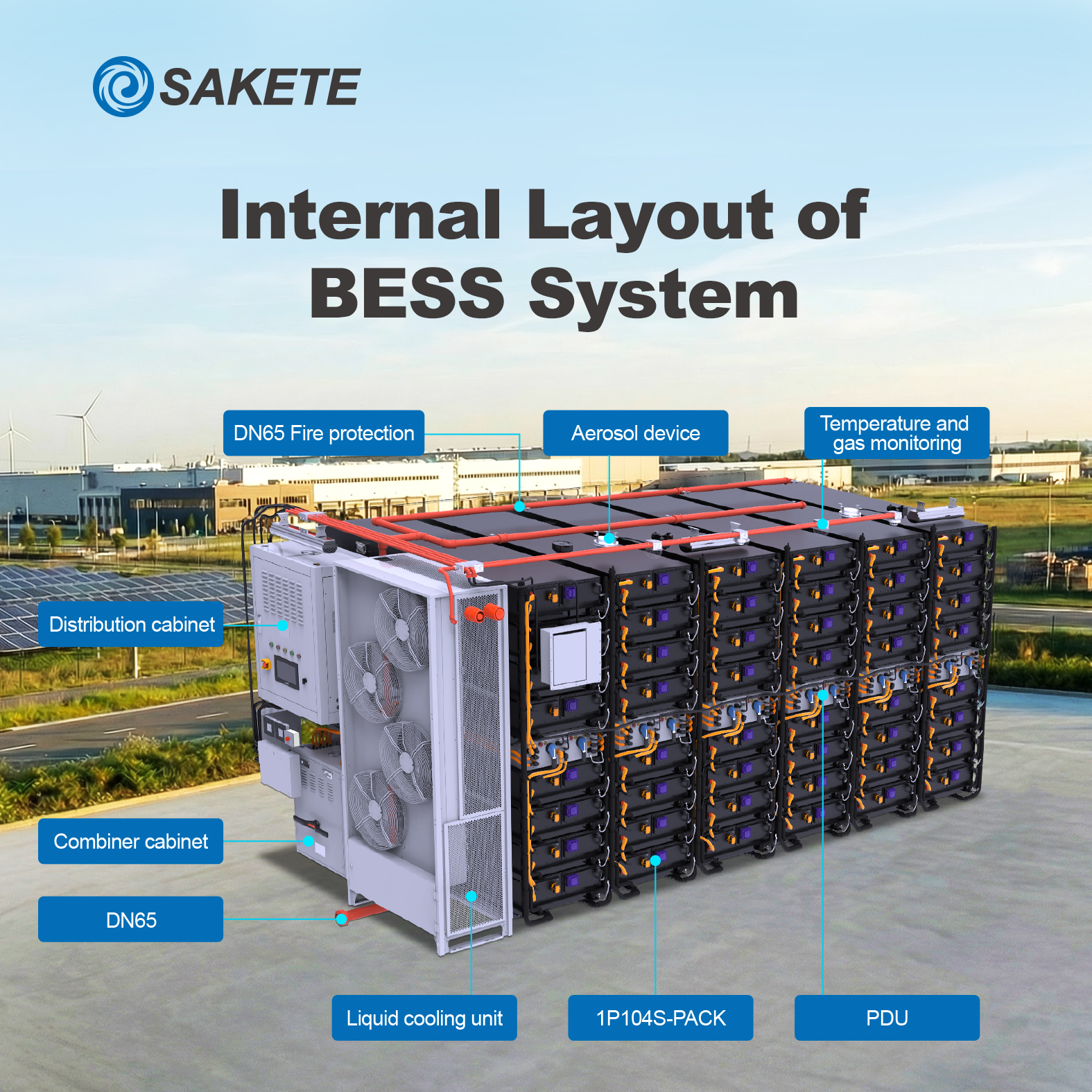

20ft 40ft Solar Energy Storage System 5MWh 10mwh Outdoor Energy Storage Container Battery System For Solar And Wind Projects

Product Description

Product Instruction

Sakete’s 5MWh-2.5MW containerized energy storage system delivers stable, controllable, and cost-effective power security for industrial and commercial projects.

It efficiently absorbs low-cost electricity during off-peak hours and releases high-value energy during peak demand, helping you significantly reduce operating costs while enhancing power stability.

Its millisecond-level response capability minimizes frequency fluctuations, reduces outage and curtailment risks, and ensures uninterrupted operation for critical loads.

Engineered for industrial and commercial applications, this product offers robust design, fast delivery, and flexible on-site expansion. It integrates seamlessly with existing electrical infrastructure, generating immediate value from day one.

If you are looking for a solution that boosts profitability, strengthens energy resilience, and supports long-term energy strategies, this system is the ideal choice.

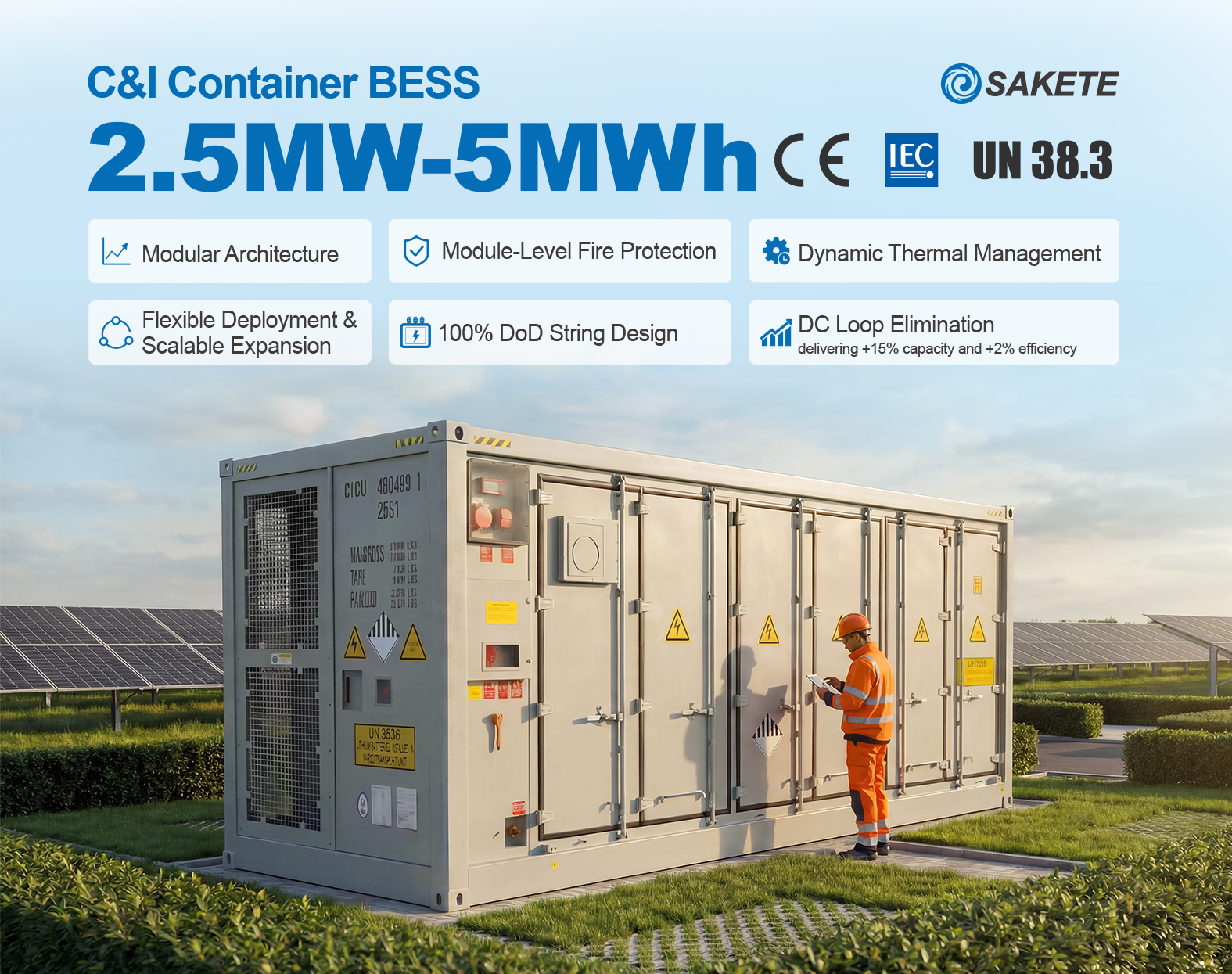

Product 1

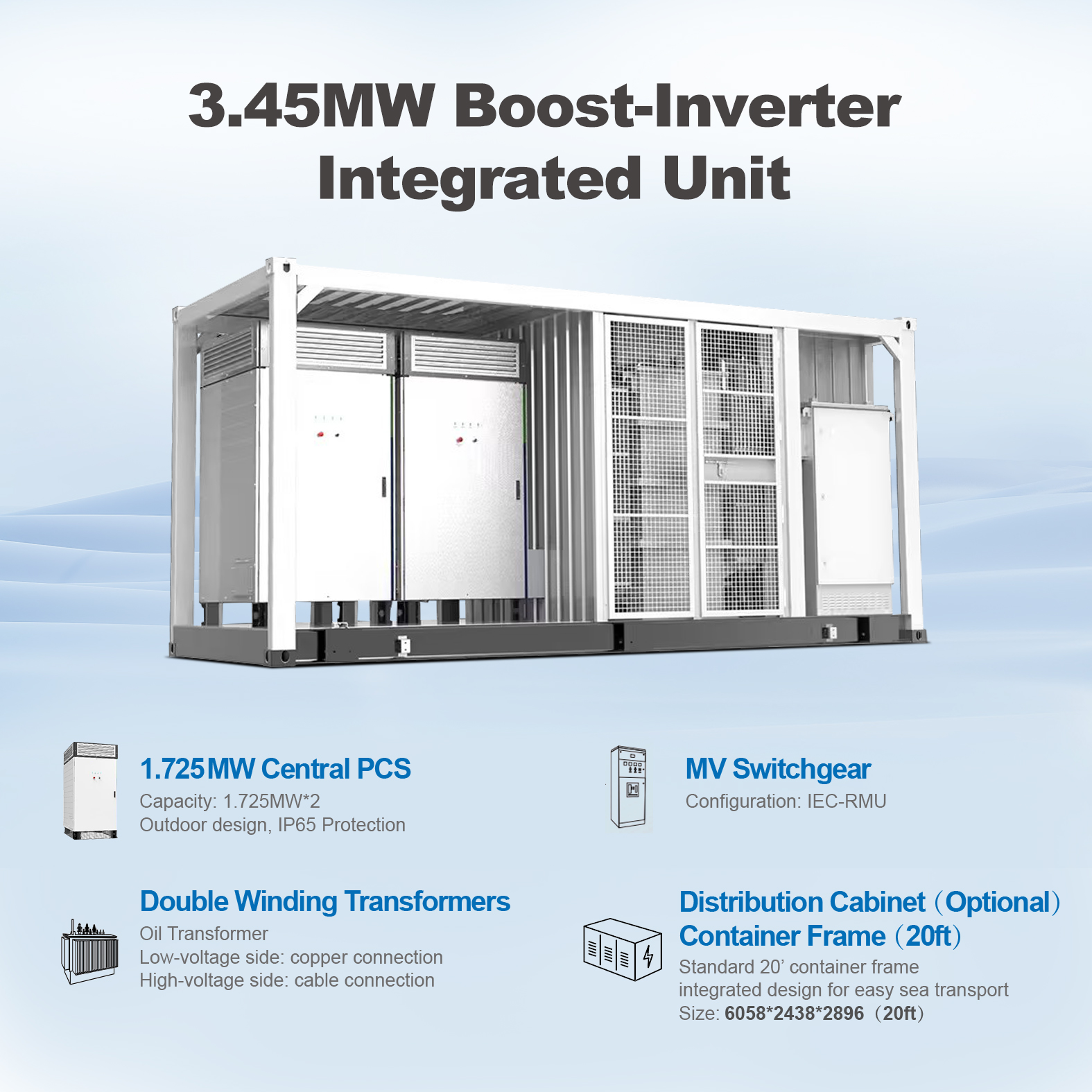

Product 2

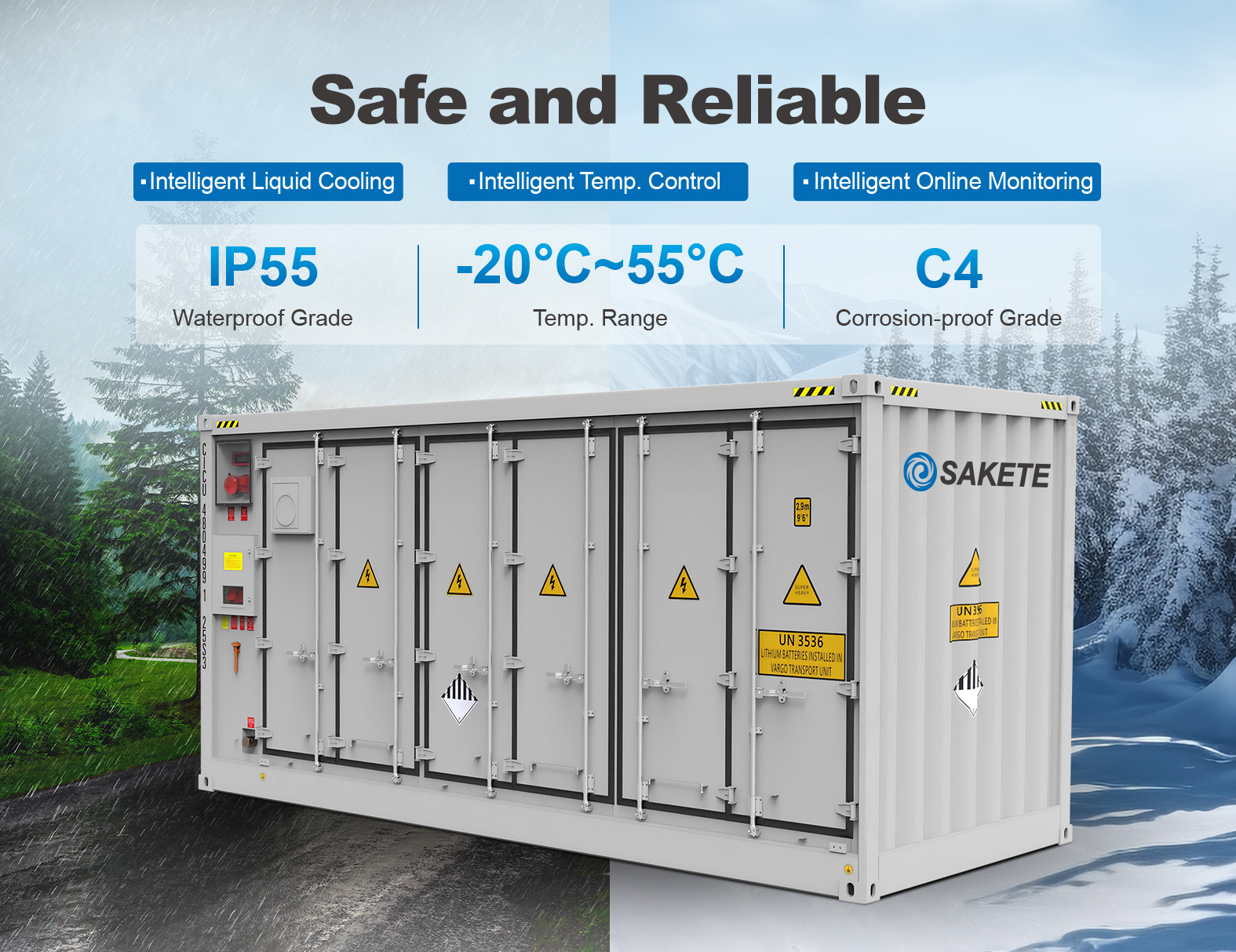

Product 3

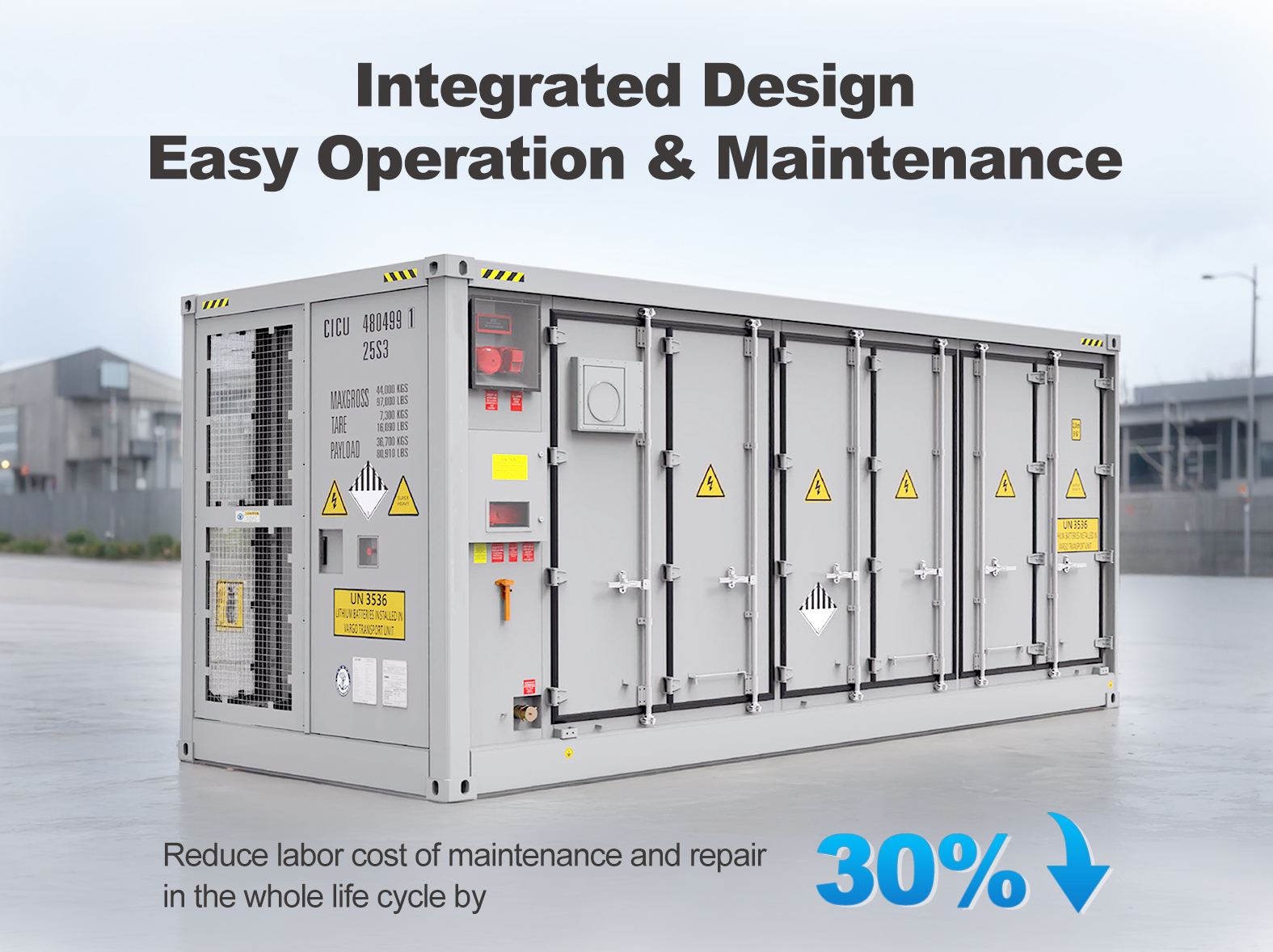

Product 4
Product 5
Technical Specifications
ParameterValue
Battery Data
ModelSKTESS5000-2500K

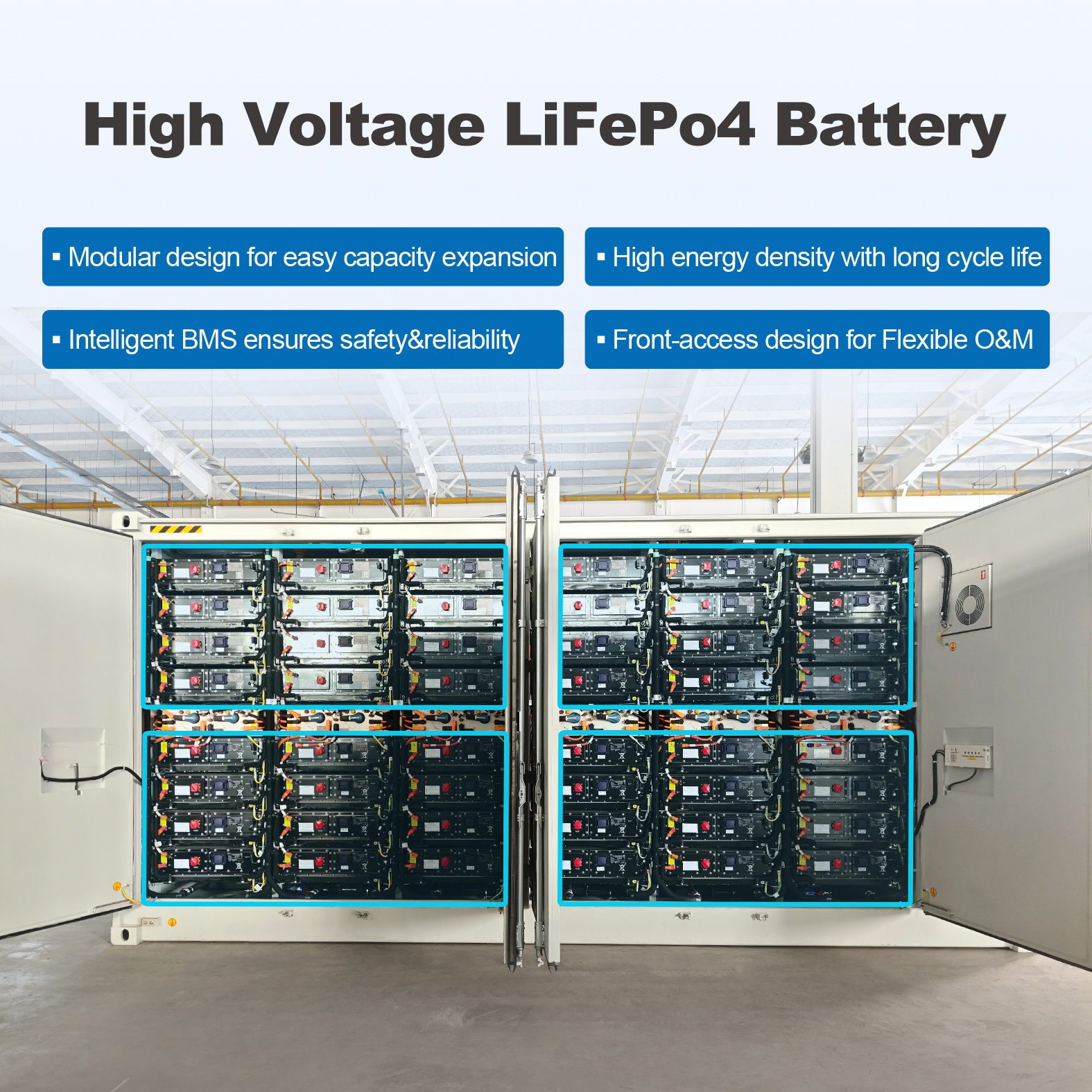

Battery TypeLiFePO4
Rated Capacity314Ah
Nominal Energy5015.961kWh
Rated Voltage1331.2V
Operating Voltage Range1164.8-1497.6V
Max. Charge/Discharge Rate0.5C@25°C
System Data
Dimensions (W × D x H)6058 × 2438 × 2896mm
Net Weight42.5T
Ingress ProtectionIP55
CoolingForced Liquid Cooling
Fire Extinguishing SystemAerosol Fire Protection System

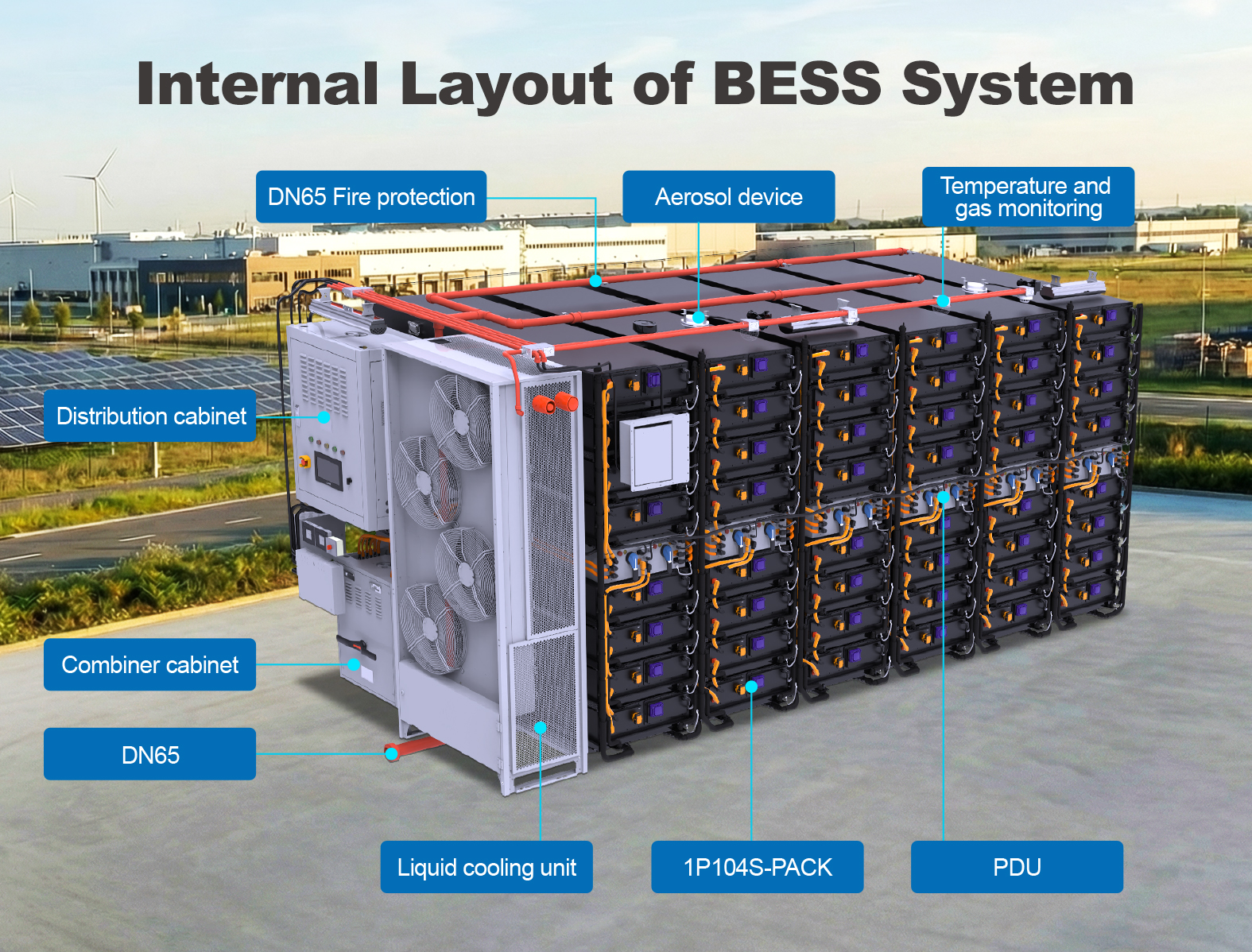

System View 1

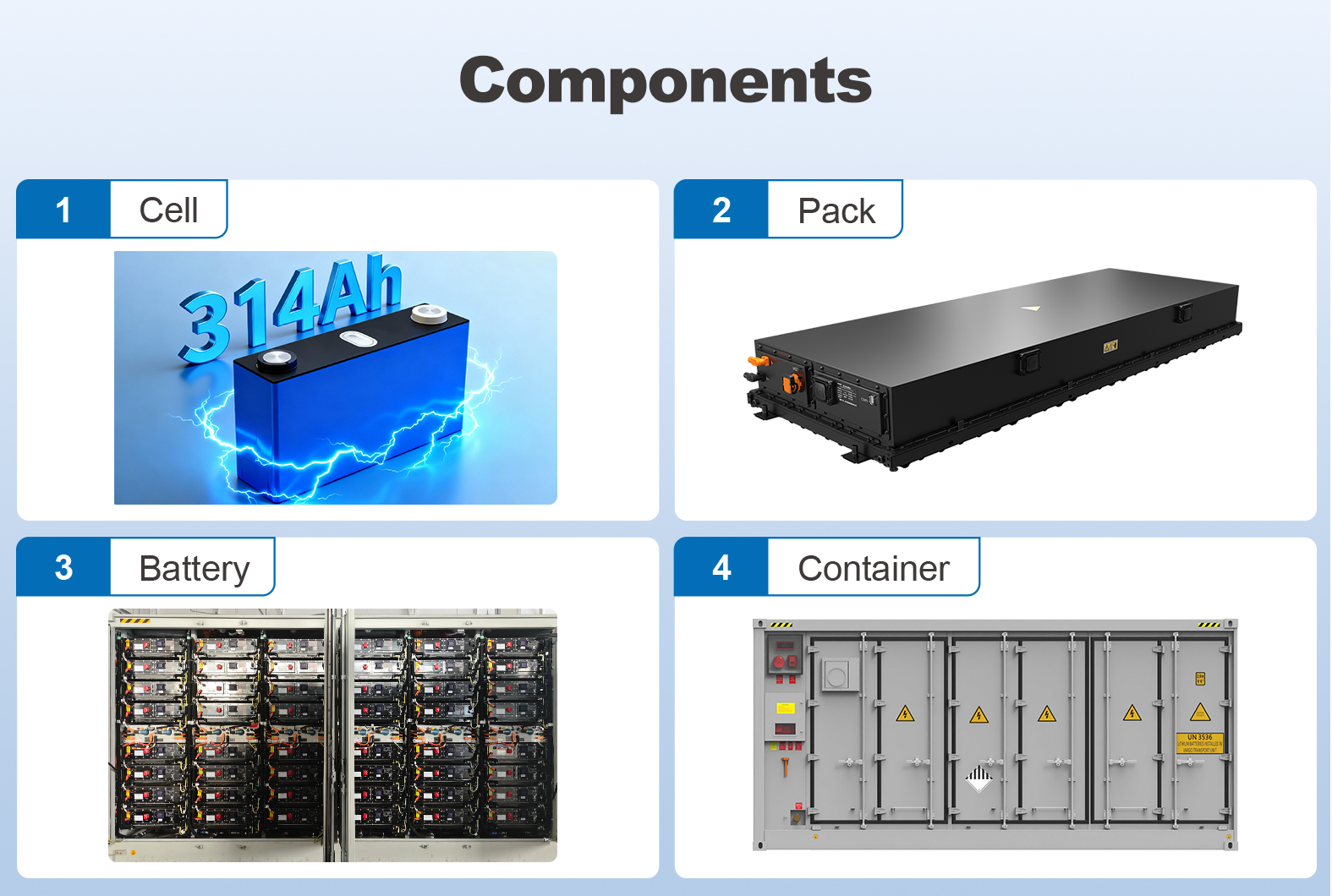

System View 2
Products Advantages
Advantage 1
Advantage 2

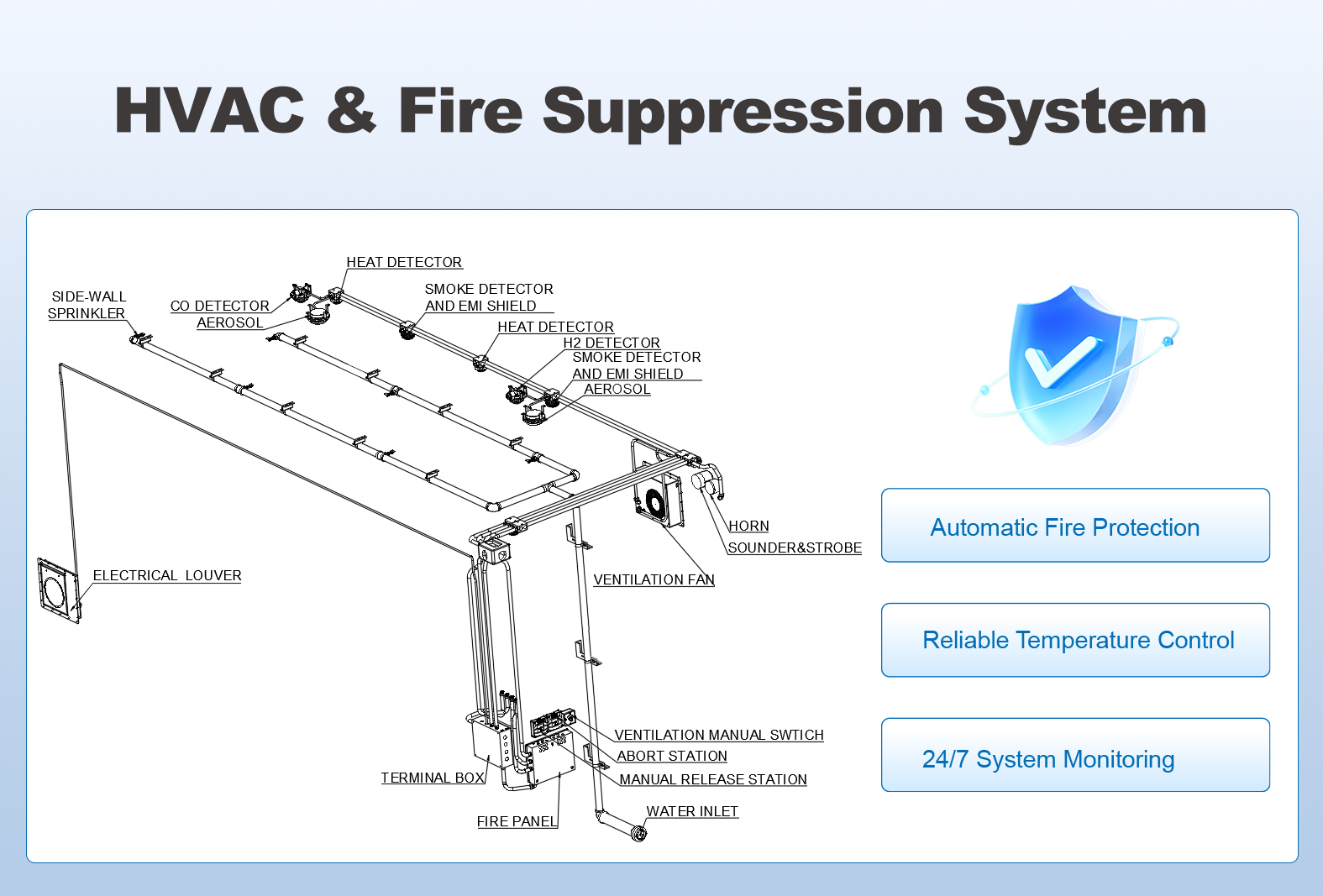

HVAC System: The intelligent HVAC system maintains ideal internal conditions for safe and efficient operation through stable temperature control, humidity regulation, and energy-efficient adjustment.

EMS Features: Factory pre-installed EMS enables plug-and-play installation. It provides centralized control of batteries, PCS, HVAC, and fire protection, while intelligent dispatch maximizes ROI through peak shaving and demand control.

Application

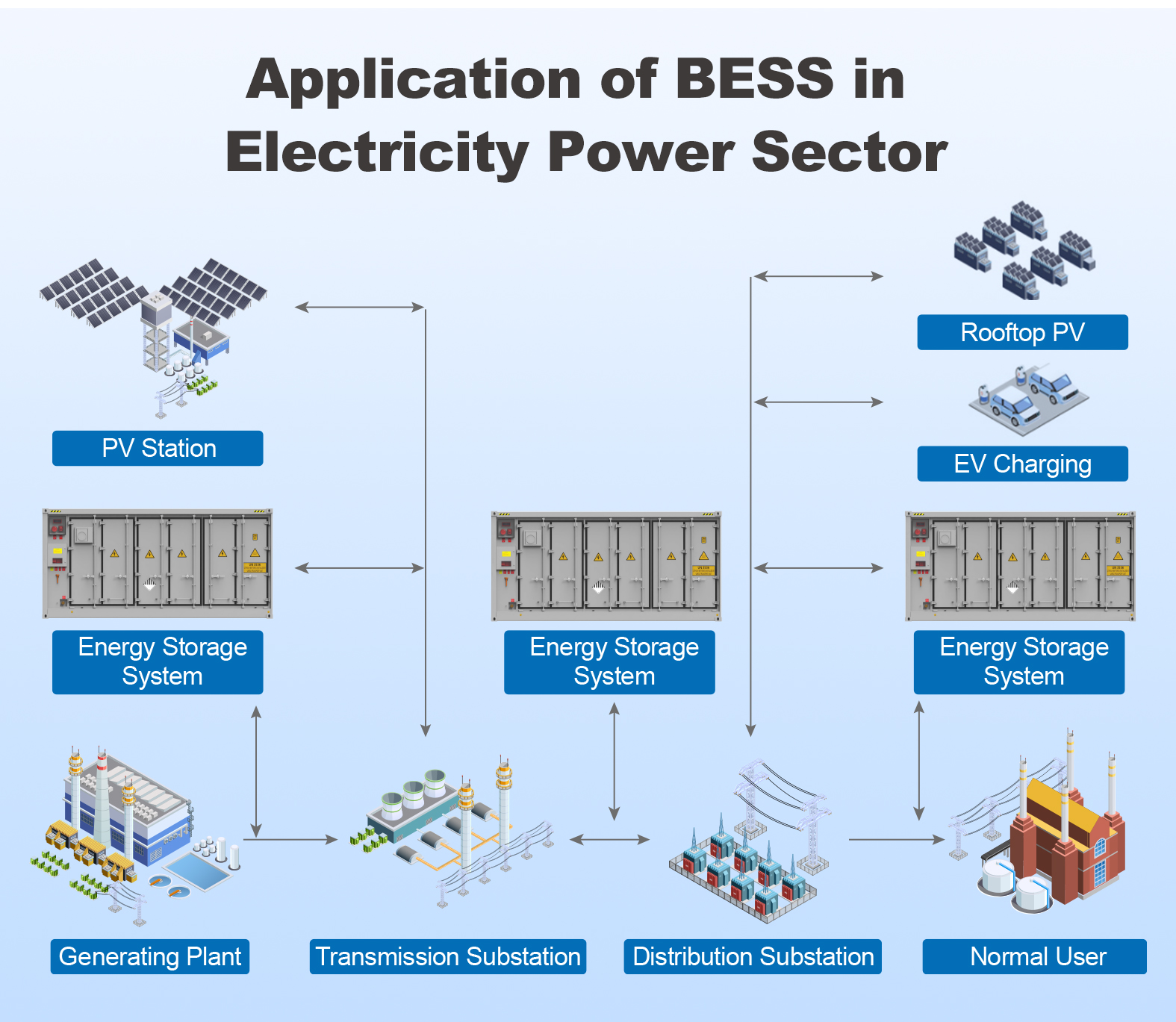

Application Scenarios: Covers Peak Shaving, Renewable Integration, Backup Power, and Grid Services. The system is fully customizable to meet specific customer requirements.

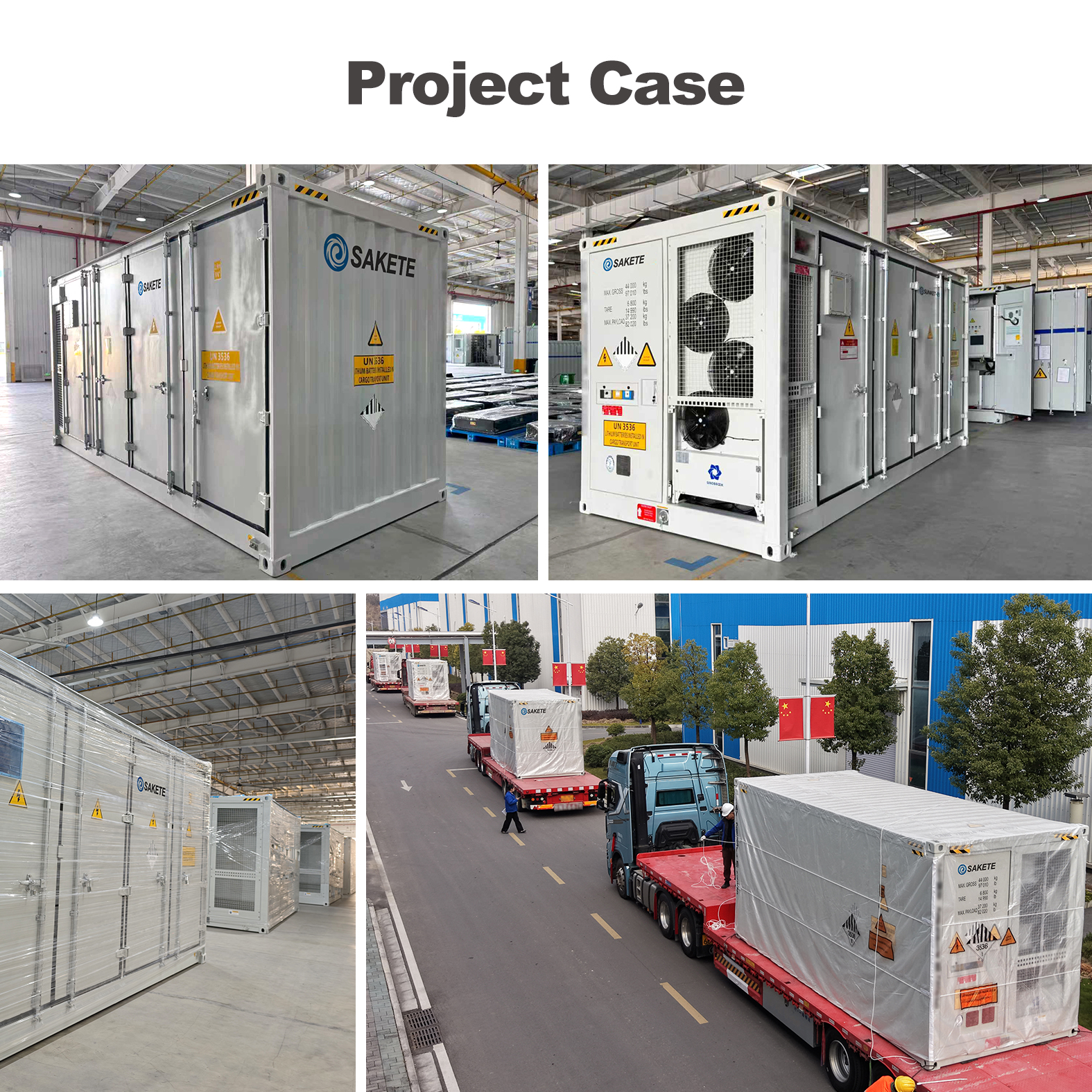

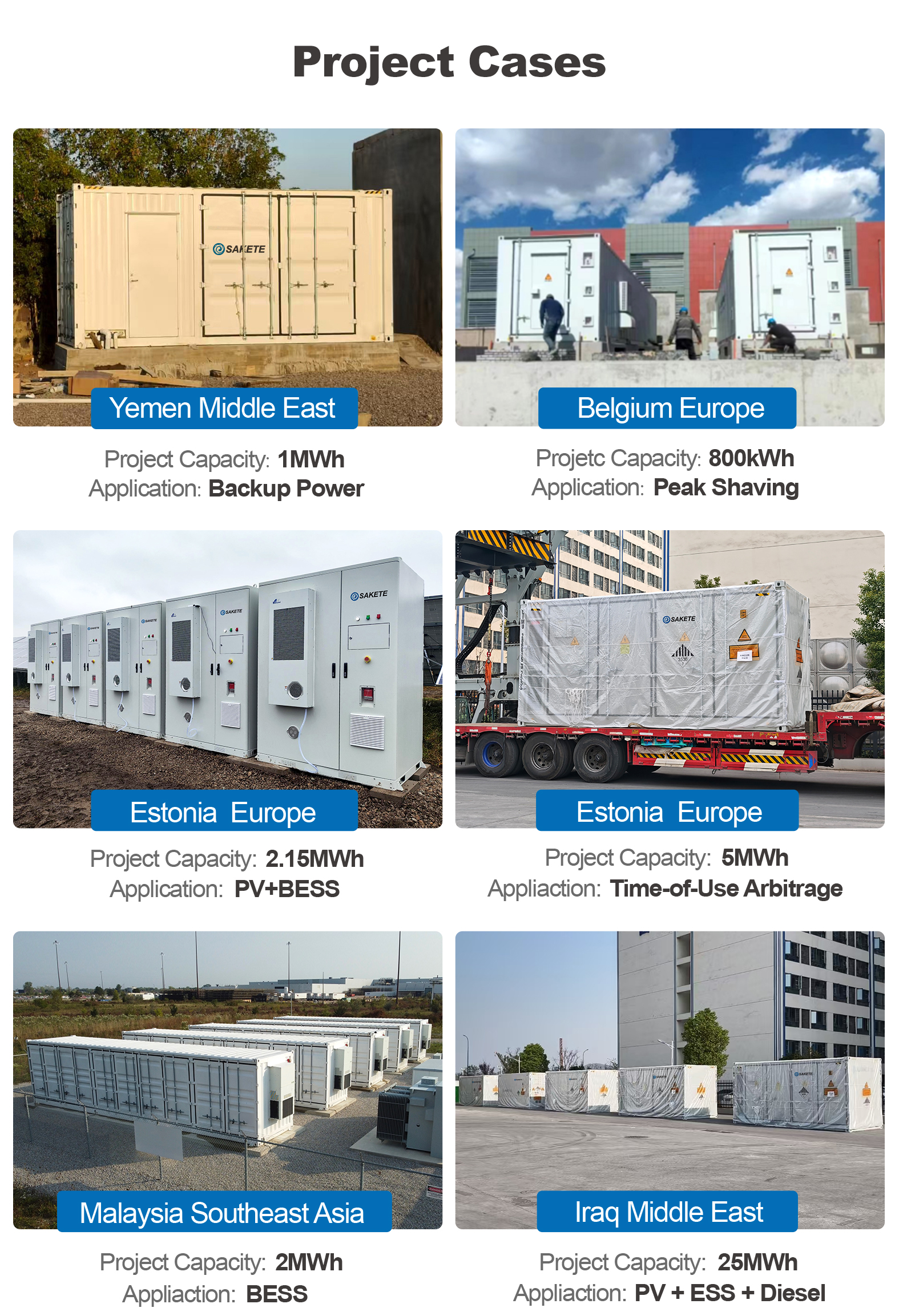

Project Cases
Case 1
Case 2

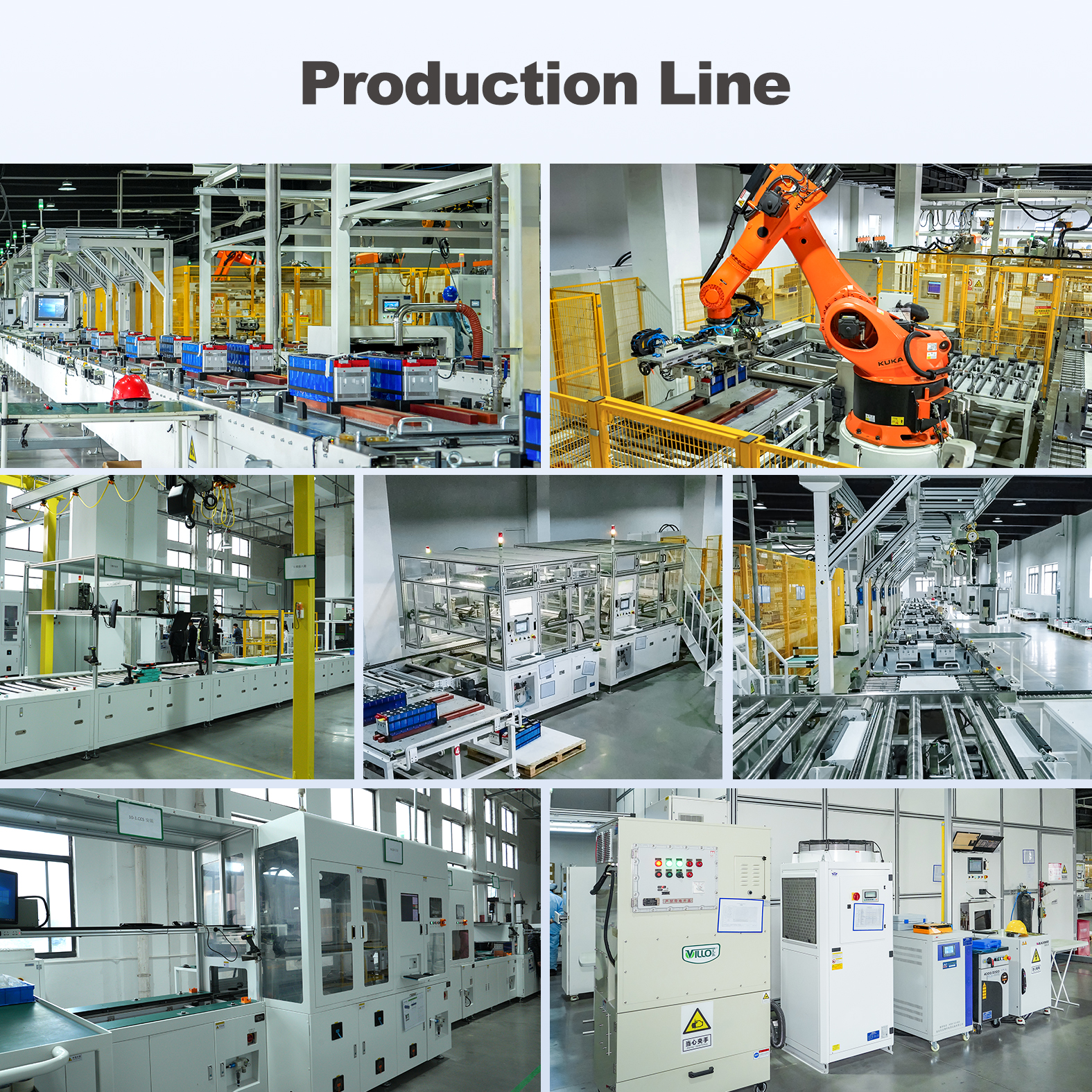

Company Profile
Company 1
Company 2

Our Strengths:

  • Integrating research, development, production, sales and service.
  • Providing integrated green energy solutions for multiple scenarios.
  • Comprehensive product portfolio featuring a diversified storage product matrix.
  • Robust ‘3S’ (BMS, EMS, PCS) product architecture.
  • Possesses OEM & ODM capabilities.
  • 24-hour professional technical support team.
Frequently Asked Questions
Q: What is the main benefit of this containerized energy storage system? A: The system provides stable, controllable, and cost-effective power, enabling businesses to reduce operating costs by shifting energy usage and providing critical backup during grid instability.
Q: How does the system handle high demand periods? A: It performs peak shaving and demand management, automatically releasing stored energy when demand is high, which helps significantly reduce peak electricity charges.
Q: What safety features are included in the container? A: The system includes a forced liquid cooling system, an intelligent HVAC system for climate control, and an integrated aerosol fire protection system to ensure optimal safety and reliability.
Q: Can this system be integrated with solar or wind power? A: Yes, it supports renewable integration, storing excess energy generated from solar or wind sources for use during high-demand periods or night time.
Q: Is remote monitoring available for this system? A: Yes, the EMS (Energy Management System) supports cloud monitoring, remote diagnostics, and online updates, reducing O&M costs and allowing for multi-site management.
Q: Are the systems customizable? A: Yes, system capacity, power, control strategies, and interface options can be tailored to meet specific industrial and commercial requirements.
