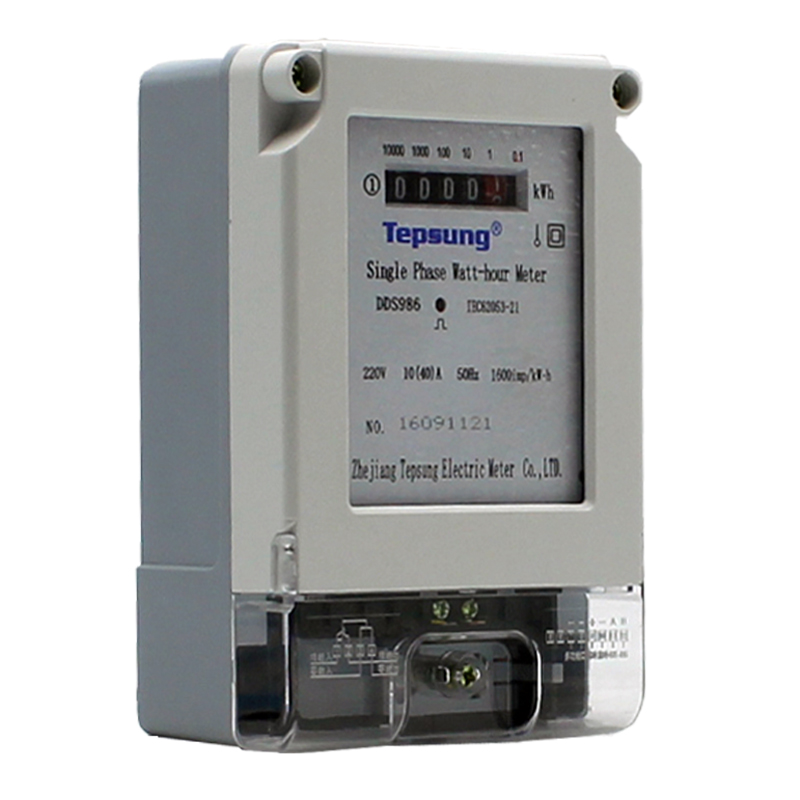

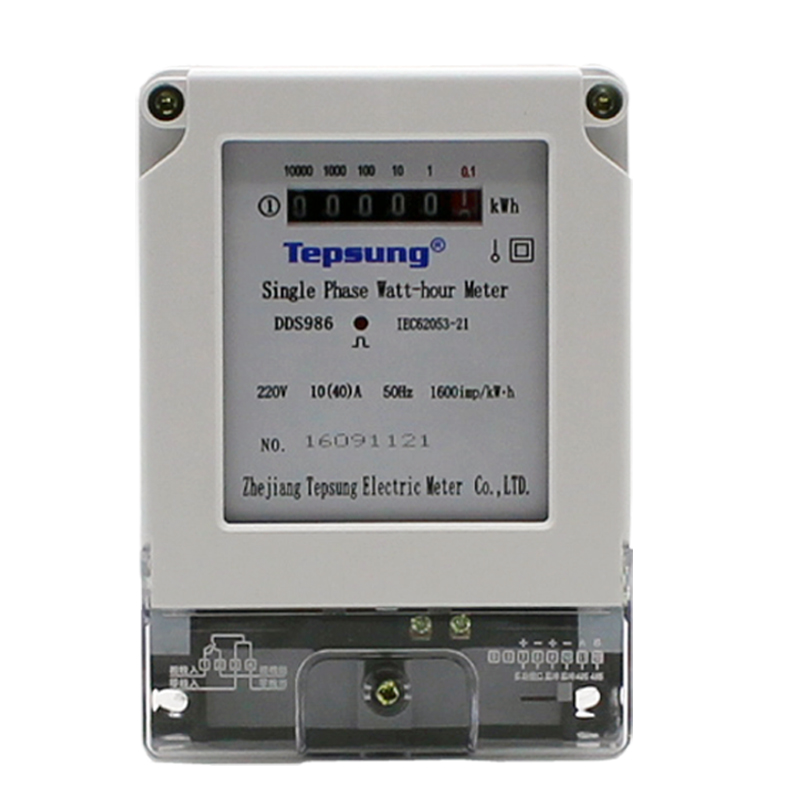

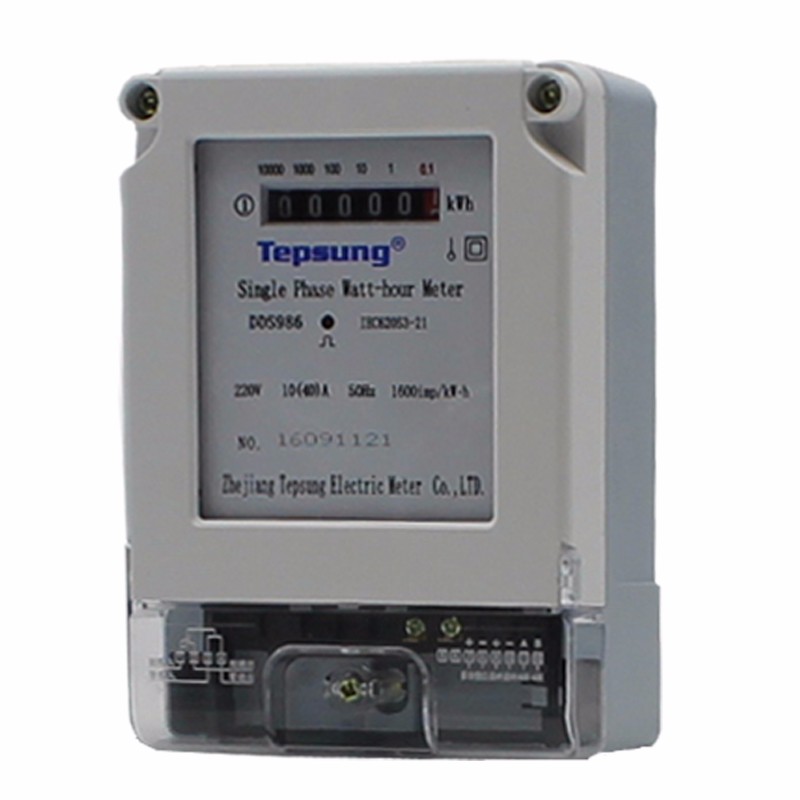

The DDS986 series single phase kwh meter is the latest meter for the circuit with voltage up to 230V and the frequency 50Hz or 60 Hz. Developed from the technology of solid Integrated circuit, which performs with extremely low power loss, DDS986 series kwh meter comply with the IEC62053-21 for the Class 1.0 static kwh meter.

The accuracy is not influenced by the frequency, temperature, voltage, harmonic and the position. It is of much more reliability than other type single phase kwh meter.

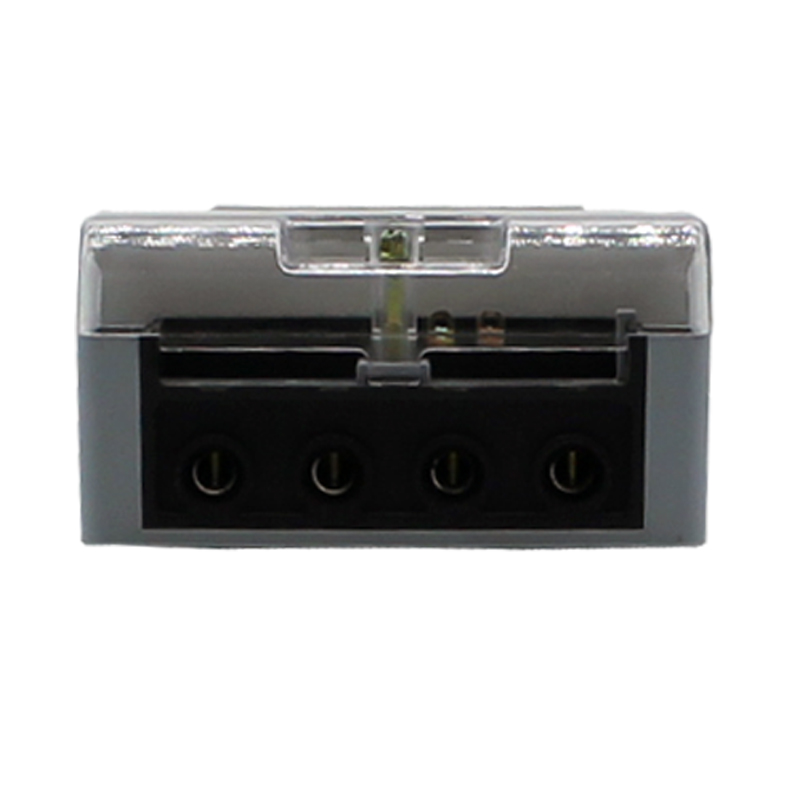

• Front board three fixed installation; the base, cover and terminal are made by ABS and PC. The terminal block is made of bakelite which is non-hygroscopic, fire-retardant, and high temperature molded.
• 5+1 digits display (99999.1kWh) or 6+1 digits (999999.9kwh), LCD display.

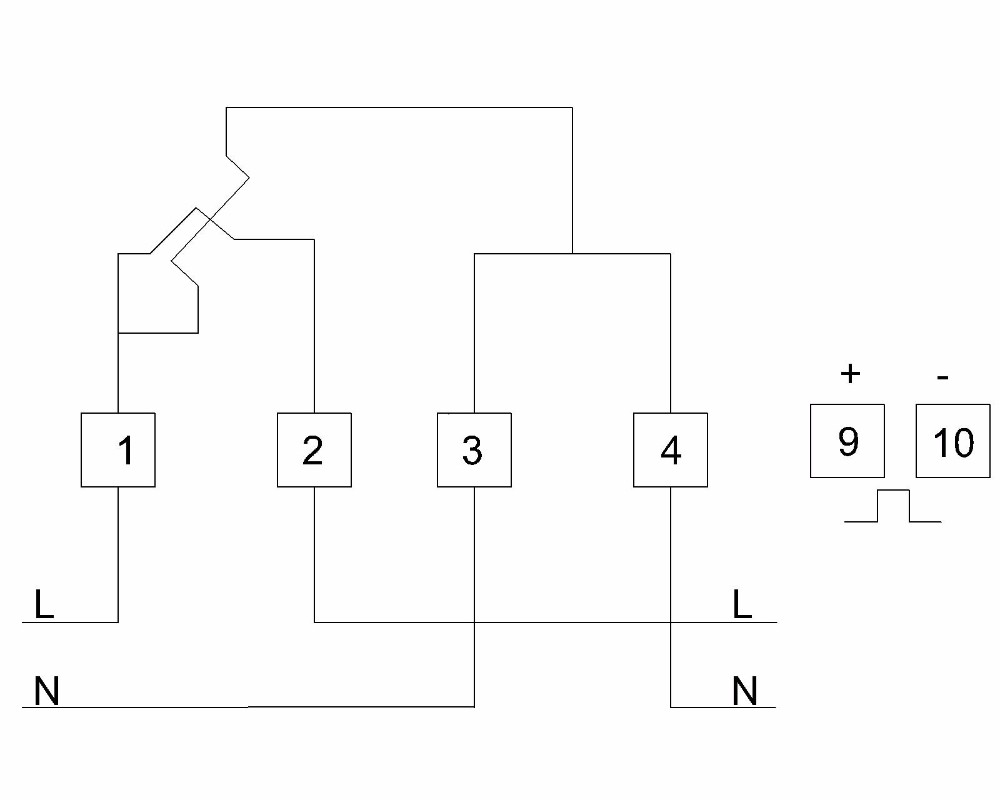

• Single direction measures single phase two wire active power consumption, regardless of the direction of the flow of load current.
• Complies with standards IEC62053-21 and IEC62052-11.
• Adopts highly reliable and long-life electric components; overload capacity ensures no need to calibrate for long-term operation.
• Option for extended terminal cover or short terminal cover.
