Clean Separation Technology Compact Design Complete Solar Panel Recycling System Monofacial Module Dismantling Project

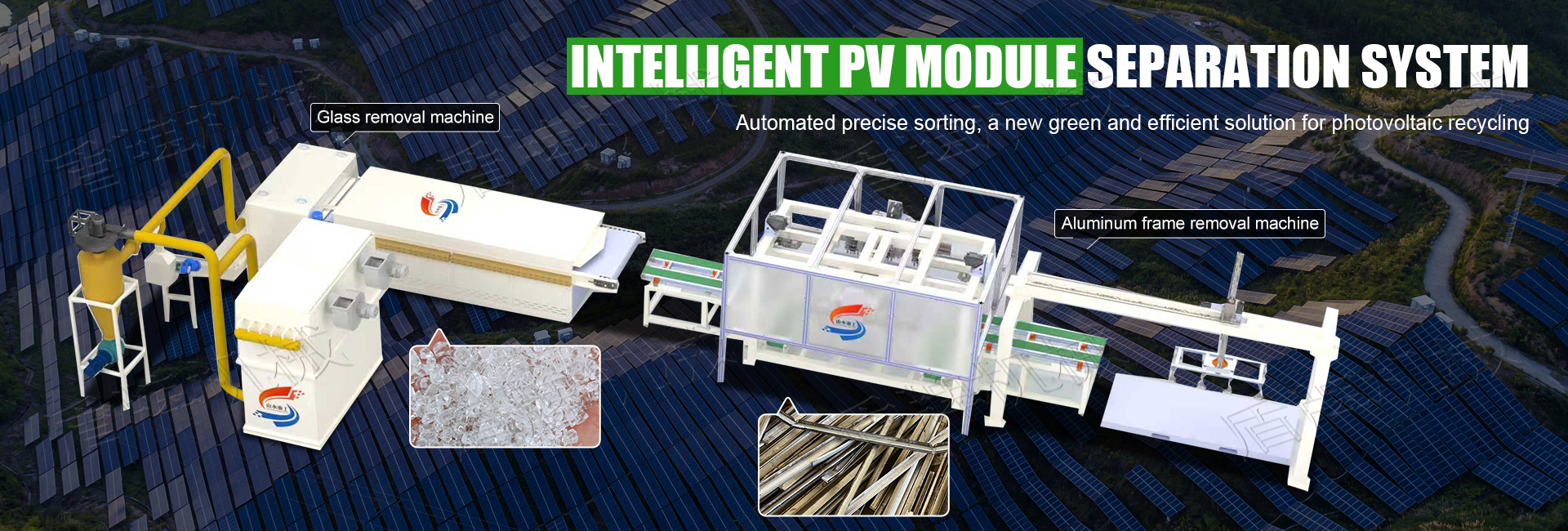

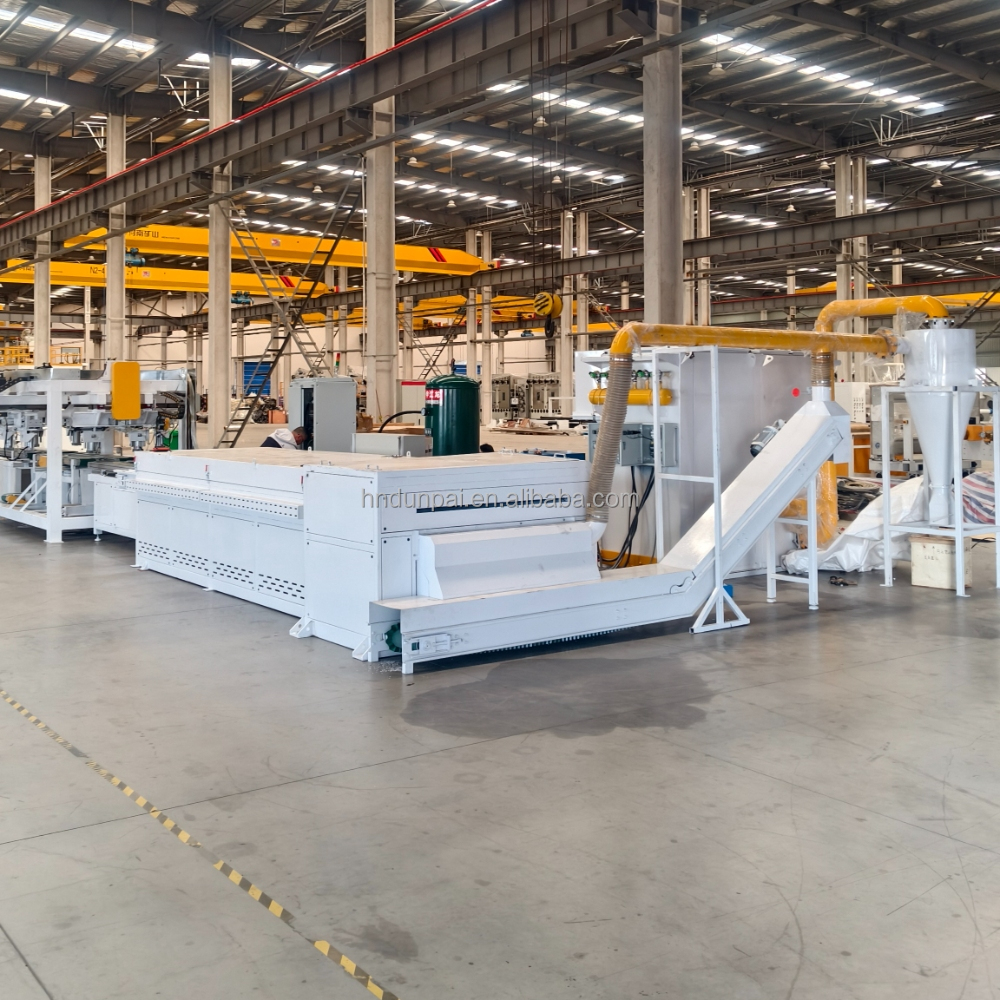

⚙️ Production Line Layout

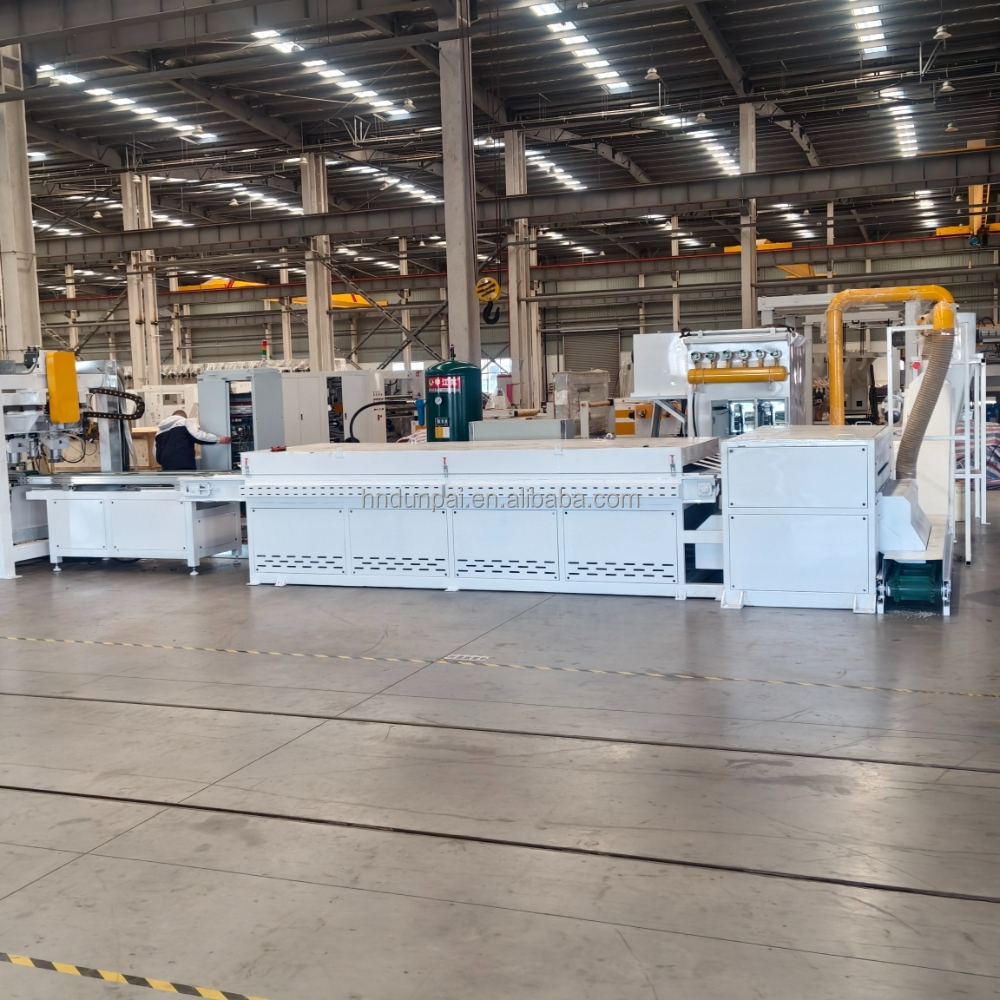

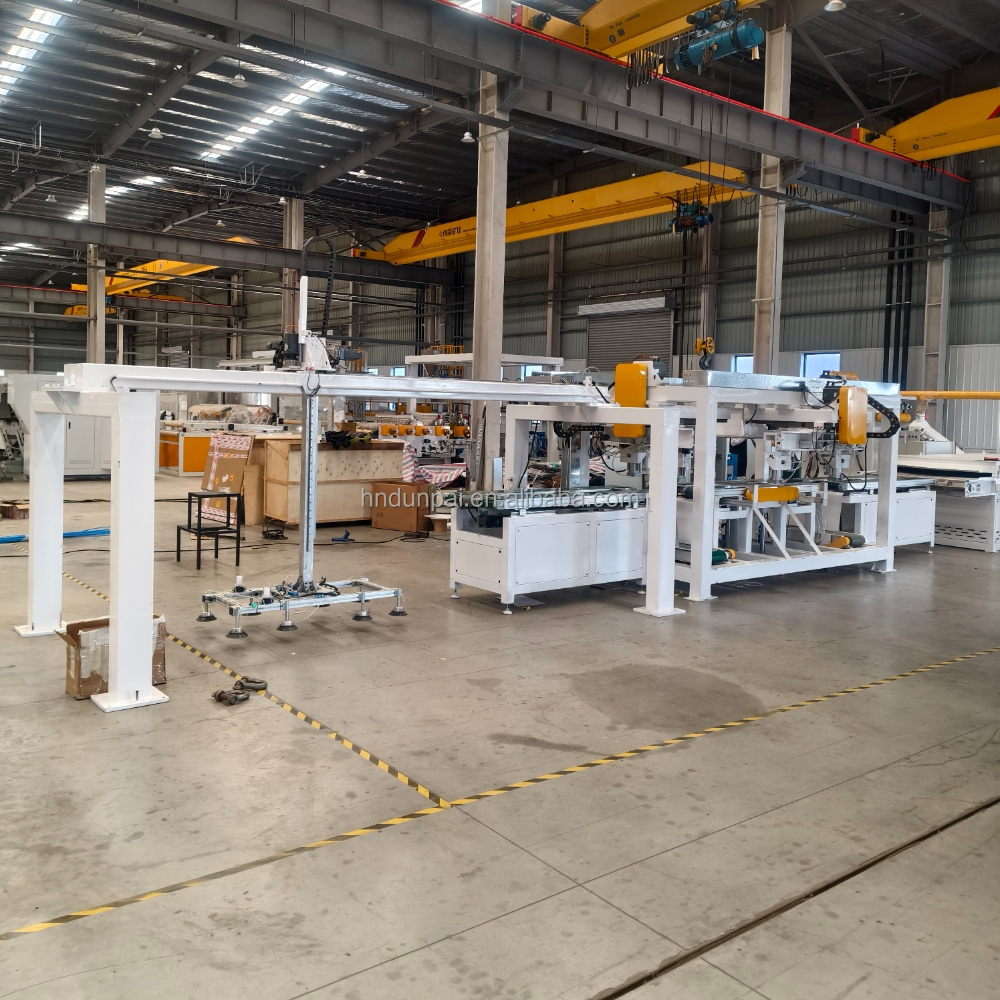

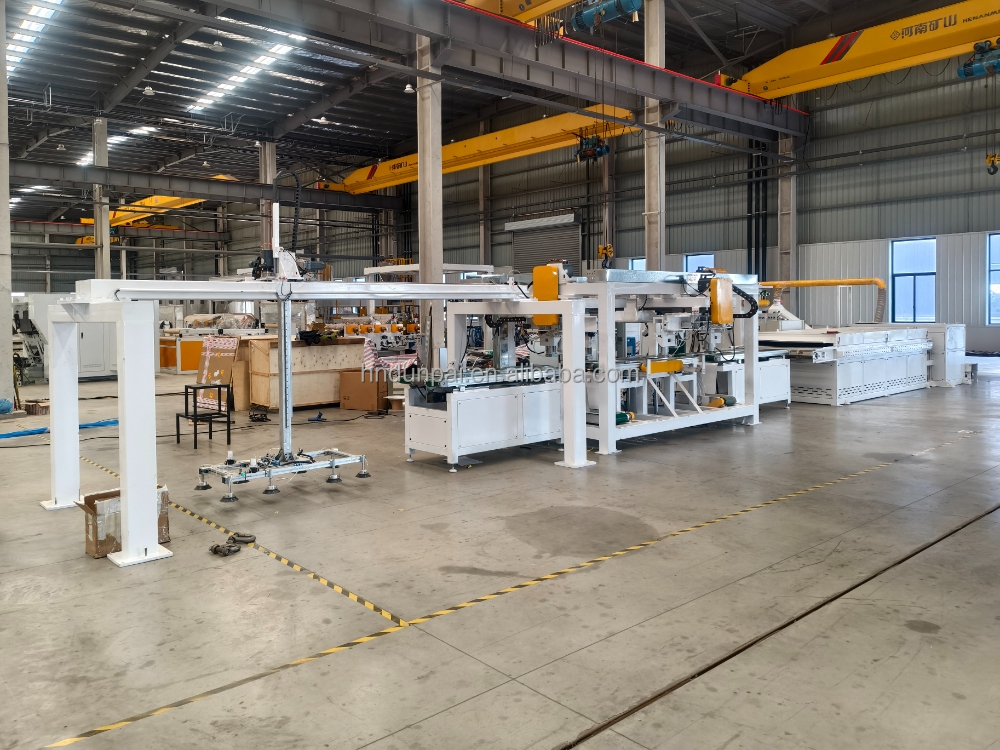

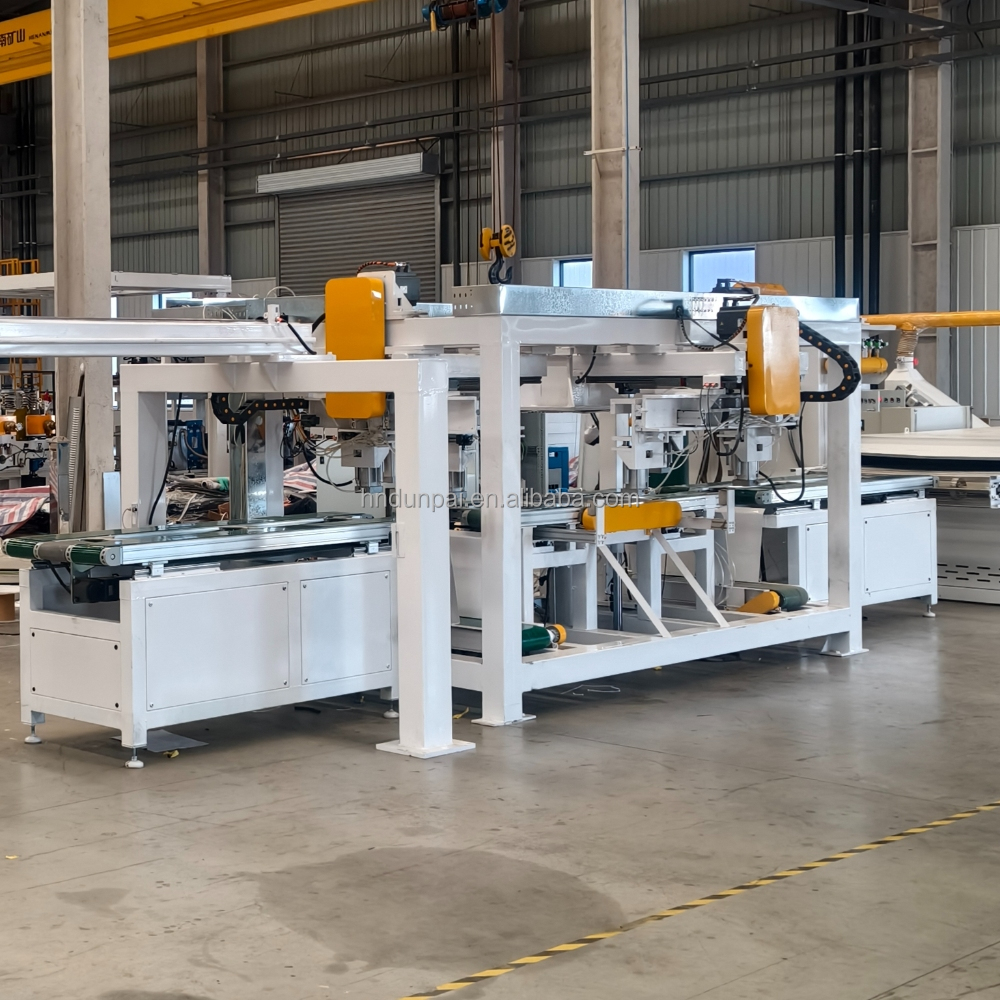

The intelligent PV module separation system integrates automatic feeding and precise disassembly functions, efficiently processing various types of PV modules. The equipment achieves continuous operation through an automatic feeding device, requiring no manual intervention throughout the process; relying on high-precision disassembly technology, it can accurately separate the glass and aluminum frame of the solar panel.

📋 Products Description

Fully Automated Operation: Automatic feeding, no manual intervention, continuous efficient.

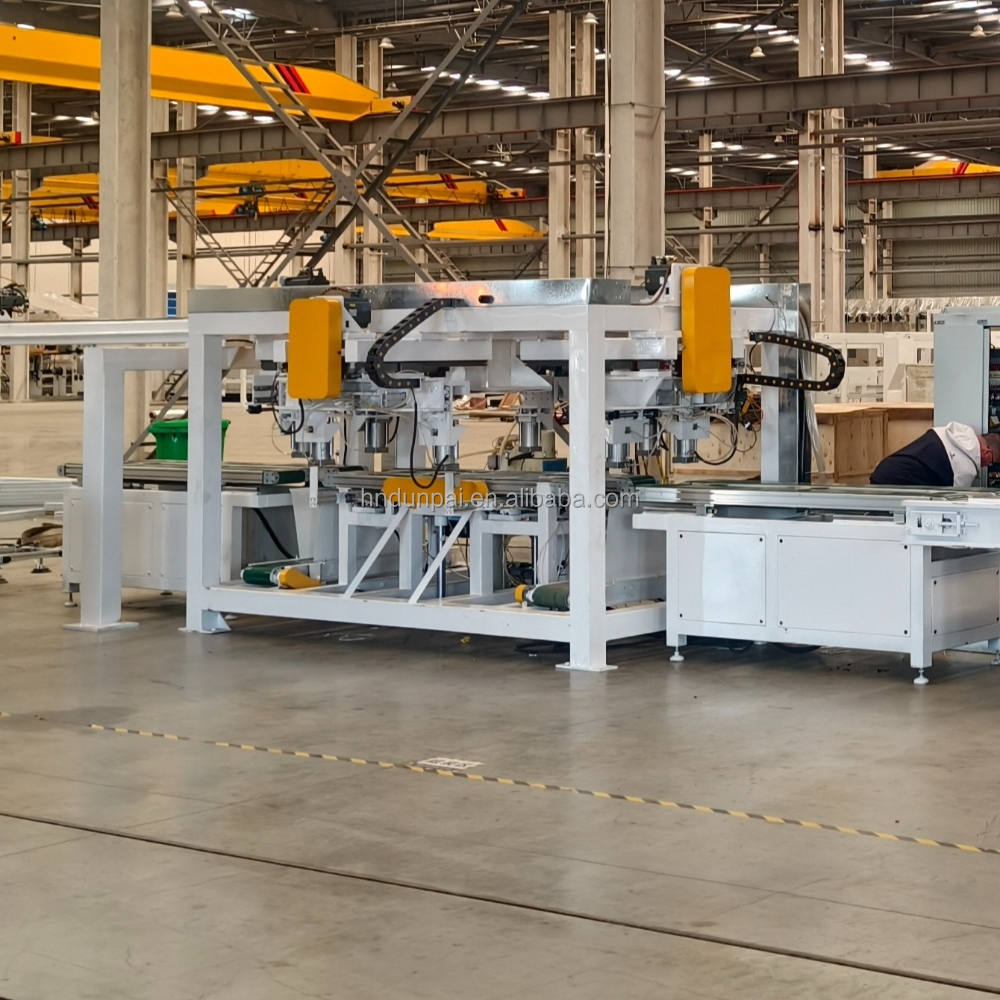

High-Precision Disassembly: Precisely separating the glass and aluminum frame on the PV.
Strong Compatibility: Adapts to various PV modules, with wide applications.

📊 Specification

Waste Solar Panel Recycling Equipment
Product Name	Intelligent PV Module Separation System
Power	68.3 KW
Voltage	380V 50Hz
Covered Area	1000 ㎡
Total Weight	5000 kg
Production Capacity	1500 Kg/hour
Control Method	Fully automatic

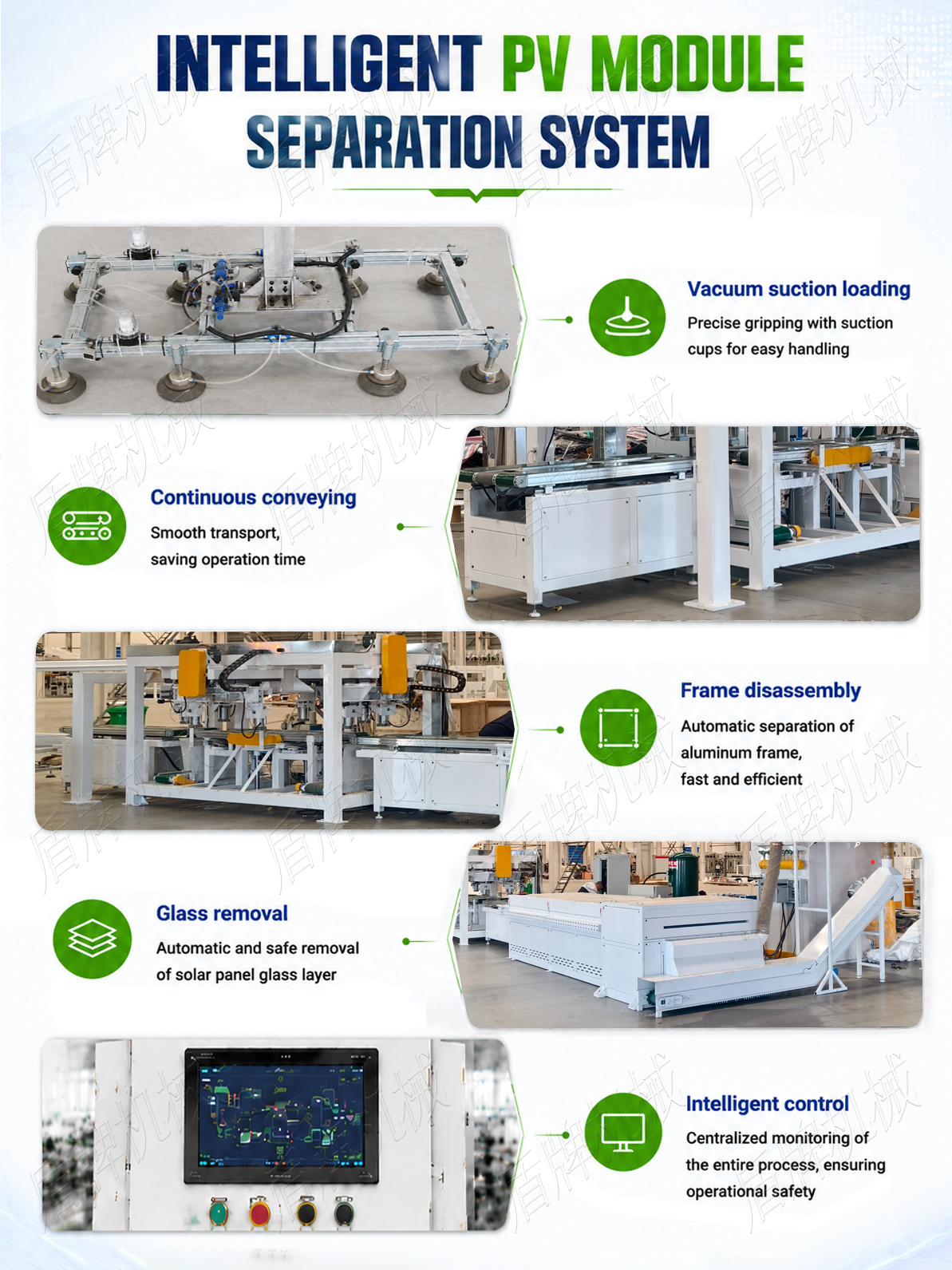

💎 Product Advantages

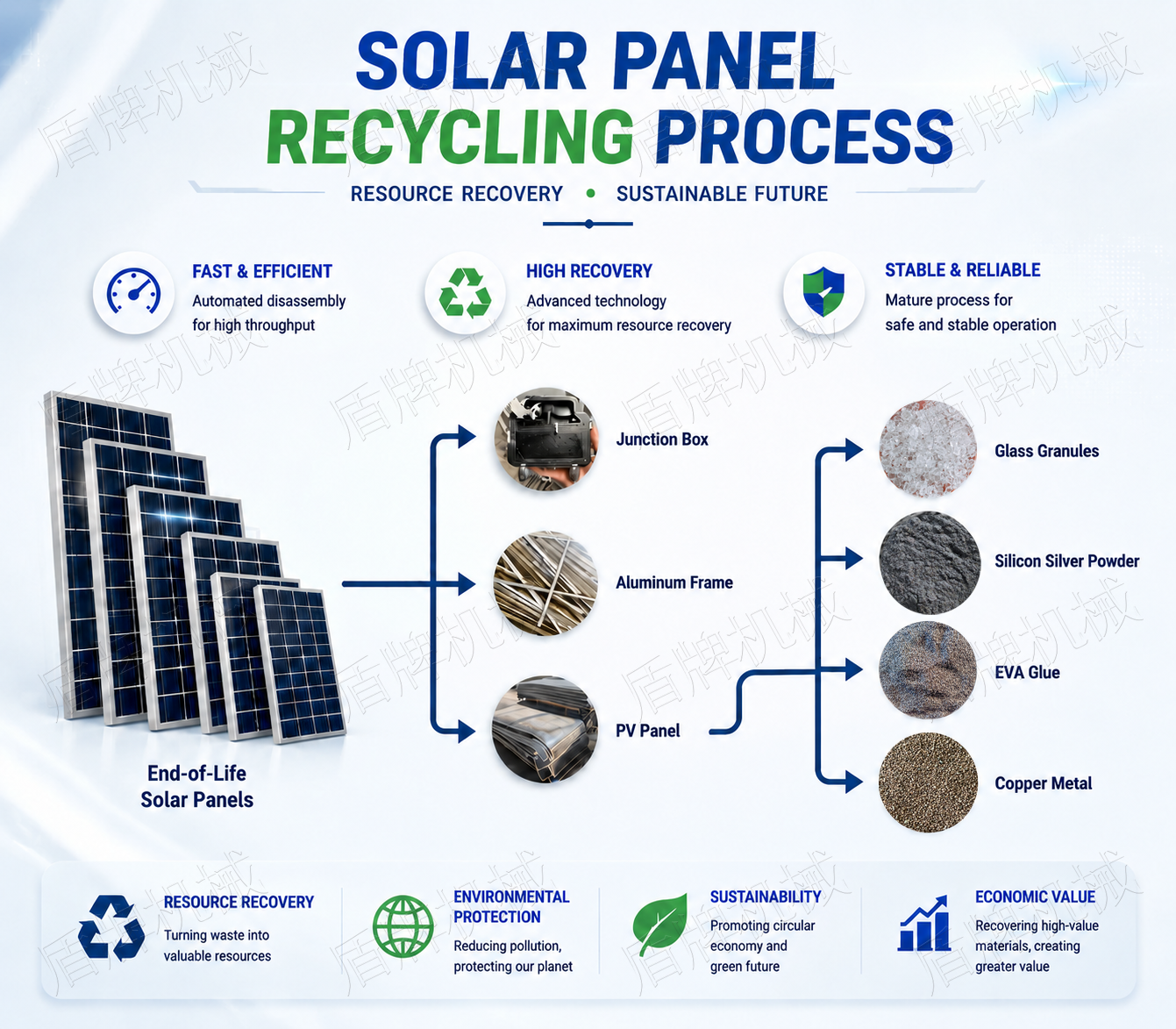

🔄 Recycling Process

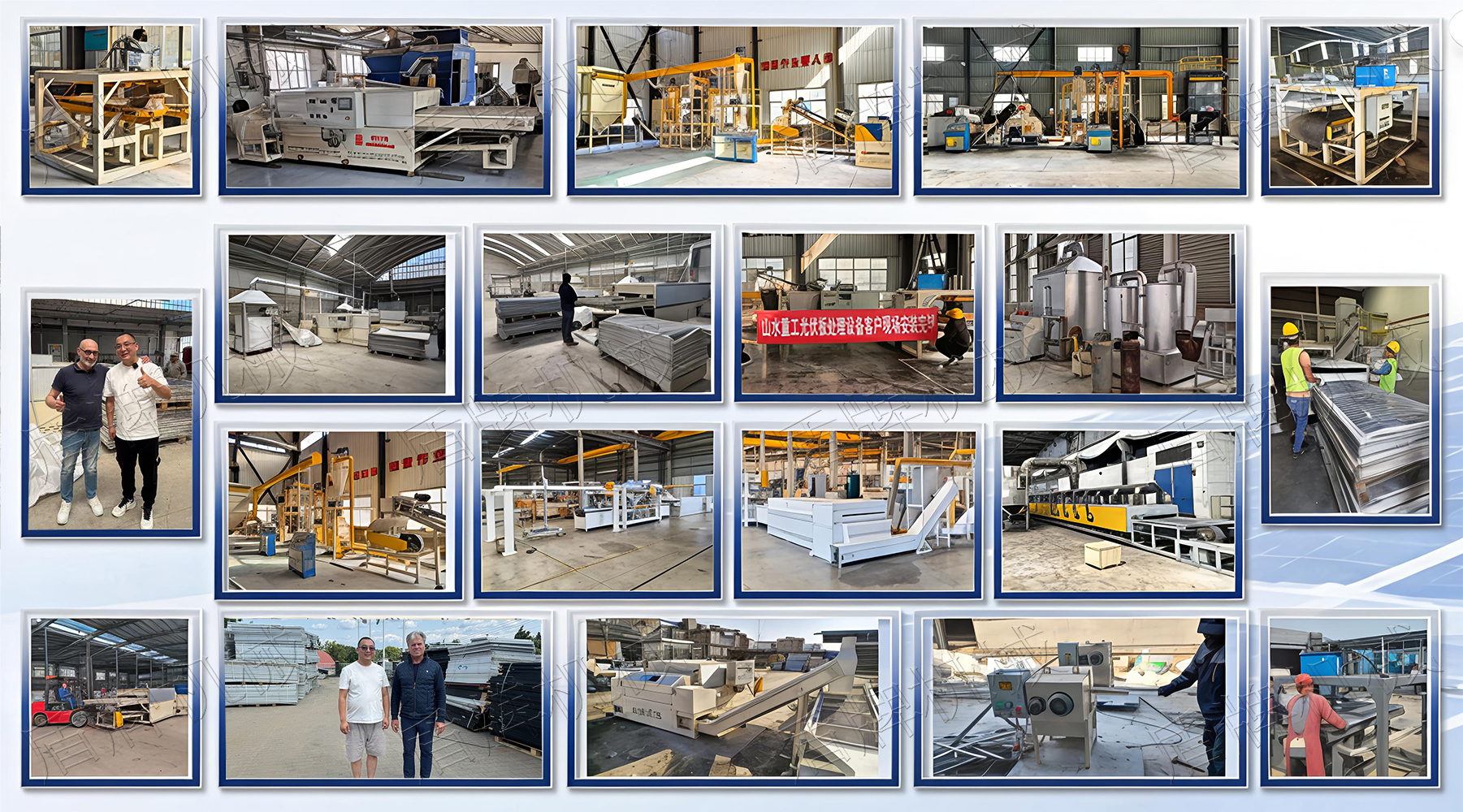

🚢 Shipping & Cases

❓ FAQ

Are the recycling processes for single-glass and double-glass solar panels the same?

Single-glass and double-glass solar panels require completely different recycling processes.

What materials can be obtained from discarded single glass solar panels?

(1) Aluminum frames, glass particles, silver silicon powder, EVA adhesive, and copper can be recycled.
(2) Process: First, a frame removal machine is used for aluminum frames; then, a glass removal machine for surface glass; finally, a recycling production line recovers silver silicon powder, EVA, and copper.

What materials can be obtained from discarded double-glass solar panels?

(1) Aluminum frames, glass, silicon wafers, and copper wires can be recycled.
(2) Process: First, a frame removal machine removes aluminum frames; then, a tunnel furnace separates glass, silicon wafers, and copper wires; finally, a dedicated recycling line separates them completely.

Will the equipment generate pollution such as waste water and dust?

True zero pollution process: 100% physical separation, no chemical additives added. The pulse dust removal system collects dust in real-time (emission concentration <10mg/m³, EU CE standard).

What products are included in your recycling machinery range?

(1) Waste solar panel recycling equipment production line
(2) Waste lithium battery recycling equipment production line
(3) CLC non-autoclaved foamed concrete brick making machine production line
(4) Hollow brick machine and clay brick machine

Is the equipment operation fully automated?

Yes, the system features a fully automatic control method, ensuring continuous high efficiency with minimal manual intervention.
