Sunpal Residential Energy Systems 6-30KW Complete Roof Mounting Hybrid MPPT Monocrystalline Silicon Lithium Ion Power System Kit

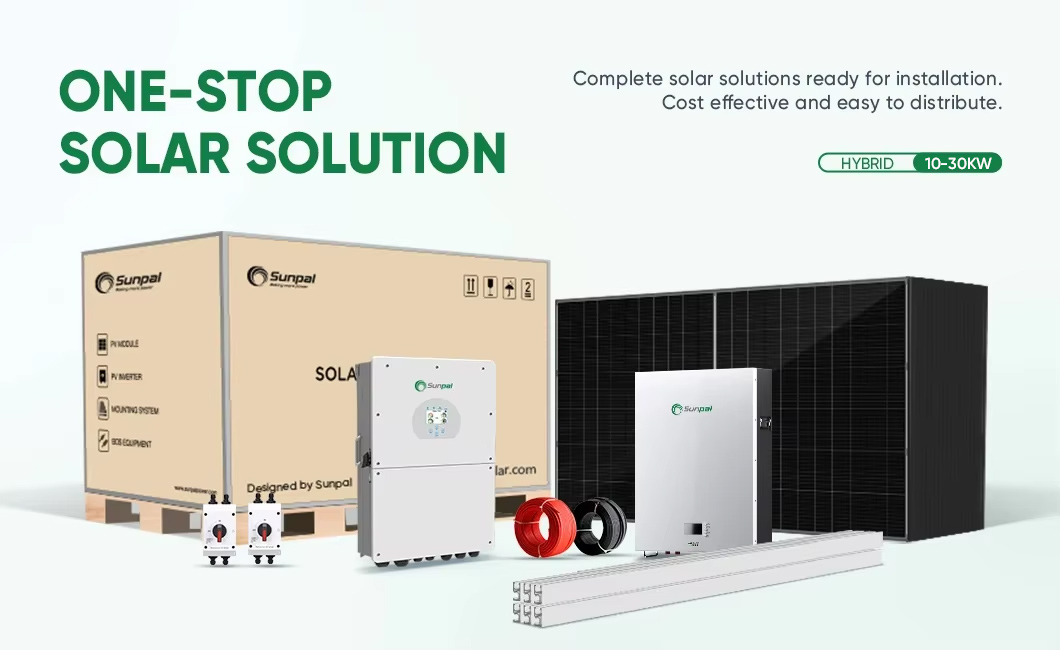

Product Description

Product Description
Product Description
Warranty
Warranty Information
How it works

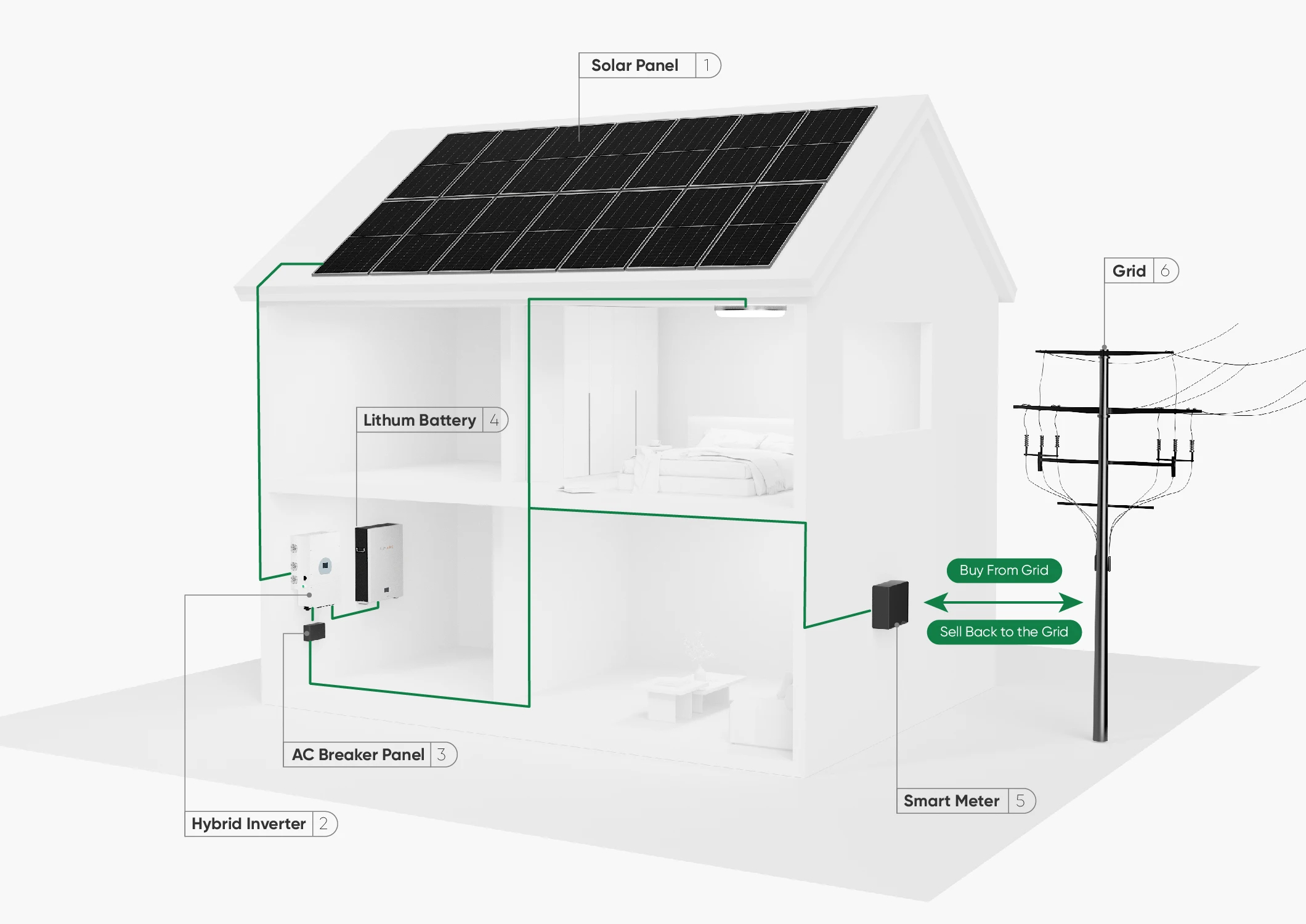

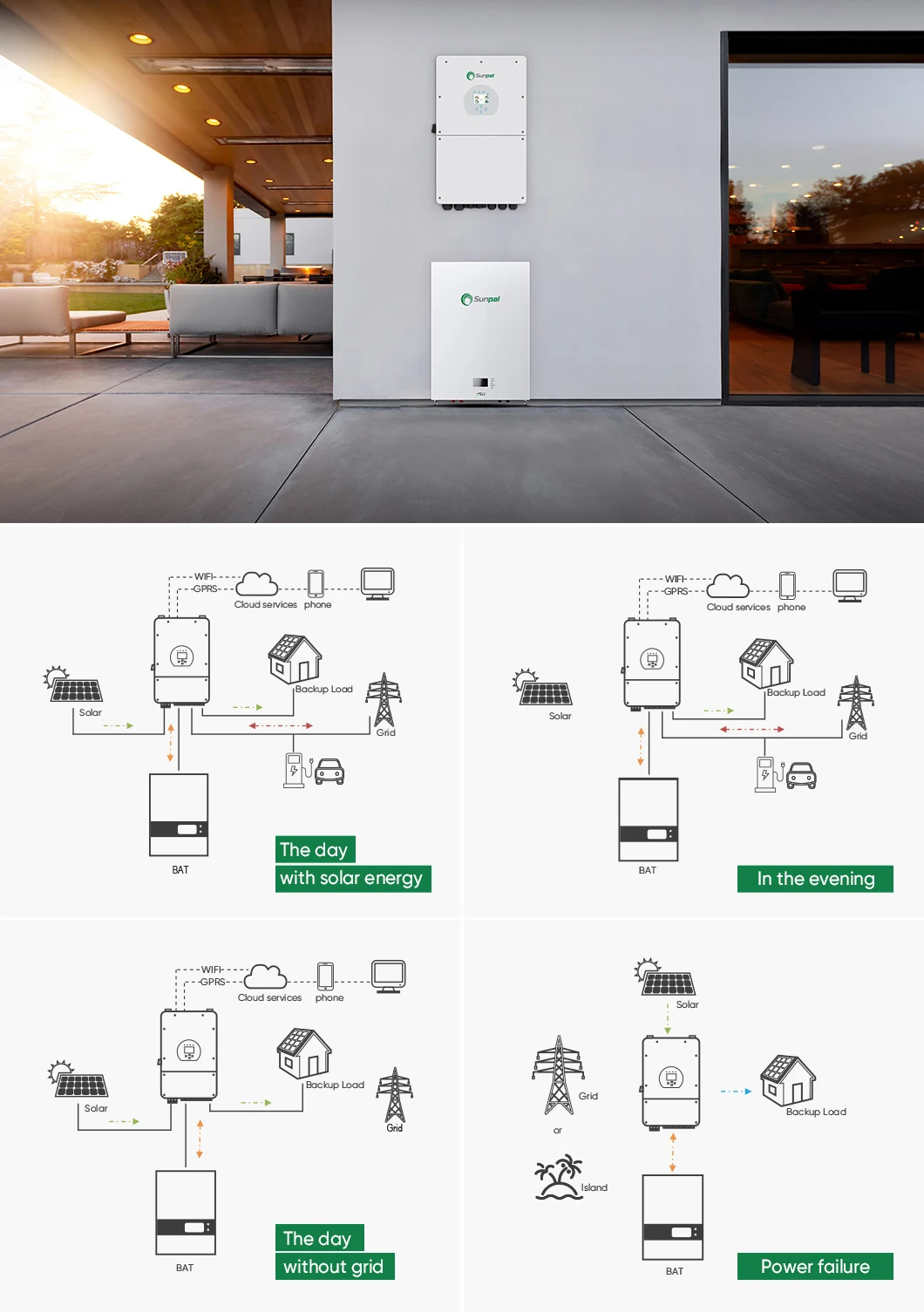

System Flowchart 1 System Flowchart 2
What's Included:
Model SP-3KW-HY SP-5KW-HY SP-10KW-HY
Half Cut Mono 550W Solar Panel 6 Pieces 10 Pieces 20 Pieces
DC Disconnect Switch 1 Piece 2 Pieces 3 Pieces
Hybrid Inverter SUN-3K-SG04LP1-EU SUN-5K-SG03LP1-EU SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery 5Kwh 5Kwh 10Kwh
DC Cable 4mm2 100 meter 200 meter 400 meter
AC Disconnect Switch 1 Piece 1 Piece 1 Piece
MC4 Connector 10 Pairs 10 Pairs 10 Pairs
Mounting System Customized Product Based On Installation Roof/Ground
PV Installation Tools 1 Set
Model SP-15KW-HY SP-20KW-HY SP-30KW-HY
Half Cut Mono 550W Solar Panel 30 Pieces 42 Pieces 63 Pieces
DC Disconnect Switch 4 Pieces 6 Pieces 9 Pieces
Hybrid Inverter SUN-5K-SG03LP1-EU (3 Pieces) SUN-10K-SG03LP1-EU (2 Pieces) SUN-10K-SG04LP3-EU (3 Pieces)
Wall Mounted LiFePo4 Battery 15Kwh 20Kwh 30Kwh
DC Cable 4mm2 600 meter 800 meter 1000 meter
Mounting System Customized Product Based On Installation Roof/Ground
PV Installation Tools 1 Set
System Components

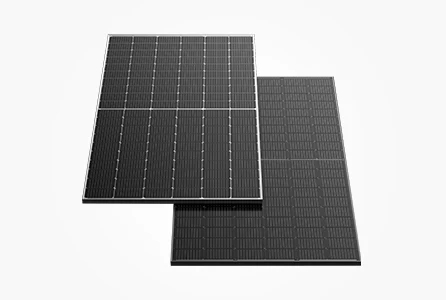

Half Cut Mono 550W Solar Panel
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm
Weight: 26.9Kg
Half Cut Mono 550W Solar Panel

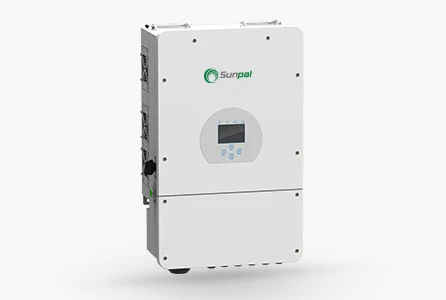

Hybrid Solar Inverter
Hybrid Solar Inverter
48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging.
Max.charging/discharging current of 240A Max.10pcs parallel.
DC couple and AC couple to retrofit existing solar system.

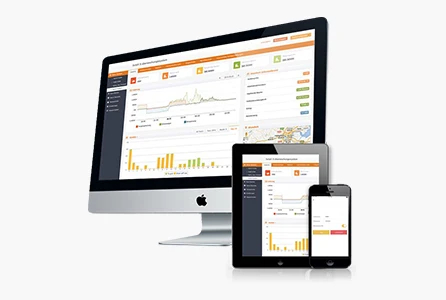

Monitoring System
Open station supports one-click installation and registration Problem support one-click dispatch and navigation.
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.
Monitoring System

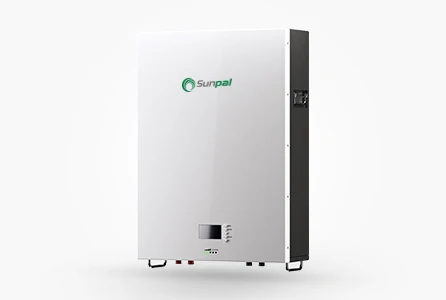

Wall Mounted LiFePo4 Battery
Wall Mounted LiFePo4 Battery
15-20 years design life.
Up to 6000 + cycle life.
Wall mount or ground stack brick, simply connecting to inverter.
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

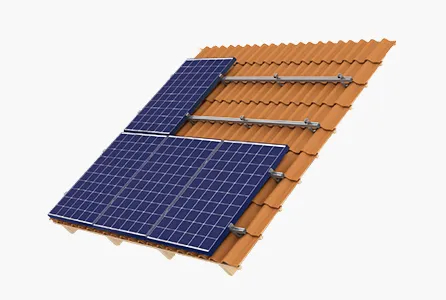

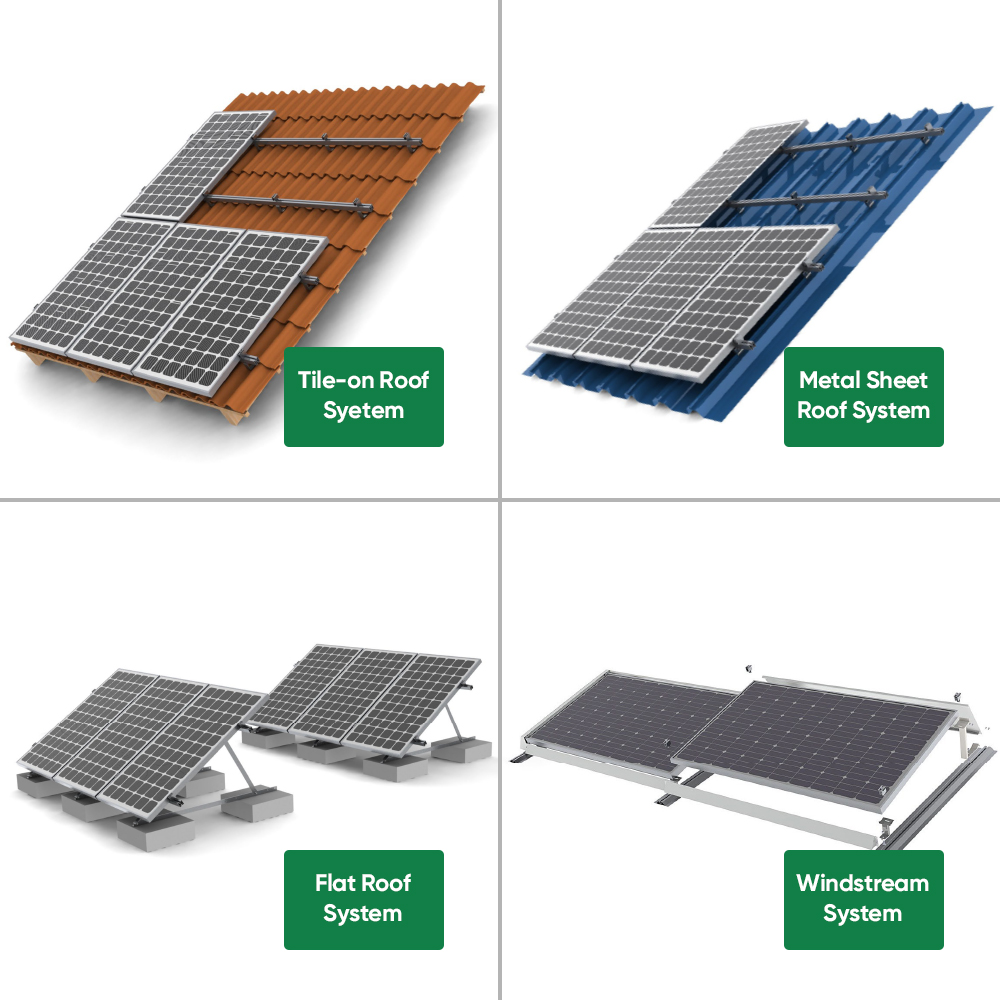

PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
PV Mounting System

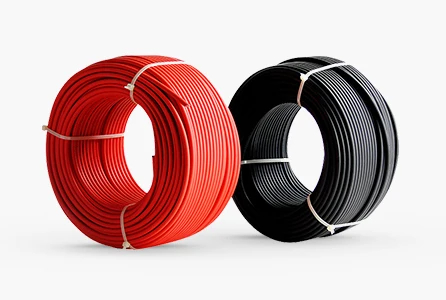

DC Cable & MC4 Connector
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2
Optional Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional
Life Time: ≤25 Years

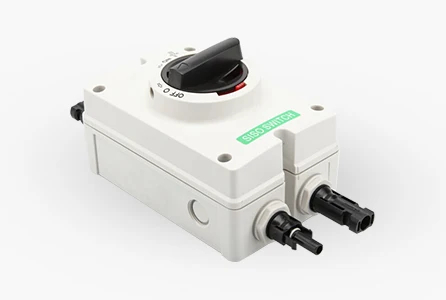

DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A
Disconnect Switch

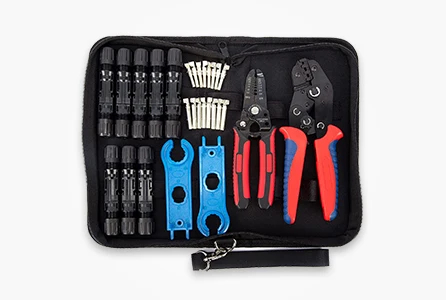

PV Tools
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Our Factory
Overview
As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products and solar panels. Focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, our factory area now covers 150,000 square meters, with 600 experienced employees.
Factory Overview

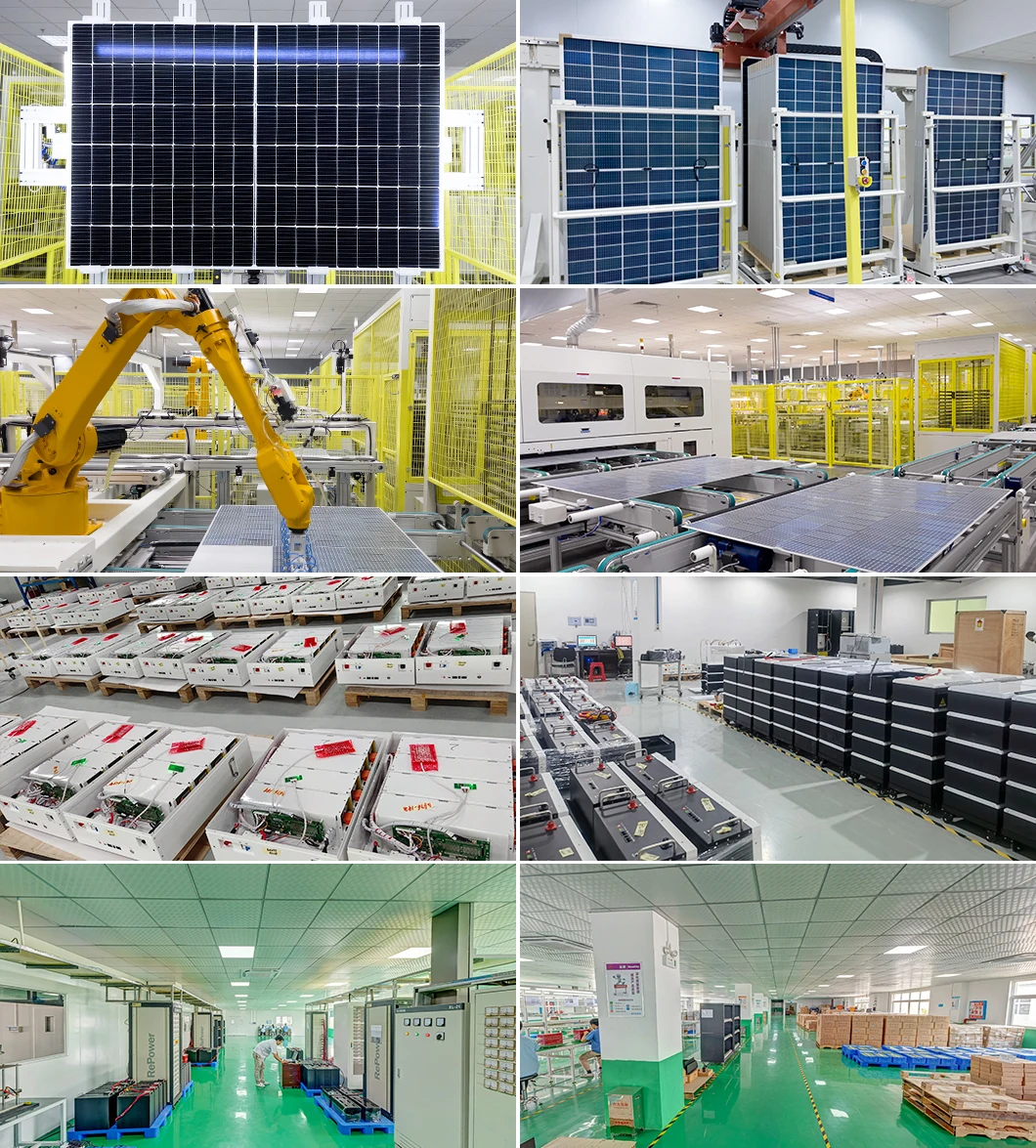

Production Process
Product Packing

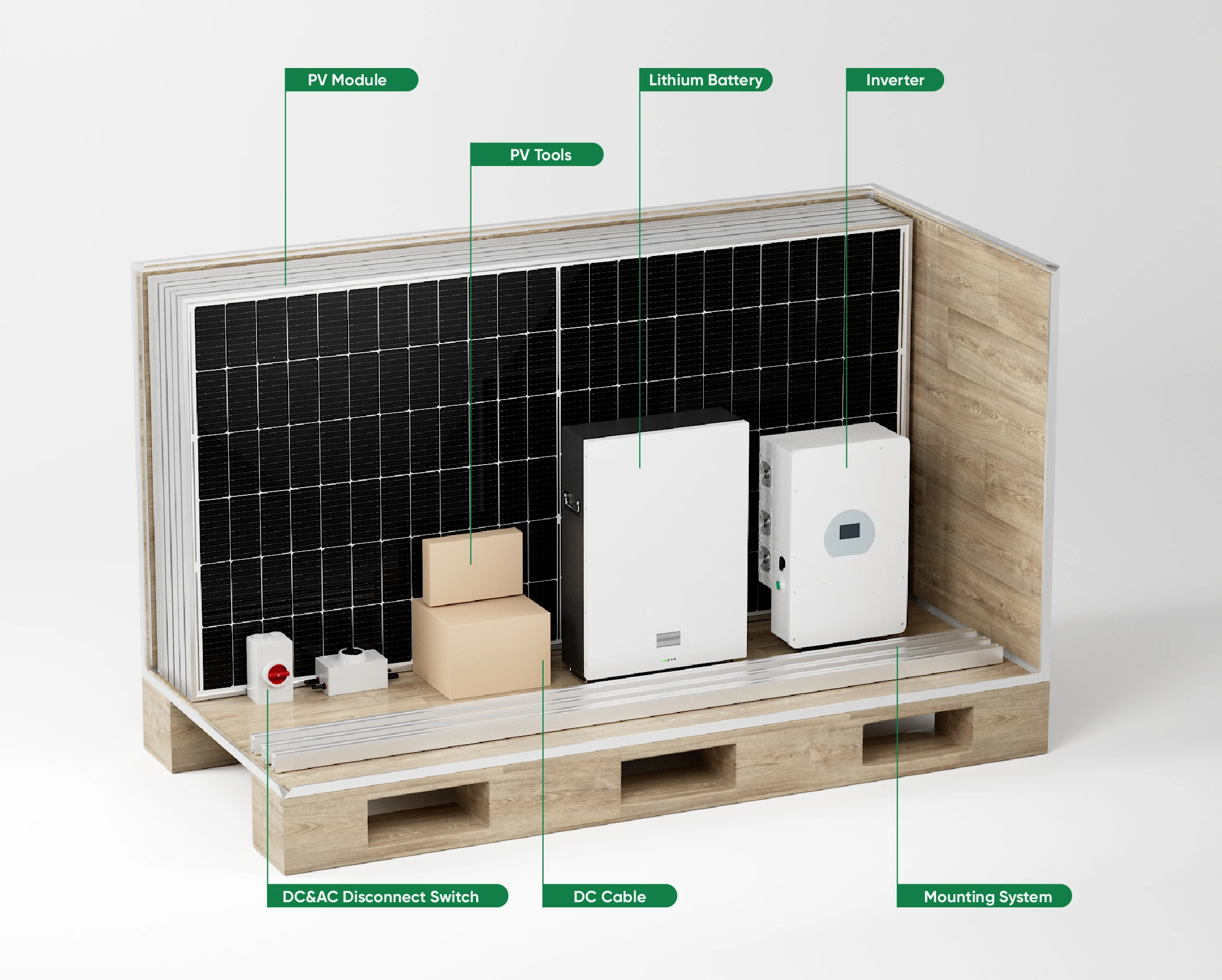

Product Packing Method 1 Product Packing Method 2

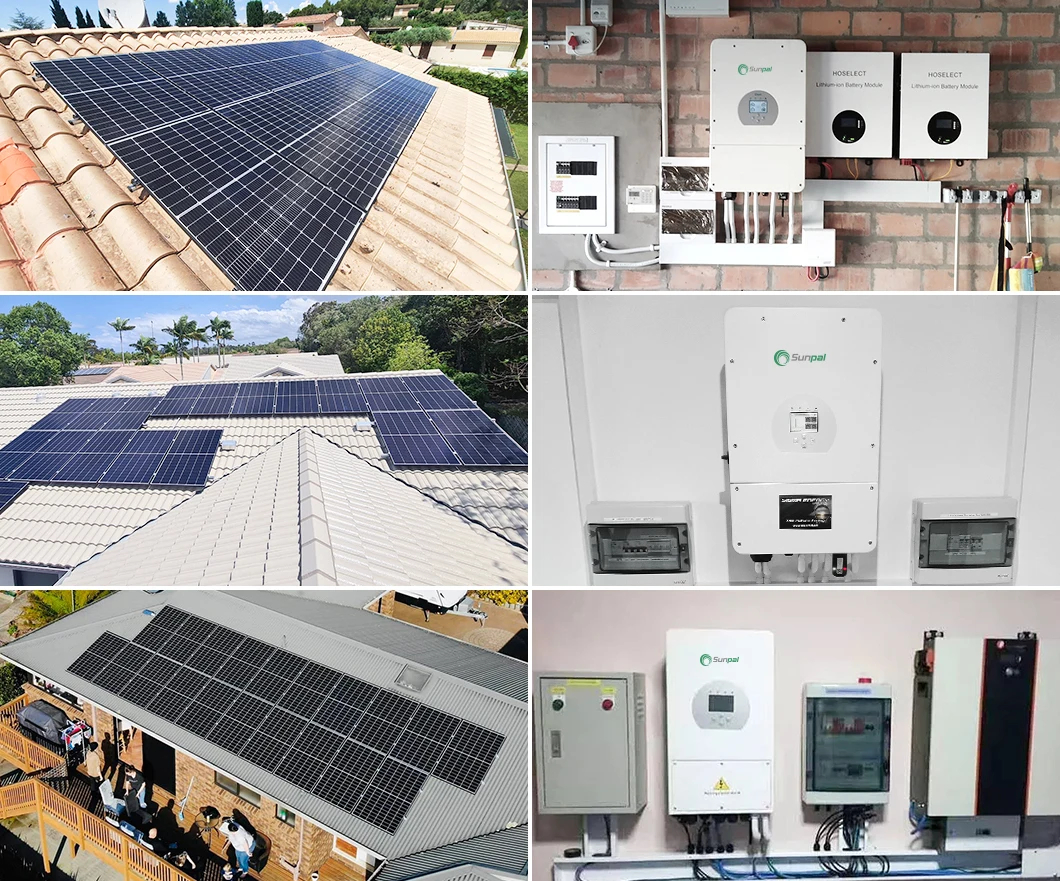

Project Cases
Solar Project Cases
Customer Photos
Customer Showcase
Frequently Asked Questions
Q1. How to solve technical problems?
A: We provide 24-hour after-service consultancy specifically to help resolve any of your technical problems easily and efficiently.
Q2. What is your delivery time?
A: For in-stock items, delivery takes 5-10 days after deposit receipt. If production is required, it typically ranges from 10-30 days, depending on the ordered quantity.
Q3. Why should we choose your products?
A: We offer reliable manufacturing experience, fully certified products (TUV, CE, IEC, CEC, INMETRO, ISO), stable customer payment terms, and PV modules with lower degradation rates than standard industry fields.
Q4. How to proceed with an order?
A: First, share your specific requirements or application. We will then quote according to your needs. Once samples are confirmed and deposit is made, we begin production.
Q5. Are the LiFePo4 batteries safe to store at home?
A: Yes, our batteries use Lithium Iron Phosphate cells, which are designed for high safety home storage. Every module includes a built-in high-quality BMS to protect battery cells under all conditions.
Q6. What is the design life of the wall-mounted batteries?
A: The batteries feature a design lifespan of 15-20 years with up to 6000+ cycle life, offering highly stable performance over their lifetime.
