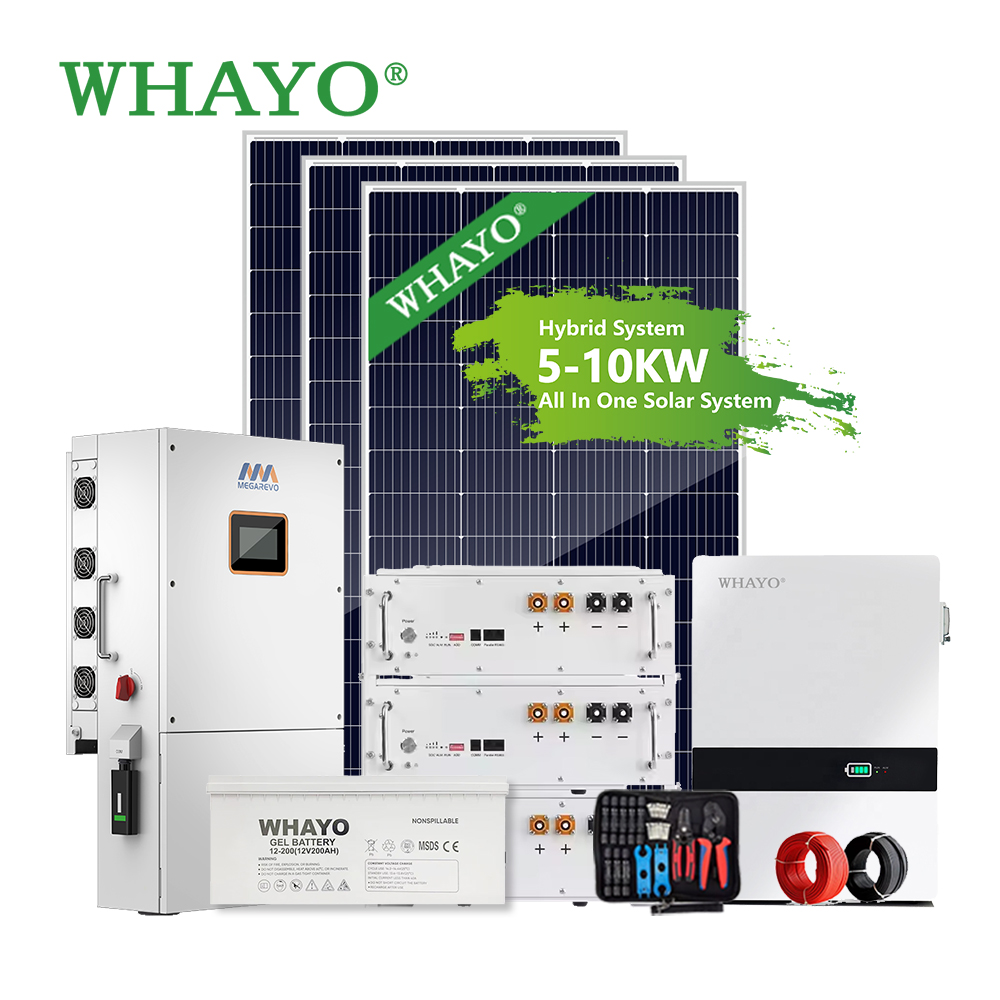

Whayo Home Use 10KW Solar Energy System with Battery 200ah 280ah 314ah Solar Power System Full Set UL

Product Description

Product Parameters

Feature	WY5KW-hybrid	WY8KW-hybrid	WY10KW-hybrid
Solar Module Capacity	580Wp/12pcs	580Wp/18pcs	580Wp/24pcs
PV Protection Combiner Box	2 Input 2 Output/1pc	2 Input 2 Output/1pc	3 Input 3 Output/1pc
Hybrid Inverter Power	5kW/1pc	8kW/1pc	10kW/1pc
Lithium Battery System	51.2V204Ah-10.44kWh/1pc	51.2V204Ah-10.44kWh/2pc	51.2V204Ah-10.44kWh/2pc
Mounting Bracket	Customized, Optional
PV Cable	4mm²/100m	4mm²/100m	4mm²/100m
PV Connector	MC4/10pcs	MC4/10pcs	MC4/20pcs
AC Protection Box	Customized, Optional

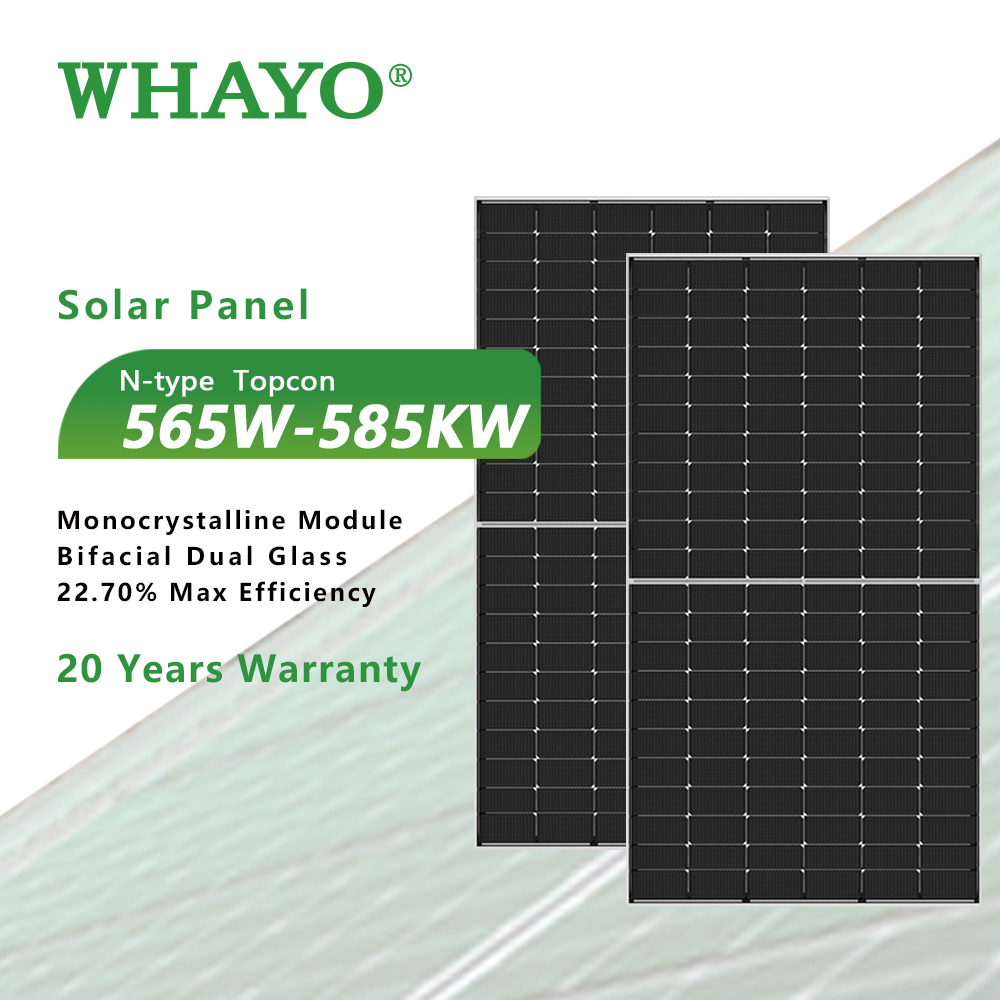

580W Topcon/Perc Mono Solar Panel

Monocrystalline Module Bifacial Dual Glass
Maximum Power: 42.59W
Maximum Power Current: 13.62W
Open Circuit Voltage: 51.47V
Short Circuit Current: 14.37A
Number of Cells: 144 pieces [6×24]
Dimensions: 2278x1134x30/35mm

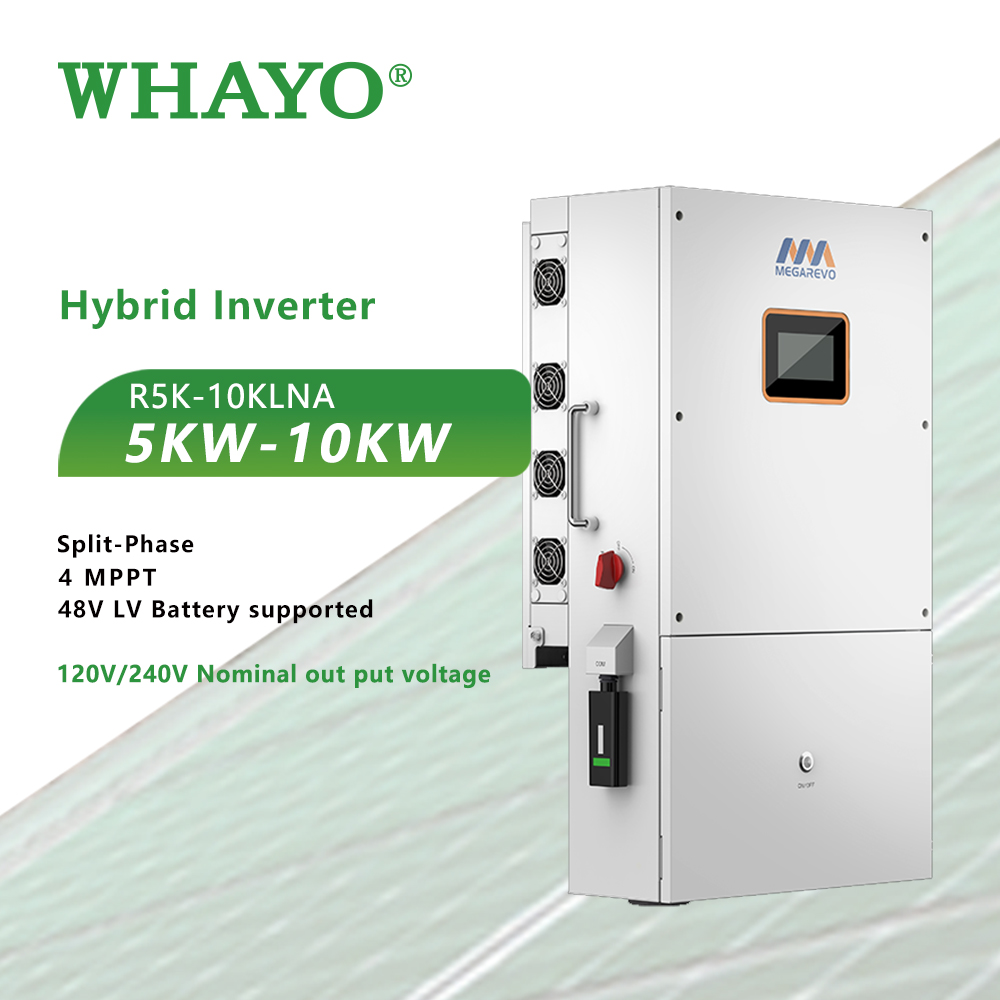

Solar Inverter

Split Phase Hybrid inverter (R5K-10KLNA)
Rated AC Power: 5000-10000W
Rated Voltage: 120V/240V
Rated Frequency: 60Hz (55 to 65Hz)
No. of MPP Trackers: 4

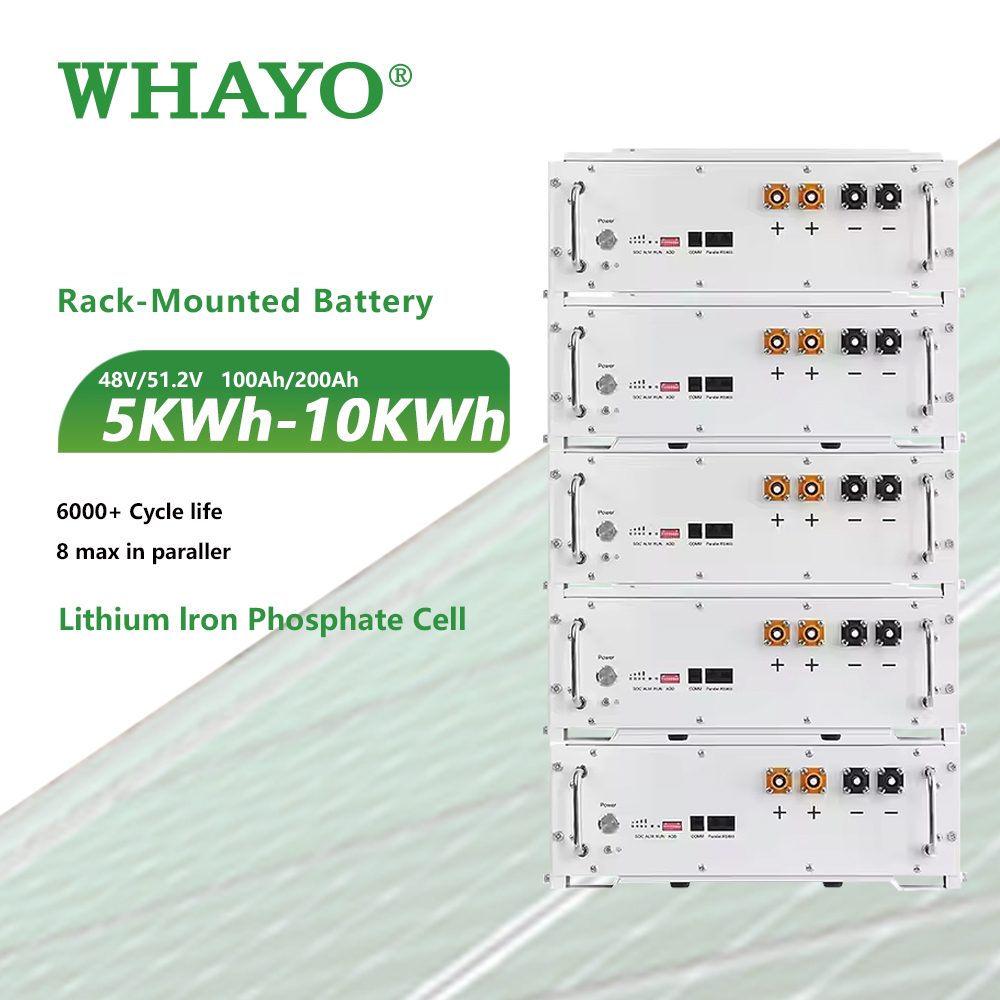

Solar Battery

Deep Cycle Long Lifespan LFP Battery
Stable High Discharge Performance
Class A Lithium Iron Phosphate Type
Over 6000 cycles at 90% DOD
Wide Ambient Temperature Range
Maintenance-free and Easy Installation

Systems Accessories

PV Combiner Box: Lightning Arrester, DC Breaker, Fuse, SPD (IP65)
PV Cables: 4mm² - 35mm² (Standard Black, Red Optional)
Cable Lifetime: 25 Years
Installation Modes: Roof, Ground, or Carport Mounting

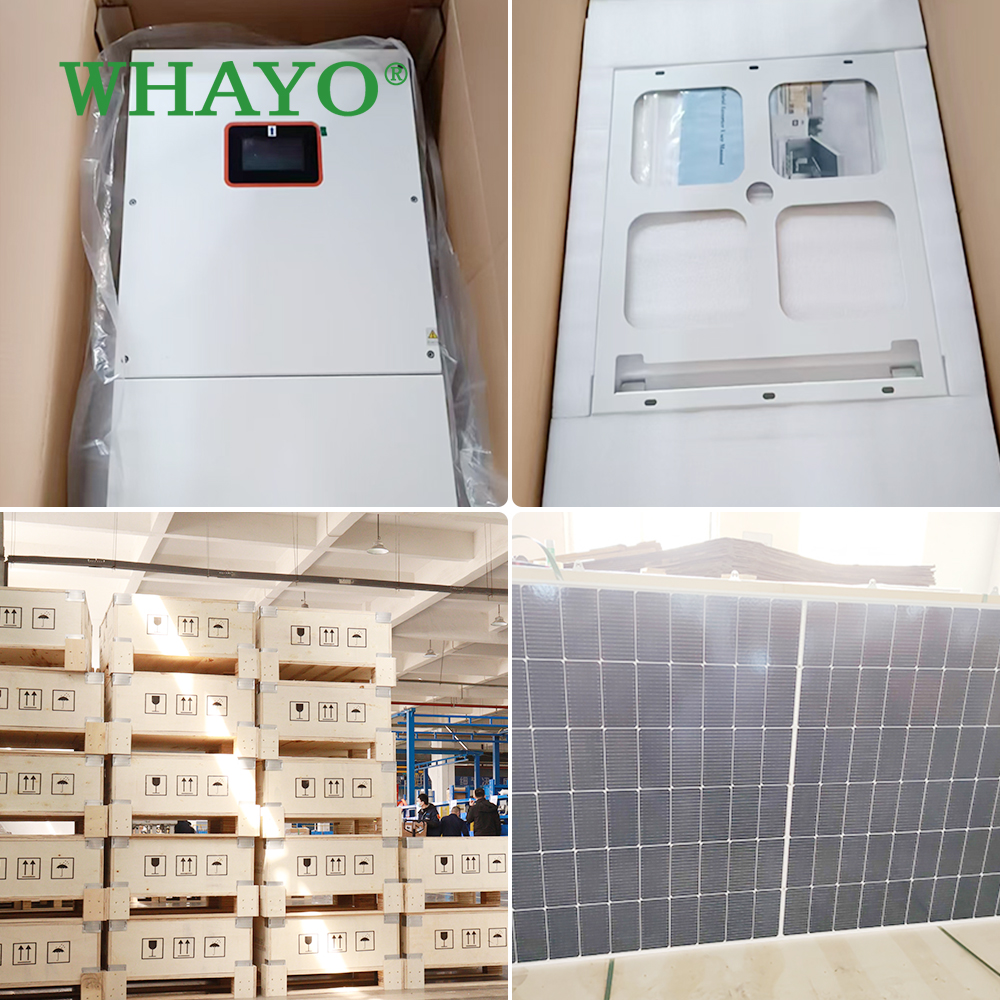

Packing & Delivery

Project Cases

Certifications

Company Profile

The company is a leading enterprise specializing in the research, development, sales, and service of solar panels, solar inverters, solar batteries, solar systems, and energy storage systems. We boast a high-quality R&D and management team along with advanced production and testing equipment. With a commitment to providing high-quality energy storage products and services to global customers, we have developed a number of independently patented core technologies. Our experienced staff are dedicated to strict quality control and thoughtful customer service. We have obtained CE, TUV, and ISO9001, ISO14001 certificates, and our products are exported to customers in Europe, America, Asia, etc. We also welcome OEM and ODM orders.

Frequently Asked Questions

Are you a factory or trading company?

We are a professional battery manufacturer with our own factory and brand. We provide various OEM/ODM services to customers all over the world.

Does the shipping way to our country include tax?

It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States, and Canada have tax-included shipping channels if needed.

How do I proceed with an order?

Firstly, let us know your requirements. Secondly, we quote according to your needs. Thirdly, the customer confirms samples and places a deposit. Finally, we arrange production and delivery.

What is your packaging like? Can I customize it?

We have standard factory packaging. Customized printed logos are available upon request; additional costs for customization will be handled based on specific requirements.

Can we visit the factory before placing an order?

Absolutely. We welcome customers to visit our factory facilities at any time to see our production process and quality control firsthand.

Do you support engineering assistance for specific applications?

Yes, whether selecting a current product from our catalog or seeking engineering assistance for your application, our service center is ready to discuss your requirements.
