| Parameter | |||
|---|---|---|---|
| No. | Item | Parameters | Note |
| 1 | Nominal capacity | 100Ah | |
| 2 | Rated voltage | 51.2V | 16S |
| 3 | Discharge cut-off voltage | 44.8V | |
| 4 | Charging cut-off voltage | 58.4V | |
| 5 | Continuous charge of the maximum current | 100A | |
| 6 | Energy content of battery | 5.1kWh | |
| 7 | Communication interface | RS485/CAN2.0 | |
| 8 | Discharge working temperature | -20°C - 50°C | |
| 9 | Charging working temperature | 0°C - 50°C | |
| 10 | Environmental working temperature | 0°C - 45°C | |
| 11 | Storage temperature | -10°C - 45°C | |
| 12 | Relative humidity | 5-90% | |
| 13 | Altitude | ≤ 2000m | |
| 14 | Life time | 10 years | |

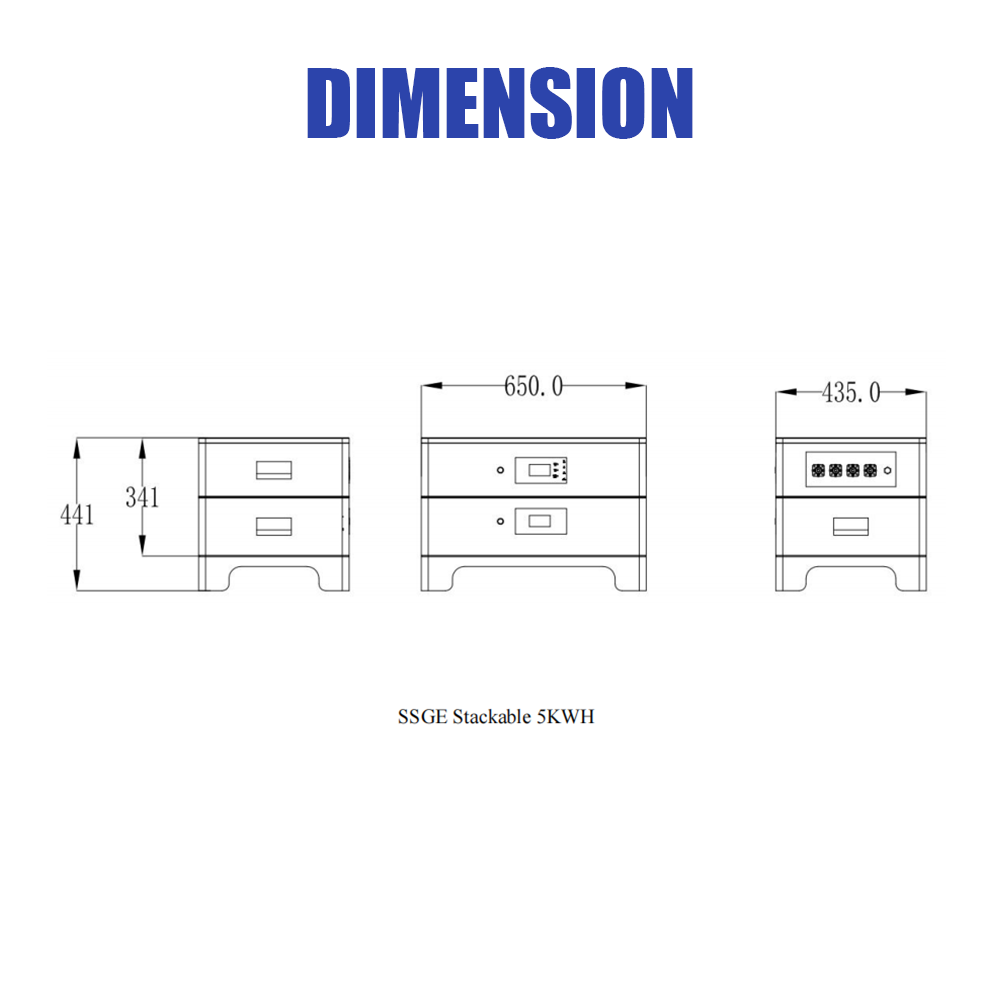

| 15 | Dimension | Height: 411mm, Width: 435mm, Length: 650mm | |
| 16 | Weight | About 50.5kg | |
| 17 | Cycle tube life | 10000 times | 100%DOD 25°C @ 70% RSOC |
